| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | M80 |
| Zoom Ratio | 8:1 |
| Magnification Range | 7.5×–60× (with 1× objective and 10× eyepieces) |
| Resolution | 309 lp/mm (at 60×, 1× objective) |
| Working Distance | 83.4 mm (with Plan Apochromat 1× objective) |
| Field of View | Ø98 mm (max, dependent on optical configuration) |
| LED Illumination | 6500 K color temperature, 50,000 h lifetime, fanless thermal management |
| Optical Design | Parallel optical path (Common Main Objective, CMO), multi-coated optics, lead-free housing |
| Electrostatic Dissipation | Surface resistivity 2×10¹¹ Ω/mm², discharge time <2 s (1000 V → 100 V) |
| Modular Interface | 8-position zoom detent slots for repeatable magnification settings |
| Objective Options | Achromatic (0.32×–2.0×), Plan Apochromat (0.8×–1.6×) |
| Eyepiece Options | Widefield 10×, 16×, 25×, 40× with adjustable eye cups and interpupillary distance |
| Ergonomic Modules | ErgoTube® and ErgoModules® with tilt angle 10°–50° |
| Software Compatibility | Leica Application Suite (LAS) |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DMLP |
| Optical System | Infinity-Corrected |
| Illumination | 12 V / 100 W Halogen (Transmitted & Reflected) |
| Eyepiece | 10×, FOV 22–25 mm |
| Observation Modes | Brightfield, Polarized Light, Optional DIC |
| Objective Turret | 5-Position, Centerable |
| Polarization Components | Rotatable Polarizer & Analyzer, Bertrand Lens, Conoscopic Viewing, λ/4 & λ/2 Retardation Plates, Adjustable Wedge Compensator |
| Objective Compatibility | Plan Achromat, Plan Semi-Apochromat, and Plan Apochromat Polarizing Objectives |
| Tube Configuration | Trinocular (Simultaneous Visual Observation & Imaging) |
| Software Compatibility | Leica Application Suite (LAS), Third-Party Image Analysis Platforms |
| Compliance | Designed for ISO 9001–certified manufacturing |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | M50 |
| Zoom Ratio | 5:1 |
| Magnification Range (with standard optics) | 6.3×–40× |
| Max. Total Magnification | 320× |
| Objective Types | Achromatic (0.32×–2.0×), Plan Achromatic (0.8×–1.6×) |
| Working Distance Range | 27.4 mm – 303 mm |
| Field of View Diameter | 5.75 mm – 116.8 mm |
| Resolution (at 40×) | 225 lp/mm |
| Numerical Aperture (1× objective) | 0.15 |
| Ergonomic Viewing Angle | 10°–50° |
| ESD Compliance | Surface Resistivity 2×10¹¹ Ω/mm², Discharge Time <2 s (1000 V → 100 V) |
| Optical Design | Common Main Objective (CMO), Parallel Light Path |
| Coating | Multi-layer anti-reflective coatings |
| Eyepieces | Wide-field 10×, 16×, 25×, 40× with adjustable eyecups and click-stop positioning |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM2500P |
| Optical Configuration | Transmitted & Reflected Light |
| Illumination | 12 V / 100 W Halogen |
| Focus System | Dual-Height-Adjustable Manual Coarse/Fine Focus |
| Objective Turret | 5-position, Centerable |
| Field of View | 25 mm |
| Observation Modes | Brightfield, Darkfield, Phase Contrast, DIC, Fluorescence (reflected), Orthogonal Polarization, Conoscopy |
| Polarization System | Standard or Advanced Bertrand Lens Module with Centering & Focusing Adjustment |
| Condenser | Manual or CDA-assisted, Polarization-optimized |
| Stage Options | 45°-click Rotation Stage, Optional Heating Stage |
| Objective Types Supported | Achromatic, Plan-Achromatic, Plan-Fluor, Oil Immersion |
| Software Compatibility | Leica Application Suite (LAS) X with Image Acquisition, Measurement & Analysis Modules |
| Compliance | Designed for ISO/IEC 17025-compliant laboratories |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM2700M |
| Illumination | White LED (4500 K) |
| Contrast Methods | Brightfield, Darkfield, DIC, Polarization, Oblique Illumination |
| Maximum Specimen Size | 100 × 100 mm |
| Maximum Specimen Height | 80 mm |
| Macro Viewing Field | Ø40 mm |
| LED Lifetime | ≥35,000 h |
| Focus Mechanism | Coaxial coarse/fine focusing with adjustable torque and integrated focus stop |
| Objective Turret | 5× or 6–7× BF/DF or BF/FLUO configuration |
| Compliance | CE, ISO 9001, ISO 13485 (as applicable to lab instrumentation), GLP-ready documentation support |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DMI LM |
| Optical System | HC Infinite Correction |
| Observation Modes | Brightfield, Polarized Light |
| Eyepieces | 10× (WF18), optional 12.5×/16×/25× |
| Objectives | 1.25×, 5×, 10×, 20×, 50×, 100×, 250× |
| Magnification Range | 50×–1000× (with 10× eyepiece) |
| Nosepiece | 4-position, M25 brightfield turret |
| Stage | 247 × 230 mm fixed platform, XY travel 60 × 40 mm |
| Focus Mechanism | Coaxial coarse/fine adjustment (7 mm up / 2 mm down) |
| Illumination | LED cold-light source (≥20,000 h lifetime), integrated polarizer/analyzer modules, removable filter sets |
| Camera Interface | C-mount |
| Tube | 30° inclined binocular tube, interpupillary adjustment 48–75 mm, 100% side-port photo output |
| Origin | Guangdong, China |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic (China) |
| Model | MST |
| Price | USD 2,100 (FOB) |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | EZ4HD |
| Zoom Ratio | 4.4:1 |
| Magnification Range | 8×–35× |
| Objective Zoom Range | 0.8×–3.5× |
| Eyepieces | 10×/20 mm field of view |
| Working Distance | 100 mm |
| Illumination | 7-LED modular system (incident, transmitted, oblique) |
| Camera | Integrated 3 MP CMOS sensor (2048 × 1536 resolution) |
| Software | Leica LAS EZ (with measurement, annotation, focus stacking modules) |
| Compliance | CE, RoHS, ISO 9001 manufacturing environment |
| Lifetime LED Source | >20,000 hours |
| Origin | Chongqing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |

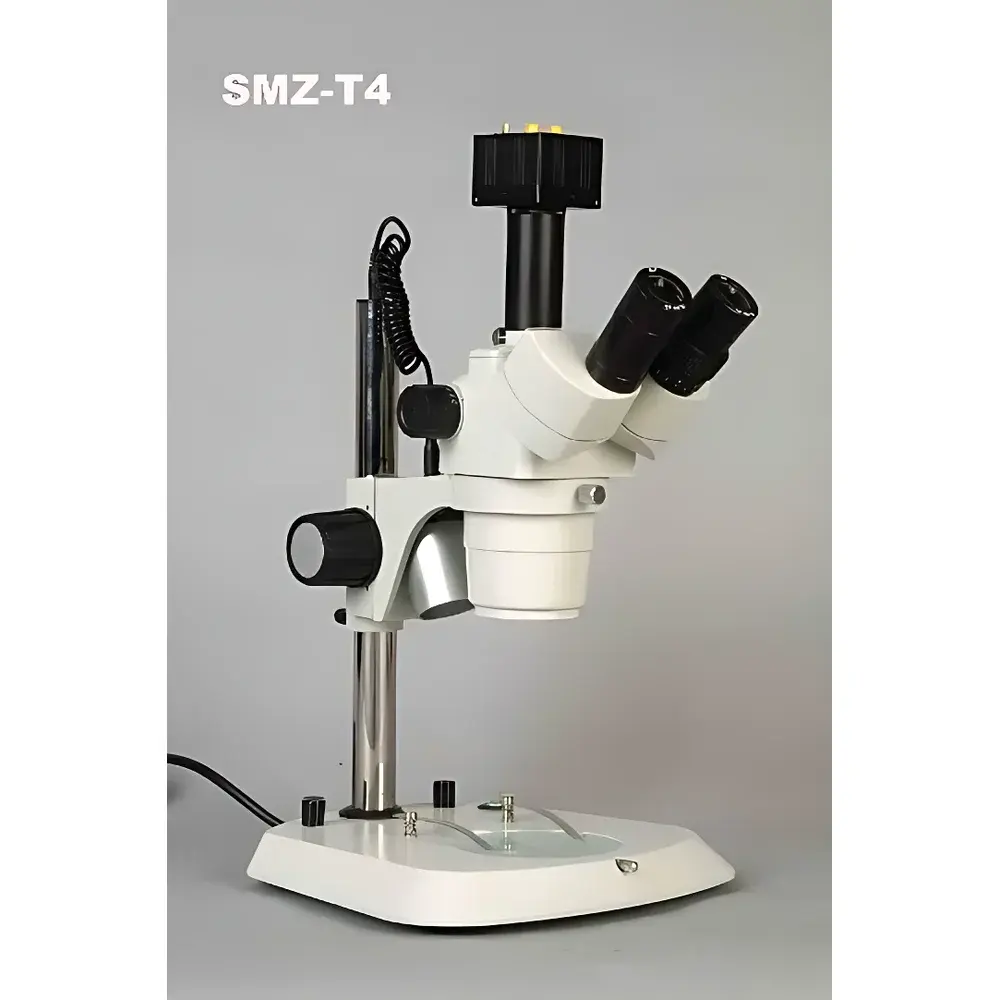

| Model | SMZ-T4 |
| Price | USD 495 (FOB Chongqing) |
| Zoom Ratio | 1:6.5 |
| Magnification Range | 7×–45× |
| Objective Zoom Range | 0.7×–4.5× |
| Eyepieces | Widefield WF10×/22 mm (High-Eyepoint) |
| Working Distance | 110 mm |
| Interpupillary Adjustment | 54–76 mm |
| Diopter Adjustment | ±5 D |
| Observation Head | 45° Inclined, 360° Rotatable |
| Illumination | Dual LED — Adjustable Brightness Reflected & Transmitted |
| Input Voltage | 220 V AC, 50 Hz |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM4000M |
| Imaging Interface | FireWire (IEEE 1394) |
| CCD Resolution Options | 1.3 MP to 12 MP |
| Color Depth | 14-bit |
| Illumination Modes | Reflected & Transmitted Light |
| Automated Components | Motorized Filter Turret (4-position), Encoded Revolving Nosepiece (6-position), Motorized Field & Aperture Diaphragms, Motorized Condenser, Auto-Intensity Management (Reflected & Transmitted), Precise CCT Stabilization |
| Observation Modes | Brightfield, Darkfield, Polarization, DIC, Phase Contrast (transmitted), Fluorescence (reflected) |
| Display | Integrated LCD Status Panel |
| Software Control | Leica Application Suite (LAS) X-compatible, Free Download Available |
| Compliance | Designed for ISO/IEC 17025-compliant labs, supports GLP/GMP audit trails via optional LAS X modules |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DMI 3000M |
| Type | Manual inverted metallurgical microscope |
| Illumination | 12 V / 100 W halogen lamp |
| Eyepieces | 10×, 25 mm field number |
| Objective turret | 5-position M32 manual nosepiece |
| Magnification range | 50×–1000× (depending on objective configuration) |
| Observation modes | Brightfield, darkfield, polarized light, oblique illumination |
| Stage | Ceramic-coated mechanical stage with >20 sample holders |
| Optical system | HC (Harmonic Contrast) apochromatically corrected optical path |
| Dual-camera ports | Side port (0%/100% or 80%/20% beam splitter) + trinocular tube port |
| Focus and stage controls | Ergonomically co-located left/right hand controls with thermal drift compensation chassis |
| Origin | Beijing |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic |

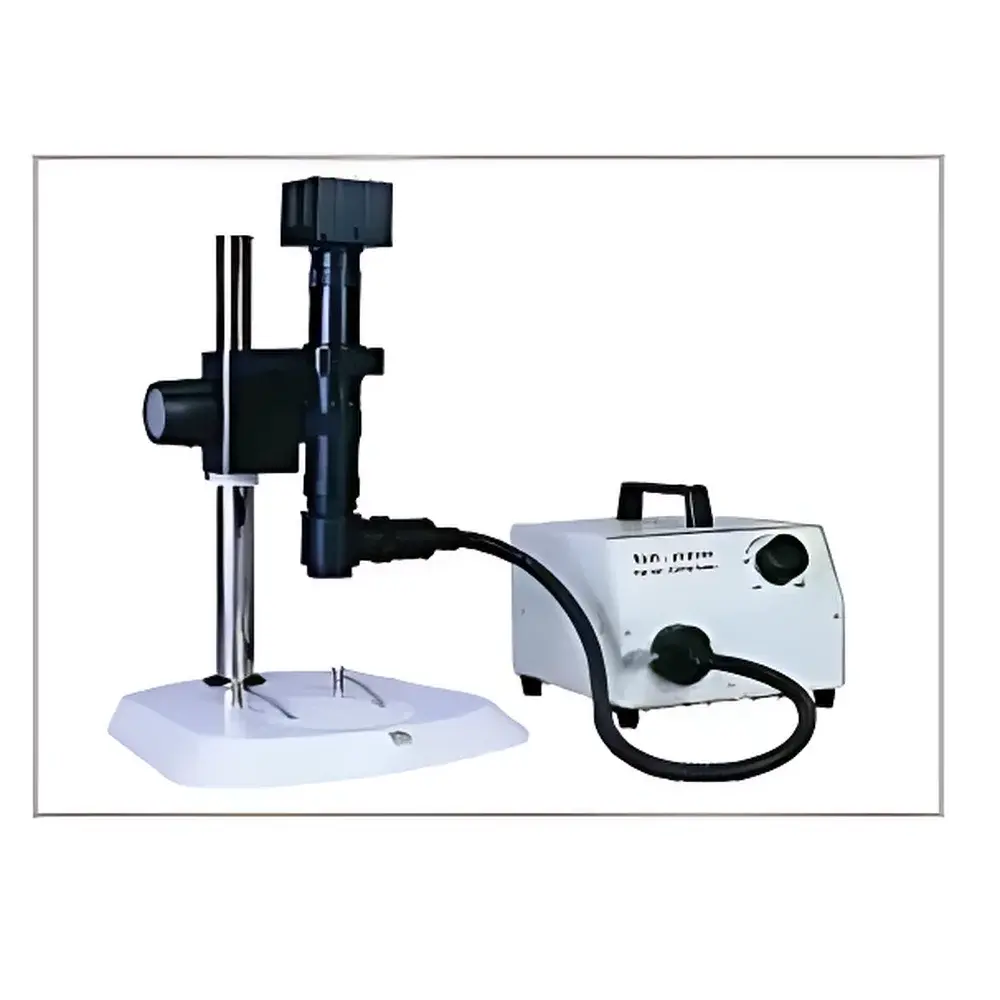

| Model | SPM |
| Price | USD 1,390 (FOB) |
| Magnification Range | 0.7×–4.5× continuous zoom (6.42:1 zoom ratio) |
| Objective Series Optical Magnification | 0.21×–360× |
| Working Distance | 30 mm–331 mm |
| Standard Configuration | 1× objective lens, 1× CCD eyepiece |
| Tube Diameter | Ø39 mm |
| Main Unit Length | 200 mm |
| Working Distance with 1× Objective | 96 mm |
| Planar Measurement Stage | 25 mm × 25 mm, resolution 0.01 mm |
| Eyepiece-Camera Adapter Interface | C-mount |
| Illumination | Coaxial fiber-optic light source with integrated polarizer/analyzer control |
| Adjustable Aperture Diaphragm | Steel-blade type, positioned between eyepiece and zoom body |
| Crosshair Reticle | Integrated between eyepiece and C-mount, displayed superimposed on live imaging output |
| Manual 3D Rotational Mount | 360° continuous rotation at objective end |
| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |

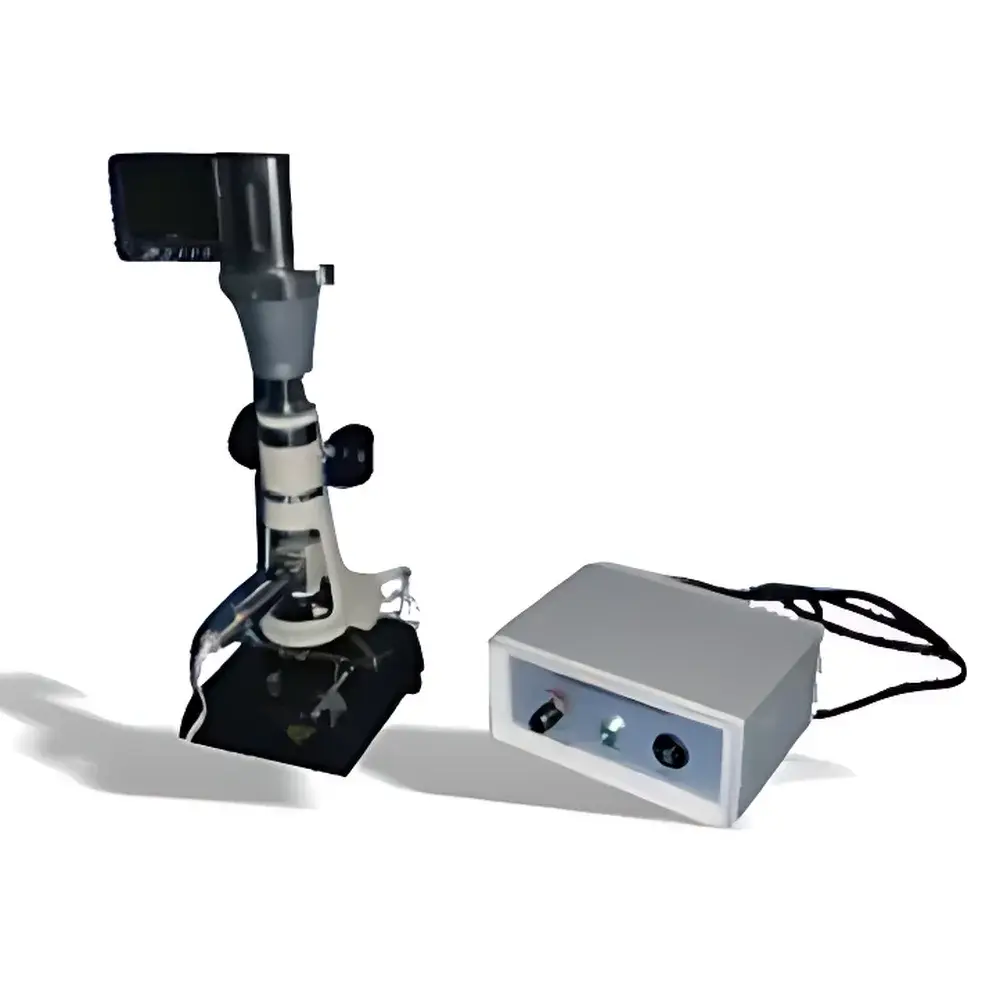

| Model | XLB-100 |
| Price | USD 1,600 (approx.) |
| Eyepieces | 10× (18 mm FOV), 12.5× (14 mm FOV) |
| Objectives | 4×/0.10 (WD 17.9 mm), 10×/0.25 (WD 6.5 mm), 40×/0.65 (WD 0.74 mm) |
| Total Magnification Range | 40×–500× |
| Illumination | Integrated 8 V / 9 W Tungsten Halogen Lamp with Continuously Variable Brightness Control |
| Base | Magnetic Mounting System for Ferromagnetic Surfaces |
| Weight | < 1.8 kg |
| Dimensions (L×W×H) | 195 × 85 × 140 mm |
| Origin | Guangdong, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | MDS-20 |
| Price | USD 2,500 (FOB Guangdong) |
| Optical System | Infinity-Corrected |
| Observation Modes | Brightfield (BF), Optional Polarized & Darkfield (BD) |
| Eyepieces | Widefield WF10X, Field Number Φ22 mm |
| Objectives | Infinity Long Working Distance Plan Achromatic (PL L series), BF or BF/BD variants |
| Focusing | Coaxial coarse/fine focus with lock and 2 µm fine adjustment increment |
| Stage | Mechanical XY stage (30 × 30 mm travel), rotatable circular plate (Φ130 mm max, central aperture <Φ12 mm) |
| Illumination | 6V/30W halogen (MDS-20), 12V/50W halogen (MDS-20BD), adjustable intensity, built-in field & aperture diaphragms, slider-mounted polarizer, ground glass + yellow/green/blue filters |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | S8 APO |
| Zoom Ratio | 8:1 |
| Magnification Range | 10×–80× |
| Viewing Angle | 38° |
| Eyepiece | 10× widefield |
| Objective | 1× apochromatic (APO) |
| Resolution (max) | 300 lp/mm at 80× |
| Resolution (2× objective option) | up to 600 lp/mm |
| Working Distance | 75 mm |
| Imaging Interface | C-mount |
| Optical Design | Greenough stereoscopic principle |
| Color Correction | Apochromatic (APO) light path |
| Photo/Video Path | 100% light split for simultaneous imaging and observation |
| Brand | Olympus |
|---|---|
| Origin | Japan |
| Model | SZ51 |
| Total Magnification | 40× |
| Zoom Ratio | 5:1 |
| Working Distance | 110 mm |
| Objective Type | 1× |
| Illumination | LED |
| Depth of Field | Compatible with C-mount camera systems |
| Eyepiece Angle | 45° |
| Interpupillary Adjustment Range | 52–76 mm (with WHSZ10× eyepieces) |
| LED Lifespan | 6,000 hours |
| Power Input | 100–120 V / 200–240 V AC, 50/60 Hz |
| Weight (Zoom Body) | 1.3 kg |
| Optical System | Greenough design |
| Environmental Compliance | Lead-free optical components |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM2700P |
| Illumination | High-power white LED (4500 K, transmission & incident light) |
| Objective Turret | 5-position centerable revolver |
| Conoscopy Options | Centerable Bertrand lens with integrated pinhole, pre-focused Bertrand lens cube with built-in analyzer |
| Compliance | Designed for ISO/IEC 17025-compliant routine testing environments |
| Software Compatibility | Leica Application Suite (LAS) X for documentation and analysis |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | M205 |
| Total Magnification | 1280× |
| Zoom Ratio | 7.8×–160× |
| Working Distance | 61.5 mm (with 1× Plan Apochromat objective) |
| Objective Type | Plan Apochromat |
| Illumination | LED5000RL Ring Light |
| Field of View | Ø59 mm (max), 1.44 mm (min) |
| Numerical Aperture | 0.35 |
| Resolution | 1050 lp/mm (max, with optimized optical configuration) |
| Viewing Angle | 30° trinocular tube |
| FusionOptics™ Technology | Standard (M205C/M205A) |
| Depth of Field Optimization | Dual-channel independent depth/resolution balancing |
| Encoding | Motorized or manual magnification encoding (model-dependent) |
| Optical Architecture | Common Main Objective (CMO), parallel beam path, lead-free housing (<2 s discharge time, surface resistivity 2×10¹¹ Ω/mm²) |
| Origin | Guangdong, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China-made) |
| Model | BK-POL |
| Price | USD 2,100 (FOB Guangdong) |
| Optical System | Infinity-Corrected |
| Eyepieces | Wide-Field 10× (FN 22 mm), Graticule 10× (0.10 mm/div) |
| Objectives | PL 4×/0.10 (W.D. 19.8 mm), PL 10×/0.25 (W.D. 5.0 mm), PL 40×/0.65 (spring-loaded, W.D. 0.66 mm), PL 60×/0.80 (spring-loaded, W.D. 0.45 mm) |
| Transmitted Illumination | 6 V / 30 W halogen lamp with continuous brightness control and 360° rotatable polarizer (calibrated at 0°, 90°, 180°, 270°) |
| Condenser | Abbe type, NA 1.25, adjustable iris diaphragm |
| Stage | Rotating mechanical stage, Ø150 mm, 360° vernier scale (6′ resolution), center-adjustable & lockable |
| Nosepiece | Quadruple, centering-adjustable |
| Analyzer | Built-in, switchable between brightfield and polarized modes, 90° rotation (12′ vernier scale) |
| Bertrand Lens | Push-in type, center-adjustable |
| Compensators | λ (full-wave), λ/4 (quarter-wave), and quartz wedge |
| Tube | Trinocular, 30° inclination, 100% light path to camera port |
| Focus | Coaxial coarse/fine focus with tension adjustment, locking mechanism, and limit stop |
| fine focus graduation | 2 µm |
| Optional Accessories | 20× and 100× oil immersion objectives (coverslip thickness 0.17 mm), mechanical stage with 30 × 25 mm travel, C-mount adapters (0.5×, 1×), USB digital cameras (1.3 / 2.0 / 3.0 MP), analog video output (380 / 520 TV lines), Canon EF & Nikon F lens mounts |
| Brand | De'ers / DS |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | MST-R |
| Price | USD 2,700 (approx.) |
| Configuration | Upright |
| Total Magnification Range | 50× to 1000× |
| Eyepieces | Wide-Field 10× (Φ22 mm) |
| Objectives | Infinity-Corrected Long Working Distance Achromatic Plan Objectives — 5×/0.12, 10×/0.25, 20×/0.40, 40×/0.60, 60×/0.70, 100×/0.85 (dry) |
| Focusing Mechanism | Coaxial coarse/fine adjustment with 2 µm fine-focus graduation, tension adjustment, and upper/lower limit locks |
| Stage Travel | 75 mm × 50 mm (mechanical), 30 mm vertical clearance |
| Illumination | Dual-path — reflected (epi-illumination) and transmitted (Köhler illumination via Abbe condenser NA 1.25) |
| Built-in Polarizing System | Rotatable polarizer and analyzer, push-pull configuration |
| Trinocular Tube | 30° inclination, 100% light path diversion for imaging |
| Certifications | Compliant with ISO 10934-1 (optical microscopy terminology), GB/T 22057–2008 (Chinese national standard for metallurgical microscopes) |
| Origin | Jiangsu, China |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic |
| Model | SMZ-B2 |
| Price | USD 395 (FOB) |
| Magnification Range | 2.1×–225× (with auxiliary lenses & eyepieces) |
| Zoom Ratio | 1:6.5 (0.7×–4.5× objective zoom) |
| Working Distance | 36 mm – 316 mm |
| Eyepieces | WF10×/20 mm, WF10×/22 mm, WF15×, WF20×, WF25×, 10× reticle |
| Auxiliary Objectives | 0.3×, 0.5×, 0.75×, 1.5×, 2× |
| C-Mount Adapters | 0.35×, 0.5×, 1× |
| Camera Interfaces | Nikon F-mount, Olympus OM-mount, Pentax PK, Minolta MD, Canon FD (via adapter) |
| Digital Imaging Options | DV130 (1.3 MP), DV200 (2.0 MP) USB cameras |
| Illumination | 12 V / 15 W adjustable halogen epi-illuminator with reflector bowl |
| Trinocular Port | 20% / 80% beam splitter, simultaneous visual and imaging output |
| Interpupillary Adjustment | 54–76 mm |
| Diopter Compensation | ±5 D |
| Head Inclination | 45°, rotatable 360° |
| Power Supply | 220 V AC, 50 Hz |
| Brand | Leica |
|---|---|
| Model | S4E |
| Optical System | Greenough |
| Zoom Ratio | 4.8:1 |
| Magnification (Standard) | 6.3×–30× |
| Field of View Diameter | 36.5 mm |
| Working Distance (Standard) | 110 mm |
| Eyepiece Angle | 38° |
| Numerical Aperture (Max) | 0.124 |
| Resolution (Max) | 372 lp/mm |
| ESD Protection | Surface Resistivity 2×10¹¹ Ω/sq, Discharge Time <2 s (1000 V → 100 V) |
| Interpupillary Distance | 55–75 mm |
| Eyepieces | 10×/23, 16×/16, 20×/12, 25×/9.5, 40×/6 |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM8000M |
| Illumination | Integrated High-Efficiency LED (Reflected & Transmitted) |
| Sample Stage | 200 mm × 200 mm (8″ compatible) |
| Objective Turret | Motorized 6-position |
| Macro Objective | 0.7× with 25 mm field of view |
| Optical Path | Achromatic-Corrected, 25 mm FOV Field Number |
| Observation Modes | Brightfield, Darkfield, Polarization, Differential Interference Contrast (DIC), Oblique Illumination, UV & OUV (Oblique UV) |
| UV Source | High-Power LED-based UV (365 nm), OUV-capable |
| Focus System | Motorized or Manual Coaxial Focus |
| Software Integration | Leica Application Suite (LAS X), Supports ASTM E112, ISO 9276, ISO 4497, USP <788>, and GLP/GMP-compliant metadata logging |
| Compliance | CE, ISO 13485–compatible design, FDA 21 CFR Part 11–ready audit trail (with LAS X Security Pack) |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM750P |
| Illumination | 35 W halogen lamp (2000 h lifetime) |
| Eyepiece | Widefield 10×, 20 mm field number, crosshair reticle with 90°/45° orientation marks |
| Objective Turret | 4-position, centerable, compatible with polarized objectives from 2.5× to 100× |
| Stage | 178 mm diameter circular stage with laser-etched scale |
| Camera Port | Trinocular head (50/50 beam splitter), C-mount standard |
| Optional Modules | Reflected-light illumination unit, Bertrand lens, fluorescence filter cubes |
Show next
