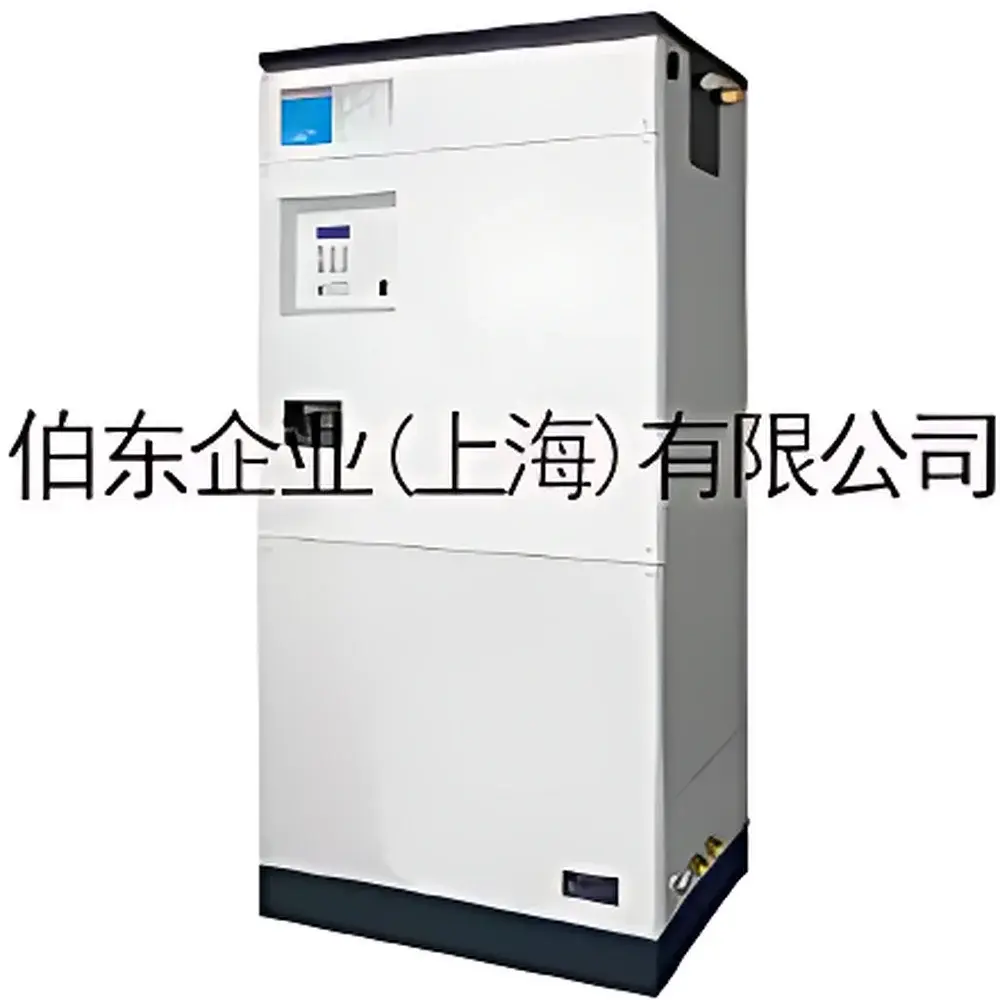

| Brand | Polycold |
|---|---|
| Origin | USA |
| Model | MaxCool 2500 L |
| Cooling Medium | Eco-friendly non-toxic refrigerant |
| Operating Temperature Range | –120 °C to –145 °C |
| Maximum Load Capacity | 2500 W |
| Water Vapor Pumping Speed (actual) | 140,000 L/s |
| Ultimate Vacuum | 1 × 10⁻⁹ mbar |
| Startup Pressure Limit | 1 atm |
| Defrost Time | 4.0 min |
| Cold Surface Area | 1.4 m² |
| Single-Loop Configuration | 16 mm OD × 27.9 m coil |
| Cooling Water Flow Rate (at 13 °C/26 °C/29 °C) | 13.6 / 27.3 / 54.1 L/min |
| Noise Level (max) | 68 dB(A) |
| Footprint (min) | 0.403 m³ |
| Weight | 544 kg |
| Compliance | Designed for integration with ISO/IEC 17025-compliant vacuum systems |
| Brand | inTEST-Thermonics |
|---|---|
| Origin | USA |
| Type | Integrated Circulating Chiller |
| Cooling Method | Water-Cooled |
| Temperature Range | –80 °C to +200 °C |
| Temperature Stability | ±0.1 °C |
| Refrigeration Capacity | Up to 15 kW @ 20 °C |
| Circulating Pump Pressure | 2 bar (max 50 PSIG) |
| Flow Rate | 38 L/min |
| Reservoir Volume | Not specified |
| Compatible Heat Transfer Fluids | Syltherm XLT (for –40/–60 °C), HFE-7100 (for –80 °C), HFE-7500, KRYO 60, PEG-based glycols |
| Certifications | ISO 9001, ITAR |

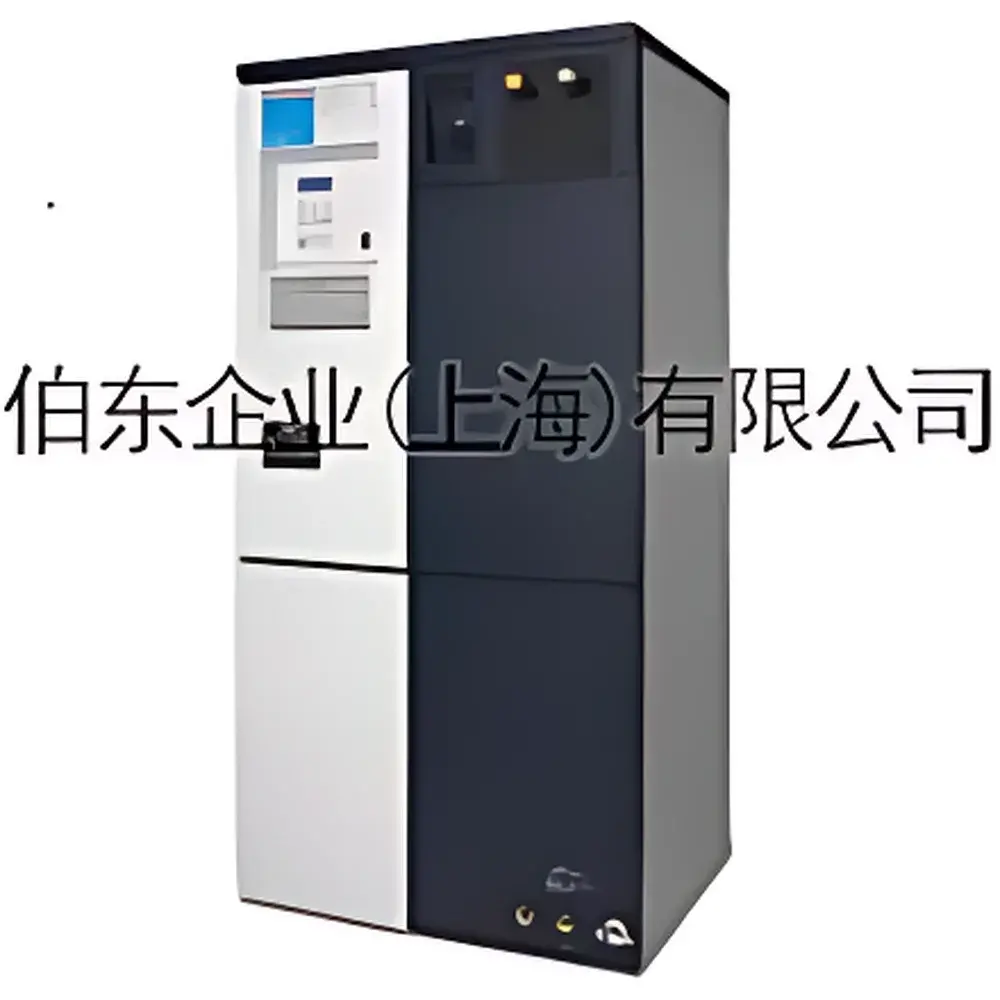

| Brand | Polycold |
|---|---|
| Origin | USA |
| Model | MaxCool 4000 H |
| Cooling Method | Water-Cooled |
| Circulating Pump Pressure | 7 × 10⁻⁸ mbar |
| Refrigeration Capacity | 4000 W |
| Condensing Surface Area | 2.2 m² |
| Cold Trap Tube Diameter | 16 mm |
| Single-Loop Tube Length | 43 m |
| Dual-Loop Tube Length | 2 × 21.9 m |
| Standard Cold Finger Length | 2.44 m |
| Cooling Water Flow Rate (at ΔT = 13°C/26°C/29°C) | 13.6 / 27.3 / 54.1 L/min |
| Noise Level | ≤78 dB(A) |
| Dimensions (Min. Footprint) | 34 m³ |
| Weight | 533 kg |
