Showing 1–30 of 95 results
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Model | CCS |
| Operating Mode | Steady-State |
| Spectral Range | 350–2400 nm |
| Correlated Color Temperature | 5250 K |
| Beam Divergence | <3° |
| Illuminated Area Diameter at 3 m | 20 cm |
| Irradiance Uniformity | ≥98% |
| Typical Irradiance at 3 m | ~1000 W/m² (AM1.5G equivalent) |
| Control Interface | Software-Driven Digital Control System |
| Light Source Technology | Multi-Lamp Plasma-Based Architecture |
| Compliance | Designed to meet ASTM E927-23, IEC 60904-9 Ed. 3, ISO 9276-2 for spectral match and spatial uniformity requirements |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

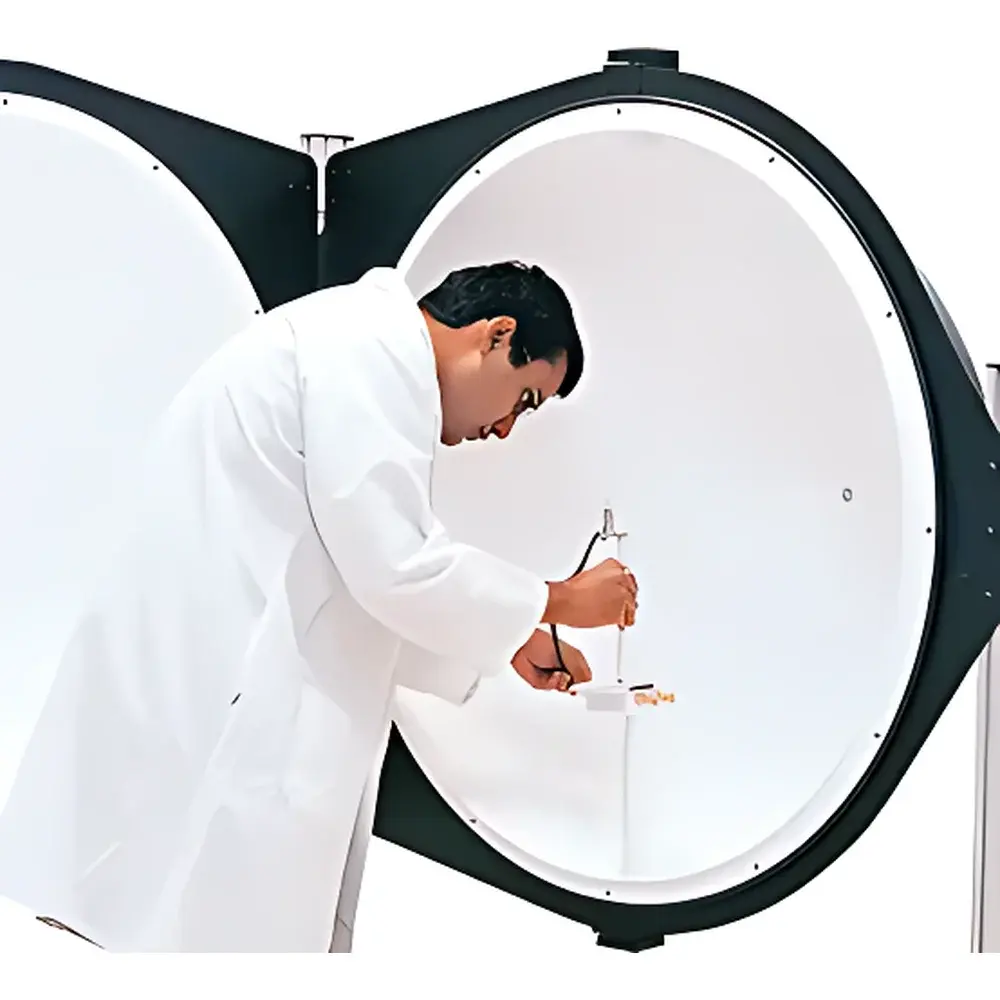

| Model | CSLMS-4021 |
| Pricing | Available Upon Request |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported |
| Model | HELIOS |
| Price Range | USD 14,000 – 21,000 (FOB) |
| Light Source Type | Broadband Xenon-Arc-Based Integrating Sphere Source |
| Illumination Mode | External Illumination Configuration |
| Spectral Range | 350–2500 nm (Standard Configuration) |
| Uniformity | ≥98% over Target Area |
| Stability | ≤0.5% RMS over 8 hours |
| Control Interface | Ethernet + RS-232 |
| Software Compatibility | LabVIEW™ API, SCPI Command Set |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Model | ILT2400 UVGI-NB |
| Calibration | NIST-traceable, ISO/IEC 17025:2017 accredited at 254 nm |
| Spectral Response | Optimized for 254 nm narrowband UVC sources (e.g., low-pressure mercury lamps) |
| Irradiance Range | 4.0 × 10⁻⁷ W/cm² (0.4 µW/cm²) to 4 W/cm² |
| Dose Range | 4.0 × 10⁻⁷ J/cm² (0.4 µJ/cm²) to >10⁶ J/cm² |
| Detector Type | SiC photodiode with integrated XSD14T254 flat-profile sensor (15 mm H × 42 mm Ø) |
| Electrical Range | 50 pA to 1 mA photocurrent |
| Dynamic Range | 8 decades |
| Display | 4.3″ VGA capacitive color touchscreen |
| Bias Voltage | 5 V reverse bias |
| Data Storage | 4 GB internal |
| Interface | USB Micro (data download), USB Mini (charging & remote logging via DataLight III) |
| Operating Temperature | 0–40 °C |
| Dimensions (meter) | 41 mm H × 76 mm W × 152 mm L |
| Sensor Cable Length | 2.13 m (7 ft) |
| Compliance | CE-marked for EMC (no RF emission interference), RoHS compliant |
| Software | DataLight III (Windows/macOS compatible), supports audit trail, CSV export, real-time graphing, and GLP-compliant session logging |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Model | ILT2400-UVC |
| Detector Type | SED270C/W SiC Photodiode |
| Spectral Range | 230–280 nm |
| Peak Sensitivity | 265 nm |
| Irradiance Range | 100 nW/cm² to 1 W/cm² |
| Dose Range | 100 nJ/cm² to >1 MJ/cm² |
| Calibration | ISO/IEC 17025 Accredited, NIST-Traceable |
| Display | Integrated Touchscreen Interface |
| Connectivity | USB Mini & Micro (Data Transfer + Charging) |
| Software | Datalight III (macOS & Windows Compatible) |
| Enclosure | Rugged Carry Case with Integrated Stand |
| Detector Cable Length | 2.1 m (7 ft) |
| Optical Element | Fused Silica Diffuser |
| Filter | Built-in UVC Bandpass Filter |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Model | INFRAGOLD® |
| Laser Damage Threshold | ≥19.3 J/cm² @ 10.6 µm (CO₂, 10 ns pulse) |
| Substrate Compatibility | Aluminum, Nickel, Iron, Copper, Tungsten |
| Application Range | 250 nm – 25 µm (peak performance: 1000 nm – 12 µm) |
| Brand | Labsphere |
|---|---|
| Model | ACR |
| Origin | Shanghai, China |
| Light Source Type | Tunable Integrating Sphere Source (Xenon/Mercury-Hybrid Capable) |
| Illumination Geometry | Internal Illumination |
| Color Temperature Range | 2000 K – 10000 K (CCT-adjustable) |
| Spectral Output | Programmable to CIE Standard Illuminants (A, D50, D65, D75, etc.) |
| Luminance Range | 0.01 – 100,000 cd/m² (adjustable) |
| Viewing Angles | 0°, 15°, 30°, 45° (symmetrical left/right ports |
| Detector Platform | Motorized Linear Rail with Sub-millimeter Positioning Accuracy |
| Compliance Standards | ICDM, VESA DisplayHDR™, NIST IR 6738, ISO 9241-307, CIE S 023/E:2022 |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Model | AUX |
| Component Category | Light Source |
| Compatible Power Supply | Adjustable Labsphere Power Supply |
| Software Compatibility | LightMtrx® |
| Nominal Current Ratings | AUX-35 (3.07 A), AUX-50 (4.17 A), AUX-100 (8.33 A) |
| Mounting | 1-inch flange interface |
| Replacement Lamps | OC-03150-000 (AUX-35), OC-03161-000 (AUX-100) |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Model | Blue Sun |
| Light Source Type | Xenon-based broadband solar simulator |
| Illumination Mode | External illumination |
| Spectral Range | 400–2500 nm |
| Output Stability | <0.5% RMS over 8 hours |
| Spectral Smoothness | <1.5% spectral gradient in visible range |
| Calibration Interval | ≥12 months (under recommended operating conditions) |
| Lifetime | ≥2000 hours (xenon arc lamp, typical) |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | COLOSUS System |
| Price Range | USD $65,000 – $105,000 |
| Spectral Range | 0.3–14 µm |
| Calibration Traceability | NIST-traceable radiance/irradiance |
| Dynamic Range | >1×10¹⁰ |
| Uniformity | >98% (spatial) |
| Blackbody Temperature Range | −40 °C to +175 °C |
| Blackbody Emissivity | >0.998 |
| Temperature Stability | ±0.01 °C |
| Aperture Size | 4 in (102 mm) |
| Software Platform | IRWindows™ 4 |
| Brand | LabSphere |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | CSS |
| Price Range | USD 7,000 – 14,000 |
| Beam Divergence | <3° |
| Working Distance | 3 m |
| Illuminated Area Diameter at 3 m | 20 cm |
| Irradiance Uniformity | ≥98% |
| Spectral Range | 350–2400 nm |
| Correlated Color Temperature | 5250 K |
| Typical Irradiance at 3 m | 10,000 lux (≈1 Sun, AM1.5G equivalent) |
| Control Interface | PC-based software with real-time intensity adjustment |
| Brand | Labsphere |
|---|---|
| Model | CSS-04-010 |
| Material | Spectralon® (PTFE-based diffuse reflectance standard) |
| Diameter | 1.25 in |
| Colors | Red, Green, Blue, Yellow |
| Reflectance Uniformity | < ±0.2% across surface |
| Angular Independence | Lambertian behavior (±0.5° viewing angle tolerance) |
| Thermal Stability | –40 °C to +80 °C |
| Cleanability | Water-rinsable, non-abrasive wipe compatible |
| Compliance | NIST-traceable calibration available (optional) |
| Origin | USA |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported |
| Model | CSTM-CM-PD |
| Price Range | USD 1,400 – 140,000 |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | CSTM-LPMS |
| Price Range | USD $1,200 – $65,000 |
| Brand | Labsphere |
|---|---|
| Model | CSTM-QES |
| Origin | Shanghai, China |
| Excitation Wavelengths | 308, 365, 405, 455, 535, 590, 740 nm |
| Integration Sphere Diameter | 6 inch (152 mm) |
| Internal Coating | Spectraflect® |
| Excitation Spot Size | ≤6 mm diameter at 7 mm working distance |
| Spectrometer | CDS2600 (350–1050 nm, 1 nm spectral resolution) |
| NIST-Traceable Calibration Standard | 2Pi-1-INT-050 |
| Sample Types | Thin films, powders, liquid solutions |
| Measurement Mode | DC (steady-state) |
| Software | Custom-developed PLQE analysis suite supporting direct and AM (Absorption-Modified) methods |
| Compliance | NIST-traceable radiometric calibration, ISO/IEC 17025-aligned measurement traceability framework |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | CSTM-RC |
| Wavelength Range | 300–1100 nm |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Model | CSTM-RTC |
| Coating Options | Spectraflect® (300–2400 nm), Infragold® (0.7–20 µm) |
| Port Configuration | Five 1-inch ports (sample & 9° specular-reflected beam), 0.5-inch top detector port, bottom detector port (RTC), integrated central sample mount |
| Geometry | 9°/h reflectance, variable-angle incidence capability (RTC), specular trap included |
| Internal Baffle Design | Low-profile, minimized obstruction to maximize wall visibility |
| Aperture Edge | Knife-edge for wide-angle scatter collection |
| Compliance | ASTM E1331, ISO 13468, ISO 13469, USP <857>, compatible with GLP/GMP data integrity workflows |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | CSTM-VCSEL-PW-060-LIVT |
| Pricing | Available Upon Request |
| Integrating Sphere Material | Spectralon® / Spectraflect® / Permaflect® |
| Sphere Diameter | 6 in (customizable) |
| Input Port Diameter | 1.5 in (customizable) |
| Spectrometer Wavelength Range | 800–980 nm |
| Spectral Resolution (FWHM) | 0.1–0.16 nm |
| Wavelength Accuracy | ±0.1 nm |
| Maximum Sampling Rate | 200 kHz |
| Optical Power Range (Spectralon®, 940 nm) | 1 mW – 200 W |
| High-Speed Detector Linearity | ±0.5% |
| Detector Measurement Accuracy | ±1% |
| Detector Effective Digits | 5 |
| VCSEL Temperature Control Range | 1–85 °C |
| Temperature Stability | ±0.1 °C |
| Brand | Labsphere |
|---|---|
| Model | FOL-150-S |
| Light Source Type | Quartz-Tungsten-Halogen (QTH) |
| Output Power | 150 W |
| Spectral Range | 350 nm – 1000 nm (QTH core), extended usable range 400 nm – 1600 nm via fiber transmission |
| Fiber Interface | SMA 905 connector |
| Integrated Hot Mirror | Yes |
| Compatibility | Designed for Labsphere integrating spheres (e.g., RSA, UV-VIS-NIR series) |
| Cooling | Forced-air convection |
| Dimensions (H×W×D) | 140 × 220 × 320 mm |
| Weight | 4.8 kg |
| Regulatory Compliance | CE, RoHS, UL-listed power supply |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | FS2 |
| Pricing | Upon Request |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | GPS |
| Configuration | Solid-State Laser Sources & Integrated Measurement Subsystem |
| Optical Coating Options | Spectraflect®, Infragold®, or Spectralon® |
| Wavelength Range | 200–5000 nm (UV-Vis-NIR-MIR) |
| Beam Acceptance Angle | Up to ±40° half-angle |
| Cooling | Optional water-cooling module with user-selectable chiller integration |
| Detector Compatibility | Dual-detector or dual-spectrometer mounting interface |
| Attenuation | Polarization-insensitive neutral-density filtering |
| Target Plate | Integrated laser diffuser plate for beam energy dispersion |
| Thermal Management | Active heat dissipation architecture for sustained high-power operation |
| Compliance | Designed to support ISO/IEC 17025-compliant calibration workflows and GLP/GMP traceability requirements |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | GPS |
| Pricing | Upon Request |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | HELIOS |
| Pricing | Available Upon Request |
| Brand | Labsphere |
|---|---|
| Model | HELIOS-A |
| Origin | USA |
| Light Source Technology | Electrodeless Plasma Lamp (Primary), Halogen & Xenon Options |
| Spectral Range | 250–2500 nm |
| Color Temperature Range | 3000 K–5300 K (Plasma), 3000 K–6500 K (Xenon), Customizable |
| UV Coverage | Yes (<380 nm) |
| Output Stability | <±0.5% over 1 hour (typical) |
| Dynamic Range | >150 dB (23-bit effective) |
| Calibration Traceability | NIST-traceable spectral irradiance |
| Trigger Mode | Continuous (Steady-State) |
| Compliance | ASTM E927-23, ISO 9022-11, IEC 60904-9 Ed. 3, MIL-STD-810H optical testing sections |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Model | Helios-D Series |
| Light Source Type | Tungsten-Halogen |
| CCT | 3000K ± 50K |
| Exit Port Diameter | 2", 4", or 8" |
| Max Luminance | Up to 80,000 cd/m² |
| Exit Port Illuminance | Up to 251,200 lux |
| Angular Uniformity (FOV) | ±2.0% within ±35° |
| Internal Coating | Spectraflect or Spectralon |
| Variable Attenuator Options | Advanced VAA-220A (2.00E+06 steps), Dynamic VAD-012/VAD-021 (2.40E+04–4.80E+04 steps), Manual VA-MM (2.00E+04–4.00E+04 steps) |
| Dynamic Range | Up to 160 dB (26-bit equivalent) |
| Software Interface | HELIOSense GUI with LSAPI support |
| Compliance | Designed for ASTM E308, ISO/CIE colorimetry standards, and GLP/GMP-aligned calibration traceability |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Model | Helios-LL Series |
| Light Source Type | Tungsten-Halogen |
| CCT | 2856 K ±50 K |
| Spectral Distribution | Blackbody-like |
| Integrating Sphere Coating | Spectraflect or Spectralon |
| Output Port Diameter | 2–8 in (0.05–0.2 m) |
| Sphere Diameter | 7.5–20 in (0.19–0.5 m) |
| Max Luminance | 1,600–9,500 cd/m² |
| Illuminance at Port | 5,000–30,000 lux |
| Dynamic Range | 4.00E+09 to 1.00E+10 (31–32 bits, 196–199 dB) |
| Angular Uniformity (FOV ±35°) | ±2.0% |
| Attenuation System | Advanced Variable Attenuator (VAA), 6.00E+06 to 8.80E+06 steps |
| Detector Configuration | Dual Silicon Detectors (SD-S1 & SD-L1) |
| Software Interface | HELIOSense GUI with LSAPI support |
| Compliance | MIL-STD-810G, ISO/IEC 17025 traceable calibration options available |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Model | Helios-Plus AMA |
| Light Source Type | Xenon Arc Lamp |
| Illumination Mode | Internal Illumination |
| CCT Range | 3000 K to 6000 K |
| Spectral Range (Standard) | 350–1000 nm |
| Spectral Range (UV-Optimized) | 200–850 nm |
| Opening Diameter | 4 in or 8 in |
| Max Luminance | Up to 47,300 cd/m² |
| Opening Illuminance | Up to 182,000 lux |
| Field of View Uniformity | ±2.0% over 35° |
| Attenuation Options | Advanced Variable Attenuator (VAA), Dynamic Variable Attenuator (VAD), Manual Micrometer Attenuator (VA-MM) |
| Attenuator Resolution | Up to 2.00E+06 steps |
| Dynamic Range | Up to 152 dB |
| Integrated Spectroradiometer | Yes |
| Calibration Traceability | NIST-traceable |
| Compliance | ASTM E927, ISO 9050, MIL-STD-810G (optical testing), USP <1059>, FDA 21 CFR Part 11 (with optional audit trail) |
| Brand | Labsphere |
|---|---|
| Model | Helios-V Series |
| Origin | USA |
| Light Source Type | Tungsten-Halogen (3000K Blackbody Simulated) |
| Integrating Sphere Diameter | 12 in |
| Output Port Diameter | 4 in (0.1 m) |
| Luminance Range | 0.001–11,500 cd/m² |
| Illuminance at Port | Up to 36,000 lux |
| CCT | 3000K ±50K |
| Spectral Range | 300–2400 nm |
| Uniformity (FOV 35°) | ±2.0% |
| Attenuation Method | Manual VA-MM or Dynamic VAD |
| Attenuator Steps | 1.00E+04 (NMNN) / 1.20E+04 (NDNN) |
| Dynamic Range | 5.00E+04 (93 dB, 16-bit) / 1.20E+04 (81 dB, 14-bit) |
| Internal Coating | Spectraflect® |
| Compliance | ASTM E308, ISO/CIE 11664, NIST-traceable calibration options available |
| Software Interface | HELIOSense™ via Labsphere LSAPI |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Illumia |
| Pricing | Available Upon Request |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Model | Illumia Pro |
| Sphere Diameter Options | 0.5 m, 1.0 m, 1.65 m, 2.0 m |
| Measurement Geometry | 2π and 4π compatible |
| Compliance | IESNA LM-79, IESNA LM-80 |
| Core Components | High-resolution CCD spectrometer, precision programmable current source, thermoelectric cooler (TEC) temperature controller with real-time junction temperature monitoring, auxiliary calibration lamp, Illumia Pro measurement software |
| Data Management | Automated acquisition, traceable metadata logging, export to CSV, XML, and industry-standard report formats |
