| Brand | LabCompanion |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | TS3-2 |
| High-Temperature Range | +150 °C |
| Low-Temperature Range | −65 °C |
| Thermal Shock Range | −65 °C to +150 °C |
| Heating Rate | +60 °C to +200 °C ≤ 20 min |
| Cooling Rate | +20 °C to −75 °C ≤ 60 min |
| Brand | LabCompanion |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model Series | FT-40/FT-50/FT-60, LT-40/LT-50/LT-60, TT-40/TT-50/TT-60 |
| Temperature Range (Test Zone) | −35 °C to 150 °C (FT), −55 °C to 150 °C (LT), −65 °C to 150 °C (TT) |
| Temperature Transition Method | Static Specimen with Dual- or Triple-Zone Air-Switching |
| Temp. Rise Time (−35 → +150 °C) | 30–40 min |
| Temp. Fall Time (+150 → −35 °C) | 60–80 min |
| Temperature Stabilization Time | 5–10 min |
| Test Chamber Volume | 35–60 L |
| External Dimensions | 140–220 cm (H/W/D) |
| Payload Capacity | 2.2–7.5 kg |
| Refrigeration System | Single-stage (FT) or Dual-stage (LT/TT) |
| Condensation | Air-cooled or Water-cooled |
| Refrigerant | HFC-based Eco-friendly Refrigerant |
| Control System | Microprocessor-based Programmable Controller with PID + SSR Regulation |
| Chamber Material | SUS304 Stainless Steel |
| Safety Protections | Compressor Overload Protection, High/Low Pressure Switches, Controller Overcurrent Protection |
| Brand | LabCompanion |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | CTL-180A |
| High-Temperature Range | +60 °C to +200 °C |
| Low-Temperature Range | 0 °C to −70 °C |
| Thermal Shock Range | −40 °C to +150 °C |
| Temperature Stability | ±2 °C |
| Heating Rate | R.T. → +200 °C in ~40 min |
| Cooling Rate | R.T. → −70 °C in ~60 min |
| Internal Dimensions (W×H×D) | 600 × 660 × 450 mm |
| External Dimensions (W×H×D) | 2920 × 1100 × 2150 mm |
| Transfer Time | ≤5 s |
| Temperature Recovery Time | ≤5 min |
| Temperature Uniformity | ≤±2 °C (−65 °C to +150 °C) |
| Temperature Fluctuation | ≤±0.5 °C (per GB/T 5170.1–1996) |
| Construction | Exterior — Powder-coated cold-rolled steel |
| Refrigeration System | Air-cooled or water-cooled (optional), equipped with imported compressors |
| Temperature Sensor | Armored Pt100 RTD |
| Controller | Siemens PLC module integrated with LabCompanion PlatinumV1.0 embedded control software + 7-inch color TFT touch screen interface |
| Data Interface | USB port (CSV logging of setpoints, actual values, timestamps |
| Power Supply | AC 380 V, 50 Hz, 3-phase 4-wire + PE |
| Total Installed Capacity | 36 kVA |
| Compliance | GJB 150.3–150.5, GB/T 2423.1–2423.2 |
| Brand | LabCompanion |
|---|---|
| Model | TS Series |
| Type | Three-Zone (Hot/Cold/Test) Pneumatically Actuated Thermal Shock Chamber |
| Temperature Range | −65 °C to +200 °C |
| Temperature Transition | RT → −65 °C in ≤70 min |
| Test Zone Temp. Range | −55 °C to +150 °C (TS40/TS55 variants) |
| Temp. Uniformity | ±2 °C |
| Recovery Time | ≤5 min |
| Control System | 7.5″ TFT Color Touchscreen with PID Algorithm, 96 Programmable Profiles |
| Refrigeration | Dual-Stage Mechanical Cascade (R-507/R-23), Air- or Water-Cooled Condenser |
| Construction | SUS304 Interior, Powder-Coated Steel Exterior, Polyurethane + Glass Wool Insulation |
| Compliance | GB/T 2423.1, GB/T 2423.2, GB/T 2423.22, GJB 150.5, GJB 360.7, GJB 367.2-87 Clause 405 |
| Power Supply | AC 380 V ±10%, 50 Hz, 3P+PE |
| Safety | Dual Over-Temp Protection (Chamber & Compressor), Pressure Switches, Leakage Circuit Breaker, Fan Motor Thermal Relay, Emergency Stop |
| Brand | LabCompanion |
|---|---|

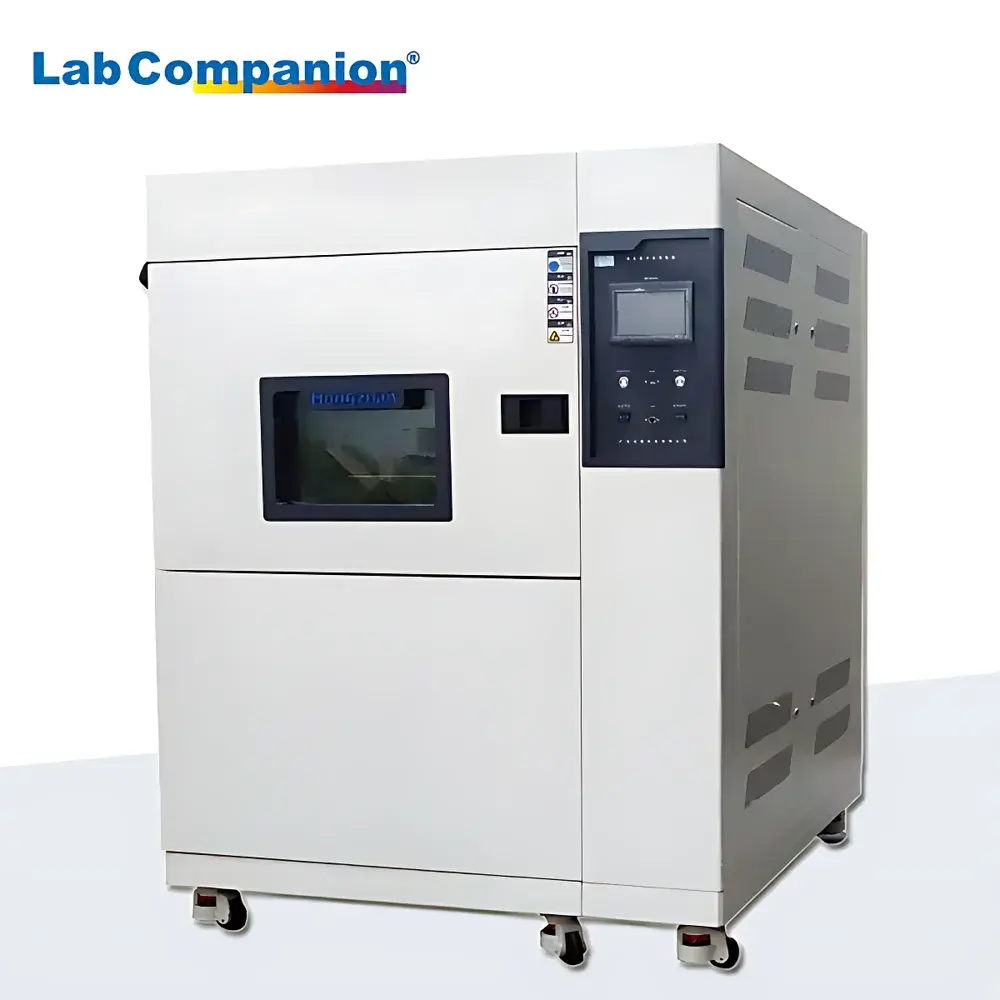

| Model | TSU-150A |
| Origin | Guangdong, China |
| Manufacturer | LabCompanion (OEM/ODM Producer) |
| Temperature Range (High Chamber) | +60 °C to +200 °C |
| Temperature Range (Low Chamber) | −78 °C to 0 °C |
| Thermal Shock Range | −55 °C to +150 °C |
| Temperature Stability | ±2 °C |
| Heating Rate | +60 °C → −200 °C ≤ 20 min |
| Cooling Rate | +20 °C → −75 °C ≤ 60 min |
| Internal Dimensions (W×H×D) | 600 × 500 × 500 mm |
| Test Chamber Recovery Time | ≤ 5 min (under standard conditions: ambient +25 °C, chilled water at +25 °C, plastic-encapsulated IC sample) |
| Load Capacity per Shelf | 30 kg |
| Max. Sample Weight | 7.5 kg |
| Test Method | Pneumatically Actuated Dual-Chamber or Triple-Chamber Switching |
| Brand | LabCompanion |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | TS2 |
| High-Temperature Range | +150 °C |
| Low-Temperature Range | −65 °C |
| Thermal Shock Range | −65 °C to +150 °C |
| Temperature Transition Time (RT to −80 °C) | ≤90 min |
| Temperature Transition Time (RT to +200 °C) | ≤40 min |
| Standard Chamber Volumes | 36 L, 80 L, 150 L, 225 L |
| Custom Volume Range | 36 L to 8000 L |
| Exposure Temperature Range | −65 °C to +150 °C |
| Test Chamber Temperature Uniformity | ≤±2 °C |
| Temperature Recovery Time | ≤5 min |
| Load Capacity per Shelf | 30 kg |
| Max. Sample Weight | 7.5–10 kg |
| Actuation Method | Pneumatic Air-Damper Switching Between Three Zones |
| Brand | LabCompanion |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | CTL-120A |
| High-Temperature Range | +60 °C to +200 °C |
| Low-Temperature Range | 0 °C to −70 °C |
| Thermal Shock Range | −40 °C to +150 °C |
| Temperature Stability | ±2 °C |
| Heating Rate | R.T. → +200 °C in ~40 min |
| Cooling Rate | R.T. → −70 °C in ~60 min |
| Transfer Time | ≤5 s |
| Temperature Recovery Time | ≤5 min |
| Internal Dimensions (W×H×D) | 500×610×400 mm |
| External Dimensions (W×H×D) | 2720×1050×1950 mm |
| Construction | Cold-Rolled Steel Outer Shell with Powder Coating (Ivory White) / #304 Mirror-Finish Stainless Steel Inner Chamber (1.2 mm) |
| Insulation | Eco-Friendly Glass Fiber (Non-Hazardous Waste Class) |
| Refrigeration | Air-Cooled or Water-Cooled Option |
| Compressor | Imported Hermetic Scroll Compressor |
| Temperature Sensor | Armored Pt100 Platinum Resistance Thermometer |
| Controller | Siemens PLC + Embedded PlatinumV1.0 Control Software |
| Display | 7-inch Color TFT Touchscreen Interface |
| Data Storage | USB 2.0 Port (CSV Format, Non-Hot-Swappable) |
| Communication | RJ45 Ethernet Port (Supports Up to 5 Concurrent Clients |
| Power Supply | AC 380 V, 50 Hz, 3-Phase 4-Wire + Ground |
| Total Installed Capacity | 32 kVA |
| Compliance | GJB 150.3–150.5, GB/T 2423.1–2423.2 |
| Brand | LabCompanion |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | TS |
| High-Temperature Range | +150 °C |
| Low-Temperature Range | −65 °C |
| Thermal Shock Range | −65 °C to +150 °C |
| Heating Rate | ≤ 60 min (RT to +220 °C in hot zone, ambient 10–30 °C) |
| Cooling Rate | ≤ 90 min (RT to −80 °C in cold zone, ambient 10–30 °C) |
| Standard Internal Volumes | 36 L, 80 L, 150 L, 225 L |
| Custom Volume Range | 36 L to 8000 L |
| Temperature Exposure Range Options | −40 °C to +150 °C (CT model) |
| Origin | Guangdong, China |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic |
| Model | TS2 / TS3 |
| Pricing | Upon Request |
| High-Temperature Range | +60 °C to +200 °C |
| Low-Temperature Range | 0 °C to –55 °C or 0 °C to –65 °C |
| Temperature Transition Time | ≤10 s |
| Temperature Recovery Time | 3–5 min |
| Test Load Capacity | 1.0–20.0 kg |
| Internal Chamber Dimensions (W×D×H) | 200×200×150 mm to 650×500×400 mm |
| Compliance | MIL-883E, IEC 60068-2-14, JIS C 60068-2-14 |
| Brand | LabCompanion |
|---|---|
| Model | WG Series |
| Temperature Range | RT+20°C to +200°C or +400°C |
| Temperature Uniformity | ≤2.0°C at +200°C / ≤7.0°C at +400°C |
| Temperature Fluctuation | ≤±0.5°C |
| Internal Volume | 90 L to 300 L |
| Heating Method | Nickel-Chromium Alloy Heaters |
| Air Circulation | Forced-air, Triple-Side Airflow Duct System |
| Controller | Microprocessor-Based PID with PT100 Sensor |
| Safety | Independent Over-Temperature Protection, Over-Current Circuit Breaker |
| Compliance | GB/T 11158–1989, GB/T 2423.2–1989 |
| Brand | LabCompanion |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | TSU-408W |
| High-Temperature Range | +60 °C to +200 °C |
| Low-Temperature Range | −78 °C to 0 °C |
| Thermal Shock Range | −55 °C to +150 °C |
| Temperature Stability | ±2 °C |
| Heating Rate | +60 °C to −200 °C ≤ 20 min |
| Cooling Rate | +20 °C to −75 °C ≤ 60 min |
| Brand | LabCompanion |
|---|---|
| Origin | Guangdong, China |
| Manufacturer | Hongzhan Technology Co., Ltd. |
| Model | TS2-150S |
| High-Temperature Range | +10 °C to +150 °C (above ambient) |
| Low-Temperature Range | 0 °C to −70 °C |
| Thermal Shock Range | −65 °C to +150 °C |
| Temperature Stability | ±2 °C |
| Ramp-Up Time | ~35 min (from RT to +150 °C) |
| Ramp-Down Time | ~60 min (from RT to −70 °C) |
| Internal Basket Dimensions (W×H×D) | 600×500×500 mm |
| Chamber Construction | SUS#304 Stainless Steel Interior |
| Insulation | 100 mm Fire-Retardant PU Foam + Glass Wool |
| Controller | EKE (Japan) |
| Compressor | Tecumseh (France) or Bitzer (Germany) |
| Safety Protections | Over-Temperature, Phase Failure, Ground Fault, Compressor High-Pressure & Overcurrent, Fan Overload, SSR Failure Detection, Fuse & MCB Protection |
| Brand | LabCompanion |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | TSL-408A |
| High-Temperature Range | +60 °C to +200 °C |
| Low-Temperature Range | −78 °C to 0 °C |
| Thermal Shock Range | −40 °C to +150 °C |
| Temperature Stability | ±2 °C |
| Heating Rate | +60 °C to +200 °C ≤ 20 min |
| Cooling Rate | +20 °C to −75 °C ≤ 60 min |
| Brand | LabCompanion |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Country of Origin | China |
| Model | LTS-80-3PA |
| Pricing | Available Upon Request |
| Internal Chamber Dimensions (W×D×H) | 350×400×350 mm |
| External Dimensions (W×D×H) | 1520×1550×1950 mm |
| Max. Test Specimen Weight | 2 kg |
| High-Temperature Zone Range | +80 °C to +150 °C |
| Low-Temperature Zone Range | 0 °C to −65 °C |
| Preconditioning Temperature Range | +80 °C to +200 °C / 0 °C to −70 °C |
| Preconditioning Ramp-Up Time | ~25 min |
| Preconditioning Ramp-Down Time | ~70 min |
| Dwell Time per Temperature Zone | 25 min (adjustable) |
| Transfer Time (Cold ↔ Hot) | ≤5 min (adjustable) |
| Temperature Uniformity | ±2 °C |
| Power Supply | AC 3-phase, 220/380 V, 50/60 Hz |
| Brand | LabCompanion |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | LCD-Specific |
| Pricing | Available Upon Request |
| Brand | LabCompanion |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | TSU-150W |
| High-Temperature Range | +60 °C to +200 °C |
| Low-Temperature Range | −78 °C to 0 °C |
| Thermal Shock Range | −55 °C to +150 °C |
| Temperature Stability | ±2 °C |
| Heating Rate | +60 °C to +200 °C ≤ 20 min |
| Cooling Rate | +20 °C to −75 °C ≤ 60 min |
| Brand | LabCompanion |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | TS Series |
| Pricing | Upon Request |
| Compliance | Designed for ASTM D5229/D5229M, ISO 11357-5, MIL-STD-810H Method 503.5, IEC 60068-2-14 |
| Brand | LabCompanion |
|---|---|
| Model | LTS-80-3PA |
| Chamber Type | Three-Zone Static Specimen Configuration |
| Temperature Range (High Zone) | 80–150 °C |
| Temperature Range (Low Zone) | 0 to –65 °C |
| Preconditioning Range | 80–200 °C / 0 to –70 °C |
| Soak Time (High/Low) | 25 min (adjustable) |
| Transfer Time (Recovery) | ≤5 min (configurable) |
| Temperature Stability | ±2 °C |
| Internal Dimensions (W×D×H) | 600×450×400 mm |
| Max. Specimen Weight | 10 kg |
| Power Supply | AC 3-phase, 220/380 V, 50/60 Hz |
| Origin | Guangdong, China |
| Manufacturer | LabCompanion (Guangdong Hongzhan Instrument Co., Ltd.) |
| Brand | LabCompanion |
|---|---|
| Model | CTU-180A |
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| High-Temperature Range | +60 °C to +200 °C |
| Low-Temperature Range | 0 °C to −70 °C |
| Thermal Shock Range | −55 °C to +150 °C |
| Temperature Stability | ±2 °C |
| Heating Rate | R.T. → +200 °C in ~40 min |
| Cooling Rate | R.T. → −70 °C in ~60 min |
| Transfer Time | ≤5 s |
| Temperature Recovery Time | ≤5 min |
| Internal Dimensions (W×H×D) | 600×660×450 mm |
| External Dimensions (W×H×D) | 2920×1100×2150 mm |
| Construction | Cold-Rolled Steel Outer Shell w/ Ivory White Powder Coating |
| Inner Chamber | #304 Mirror-Finish Stainless Steel (1.2 mm) |
| Insulation | Eco-Friendly Glass Fiber (Non-Hazardous Waste Class) |
| Refrigeration | Air-Cooled or Water-Cooled (Optional) |
| Compressor | Imported Scroll Compressor |
| Temperature Sensor | Armored Pt100 RTD |
| Controller | Siemens PLC + Embedded PlatinumV1.0 Control Software |
| Display | 7″ Color TFT Touchscreen Interface |
| Data Storage | USB Port (CSV Format, Non-Hot-Swappable) |
| Communication | RJ45 Ethernet (TCP/IP, Supports Up to 5 Concurrent Clients |
| Power Supply | AC 380 V, 50 Hz, 3-Phase + PE |
| Installed Capacity | 36 kVA |
| Compliance | GJB 150.3–150.5, GB/T 2423.1–2423.2 |
| Brand | LabCompanion |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | CTS-180W |
| High-Temperature Range | +60 °C to +200 °C |
| Low-Temperature Range | 0 °C to −70 °C |
| Thermal Shock Range | −65 °C to +150 °C |
| Temperature Stability | ±2 °C |
| Heating Rate | R.T. → +200 °C in ~40 min |
| Cooling Rate | R.T. → −70 °C in ~60 min |
| Transfer Time | ≤5 s |
| Temperature Recovery Time | ≤5 min |
| Internal Dimensions (W×H×D) | 600×660×450 mm |
| External Dimensions (W×H×D) | 2920×1100×2150 mm |
| Construction | Cold-Rolled Steel Outer Shell w/ Ivory White Powder Coating |
| Inner Chamber | 1.2 mm #304 Mirror-Finish Stainless Steel |
| Insulation | Eco-Friendly Non-Hazardous Glass Fiber |
| Refrigeration | Air-Cooled (A) or Water-Cooled (W) System w/ Imported Compressor |
| Temperature Sensor | Armored Platinum RTD (Pt100) |
| Controller | Siemens PLC + Embedded PlatinumV1.0 Control Software |
| Display | 7″ Color TFT Touchscreen |
| Data Interface | USB (CSV logging, non-hot-plug), RJ45 (TCP/IP for optional upper-level monitoring software) |
| Compliance | GJB 150.3 / 150.4 / 150.5, GB/T 2423.1 / 2423.2 |
| Brand | LabCompanion |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model Series | TS2, TS3 |
| Price Range | USD 14,000–28,000 (FOB) |
| High-Temperature Range | +150 °C |
| Low-Temperature Range | −65 °C |
| Thermal Shock Range | −65 °C to +150 °C |
| Heating Rate | +60 °C to +200 °C ≤ 20 min |
| Cooling Rate | +20 °C to −75 °C ≤ 60 min |
| Brand | LabCompanion |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | TSC-3 Triple-Chamber Thermal Shock Test Chamber |
| High-Temperature Range | +150 °C |
| Low-Temperature Range | −65 °C |
| Thermal Shock Range | −65 °C to +150 °C |
| Heating Rate | +60 °C to +200 °C ≤ 20 min |
| Cooling Rate | +20 °C to −75 °C ≤ 60 min |
| Brand | LabCompanion |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | CTL-180W |
| High-Temperature Range | +60 °C to +200 °C |
| Low-Temperature Range | 0 °C to −70 °C |
| Thermal Shock Range | −40 °C to +150 °C |
| Temperature Stability | ±2 °C |
| Ramp-Up Time | ~40 min (R.T. to +200 °C) |
| Ramp-Down Time | ~60 min (R.T. to −70 °C) |
| Transfer Time | ≤5 s |
| Temperature Recovery Time | ≤5 min |
| Internal Dimensions (W×H×D) | 600×660×450 mm |
| External Dimensions (W×H×D) | 2920×1100×2150 mm |
| Construction | Cold-Rolled Steel Outer Shell w/ Ivory White Powder Coating |
| Inner Chamber | 1.2 mm 304 Mirror-Finish Stainless Steel |
| Insulation | Eco-Friendly Glass Fiber (Non-Hazardous Waste Class) |
| Refrigeration | Air-Cooled (A) or Water-Cooled (W) Configuration |
| Compressor | Imported Hermetic Scroll Compressor |
| Temperature Sensor | Armored Pt100 RTD |
| Controller | Siemens PLC + Embedded PlatinumV1.0 Environmental Test Software |
| Display | 7-inch Color TFT Touchscreen |
| Data Interface | USB (CSV log export, no hot-swap), RJ45 Ethernet (for optional PlatinumV1.0 PC Monitoring Suite) |
| Power Supply | AC 380 V, 50 Hz, 3-Phase + PE |
| Total Installed Capacity | 36 kVA |
| Compliance | GJB 150.3–150.5, GB/T 2423.1–2423.2 |
| Brand | LabCompanion |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | TS3-150S |
| High-Temperature Range | +60 °C to +200 °C |
| Low-Temperature Range | −78 °C to 0 °C |
| Thermal Shock Range | −65 °C to +150 °C |
| Temperature Stability | ±2 °C |
| Heating Rate | R.T. to +200 °C in ≈40 min |
| Cooling Rate | +20 °C to −75 °C in ≤60 min |
Show next
