Impact Testing Machine
Filter
Showing 31–60 of 188 results
| Brand | GuanCe Instruments |
|---|---|
| Origin | Beijing, China |
| Model | GCCBC-B Series |
| Impact Energy Options | 1 J / 5 J / 25 J / 50 J (Charpy) |
| Impact Velocity | ≤4 J: 2.9 m/s |
| ≥7.5 J | 3.8 m/s (Charpy) |
| Pendulum Moment (Impact Constant) | 18 N·m |
| Load Cell Range | 16 kN |
| Maximum Lifting Height | 150 mm |
| Support Span | 230 mm (Charpy), 335 mm (Izod) |
| Pre-lift Angle | 150° |
| Specimen Dimensions (Charpy) | 40–95 mm (L) × 4–15 mm (W) × 3–10 mm (T) |
| (Izod) | 61.5–82 mm (L) × 10–12.7 mm (W) × 3.2–12.7 mm (T) |
| Anvil Radius | R = 1 mm (Charpy), R = 0.8 mm (Izod) |
| Striking Edge Angle | 30° |
| Striking Edge Radius | R = 2 mm |
| Power Supply | 220 V AC, 200 W |
| Release Mechanism | Electromagnetic motor-driven release |
| Brand | GuanCe |
|---|---|
| Origin | Beijing, China |
| Model | GCCLCT-1500 |
| Impact Energy | 155 J |
| Impact Velocity | 198 cm/s |
| Pendulum Torque (Impact Constant) | 16 N·m |
| Load Cell Range | 12–17 kN |
| Maximum Lift Height | 1500 mm |
| Hammer Mass Options | 1 kg / 2 kg / 3 kg |
| Hammer Tip Diameter | Φ16 mm / Φ25 mm |
| Guide Tube ID | 48 mm, Length: 1200 mm |
| Anvil Radius (Curved) | 40 mm, Hardness: 55 HRC ±5 HRC |
| Flat & V-Groove Anvils | 55 HRC ±5 HRC |
| Specimen Fixing | Mechanical clamping for flat, curved, and tubular specimens (DN50–DN150, L=300 mm) |
| Compliance | SY/T 0315–2013 Annex D, GB/T 23257–2009 Annex L |
| Brand | GuanCe Instruments |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | CLC-AI.11 |
| Instrument Type | Drop-Weight Impact Tester |
| Impact Energy Range | 0–100 J (pneumatically adjustable clamping force) |
| Maximum Impact Velocity | 5.5 m/s |
| Hammer Mass Options | 2–7 kg (standard configuration includes 5 kg, 15 kg, and 20 kg hammers) |
| Maximum Lift Height | 3000 mm |
| Effective Test Height | 1500 mm |
| Force Sensor Range | 0–100 J equivalent |
| Dimensions (L×W×H) | 1200 × 700 × 2100 mm |
| Weight | 300 kg |
| Automation Features | Motorized hammer lifting, automatic hammer latching/release, anti-reimpact safety mechanism |
| Brand | GuanCe Instruments |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | CLC-AI2 |
| Instrument Type | Drop-Weight Impact Tester |
| Impact Energy Range | 0–100 J (standard) |
| Impact Velocity | 5.5 m/s (standard) |
| Hammer Mass Range | 2–7 kg |
| Force Sensor Range | 0–100 J (energy equivalent) |
| optional load cells | 10–250 kN |
| Maximum Lift Height | 2000 mm |
| Test Chamber Dimensions | 600 × 550 × 450 mm |
| Hammer Tip Diameters | Ø12, Ø12.5, Ø16, Ø20 mm (±0.1 mm) |
| Hammer Hardness | HRC 60–65 |
| Positioning Accuracy | ±1 mm |
| Dynamic Test Error | <2% |
| Data Acquisition Rate | 2 MHz |
| ADC Resolution | ≥16-bit |
| Force Sensor Sensitivity | 0.05–1 mV/lbf |
| Accelerometer Sensitivity | 2 pC/(m/s²) |
| Frequency Response (Accelerometer) | 1–12,000 Hz |
| Operating Temperature Range | –40°C to +150°C (optional environmental chamber) |
| Brand | GuanCe Instruments |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | GCCBC Series |
| Instrument Type | Pendulum Impact Tester |
| Impact Energy Options | 0.5 J / 1 J / 2 J / 4 J / 7.5 J / 15 J / 25 J / 50 J (simply supported beam) |
| Impact Velocity | ≤4 J: 2.9 m/s |
| ≥7.5 J | 3.8 m/s (simply supported) |
| Pendulum Moment (Impact Constant) | 18 N·m/rad |
| Load Cell Range | 1–20 kN |
| Maximum Lifting Height | 1550 mm |
| Support Span | 230 mm (simply supported), 335 mm (cantilever) |
| Specimen Dimensions (simply supported) | Length: 40–95 mm |
| Width | 4–15 mm |
| Thickness | 3–10 mm |
| Specimen Dimensions (cantilever) | Length: 63.5±2 mm or 80±2 mm |
| Width | 12.7±0.2 mm or 10±0.2 mm (max 50 mm) |
| Thickness | 3.2–40 mm |
| Anvil Radius | R = 1 mm (simply supported), R = 0.8 mm (cantilever) |
| Striking Edge Angle | 30° |
| Striking Edge Radius | R = 2 mm |
| Power Supply | 220 V AC, 200 W |
| Release Mechanism | Electromechanical (motor-driven) |
| Brand | GuanCe Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | GCCLC-C |
| Instrument Category | Other Impact Testing Machines |
| Impact Energy Range | Adjustable drop height 0–500 mm / 0–1000 mm |
| Impact Velocity | Determined by free-fall kinematics (9.81 m/s²) |
| Force Sensor Options | 2 kN / 5 kN / 10 kN (user-selectable) |
| Pendulum Moment (Impact Constant) | 800 N·mm/rad |
| Force Sensor Measurement Range | 10–80 N (for low-force cushioning characterization) |
| Maximum Lift Height | 80 mm (for sensor pre-tensioning or minor vertical adjustment) |
| Drop Mass | Standardized steel spheres (mass configurable per ASTM D3574, ISO 18562-3, or customer specification) |
| Data Acquisition Rate | 1 MHz |
| Actuation | Motorized height adjustment & solenoid-triggered release |
| Compliance | Designed to support testing protocols aligned with ASTM D1564, ASTM D3574 Section 12 (Cushioning Performance), ISO 18562-3 (Biocompatibility of breathing gas pathways – impact resilience), and GB/T 20485.21 (Chinese national standard for vibration and shock testing) |
| Brand | GuanCe Instruments |
|---|---|
| Origin | Beijing, China |
| Model | GCCLC-C.3 |
| Impact Height Range | 0–500 mm / 0–1000 mm (adjustable) |
| Impact Force Sensor Options | 2 kN / 5 kN / 10 kN |
| Pendulum Moment (Impact Constant) | 80 N·m/rad |
| Force Sensor Measurement Range | 10–60 N |
| Maximum Lifting Height | 100 mm |
| Data Acquisition Rate | 1 MHz |
| Release Mechanism | Motorized electromagnetic release |
| Height Adjustment | Motor-driven vertical positioning |
| Steel Ball Mass | Configurable per test standard (e.g., 16 g, 42 g, 100 g, 200 g per ASTM D1564, ISO 179-1, or customer-specified) |
| Compliance | Designed for ASTM D3367 (Foam Cushioning), ISO 18562-2 (Biocompatibility of medical device packaging), and GB/T 21661–2022 (Packaging cushioning performance testing) |
| Brand | GuanCe Instruments |
|---|---|
| Origin | Beijing, China |
| Model | GCCLC-C.5 |
| Impact Height Range | 0–500 mm / 0–1000 mm (adjustable) |
| Impact Force Sensor Options | 2 kN / 5 kN / 10 kN |
| Maximum Lifting Height | 80 mm |
| Pendulum Moment (Impact Constant) | 60 N·m |
| Force Sensor Capacity | 50 kN |
| Data Acquisition Rate | 1 MHz |
| Release Mechanism | Motorized |
| Height Adjustment | Motorized Vertical Positioning |
| Test Mass | Standardized steel spheres (mass configurable per ASTM D3574, ISO 1856, or customer specification) |
| Brand | GuanCe Instruments |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | GCDC-03 |
| Impact Mass | 9.1 kg or 10 kg stainless steel impact hammer |
| Impact Height Range | 300–1200 mm (adjustable, digital height indicator, ±2 mm accuracy) |
| Height Adjustment | Motorized |
| Crossbar Diameter | 15.8 mm (5/8 in) stainless steel rod |
| Load Cell Range | 0–200 N |
| Maximum Lifting Height | 200 mm |
| Power Supply | 220 V, 50/60 Hz, 3 A |
| Net Weight | ~145 kg |
| Chamber Construction | Inner chamber – 304 stainless steel |
| Viewing Window | Dual-layer tempered explosion-proof glass with integrated LED lighting |
| Exhaust Port | 120 mm diameter, rear-mounted |
| Brand | GuanCe Instruments |
|---|---|
| Origin | Beijing, China |
| Model | GCDC-03.5 |
| Impact Mass | 9.1 kg or 10 kg stainless steel impact hammer |
| Impact Height Range | 300–1200 mm (adjustable, digital height display, ±2 mm accuracy) |
| Height Adjustment | Motorized |
| Crossbar Diameter | 15.8 mm (5/8 in) stainless steel rod |
| Load Cell Range | 0–200 N |
| Maximum Lifting Height | 180 mm |
| Compliance Standards | IEC 62133, UN 38.3, UL 1642:2008, UL 2054:2008, QC/T 743–2006, QC/T 742–2006, QC/T 744–2006, GB/T 18287–2000, GB 8897.4–2002 (IEC 60086-4:2000), SJ/T 11169–1998, SJ/T 11170–1998 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | HD-A523 Inclined Impact Tester |
| Impact Energy Capacity | ≤500 kg·m (gravimetric equivalent) |
| Impact Velocity Range | 1.1–2.3 m/s |
| Velocity Accuracy | ±5% |
| Incline Angle | 10° |
| Impact Panel Dimensions | 1600 mm × 2000 mm (steel plate) |
| Max. Travel Length | 2000 mm |
| Sled Platform Dimensions | 1500 mm × 1500 mm (hardwood) |
| Max. Specimen Size | 1500 mm × 1500 mm × 1500 mm (L×W×H) |
| Overall Dimensions | 6470 mm × 1600 mm × 1980 mm (L×W×H) |
| Weight | ~1900 kg |
| Power Supply | 3-phase AC 380 V |
| Total Power Consumption | ~3.1 kW |
| Lifting Motor Power | 1.5 kW |
| Hydraulic Unit | 1.5 kW (2 HP), 40 L oil reservoir |
| Air Source Requirement | ≥0.6 MPa |
| Control System | PLC with 7-inch TFT touch HMI |
| Data Output | USB interface |
| Compliance Standards | GB/T 4857.11–2005, GB/T 1019–2008, EN ISO 2244:2002, ISTA 6-Series |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | HAIDA HD-F736-2 Mattress Impact Testing Machine |
| Instrument Type | Drop-weight Impact Tester |
| Impact Energy | 25 kg Standard Impact Hammer (mass only |
| Max Specimen Dimensions | 2200 × 2000 × 400 mm (L × W × H) |
| Control System | 7-inch HMI Touchscreen + INOVANCE PLC |
| Power Supply | AC 220 V, 50 Hz, 180 W |
| Pneumatic Requirement | 6–8 bar |
| Standard Fixture | One 25 kg Calibrated Impact Hammer |
| Overall Dimensions | 3100 × 1000 × 2600 mm (L × W × H) |
| Controller Unit | 350 × 350 × 1100 mm |
| Weight | 500 kg |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | HAIDA HD-F736-A Office Chair Drop Impact Tester |
| Instrument Type | Drop Weight Impact Tester |
| Impact Energies | 57 kg, 102 kg, 136 kg |
| Impact Frequency | 10–30 cycles/min |
| Adjustable Pendulum Moment Arm | 200–600 mm |
| Load Cell Range | 300 mm |
| Maximum Lift Heights | 30 mm, 36 mm, 152 mm |
| Control System | PLC-based |
| Display | Touchscreen HMI |
| Cylinder Stroke | 300 mm |
| Seat Height Adjustment Range | 200–600 mm |
| Test Count Setting Range | 1–999,999 cycles |
| Approx. Weight | 500 kg |
| Power Supply | 1∮ AC 220 V |
| Rated Power | ~200 W |
| Data Output | USB interface |
| Max. Specimen Dimensions | 1000 mm × 1000 mm (L×W) |
| Overall Dimensions | 1200 mm × 1450 mm × 2600 mm (L×W×H) |
| Compliance Standards | BIFMA X5.1-2017, QB/T 2280-2016 |
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | HD-F757-FB |
| Impact Energy | 50 lb (10 lb × 3 + 5 lb × 3 + 1 lb × 5) |
| Impact Frequency | 1–12 cycles/min (inversely proportional to stroke length) |
| Stroke Length | Up to 200 mm |
| Load Cell Range | Not specified (mechanical impact only |
| Test Width Capacity | 290–650 mm |
| Max Extended Sample Length | 1050 mm |
| Dimensions (L×W×H) | 1710 × 850 × 940 mm |
| Power Supply | 1∮ AC 220 V, ~100 W |
| Control System | PLC with 7-inch HMI touchscreen |
| Data Output | USB export (CSV format) |
| Cycle Count Range | 1–999,999 (user-definable) |
| Brand | Hengyi |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |

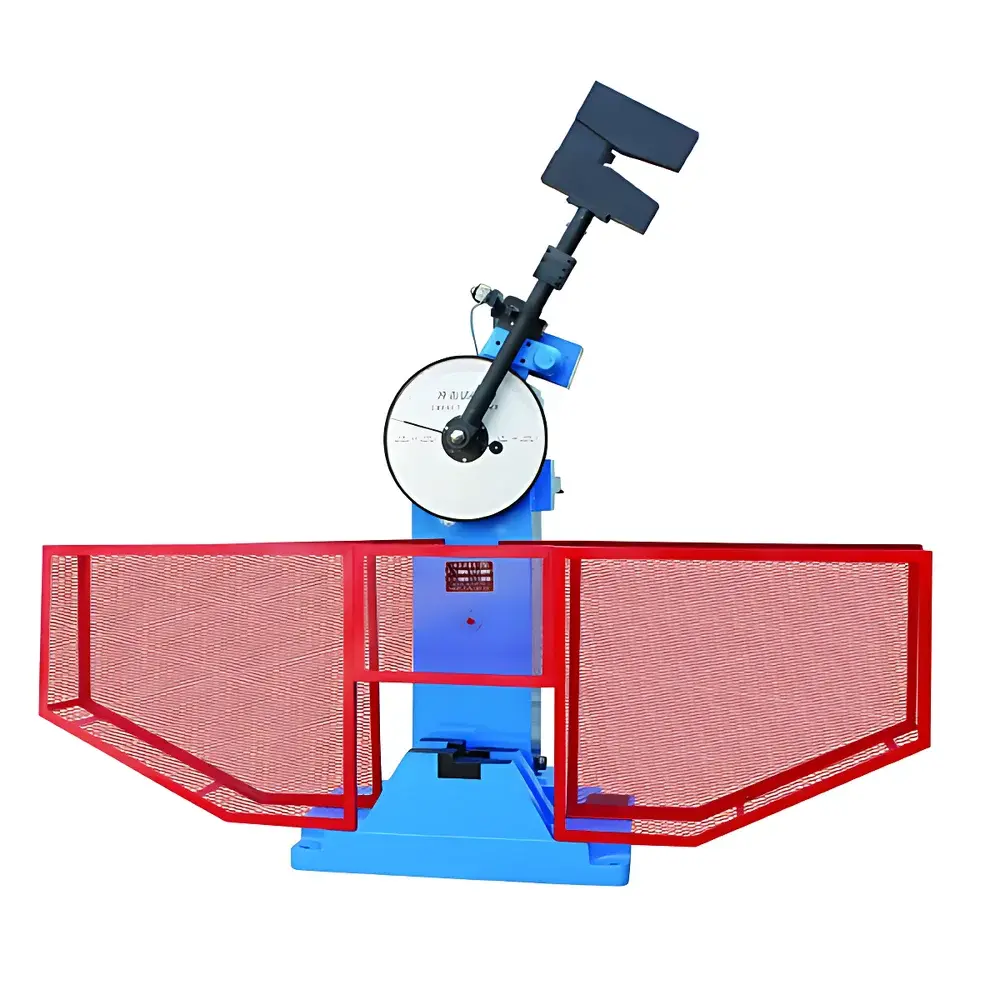

| Model | HY(BC)-300J |
| Impact Energy | 300 J (with dual-range pendulum: 0–300 J / 0–150 J) |
| Impact Velocity | 5.2 m/s |
| Pendulum Moment (Impact Constant) | M = 160.7695 N·m (300 J range), M = 80.3848 N·m (150 J range) |
| Maximum Lifting Height | 300 J equivalent |
| Pendulum Pre-Lift Angle | 150° |
| Distance from Pendulum Axis to Impact Point | 750 mm |
| Anvil Span | 40 mm |
| Notch Radius (Anvil) | R 1.0–1.5 mm |
| Hammer Blade Radius | R 2.0–2.5 mm |
| Hammer Blade Angle | 30° |
| Hammer Blade Thickness | 16 mm |
| Angular Measurement Range | 0–360° |
| Angular Resolution | ≤0.06° |
| Specimen Dimensions | 10 × 10 × 55 mm (standard) |
| Machine Dimensions (L×W×H) | 2150 × 640 × 1400 mm |
| Machine Weight | 420 kg |
| Power Supply | 3-phase 4-wire, 380 V, 50 Hz, 400 W total (main motor: 250 W) |
| Compliance | GB/T 3808–2002, GB/T 229–2007, JJG 145–2007 |
| Brand | Hengyi |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | HY(BC)-5.5J |
| Instrument Type | Pendulum Impact Tester |
| Nominal Impact Energy | 5.5 J |
| Impact Velocity | 3.5 m/s |
| Pendulum Torque (Impact Constant) | 0.53590 N·m |
| Load Cell Range | 5.5 J |
| Maximum Pendulum Lift Height | 395 mm |
| Temperature Range | 15–35 °C |
| Power Supply | AC 220 V, 50 Hz |
| Display Resolution | 0.001 J (≤5.5 J) |
| Energy Loss | ≤1% (at 2.75 J & 5.5 J), ≤2% (at 1 J) |
| Specimen Notch Types | ISO A-type (45° ±1°, R = 0.25 ±0.05 mm), B-type (45° ±1°, R = 1.0 ±0.05 mm) |
| Blade Radius | R = 0.8 ±0.2 mm |
| Distance from Blade Tip to Clamp Surface | 22 ±0.2 mm |
| Blade Angle | 75° |
| Pendulum Center of Strike Distance | 335 mm |
| Pre-lift Angle | 150° |
| Dimensions (W×D×H) | 550 × 350 × 850 mm |
| Net Weight | 160 kg |
| Brand | Hengyi |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | HY(JX) |
| Price Range | USD 2,800 – 7,000 (FOB Shanghai) |
| Instrument Type | Pendulum Impact Tester |
| Nominal Impact Energy | 50 J (max. pendulum capacity) |
| Impact Velocity | 3.8 m/s (simply-supported beam mode, high-energy configuration) |
| Pendulum Torque (Impact Constant) | 0.01 N·m/° |
| Load Cell Range | 100 N |
| Maximum Pendulum Lift Height | 3.8 m |
| Beam Support Span Options | 40, 60 (or 62), 70, 95 mm |
| Simply-Supported Beam Hammer Radius | R = 2.0 ± 0.5 mm |
| Hammer Angle | 30° ± 1° |
| Cantilever Beam Hammer Radius | R = 0.8 ± 0.2 mm |
| Clamp-to-Hammer Distance | 22.0 ± 0.05 mm |
| Pendulum Angles | 150° (pre-lift) |
| Encoder | Panasonic optical encoder |
| Control System | Integrated LCD-based pendulum control and measurement unit |
| Power Supply | AC 220 V ± 10 %, 50 Hz |
| Brand | Hengyi |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | HY(JX)-SFCV |
| Instrument Type | Pendulum Impact Tester |
| Impact Energy (Simply-Supported) | 1.0 J, 2.0 J, 4.0 J, 5.0 J |
| Impact Energy (Cantilever) | 2.75 J, 5.5 J, 11 J, 22 J |
| Impact Velocity (Simply-Supported) | 2.9 m/s |
| Impact Velocity (Cantilever) | 3.5 m/s |
| Pendulum Pre-lift Angle | 150° |
| Hammer Center Distance (Simply-Supported) | 230 mm |
| Hammer Center Distance (Cantilever) | 335 mm |
| Notch Radius (Simply-Supported) | R0.5 mm |
| Notch Radius (Cantilever) | R0.8 ± 0.2 mm |
| Distance from Blade Edge to Clamp Top (Cantilever) | 22 ± 0.2 mm |
| Pendulum Torque Constants | 0.53590 N·m (2.75 J), 1.47372 N·m (5.5 J), 2.94744 N·m (11 J), 5.8949 N·m (22 J), 11.7898 N·m (44 J equiv.) |
| Clamp Span Options (Simply-Supported) | 40 mm, 60 mm, 62 mm, 70 mm |
| Encoder | Panasonic Optical Rotary Encoder |
| Display System | Integrated LCD Control & Measurement Unit |
| Brand | Hengyi |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | HY(JX)-50J |
| Price Range | USD 1,400–2,800 |
| Instrument Type | Pendulum Impact Tester |
| Nominal Impact Energy | 50 J |
| Impact Velocity | 3.8 m/s |
| Pendulum Torque (Impact Constant) | 1 J/deg |
| Load Cell Range | 1 N·m |
| Maximum Lifting Height | 1 m |
| Brand | Hengyi |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | HY(JZ)-50JTYY |
| Instrument Type | Pendulum Impact Tester |
| Impact Energy | 50 J |
| Impact Velocity | 2.9 m/s or 3.8 m/s (configurable) |
| Pendulum Torque (Impact Constant) | 0.001 N·m/° |
| Load Cell Range | 50 J |
| Maximum Lifting Height | 395 mm |
| Support Span Options | 40 mm / 60 mm / 70 mm / 95 mm |
| Anvil Radius | R = 1.0 mm |
| Striking Edge Angle | 30° |
| Striking Edge Radius | R = 2.0 ± 0.5 mm |
| Angular Resolution | 0.01° (Omron encoder) |
| Energy Resolution | 0.01 J |
| Display | Color TFT Touchscreen (English/Chinese UI) |
| Data Storage | Up to 12 test records with auto-averaging |
| Output | Built-in thermal printer & USB interface |
| Compliance | ISO 179-1:2010, GB/T 1043.1–2008, JB/T 8762–1998, GB/T 18743–2002 |
| Brand | Hengyi |
|---|---|
| Origin | Shanghai, China |
| Manufacturer | Hengyi Test Equipment Co., Ltd. |
| Model | HY(JZ)50JTR |
| Instrument Type | Pendulum Impact Tester |
| Nominal Impact Energy | 50 J |
| Impact Velocity | 3.8 m/s |
| Pendulum Moment (Impact Constant) | 1 N·m/rad |
| Load Cell Range | 1 kN |
| Maximum Pendulum Lift Height | 395 mm |
| Support Span Options | 40 / 60 / 70 / 95 mm |
| Anvil Radius | R = 1.0 mm |
| Striking Edge Angle | 30° |
| Striking Edge Radius | R = 2.0 ± 0.5 mm |
| Angular Resolution | 0.01° (Omron rotary encoder) |
| Energy Resolution | 0.01 J |
| Display | Color TFT touchscreen (bilingual: EN/CN) |
| Data Storage | 12 test records with auto-averaging |
| Output | Built-in thermal printer |
| Compliance | ISO 179-1:2019, GB/T 1043.1–2023, GB/T 18743–2022, JB/T 8762–2021 |
| Brand | Hengyi |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | HY(LB)G |
| Instrument Type | Other Impact Testing Machines |
| Impact Energy | 300 J |
| Impact Velocity | 1 m/s (nominal, gravity-driven) |
| Pendulum Moment (Impact Constant) | 1 N·m/rad (not applicable — drop-weight, not pendulum-based |
| corrected to Drop Height Control Accuracy | ±1 mm) |
| Load Cell Range | 0–5 kN (typical for 300 J class) |
| Maximum Lift Height | 3 m |
| Compliance | GB/T 14152–2001, ISO 6603–2, ASTM D7192 |
| Brand | Hengyi |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | HY(XB)-22JUNNYHGF |
| Instrument Type | Pendulum Impact Tester |
| Nominal Impact Energy | 22 J |
| Impact Velocity | 3.5 m/s |
| Pendulum Torque (Impact Constant) | 0.001 J·deg⁻¹ |
| Load Cell Range | 22 J |
| Maximum Pendulum Lifting Height | 395 mm |
| Display | Color Touchscreen (English/Chinese) |
| Angle Sensor | Omron Encoder, ±0.01° resolution |
| Energy Resolution | 0.01 J |
| Pendulum Angle | 150° |
| Distance from Pendulum Pivot to Impact Blade | 335 mm |
| Distance from Impact Blade to Clamp Upper Surface | 22 mm |
| Blade Tip Radius | R = 0.8 ± 0.2 mm |
| Net Weight | 85 kg |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Brand | Hengyi |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | HY(XB)-22J |
| Price Range | USD 1,400–2,800 |
| Instrument Type | Pendulum Impact Tester |
| Nominal Impact Energy | 22 J |
| Impact Velocity | 3.5 m/s |
| Pendulum Moment (Impact Constant) | 1 N·m/rad |
| Load Cell Range | 1 kN |
| Maximum Pendulum Lifting Height | 1 m |
| Display | Color Touchscreen (English/Chinese) |
| Angular Resolution | 0.01° (Omron Encoder) |
| Energy Resolution | 0.01 J |
| Impact Blade Radius | R = 0.8 ± 0.2 mm |
| Support Span | 60 mm (per ISO 180) |
| Specimen Clamp Distance to Blade | 22 mm |
| Pendulum Axis to Blade Distance | 335 mm |
| Pendulum Elevation Angle | 150° |
| Weight | 85 kg |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Brand | Hengyi |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | HY(XB)-22JFB |
| Instrument Type | Pendulum Impact Tester |
| Nominal Impact Energy | 22 J |
| Impact Velocity | 3.5 m/s |
| Pendulum Constant (Torque) | 0.01 J/deg |
| Load Cell Range | 22 J |
| Maximum Pendulum Lifting Height | 0 mm |
| Display | Full-color TFT touchscreen (bilingual: English & Chinese) |
| Angle Sensor | Omron rotary encoder, resolution 0.01° |
| Energy Resolution | 0.01 J |
| Pendulum Raise Angle | 150° |
| Distance from Pendulum Pivot to Impact Blade | 335 mm |
| Distance from Impact Blade to Clamp Upper Surface | 22 mm |
| Blade Tip Radius | R = 0.8 ± 0.2 mm |
| Machine Weight | 85 kg |
| Power Supply | AC 220 V ± 10%, 50 Hz |
| Key | Brand: Other Brands |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Price | USD 14,000–42,000 (FOB) |
| Load Capacity | 10–100 kg |
| Table Size | 20×20 to 80×65 cm |
| Acceleration Range | 150–15,000 m/s² |
| Pulse Duration | 0.5–30 ms |
| Waveform Options | Half-sine, Trapezoidal, Post-peak Sawtooth |
| Power Supply | AC 380 V ±5%, 50/60 Hz, 3-phase 5-wire |
| Key | Brand: Other Brands |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Price | USD 14,000–70,000 (FOB) |
| Compliance Standards | MIL-STD-810H, IEC 60068-2-29, GB/T 2423.5–2022, GB/T 2423.6–2022, GJB 150.18A–2009, GJB 360B–2009 |
| Waveform Options | Half-sine, Trapezoidal, Post-peak Sawtooth |
| Control Mode | Closed-loop Acceleration Control for Collision Mode |
| Drive System | DC Motor + Precision Gear Reducer + Roller-Lift Mechanism |
| Pulse Duration Range | 1.5–25 ms |
| Peak Acceleration Range | 25–1200 m/s² |
| Drop Height Range | 0–200 mm |
| Repetition Rate | 1–120 impacts/min |
| Operating Pressure | 0.7–0.8 MPa (7–8 kgf/cm²) |
| Power Supply | AC 220 V ±5%, 50 Hz ±0.5 Hz, Single-phase Three-wire |
| Brand | Instron |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | 9400 Series |
| Pricing | Available Upon Request |
| Brand | INSTRON |
|---|---|
| Origin | Italy |
| Manufacturer | CEAST (a brand of INSTRON) |
| Model | CEAST 9050 |
| Instrument Type | Pendulum Impact Tester |
| Impact Energy Range | 0.5–50 J |
| Impact Velocity | 1–3.8 m/s |
| Angular Resolution | 0.05° |
| Safety Compliance | CE Marked |
| Control Interface | Integrated 6.5″ Touchscreen PC |
| Data Acquisition | Optional slip-ring and trigger for instrumented testing |
| Brake System | Dual-surface disc brake (manual or pneumatic actuation) |
| Pendulum Recognition | Automatic magnetic identification with embedded database lookup |
| Brand | INSTRON |
|---|---|
| Origin | Italy |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Imported |
| Model | 9440 / 9450 |
| Impact Energy Range | 0.59 – 1800 J |
| Impact Velocity Range | 0.77 – 24 m/s |
| Load Cell Capacity | 0.45 – 222 kN |
| Maximum Drop Height | 29.4 m |
