| Brand | Cole-Parmer |
|---|---|
| Origin | USA |
| Model | 05611-21 |
| Flow Range | 0.26–8 GPM |
| Accuracy | ±0.5% of reading |
| Viscosity Range | 1–1000 cP |
| Operating Temperature | −5 to 55 °C (23 to 131 °F) |
| Max Pressure | 1500 psi |
| Wetted Materials | Acetal, aluminum, steel, nitrile |
| Power Supply | Two AAA batteries |
| Battery Life | 2000 hours |
| Display | 6-digit LCD |
| Connection | 1/2" NPT(F) |
| Units | gal, L, qt, pt |
| Output | Local display only (no pulse or remote output) |
| Brand | Cole-Parmer |
|---|---|
| Origin | USA |
| Model | 05613-65 |
| Power Supply | 230 VAC |
| Flow Measurement Principle | Transit-time ultrasonic |
| Pipe ID Range | 25–762 mm (1–30 in) |
| Velocity Range | 0.1 ft/s to 30 ft/s (0.03–9.14 m/s) |
| Flow Units | gal/min, ft³/s, gal/day, Mgal/day, L/s |
| Totalizer Resolution | 7-digit, in gal or L |
| Display | 3.5-digit LCD, 12.7 mm digit height |
| Accuracy | ±2.0 least significant digit |
| Repeatability | ±0.2% of full scale |
| Operating Temperature | −5 to 70 °C |
| Output | 4–20 mA analog, user-adjustable digital filter, response time 0–99 s |
| Enclosure Dimensions | 105 mm W × 184 mm H × 51 mm D |
| Battery Life | 4 h (rechargeable NiMH), included charger/AC adapter |
| Standard Accessories | 1 m cable, flow sensor coupling kit, nylon carrying case with shoulder strap |
| Fluid Compatibility | Liquids containing suspended solids or entrained gas (≥100 µm particles, ≤100 lb/min solids loading) |
| NIST Traceability | Not certified |
| Brand | Cole-Parmer |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | 32648-00 |
| Pricing | Upon Request |
| Sensor Principle | Thermal Mass Flow Measurement (Constant Temperature Anemometry) |
| Accuracy | ±1.0% FS (≤15 SLPM), ±1.5% FS (>15 SLPM) |
| Repeatability | ±0.5% FS |
| Response Time | 2 s |
| Operating Temperature | 0–50 °C |
| Max System Pressure | 500 psi (3.4 MPa) |
| Max Particle Size | 5 µm |
| Leak Rate | ≤1 × 10⁻⁷ sccs He |
| Output Signals | 0–5 VDC and/or 4–20 mA |
| Display | Removable 3.5-digit LCD, 90° rotatable |
| Housing Options | Anodized Aluminum or 316 Stainless Steel |
| Wetted Materials | Anodized Al / Brass / Viton® (Al housing) |
| Interface Sizes | 1/4" compression (≤50 SLPM), 3/8" (100–200 SLPM), 1/2" (500 SLPM), 3/4" female NPT (1000 SLPM) |
| Brand | Cole-Parmer |
|---|---|
| Origin | USA |

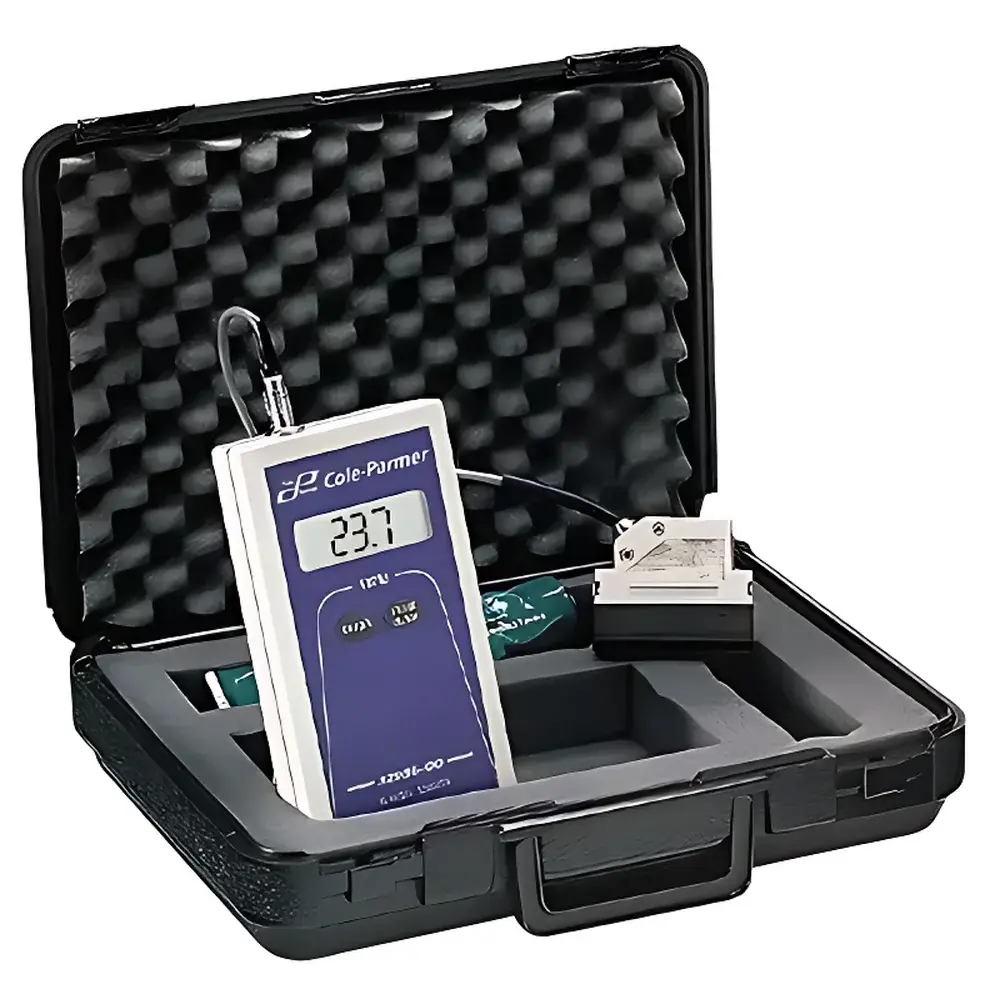

| Model | 32986-00 |
| Liquid Type | Suspensions with particles ≥100 µm or entrained gas bubbles |
| Flow Range | 0.30–16 ft/s (0.1–9 m/s) |
| Accuracy | ±2% of full scale |
| Repeatability | ±1% of full scale |
| Operating Temperature | –20 to 60 °C (–28 to 140 °F) |
| Display | 4-digit LCD, switchable between ft/s and m/s |
| Power Supply | 4 × AA alkaline batteries |
| Dimensions | 102 mm W × 197 mm H × 38 mm D |
| CE Compliant | Yes |
| NIST Traceability | Not certified |
| Sensor Mounting | Clamp-on, non-intrusive |
| Pipe Diameter Range | 25–1524 mm (1–60 in) |
| Transducer Cable Length | 1.83 m (6 ft) |
| Brand | Cole-Parmer |
|---|---|

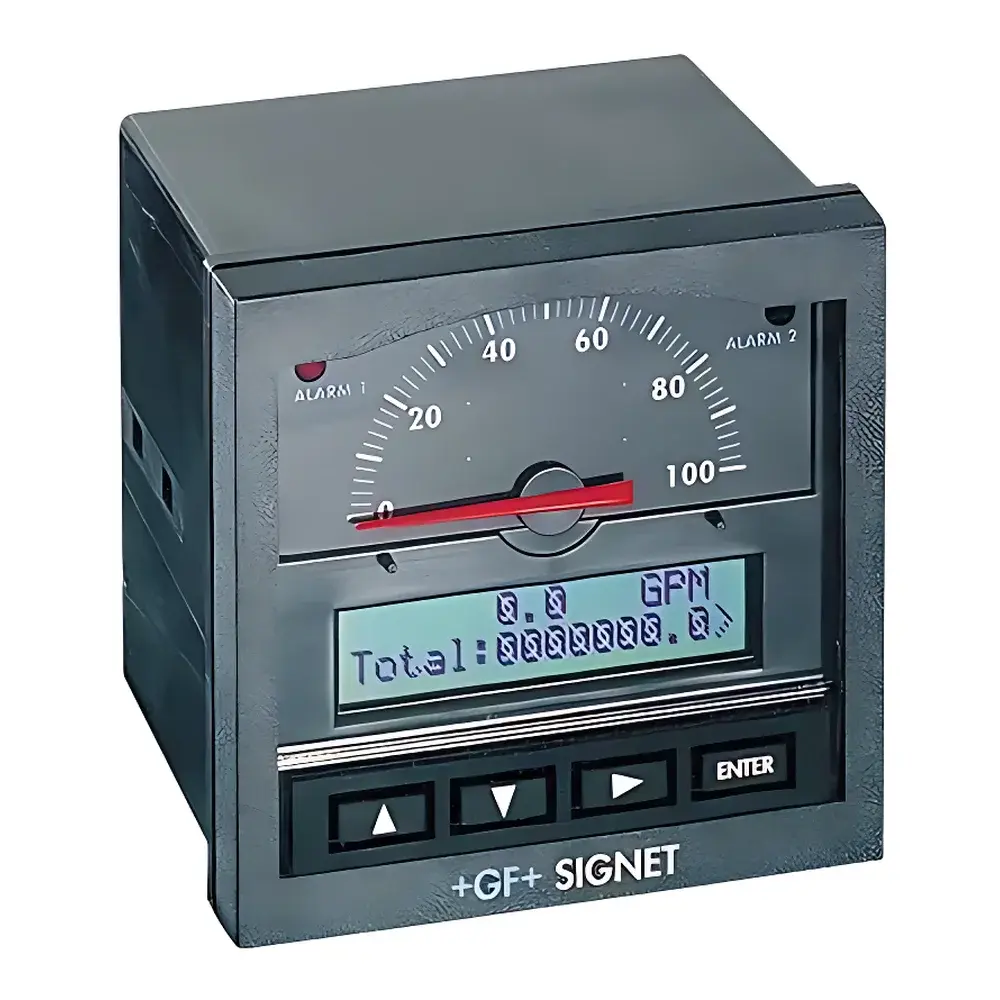

| Model | 05629-22 (Battery-Powered) / 05629-40 (AC/DC-Powered) |
| Accuracy | ±0.5% of reading |
| Display | Upper 4-digit LCD (flow rate), Lower 8-digit LCD (totalizer) |
| Power | 05629-22 — dual internal lithium batteries (4-year nominal life) |
| Dimensions | 05629-22 — 3.875" W × 3.875" H × 3.875" D |
| Operating Temperature | –10 to 55 °C (14 to 131 °F) |
| Relay Output | 2 SPDT, 125 VAC / 30 VDC, 5 A max |
| Analog Output | 4–20 mA (non-isolated) |
| Pulse Output | Optically isolated, sink current ≤5 mA |
| Display Update Rate | 200 ms |
| Hysteresis | 2% of setpoint |
| Sensor Compatibility | Roto-X and Metalex flow sensors only (Roto-X low-flow sensors excluded) |
| Environmental Rating | NEMA 4X-rated enclosure (IP65 equivalent) |
