| Brand | analytikjena |
|---|---|
| Origin | Germany |

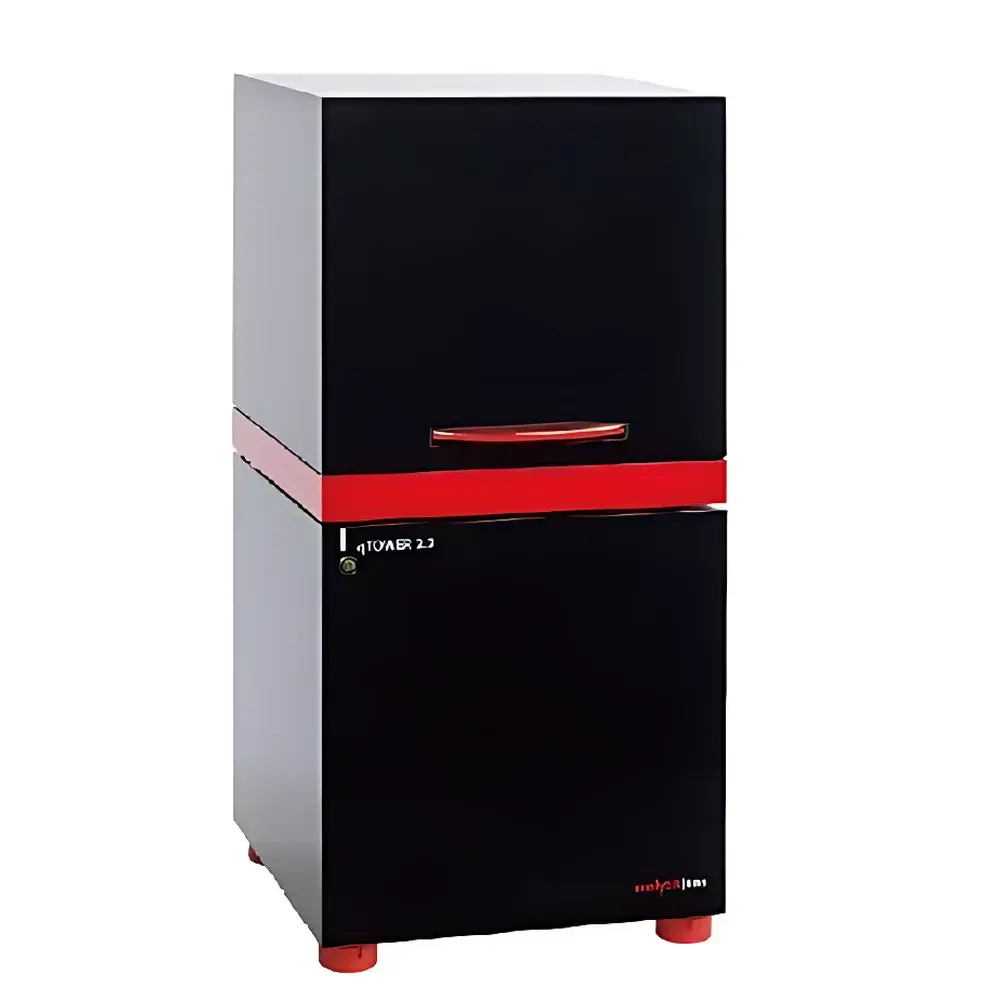

| Model | qTOWER3G |
| Instrument Type | Real-Time Fluorescence Quantitative PCR System |
| Sample Capacity | 96-well format |
| Max Heating Rate | 8 °C/s |
| Temperature Accuracy | ±0.1 °C |
| Temperature Uniformity | ±0.15 °C |
| Linear Gradient Range | 12-column independent gradient |
| Detection Sensitivity | Single-copy DNA detection |
| Dynamic Range | 10 orders of magnitude |
| Optical Channels | Up to 6 channels (configurable 1–6) |
| Excitation/Detection Filter Sets | 12 interchangeable combinations including FRET and protein melting-optimized configurations |
| Light Source | RGBW high-intensity LEDs (blue, green, red, white) |
| Detector | Channel-type Photomultiplier Tube (CPMT) |
| Scanning Method | 8-channel fiber-optic simultaneous detection |
| Scan Time | 6 s for full 96-well plate (6-channel mode) |
| Cycle Time | ≤45 min for 40 cycles |
| Thermal Block | Gold-plated pure silver Peltier module |
| Heat Lid | 110 °C max, auto-pressure adjustment up to 10 kg/plate |
| Reaction Volume | 10–80 µL |
| Noise Level | ≤45 dB(A) |
| Connectivity | USB, RS232, Ethernet |
| Dimensions (W×H×D) | 275 × 585 × 275 mm |
| Weight | ~30 kg |
| Brand | analytikjena |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic (China-manufactured) |
| Model | qTOWER384G |
| Instrument Type | Real-Time Fluorescence Quantitative PCR System |
| Sample Throughput | 384-well format |
| Maximum Heating Rate | 4 °C/s |
| Temperature Accuracy | ±0.1 °C |
| Well-to-Well Temperature Uniformity | ±0.15 °C |
| Optical Configuration | 6-channel excitation/emission system (field-upgradable from 1–6 channels) |
| Filter Sets | 12 interchangeable excitation/emission filter combinations, including FRET-optimized and protein melting-specific configurations |
| Light Source | RGBW solid-state LEDs (blue, green, red, white) with uniform spectral intensity, zero thermal emission, >50,000 h lifetime |
| Detector | High-sensitivity channel-type photomultiplier tube (PMT) |
| Detection Method | 16-channel fiber-optic scanning (16 wells simultaneously), ROX-free operation with optional passive reference correction |
| Sensitivity | Single-copy DNA detection |
| Dynamic Range | 10 logs (10¹–10¹¹ copies) |
| Recommended Reaction Volume | 2–30 µL |
| Thermal Gradient | 24-column linear temperature gradient (enables precise annealing optimization) |
| Thermal Block | Peltier-based, corrosion-resistant, high-thermal-conductivity alloy |
| Heat Lid | 110 °C maximum, auto-adjusting pressure (up to 30 kg/plate), height compensation |
| Software | qPCRsoft — quantitative analysis, dual standard curve, ΔΔCt with amplification efficiency modeling, melting curve analysis, SNP/allelic discrimination, endpoint genotyping, efficiency calculation, MIQE-compliant reporting, LIMS integration (via USB), GLP/GMP-ready audit trail (optional configuration), unlimited installations, lifetime free updates |
| Acoustic Noise Level | ≤45 dB(A) |
| Compliance | Designed and validated per ISO 13485 principles |
