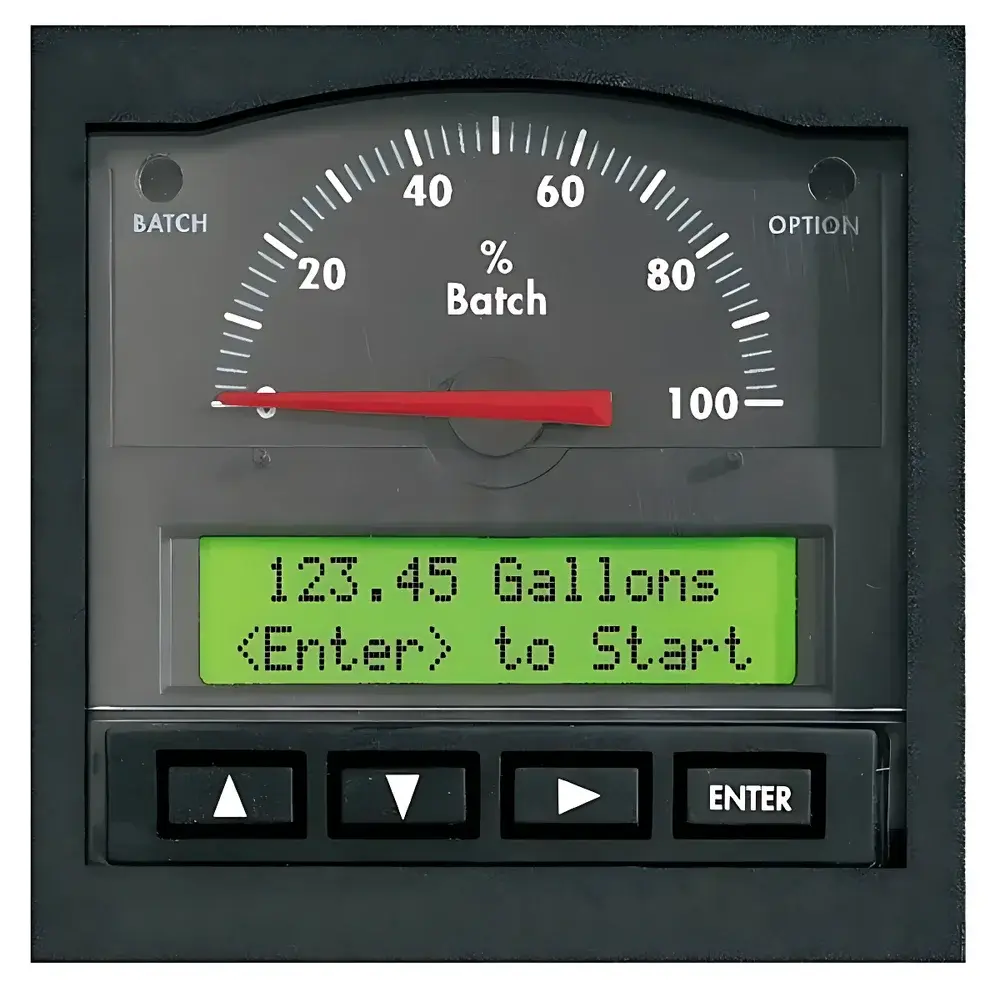

| Brand | Cole-Parmer |
|---|---|
| Origin | USA |
| Model | 05628-00 |
| Power Supply | 12–24 V AC/DC, 50/60 Hz |
| Display | 2-line × 16-character alphanumeric LCD with backlight |
| Relays | 2 × SPDT (5 A @ 250 V AC / 30 V DC) |
| Analog Output | 4–20 mA (non-isolated) |
| Pulse Output | EOB (End-of-Batch) for remote start/stop/resume |
| Input Frequency Range | 5–1000 Hz (optically isolated) |
| Operating Temperature | –10 to 55 °C (14 to 131 °F) |
| Enclosure Dimensions | 89 mm × 89 mm × 89 mm (3.5" × 3.5" × 3.5") |
| Mounting | Panel-mount with included bracket and adhesive template |
| Memory | Non-volatile EEPROM for configuration retention during power loss |
| Brand | Cole-Parmer |
|---|---|
| Origin | USA |
| Model Numbers | 33114-00, 33114-06, 33114-16 |
| Input Type | Pulse Input (33114-00) |
| Operating Temperature | 0–50 °C |
| Accuracy | ±0.1% of reading ±1 digit |
| Display | 6-digit, 1/2-inch red LED |
| Input Signal | Pulse (max 28 VDC) |
| Power Supply | 85–265 VAC, 50/60 Hz |
| Enclosure Rating | NEMA 4X |
| Dimensions | 101.6 mm W × 52.4 mm H × 98.4 mm D |
| Output Options | Dual relay, RS-485 digital output, 4–20 mA analog output |
| Linearization | 15-point user-defined linearization and square-root extraction for non-linear flow sensors |
| Batch Functionality | Single- or dual-valve batch control with auto-reset totalizer and cycle counter |

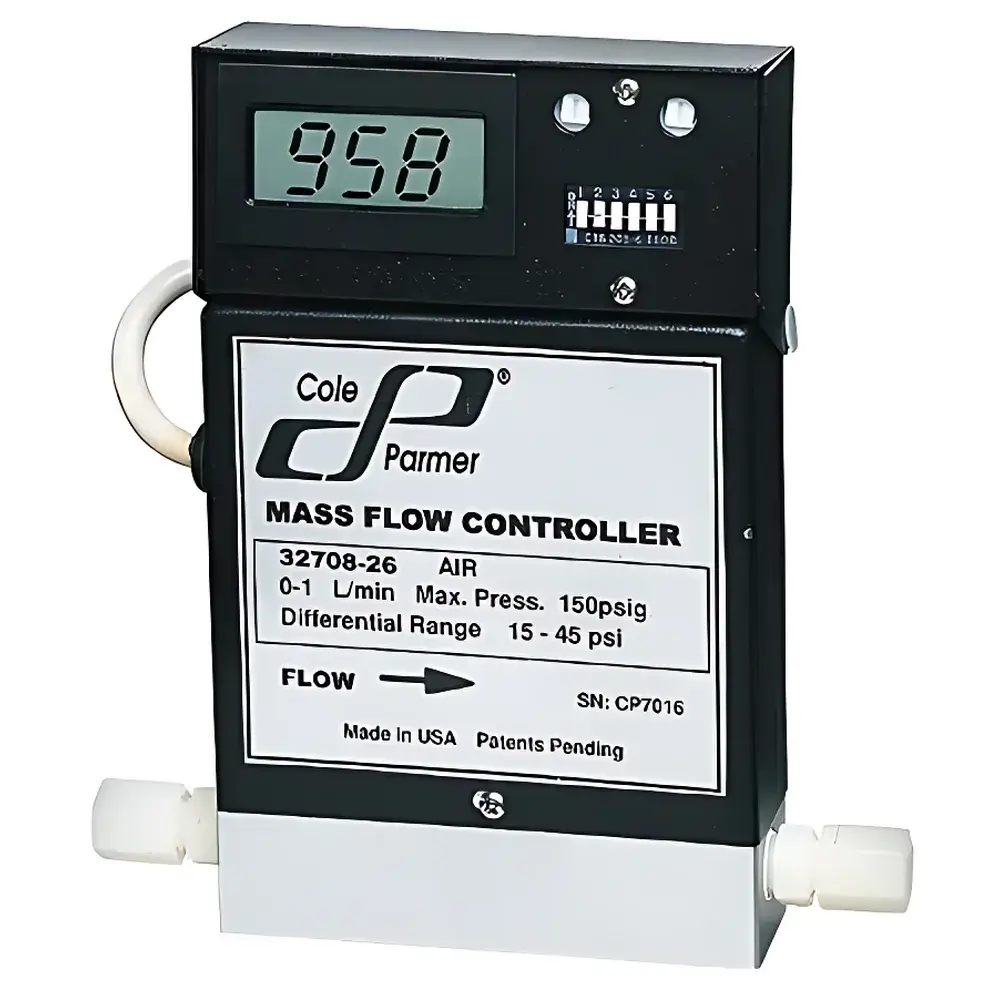

| Brand | Cole-Parmer |
|---|---|
| Origin | USA |
| Model Numbers | 32708-00, 32708-22, 32708-32 |
| Flow Range | 0–50 sccm (32708-00) |
| Accuracy | ±1.5% of Full Scale (FS), including linearity |
| Repeatability | ±0.5% FS |
| Response Time | ≤2 sec (to ±2% of setpoint, 25–100% FS step) |
| Operating Pressure | 5–40 psia (inlet) |
| Max system pressure | 150 psi |
| Temperature Range | 10–50°C ambient |
| Gas temp | 18–25°C nominal |
| Input/Output | 0–5 VDC analog control signal (input for valve actuation |
| Wetted Materials | Anodized aluminum, 316 stainless steel, brass, PTFE, acetal |
| Display | 3½-digit LCD (tiltable up to 90°), optional on models 32708-2x and 32708-3x |
| Gas Selection | DIP-switch configurable for Air, He, or Ar (factory-calibrated) |
| Power/IO Cable | Integrated 3-in-1 cable (power + 0–5 V input + 0–5 V output) |
| Pressure Drop | ≤15 psi at full scale flow |
| Compliance | Designed for use in general industrial process control environments |
| Brand | Cole-Parmer |
|---|---|
| Origin | USA |
| Housing Material | Brass |
| Connection | 1/4" NPT |
| Max Flow Capacity | 2.11 GPM |
| Rotor Material | Plastic |
| Self-Cleaning Feature | Yes |
| Viewing Angle | 360° |
| Tube Material | Borosilicate Glass |
| Calibration | Liquid (Water @ 20°C) |
| Accuracy | ±5% FS |
| Operating Temperature | ≤80°C |
| Pressure Rating | ≤150 psi |
| Compliance | ASTM D1947, ISO 4064-3 (for mechanical flow indication principles) |

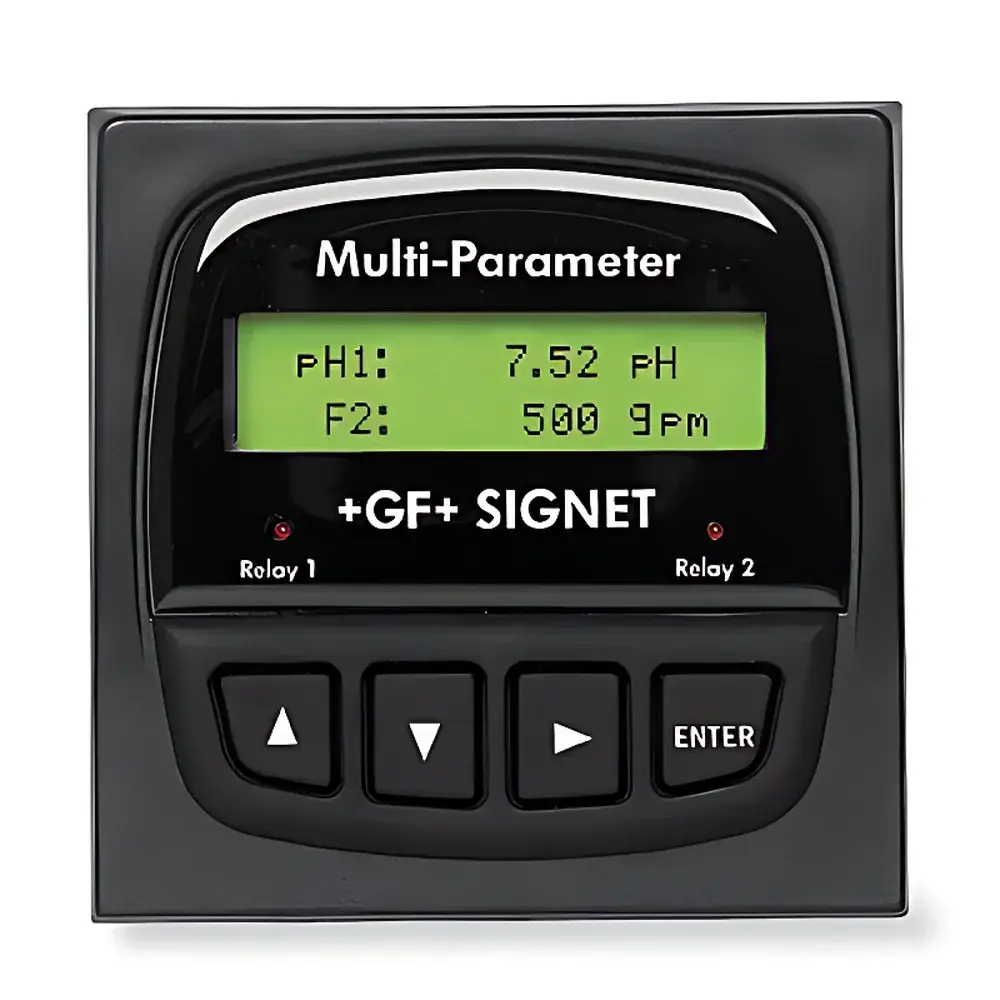

| Brand | Cole-Parmer |
|---|---|
| Origin | USA |
| Model | 05627-71 (85–264 VAC, 50–60 Hz), 05627-73 (12–24 VDC ±10%) |
| I/O Capacity | Up to 6 input modules, 2 relay cards (4 relays total), 1 dual-channel analog output card (4–20 mA / 0–5 V / 0–10 V), optional RS-232 communication card |
| Display | Dual-line, 16-character alphanumeric backlit LCD |
| Units | 30 built-in engineering units (flow, pressure, level, volume, pH, ORP, conductivity) |
| Accumulation | Resettable and non-resettable flow totalizers |
| Programming | Front-panel 4-button keypad |
| Compliance | CE-marked |
