| Brand | Shimadzu |
|---|---|
| Origin | Japan |
| Model | GC-2010 Pro |
| Instrument Type | Laboratory Gas Chromatograph |
| Application Scope | General-purpose |
| Oven Temperature Range | Ambient +4 °C to 450 °C |
| Oven Ramp Rate | –250 to +250 °C/min (programmable) |
| Oven Cool-down Time | ≤3.4 min (450 °C → 50 °C) |
| Carrier Gas Flow Range & Control | 0–1250 mL/min (7-segment programming) |
| Carrier Gas Pressure Range & Control | 0–1035 kPa (7-segment programming) |
| Injector Maximum Temperature | 450 °C |
| Injector Pressure Setting Range | 0–1035 kPa |
| Injector Total Flow Setting Range | 0–1250 mL/min |
| Brand | Shimadzu |
|---|---|
| Origin | Japan |
| Model | GC-2014C |
| Instrument Type | Laboratory Gas Chromatograph |
| Application Scope | General-purpose |
| Oven Temperature Control Range | 75–120 °C/min (ramp rate) |
| Temperature Ramp | 100–450 °C in 4.5 min |
| Cooling Rate | 100–0 °C in 4.5 min |
| Carrier Gas Flow Range & Control | 0–200 mL/min |
| Carrier Gas Pressure Range & Control | 150–700 kPa |
| Injector Maximum Operating Temperature | 400 °C |
| Injector Pressure Setting Range | 100–500 kPa |
| Injector Total Flow Setting Range | 200–1200 mL/min |
| Brand | BUCHI |
|---|---|
| Origin | Switzerland |
| Model | Sepacore |
| Pressure Range | Up to 50 bar (725 psi) |
| Flow Rate | 2.5–250 mL/min |
| Column ID Range | 15–100 mm |
| Max Sample Load | 100 g (glass columns) |
| Detector Wavelength | 190–745 nm |
| Gradient Capability | Binary to Quaternary, 0–100% B, linearity ±2% |
| Software | SepacoreControl (PC-based, optional 21 CFR Part 11 compliance) |
| Pump Type | Tri-piston, pulse-free, solvent-compatible with acids/bases/organics |
| Column Options | Glass (coated), polypropylene flash columns, cartridge-based packing systems |
| Fraction Collection Modes | Time-, volume-, or UV peak-triggered |
| Safety Features | Grounded metal fraction collector arm, transparent pressure-rated glass columns, integrated pressure sensors and level monitoring |
| Brand | Shimadzu |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Status | Authorized Distributor |
| Origin Category | Domestic |

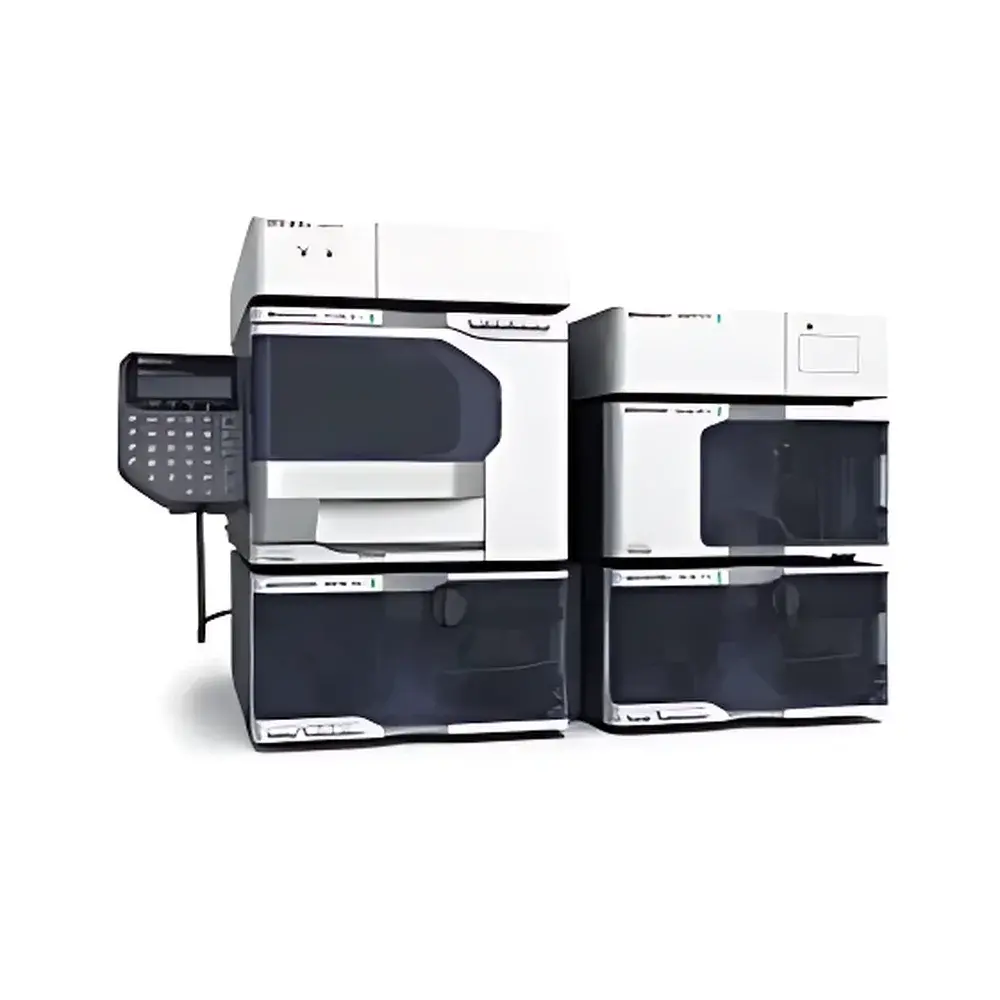

| Model | LC-16 |
| Instrument Type | Conventional HPLC System |
| Flow Rate Range | 0.001–10.000 mL/min |
| Maximum Pressure | 36 MPa |
| Sample Tray Capacity | 108 positions for 1.5 mL vials + support for 4.0 mL vials |
| Injection Volume Range | 0.1–100 µL (expandable to 2000 µL with optional syringe) |
| Column Oven Temperature Range | 14–60 °C |
| UV-Vis Wavelength Range | 190–700 nm |
| Data Acquisition Frequency | 100 Hz |
| Brand | Shimadzu |
|---|---|
| Origin | Japan |
| Model | GC-2014 |
| Instrument Type | Benchtop Laboratory Gas Chromatograph |
| Temperature Control Range | Ambient +10 °C to 420 °C (–50 °C to 420 °C with liquid CO₂ cooling) |
| Maximum Ramp Rate | 250 °C/min |
| Cooling Rate | From 300 °C to 50 °C in <6 min |
| Carrier Gas Flow Range & Control | 0–1250 mL/min |
| Carrier Gas Pressure Range & Control | 0–1035 kPa |
| Injector Maximum Operating Temperature | 420 °C |
| Injector Pressure Setting Range | 0–1035 kPa |
| Injector Total Flow Setting Range | 0–1250 mL/min |
| Oven Volume | 15.8 L |
| Temperature Stability vs. Ambient Drift | ±0.01 °C/°C |
| Programmable Temperature Segments | 20 (including cooling ramps) |
| Programmed Ramp Rate Range | –250 to +250 °C/min |
| Injector Types Supported | Split/Splitless, Dual/Packed Column |
| Max Simultaneous Inlets | 3 |
| Max Simultaneous Detectors | 4 |
| Detector Temperature Range | Up to 420 °C (FID, TCD, FTD-S) |
| Display | 240 × 320-pixel graphical LCD (30 char × 60 line) |
| Dimensions (W×H×D) | 607 × 690 × 400 mm |
| Weight | 48 kg (GC-2014AF configuration) |
| Power Supply | AC 200 V, 1800 VA, 50/60 Hz |
| Brand | Shimadzu |
|---|---|
| Origin | Japan |
| Model | Nexis GC-2030 |
| Instrument Type | Laboratory Gas Chromatograph |
| Application Scope | General-purpose |
| Oven Temperature Range | Ambient +2 °C to 450 °C |
| Maximum Ramp Rate | 250 °C/min |
| Cool-down Time | ≤3.4 min (from 450 °C to 50 °C at ambient 22 °C) |
| Carrier Gas Flow Control Range | 0–1250 mL/min (7 programmable segments) |
| Carrier Gas Pressure Control Range | 0–1035 kPa (7 programmable segments) |
| Injector Maximum Operating Temperature | 450 °C |
| Injector Pressure Setting Range | 0–1035 kPa |
| Injector Total Flow Setting Range | 0–1300 mL/min (He or H₂), 0–600 mL/min (N₂) |
