| Brand | PhyMetrix |
|---|---|
| Origin | USA |
| Model | DPT-810 Series |
| Product Type | Online Dew Point Transmitter |
| Measurement Principle | Capacitive Polymer/Metal Oxide Thin-Film Sensor |
| Operating Temperature Range | −20 °C to +60 °C |
| Accuracy | ±2 °C (at −40 °C to +20 °C dp) |
| Repeatability | ±0.5 °C |
| Dew Point Range | −110 °C to +20 °C dp |
| Response Time (95% step) | 180 s |
| Output Signal | 4–20 mA (2-wire, 20–28 VDC) |
| Enclosure Rating | IP68 |
| Housing Material | 316 Stainless Steel |
| Process Connection | 3/4″–16 UNF |
| Max. Operating Pressure | 6 bar |
| Weight | 0.17 kg |
| Dimensions (L × Ø) | 138.4 mm × 30 mm |
| Resolution | <0.01 °C dp |
| Compliance | CE, NIST-Traceable Calibration, ATEX/IECEx Optional (with certified housing variant) |
| Brand | PhyMetrix |
|---|---|
| Origin | USA |
| Model | DPT-990EX |
| Product Type | Online Dew Point Meter |
| Measurement Principle | Chilled-Mirror–Based Electrochemical Metal Oxide Sensor (Nanoporous Metal Oxide Film) |
| Operating Temperature Range | −110 °C to +20 °C (Dew Point) |
| Ambient Operating Temperature | −20 °C to +60 °C |
| Accuracy | ±1 °C |
| Repeatability | ±1 °C |
| Enclosure Rating | IP65 |
| Power Supply | 90–260 VAC (47–63 Hz) or 12–24 VDC (10 VA) |
| Output Signal | 4–20 mA HART-enabled analog output |
| Pressure Limit | ≤68 bar (gauge) |
| Sample Flow Rate | >1 NL/min |
| Certification | FM/CSA Class I, Div 1, Groups B, C, D |
| Brand | PhyMetrix |
|---|---|
| Origin | USA |
| Model | DPT-500 |
| Product Type | Portable Dew Point Meter |
| Measurement Principle | Capacitive Metal Oxide Thin-Film Sensor (Nanoporous Al₂O₃) |
| Operating Temperature | -20 °C to +60 °C |
| Accuracy | ±2 °C (dew point) |
| Repeatability | ±0.5 °C |
| Dew Point Range | -110 °C to +20 °C |
| Response Time | ≤3 min to 95% of step change (dry-to-wet) |
| Gas Flow Rate | >1 L/min |
| Temperature Sensor Range | -40 °C to +70 °C |
| Pressure Sensor Option | 0–150 PSIA (0–10 bar), ±1% FS |
| Display Units | °C(dp), °F(dp), ppmv, ppmw, µbar, g/m³, lb/1000 ft³ |
| Data Logging Capacity | >4000 records (dew point, temperature, pressure) |
| Power | Rechargeable Li-ion battery (USB or AC adapter charging) |
| Enclosure Rating | IP65 (body), IP67/IP68 (connector with cap) |
| ATEX Certification | Ex II 2 G |
| Housing Material | Impact-resistant polyamide 12 |
| Wetted Materials | 316L stainless steel, PTFE |
| Dimensions | 187 × 106 × 50 mm (L×W×H) |
| Weight | 0.8 kg |
| Brand | York Instruments |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Manufacturer |
| Product Type | Portable Dew Point Meter |
| Measurement Principle | Chilled-Mirror Condensation |
| Operating Temperature | -20 °C to +40 °C |
| Accuracy | ±0.1 °C (dew point) |
| Repeatability | ±0.05 °C (dew point) |
| Display | High-Resolution Capacitive Touch LCD |
| User Interface | Graphical, Multilingual (English/Chinese), Step-by-Step Guidance |
| Mirror Control | Digital Fuzzy Logic with Auto-Balance Algorithm |
| Mirror Maintenance | Integrated Mirror Inspection and Automated Cleaning Sequence |
| Diagnostics | Real-Time Self-Diagnostic Engine with Fault Classification |
| Communication Interfaces | RS-485, USB 2.0 |
| Brand | York Instruments |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Manufacturer |
| Product Category | Domestic |
| Model | DM9200 |
| Product Type | Portable Dew Point Meter |
| Measurement Principle | Chilled Mirror Condensation |
| Operating Temperature Range | −30 to +90 °C |
| Accuracy | ±0.15 °C |
| Repeatability | ±0.05 °C |
| Brand | PhyMetrix |
|---|---|
| Origin | USA |
| Model | DPT-910 |
| Type | Online Dew Point Analyzer |
| Principle | Chilled-Mirror Hygrometry (Nanoporous Metal Oxide Sensor) |
| Measurement Range | −110 °C to +20 °C (dew point) |
| Accuracy | ±2 °C |
| Operating Temperature | −20 °C to +60 °C |
| Enclosure Rating | IP66 & IP68 |
| Hazardous Area Certifications | FM/CSA Class I, Div 1, Groups B, C, D |
| ATEX/IECEx | Ex d IIC T6 Gb / Ex d IIIC T6 Db |
| Gas Inlet/Outlet | 1/4″ Swagelok stainless steel fittings |
| Sample Flow Rate | >1 L/min |
| Power Options | 90–260 VAC, 47–440 Hz |
| Outputs | Isolated RS-422 |
| Housing | Fiberglass-reinforced polymer (FRP) enclosure with large optical-grade viewport |
| Brand | PhyMetrix |
|---|---|
| Origin | USA |
| Model | DPT-600plus |
| Type | Portable/Benchtop Dew Point Meter |
| Principle | Capacitive Polymer Sensor (Nanoporous Metal Oxide Film) |
| Operating Temperature | -20 °C to +60 °C |
| Accuracy | ±2 °C |
| Repeatability | ±0.5 °C |
| Dew Point Range | -110 °C to +20 °C (standard), optional -60 °C to +20 °C |
| Response Time (T95) | ≤3 min (dry-to-wet) |
| Resolution | 0.1 °C |
| Temperature Compensation Range | -40 °C to +70 °C |
| Flow Rate | 1–5 SCFH (recommended 2–4 SCFH) |
| Pressure Measurement | Built-in absolute pressure sensor with dew point correction |
| Data Storage | >10,000 records (dew point, temperature, pressure) |
| Enclosure Rating | IP67/IP68 |
| Intrinsically Safe | Class I, Div. 1, Groups A, B, C, D |
| Dimensions | 142 × 180 × 146 mm (L×W×H) |
| Weight | 2.6 kg |
| Brand | York |
|---|---|
| Model | DPT-70 |
| Type | Portable Dew Point Meter |
| Principle | Capacitive Polymer Sensor |
| Measurement Range | -70 to +30 °C (Dew Point) |
| Resolution | 0.01 °C (DP) |
| Accuracy | ±2.0 °C (DP) |
| Response Time (T90) | <120 s |
| Operating Temperature | -10 to +60 °C |
| Sample Pressure Range | 0–20 bar (absolute) |
| Power Supply | Rechargeable Li-ion Battery (220 VAC charger included) |
| Weight | 0.7 kg |
| Dimensions (Handheld Unit) | 250 × 70 × 25 mm |
| Display | Backlit LCD with Multi-parameter Readout |
| Data Logging | Internal storage with USB export to Excel-compatible CSV format |
| Brand | York Instruments |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Manufacturer |
| Product Type | Portable Dew Point Meter |
| Measurement Principle | Chilled-Mirror Hygrometry |
| Operating Temperature | -10 °C to +35 °C |
| Accuracy | ±0.1 °C |
| Repeatability | ±0.05 °C |
| Dew Point Range | -95 °C to +20 °C (at 20 °C ambient) |
| Display | 9.7" TFT LCD Touchscreen |
| Resolution | 0.01 °C |
| Output Options | 4–20 mA, 0–10 V, RS-485 (Modbus RTU), USB |
| Data Storage | SD Card (FAT32, up to 32 GB) |
| Sample Flow Rate | 0.3–1 L/min |
| Sample Pressure | 0–200 kPa (abs) |
| Sample Temperature | -20 °C to +40 °C |
| Mirror Material | Rhodium-plated Copper |
| Enclosure | Aluminum Alloy |
| Dimensions | 278 mm (H) × 483 mm (W) × 578 mm (D) |
| Weight | 40 kg |
| Power Supply | 198–254 VAC, 47–63 Hz, 1000 W |
| Brand | York Instrument |
|---|---|
| Origin | USA |
| Manufacturer | York Instrument |
| Product Type | Import |
| Model | FGS |
| Pricing | Upon Request |
| Brand | York Instrument |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Manufacturer |
| Product Category | Domestic |
| Model | YKDC220 |
| Application | Laboratory-grade dew point calibration system |
| Measurement Principle | Chilled-mirror hygrometry |
| Operating Temperature | 20–25 °C |
| Accuracy | ±0.1 °C (dew point) |
| Repeatability | ±0.1 °C (dew point) |
| Dry Gas Generator | GS-1000 with PSA drying |
| Minimum Achievable Dew Point | ≤ −80 °C |
| Input Pressure | ≥ 0.8 MPa |
| Output Pressure Range | 0–0.3 MPa |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Power Consumption | 300 W |
| Dimensions (W×D×H) | 485 × 500 × 260 mm |
| Weight | 20 kg |
| Interface | RS485 |
| Brand | York Instrument |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | DPSS-6100 |
| Product Type | Online Dew Point Analyzer Sampling System |
| Measurement Principle | Capacitive Polymer Sensor-Based Dew Point Detection |
| Pressure Rating | Up to 20 MPa (for integrated pressure regulator) |
| Filtration Precision | 2 µm (stainless steel sintered filter element) |
| Flow Control Range | 0–2 L/min (adjustable via precision needle valve) |
| Compliance Standards | GB 50029-2014 (Compressed Air Station Design Code), GB 50093-2013 (Code for Construction and Quality Acceptance of Automation Instrumentation Engineering), GB 50030-2013 (Oxygen Station Design Code) |
| Brand | PhyMetrix |
|---|---|
| Model | DPT-600 |
| Type | Portable/Tabletop Dew Point Meter |
| Measurement Principle | Capacitive Nanoporous Metal Oxide Sensor |
| Dew Point Range | −110 °C to +20 °C |
| Accuracy | ±2 °C |
| Repeatability | ±0.8 °C |
| Response Time (95% step) | 3 min |
| Operating Temperature | −20 °C to +60 °C |
| Gas Flow Rate | >1 L/min |
| Temperature Sensor Range | −40 °C to +70 °C |
| Pressure Sensor Option | 0–150 PSIA (10 bar), ±1% FS |
| Enclosure Rating | IP67/IP68 |
| Dimensions | 199 × 162 × 84 mm (L×W×H) |
| Weight | 1.6 kg |
| Power | Rechargeable Li-ion battery or 100–240 VAC adapter via USB Mini-B |
| Data Logging Capacity | >4,000 records (dew point, temperature, pressure) |
| Display | Backlit graphical LCD with auto-scaling bar chart |
| Interface | USB Mini-B (sealed cap), optional 4–20 mA (HART), optional ATEX-certified intrinsically safe version |
| Brand | PhyMetrix |
|---|---|
| Origin | USA |
| Model | DPT-900 |
| Product Type | Online Dew Point Analyzer |
| Measurement Principle | Electrolytic (P2O5 Sensor) |
| Operating Temperature | -20 °C to +60 °C |
| Accuracy | ±2 °C |
| Repeatability | ±0.5 °C |
| Dew Point Range | -110 °C to +20 °C |
| Response Time | ≤3 min (to 95% of step change, dry-to-wet) |
| Gas Flow Rate | >1 L/min |
| IP Rating | IP66/IP68 |
| Hazardous Area Certifications | FM/CSA Class I Div 1 Groups B, C, D |
| ATEX/IECEx | Ex d IIC T6 Gb |
| Enclosure Material | Aluminum (standard), optional 316L stainless steel |
| Dimensions | 226 × 147 × 147 mm (L×W×H) |
| Weight | 2.5 kg |
| Brand | York Instruments |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Manufacturer |
| Product Type | Portable Dew Point Meter |
| Measurement Principle | Chilled-Mirror Hygrometry |
| Operating Temperature | -20 °C to +40 °C |
| Accuracy | ±0.1 °C |
| Repeatability | ±0.05 °C |
| Dew Point Range | -70 °C to +20 °C |
| Resolution | 0.01 °C |
| Response Time | ≤60 s (for 10 °C step change) |
| Mirror Material | Chromium-Plated Copper |
| Flow Rate Range | 0–2 L/min (accuracy ±5%) |
| Pressure Sensor Range | 0–200 kPa (abs), accuracy ±0.25% FS |
| Remote Temperature Sensor | 4-wire PT100, accuracy ±0.1 °C, cable length <2 m |
| Power Supply | 80–264 VAC, 47–63 Hz, 400 W |
| Analog Outputs | 4–20 mA / 0–20 mA / 0–24 mA / 0–5 V / 0–10 V (3-channel, user-configurable) |
| Alarm Outputs | 2 programmable SPDT relays (250 VAC/5 A, 30 VDC/5 A, resistive load) |
| Communication | USB, RS-485, Modbus RTU protocol |
| Data Storage | SD card (FAT32, up to 32 GB) |
| Display | 7" LCD touch screen, 1024×600 RGB WVGA, 16:9 aspect ratio |
| Supported Units | °C, °F, ppmv, ppmw, %RH, g/kg, mg/m³ |
| Sample Gas Temp | -20 °C to +40 °C |
| Sample Gas Pressure | 0–200 kPa (abs) |
| Sample Flow Rate | 0.3–1 L/min |
| Environmental Humidity Limit | <80% RH |
| Storage Temperature | -20 °C to +50 °C (optimal at 20 °C) |
| Dimensions | 190 mm (H) × 483 mm (W) × 498 mm (D) |
| Weight | 15 kg |
| Gas Inlet Fitting | 1/4" stainless steel compression fitting |
| Enclosure Material | Aluminum alloy |
| Gas Path Materials | 316L stainless steel |
| Brand | PhyMetrix |
|---|---|
| Origin | USA |
| Model | DPT-830 |
| Product Type | Online Dew Point Analyzer |
| Measurement Principle | Capacitive Metal Oxide Thin-Film Sensor (Nanoporous Al₂O₃-based) |
| Operating Temperature Range | 0 °C to +45 °C |
| Dew Point Range | −110 °C to +20 °C |
| Accuracy | ±2 °C |
| Repeatability | ±0.8 °C |
| Response Time (T90) | < 3 min |
| Minimum Flow Rate | > 3 SCFH |
| Output Signals | 4–20 mA (user-configurable range), RS232 (configuration & data access), RS485 (Modbus RTU), Optional 433 MHz RF Wireless |
| Relay Outputs | 2 × 10 A / 240 V AC, fully user-configurable |
| Data Logging | Optional |
| Calibration Traceability | NIST-traceable |
| Safety Certification | Optional Intrinsically Safe (IS) Rating |
| Probe Configuration | Optional Remote-Mount Sensor Head |
| Brand | York Instruments |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Manufacturer |
| Product Category | Portable Dew Point Meter |
| Measurement Principle | Chilled-Mirror Hygrometry |
| Operating Temperature | 10–35 °C |
| Accuracy | ±0.1 °C |
| Repeatability | ±0.05 °C |
| Dew Point Range | −90 to +20 °C |
| Resolution | 0.01 °C |
| Response Time | ≤60 s (for ±10 °C step change) |
| Mirror Material | Chromium-Plated Copper |
| Flow Rate Range | 0–2 L/min (±5% FS) |
| Pressure Range | 0–200 kPa (abs), ±0.25% FS |
| Remote Temperature Sensor | 4-wire PT100, ±0.1 °C |
| Display | 9.7" LCD, 1024×768 RGB, 4:3 aspect ratio |
| Analog Outputs | 3-channel configurable (4–20 mA / 0–20 mA / 0–24 mA / 0–5 V / 0–10 V) |
| Digital Interfaces | USB, RS-485 (Modbus RTU) |
| Data Storage | SD Card (FAT32, up to 32 GB) |
| Enclosure | 6U 19″ rack-mountable aluminum chassis (278 × 483 × 578 mm, 40 kg) |
| Gas Inlet/Outlet | 1/4″ VCR (in), 1/4″ stainless steel compression (out) |
| Wetted Materials | 316L stainless steel, chromium-plated copper mirror |
| Brand | York Instruments |
|---|---|
| Origin | USA |
| Manufacturer Type | Manufacturer |
| Product Category | Imported |

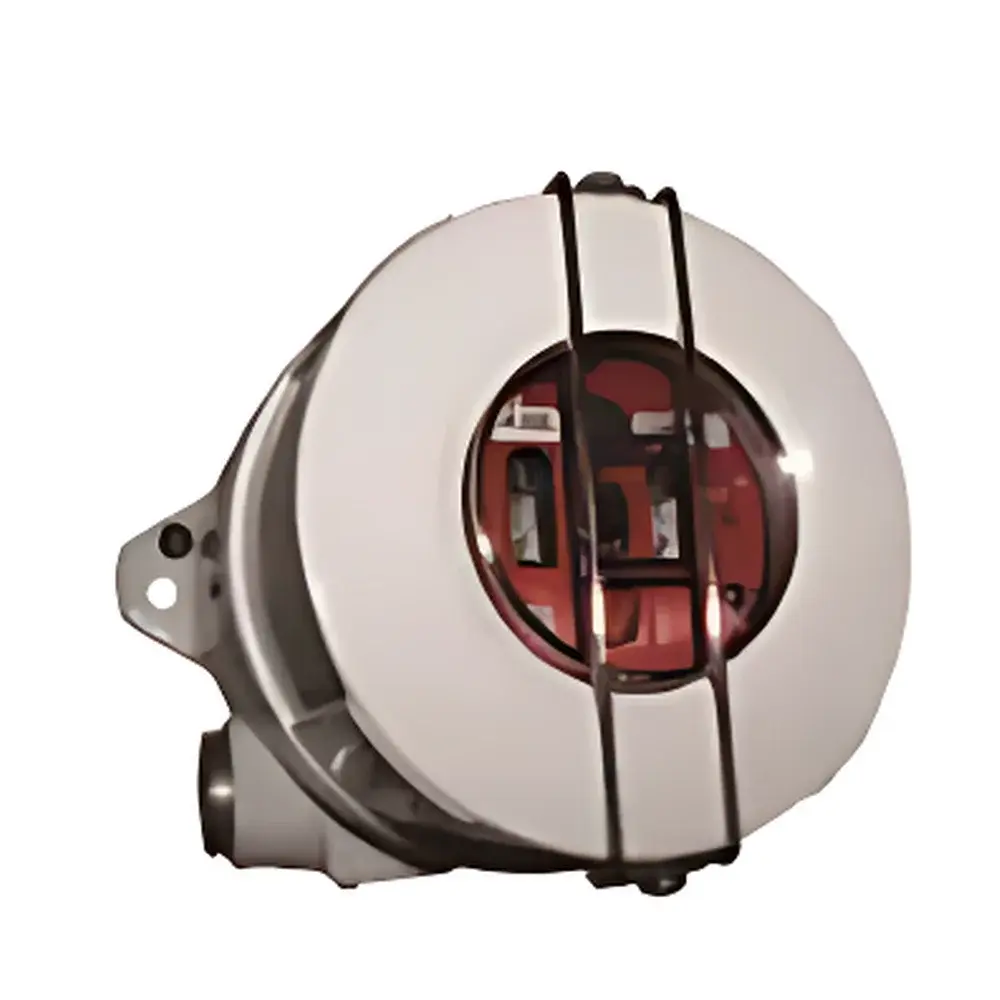

| Model | SS4-A2 |
| Pricing | Upon Request |
| Spectral Range | UV 185–260 nm, Visible 400–700 nm, IR 700–3500 nm |
| Detection Angle | 120° conical field of view |
| Sensitivity Options | 15 / 30 / 45 / 60 ft (1 ft² gasoline flame) |
| Response Time | 2–5 s at 60 ft |
| Operating Voltage | 24 VDC (20.5–34 VDC) |
| Relay Output | 1.0 A / 24 VAC |
| Operating Temperature | −40 °C to +85 °C |
| Humidity Range | 10–90% RH (non-condensing) |
| Hazardous Location Certification | Class I, Div 1 & 2, Groups B, C, D |
Show next
