| Origin | UK |
|---|---|
| Type | Box-Type Muffle Furnace |
| Max Temperature | 1700°C or 1800°C |
| Chamber Volume | 4 L to 27 L |
| Heating Elements | MoSi₂ or Mo–W–Si₂ |
| Control Options | Eurotherm 2116 / 2216 / 2416 CG / 2408 CP |
| Power Range | 4.4 kW to 15.0 kW |
| Door Operation | Manual or Motorized |
| Safety Features | Over-Temperature Protection, Electronic Door Lock, Vertical Lift Door, Dual-Wall Insulated Housing |
| Origin | UK |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

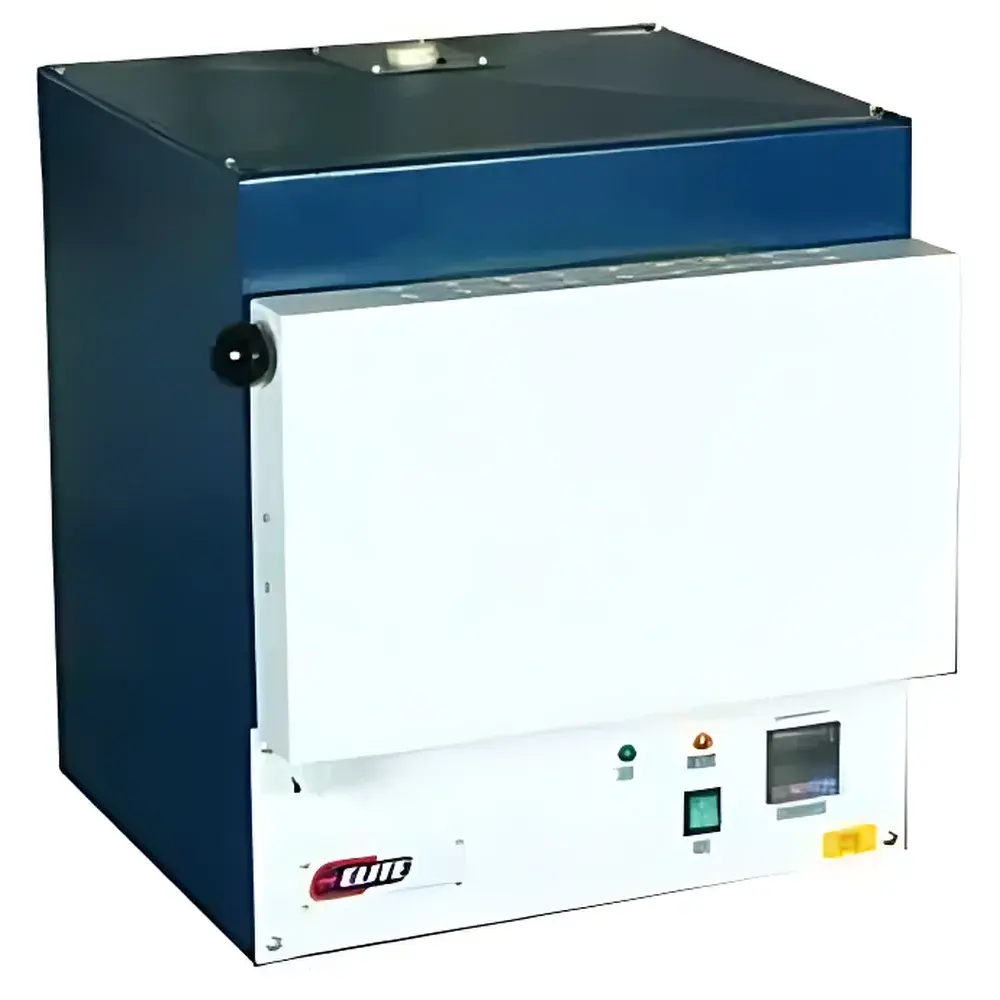

| Model | BMF11/7 |
| Instrument Type | Box-Type Muffle Furnace |
| Max Temperature | 1100 °C |
| Operating Temperature Range | Ambient to 1050 °C (continuous) |
| Temperature Uniformity | ±5 °C at 1050 °C |
| Control Accuracy | ±2 °C |
| Internal Dimensions (W×D×H) | 178 × 305 × 125 mm |
| Effective Volume | 7 L |
| Max Power Consumption | 2 kW |
| Heating Rate to 1100 °C | ≤50 min |
| Heating Element | Dual-sided Kanthal A1 wire embedded in ceramic fibre grooves |
| Insulation | Low-mass, high-purity ceramic fibre (density ~128 kg/m³) |
| External Casing | Galvanised steel with polyester powder coating |
| Door Mechanism | Top-hinged or front-hinged insulated door with automatic power cut-off interlock |
| Exhaust | Integrated chimney port (standard) |
| Thermocouple | Type N (NiCr–NiSi), calibrated per IEC 60584 |
| Electrical Supply | 240 V AC, single-phase |
| Net Weight | 48 kg |
| Compliance | CE-marked, conforms to EN 61000-6-3 (EMC), EN 61000-6-2 (Immunity), EN 60519-1 (Electrical Safety for Industrial Heating Equipment) |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

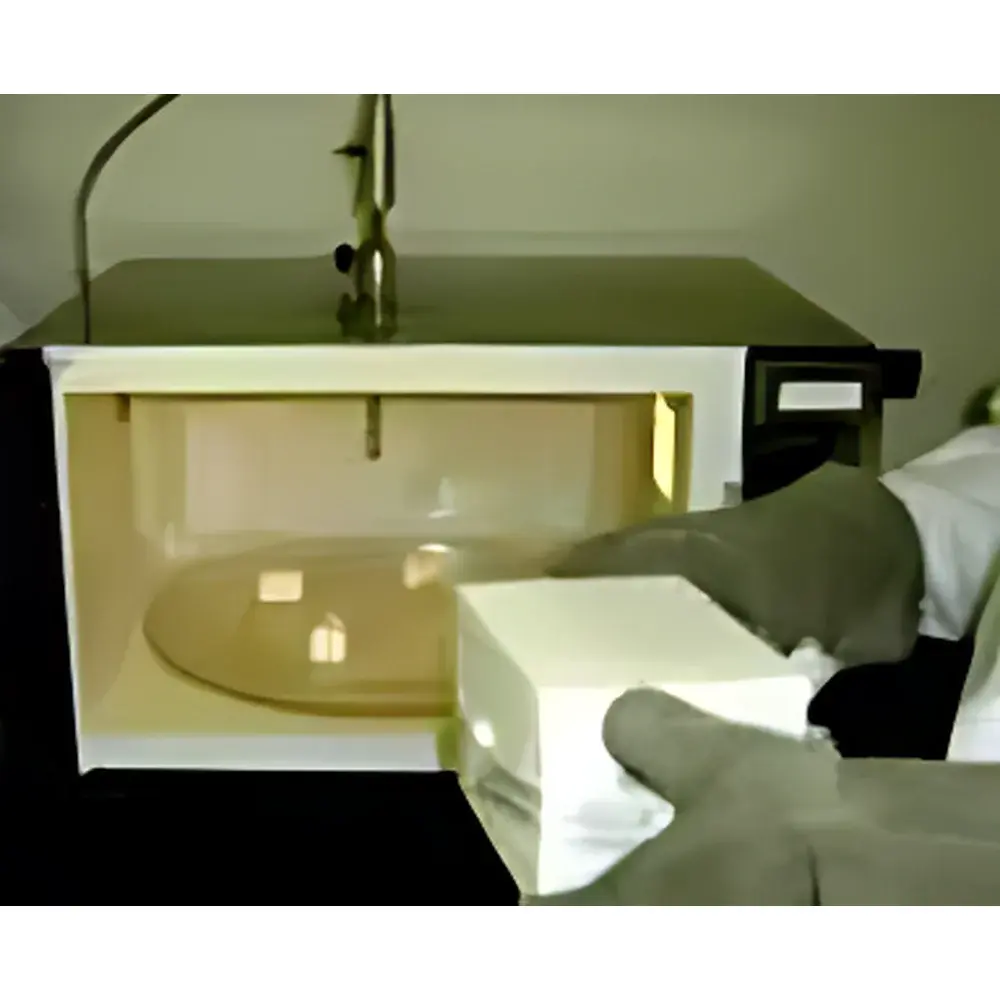

| Model | RMS Series |
| Temperature Range | Ambient to 1400°C or Ambient to 1700°C |
| Controller Interface | RS-232/USB with PC connectivity |
| Cooling System | Liquid-cooled cavity jacket |
| Input Power | 1400 W, 12.0 A (230 V AC) |
| Rotating Sample Platform | Motor-driven quartz turntable for uniform microwave energy distribution |
| Atmosphere Control | Optional inert gas inlet (N₂, Ar) with flow regulation |
| Thermocouple Mounting | Adjustable-height Type S thermocouple port |
| Crucible Compatibility | Dual-range refractory crucibles (≤1400°C and ≤1700°C), multiple dimensions and geometries available |
| Support Stand | Ceramic-fiber–insulated crucible holder isolating sample from rotating quartz components |
| Origin | UK |
|---|---|
| Type | Box-Type Muffle Furnace |
| Model | BSF Series |
| Max Temperature | 1200°C |
| Temperature Uniformity | ±2°C |
| Max Power | 2 kW |
| Heating Time to Max Temp | 50 min |
| Heating Method | Resistance Wire (Dual-Sided) |
| Internal Dimensions | 190 × 235 × 180 mm |
| Insulation | Low-Heat-Capacity Ceramic Fiber |
| Thermocouple Type | N-Type |
| Voltage | 240 V, Single Phase |
| Door Safety Interlock | Yes |
| Standard Chimney | Yes |
| Construction | Galvanized Steel with Polyester Powder Coating |
| Origin | USA |
|---|---|
| Type | Box-type muffle furnace |
| Model | E14 |
| Maximum Temperature | 1093°C |
| Temperature Uniformity | ±3°C |
| Rated Power | 3120 W |
| Internal Dimensions (W×D×H) | 331 × 343 × 223 mm |
| Heating Element | Kanthal A1 resistance wire |
| Insulation | 150 mm thick refractory ceramic fiber |
| Voltage/Frequency | 230 V / 50 Hz |
| Compliance | CE, UL Listed (per UL 746A & UL 1286) |
| Origin | USA |
|---|---|
| Type | Box-Type Muffle Furnace |

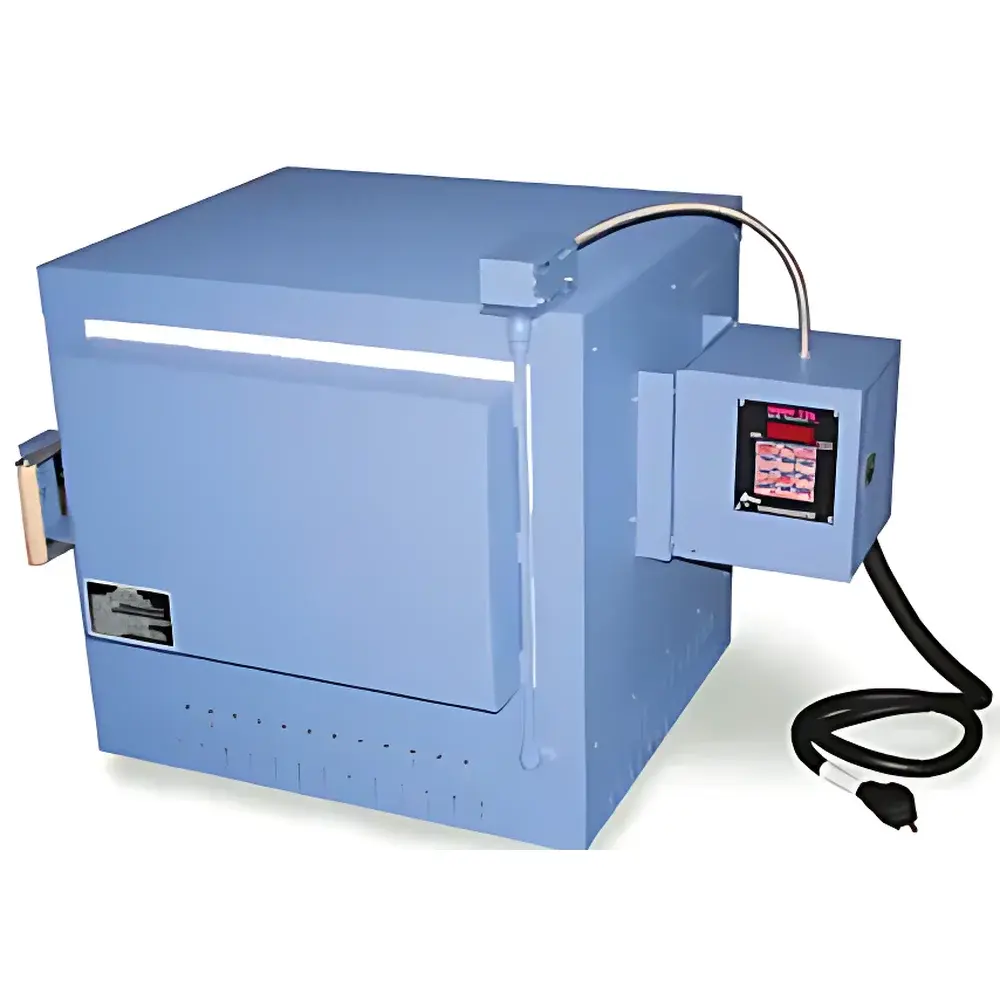

| Model | PMT21 |
| Max Temperature | 1287°C |
| Temperature Uniformity | ±3°C |
| Max Power | 9600 W |
| Heating Rate to Max Temp | 60 min |
| Heating Element | Kanthal A1 Resistance Wire |
| Internal Dimensions (W×D×H) | 533 × 533 × 330 mm |
| Effective Chamber Volume | 93.45 L |
| Controller | Sentry 12-Key Digital Programmable Controller |
| Voltage/Frequency/Current | 230 V / 50 Hz / 40 A |
| Net Weight | 290.3 kg |
| Insulation Thickness | 150 mm Refractory Ceramic Fiber |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |

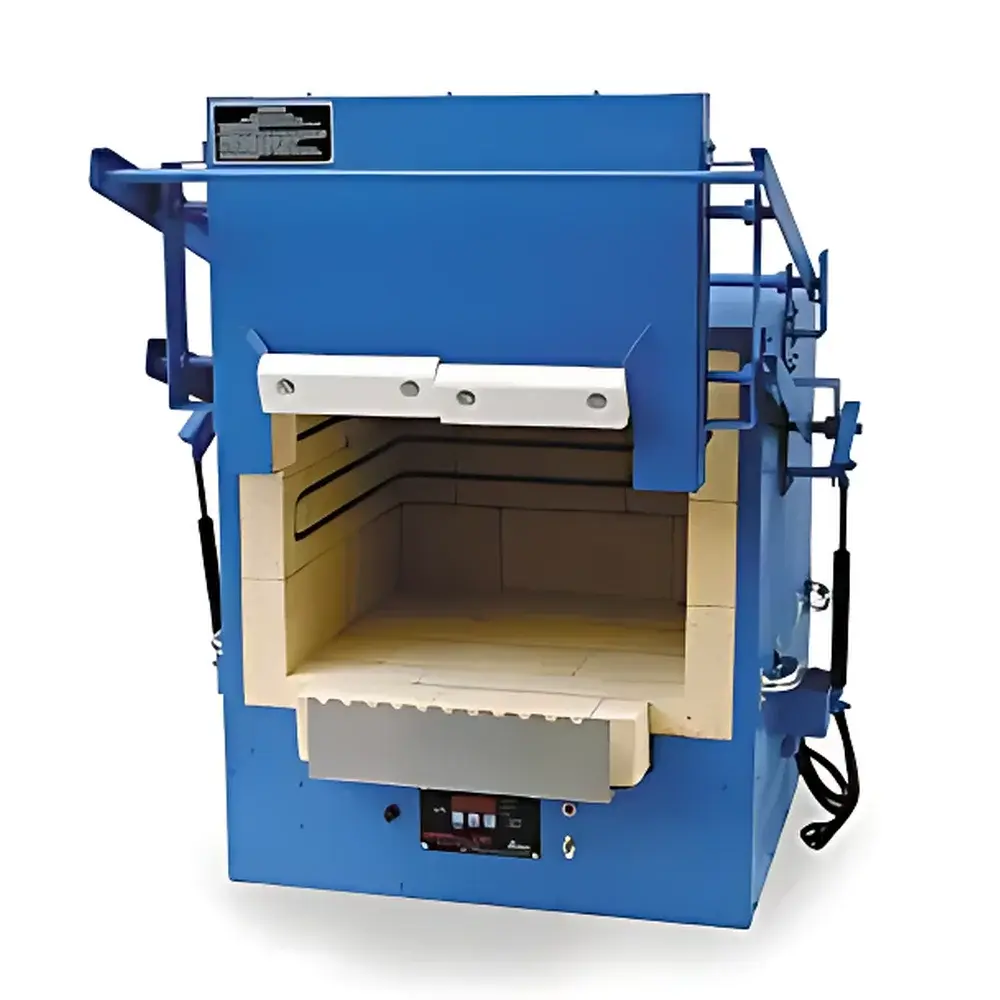

| Model | F200 |
| Instrument Type | Box-Type Muffle Furnace |
| Max Temperature | 926°C |
| Temperature Uniformity | ±3°C |
| Max Power | 4800 W |
| Ramp-to-Max Time | 60 min |
| Heating Element | Kanthal A1 Resistance Wire |
| Internal Dimensions (W×D×H) | 635 × 381 × 203 mm |
| Effective Chamber Volume | 48.99 L |
| External Dimensions (W×D×H) | 914 × 660 × 610 mm |
| Weight | 123.83 kg |
| Voltage/Frequency | 230 V / 50 Hz |
| Current Rating | 20 A |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | FTF11 |
| Pricing | Available Upon Request |
| Max Operating Temperature | 700 °C |
| Heating Chamber Dimensions (D×L) | 11 cm × 20 cm |
| External Dimensions (L×W×H) | 40 cm × 30 cm × 30 cm |
| Controller Dimensions (L×W×H) | 30 cm × 25 cm × 30 cm |
| Thermocouple Type | J-Type |
| Heating Element Material | Kanthal A-1 |
| Power Supply | 220 V, 50 Hz, 30 A |
| Rated Power at 700 °C | ~2 kW |
| Temperature Control | PID Algorithm with SCR Power Regulation |
| Cooling Method | Integrated Water-Cooling System |
| Atmosphere Options | Ambient Air, Vacuum, Inert/Reactive Gas (User-Specified), Atmospheric Pressure Range: 0–101.3 kPa |
| Mass | ~1 kg |
| Temperature Uniformity & Stability | ±0.5 °C at Setpoint (Center Zone, Steady-State) |
| Origin | UK |
|---|---|
| Type | Box-type Muffle Furnace |
| Max Temperature | 1100 °C |
| Operating Temperature Range | Ambient to 1050 °C (continuous) |
| Temperature Uniformity | ±5 °C at 1050 °C |
| Control Accuracy | ±2 °C |
| Internal Dimensions (W×D×H) | 178 × 305 × 125 mm |
| Chamber Volume | 7 L |
| Max Power | 2 kW |
| Heating Rate to 1100 °C | ≤50 min |
| Heating Element | Kanthal A1 resistance wire embedded in ceramic fiber grooves, dual-sided configuration |
| Insulation | Low-mass ceramic fiber board (density ~128 kg/m³) |
| External Casing | Galvanized steel with polyester powder coating |
| Door Safety | Spring-assisted upward-opening insulated door with automatic power cut-off upon opening |
| Exhaust | Integrated top-mounted flue port |
| Thermocouple | Type N (Nickel-Nickel Molybdenum), calibrated per IEC 60584-2 |
| Electrical Supply | 240 V AC, single-phase, 50/60 Hz |
| Origin | Germany |
|---|---|
| Supplier Type | Authorized Distributor |
| Import Status | Imported |
| Model | HPW Series |
| Pricing | Available Upon Request |
| Origin | United Kingdom |
|---|---|
| Type | Box-type Muffle Furnace |
| Maximum Temperature | 1300 °C |
| Operating Temperature Range | Ambient to 1250 °C (continuous) |
| Internal Dimensions | 150 × 150 × 150 mm (BCF13/5 model) |
| Effective Volume | 5 L |
| Heating Method | Dual-side resistive heating with Kanthal A1 wire embedded in ceramic fiber grooves |
| Insulation | Low-mass ceramic fiber insulation |
| Temperature Uniformity | ±5 °C at 1200 °C (per ASTM E220) |
| Control System | Eurotherm 2416 PID programmable controller with dual-line display |
| Programmable Segments | 8 segments, each configurable for ramp, soak, cooling or end |
| Temperature Sensor | Type R (Platinum–Platinum/Rhodium 13%) thermocouple |
| Power Rating | 2.0 kW (BCF13/5) |
| External Construction | Galvanized steel housing with polyester powder coating |
| Weight | 41 kg (net, BCF13/5) |
| Compliance | CE, UKCA, RoHS, EN 61000-6-3, EN 61000-6-4 |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | UHP1800 |
| Instrument Type | Box-Type Furnace |
| Max Temperature | 1800 °C |
| Temperature Control Accuracy | ±3 °C |
| Max Power | 25 kW |
| Ramp Time to Max Temp | 60 min |
| Heating Method | Resistive Wire (Molybdenum/Tungsten/Graphite/Tantalum) |
| Internal Chamber Dimensions | 2.54–35.56 cm (diameter/height adjustable per die configuration) |
| Max Applied Pressure | 30 ton (US short ton) |
| Base Vacuum Level | ≤5 × 10⁻⁵ Torr (with ion pump option) |
| Operating Atmosphere | High vacuum, N₂, H₂, Ar, or custom gas mixtures |
| Origin | USA |
|---|---|
| Type | Box-Type Muffle Furnace |
| Maximum Temperature | 3000°C (5432°F) |
| Temperature Uniformity | ±3°C |
| Rated Power | 30 kW |
| Heating Rate to Max Temp | ≤60 min |
| Heating Method | Resistive Element (Mo/Ta/W/Graphite Options) |
| Internal Chamber Dimensions | 2.54 cm × 5.08 cm (standard) |
| Vacuum Capability | 10⁻⁵–10⁻⁶ Torr (with turbomolecular pump system) |
| Atmosphere Control | Vacuum, N₂, H₂ (wet/dry), Ar, forming gas |
| Compliance | NFPA 86 (2003 Edition) |
| Origin | UK |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | BMF11/7 |
| Instrument Type | Box-Type Muffle Furnace |
| Max Temperature | 1100 °C |
| Max Holding Temperature | 1050 °C |
| Temperature Uniformity | ±5 °C |
| Effective Chamber Volume | 7 L |
| Internal Dimensions (W×D×H) | 178 × 305 × 125 mm |
| Heating Element | Dual-Side Ceramic Fiber Insulated with Embedded Resistance Wire |
| Insulation Material | Low-Heat-Capacity Ceramic Fiber |
| External Casing | Galvanized Steel with Polyester Powder Coating |
| Temperature Sensor | Type N Thermocouple |
| Power Supply | 240 V, Single-Phase |
| Rated Power | 2 kW |
| Net Weight | 48 kg |
| Door Operation | Top-Hinged or Front-Hinged Insulated Door with Auto-Cut Safety Interlock |
| Exhaust | Integrated Standard Flue |
| Controller Options | 2116 (Basic On/Off), 2216 (PID Display Only), 2416CG (8-Step Programmable), 2408CP (16-Step Programmable), 2408P4 (4 Stored Programs, 16-Step), 2408CM (20 Stored Programs, 16-Step) |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

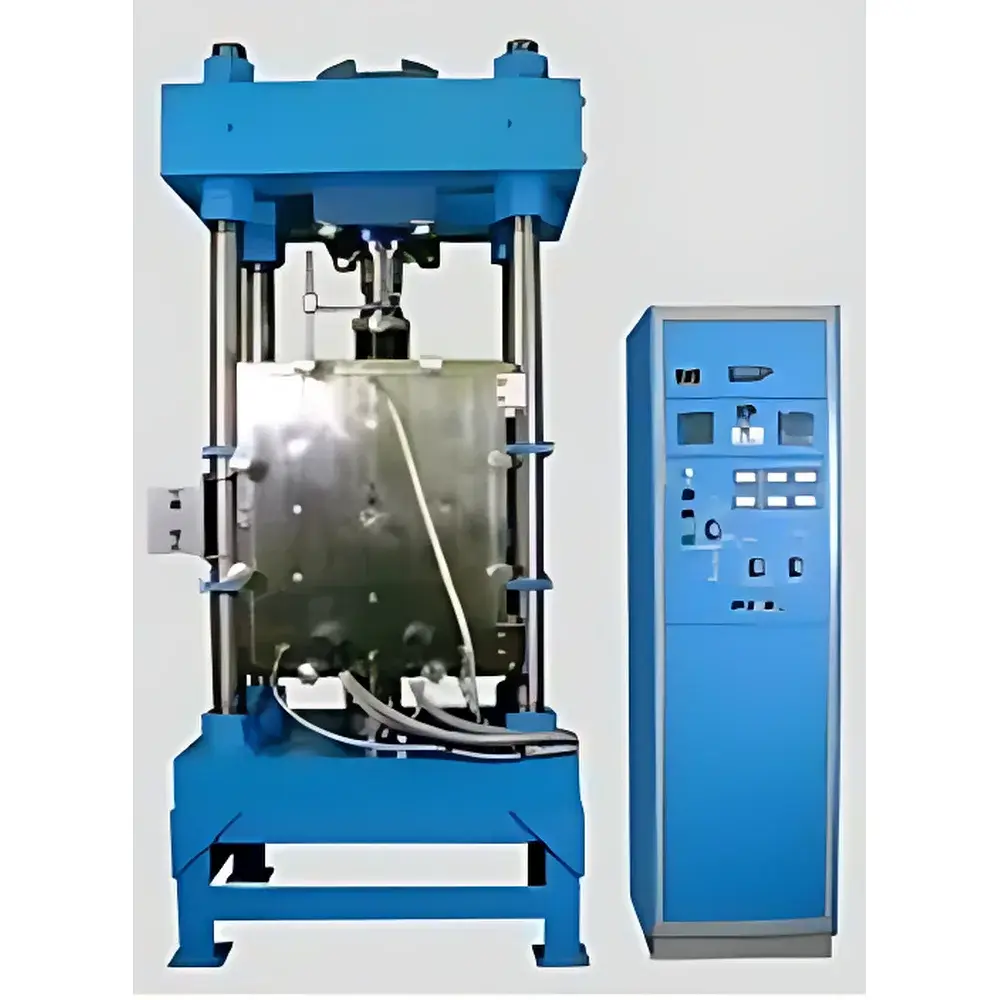

| Model | UHP2500 |
| Instrument Type | Box-Type Hot Press Furnace |
| Max Temperature | 2500 °C |
| Temperature Control Accuracy | ±3 °C |
| Max Power | 35 kW |
| Ramp Time to Max Temp | ≤60 min |
| Heating Method | Resistive (Molybdenum, Tungsten Mesh, High-Purity Graphite, or Tantalum Elements) |
| Internal Chamber Dimensions | 2.54–35.56 cm (1″–14″ diameter), up to 30.48 cm (12″) depth |
| Pressure Range | 5–100 metric tons |
| Vacuum Range | 10⁻² to 10⁻⁶ Torr (at 2300 °C) |
| Gas Compatibility | N₂, H₂, Ar, vacuum, or controlled atmosphere (up to 2 PSIG at 2500 °C) |
| Structural Housing | Electropolished 304L stainless steel dual-wall chamber with viewport, thermocouple ports, and optical pyrometer access |
| Origin | UK |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | TSH Series |
| Pricing | Available Upon Request |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | HTVF1P5 |
| Quotation | Upon Request |
| Max Temperature | 2500 °C |
| Heating Zone Dimensions | Ø15 mm × 150 mm |
| Thermocouple Type | Type C (W–Re 5/26) |
| Heating Element | Tungsten Filament |
| Chamber Material | Proprietary High-Purity Refractory Composite |
| Power Supply | 220 V, 50 Hz, 30 A |
| Max Power Consumption | ~2 kW at 2500 °C |
| Control System | PID-Based SCR Power Controller |
| Cooling Method | Integrated Water-Cooling Jacket |
| Mass | ~1 kg |
| External Dimensions (Furnace) | 400 × 180 × 180 mm (L×W×H) |
| Controller Dimensions | 300 × 250 × 300 mm (L×W×H) |
| Temperature Uniformity | ±1 °C within ±10 mm radial/axial center zone (Type C thermocouple referenced) |
| Origin | Imported |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Model | SC-Type |
| Pricing | Available Upon Request |
| Origin | UK |
|---|---|
| Type | Box-Type Muffle Furnace |
| Max Temperature | 1400°C |
| Temperature Control Accuracy | ±2°C |
| Max Power | 12 kW |
| Heating Time to Max Temp | 50 min |
| Heating Element | Silicon Carbide (SiC) Rods |
| Internal Chamber Dimensions (W×D×H) | 140 × 250 × 150 mm |
| Chamber Volume | 5 L |
| Door Operation | Manual or Motorized Vertical Lift |
| Safety Features | Over-Temperature Protection, Electronic Door Interlock, Dual-Wall Insulated Housing |
