| Brand | Spectrogon |
|---|---|
| Origin | Sweden |
| Model Series | BP, NB, LP, SP, ND |
| Substrate Materials | N-BK7, Fused Silica (Quartz), Sapphire, Silicon, Germanium, Cemented Glass |
| Diameter Tolerance | ±0.2 mm (Std. Ø25.4 mm) |
| Thickness Tolerance | ±0.2 mm |
| Out-of-Band Blocking | Avg. < 0.1% (OD > 3) |
| CWL Accuracy | ±3–10 nm (varies by model & wavelength region) |
| HW (FWHM) Tolerance | ±3–50 nm (model-dependent) |
| Peak Transmission | 40–90% (material- and design-dependent) |
| Origin | Canada |
|---|---|
| Supplier Type | Authorized Distributor |
| Import Status | Imported |
| Model | EOM-01-AA-X |
| Component Category | Light Source Interface Module |
| Pricing | Available Upon Request |
| Brand | Han Ding (HT) |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | PRC |
| Model | HTAC-PS-03 |
| Weight | 0.04 kg |
| Bore Diameter | 12.5 mm |
| Orthogonal Mounting Holes | Two, mutually perpendicular |
| Brand | Jenoptik |
|---|---|
| Origin | Germany |
| Distribution Type | Authorized Distributor |
| Import Status | Imported |
| Model | Integrated Optical Modulator Driver |
| Component Category | Light Source Driver |
| Compliance | CE, RoHS |
| Operating Input | TTL-compatible logic signal (≥20 ns rise time) |
| Output Rise Time | ≤1 ns |
| Output Voltage Range | Adjustable, ±5 V typical |
| Output Impedance | 50 Ω matched |
| Application Interface | SMA or LEMO connectors (configurable) |
| Brand | Newport |
|---|---|
| Manufacturer | Richardson Gratings (a Newport Corporation subsidiary) |
| Origin | USA |
| Product Type | Optical Instrument Component |
| Category | Diffraction Grating |
| Model | SPL Series |
| Grating Fabrication | Holographic or Ruled |
| Substrate Material | Fused Silica or BK7 (standard) |
| Coating | Protected Aluminum (standard), optional UV-enhanced, Au, or dielectric coatings |
| Line Density Range | 750–4320 lines/mm |
| Spectral Range | 130 nm – 2.3 µm |
| Maximum Clear Aperture | up to 130 mm × 160 mm |
| Efficiency Optimization | Blazed or High-Modulation Design |
| Compliance | ISO 10110 optical surface specifications, MIL-PRF-13830B scratch-dig standards |
| Brand | Quantum Northwest |
|---|---|
| Origin | South Korea |
| Model | TC120 (single-cell), TC225 (dual-cell), TC425 (quad-position turret) |
| Temperature Range | −10.00 to +105.00 °C (standard) |
| optional extended range | −55.00 to +150.00 °C |
| Temperature Stability | ±0.02 °C |
| Control Method | Peltier-based thermoelectric control with NIST-traceable thermistor sensing |
| Communication Interface | RS-232 serial command protocol |
| Sample Agitation | Integrated magnetic stirring |
| Compliance | NIST-traceable calibration, GLP-compliant temperature logging capability |
| Origin | Canada |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported Instrument |
| Model | FTIR-Rocket |
| Pricing | Available Upon Request |
| Component Class | IR Source |
| Brand | HT (Handing) |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | HTSB-D |
| Pricing | Available Upon Request |
| Brand | HT (Handing) |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | HTSB-C |
| Pricing | Available Upon Request |
| Brand | Han Ding (HT) |
|---|---|
| Model | HTDL50-X |
| Travel | 50 mm |
| Rail Type | Dual Dove-Tail |
| Drive Mechanism | Precision Ground Lead Screw (Pitch: 0.254 mm) |
| Top Plate Dimensions | 100 × 62 mm |
| Central Load Capacity | 6 kg |
| Product Category | Manual Translation Stage |
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Brand | Gitterwerk |
|---|---|
| Origin | Germany |
| Model | Multi-Wavelength |
| Grating Type | Transmission |
| Polarization | TE (s-polarized), TM (p-polarized), or Unpolarized |
| Wavelength Range | 450–2090 nm |
| Line Density | 600.2–2500.0 l/mm |
| Substrate Material | Fused Silica |
| Thickness | 3–6.35 mm |
| Aperture Size | Up to 137 × 32 mm |
| Peak Diffraction Efficiency | ≥99.0% (TE, specified λ) |
| Laser Damage Threshold | >5 J/cm² (1030 nm, 10 ps, 10 Hz) |
| Angular Tolerance | ±0.05° for optimal efficiency |
| Brand | Ocean Optics |
|---|---|
| Model | HG-2 |
| Origin | USA |
| Light Source Type | Mercury-Argon / Argon / Krypton / Neon / Xenon Hollow Cathode Lamps |
| Spectral Range | 253 nm – 1984 nm (configurable by lamp module) |
| Output Interface | SMA 905 |
| Power Supply | 5 V DC, rechargeable battery integrated |
| Compliance | CE, RoHS |
| Lamp Configuration | Interchangeable single-element hollow cathode modules |
| Operating Temperature | 15–35 °C |
| Warm-up Time | < 5 min to spectral stability |
| Spectral Linewidth | < 0.05 nm (FWHM, typical for hollow cathode lamps) |
| Lifetime | ≥ 5,000 hours (lamp-dependent) |
| Origin | South Korea |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Imported |
| Model | GPM Vibration Isolator |
| Pricing | Upon Request |

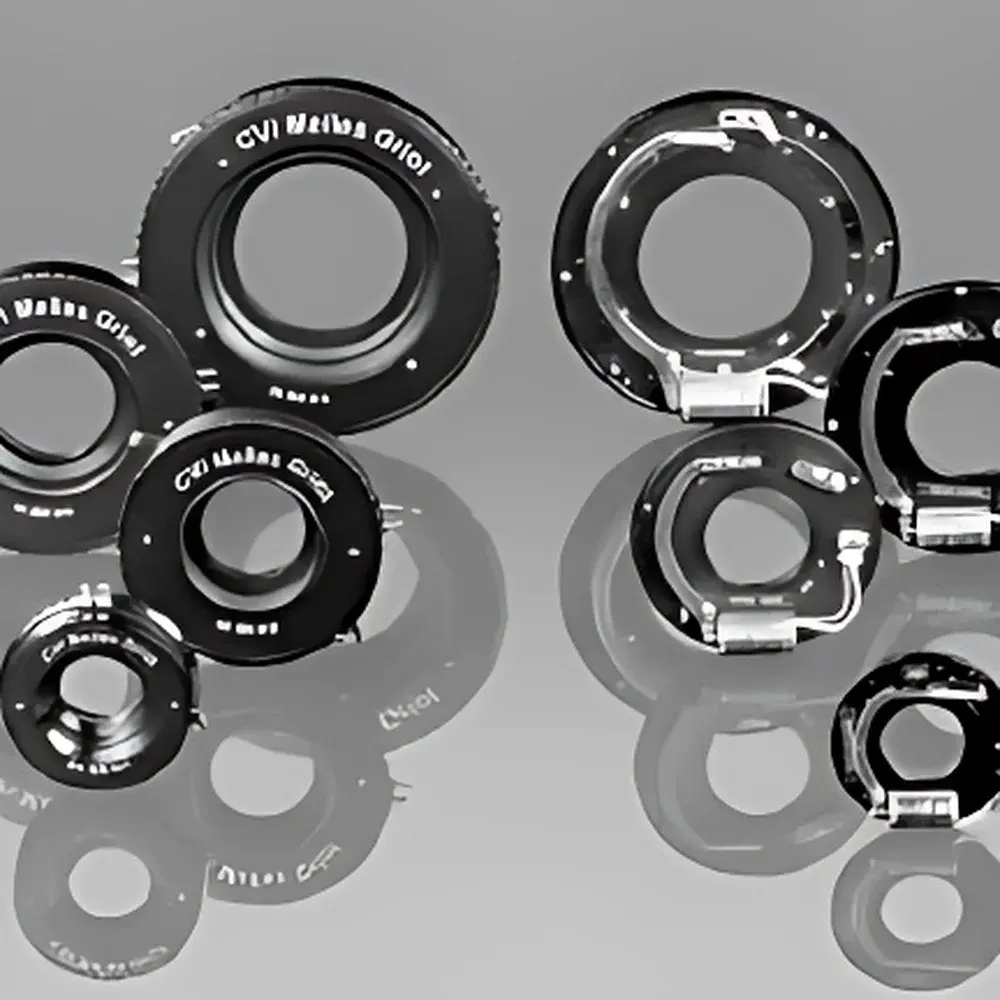

| Brand | CVI Melles Griot |
|---|---|
| Model | SPL |
| Type | Electronic Optical Shutter |
| Actuation Mechanism | Stepper Motor–Driven |
| Aperture Size | Standard 25 mm Clear Aperture (Configurable) |
| Switching Speed | ≤15 ms (Open to Close, Typical) |
| Lifetime | ≥10⁶ Cycles |
| Operating Temperature | 15–35 °C |
| Input Voltage | +24 VDC ±10% |
| Control Interface | TTL-compatible Digital Input (Active-High or Active-Low Selectable) |
| Mounting | SM1 (1.035"-40) Threaded Housing |
| Compliance | RoHS 2015/863/EU, CE Marked for EMC Directive 2014/30/EU |
| Enclosure | Anodized Aluminum, Black Oxide Finish |
| Brand | HT (Handing) |
|---|---|
| Model | HTSM-13 |
| Travel Range | 13 mm |
| Minimum Graduation | 0.01 mm |
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | PRC |
| Pricing | Available Upon Request |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Model | 74-Series |
| Component Type | Fiber Collimator |
| Lens Materials | Fused Silica (74-UV, 74-DA), BK-7 Glass (74-VIS), BaF10/FD10 Achromatic Doublet (74-ACR) |
| Wavelength Ranges | 200–2000 nm (74-UV, 74-DA), 350–2000 nm (74-VIS, 74-ACR) |
| Diameter | 5 mm |
| Focal Length | 10 mm (f/2) |
| Operating Temperature | Up to 150 °C |
| Connector | SMA 905 with 6.35-mm ferrule and 3/8-24 external thread (74-UV/VIS/ACR) |
| Beam Divergence | ≤2° (74-UV) |
| Housing | Black-oxidized stainless steel |
| Focus Adjustment | Manual, continuous from convergent to divergent (~45° total field-of-view range) |
| Brand | HT (Handing) |
|---|---|
| Model | HTSM-25 |
| Travel Range | 25 mm |
| Minimum Graduation | 10 µm |
| Origin | Jiangsu, China |
| Distribution Type | Authorized Distributor |
| Compliance | ISO 9001–certified manufacturing process |
| Mounting Interface | Standard M4/M6 tapped holes (compatible with Thorlabs, Newport, and OptoSigma optical breadboards) |
| Brand | Thorlabs |
|---|---|
| Origin | USA |
| Model | BOA |
| Component Category | Optical Instrument Component |
| Wavelength Options | λc = 1220 nm, 1320 nm, 1450 nm, 1550/1590 nm, 1650 nm |
| Fiber Output | 1.5 m SMF or PMF with FC/APC connector |
| Center Wavelength Tolerance | ±0.5 nm |
| Compliance | RoHS, CE, ISO 9001-certified manufacturing |
| Brand | HT (Handing) |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | HTSB-G |
| Pricing | Available Upon Request |
| Brand | HanDing (HT) |
|---|---|
| Model | HTVH-01 |
| Adjustment Range | 70–85 mm |
| Mounting Base | Magnetic |
| Central Bore Diameter | 12.5 mm |
| Compatibility | HTR-series posts |
| Origin | Jiangsu, China |
| Distributor Type | Authorized Domestic Distributor |
| Compliance | Designed for ISO/IEC 17025-aligned optical laboratories |
| Origin | South Korea |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Imported |
| Model | GDFB Series Honeycomb Breadboard |
| Pricing | Upon Request |
| Brand | Hanting (HT) |
|---|---|
| Model | HTRM25 |
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Manufacture | China |
| Pricing | Available Upon Request |
| Brand | HanDing (HT) |
|---|---|
| Mounting Aperture | 50 mm |
| Design | Kinematic, Three-Axis Adjustable, Open-Frame Configuration |
| Material | Anodized Aluminum Alloy (6061-T6) |
| Angular Adjustment Range | ±4° per Axis (Pitch/Yaw/Roll) |
| Repeatability | ≤5 arcsec |
| Load Capacity | ≤300 g |
| Compatibility | Standard Ø50 mm optics (up to 6 mm thickness) |
| Surface Finish | Black anodized, non-reflective matte coating |

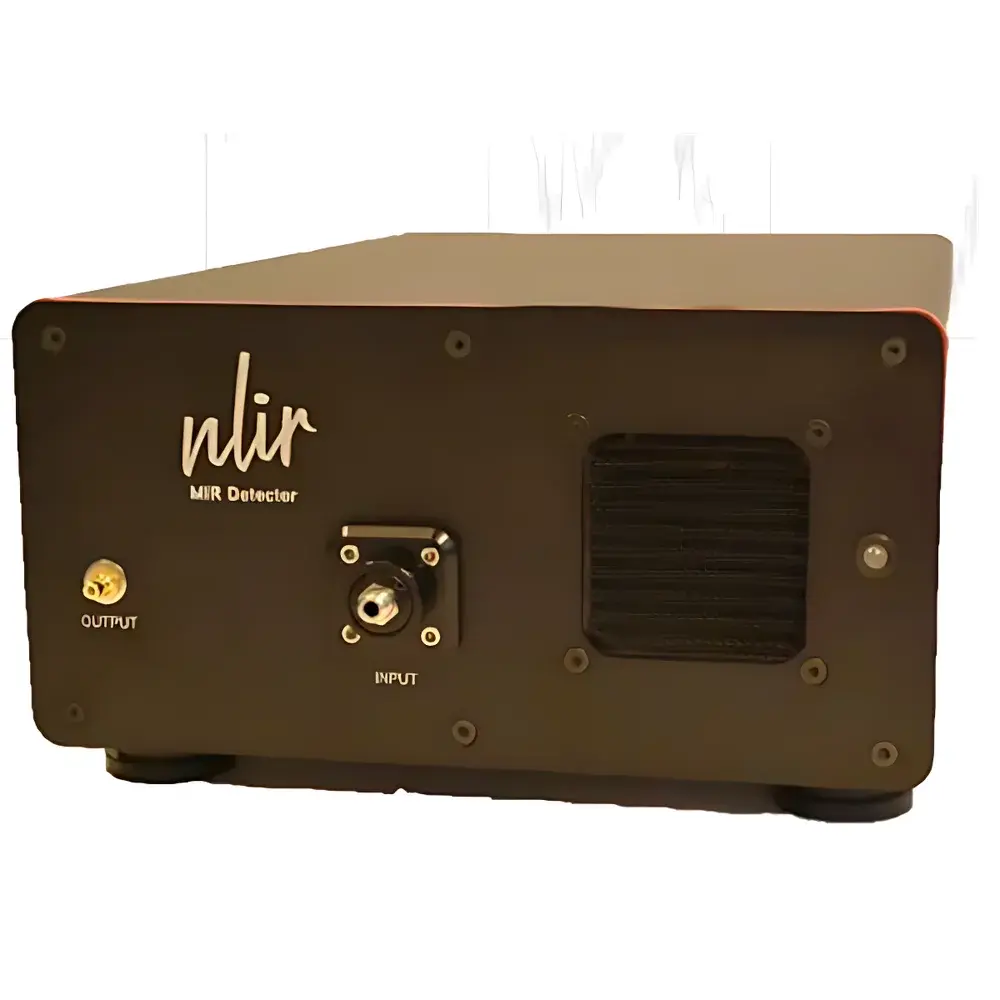

| Brand | NLIR |
|---|---|
| Origin | Denmark |
| Model | D2250 |
| Center Wavelength | 2.2–5.0 µm (tunable 2.7–4.3 µm) |
| Optical Bandwidth | 15–200 nm |
| Electrical Bandwidth (3 dB) | DC–10 GHz |
| NEP | 1×10⁻¹⁵–1×10⁻⁹ W/√Hz |
| Rise Time | 34 ps–170 ns |
| Responsivity | up to 2×10⁹ V/W (DC), 6×10⁸ V/W (AC) |
| Input | SMA-coupled free-space or 200 µm MIR fiber (NA=0.26) |
| Operating Temperature | ≤30 °C |
| Dimensions | 100 × 306 × 200 mm³ |
| Weight | 5 kg |
| Integrated Preamp | Yes |
| Compliance | RoHS, CE |
