| Brand | SPL |
|---|---|
| Origin | Zhejiang, China |
| Model | SPL-2000H |
| Laser Wavelength | 405 nm |
| Pressure Range (RT) | 0–100 GPa |
| Pressure Resolution | 0.1 GPa |
| Objective Lens | 10×, WD = 34 mm |
| CCD | 1/2″ Color CMOS, 2048 × 1536 (3 MP) |
| Data Interface | USB |
| Power Input | 12 V DC |
| Software | Integrated spectral & CCD acquisition with automated R₁ peak detection and dual-mode pressure calculation (P ≤ 20 GPa: P = 2.74(λ − λ₀) |
| P > 20 GPa | P = 3.808{[1 + (λ − λ₀)/λ₀]⁵ − 1}) |
| Brand | SPL |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported Instrument |
| Model | SPL Mini LED Photometric, Radiometric & Electrometric Measurement System |
| Pricing | Upon Request |
| Brand | DataRay |
|---|---|
| Origin | USA |
| Model | WinCamD-IR-BB |
| Detector Type | VOx microbolometer array |
| Spectral Range | 2–16 µm |
| Active Area | 10.88 × 8.16 mm |
| Resolution | 640 × 480 pixels |
| Pixel Pitch | 17 µm |
| Interface | USB 3.0 (bus-powered) |
| ADC | 14-bit |
| Time Constant | 14 ms |
| Frame Rate | 7.5 fps |
| Cooling | Uncooled (no TEC or chopper required) |
| Compliance | RoHS, CE |
| Brand | SPL |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | SPL-8205-04 |
| Interface Options | DB15 (for SPL-8201 Power Meter) or USB 2.0 |
| Detector Material | Silicon (Si) |
| Spectral Range | 350–1100 nm |
| Power Range | 1 µW – 3 W |
| Max Avg. Power Density | 5 mW/cm² |
| Integrating Sphere Diameter | 2 in |
| Sphere Coating | PTFE |
| Input Port | SMA905 |
| Mounting Threads | M4/M6 |
| Cable Length | 1.5 m |
| Dimensions (D×H) | 62 × 62 × 85 mm |
| Weight | 500 g |
| Brand | SPL |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | SPL-HL- |
| Pricing | Upon Request |
| Spectral Range | 360–2500 nm |
| Output Stability | ±0.2% (RMS, over 8 hours) |
| Lifetime | SPL-HL-H — 2,000 h |
| Cooling | Active fan-cooled thermal management |
| Optical Coupling | SMA905 or FC/PC fiber interface (configurable) |
| Power Efficiency | High luminous efficacy (>18 lm/W typical) |
| Design | Modular, OEM-integration ready |
| Brand | SPL |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Models | ProSp-Micro-MVIS, ProSp-Micro-MVIS-NIR |
| Price Range | USD 14,000 – 28,000 |
| Spectral Range | 380–2500 nm |
| Optical Architecture | Confocal Modular Design |
| Excitation Flexibility | Interchangeable Filter Slots (Excitation + Emission/Attenuation) |
| Integration Compatibility | Standard Upright Microscopes (Olympus, Nikon, Zeiss, Leica,舜宇, 永新) |
| Mapping Capability | Motorized XY Stage with Spectral Point Scanning |
| Software Suite | Dual-Module — Real-Time Imaging + Spectral Acquisition & Mapping |

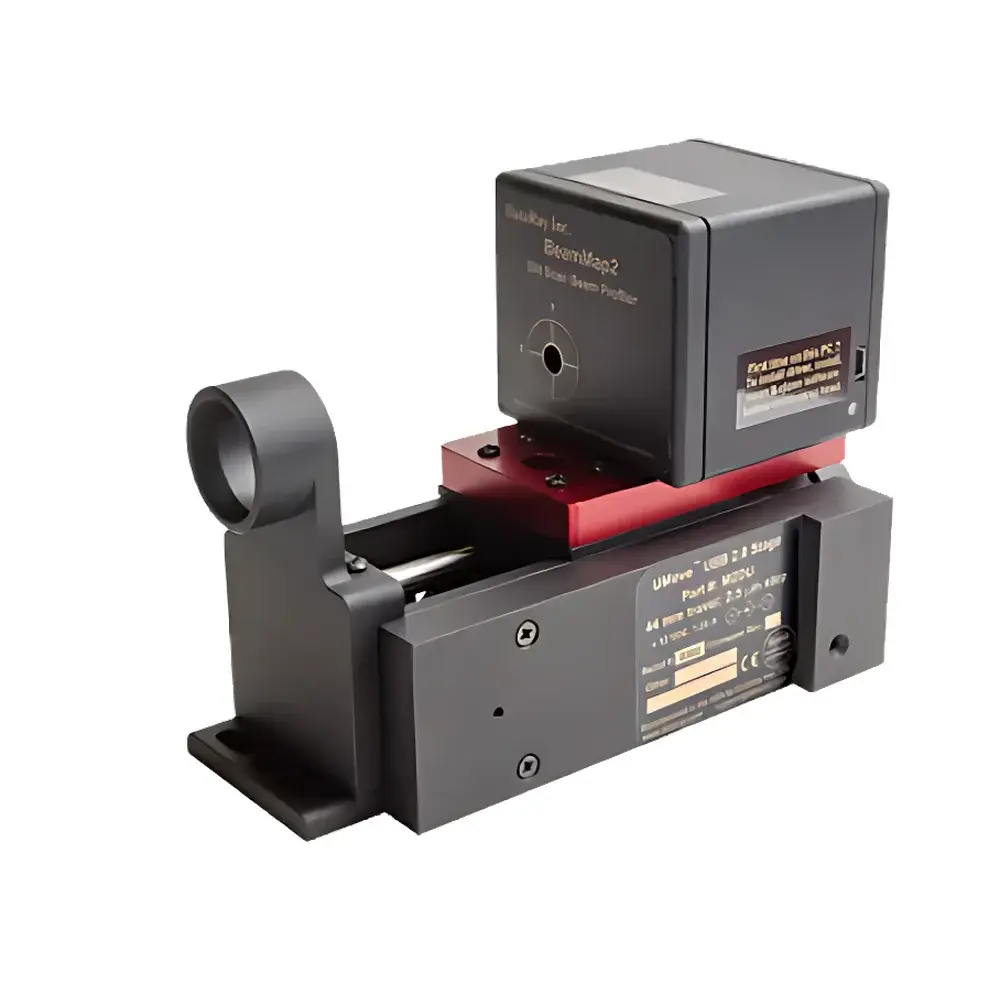

| Brand | DataRay |
|---|---|
| Origin | USA |
| Model | M2DU-WCD, M2DU-BR, WinCamD M² Stage |
| Wavelength Range | 190 nm – 16 µm |
| Translation Stage Travel | 50 mm or 200 mm |
| M² Measurement Range | 1–50 |
| M² Accuracy | ±5% |
| M² Repeatability | ±2% |
| Beam Profiling Method | CCD-based 2D/3D intensity mapping (M2DU-WCD), slit-scanning (M2DU-BR) |
| Compatible Laser Types | CW and pulsed lasers, including diode, solid-state, fiber, and ultrafast sources |
| Brand | FEMTOEASY |
|---|---|
| Origin | France |
| Model | Nano4th (1064 nm / 532 nm / 266 nm) |
| Output Wavelengths | 1064 nm, 532 nm, 266 nm |
| Average Power (at 80 MHz) | 2 W @ 1064 nm, 1 W @ 532 nm, 750 mW @ 266 nm, 170 mW @ 266 nm (4th harmonic) |
| Pulse Duration | <120 fs (fundamental & SHG), <65 fs (THG), <60 fs (estimated for 4th harmonic) |
| Repetition Rate | 80 MHz |
| Conversion Efficiency | >45% (SHG), >35% (THG), >8% (4th harmonic) |
| Polarization | Vertical (1064 nm), Horizontal (532 nm), Vertical (266 nm) |
| Laser Compatibility | 1030–1064 nm fundamental, nJ-level pulse energy, MHz-repetition-rate ultrafast oscillators |

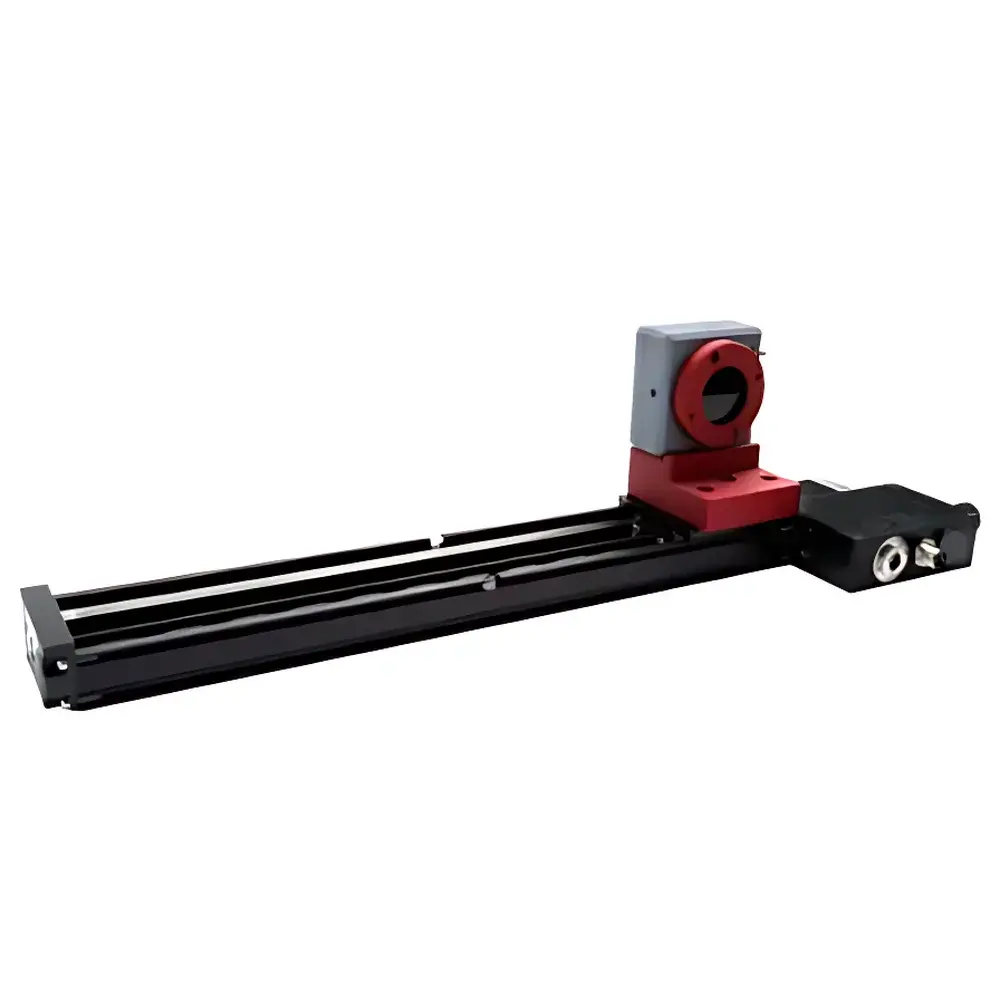

| Brand | DataRay |
|---|---|
| Origin | USA |
| Model | LLPS-50, LLPS-200, LBPS-250 |
| Spectral Range | 190–1150 nm (extendable to 163 nm–16 µm) |
| Minimum Line Width | 55 µm |
| Maximum Line Length | 200 mm |
| Maximum Measurable Beam Diameter | 250 mm |
| Pixel Resolution | 4 µm (system-dependent) |
| Transmission Screen Size (LBPS-250) | 200 × 200 mm |
| Effective Imaging Area (LBPS-250) | 170 × 170 µm |
| Lens Focal Length (LBPS-250) | 12.5 mm, f/1.4–f/16 |
| SNR | 2500:1 |
| Brand | SPL |
|---|---|
| Model | SPL-8201-02 |
| Display | 4-inch HD LCD (70 mm × 70 mm) |
| Sampling Rate | 10 Hz |
| Data Storage Capacity | 10,000 sets |
| Power Supply | Rechargeable 7200 mAh Li-polymer battery |
| AC Adapter Input | 100–240 VAC, Output: 6 VDC / 1 A |
| USB Interface | USB 2.0 |
| Communication Protocols | Digital (SPL proprietary protocol), Analog (0–2.5 V via SMA905), RS232 optional |
| Detector Compatibility | SPL-8202 photodiode sensor, SPL-8203 thermopile sensor, SPL-8205 integrating sphere sensor |
| Units | W and dBm with auto-ranging |
| Weight | 650 g |
| Dimensions | 160 mm × 120 mm × 40 mm |
| Operating Temperature | 0–40 °C |
| Relative Humidity | ≤80% RH (non-condensing) |
| Brand | Schafter+Kirchhoff |
|---|---|
| Origin | Germany |
| Model | 60FC-0-M5-33 (and variants) |
| Lens Options | 17 achromatic & apochromatic types |
| Material Options | Nickel alloy, stainless steel, titanium |
| Bearing Type | Carbide |
| Locking | Focus position lock & fiber clamping |
| AR Coating | >99.9% transmission (typical, wavelength-dependent) |
| Beam Diameter Range (collimated output) | 3.6–36 mm |
| Focal Spot Diameter Range | 20–200 µm |
| Wavelength Compatibility | UV-VIS-NIR (model-specific, e.g., RGBV: 400–670 nm) |
| NA Support | Up to 0.22 (fiber-dependent) |
| Adjustment | Precision threaded, rotation-free lens translation |
| Polarization Alignment | Integrated polarization-maintaining fiber interface |
| Brand | SYNOPTICS |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | Nd:YAG |
| Price Range | USD 0 – 7,200 (FOB) |
| Wavelength Range | 500–3000 nm |
| Rod Length | 3–152.4 mm |
| Rod Diameter | 2–32 mm |
| Slab Max Size | 7 × 26 × 250 mm |
| Nd³⁺ Doping Concentration | 0.2–1.4 ± 0.1 at.% |
| Wavefront Distortion | <λ/4 per inch (λ = 632 nm), standard |
| Extinction Ratio | ≥25 dB |
| Surface Quality | 10–5 scratch-dig (MIL-O-13830A) |
| Endface Flatness | λ/10 |
| Endface Parallelism | ≤10 arc seconds |
| Endface Perpendicularity | ≤5 arc minutes |
| Edge Chamfer | 0.005" ± 0.003" × 45° |
| Finish Roughness | 55 ± 5 µin (ground finish) |
| AR Coating Reflectivity | <0.25% @ design wavelength(s) |
| Laser Damage Threshold | >10 J/cm² (1064 nm, 10 ns, 10 Hz) |
| Thermal Conductivity | ~11 W/m·K (25 °C) |
| Mechanical Hardness | ~8.5 Mohs |
| Brand | SPL |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | SPL-LED-FL-CFL |
| Pricing | Available Upon Request |
| Compliance | IESNA LM-9, LM-65, ANSI C78.377, CIE S 025/E:2015 |
| Spectral Range | 350–1050 nm |
| Detector | TE-cooled CCD spectrometer |
| Dynamic Range | >10⁶ (typical) |
| Solid Angle Coverage | 2π and 4π configurations |
| [Brand | SYNOPTICS |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | TGG |
| Price Range | USD 0–7,200 (FOB) |
| Material | Terbium Gallium Garnet (Tb₃Ga₅O₁₂) |
| Crystal Orientation | [111] ±5° |
| Diameter Tolerance | +0.000″ / −0.002″ |
| Length Tolerance | +0.010″ / −0.010″ |
| Surface Roughness (RMS) | 55 ±5 μin |
| Edge Chamfer | 0.005″ ±0.003″ @ 45° ±5° |
| Wavefront Distortion | < λ/8 per inch (large rods), < λ/8 total (small rods) @ 632 nm |
| Extinction Ratio | ≥25 dB |
| AR Coating Reflectivity | <0.25% @ 1064 nm |
| Adhesion & Durability | Compliant with MIL-C-48497A |
| Pulsed Laser Damage Threshold | 10 J/cm² (1064 nm, 10 ns, 10 Hz) |
| Faraday Rotation Coefficient (V) | 134 rad·T⁻¹·m⁻¹ @ 1064 nm |
| Absorption Coefficient (α) | 0.0015 cm⁻¹ @ 1064 nm |
| Thermal Conductivity | 7.4 W·m⁻¹·K⁻¹ |
| Refractive Index (n) | 1.95 @ 1064 nm |
| Nonlinear Refractive Index (n₂) | 8.0 × 10⁻¹³ esu |
| Figure of Merit (V/α) | 27 |
| Figure of Merit (V/n) | 58] |
| Brand | SYNOPTICS |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | Ruby |
| Price Range | USD $0 – $7,200 (FOB) |
| Brand | SPL |
|---|---|
| Origin | Zhejiang, China |
| Model | SPL-8202 |
| Detector Materials | UV-enhanced Si (200–1100 nm), Si (350–1100 nm), InGaAs (800–1650 nm) |
| Interface Options | DB15 (for SPL-8201 meter), USB 2.0, Bluetooth |
| Active Area | 1 cm² (Si/UV-Si), 0.071 cm² (InGaAs) |
| NEP | 3.9×10⁻¹⁴ W/√Hz (UV-Si), 4.5×10⁻¹³ W/√Hz (Si), 1.2×10⁻¹³ W/√Hz (InGaAs) |
| Response Time | 5.9 µs (UV-Si), 2 µs (Si), 0.2 µs (InGaAs) |
| Max. Power Density (unattenuated) | 1 mW/cm² (UV-Si), 10 mW/cm² (Si/InGaAs) |
| Power Range (unattenuated) | 100 pW – 1 mW (UV-Si), 100 pW – 10 mW (Si/InGaAs) |
| Attenuation Options | OD1 / OD2 / OD3 removable calibrated filters |
| Fiber Adapters | SMA, FC |
| Operating Temperature | 5–50 °C |
| Humidity | <70% RH |
| Dimensions | Ø38 mm × 28 mm |
| Weight | 105 g |
| Brand | Synoptics |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | Cr4+:YAG |
| Wavelength Range | 500–3000 nm |
| Crystal Orientation | <100> |
| Surface Finish | Flat/Flat |
| AR Coating | R < 0.2% @ 1064 nm |
| Laser-Induced Damage Threshold (LIDT) | >500 MW/cm² (10 ns, 10 Hz, 1064 nm) |
| Diameter | 3–10 mm |
| Thickness | 1–5 mm (customizable) |
| Optical Density (OD) Options | 0.30, 0.40, 0.50 ±10% @ 1064 nm |
| Absorption Coefficient (α) | 1.5–6.0 cm⁻¹ @ 1064 nm |
| Uniformity | High spatial homogeneity of Cr⁴⁺ distribution |
| Compliance | ISO 9001:2008 certified manufacturing and QA process |
| Brand | SPL |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | RTM-UV |
| Price Range | USD 14,000 – 28,000 |
| Angular Range (Detector Arm) | 0–360° |
| Angular Range (Source Arm) | 0–270° |
| Angular Resolution | 0.01° |
| Spectral Range | 250–2500 nm |
| Compatible Spectrometer | Ocean Insight Fiber-Optic Spectrometers |
| Measurement Modes | Specular Reflection (Top/Bottom), Transmission, Radiance, Scattering, Fluorescence |
| Automation | Motorized Dual-Axis Goniometric Control with Software-Defined Scan Sequences |
| Light Sources | Integrated Tungsten-Halogen Lamp + External Source Port |
| Optical Modularity | Filter, Polarizer, and Waveplate Integration Support |
| Compliance | Designed for ASTM E308, ISO/CIE 15, USP <857>, and GLP-aligned data acquisition workflows |
| Brand | SPL |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | SPL Solar Spectrum Simulator System |
| Pricing | Available Upon Request |
| Spectral Range | UV to NIR (200–1100 nm) |
| Color Temperature Tunability | 3000 K – 6000 K |
| Calibration | NIST-traceable certificate provided |
| Output Monitoring | Integrated spectrometer and calibrated photodetector |
| Aperture Options | Multiple standard diameters (e.g., Ø25 mm, Ø50 mm, Ø100 mm) |
| Output Stability | <±0.5% over 1 hour (typical, under controlled ambient conditions) |
| Uniformity | >95% across central 80% of beam area (at specified working distance) |
| Brand | SPL |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | SPL Custom Large-Area Uniform Light Source System |
| Pricing | Upon Request |
| Brand | Synoptics |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | Alexandrite (BeAl₂O₄:Cr³⁺) |
| Price Range | USD 0 – 7,200 (FOB) |
| Wavelength Tuning Range | 710–800 nm |
| Pulse Energy Capability | Multi-joule level |
| Thermal Shock Resistance | 5× higher than Nd:YAG |
| Crystal Structure | Orthorhombic |
| Chemical Formula | Be(Al₁₋ₓCrₓ)₂O₄ |
| Cr³⁺ Doping Concentration | 0.01–0.20 at.% (standard: 0.10 at.%, optimum: 0.83/d % where d = diameter in mm) |
| Diameter Tolerance | +0.000″ / −0.002″ |
| Edge Chamfer | 0.005″ ± 0.003″ @ 45° |
| Surface Finish | 55 ± 5 μin Ra (ground & polished) |
| Surface Flatness | λ/10 @ 632 nm |
| Parallelism | ≤30 arc-seconds |
| Perpendicularity | within 5 arc-minutes |
| Scratch-Dig | 10–5 per MIL-O-13830 |
| Wavefront Distortion | <0.5 wave/inch (measured at 1 µm) |
| Coating Options | Single-layer MgF₂ AR |
| Refractive Index (750 nm) | nₐ = 1.7367, n_b = 1.7421, n_c = 1.7346 (birefringent, biaxial) |
| Density | 3.7 g/cm³ |
| Melting Point | 1870 °C |
| Thermal Expansion (α) | αₐ = 5.9 × 10⁻⁶ K⁻¹, α_b = 6.1 × 10⁻⁶ K⁻¹, α_c = 6.7 × 10⁻⁶ K⁻¹ |
| Thermal Conductivity | 0.23 W/cm·K |
| Vickers Hardness | 2000 kg/mm² |
| Young’s Modulus | 469 GPa |
| Fracture Stress | 0.457–0.948 GPa |
| dn/dT | ~8 × 10⁻⁶ K⁻¹ |
| Nonlinear Refractive Index (n₂) | ~10⁻¹³ esu |
| Findlay-Clay Insertion Loss | <0.3 cm⁻¹ |
| Brand | SPL |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | SPL LED Online Sorting and Testing Custom System |
| Pricing | Upon Request |
| Brand | Schafter+Kirchhoff |
|---|---|
| Origin | Germany |
| Model | SK010PA Series |
| Power Range | 0.01–50 mW |
| Angular Accuracy (η, χ) | ±0.4° |
| PER Accuracy | ±0.5 dB |
| DOP Accuracy | ±5% |
| SOP Accuracy (on Poincaré sphere) | ±0.2° |
| Free-Space Beam Diameter Max | 4 mm |
| Sampling Rate | 15 Hz |
| Sensor Active Area | 2.85 × 2.85 mm² |
| Dimensions (W×L×H) | 40 × 70 × 82 mm |
| Interface | USB 2.0 (data + power) |
| Standard Fiber Adapter | FC-APC |
| Optional Adapters | FC-PC, DIN AVIO, ST |
| Software | SKPolarimeter |
| Development Support | LabVIEW VI Library & DLL API |
| Compliance | CE, RoHS |
| Brand | SYNOPTICS |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | Er:YAG |
| Wavelength Emission | 2.94 µm |
| Host Material | Y₃Al₅O₁₂ (YAG) |
| Er³⁺ Doping Concentration | 50 at.% (~7×10²⁰ cm⁻³) |
| Crystal Orientation | [111] ±5° |
| Wavefront Distortion | ≤λ/2 per inch @ 1 µm (double-pass interferometric measurement) |
| Diameter Tolerance | +0.000"/−0.002" |
| Length Tolerance | +0.040"/−0.000" |
| Surface Finish | 55 ±5 µin Ra |
| Edge Chamfer | 0.005" ±0.003" @ 45° ±5° |
| Surface Flatness | λ/10 @ 633 nm |
| Parallelism | ≤30 arcsec |
| Perpendicularity | ≤5 arcmin |
| Surface Quality | 10-5 (MIL-O-13830A) |
| AR Coating | R < 0.25% @ 2.94 µm |
| Coating Adhesion & Durability | Compliant with MIL-C-48497A |
| Pulsed Laser Damage Threshold | >10 J/cm² |
| Pump Band | 600–899 nm |
| Stimulated Emission Cross Section | 3×10⁻²⁰ cm² |
| Upper Laser Level | ⁴I₁₁/₂ → ⁴I₁₃/₂ |
Show next
