| Brand | SPL |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | Cati-MIR-OPO |
| Core Technology | Solid-State Pumped Optical Parametric Oscillation (OPO) |
| Key Output Configurations | CW / Nanosecond / Picosecond |
| Tuning Range | 2300–5000 nm |
| Wavelength Accuracy | ≤0.1 nm (CW), ≤1 nm (ns/ps) |
| Avg. Power | ≥2 W @ 3000 nm (CW), ≥5 W @ 3000–3800 nm (ns), ≥200 mW @ 4000–4300 nm (ps) |
| Pulse Repetition Rate | 10–50 kHz (ns), ~80 MHz (ps) |
| Pulse Width | <100 ns (ns), <20 ps (ps) |
| Spectral Linewidth | ≤2 MHz (CW) |
| Beam Diameter | ~2 mm |
| Power Stability (RMS) | ≤2% |
| Polarization | Linear |
| Output Coupling | Free-Space |
| Input Voltage | 220 V AC |
| Brand | NoIR Laser |
|---|---|
| Origin | USA |
| Model | DI2 |
| Optical Density (OD) Range | OD 4+ across 190–11,000 nm |
| Lens Material | Hard-Coated Polycarbonate |
| Frame Design | Over-Glasses Compatible |
| Compliance | ANSI Z136.1, EN 207, EN 208 |
| Accessories Included | Protective Case, Neck Strap, Microfiber Cleaning Cloth |

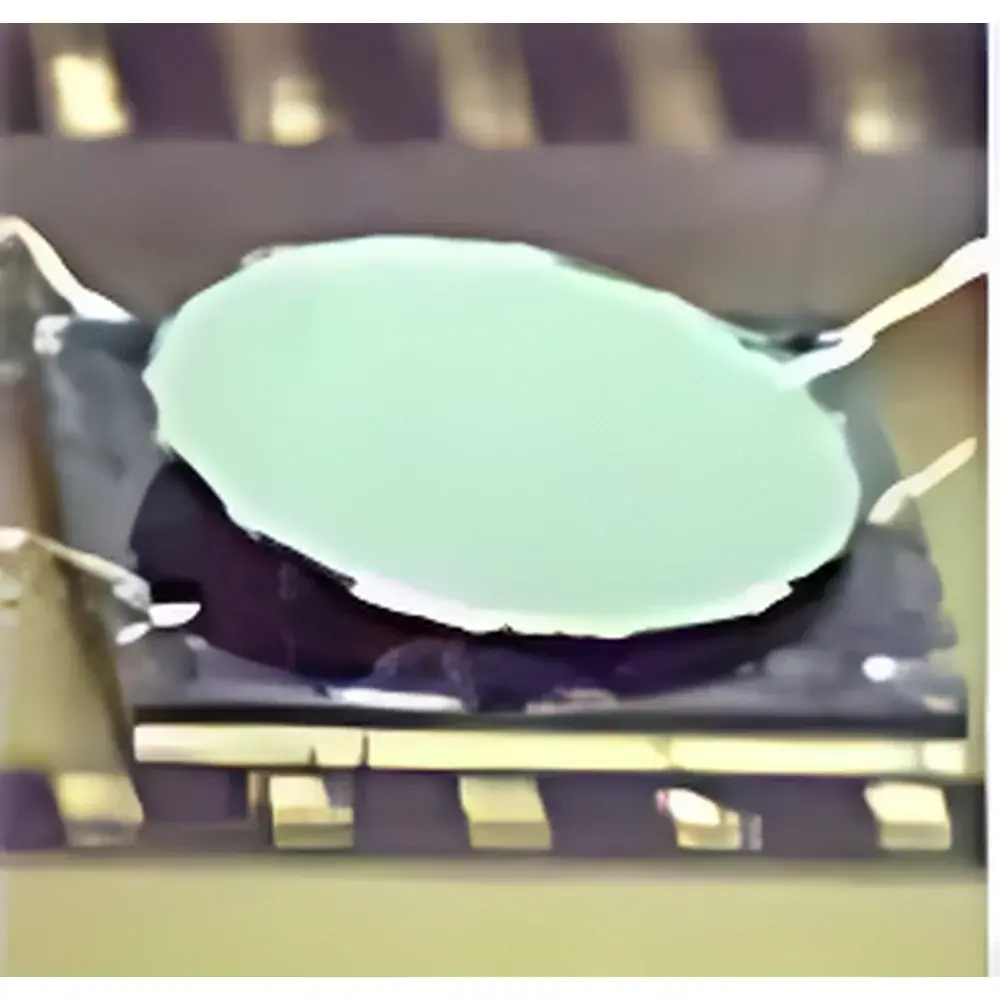

| Brand | Mesa Photonics |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Dual-Axis MEMS Micromirror |
| Key Components | Solid-State Laser Systems & Optical Control Modules |
| Mirror Diameter Range | 0.8–4.2 mm (custom up to 9.0 mm) |
| Scan Angle | ±16° (Tip/Tilt, full range 32°) |
| Drive Power | <10 µW (continuous operation) |
| Material | Single-Crystal Silicon |
| Surface Finish | High-Reflectivity Dielectric Coating (application-specific R > 99.5% @ target λ) |
| Control Mode | Analog Voltage-Driven (continuous, static & dynamic positioning) |
| Architecture | Gimbal-Free Monolithic MEMS Design |
| Fabrication Technology | ARI-MEMS Process |
| Brand | RealLight |
|---|---|
| Origin | Beijing, China |
| Model(s) | HQP-1064/HQP-532 |
| Wavelength(s) | 1064 nm, 532 nm (customizable to 355 nm, 266 nm) |
| Pulse Width | <500 ps (HQP), 350–500 ps (HQF sub-ns), 6–8 ns (HQF ns), 3.5–8 ns (HQD) |
| Repetition Rate | 1–50 kHz (HQP), 1–10 Hz (HQF), 2.5–7 kHz (HQD) |
| Average Power | up to 7 W (HQP), up to 2 W (HQD), up to 1.2 J/pulse @ 10 Hz (HQF ns) |
| Pulse Energy | up to 500 mJ (HQF), up to 1200 mJ (HQF ns), up to 420 µJ (HQP), up to 560 µJ (HQD) |
| Beam Mode | TEM₀₀ (HQP, HQD), Flat-top (HQF) |
| Polarization Ratio | >100:1 |
| Power Stability (8 h) | ±3% (HQP, HQD), <2–3% RMS (HQF) |
| Divergence (full angle, 1/e²) | <10 mrad (HQP, HQD), <3–5 mrad (HQF) |
| Cooling | Air-cooled (HQP, HQD), Forced-air or water-assisted (HQF) |
| Operating Temperature | 15–35 °C (HQP, HQD), 5–35 °C (HQF) |
| Compliance | CE-marked per IEC 60825-1:2014 (Class 4 Laser Product), RoHS-compliant |

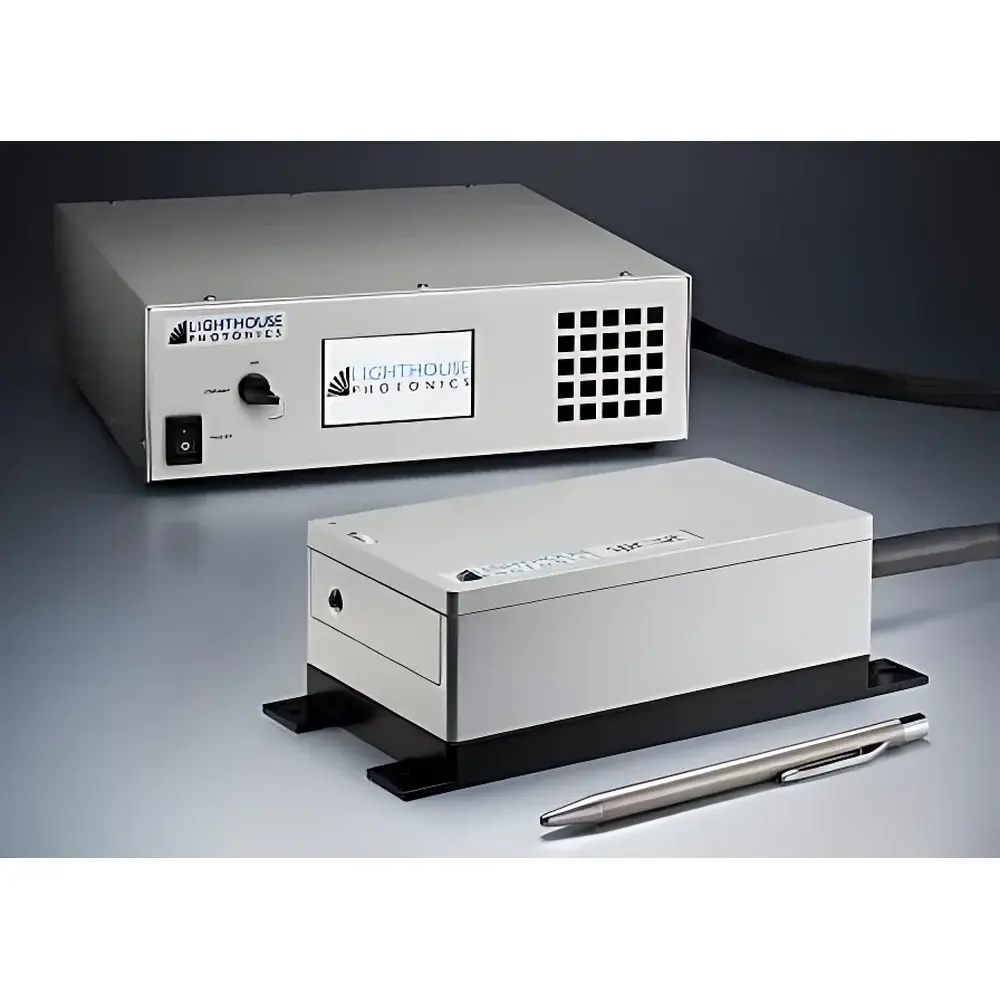

| Brand | Lighthouse Photonics |
|---|---|
| Origin | USA |
| Model Variants | Sprout-G, Sprout-D, Sprout-H, Sprout-C, Sprout-Solo |
| Wavelength | 532 nm |
| Output Power Range | 3–20 W (model-dependent) |
| Beam Mode | TEM₀₀ |
| M² | 1.0–1.1 |
| Beam Diameter (1/e²) | 2.2–2.3 mm ±10% |
| Beam Divergence | <0.5 mrad |
| Power Stability | <±0.25% RMS (24 h) |
| Intensity Noise | Standard <0.1% RMS (10 Hz–10 MHz), NET Option <0.02% RMS |
| Polarization Ratio | >100:1 (Vertical, Horizontal Optional) |
| Spectral Purity | >99.9% |
| For Sprout-Solo | Linewidth <2 MHz, PZT Tuning Range >8.2 GHz, DC–20 kHz Bandwidth |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

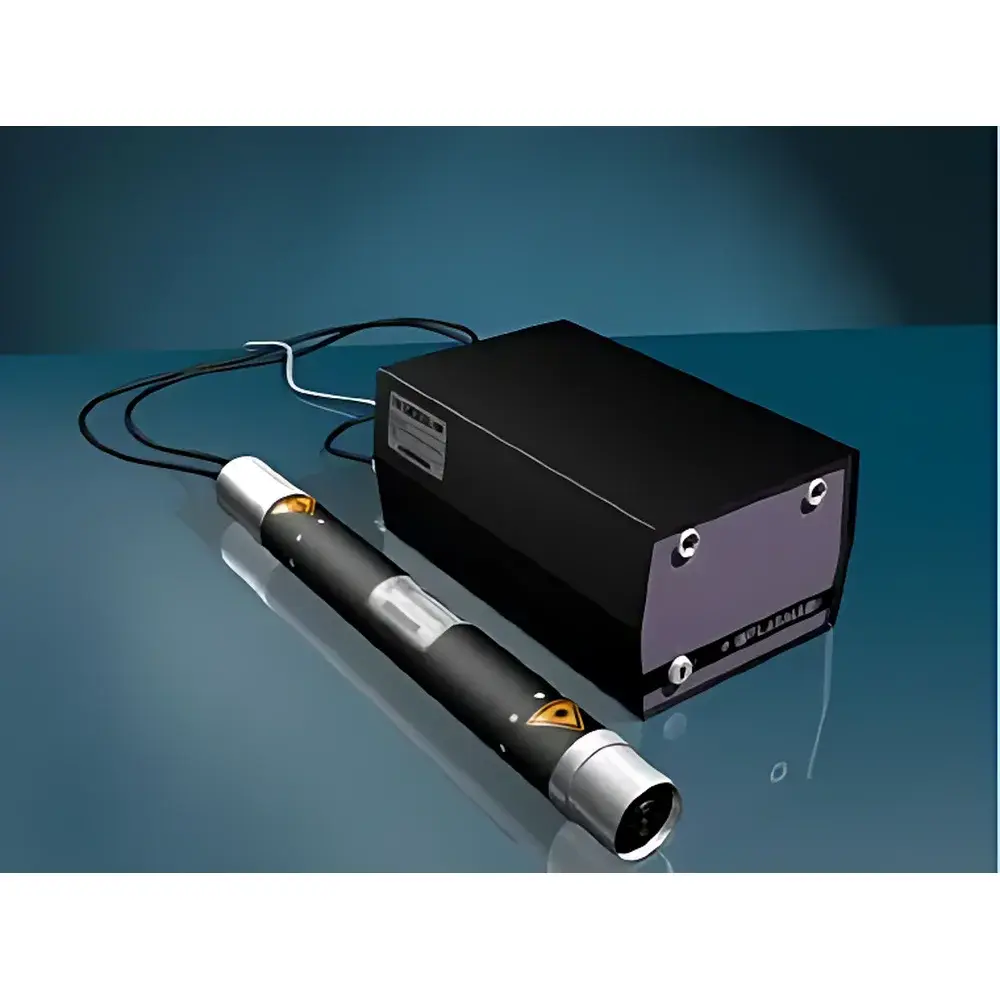

| Model | SPL-HN |
| Pricing | Available Upon Request |

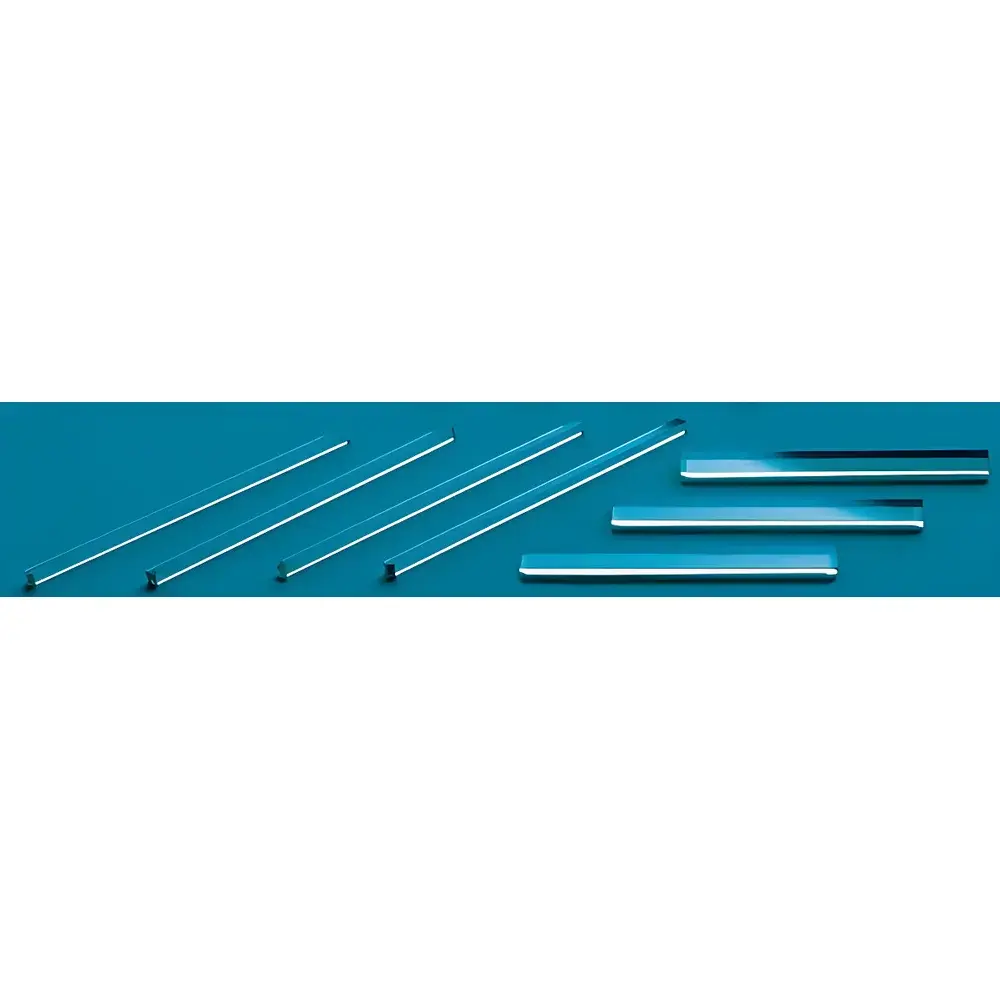

| Brand | GRINTECH |
|---|---|
| Origin | Canada |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Endoscopic Cylindrical Lens System |
| Pricing | Upon Request |
| Core Components | Solid-State Laser-Compatible Optical Assembly |

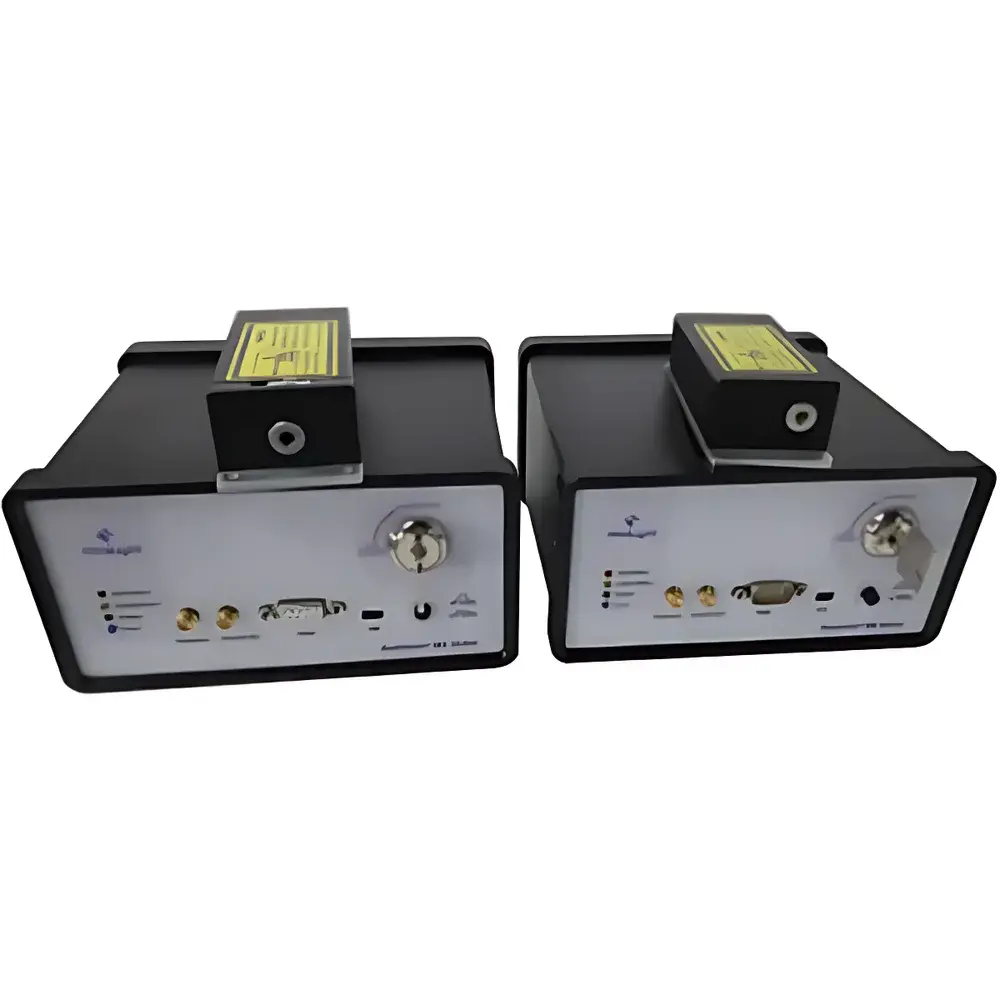

| Brand | RealLight |
|---|---|
| Model | MCI Series |
| Wavelengths | 946 nm / 473 nm |
| Pulse Width | 2.5 ns (2500 ps) |
| Repetition Rate | 1 kHz |
| Output Energy | 20 µJ @ 946 nm / 4 µJ @ 473 nm |
| Average Power | 20 mW / 4 mW |
| Beam Mode | TEM₀₀ |
| Polarization Ratio | >100:1 |
| Beam Divergence (Full Angle, 1/e²) | Horizontal 9 mrad / Vertical 7 mrad |
| Power Stability (8 h) | ±3% |
| Pump Source | Semiconductor Diode |
| Q-Switching | Passive |
| Trigger Interface | TTL 5 V, SMA |
| Power Input | 100–240 VAC, 50/60 Hz |
| Control Interface | RS232, USB |
| System Power Consumption | ≤15 W |
| Laser Head Dimensions (W×H×L) | 45×30×120 mm |
| Power Supply Dimensions (W×H×L) | 168×88×140 mm |
| Operating Temperature | 15–35 °C |
| Storage Temperature | 0–60 °C |
| Optional | Integrated Beam Expander (divergence <2 mrad) |
| [Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

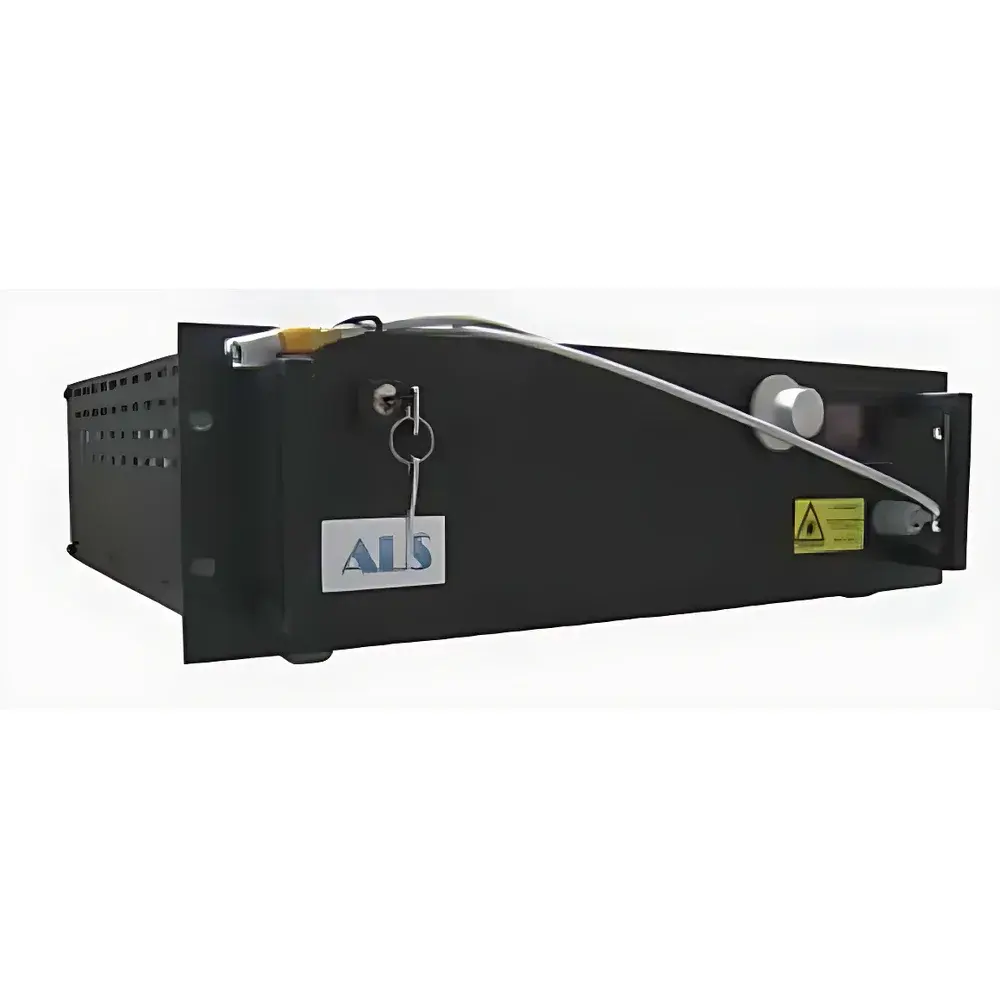

| Model | ALS-IR Series |
| Output Power | Up to 50 W (wavelength-dependent) |
| Linewidth | Down to 50 kHz (single longitudinal mode) |
| Wavelength Drift | < 0.05 pm over several hours |
| Beam Mode | TEM₀₀ |
| Cooling | Conduction-cooled, no external chiller required |
| Maintenance | Maintenance-free, >100,000 h diode lifetime |
| Compliance | RoHS, CE, IEC 60825-1 Class 4 Laser Product] |
| Brand | SPL Photonics |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | SPL CW Raman & Fluorescence Laser Series |
| Key Components | Solid-State Laser Modules |
| Wavelength Options | 488 nm, 532 nm, 658 nm, 780 nm, 785 nm, 830 nm |
| Output Modes | Free-Space (SL) or Fiber-Coupled (FC/PC or SMA 905) |
| Power Options | Up to 500 mW (CW) |
| Spectral Linewidth | ≤0.2 nm (typ., 785 nm) |
| Wavelength Stability | <0.005 nm/°C (typ.) |
| Intensity Stability | <1% RMS (8 h, 10 Hz–100 MHz) |
| Warm-up Time | 15 min |
| Operating Temperature | –10 °C to +45 °C |
| Humidity Range | 5–95% RH (non-condensing) |
| Lifetime | ≥10,000 h |
| Power Supply | 5 VDC @ 3.0 A (INT-5V) or 220 VAC input (INT-220V) |
| Modulation | TTL-compatible (0–100 kHz) |
| Fiber Coupling | Standard 105 µm, NA 0.22 (≥75% coupling efficiency) |
| Customization | OEM modules, wavelength-specific packaging, fiber type, connector (SMA 905 / FC), thermal management, and control interface |
| Brand | Montfort |
|---|---|
| Origin | Austria |
| Laser Type | Diode-Pumped Solid-State (DPSS) Nd:YAG |
| Wavelength | 1064 nm (fundamental), optional 532 nm SHG |
| Pulse Energy | up to 120 mJ |
| Pulse Width | 6–10 ns (FWHM) |
| Repetition Rate | 1–100 Hz |
| Beam Quality | M² < 3 |
| Operating Voltage | 24 V DC |
| Cooling | Conduction-cooled, no water required |
| Dimensions (L×W×H) | 139 × 132 × 64 mm (M-NANO base unit) |
| Weight | ≤ 4 kg (fully integrated) |
| Lifetime | >1 billion pulses |
| Pulse Delay Range | –1.5 µs to +4 µs (relative to trigger) |
| dual-pulse interval | 0 ms to –300 ms |
| Energy Stability | < 0.9% RMS (over 1 hr) |
| Beam Pointing Stability | < 5 µrad (over 8 hrs) |
| Compliance | CE, RoHS, IEC 60825-1:2014 Class 4 Laser Product |

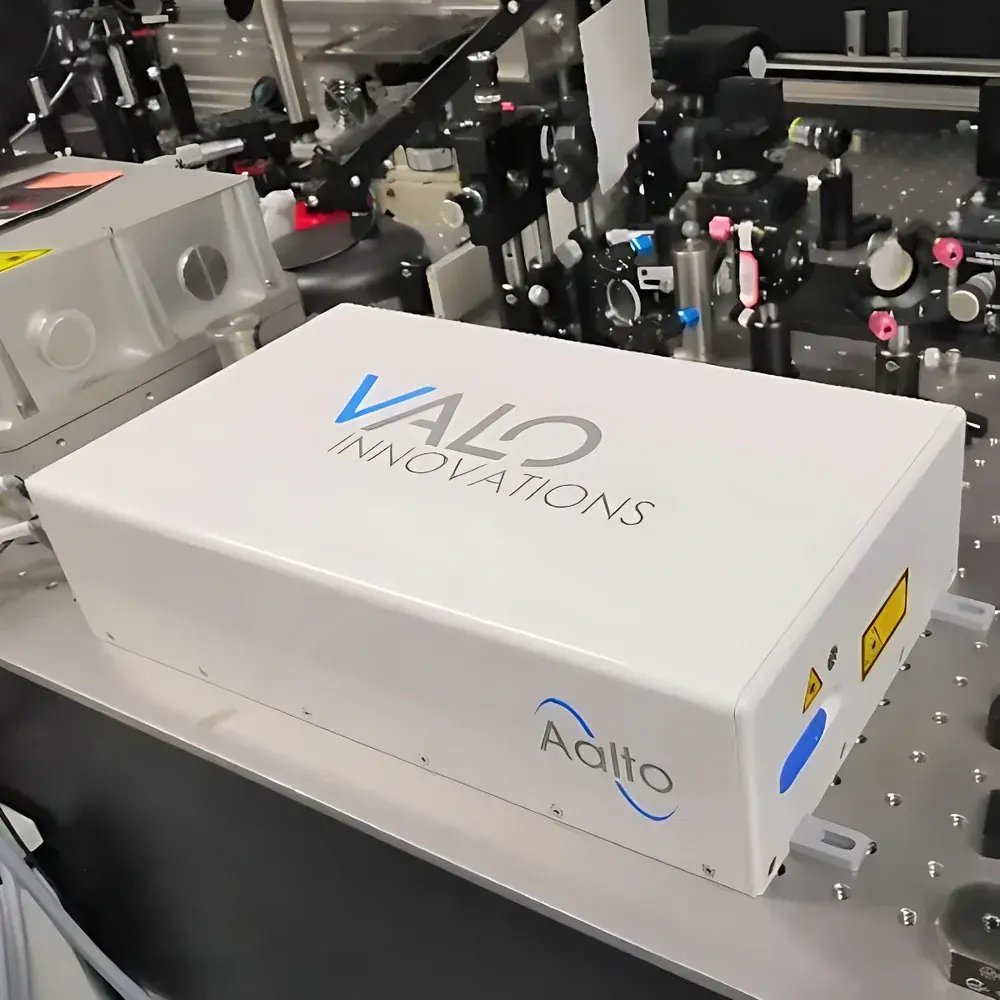

| Brand | VALO Innovations |
|---|---|
| Origin | Germany |
| Model | Aalto, Tidal |
| Pulse Duration (min) | <50 fs (adjustable) |
| Central Wavelength | 1050 ± 10 nm |
| Average Power | >200 mW (Aalto), >3 W (Tidal) |
| Repetition Rate | 30 ± 1 MHz |
| Pulse Energy | >6.5 nJ (Aalto), >100 nJ (Tidal) |
| Spectral Bandwidth | >90 nm (@ −10 dB) |
| Polarization | Linear |
| Beam Quality (M²) | <1.2 (Aalto), <1.25 (Tidal) |
| Output | Free-space (fiber-coupled optional) |
| Warm-up Time | <1 min |
| Dispersion Pre-compensation | Integrated, electronically tunable |

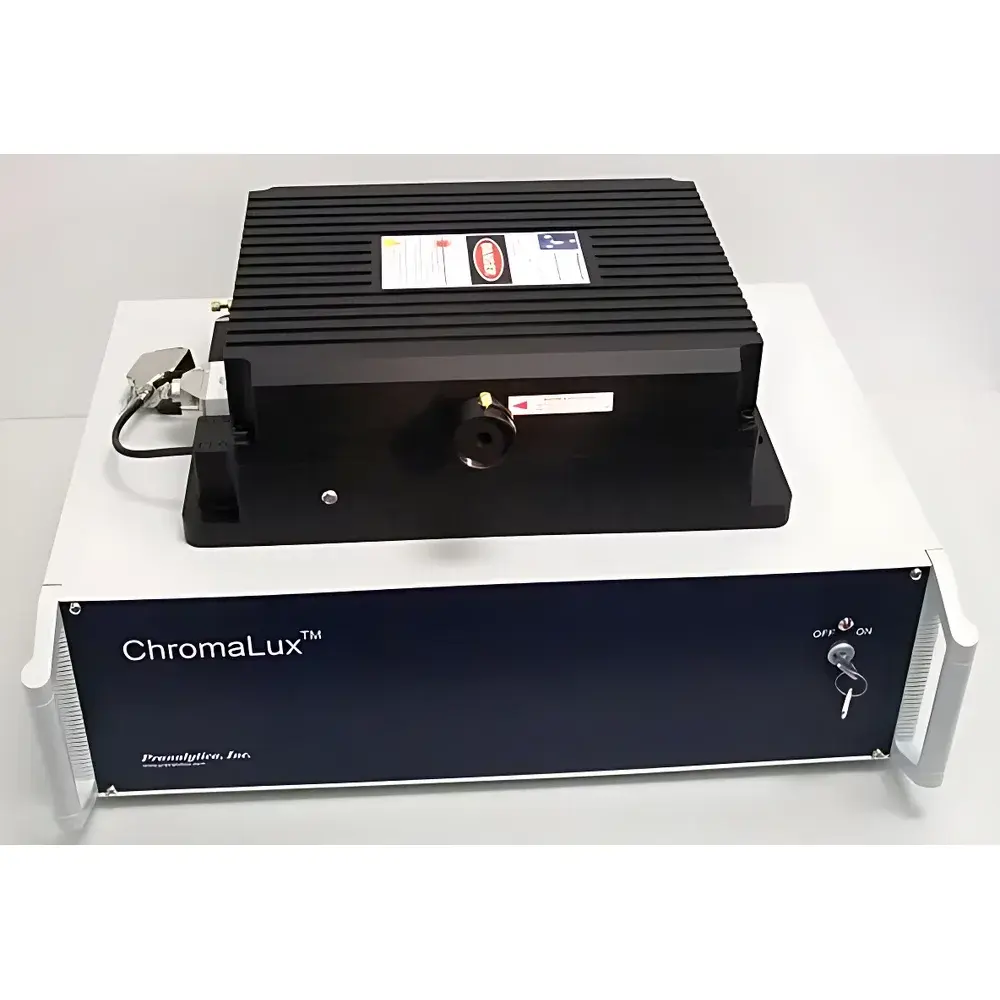

| Brand | Pranalytica |
|---|---|
| Origin | USA |
| Model | ChromaLux 1101-46-EGC |
| Center Wavelength | ~4.6 µm |
| Coarse Tuning Range | ±150 nm around 4.6 µm |
| Fine Tuning Resolution | <40 MHz |
| Output Power | >200 mW across full tuning range |
| Linewidth (CW) | <40 MHz |
| Beam Quality | Near diffraction-limited |
| Operating Mode | True continuous-wave (CW) with +5 V DC bias |
| Laser Head Dimensions | 25 × 17 × 35 cm (W×H×D) |
| Weight | 10 kg |
| Controller Dimensions | 28 × 18 × 37 cm (W×H×D) |
| Weight | 10 kg |
| Input Power | 110/220 V AC, 4 A max |
| Brand | GRINTECH |
|---|---|
| Origin | Canada |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | GRIN Needle Microscope |
| Core Component | Solid-State Laser System |
| Brand | RealLight |
|---|---|
| Model | MCA Series |
| Wavelength Options | 1064 / 532 / 355 / 266 nm |
| Pulse Width | ≤1.5 ns (typ. 1.2 ns) |
| Pulse Energy | up to 120 µJ @ 1064 nm |
| Repetition Rate | 1–20 kHz |
| Beam Mode | TEM₀₀ |
| Beam Divergence (full angle, 1/e²) | ≤8 mrad (horizontal), ≤6 mrad (vertical) |
| Polarization Ratio | >100:1 |
| Power Stability (8 h) | ±3% |
| Trigger Interface | TTL 5 V, SMA |
| Input Power | 100–240 VAC, 50/60 Hz |
| System Power Consumption | ≤35 W |
| Laser Head Dimensions (W×H×L) | 45×30×120 mm |
| Power Supply Dimensions (W×H×L) | 168×88×140 mm |
| Operating Temperature | 15–35 °C |
| Storage Temperature | 0–60 °C |
| Output Configuration | Side-emitting (standard) |
| Enclosure | Fully sealed monolithic module for OEM integration |
| Brand | CrystaLaser |
|---|---|
| Origin | USA |
| Model Variants | QL355, QL351, QL262 |
| Wavelengths | 355 nm, 351 nm, 349 nm, 266 nm, 262 nm |
| Max. Avg. Power (optimal rep rate) | 100 mW (355/351/349 nm), 50 mW (266/262 nm) |
| Max. Pulse Energy @ 1 kHz | 25 µJ (355/262 nm), 50 µJ (351/349 nm), 15 µJ (266 nm) |
| Pulse Width | 5–100 ns (typ. 10–15 ns) |
| Repetition Rate | 1–100 kHz (internal), up to 400 kHz (external trigger) |
| Beam Divergence (full angle) | 2–6 mrad |
| Beam Diameter (1/e²) | 0.15 × 0.3 mm (elliptical at 262/266 nm), 0.2 mm (circular at 349–355 nm) |
| Transverse Mode | TEM₀₀, M² < 1.3 (typically < 1.1 for 349–355 nm) |
| Longitudinal Mode | Multi-longitudinal |
| Power Stability (rms) | ≤5% after thermal equilibrium |
| Beam Pointing Stability | < 0.02 mrad (constant temperature) |
| Polarization | Linear, >100:1 extinction ratio |

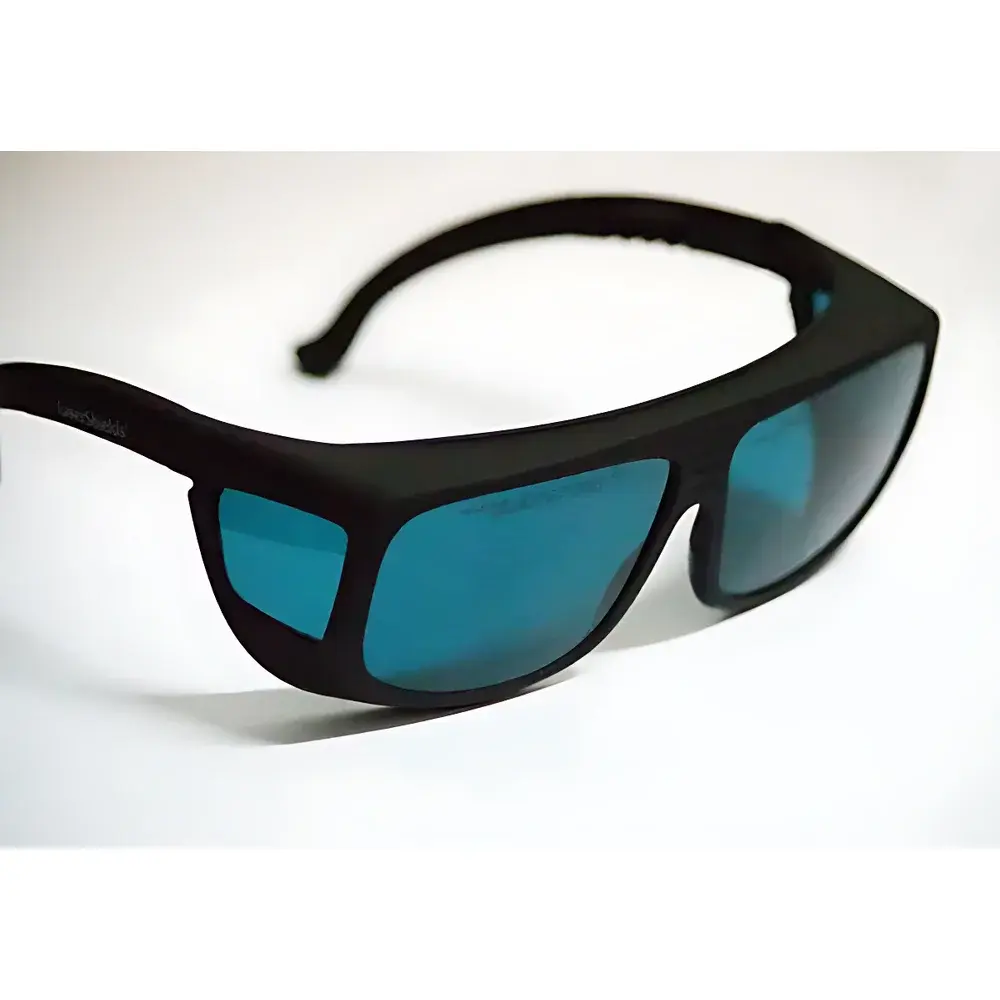

| Brand | NoIR Laser |
|---|---|
| Origin | USA |
| Model | DI4 |
| Optical Density (OD) Range | OD 4+ across 190–11,000 nm |
| Lens Material | Hard-Coated Polycarbonate |
| Frame Design | Over-Glasses Compatible |
| Compliance | ANSI Z136.1, EN 207, EN 208 |
| Includes | Protective Case, Neck Strap, Microfiber Cleaning Cloth |
| Brand | GRINTECH |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | CUBE Series |
| Laser Type | Solid-State Diode-Pumped Semiconductor Laser |
| Wavelength | 375 nm (UV-A) |
| Output Configuration | TEM₀₀, Polarized, Free-Space or Fiber-Coupled Options Available |
| Operating Mode | CW (Continuous Wave) |
| Power Range | 10–100 mW (model-dependent) |
| Beam Diameter (1/e²) | ~0.8 mm |
| Beam Divergence (full angle) | <1.5 mrad |
| Warm-up Time | <30 s to ±0.5% power stability |
| Long-Term Power Stability | <±2% over 8 h |
| Cooling | Conductive (thermoelectrically stabilized) |
| Control Interface | Analog voltage (0–5 V) and TTL modulation input |
| Compliance | RoHS, CE, FDA 21 CFR Part 1040.10 (Laser Product Safety) |
| Brand | RealLight |
|---|---|
| Origin | Beijing, China |
| Model | MCA-R Series |
| Wavelength(s) | 1064 nm / 532 nm (dual-wavelength customizable) |
| Pulse Width | 1.5 ns |
| Repetition Rate | up to 2.5 kHz |
| Pulse Energy | up to 180 µJ |
| Beam Mode | TEM₀₀ |
| Divergence (full angle, 1/e²) | ≤3 mrad (horizontal), ≤2.5 mrad (vertical) |
| Polarization Ratio | >100:1 |
| Power Stability (8 h) | ±3% |
| Electrical Input | 100–240 VAC, 50/60 Hz |
| Control Interface | RS232, USB, TTL 5 V (SMA) |
| Laser Head Dimensions (W×H×L) | 45×30×120 mm |
| Power Supply Dimensions (W×H×L) | 90×32.6×120 mm |
| Operating Temperature | 15–35 °C |
| Storage Temperature | 0–60 °C |
| Compliance | CE-marked design |
| meets IEC 60825-1 | 2014 Class IV laser safety requirements |
| Brand | GRINTECH |
|---|---|
| Origin | Canada |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | GRIN Cylindrical Lens |
| Price | Upon Request |
| Core Application Domain | Solid-State Laser Systems & Beam Shaping |
| Brand | Litilit |
|---|---|
| Origin | Lithuania |
| Model | Indylit 20 |
| Output Wavelength | 1030 ± 2 nm (fundamental), 515 ± 1 nm (SHG) |
| Avg. Power | >13 W @ 100 kHz / >18 W @ 1 MHz (fundamental) |
| Pulse Energy | >130 µJ (fundamental), >70 µJ (SHG) |
| Pulse Duration | <400 fs (adjustable 400 fs – 2 ps) |
| Repetition Rate | 100 kHz – 1 MHz (burst mode down to 30 kHz) |
| Beam Quality | M² < 1.2 |
| Polarization Extinction Ratio | >200:1 |
| Power Stability (RMS) | <1% (fundamental), <2% (SHG) |
| Beam Pointing Stability (RMS) | <20 µrad |
| Cooling | Passive air-cooled laser head, active fan-cooled control unit |
| Dimensions (L×W×H) | Laser Head 498 × 248 × 194 mm³ |
| Input Voltage | 100–240 V AC, 47–63 Hz → 24 V DC |
| Max. Power Consumption | 700 W |
| Operating Temperature | 18–32 °C |
| Compliance | CE, RoHS, IEC 60825-1:2014 Class 4 Laser Product |

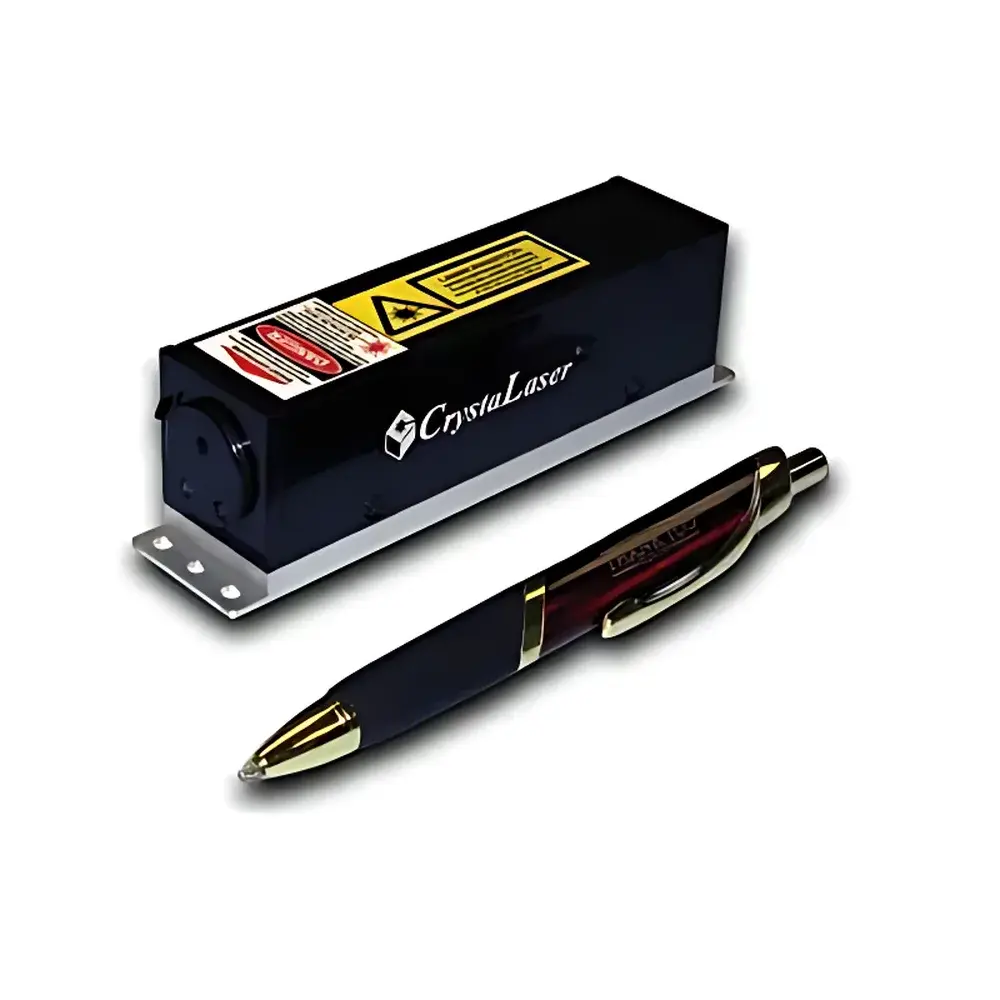

| Brand | CrystaLaser |
|---|---|
| Origin | USA |
| Model Series | CL561, CL555, CL593 |
| Wavelengths | 561 nm, 555 nm, 593 nm |
| Output Power Options | 5–200 mW (model-dependent) |
| Transverse Mode | TEM₀₀, M² < 1.1 |
| Beam Diameter (1/e²) | 0.7 mm (standard) |
| Full-Angle Beam Divergence | 1.1 mrad (reducible with expander) |
| Intensity Noise (RMS) | 2% (10 Hz–10 kHz), ~20% (100 kHz–1 MHz) |
| Power Stability (RMS) | <2% over 8 h |
| ultra-stable variants | 0.5% or 0.25% over 24 h |
| Beam Pointing Stability | <0.02 mrad at constant temperature |
| Polarization | Linear |
| extinction ratio standard 50 | 1, optional >100:1 |
| Brand | CrystaLaser |
|---|---|
| Wavelengths | 473 nm, 488 nm |
| Output Power Options | 5–150 mW (473 nm) |
| Beam Diameter (1/e²) | 0.7–1.2 mm |
| Beam Divergence (Full Angle) | 0.7–1.0 mrad |
| Transverse Mode | TEM₀₀ (M² < 1.2) to Circular (M² ≈ 1.2) |
| Longitudinal Mode | Single Longitudinal Mode (SLM) or Multimode |
| Spectral Linewidth | < 0.00001 nm (SLM), ≤ 1 nm (nominal) |
| Coherence Length | > 100 m (SLM) |
| RMS Intensity Noise | < 1% (10 Hz–50 MHz), up to 30% at 300 kHz (Low-Noise Options Available) |
| Power Stability | < 2% rms over 8 h |
| optional ultra-stable | 0.25% rms over 24 h |
| Beam Pointing Stability | < 0.02 mrad (constant temperature) |
| Polarization | Linear, extinction ratio ≥ 100:1 (vertical), optional ≥ 300:1 |
| Brand | GRINTECH |
|---|---|
| Origin | Canada |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Custom GRIN Lens Assembly |
| Pricing | Upon Request |
| Core Application Domain | Solid-State Laser Systems & Fiber-Optic Integration |
Show next
