| Brand | Ocean Optics |
|---|---|
| Model | HG-2 |
| Origin | USA |
| Light Source Type | Mercury-Argon / Argon / Krypton / Neon / Xenon Hollow Cathode Lamps |
| Spectral Range | 253 nm – 1984 nm (configurable by lamp module) |
| Output Interface | SMA 905 |
| Power Supply | 5 V DC, rechargeable battery integrated |
| Compliance | CE, RoHS |
| Lamp Configuration | Interchangeable single-element hollow cathode modules |
| Operating Temperature | 15–35 °C |
| Warm-up Time | < 5 min to spectral stability |
| Spectral Linewidth | < 0.05 nm (FWHM, typical for hollow cathode lamps) |
| Lifetime | ≥ 5,000 hours (lamp-dependent) |

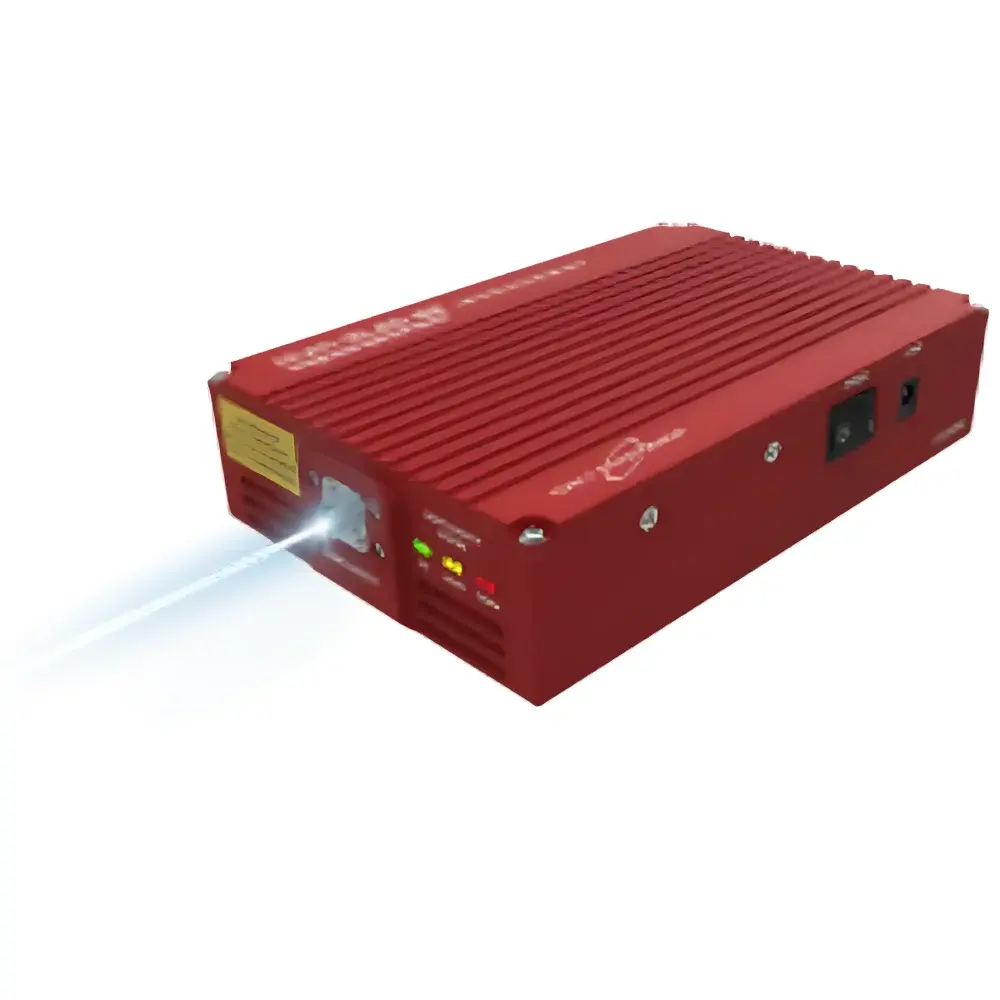

| Brand | DAYY Photonics |
|---|---|
| Origin | Canada |
| Model | ISB2 |
| SLED Count | 2–6 configurable channels |
| Wavelength Range | 770–1680 nm |
| Spectral Bandwidth (FWHM) | 40–460 nm |
| Output Power | up to 40 mW (fiber-coupled), up to 130 mW (free-space) |
| Polarization Extinction Ratio | High (>20 dB) |
| Fiber Options | PM, SM, or low-PER single-mode |
| Integrated TEC & Monitoring Photodiodes | Yes |
| Optical Isolation | Dual-stage polarization-maintaining fiber isolator (35 dB) |
| Control Interfaces | USB, RS-232, Ethernet |
| Software Interface | GUI + programmable API |
| Brand | Thorlabs |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | SPL-HLS |
| Wavelength | 635 nm |
| Output Power (CW Low/High) | ~1 mW / ≥2.5 mW |
| Pulsed Output | ≥2.5 mW at 2 Hz, 50% duty cycle |
| Power Stability | ≤1% |
| Laser Class | 3R |
| Fiber Connector | FC/PC |
| Dimensions | 147.2 × 78.7 × 34.5 mm |
| Operating Temperature | 4–45 °C |
| Battery | NiMH, 3.6 V, >8 h runtime, ~60 days standby |
| Charge Time | ~135 min |
| DC Input | 9 VDC, 2 A |
| AC Adapter | 90–264 VAC, 47–63 Hz, 18 W max output |

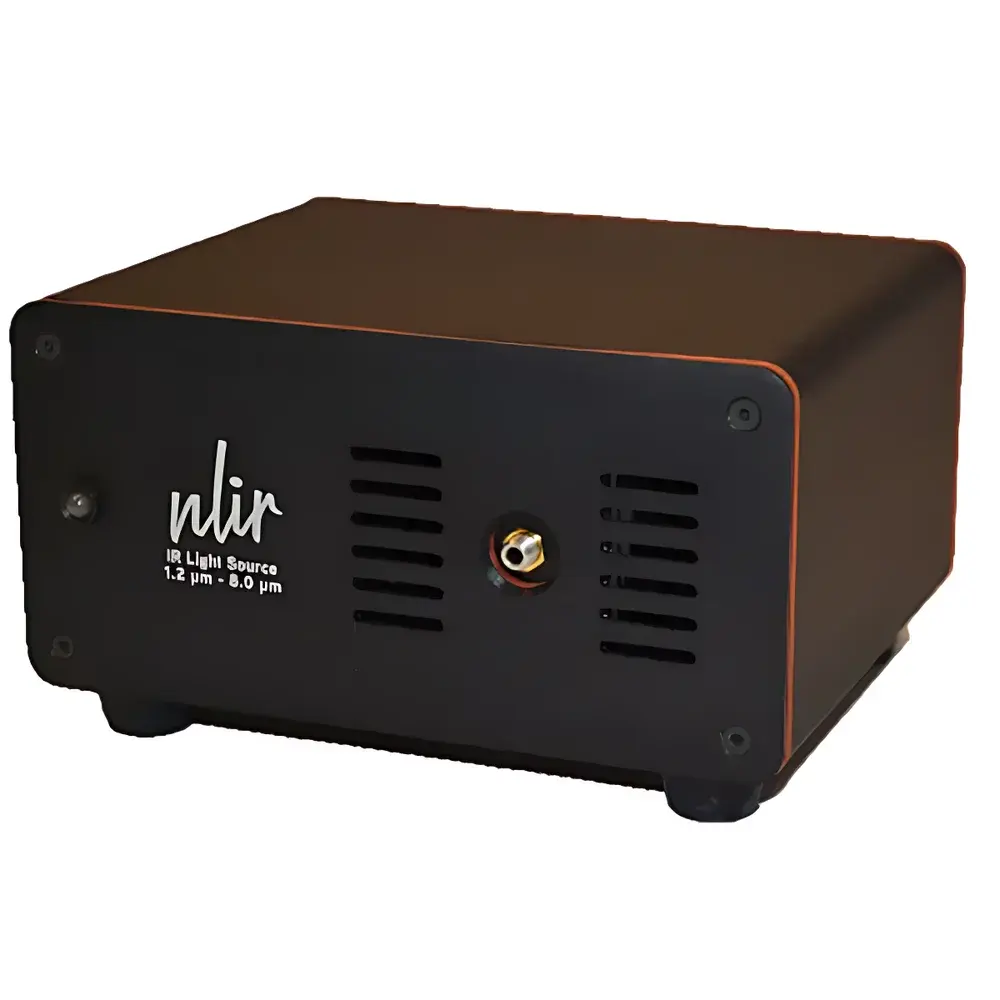

| Brand | NLIR |
|---|---|
| Origin | Denmark |
| Light Source Type | Mid-Infrared (MIR) Thermal Source |
| Wavelength Range | 1.2–8.0 µm |
| Output Power in ≥500 µm Fiber | >5 mW |
| Power Stability | ±0.5% (over time) |
| Lifetime | 5,000 hours |
| Cooling | Active Thermoelectric Cooling |
| Fiber Coupling | Standard FC/PC or SMA-compatible |
| Compliance | CE-marked, RoHS-compliant |
| Software Interface | None (standalone analog/digital control via TTL or 0–10 V input) |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Model | DH-2000 |
| Light Source Type | Deuterium + Tungsten Halogen |
| Spectral Range | 215–2500 nm (DH-2000-DUV: 190–2500 nm) |
| Output Stability | <5 × 10⁻⁶ peak-to-peak (0.1–10.0 Hz) |
| Drift | <0.01% per hour |
| Warm-up Time | 25 min |
| Lamp Life | 1000 h |
| Power Consumption | ~78 VA |
| Dimensions (W×H×L) | 15 × 13.5 × 28.5 cm |
| Weight | 5 kg |
| Compliance | CE, RoHS, WEEE |
| Operating Temperature | 5–35 °C |
| Operating Humidity | 5–95% RH (non-condensing at 40 °C) |

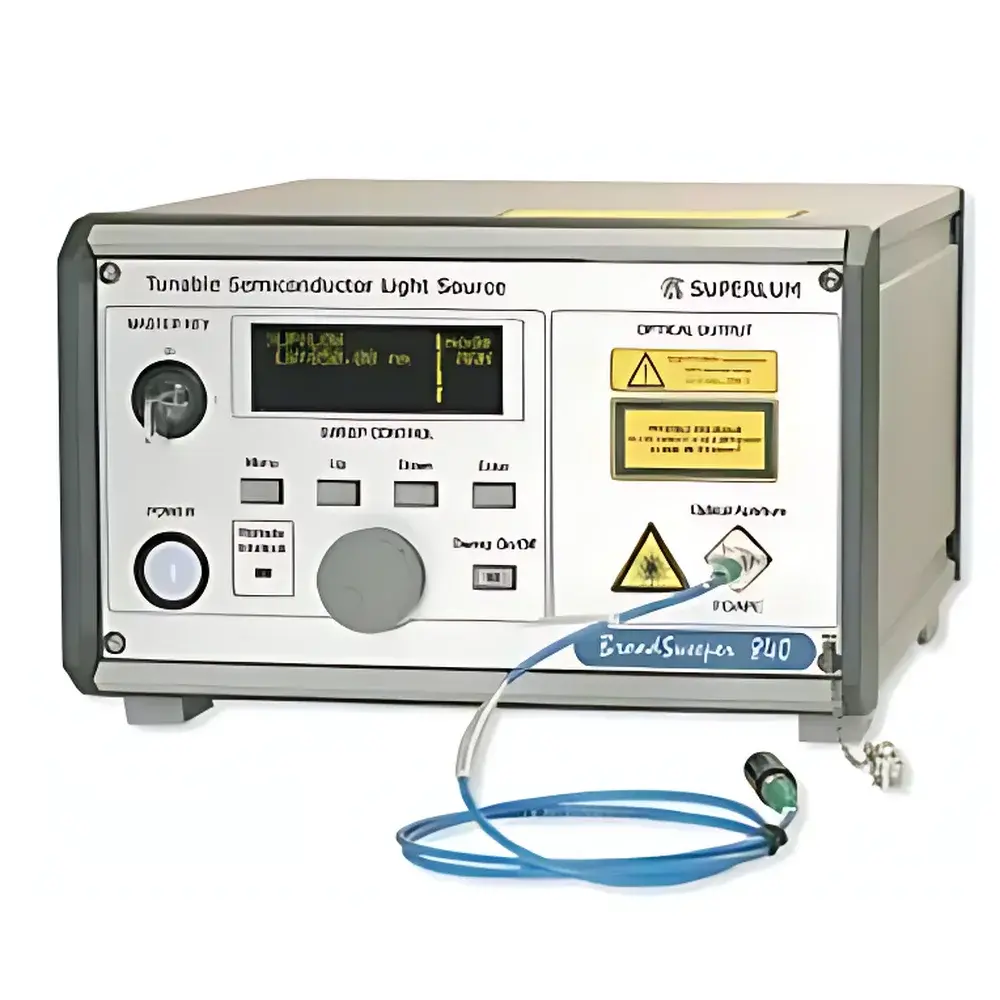

| Brand | Superlum |
|---|---|
| Origin | Ireland |
| Product Types | Superlumination Diode (SLD) Modules, Swept-Source Lasers (BS Series), Fiber-Coupled Semiconductor Optical Amplifiers (SOAs) |
| Wavelength Range | 650–1620 nm |
| Spectral Bandwidth (FWHM) | Up to 100 nm (SLDs), up to 200 nm (multi-SLD sources) |
| Output Power | Up to 100 mW (multimode fiber-coupled), up to 30 mW (single-mode), up to 20 mW (broadband multi-SLD benchtop units) |
| Tuning Speed | Up to 100,000 nm/s (BS series) |
| Linewidth | 0.06–0.15 nm (BS series) |
| Compliance | RoHS-certified, CE-marked, designed for GLP-compliant OCT system integration |
| Brand | SPL |
|---|---|
| Origin | Japan |
| Light Source Type | Xenon Lamp |
| Maximum Optical Output Power | 5 W |
| Illumination Mode | External Illumination |
| Housing | Metal Enclosure |
| Spectral Range | UV to NIR (≈200–1100 nm) |
| Stability | ≤2.0% CV (Coefficient of Variation) |
| Lifetime | ≥1.0×10⁹ flashes |
| Interface Options | SMA-905 or Collimated Output |
| Mounting Form Factor | Compact Modular Design |
| Compliance | CE-marked for laboratory instrumentation use |
| Regulatory Context | Designed for integration into analyzers requiring IEC 61000-6-3 EMC-compliant light sources |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | LSM |
| Light Source Type | High-Stability Monochromatic & Broadband LED |
| Illumination Mode | Internal (Fiber-Coupled) |
| Wavelength Range | 310–880 nm (Discrete Peaks) + 3000K Warm White Broadband |
| Driver/Controller | LDC-1 Single-Channel Intelligent Driver |
| Coupling Interface | SMA 905 |
| Mounting Options | DIN Rail, Optical Table, 19″ Rack |
| Packaging | Rugged Carry Case for Multi-LED Configurations |
| Brand | Lumi-Universe |
|---|---|
| Origin | Anhui, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | Yue Zhuo |
| Light Source Type | High-Harmonic Generation (HHG) EUV Source |
| Illumination Mode | Internal Illumination |
| Wavelength Range | 10–100 nm |
| Output Harmonic Power | 1 mW – 1 W |
| Pulse Duration | < 50 fs |
| Repetition Rate | 1–10 MHz |
| Dimensions | 885 × 420 × 233 mm |
| Weight | 55 kg |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Model | PX-2 |
| Light Source Type | Pulsed Xenon Lamp |
| Spectral Range | 220–750 nm |
| Pulse Frequency | Up to 220 Hz |
| Pulse Width | 5 µs (FWHM) |
| Pulse Energy | up to 45 µJ per flash |
| Average Lamp Power | 9.9 W |
| Dimensions | 14 × 10.5 × 4 cm (L×W×H) |
| Input Power | 1.3 A @ 11 V (at 220 Hz), 100 mA @ 12 V (at 10 Hz) |
| Trigger Interface | TTL-compatible positive pulse via 15-pin D-sub connector |
| Fiber Coupling | SMA 905 |
| Lifetime | 1 × 10⁹ flashes (≈230 days at 50 Hz) |
| Brand | DAYY Photonics |
|---|---|
| Origin | Canada |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | ASE ISB4 |
| Pricing | Upon Request |
| Center Wavelength Options | 770–1680 nm (12 discrete options) |
| Spectral Bandwidth (FWHM) | 15–70 nm |
| Output Power | 20–200 mW |
| Polarization Degree | Low / Medium / High (configurable per fiber type) |
| Output Connector | FC/APC (standard), FC/PC or SMA (optional) |
| Control Interfaces | USB, RS-232 |
| Drive Control | 0–100% adjustable via GUI or API |
| Brand | Ocean Optics |
|---|---|
| Model | HL-2000 |
| Light Source Type | Tungsten-Halogen Lamp |
| Spectral Range | 360–2400 nm |
| Color Temperature | 2960 K (HL-2000), 2800 K (LL), 3000 K (HP) |
| Nominal Bulb Power | 5 W (standard/LL), 20 W (HP) |
| Output Stability | ±0.15% peak-to-peak (standard), ±0.25% (HP) |
| Drift | <0.3% per hour |
| Warm-up Time | 10 min (at 23°C, free-air convection) |
| Lifetime | 1,500 h (standard), 10,000 h (LL), 1,000 h (HP) |
| Cooling | Integrated fan-cooled thermal management |
| Optical Interface | SMA905 connector, adjustable for optimal fiber coupling |
| Filter Holder | Integrated, accepts 25.4 mm × 25.4 mm or 50.8 mm × 50.8 mm square filters (3 mm thick) |
| Shutter Options | Manual/TTL-triggered (FHSA variants) |
| TTL input | ≤2.5 Hz (standard/LL/HP-FHSA), ≤1.0 Hz (HP-232-R) |
| Control Interface | RS-232 (HP-232-R and FHSA models) for shutter and programmable intensity attenuation (0–100%) |
| Power Supply | 12 VDC (standard/LL), 24 VDC (HP) |
| max. power draw | 15 W (standard/LL), 30 W (HP) |
| Dimensions | 6.2 cm × 6.0 cm × 15.0 cm (standard/LL/FHSA), 6.0 cm × 13.0 cm × 19.0 cm (HP-232-R) |
| Weight | 0.5 kg (standard/LL/FHSA), 0.9 kg (HP-232-R) |
| Compliance | CE, RoHS, WEEE |
| Operating Temperature | 5–35 °C |
| Operating Humidity | 5–95% RH (non-condensing, at 40 °C) |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Model | LS-1 |
| Light Source Type | Tungsten-Halogen |
| Spectral Range | 360–2500 nm |
| Output Stability | ~0.1% per hour |
| Warm-up Time | ~20 min |
| Lamp Life | 900 h (3100 K) or 10,000 h (2800 K) |
| Input Power | 12 VDC / 800 mA (7–20 VDC / 0.4–2 A compatible) |
| Output Power | 6.5 W |
| Lamp Voltage/Current | 5 V / 1.3 A |
| Color Temperature | 3100 K (standard), 2800 K (long-life) |
| Illumination Geometry | Internal illumination |
| Connector | SMA 905 |
| Filter Mount | Integrated 3 mm slot for BG-34 glass filter (½" OD) |
| Attenuation Options | PTFE-based neutral density filters providing ~50%, ~75%, and ~99% attenuation |
| Physical Dimensions | 9.0 × 5.0 × 3.2 cm (3.5 × 2.0 × 1.25 in) |
| Luminous Intensity | 7400 foot-candles (7.4 MSCP) |
| Brand | SPL |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | SPL |
| Light Source Type | Broadband Xenon Arc Lamp with Integrating Sphere |
| Illumination Mode | External Illumination |
| Uniformity | >98% (Exit Port) |
| Calibration Traceability | NIST-Traceable Radiometric and Photometric Data |
| Adjustable Output | Continuous and Stepwise Control of Luminous/Radiant Flux |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Model | HPX-2000 |
| Spectral Range | 185–2200 nm |
| Output Power | 35 W |
| Input Power | 60 W AC |
| Lamp Type | Short-Arc Xenon |
| Shutter Control | Manual Switch & TTL-Compatible (Positive Pulse via 15-pin Connector) |
| Filter Holder | Accepts 25 mm round or square filters, 14 mm thick |
| Dimensions | 145 × 165 × 260 mm |
| Weight | 5.0 kg |
| Lamp Lifetime | ≥1000 h (typ. 2000 h) |
| Fiber Interface | SMA 905 |
| UV-Optimized Operation | Requires UV-grade optical fiber |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Model | HPX-2000 |
| Light Source Type | Xenon Arc Lamp |
| Spectral Range | 185–2000 nm |
| Output Power | 35 W (UV-VIS-NIR) |
| Electrical Input | 60 W AC |
| Dimensions | 145 × 165 × 260 mm |
| Weight | 5 kg |
| Shutter | Integrated, TTL-triggerable (positive pulse via 15-pin D-sub) |
| Filter Slot | Accepts round or square filters up to Ø25 mm or 25 × 25 mm, max thickness 14 mm |
| Fiber Coupling | SMA 905 |
| Lamp Lifetime | ≥1000 h (typ. 2000 h) |
| Illumination Mode | Internal (in-situ) illumination |
| Brand | Lumi-Universe |
|---|---|
| Origin | Anhui, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | Honghu |
| Light Source Type | High-Harmonic Generation (HHG) Laser Source |
| Illumination Mode | Internal Illumination |
| Wavelength Range | 1–10 nm |
| Output Harmonic Energy | 1 nW – 1 µW |
| Pulse Duration | < 1 fs |
| Repetition Rate | 1–10 kHz |
| Dimensions | 855 mm × 420 mm × 233 mm |
| Weight | 55 kg |
| Brand | Lumi-Universe |
|---|---|
| Model | Qingluan |
| Wavelength Range | 100–200 nm |
| Output Power | 1 mW – 1 W |
| Pulse Duration | < 100 fs |
| Repetition Rate | 1–10 MHz |
| Beam Size (Output Aperture) | Ø3–5 mm (collimated, TEM₀₀-like) |
| Spatial Coherence | High (λ/10 wavefront error typical) |
| Tunability | Monochromatized & continuously tunable across range |
| Cooling | Active air/water hybrid |
| Vacuum Interface | CF-63 or DN40 ISO-KF flange |
| Dimensions | 885 × 420 × 233 mm |
| Weight | 55 kg |
| Compliance | CE, RoHS, EN 61000-6-3/-4 |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Model | DT-MINI-2 / DT-MINI-2-GS |
| Wavelength Range | 200–410 nm (deuterium), 360–2000 nm (tungsten halogen) |
| Output Aperture | 0.5 mm |
| Power Consumption | 350 mA @ 12 VDC |
| Deuterium Output | 3.8 W |
| Tungsten Halogen Output | 1.2 W |
| Intensity Stability | ±0.3% peak-to-peak after 30 min warm-up (over 4 h) |
| Warm-up Time | 10 min (deuterium), 1 min (tungsten halogen) |
| Lamp Lifetime | ~1500 h (both lamps) |
| Shutter Option | TTL- and manual-triggered mechanical shutter (DT-MINI-2-GS only) |
| Connector | SMA 905 |
| Dimensions (DT-MINI-2) | 153.4 × 104.9 × 40.9 mm |
| Dimensions (DT-MINI-2-GS) | 140 × 50 × 125 mm |
| Weight (DT-MINI-2) | 330 g |
| Weight (DT-MINI-2-GS) | 475 g |
| Brand | SPL |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | LLS |
| Light Source Type | High-Efficiency Solid-State LED |
| Illumination Mode | External (Free-Space or Fiber-Delivered) |
| Continuous Wave (CW) Drive Current (max) | 20–1500 mA (model-dependent) |
| Pulsed Drive Current (max) | 200–3000 mA (model-dependent) |
| Max Duty Cycle (pulsed mode) | 1%–50% |
| Spectral Range | 240–6500K CCT (UV to Cool White) |
| FWHM | 9–35 nm (UV–VIS), NA ≤ 0.22 |
| Output Coupled into 600 µm, 0.22 NA Fiber | 2 µW – 1 mW (wavelength-dependent) |
| Control Interface | 15-pin D-sub (TTL-compatible), Optional USB Controller & Analog Intensity Modulation Module |
| Compliance | RoHS-compliant, CE-marked, Designed for GLP-Compatible Laboratory Integration |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Model | ISS-2 |
| Light Source Type | Tungsten-Halogen Lamp |
| Illumination Geometry | Internal (In-Cuvette) |
| Optical Path Length | 1 cm |
| Collimating Lens | 5 mm Ø, f/2, BK7 glass, f = 10 mm, SMA 905 connector |
| Filter Holder | Accepts filters up to 6.35 mm (1/4") thick |
| Base Material | Aluminum |
| Spectral Range | 360 nm – 2000 nm |
| Dimensions (L×W×H) | 155.0 × 50.0 × 53.3 mm |
| Input Power | 12 VDC / 800 mA (operating range: 7–20 VDC / 0.5–2 A) |
| Lamp Power | 5 V / 1.3 A |
| Output Power | 6.5 W |
| Lamp Lifetime | 900 h |
| Warm-up Time to Stability | ~30 min |
| Voltage Regulation Accuracy | ±0.2% |
| Cooling | Integrated axial fan beneath lamp assembly |
| Positioning Mechanism | Spring-loaded spherical screw for precise 1 cm cuvette alignment |
| Brand | SPL |
|---|---|
| Model | SPL-HL |
| Type | Tungsten-Halogen Broadband Light Source |
| Cooling | Active Air-Cooled |
| Output Coupling | SMA905 Connector |
| Dimensions | 150 × 106 × 40 mm |
| Electrical Input | 5 V DC, 1.3 A (6.5 W) |
| Spectral Range | 360 nm – 2500 nm |
| Color Temperature | 3100 K |
| Luminous Intensity | 74 MSCP (74,000 foot-candles) |
| Power Stability | ±0.2% RMS over 1 h |
| Drift Rate | <0.1% per hour |
| Warm-up Time | ≤5 min |
| Bulb Lifetime | 900 h |
| Operating Temperature | 0 °C – 40 °C |
| Operating Humidity | 5–95% RH (non-condensing at 40 °C) |
| Fiber Compatibility | Up to 600 µm core diameter multimode fiber |
| Brand | DAYY Photonics |
|---|---|
| Origin | Canada |
| Model | OSE2 |
| Spectral Range | 770–1680 nm |
| Output Power | Up to 40 mW (fiber-coupled), up to 130 mW (free-space) |
| Spectral Bandwidth (FWHM) | 40–460 nm |
| Package | 32-pin butterfly with integrated TEC, optical isolator, and spectral stitching architecture |
| SLED Channels | Configurable 2–6 per unit |
| Monitoring | Individual photodiode per SLED |
| Polarization | High polarization extinction ratio (PER) |
| Fiber Interface | FC/APC or SMA (optional) |
| Compliance | RoHS-compliant, CE-marked for laboratory use |
Show next
