| Brand | Han Ding (HT) |
|---|---|

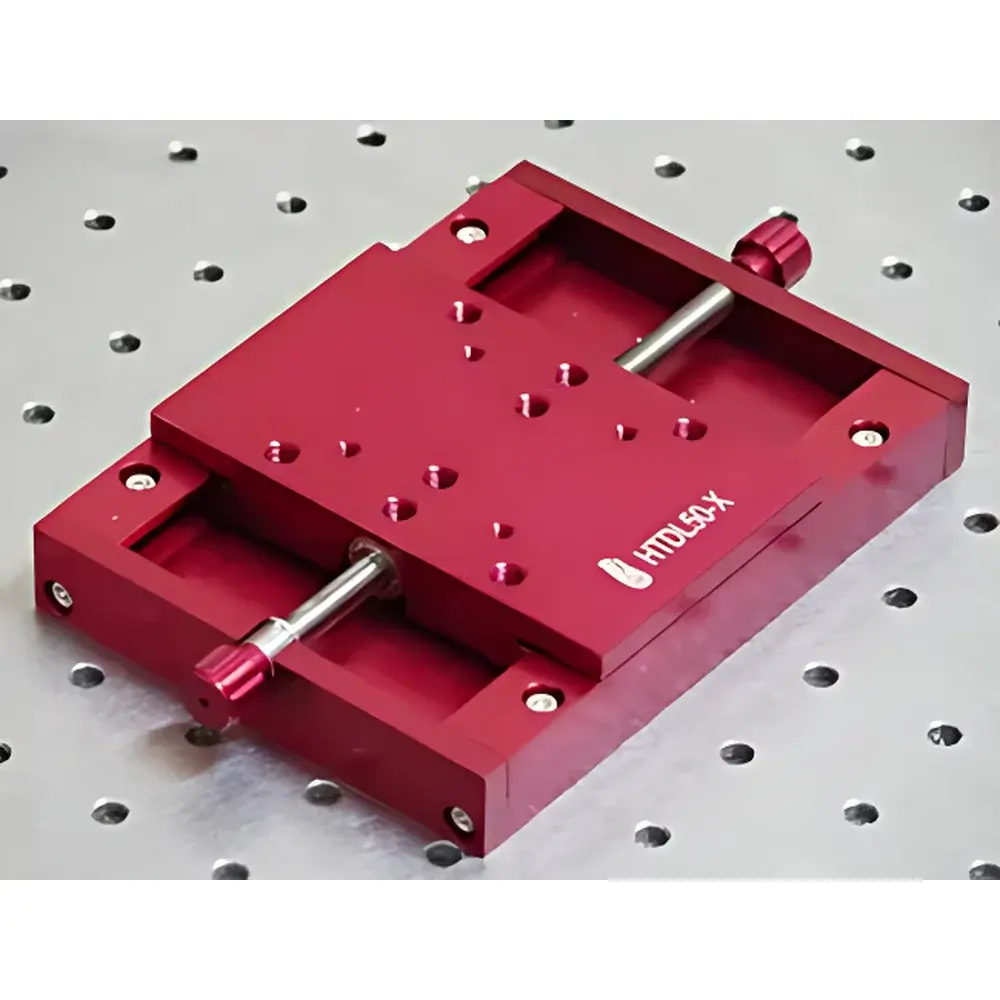

| Model | HTDL50-X |
| Travel | 50 mm |
| Rail Type | Dual Dove-Tail |
| Drive Mechanism | Precision Ground Lead Screw (Pitch: 0.254 mm) |
| Top Plate Dimensions | 100 × 62 mm |
| Central Load Capacity | 6 kg |
| Product Category | Manual Translation Stage |
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Brand | Han Ding / HT |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | HTSL25-X |
| Product Category | Manual Translation Stage |
| Drive Side | Left |
| Travel Range | 25 mm |
| Actuation | Precision Micrometer Head |
| Guidance | Linear Ball Bearing Rails |
| Repeatability | ≤ ±1 µm (typical for class-compliant manual stages) |
| Mounting Pattern | Standard M4/M6 Tapped Holes on Top and Base Plates |
| Preload Mechanism | Dual-Spring Anti-Backlash Design |
| Brand | HanDing / HT |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | HTTS10-2A-R |
| Pricing | Upon Request |
| Product Type | Manual Translation Stage |
| Brand | HanDing / HT |
|---|---|
| Origin | Jiangsu, China |
| Model | HTIMS301 |
| Travel (X/Y/Z) | 13 mm |
| Drive Mechanism | Differential Micrometer Head |
| Sensitivity | 0.002 mm |
| Guide Type | Precision Linear Ball Bearing Rail with Ground Steel Rods |
| Material & Finish | Anodized Aluminum (Crimson Red) |
| Max Load | 3.5 kg |
| Weight | 0.9 kg |
| Handedness | Right-Handed (HTIMS301R) |
| Product Category | Manual Translation Stage |
| Compliance | Designed for ISO/IEC 17025-aligned optical alignment workflows in R&D and metrology labs |
| Brand | Thorlabs |
|---|---|
| Origin | USA |
| Model | NANOMAX (MAX300 Series) |
| Travel per Axis | 4.0 mm |
| Load Capacity | 1 kg (2.2 lbs) |
| Coarse Adjustment | 0.5 mm/rev |
| Fine Adjustment | 50 µm/rev (300 µm range) |
| Piezo Range (MAX341/MAX315) | 20 µm |
| Piezo Resolution (Open Loop) | 20 nm |
| Piezo Resolution (Closed Loop, with Strain Gauge) | 5 nm |
| Bidirectional Repeatability (Piezo, Closed Loop) | 5 nm |
| Absolute On-Axis Accuracy | 1.0 µm |
| Dimensions (incl. actuators) | 157.4 mm × 160.4 mm × 62.5 mm |
| Material | Stainless steel and aluminum alloy |
| Mounting Interface | Center keyway + 13 × M6 & 12 × M4 threaded holes (via RB13P1 top plate option) |
| Compliance | Designed for ISO 14000-compliant cleanroom environments |
| Brand | Thorlabs |
|---|---|
| Origin | USA |
| Model | SPL |
| Travel Range | 12 mm |
| Load Capacity (Horizontal) | 9 kg (20 lbs) |
| Load Capacity (Vertical) | 4.5 kg (10 lbs) |
| Max Speed | 3.0 mm/s |
| Drive Type | Z812B DC Servo Motor with Integrated Encoder |
| Resolution | Sub-micrometer (via encoder feedback) |
| Bearing Type | Hardened Steel Linear Bearings |
| Gearhead | Inline 67:1 Planetary Reducer |
| Motor Controller Compatibility | TDC001 T-Cube DC Servo Controller |
| Compliance | RoHS, CE-marked for lab use |
| Software Interface | APT™ (Application Programming Toolkit), USB 2.0 |
| Brand | HanDing (HT) |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Product Type | Manual Translation Stage |

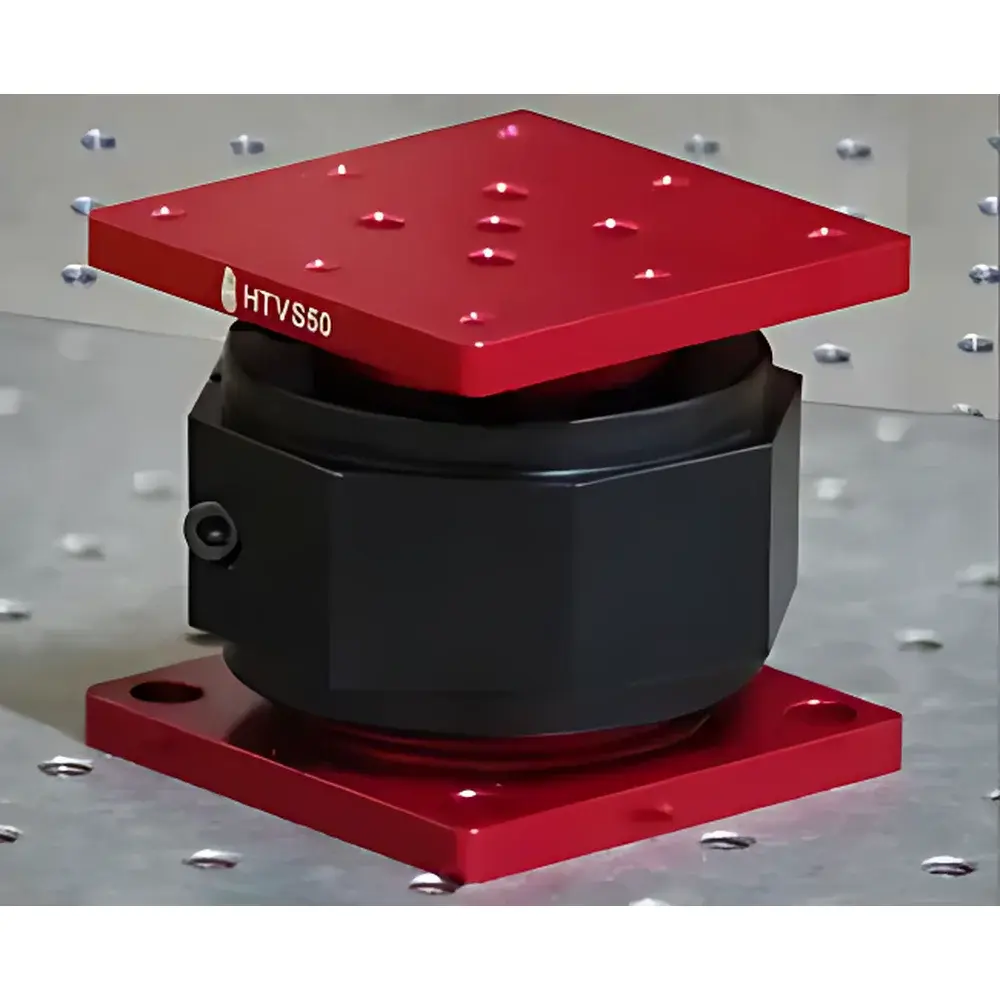

| Model | HTVS25/50 |
| Travel Range | 25 mm / 50 mm (selectable variants) |
| Load Capacity | High (designed for optical payloads up to 5 kg) |
| Actuation | Precision Micrometer Drive with Locking Mechanism |
| Construction | Anodized Aluminum Base with Stainless Steel Lead Screw |
| Compliance | CE-marked for laboratory use |
| Brand | Han Ding / HT |
|---|---|
| Origin | Jiangsu, China |
| Model | HTMR25-NS |
| Travel Range | 25 mm |
| Drive Type | Right-side micrometer head |
| Guide Mechanism | Precision linear ball bearing rail |
| Preload & Backlash Compensation | Spring-loaded anti-backlash mechanism |
| Mounting Pattern | Standard ISO/Metric tapped hole array (e.g., M4 or 1/4"-20) |
| Drive Compatibility | Fine-pitch lead screw, standard micrometer head, differential micrometer head |
| Product Category | Manual Translation Stage |
| Brand | HT |
|---|---|
| Travel Range | 25 mm |
| Drive Type | Left-Side Micrometer Head |
| Guide Mechanism | Precision Linear Ball Bearing Rails |
| Repeatability | ≤ ±1 µm (typ.) |
| Platform Mounting Pattern | Standard M6/M4 Grid (25 mm Pitch) |
| Construction | Anodized Aluminum Alloy Body with Stainless Steel Lead Screw |
| Compliance | ISO 9001 Manufacturing Process |
| Origin | Jiangsu, China |
| Product Category | Manual Optical Translation Stage |
| Brand | HanDing / HT |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

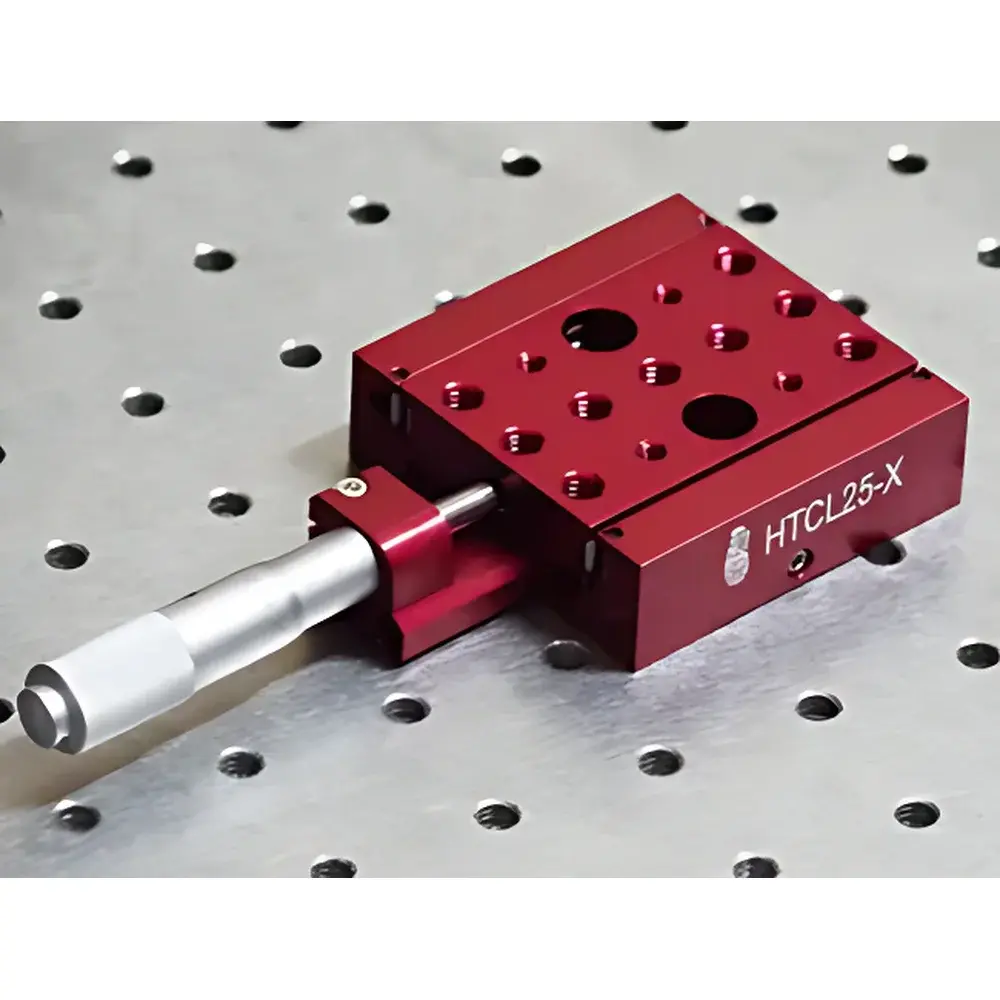

| Model | HTCL25-X |
| Product Category | Manual Translation Stage |
| Travel Range | 25 mm |
| Drive Mechanism | Precision Differential Micrometer (Center-Mounted) |
| Guidance System | Linear Ball Bearing Rails |
| Backlash Compensation | Spring-Loaded Preload |
| Mounting Pattern | Standard ISO/Metric Tapped Holes on Top and Base Plates |
| Compliance | Designed for ISO/IEC 17025-aligned optical alignment workflows |
| Brand | HT |
|---|---|
| Model | HTIMS502 |
| Travel | X/Y/Z = 13 mm, θX/θZ = ±7° (fine adjustment), θY/θZ continuous rotation = 360° |
| Drive Mechanism | Differential micrometer |
| Sensitivity | 0.002 mm per division |
| Guide System | Precision linear ball-bearing rails with ground steel shafts |
| Load Capacity | 3.5 kg |
| Weight | 1.1 kg |
| Material | Anodized aluminum (red anodized finish) |
| Compliance | ISO 9001-manufactured components |
| Origin | Jiangsu, China |
| Product Type | Manual optical translation stage |
| Brand | Han Ding / HT |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |

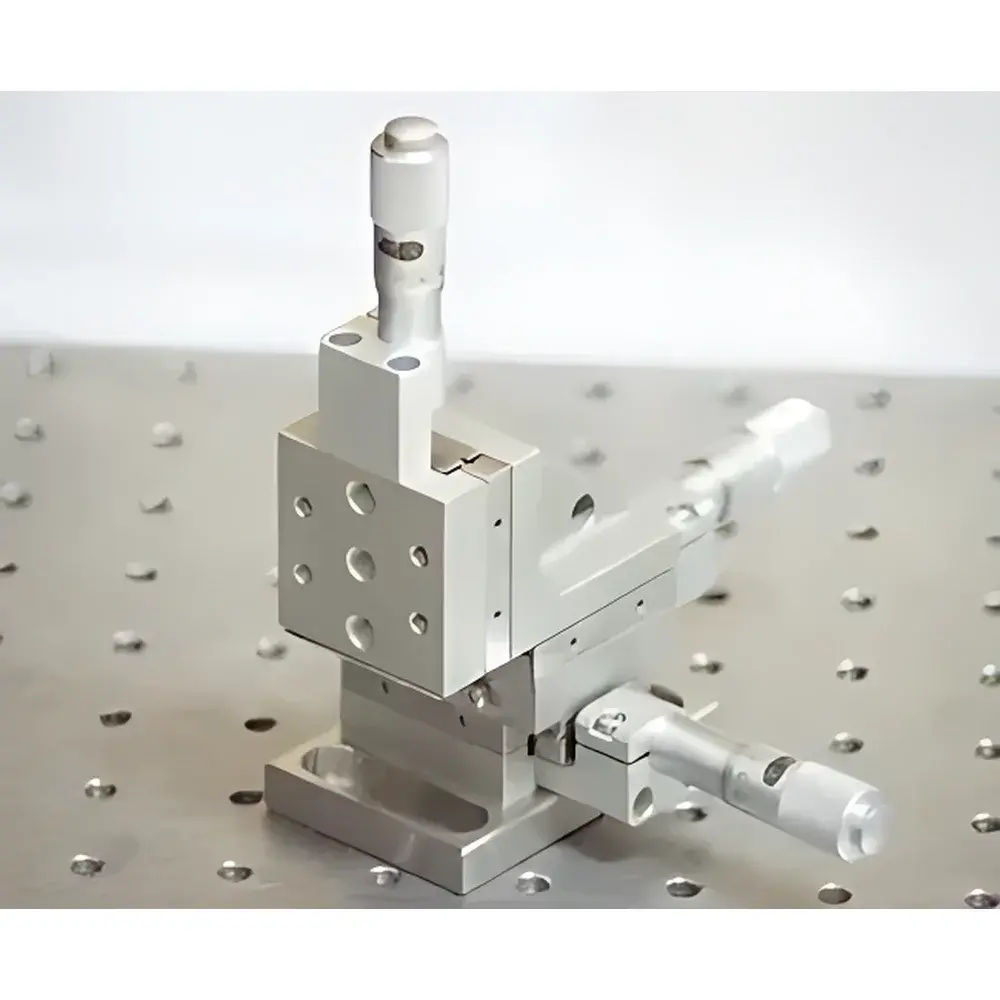

| Model | HTIMS304R |
| Product Type | Manual Translation Stage |
| Travel (X/Y/Z) | 13 mm |
| Guide Mechanism | High-Precision Crossed Roller Bearings |
| Drive Method | Differential Micrometer |
| Sensitivity | 0.002 mm |
| Material & Finish | Stainless Steel, Sandblasted |
| Max Load | 7 kg |
| Weight | 1.3 kg |
| Handedness | Right-Handed (R) |
| Brand | Thorlabs |
|---|---|
| Origin | USA |
| Model | SPL25 |
| Travel Range | 25 mm (1") |
| Bidirectional Repeatability | 1.6 µm |
| Backlash | <6 µm |
| Max Acceleration | 4.5 mm/s² |
| Max Velocity | 3.0 mm/s |
| Velocity Stability | ±0.25 mm/s |
| Max Horizontal Load Capacity | 12 kg (25 lb) |
| Max Vertical Load Capacity | 4.5 kg (10 lb) |
| Encoder Resolution (Linear) | 29 nm |
| Motor Type | DC Servo with Hall-Effect Encoder |
| Gear Ratio | 67:1 |
| Lead Screw Pitch | 1.0 mm |
| Controller Compatibility | TDC001 T-Cube, Kinesis Software |
| Compliance | RoHS, CE, FCC Class B |
| Brand | Han Ding / HT |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | HTIMS502R |
| Type | Manual Translation Stage |
| Travel (XYZ) | 13 mm |
| Rotation (θX, θZ) | 360° continuous |
| Fine Adjustment Range | ±7° |
| Guide Mechanism | Precision Linear Ball Bearing Rails with Ground Steel Shafts |
| Drive | Differential Micrometer Head |
| Sensitivity | 0.002 mm per division |
| Material & Finish | Anodized Aluminum (Crimson Red) |
| Max Load Capacity | 3.5 kg |
| Weight | 1.1 kg |
| Compliance | Designed for ISO/IEC 17025-aligned optical alignment workflows |
| Software Interface | None (purely manual operation) |
| Brand | Han Ding (HT) |
|---|---|
| Origin | Jiangsu, China |
| Model | HTTS05-2A |
| Type | Manual Translation Stage |
| Axis Configuration | Dual-Axis (X-Y tilt) |
| Drive Mechanism | Precision Fine-Pitch Screw with Micrometer Head |
| Return Mechanism | Tension Spring Reset |
| Mounting Standard | ISO/Metric Thread Pattern (M4/M6 Grid) |
| Compliance | Designed for Laboratory Optical Alignment per ISO 10110-7 and ANSI/OEOSC OP1.002 |
| Brand | Han Ding / HT |
|---|---|
| Model | HTIMS401 |
| Type | Manual Translation Stage |
| Travel (X/Y/Z) | 13 mm |
| Rotation (θZ) | 360° |
| Fine Adjustment Range | ±5° |
| Guide Mechanism | Precision Linear Ball Bearing Rails with Ground Steel Shafts |
| Drive | Differential Micrometer + Fine-Pitch Screw |
| Sensitivity | 0.002 mm per division |
| Material | Anodized Aluminum (China Red Finish) |
| Max Load | 6 kg |
| Weight | 1.5 kg |
| Compliance | ISO 9001 Manufacturing Environment |
| Origin | Jiangsu, China |
| Brand | Handing (HT) |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | HTVS120 |
| Pricing | Upon Request |
| Type | Manual Translation Stage |
| Brand | Han Ding / HT |
|---|---|
| Origin | Jiangsu, China |
| Model | HTMC25-NS |
| Product Type | Manual Translation Stage |
| Guide System | Precision Linear Ball Bearing Rails |
| Drive Mechanism | Center-Mounted Micrometer Head |
| Axial Play Compensation | Spring-Loaded Preload |
| Mounting Pattern | Standard ISO/Metric Tapped Hole Array (M4/M6) |
| Compatibility | Fine-Pitch Screw, Differential Micrometer, Dual-Range Micrometer |
| Brand | Thorlabs |
|---|---|
| Origin | USA |
| Product Type | Motorized Translation Stage |
| Series | Nanomax |
| Axes | 3–6 |
| Drive Options | Differential Micrometer, Stepper Motor, Piezoelectric Actuator (Open- or Closed-Loop) |
| Stiffness | X/Z = 1 N/µm, Y = 0.5 N/µm |
| Resonant Frequency | >130 Hz (±10%, no load) |
| Repeatability | 30 nm RMS over 30 µm, 0.1% over full travel |
| Angular Resolution | ≤0.03 arcsec (with piezo + sensor), ≤4 arcsec (differential micrometer) |
| Linear Travel Range | ±4 mm (X/Y/Z), ±6° (θx/θy/θz) |
| Top Plate Size | 70.0 mm × 60.0 mm |
| Load Capacity | 1 kg (2.2 lbs) |
| Mounting Height Options | 27.4 mm (XYR1), 62.5 mm (MicroBlock), 112.5 mm (NanoBlock/NBM513/NanoMax 600) |
| Brand | Han Ding / HT |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | HTDL100-X |
| Travel Range | 100 mm |
| Drive Mechanism | Precision Ground Lead Screw |
| Guide Type | Dual Dove-Tail Rails |
| Mounting Pattern | Standard ISO/Metric Tapped Holes (M4/M6) on Top and Base Plates |
| Orientation Flexibility | Compatible with Right-Angle Brackets for Vertical or Multi-Axis Assembly |
| Product Category | Manual Optical Translation Stage |
| Compliance | Designed for Laboratory-Grade Optical Alignment in Accordance with ISO 10110-7 (Optical Component Mounting Tolerances) and Compatible with Common Optical Table Grid Standards (e.g., M6 × 25 mm Pitch) |
| Brand | Han Ding / HT |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | HTIMS304 |
| Price | Upon Request |
| Type | Manual Translation Stage |
| Travel (X/Y/Z) | 13 mm |
| Guide Mechanism | High-Precision Crossed Roller Bearings |
| Drive | Differential Micrometer |
| Sensitivity | 0.002 mm |
| Material | Sandblasted Stainless Steel |
| Max Load | 7 kg |
| Weight | 1.3 kg |
| Handedness | Right-Handed (–R suffix) |
| Compliance | ISO 9001 Manufacturing Environment |
| Software Interface | None (Purely Manual Operation) |
| Brand | Han Ding / HT |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | HTIMS302-XYR |
| Type | Manual Translation Stage |
| Travel | X/Y ±6.5 mm (13 mm total), θZ: 360° continuous rotation |
| Guide Mechanism | Precision Linear Ball Bearing Rails with Ground Steel Shafts |
| Drive | Differential Micrometer Head |
| Resolution | 0.002 mm |
| Material & Finish | Anodized Aluminum, “China Red” Color |
| Max Load Capacity | 4 kg |
| Weight | 0.75 kg |
| Orthogonality | Engineered for high mutual orthogonality across XY and rotational axes |
| Repeatability | Sub-micron positional repeatability under calibrated loading conditions |
| Design | Symmetric left/right hand configuration |
| Brand | Han Ding (HT) |
|---|---|
| Model | HTMR13-NS |
| Travel Range | 13 mm |
| Drive Type | Right-side micrometer head |
| Guide Mechanism | Precision linear ball bearing rail |
| Actuation Options | Compatible with fine-pitch screw, differential micrometer, or standard micrometer head |
| Positioning Repeatability | ≤ ±1 µm (typical, under controlled lab conditions) |
| Platform Mounting Pattern | Standard 25 mm grid of M4 threaded holes |
| Construction | Anodized aluminum alloy body with hardened stainless steel components |
| Load Capacity | 5 kg (horizontal, static) |
| Backlash Compensation | Integrated spring-preloaded mechanism |
| Brand | HT |
|---|---|
| Model | HTML13-NS |
| Travel Range | 13 mm |
| Drive Type | Left-Side Mounted Micrometer Head |
| Guide Mechanism | Precision Linear Ball Bearing Rails |
| Mounting Pattern | Standard ISO/Metric Tapped Holes (e.g., M4 or M6, center-to-center spacing per industry convention) |
| Repeatability | ≤ ±1.5 µm (typical for calibrated micrometer-driven stages) |
| Load Capacity | ≤ 5 kg (horizontal, static) |
| Construction | Anodized Aluminum Alloy Base and Platform |
| Compliance | Designed to meet mechanical stability requirements for optical alignment in ISO 10110-compliant labs |
Show next
