| Origin | South Korea |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Imported |
| Model | GPM Vibration Isolator |
| Pricing | Upon Request |
| Origin | South Korea |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Imported |
| Model | GDFB Series Honeycomb Breadboard |
| Pricing | Upon Request |
| Brand | Newport |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | RPR Series |
| Price | USD $1,200–$3,500 (varies by size and configuration) |
| Surface Thickness | 4.8 mm |
| Core Structure | Vertically bonded trussed honeycomb with constrained-layer damping |
| Working Surface | Ferromagnetic 430 stainless steel |
| Mounting Holes | 1/4"-20 or M6 on 1.0" (25 mm) grid |
| Hole Sealing | Conical polymer cups, 19 mm deep |
| Edge Finish | Damped composite edge |
| Compliance | ASTM E1776, ISO 10816-5 (vibration sensitivity reference), compatible with GLP/GMP lab infrastructure |
| Origin | South Korea |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | PDTM Series Desktop Vibration Isolation Platform |
| Pricing | Available Upon Request |

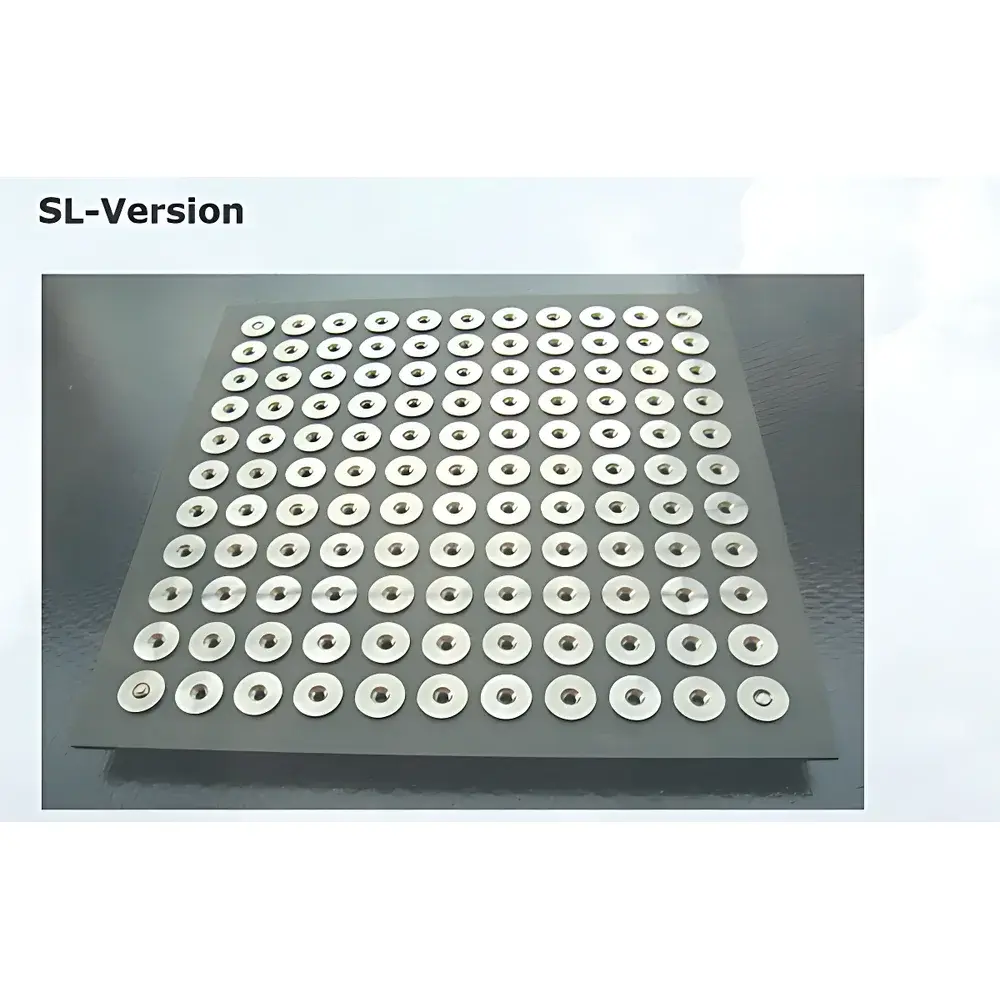

| Brand | Carbon Vision |
|---|---|
| Origin | Germany |
| Model | SL-Version |
| Material | Full Carbon Fiber Composite |
| Construction | Dual-Skin Top/Bottom Plates with Interlayer Damping Foil |
| Mounting Grid | M6 Threaded Inserts, 25 mm Pitch (Top Side) |
| Standard Thickness | 5 mm |
| Compliance | Non-Magnetic, Vacuum-Compatible, Corrosion-Resistant, Humidity-Independent |
| Brand | SPL |
|---|---|
| Model | SPL-R-1812(200), SPL-A-2012(200) |
| Construction | Honeycomb-core steel breadboard with stainless steel top/bottom plates and integrated aluminum dust skirt |
| Top Plate Material | 17-4PH precipitation-hardened stainless steel (non-magnetic, corrosion-resistant) |
| Core Structure | Weld-free trapezoidal steel honeycomb core |
| Mounting Pattern | M6 threaded holes on 25 mm grid |
| Structural Height | 800 mm |
| Tabletop Thickness | 200 mm |
| Flatness | ≤0.05 mm/m² |
| Surface Roughness | Ra 0.8–1.6 µm |
| Resonant Frequency Range | 3–6 Hz |
| Maximum Vibration Amplitude | ≤5 µm |
| Damping System | Precision viscoelastic damping isolators + GB-compliant rubber isolation pads |
| Compliance | Designed for ISO 14644 cleanroom-compatible environments and GLP/GMP-aligned optical metrology workflows |
| Customization | Available in non-standard dimensions and thicknesses |
| Brand | Carbon Vision |
|---|---|
| Origin | Germany |
| Model | AD-Version |
| Construction Material | Carbon Fiber Reinforced Polymer (CFRP) |
| Thermal Expansion Coefficient | ~0.2 × 10⁻⁶ /K (axial), ~2.5 × 10⁻⁶ /K (transverse) |
| Density | ~1.6 g/cm³ |
| Stiffness-to-Weight Ratio | >3× higher than aluminum, >8× higher than stainless steel |
| Vibration Damping Enhancement | Up to 60% vs. conventional steel breadboards |
| Magnetic Permeability | μᵣ ≈ 1.0 (non-magnetic) |
| Environmental Tolerance | Humidity-independent |
| Mounting Grid | Standard M6 threaded inserts on 25 mm grid (configurable) |
| Custom Thickness Range | 30–150 mm |
| Typical Natural Frequency Range | 250–850 Hz (size- and thickness-dependent) |
| Brand | SPL |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model Variants | SPL-ZG-30 (3000 mm), SPL-ZG-24 (2400 mm) |
| Price Range | USD 700 – 1,400 (FOB Zhejiang) |
| Frame Material | Powder-Coated Steel Tubing |
| Light-Tight Enclosure | Triple-Layer Blackout Fabric with Overlap Seams |
| Door Mechanism | Manual Pull-Track Blackout Curtain |
| Platform Integration | Modular Interface for Standard Optical Tables (e.g., 3000 × 1200 mm or 2400 × 1200 mm) |
| Customization | Available for non-standard platform lengths and height-adjustable configurations |
| Brand | Newport |
|---|---|
| Origin | USA |
| Model | SmartTables HD |
| Platform Surface Thickness | 4.8 mm |
| Material | Ferromagnetic 430 Stainless Steel |
| Mounting Hole Pattern | 1.0 in. (25 mm for M-versions) Grid |
| Mounting Thread | 1/4-20 (M6 for M-versions) |
| Hole Depth | 19 mm |
| Sealed Hole Type | Conical cup, non-corrosive high-impact polymer |
| Active Dampers | 2 × IQ Active Dampers |
| Passive Dampers | 2 × Precision-Tuned Passive Dampers |
| Damping Frequency Range | 80–550 Hz |
| Vibration Monitoring Range | 10–820 Hz |
| Controller | ST-300 (USB interface) |
| Power Supply | 100–240 VAC, 50/60 Hz, 1.5 A |
| Dimensions (L × W × H) | 1200 × 2400 × 203 mm (4 ft × 8 ft × 8 in) |
| Surface Flatness | ±0.004 in. per 2 sq. ft. |
| Structural Core | Vertically bonded constrained-layer honeycomb with proprietary viscoelastic damping material |
| Compatibility | S-2000A isolators, LabLegs, SL/RL series supports |
| Origin | South Korea |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | GIVA Series Passive Vibration Isolation Platform |
| Pricing | Available Upon Request |
| Brand | SPL |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Models | SPL-YQJ-30 (3000 mm), SPL-YQJ-24 (2400 mm) |
| Price Range | USD 700 – 1,400 (FOB) |
| Load Capacity | ≥15 kg per tier (typical), structural stability verified under static loading per ISO 14644-1 Class 8 cleanroom-compatible mounting conditions |
| Customization | Available for optical platforms with lengths from 1200 mm to 4000 mm |
| Brand | SPL |
|---|---|
| Origin | Zhejiang, China |
| Model | SPLPD-0504-M6, SPLPD-0504-X |
| Platform Dimensions (L×W×H) | 530×430×109 mm (incl. rubber feet) |
| Top Plate Material | SUS430 cold-rolled ferritic stainless steel |
| Base Plate Material | SS400 structural steel |
| Isolation Mechanism | Soft compression-molded diaphragm air springs |
| Auto-leveling System | Three-point pneumatic height sensor array |
| Natural Frequency | 2–3 Hz (vertical & horizontal, load-dependent) |
| Load Capacity | 100 kg |
| Surface Options | 25×25 mm M6 tapped grid or optically smooth finish |
| Weight | 46–118 kg (model-dependent) |
| Accessories | Included leveling gauge |
| Brand | SPL Photonics |
|---|---|
| Model Series | SPL-R (Passive Damped), SPL-A (Active Air-Spring), SPL-B (Passive Damped, Compact) |
| Table Top Material | 304 Stainless Steel (ICr17 Equivalent) |
| Core Structure | Adhesively Bonded Aluminum/Stainless Steel Honeycomb Core (250 kg/m³ Density) |
| Mounting Pattern | M6 Tapped Holes on 25 mm Grid |
| Table Height | 800 mm (Adjustable ±25 mm) |
| Vertical/Horizontal Natural Frequency | <1.5–2.5 Hz (SPL-A), <5–9 Hz (SPL-R & SPL-B) |
| Repeatability | ±0.05 mm |
| Damping Compliance | GB/T 20029–2005 |
| Air Supply | Silent Compressor (20 L/min, 0.7 MPa, 50 dB(A)) |
| Brand | Carbon Vision |
|---|---|
| Origin | Germany |
| Model | EC-Vision Economical Series |
| Core Construction | Aluminum or Nomex® honeycomb core with CFRP face sheets |
| Mounting Grid | M6 threaded inserts on 25 mm grid (standard), customizable |
| Thickness Options | 50 mm, 80 mm, 130 mm (standard) |
| Standard Sizes | 600 × 900 mm, 900 × 1200 mm, 1200 × 1800 mm |
| Thermal Expansion Coefficient | ~0.2–0.5 × 10⁻⁶ /K (axial, depending on layup) |
| Density | ~1.5–1.7 g/cm³ |
| Stiffness-to-Weight Ratio | >5× higher than steel, >3× higher than aluminum breadboards |
| Magnetic Permeability | μᵣ ≈ 1.0 (non-magnetic) |
| Environmental Tolerance | Humidity-independent operation |
| Brand | Newport |
|---|---|
| Origin | USA |
| Model | RS4000 |
| Surface Thickness | 4.8 mm |
| Core Construction | Vertically Bonded Trussed Honeycomb (0.010 in. Steel Sheets) |
| Damping System | 6 Precision-Tuned Mass-Damping Units (25–525 Hz) |
| Mounting Holes | 1/4"-20 or M6, 19 mm Depth, Conical Polymer Cups |
| Grid Pitch | 1.0 in. (25 mm for M-version) |
| Edge Finish | Composite |
| Load Interface | Triple-Core Truss Interface |
| Dimensions | 1200 × 2400 × 305 mm (48 × 96 × 12 in.) |
| Brand | Newport |
|---|---|
| Origin | USA |
| Model | RS2000 |
| Surface Thickness | 4.8 mm |
| Core Construction | Vertically bonded trussed honeycomb (0.010 in. steel sheets) with triple-core interface (0.030 in.) |
| Damping System | 2 precision-tuned mass dampers (25–525 Hz range) |
| Top Material | Ferromagnetic 430 stainless steel |
| Mounting Holes | 1/4"-20 or M6, 19 mm deep conical polymer cups |
| Grid Pitch | 1.0 in. (25 mm for M-version) |
| Edge Finish | Composite-damped edge |
| Compliance | ASTM E1774-22 (Optical Table Vibration Performance), ISO 10816-5 (Vibration Severity Assessment for Laboratory Equipment) |
| Brand | Carbon Vision |
|---|---|
| Origin | Germany |
| Model | CA-Version |
| Material | Carbon Fiber Reinforced Polymer (CFRP) |
| Top/Bottom Plates | CFRP shells, several mm thick |
| Core Structure | CFRP tubular lattice |
| Mounting Grid | 25 mm (top), 50 mm (bottom) |
| Standard Thickness Options | 50 mm |
| Customizable | Size, thickness, removable side walls, internal component integration |
| Thermal Expansion Coefficient | ~0.2 × 10⁻⁶ /K (≈1/10 of steel, 1/4 of aluminum) |
| Density | ~1.5 g/cm³ (75% lighter than steel) |
| Damping Ratio | Up to 60% higher than equivalent steel breadboards |
| Magnetic Permeability | Non-magnetic (μᵣ ≈ 1) |
| Environmental Tolerance | Humidity-independent |
| Stiffness Rating | Standard (suffix A) |
