| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | GH40L |
| Hydrocarbon Removal Principle | High-Temperature Catalytic Cracking |
| Output Flow Rate | 0–40 L/min |
| Output Pressure | 0–9.5 bar |
| Total Hydrocarbon Content | <0.1 ppm (as methane equivalent) |
| Dew Point | +3 °C |
| Particle Filtration Efficiency | ≥99.9999% at 0.01 µm |
| Internal Tank Material | Electropolished Stainless Steel (AISI 316L) |
| Safety Features | Thermal Cut-off Switch, Spring-Loaded Pressure Relief Valve, Digital Pressure Switch with Adjustable Setpoints |
| Noise Level | ≤58 dB(A) |
| Power Consumption | 1200 W |
| Dimensions (W×D×H) | 470 × 700 × 770 mm |
| Weight | 72 kg |
| Inlet Filtration | Pre-filter for particulates and ambient dust |
| Drive Type | Direct-Coupled Motor (no belt transmission) |
| Compliance | CE, ISO 8573-1 Class 1:2:1 (Air Purity Class), EN 60335-1, EN 61000-6-3 |
| Brand | ChemTron |
|---|---|
| Origin | Germany |

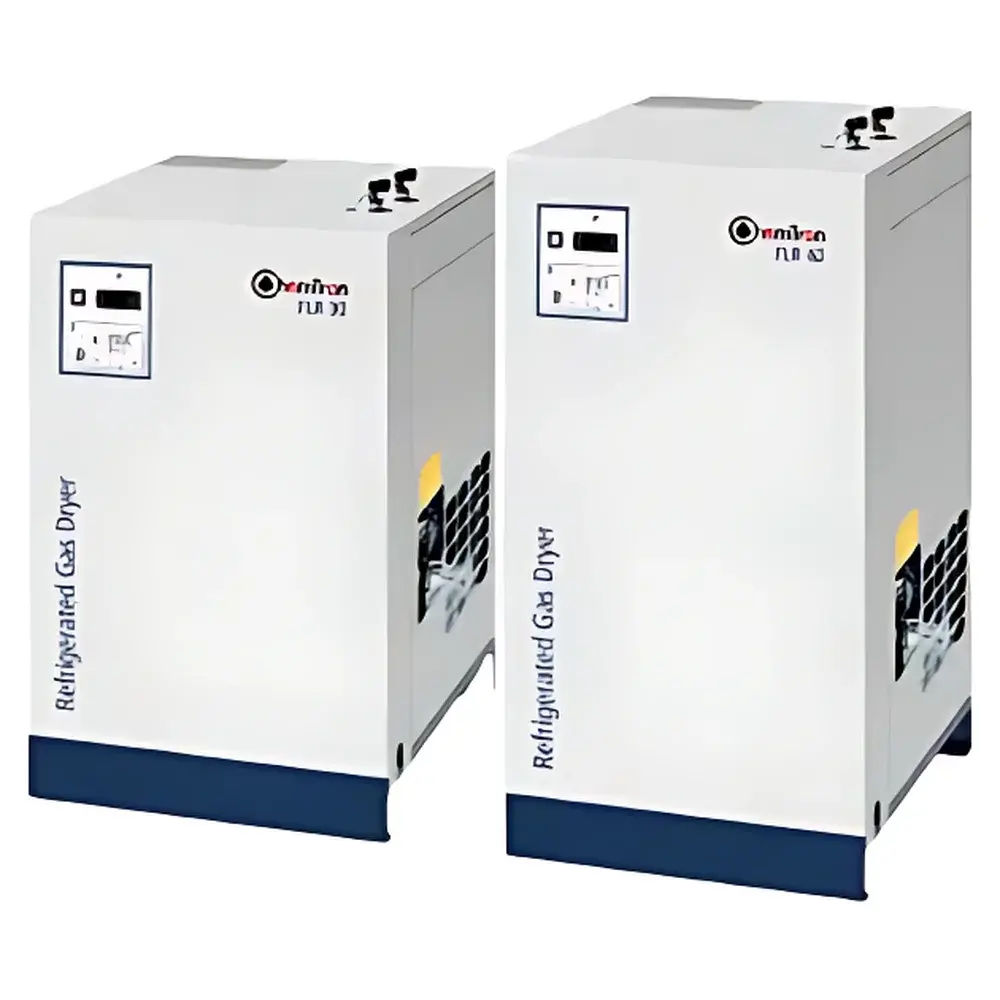

| Model | BLR |
| Output Pressure | 13 bar |
| Refrigerant | Eco-friendly (R-134a or equivalent) |
| Heat Exchanger Type | High-efficiency brazed plate-fin |
| Dew Point Range | +3 °C to +10 °C |
| Air Outlet Relative Humidity | ≤20% |
| Water Separation Efficiency | ≥99% |
| Inlet–Outlet Temperature Differential | ≤5 °C |
| Power Consumption Reduction vs. Shell-and-Tube | ~50% |
| Brand | ChemTron |
|---|---|
| Origin | Germany |

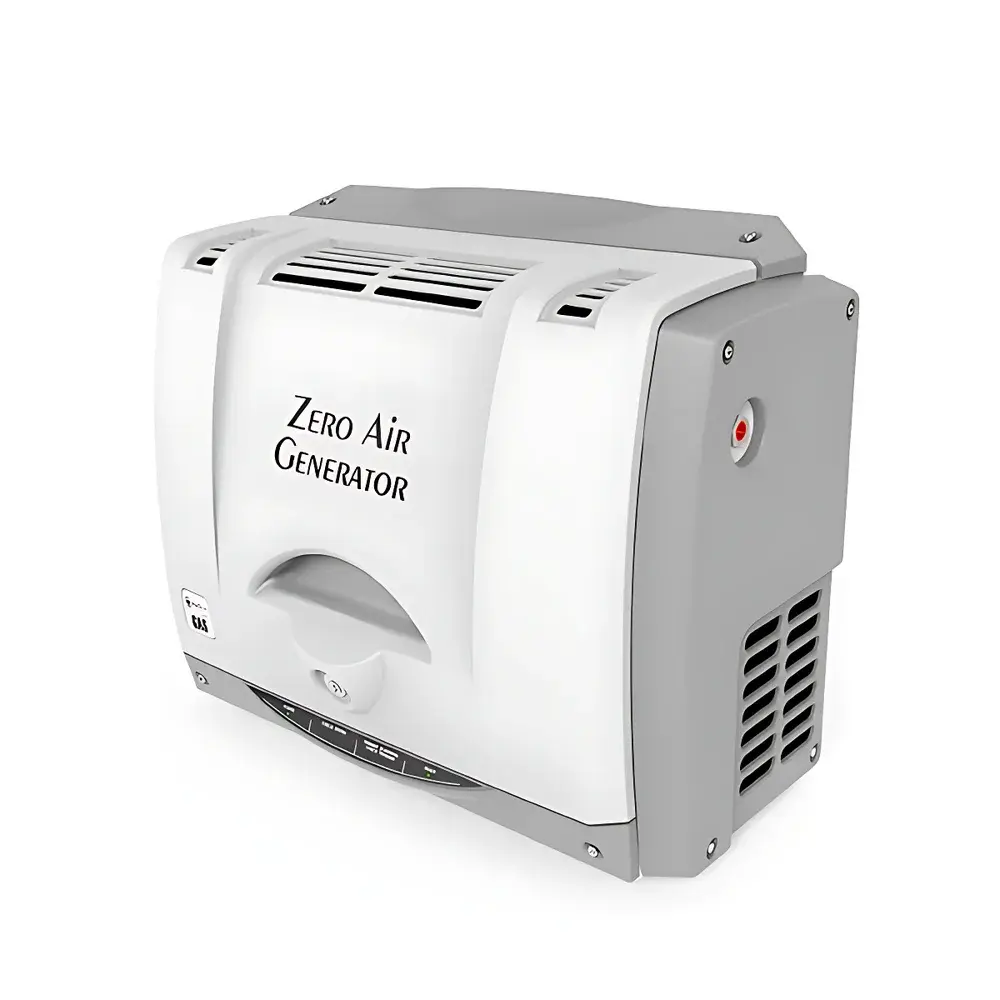

| Model | GT1500 |
| Output Flow Rate | 1.5 L/min |
| Hydrocarbon (HC) & CO Content | < 0.05 ppm |
| CO₂ Content | < 1 ppm |
| NOₓ & SOₓ Content | < 0.1 ppm |
| Inlet Air Pressure Range | 4.5–10 bar |
| Power Supply | 110–120 V / 60 Hz or 220–240 V / 50 Hz |
| Power Consumption | 220 W |
| Dimensions (H×W×D) | 410 × 550 × 250 mm |
| Weight | 10 kg |
| Certifications | CE, CSA, FCC |
| Inlet/Outlet Fitting | 1/4" compression fitting (standard), optional 1/8" compression outlet |
| Brand | ChemTron |
|---|---|
| Origin | Germany |

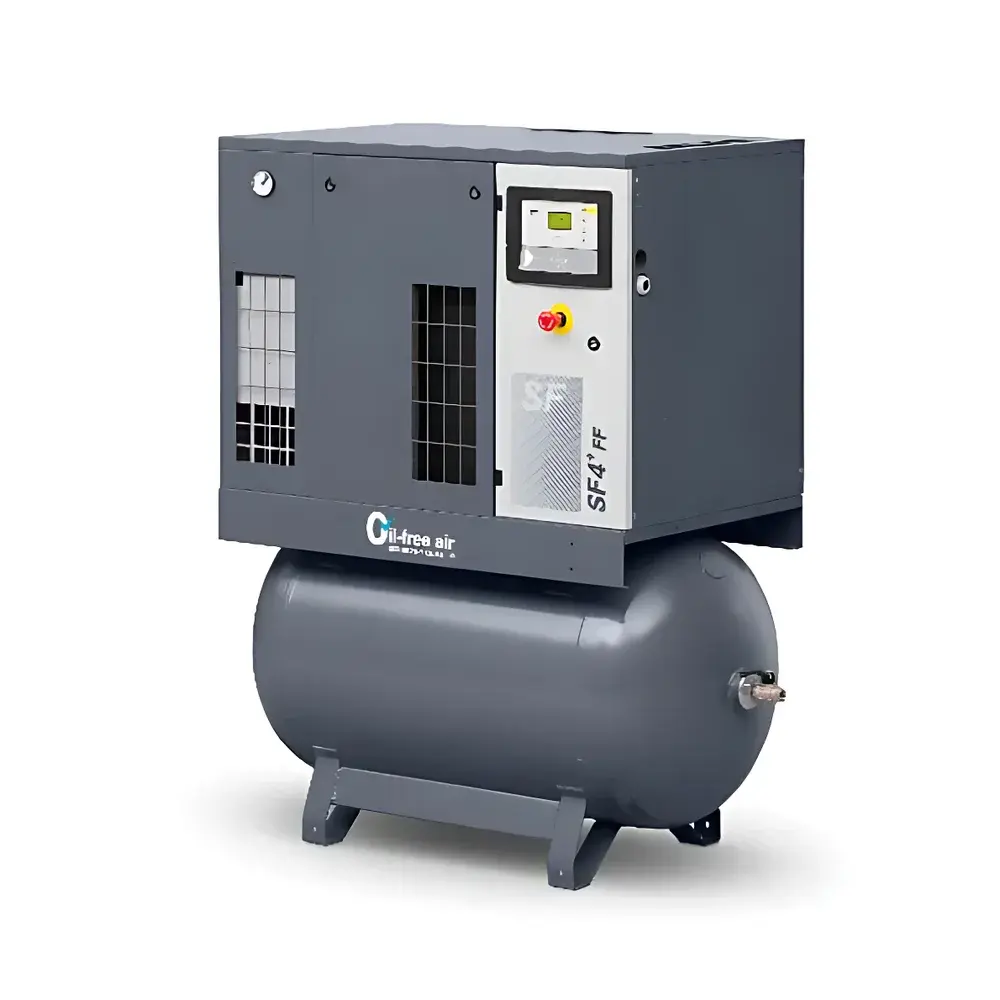

| Model | GHS120L |
| Flow Rate | 120 L/min |
| Maximum Pressure | 10 bar (145 psi) |
| Motor Power | 1.5 kW |
| Noise Level | 53 dB(A) |
| Oil Content Class | ISO 8573-1 Class 0 (Certified Oil-Free) |
| Motor Efficiency Class | IE3 |
| Control Mode | Start/Stop |
| Weight | 120 kg |
| Dimensions (W×D×H) | 1025 × 690 × 840 mm |
| Inlet/Outlet Port | G1/2" F |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | RACK GC |
| Output Flow Rate | 1.8–15.0 L/min |
| Hydrocarbon & CO Content | < 0.1 ppm |
| Inlet Pressure Range | 4.5–10 bar |
| Power Supply | 110–120 V / 60 Hz or 220–240 V / 50 Hz |
| Certifications | CE, CSA, FCC |
| Dimensions | 19-inch rack-mount (483 × 450 × 133 mm) |
| Weight | 15 kg |
| Max. Inlet CO | 50 ppm |
| Max. Inlet HC | 100 ppm |
| Max. Inlet Temperature | 40 °C |
| Outlet Temperature | Ambient + 15 °C |
| Pressure Drop | < 1 bar |
| Inlet Port | 1/4" NPT |
| Outlet Port | 1/8" NPT |
| Power Consumption | 200 W (GC 1800) / 550 W (GC 5000, GC 10000, GC 15000) |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | P440 |
| Output Flow Rate | 30 L/min |
| Maximum Output Pressure | 5 bar |
| Adjustable Pressure Range | 0–5 bar |
| Tank Volume | 30 L |
| Motor Power | 750 W |
| Noise Level | 58 dB(A) |
| Dimensions (W×D×H) | 340 × 680 × 720 mm |
| Weight | 56 kg |
| Connection | 1/4" compression fitting or 6 mm push-to-connect |
| Protection | Thermal cut-off switch |
| Drive Type | Direct-coupled |
| Pump Type | Oil-free piston pump |
| Brand | ChemTron |
|---|---|
| Origin | Switzerland |
| Model | GC3000 |
| Hydrocarbon Removal Principle | High-Temperature Catalytic Cracking |
| Output Flow Rate | 1.5–30 L/min |
| Output Pressure | 4.5–10 bar |
| Total Hydrocarbons (THC) | <0.05 ppm |
| Dew Point | −30 °C |
| Certifications | CE, CSA, FCC |
| Power Supply | 110–120 V / 60 Hz or 220–240 V / 50 Hz |
| Dimensions (H×W×D) | 410 × 550 × 230 mm |
| Weight | 12 kg |
| Inlet Connection | 1/4″ NPT |
| Outlet Connection | 1/8″ NPT |
| Brand | ChemTron |
|---|---|
| Origin | Switzerland |

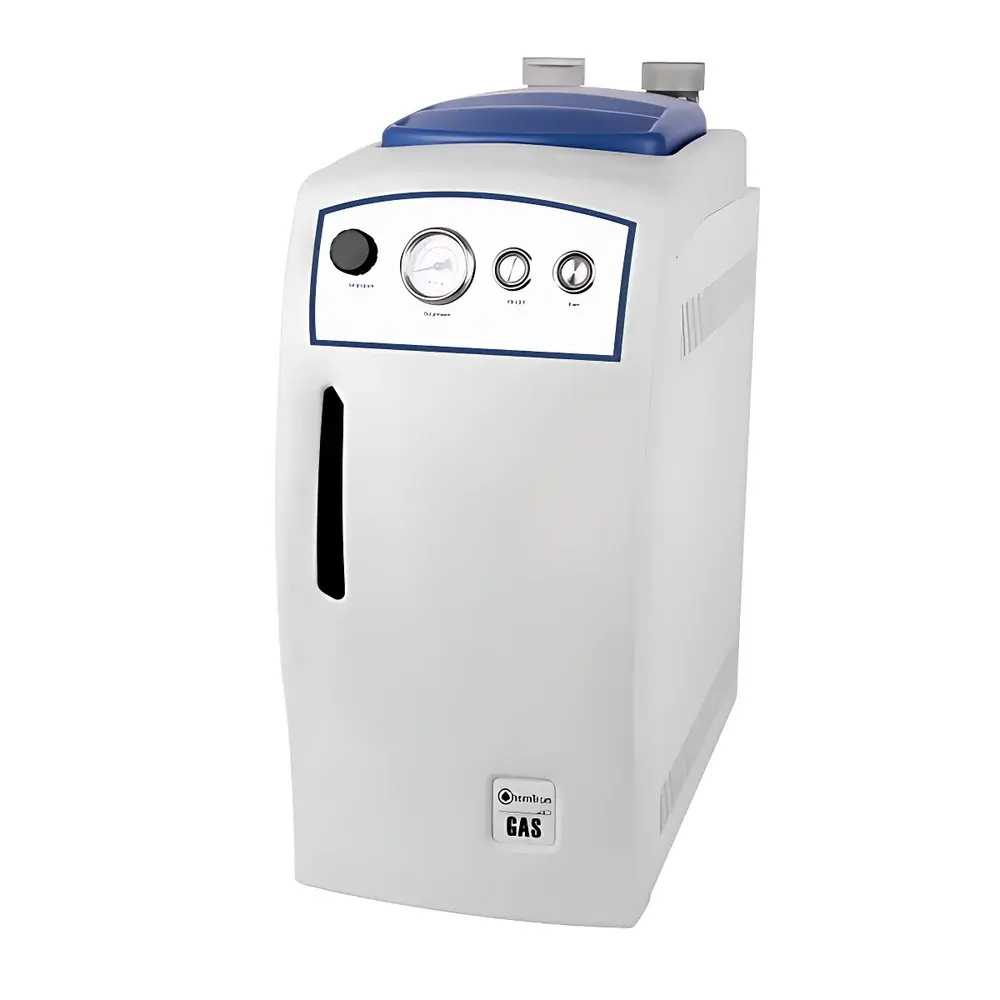

| Model | EZA-1 / EZA-2 |
| Output Flow | 0–1000 mL/min (EZA-1), 0–2000 mL/min (EZA-2) |
| Output Pressure | 0–0.4 MPa |
| Pressure Stability | < 0.003 MPa |
| Filtration Precision | 5 µm |
| Power Consumption | ≤150 W (EZA-1), ≤200 W (EZA-2) |
| Operating Temperature | 1–40 °C |
| Relative Humidity | ≤85% RH |
| Dimensions (W×D×H) | 220×500×510 mm (EZA-1), 220×515×510 mm (EZA-2) |
| Weight | 15 kg (EZA-1), 20 kg (EZA-2) |
| Brand | ZhongYa |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

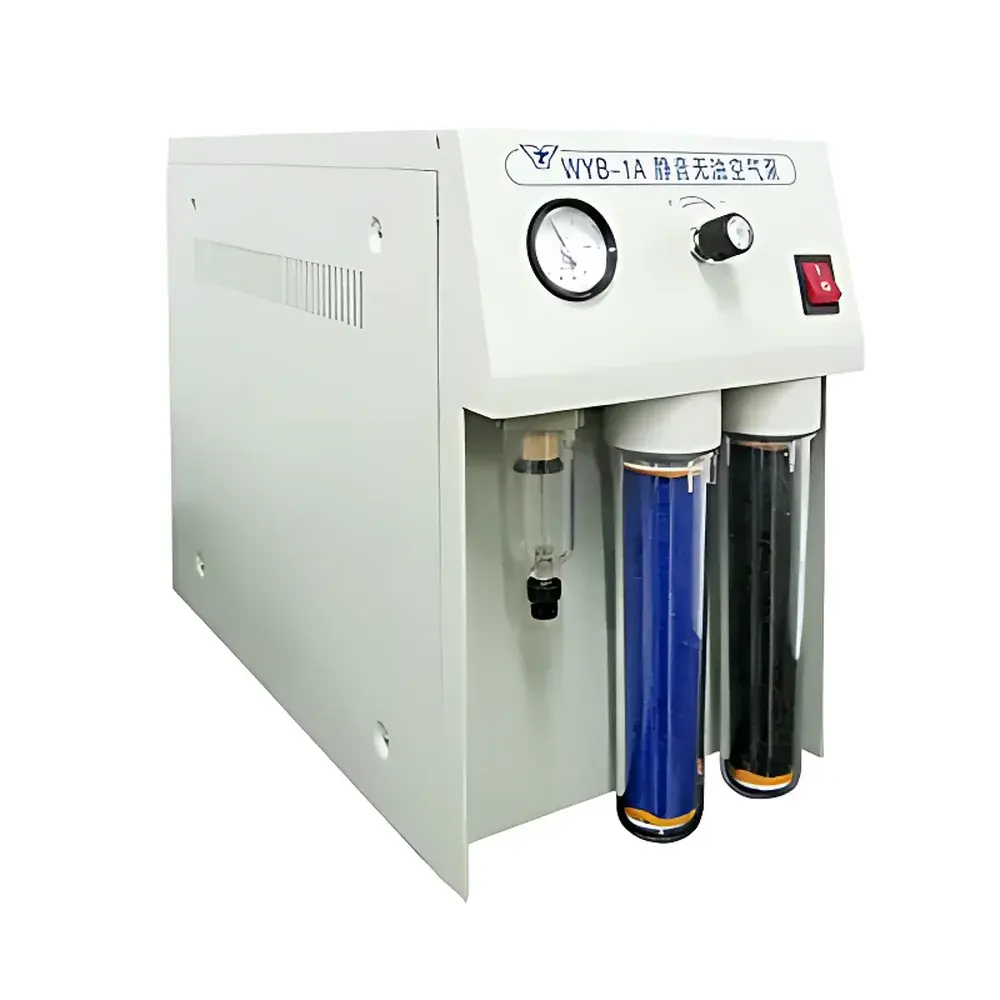

| Model | WYB-1A |
| Price | Upon Request |
| Output Flow Rate | 0–1000 mL/min |
| Output Pressure | 0–0.4 MPa (adjustable) |
| Pressure Stability | ±0.003 MPa |
| Dimensions (L×W×H) | 470×230×340 mm |
| Net Weight | 15 kg |
| Max. Power Consumption | 150 W |
| Ambient Operating Temperature | 10–40 °C |
| Ambient Humidity Limit | ≤85% RH |
| Brand | ChemTron |
|---|---|
| Origin | Germany |

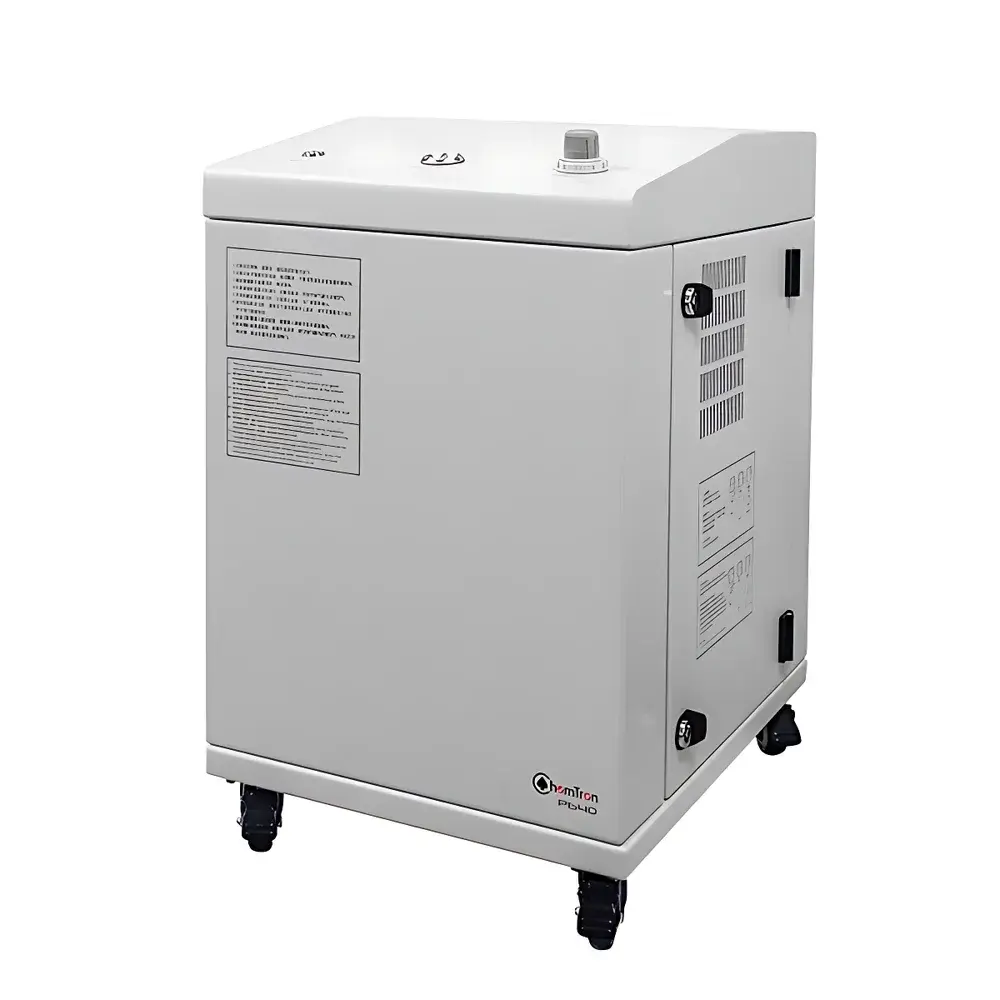

| Model | P640 |
| Output Flow Rate | 60 L/min |
| Maximum Output Pressure | 8 bar |
| Adjustable Pressure Range | 0–8 bar |
| Tank Volume | 30 L |
| Motor Power | 550 W |
| Noise Level | 58 dB(A) |
| Dimensions (W×D×H) | 470 × 640 × 720 mm |
| Weight | 138 kg |
| Air Outlet Connection | 1/4" compression fitting or 6 mm push-to-connect |
| Filter Type | WND30005 Class I Air Filter (Order No. 167640-22) |
| Brand | ChemTron |
|---|---|
| Origin | Germany |

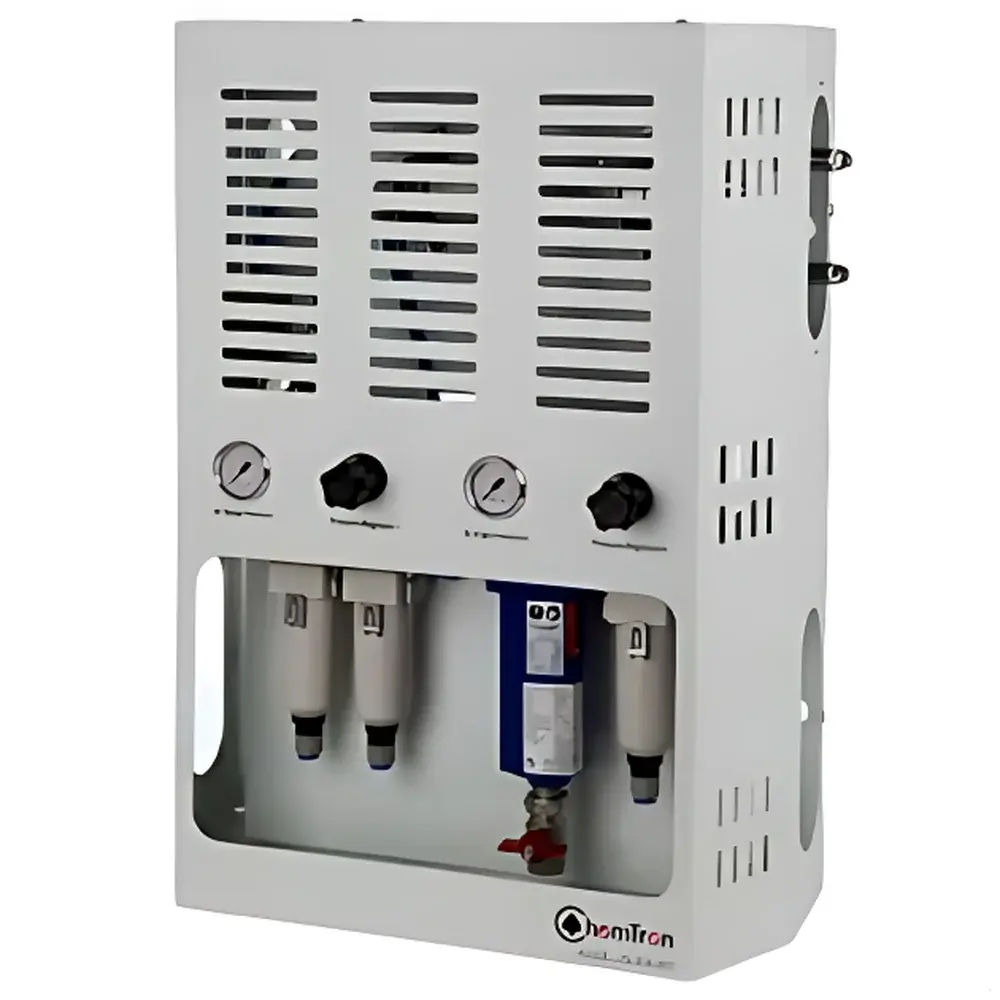

| Model | AEOLUS ZA30 / AEOLUS ZA60 |
| Output Flow | 30 L/min or 60 L/min |
| Output Pressure | 7.6 bar / 108 psi |
| Compressed Air Input Requirement | 8.5–10 bar, oil-free and dry (pressure dew point ≤ −20 °C, ISO 8573-1 Class 1.3.1) |
| Noise Level | < 58 dB(A) |
| Ambient Temperature Range | 15–35 °C |
| Dimensions (L×W×H) | 490×220×625 mm (ZA30), 490×240×625 mm (ZA60) |
| Weight | 25 kg (ZA30), 27 kg (ZA60) |
| Compressed Air Inlet | OD 10 mm or G1/4" |
| Zero-Air Outlet | OD 6 mm or G1/4" |
