| Brand | JULABO-Chemtron |
|---|---|
| Origin | Italy |

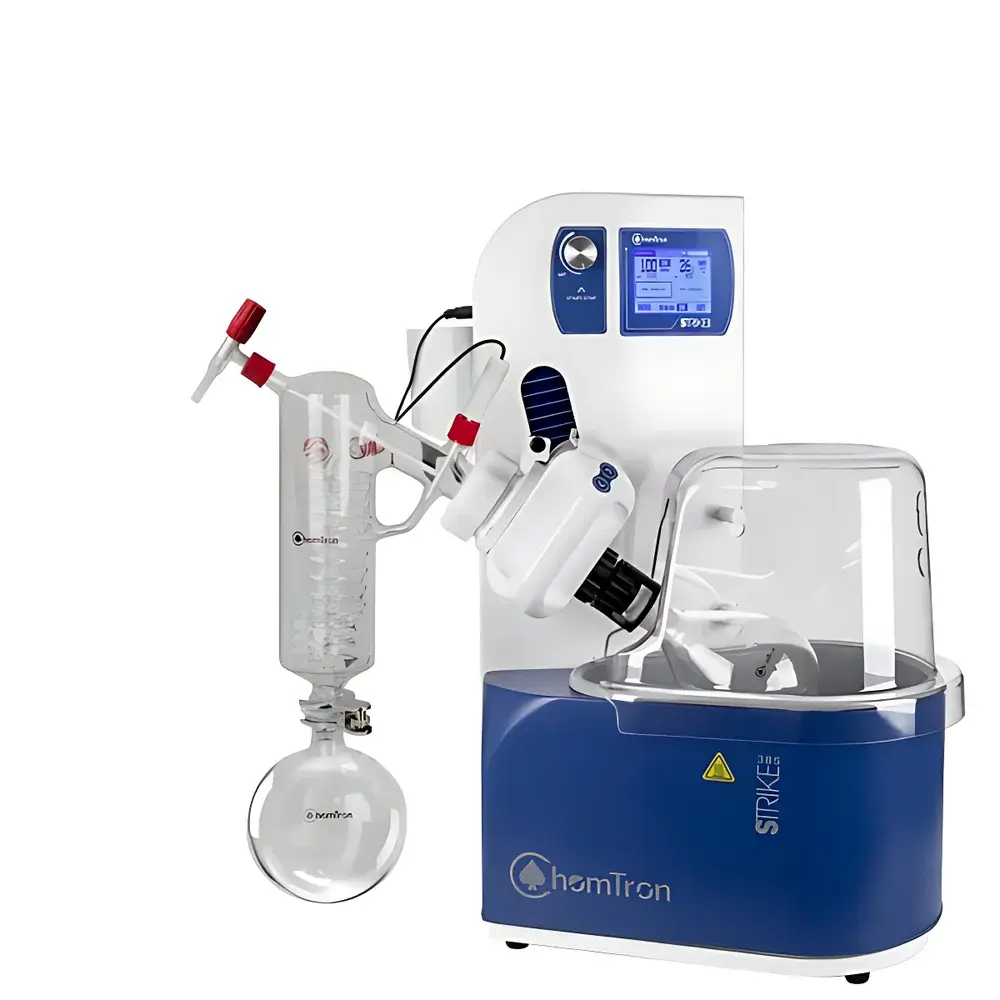

| Model | STRIKE 385 |
| Capacity | 5 L |
| Ultimate Vacuum | 399.9 Pa (3 mmHg) |
| Rotation Speed | 20–300 rpm |
| Temperature Control Range | 5–40 °C |
| Temperature Accuracy | ±1 °C |
| Condenser Surface Area | 1500 cm² |
| Brand | JULABO-Chemtron |
|---|---|
| Origin | Italy |
| Model | STRIKE 285 |
| Capacity | 5 L |
| Ultimate Vacuum | 399.9 Pa (3 mmHg) |
| Rotation Speed | 20–300 rpm |
| Temperature Control Range | 5–40 °C (bath), up to 180 °C (oil bath) |
| Temperature Stability | ±0.2 °C (bath) |
| Condenser Surface Area | 1500 cm² |
| Heating Power | 1400 W |
| Bath Volume | 5 L |
| Vertical Travel | 13 cm |
| Tilt Angle Adjustment | 0–15° |
| Weight | 26.0–26.5 kg |
| Dimensions (H×D×L) | 690×700×430 mm (vertical), 690×790×430 mm (tilt) |
| Brand | JULABO-Chemtron |
|---|---|
| Origin | Italy |
| Model | ST20 CRE |
| Capacity | 6 L / 10 L / 20 L |
| Ultimate Vacuum | 8 mbar |
| Rotation Speed | 10–150 rpm |
| Temperature Range | Ambient to +150 °C |
| Heating Accuracy | ±2 °C |
| Condenser Surface Area | 0.5 m² |
| Brand | ChemTron |
|---|---|
| Origin | Germany |

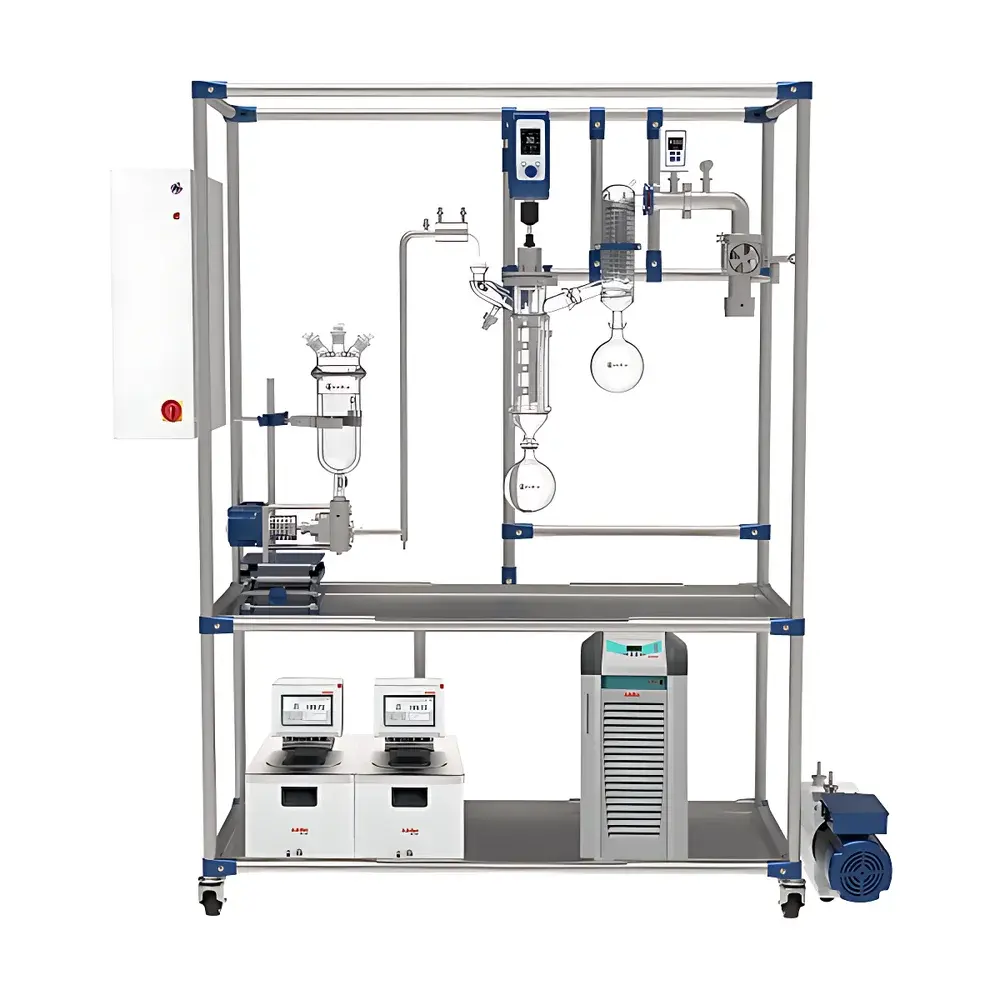

| Model | MD52/TF40 |
| Effective Evaporation Area | 0.052 m² |
| Evaporator Internal Diameter | 100 mm |
| Condensing Area | 0.08 m² |
| Feed Capacity | 1 L/h (typical) |
| Max. Feed Viscosity | 5000 cP |
| Operating Pressure Range | Down to 0.001 mbar (0.1 Pa) |
| Heating Temperature Range | Up to 350 °C |
| Wiper Speed | 60–500 rpm |
| Material of Construction | DIN 1.4571 (316Ti stainless steel) & Schott Duran® 3.3 borosilicate glass |
| Brand | JULABO-Chemtron |
|---|---|
| Origin | Italy |

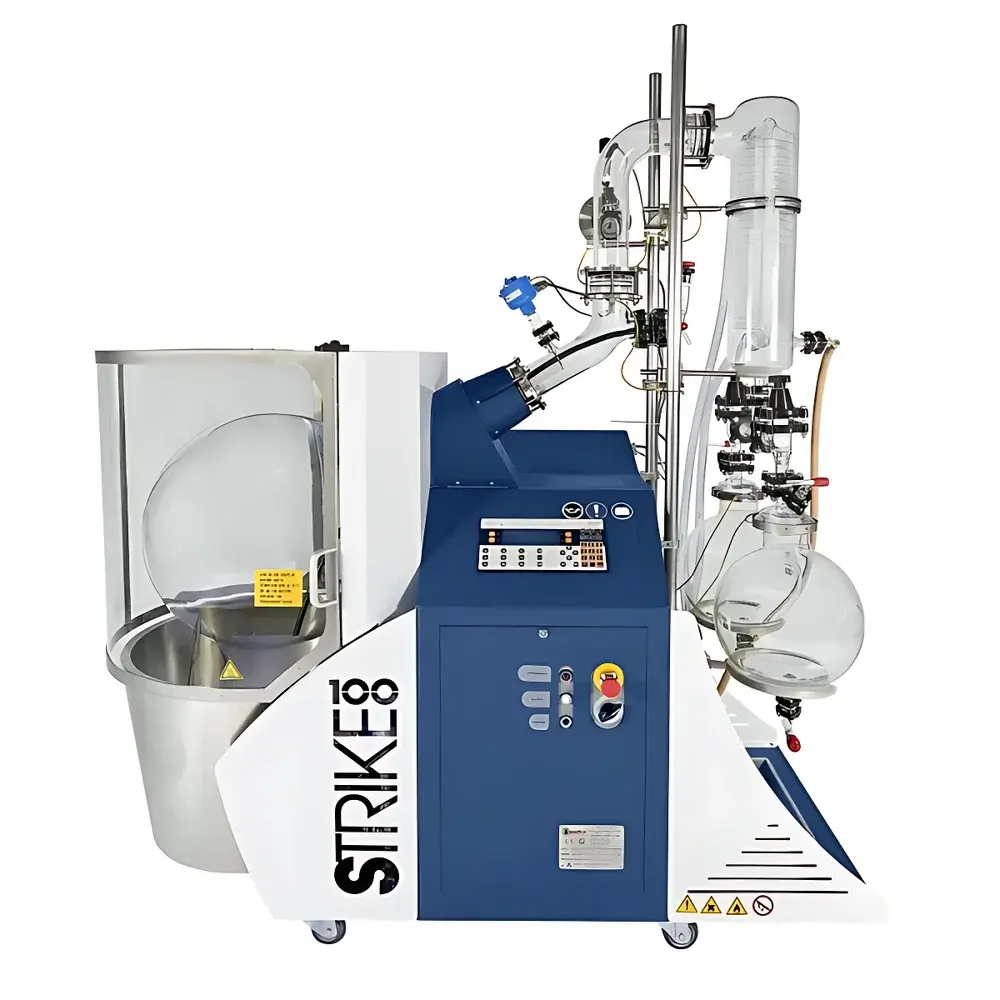

| Model | STRIKE 100 / STRIKE 100 ATEX |
| Capacity | 50 L / 100 L |
| Rotation Speed | 10–150 rpm |
| Heating Bath Temperature Range | +5 °C to 150 °C (above ambient) |
| Temperature Control Accuracy | ±2 °C |
| Condenser Cooling Surface Area | 0.6 m² / 1.4 m² |
| Heating Power | 8 kW |
| ATEX Certification | II 2G T3/T4, Ex db IIB T3/T4 Gb |
| Safety Features | Automatic bath descent on power loss/door opening/overtemperature, mechanical overpressure brake disc, explosion-proof enclosure (ATEX version), integrated vacuum seal with self-lubricating materials |
| Control System | PLC-based with touchscreen interface (7″ color TFT for STRIKE 100 |
| Data Interface | RS-232/RS-485 serial port for remote control and data logging |
| Method Storage | Up to 20 user-defined protocols (excluded in ATEX version) |
| Dimensions (W×D×H) | 1830 × 890 × 2110 mm |
| Brand | JULABO-Chemtron |
|---|---|
| Origin | Germany |

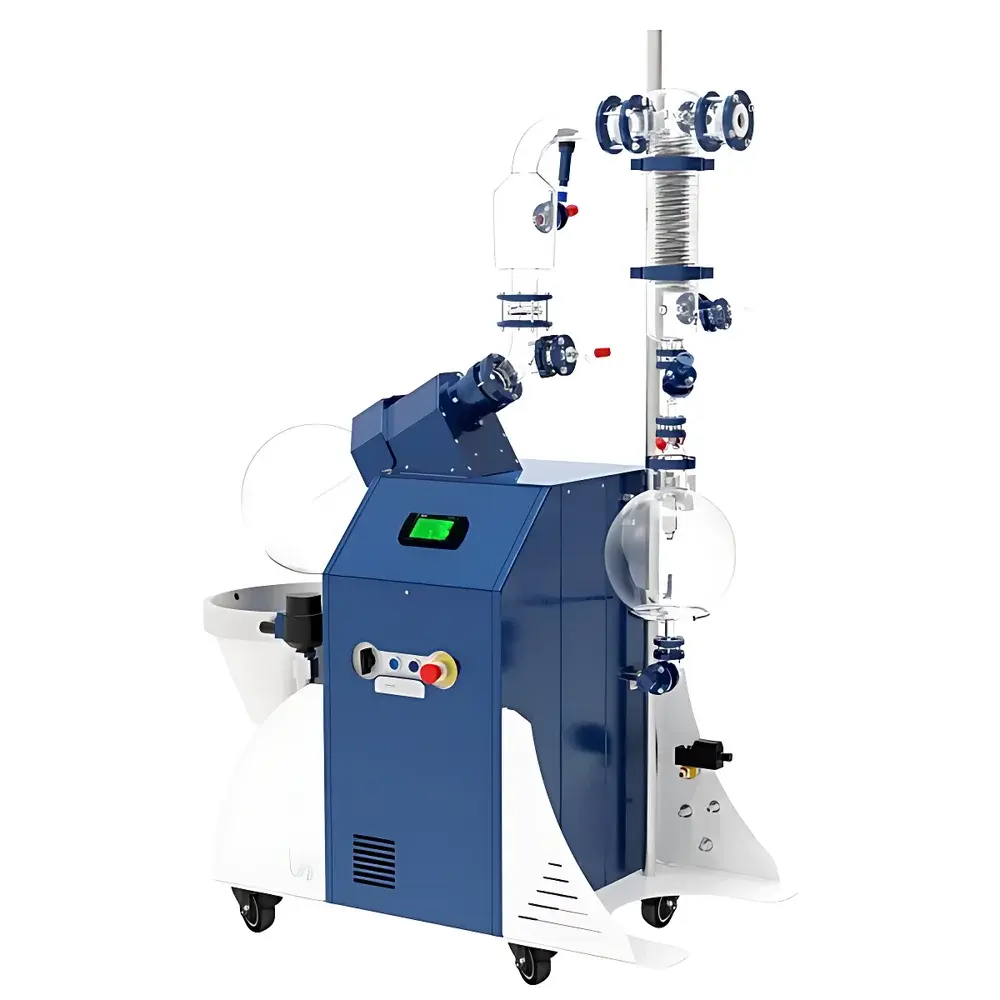

| Model | ST20 ATEX |
| Capacity | 6 L / 10 L / 20 L |
| Ultimate Vacuum | 8 mbar to atmospheric pressure |
| Rotation Speed | 10–150 rpm |
| Bath Temperature Range | Ambient to 150 °C |
| Temperature Control Accuracy | ±2 °C |
| Condenser Cooling Area | 0.5 m² |
| Brand | ChemTron |
|---|---|
| Origin | Italy |

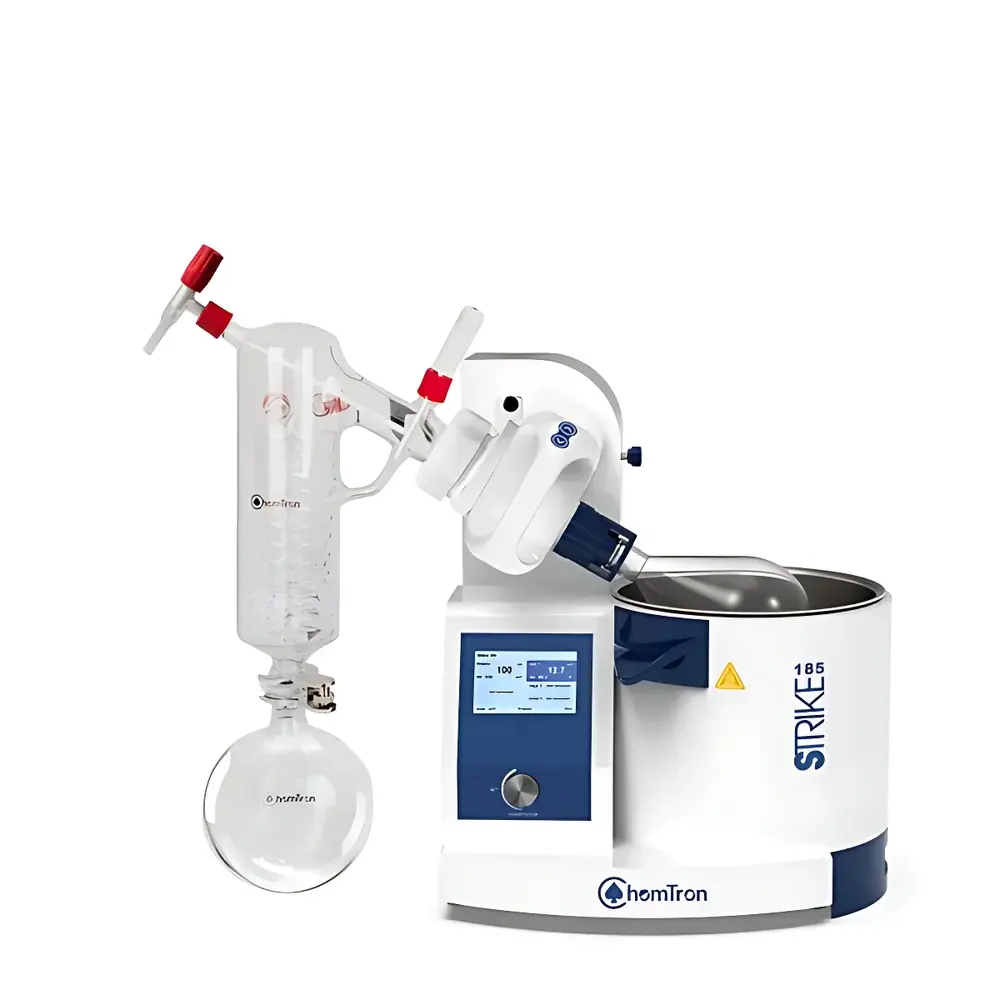

| Model | STRIKE 185 |
| Capacity | 5 L |
| Rotation Speed | 20–300 rpm |
| Temperature Range | RT +5 to 180 °C (oil bath), RT +5 to 85 °C (water bath) |
| Heating Control Accuracy | ±1 °C |
| Condenser Surface Area | 1500 cm² |
| Bath Stability | ±0.2 °C |
| Bath Power | 1400 W |
| Bath Volume | 5 L |
| Vertical Travel | 75 mm |
| Adjustable Tilt Angle | 0–15° |
| Evaporating Flask | 1000 mL (standard), optional 50–3000 mL |
| Collection Flask | 1000 mL (standard), optional 250–3000 mL |
| Weight | 26.0–26.5 kg |
| Dimensions | 450 × 280 × 620 mm |
| Voltage | 230 V AC, 50 Hz |
| Brand | JULABO-Chemtron |
|---|---|
| Origin | Italy |
| Model | STRIKE Univ |
| Capacity | 5 L |
| Ultimate Vacuum | 399.9 Pa (3 mmHg) |
| Rotation Speed | 20–300 rpm |
| Temperature Range | RT+5 to 180 °C (oil bath), RT+5 to 85 °C (water bath) |
| Heating Accuracy | ±1 °C |
| Condenser Surface Area | 1500 cm² |
| Bath Stability | ±0.2 °C |
| Bath Power | 1400 W |
| Bath Volume | 5 L |
| Vertical Travel | 13 cm (adjustable, position-hold capable) |
| Tilt Angle | 0–15° adjustable |
| Display | 4.3″ color LCD touchscreen |
| Motor | DC drive |
| Sealing Material | PTFE & carbon fiber composite |
| Joint Standard | ISO 297/ISO 220 ground glass |
| Evaporating Flask | 1000 mL standard (50–2000 mL optional) |
| Collection Flask | 1000 mL standard (250–2000 mL optional) |
| Weight | 26.0–26.5 kg |
| Dimensions (H×D×L) | 690×700×430 mm (vertical), 690×790×430 mm (tilt) |
| Voltage | 230 V AC, 50 Hz |
| Brand | JULABO-Chemtron |
|---|---|
| Origin | Italy |

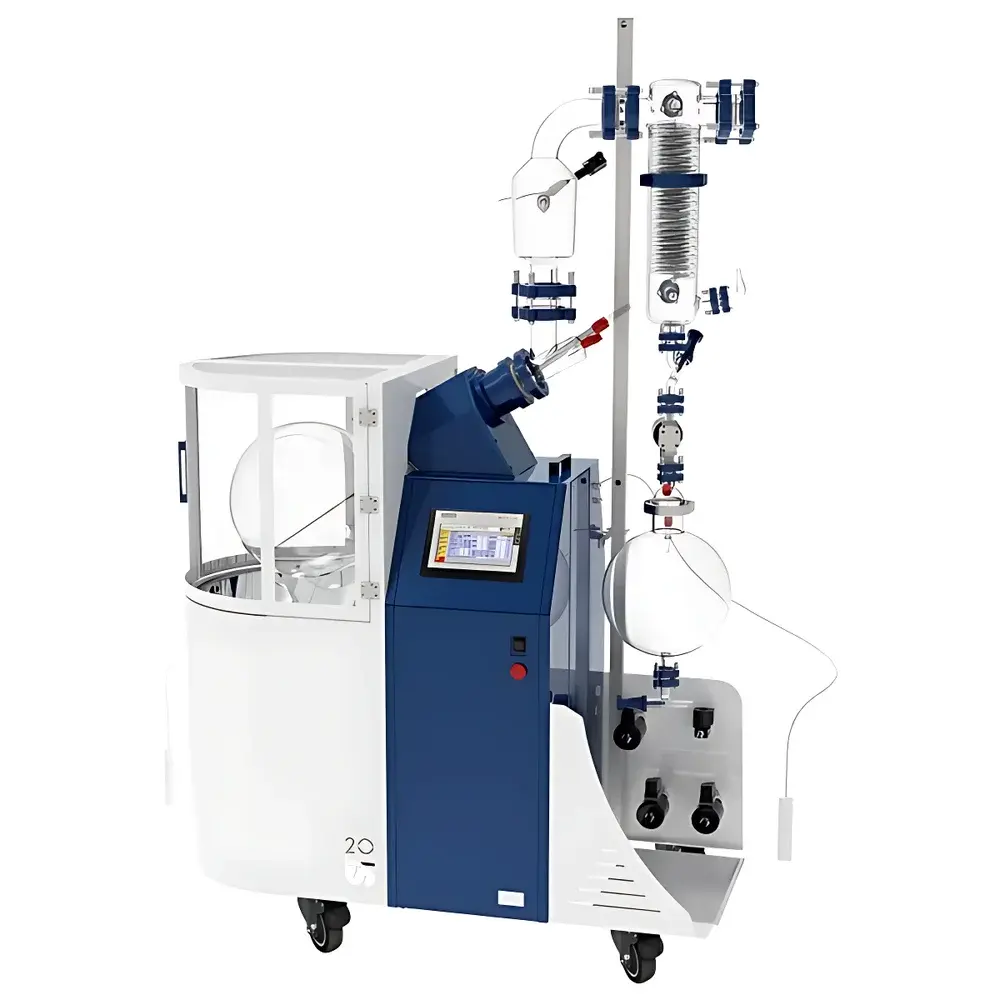

| Model | ST20 |
| Capacity | 6 L / 10 L / 20 L |
| Ultimate Vacuum | 8 mbar (absolute) |
| Rotation Speed | 10–150 rpm |
| Bath Temperature Range | Ambient +5°C to 150°C |
| Temperature Control Accuracy | ±2°C |
| Heating Power | 3 kW |
| Cooling Surface Area | 0.5 m² |
| Brand | ChemTron |
|---|---|
| Origin | Germany |

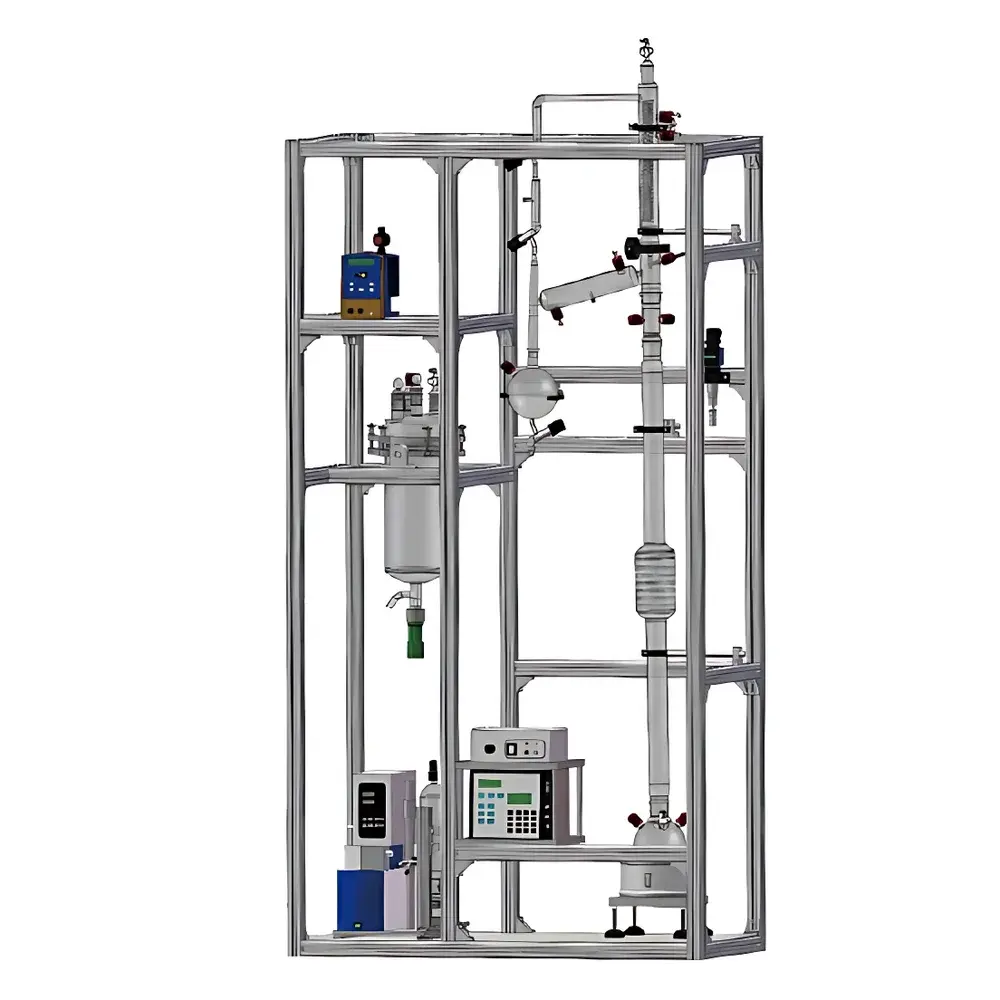

| Model | Auto-Continuous Distillation & Fractional Distillation System |
| Construction Material | Quartz Glass |
| Vacuum Performance | ≤10⁻⁶ mbar |
| Column Design | Vacuum-Silvered Double-Jacketed Column with Linear Observation Window and Thermal-Stress-Compensating Corrugated Expansion Section |
| Reflux Control | Programmable Electromagnetic Valve with PID-Controlled Reflux Ratio Setting |
| Automation Core | PLC-Based Control System Integrated with Quartz Fiber-Optic Level Sensor, Precision Temperature Sensors (Pt100), Absolute Vacuum Transducer, and Peristaltic Feed Pump |
| System Compliance | Designed for GLP/GMP-aligned lab environments |
