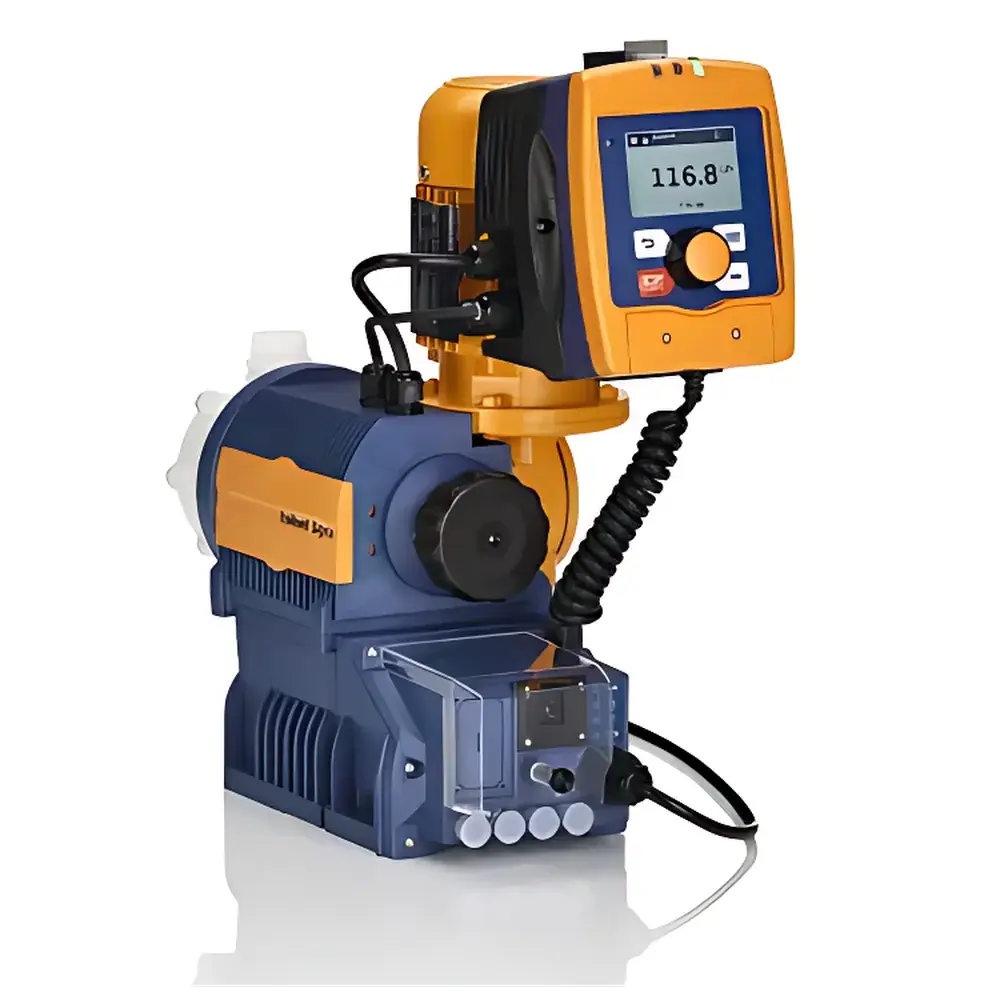

| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | 07065 PVT / 07065 SST |
| Drive Type | Electric Motor |
| Max Flow Rate | 63 L/h |
| Max Back Pressure | 77 bar |
| Max Stroke Frequency | 200 strokes/min |
| Stroke Volume | 5.2 mL/stroke |
| Suction Lift | 6 m H₂O |
| Max Inlet Pre-Pressure | 1 bar |
| Inlet/Outlet Port | G–DN3/4 (ISO 228-1) |
| Flow Accuracy | ±1% of full scale (typical, under stable operating conditions) |
| Compliance | CE, RoHS, ISO 9001-manufactured supply chain |

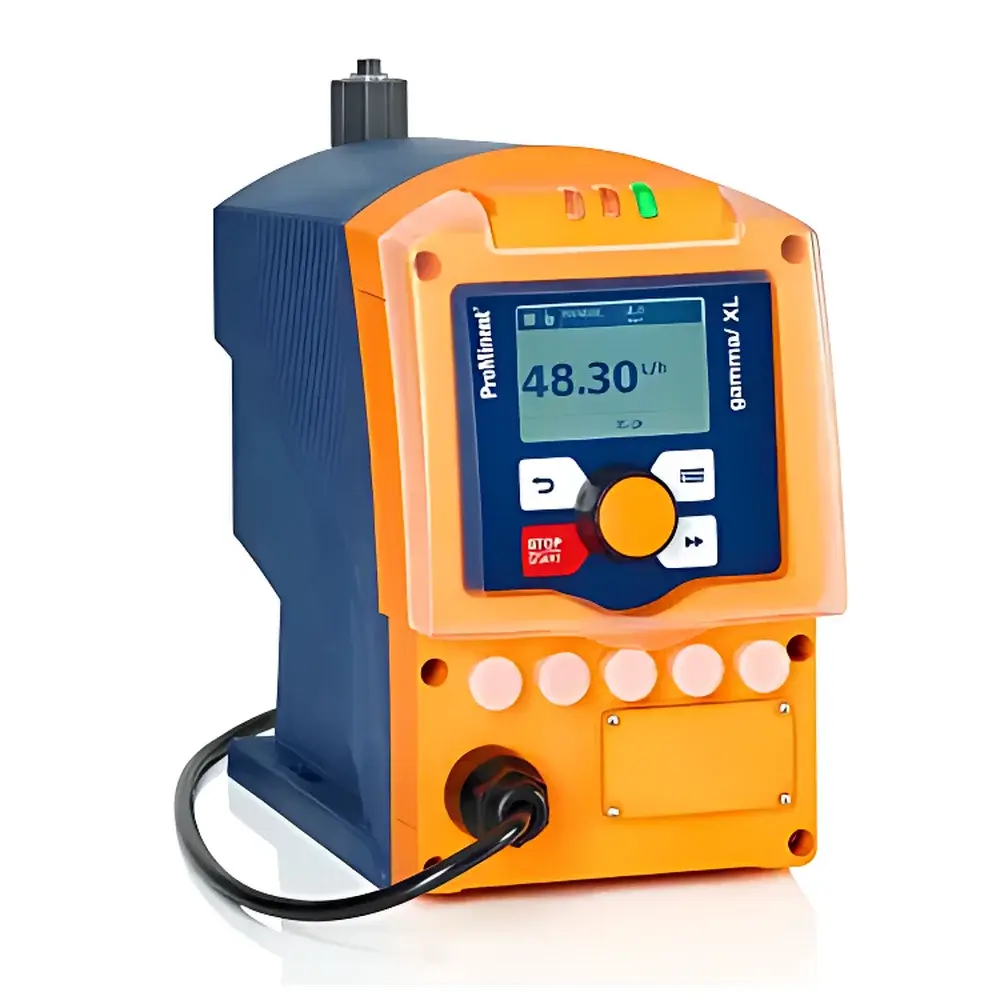

| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Drive Type | Electromagnetic |
| Models | GXLa 1608 / GXLa 1612 / GXLa 1020 |
| Max. Pressure | 10 bar |
| Flow Range | 7–15 L/h |
| Stroke Volume (theoretical) | 0.6–1.25 mL/stroke |
| Max. Stroke Frequency | 200 strokes/min |
| Nominal Port Diameter | 8 × 5 mm / 8 × 5 mm / 12 × 9 mm |
| Suction Lift | 1.8 mWS |
| Diaphragm Head | Self-venting, bypass-free |
