| Brand | ChemTron |
|---|---|

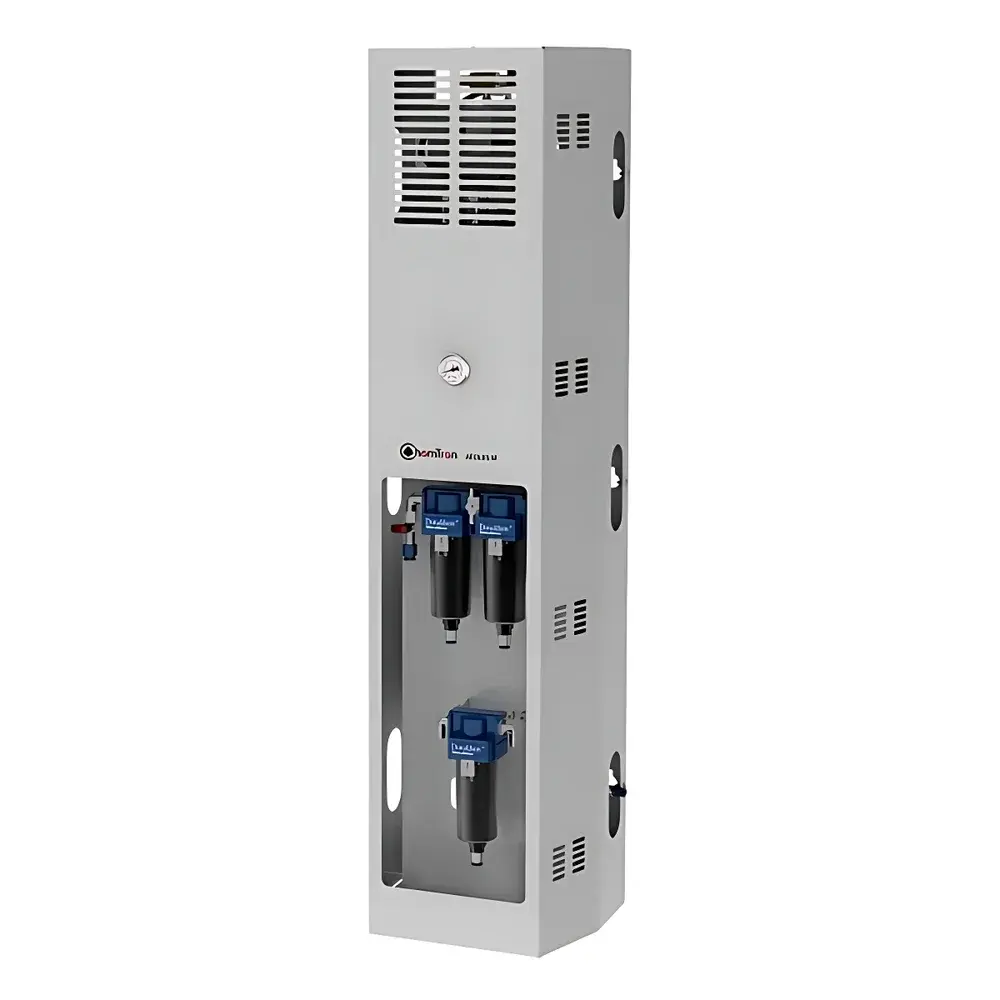

| Model | AEOLUS |
| Type | Membrane-Based Nitrogen Generator Module |
| Output Pressure | 7.6 bar (108 psi) |
| Flow Options | 40 / 80 / 120 L/min (at 95–96% purity) |
| Purity Options | Up to 99% N₂ |
| Compressed Air Inlet | 8.5–10 bar, ISO 8573-1 Class 1.3.1 (oil-free, dew point ≤ –20 °C) |
| Ambient Operating Temperature | 15–35 °C |
| Noise Level | < 58 dB(A) |
| Dimensions (W × D × H) | 324 × 265 × 1204 mm |
| Weight | 25–27 kg |
| Air Inlet | OD 10 mm or G1/4" |
| N₂ Outlet | OD 6 mm or G1/4" |
| Mounting | Benchtop or Wall-Mountable |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | HP PLUS RACK |
| Nitrogen Generation Principle | CPSA (Compressed Pressure Swing Adsorption) |
| Output Flow Rate | 500 mL/min |
| Output Pressure | 5 bar (75 psig) ±0.05 bar |
| Nitrogen Purity | 99.999% |
| Dew Point | < −50 °C |
| Power Consumption | 270 W |
| Noise Level | 46 dB(A) |
| Dimensions | 19″ W × 3U H × 500 mm D |
| Input Air Requirements | 7–10 bar, oil-free and dry air per ISO 8573-1:2010 Class 1.2.1 |
| Brand | ChemTron |
|---|---|
| Origin | Germany |

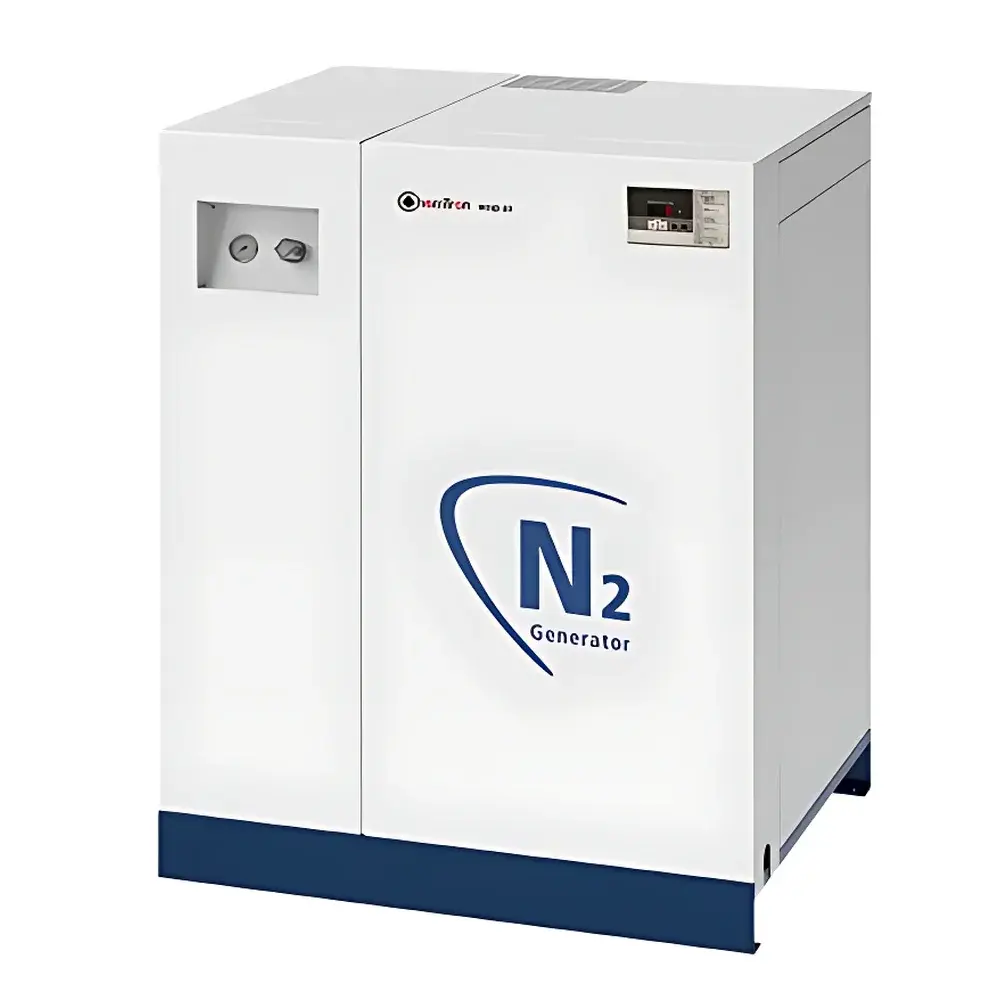

| Model | WIND |
| Output Pressure | 6.9 bar (100 psi) |
| Output Flow Rate | up to 80 L/min |
| Nitrogen Purity | 99.5% |
| Dew Point | -45 °C |
| Particle Filtration | <0.01 µm |
| Noise Level | ≤65 dB(A) |
| Power Supply | 220–380 V, 50 Hz |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

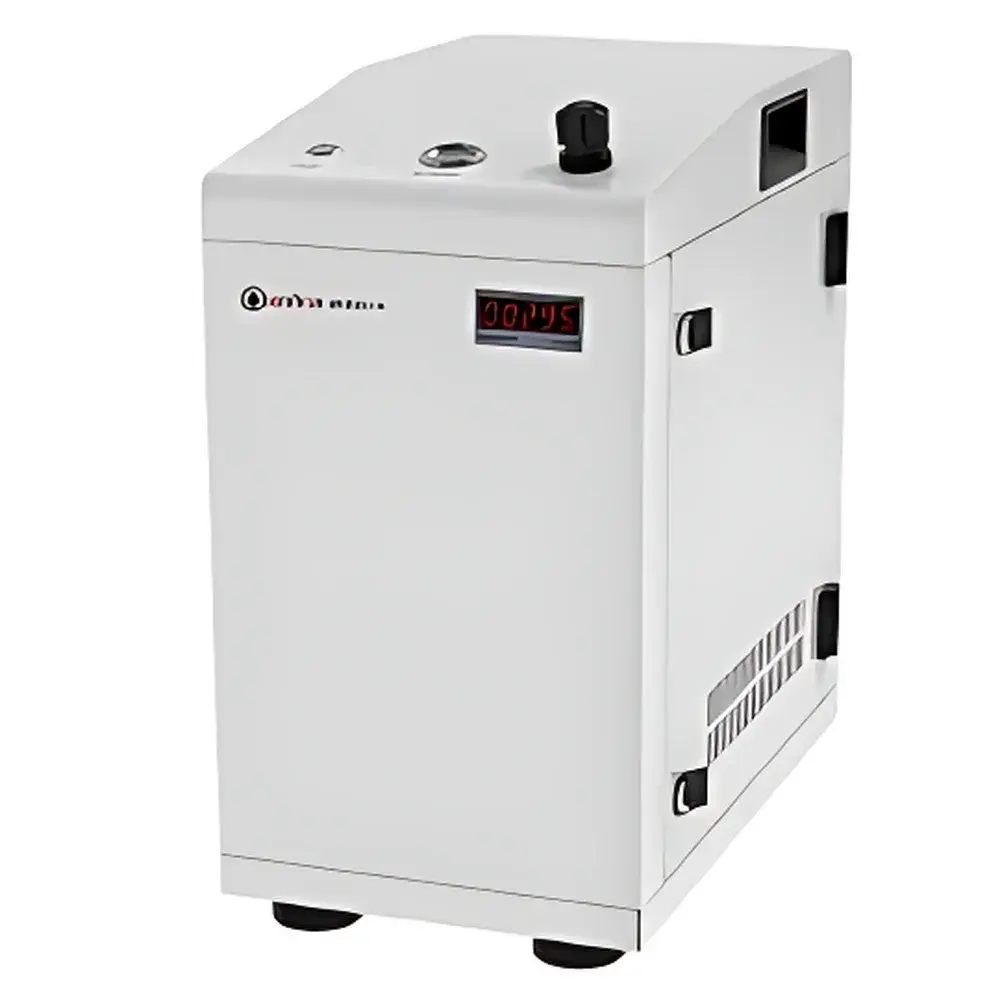

| Model | WIND EVA M |
| Output Flow | 45 L/min @ 5.5 bar |
| Output Pressure | 5.5 bar |
| Nitrogen Purity | 95–99% |
| Dew Point | < −40 °C |
| Ambient Temperature Range | 10–35 °C |
| Ambient Humidity | 0–80% RH (non-condensing) |
| Power Supply | 220–240 V / 50 Hz |
| Motor Speed | 1450 rpm |
| Power Consumption | 1600 W |
| Noise Level | 62 dB(A) |
| Dimensions (W×L×H) | 400 × 600 × 720 mm |
| Weight | 70 kg |
| Integrated Air Receiver | 5 L stainless steel tank |
| Filtration | Triple-stage coalescing filter (0.01 µm particulate removal) |
| Cooling | Integrated air-cooled heat exchanger and cyclonic moisture separator |
| Membrane Technology | Thermostatically stabilized hollow-fiber membrane with pre-conditioned feed air |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | WIND CAD |
| Output Flow | 20 L/min @ 5.5 bar |
| Output Pressure | 5.5 bar |
| Nitrogen Dew Point | < −40 °C |
| Ambient Temperature Range | 10–35 °C |
| Ambient Humidity | 0–80 % RH (non-condensing) |
| Power Supply | 220–240 V / 50 Hz |
| Noise Level | 58 dB(A) |
| Dimensions (W×L×H) | 300 × 550 × 560 mm |
| Weight | 40 kg |
| Internal Stainless Steel Buffer Tank | 5 L |
| Filtration | Integrated Type I Triple-Stage Coalescing Filter (particle retention ≤ 0.01 µm) |
| Cooling | Air-cooled heat exchanger with condensate separation |
| Control | Digital pressure switch with adjustable cut-in/cut-out setpoints |
| Safety Features | Compressor thermal overload protection, anti-vibration mounting, automatic depressurization at shutdown, ambient-safe operating temperatures |
| Brand | ChemTron |
|---|---|
| Origin | Switzerland |
| Model | N2 TOWER Plus |
| Nitrogen Generation Principle | Pressure Swing Adsorption (PSA) with Carbon Molecular Sieve (CMS) |
| Output Flow Rate | 4000 mL/min |
| Output Pressure | 5 bar |
| Nitrogen Purity | 99.999% |
| Nitrogen Dew Point | < −50 °C |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | MINI-WHISPER N₂ |
| Output Flow Rate | 8–12 L/min |
| Output Pressure | 1–7 bar |
| Nitrogen Purity | 98–99.5% |
| Dew Point | −40 °C |
| Dimensions (H×W×D) | 735 × 348 × 350 mm |
| Weight | 8 kg |
| Certification | CE, FCC, CSA |
| Air Inlet Requirement | 5–8 bar, >80 L/min |
| Pressure Drop | <0.8 bar |
| Particulate Filtration | <0.01 µm |
| Operating Temperature | 10–35 °C |
| Interface | 1/4″ G thread (air inlet), 1/8″ G thread (N₂ outlet) |
| Compliance | IQ/OQ documentation available |
| Brand | ChemTron |
|---|---|
| Origin | Germany |

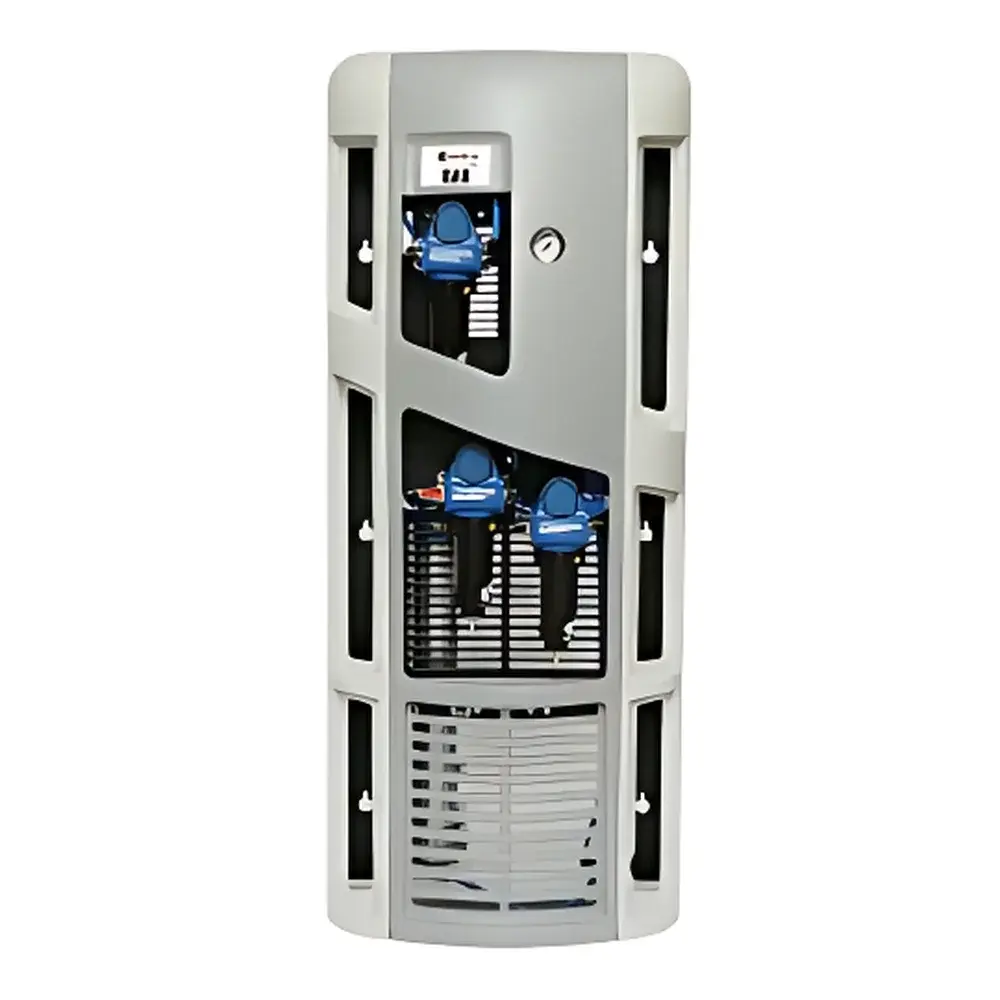

| Model | N2-Whisper 0-40 / 0-80 / 0-120 |
| Output Flow | 40–120 L/min N₂ |
| Output Pressure | 8.5–10 bar |
| Purity | >98% N₂ |
| Dew Point | <−40 °C |
| Particulate Filtration | <0.01 µm |
| Pressure Drop | <0.8 bar |
| Dimensions (H×W×D) | 1150×48×260 mm |
| Certifications | CE, FCC, CSA |
| Brand | ChemTron |
|---|---|
| Origin | Germany |

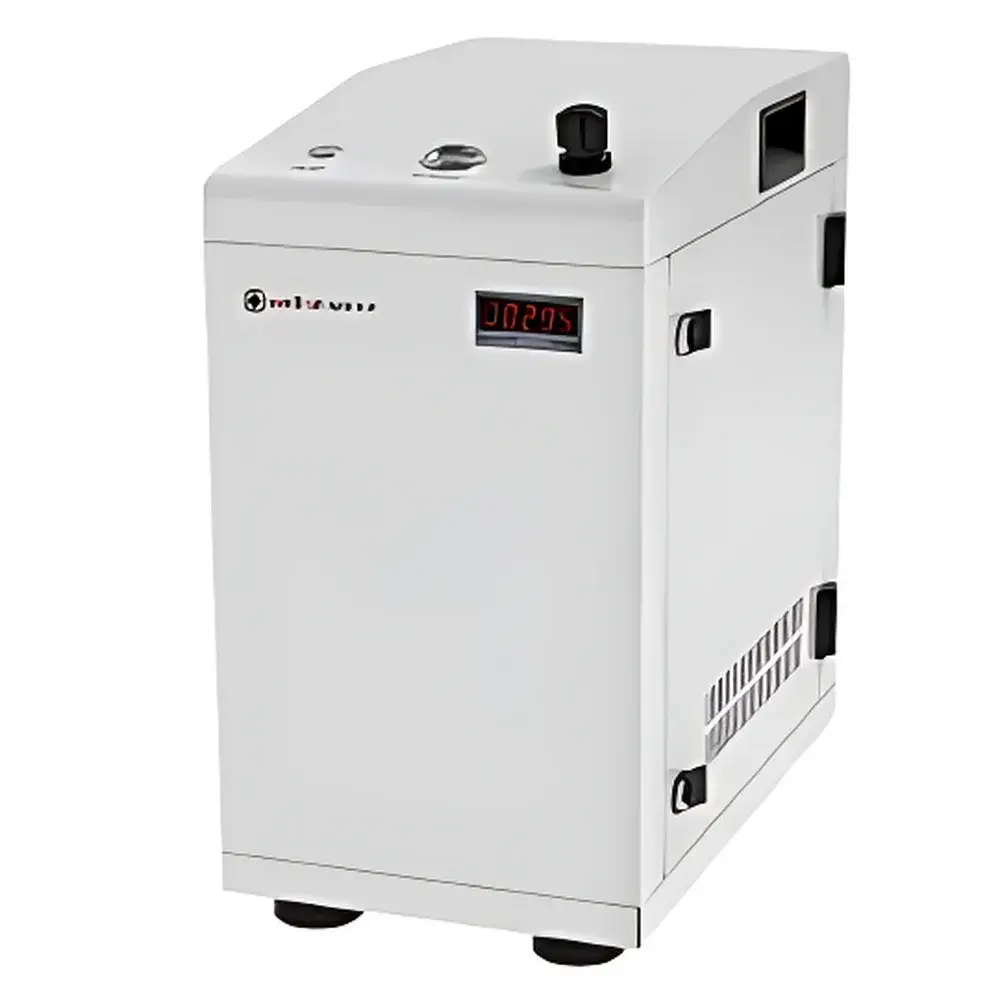

| Model | WIND ELSD |
| Output Flow | 20 L/min @ 5.5 bar |
| Output Pressure | 5.5 bar |
| Nitrogen Dew Point | < −40 °C |
| Ambient Temperature Range | 10–35 °C |
| Ambient Humidity | 0–80 % RH (non-condensing) |
| Power Supply | 220–240 V / 50 Hz |
| Noise Level | 58 dB(A) |
| Dimensions (W×L×H) | 300 × 550 × 560 mm |
| Weight | 40 kg |
| Internal Storage Tank | 5 L stainless steel |
| Filtration | Integrated Type I triple-stage coalescing filter (particulate removal down to 0.01 µm) |
| Key | Brand: ChemTron |
|---|---|
| Origin | Germany |

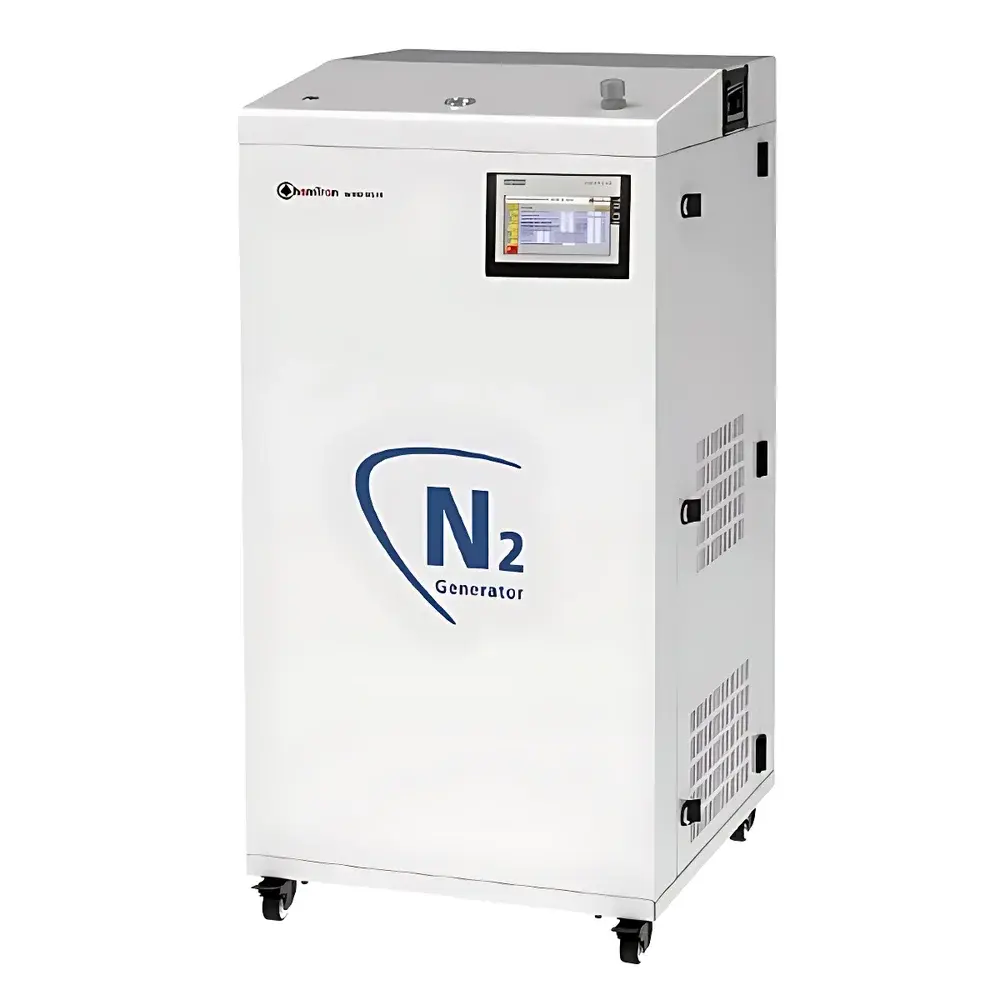

| Model | WIND MS C |
| Nitrogen Generation Principle | Hollow Fiber Membrane Filtration |
| Output Flow | 40 L/min @ 8 bar |
| Output Pressure | 8 bar (116 psi) |
| Nitrogen Purity | 95–99.9% |
| Dew Point | < −54 °C |
| Particulate Filtration | < 0.01 µm |
| Power Consumption | 1200 W |
| Input Voltage | 220 V / 50 Hz |
| Noise Level | 58 dB(A) |
| Dimensions (W×D×H) | 480 × 825 × 770 mm |
| Interface | 6 mm push-to-connect or G1/4 male |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | AEOLUS |
| Nitrogen Generation Principle | Hollow Fiber Membrane Technology |
| Output Flow Rates | 40, 80, or 120 L/min per module (scalable via modular combination) |
| Output Pressure | 7.6 bar |
| Nitrogen Purity | 99% |
| Dew Point | –40 °C |
| Compressed Air Inlet Requirement | 8.5–10 bar, oil-free and dry (ISO 8573-1 Class 1.3.1), dew point < –20 °C |
| Dimensions (H×W×D) | 324×265×120 mm (AEOLUS M), 400×265×120 mm (AEOLUS L), 480×265×120 mm (AEOLUS XL) |
| Weight | 25–27 kg |
| Air Inlet Connection | OD 10 mm or G1/4" |
| N₂ Outlet Connection | OD 6 mm or G1/4" |
| Brand | ChemTron |
|---|---|
| Origin | Germany |

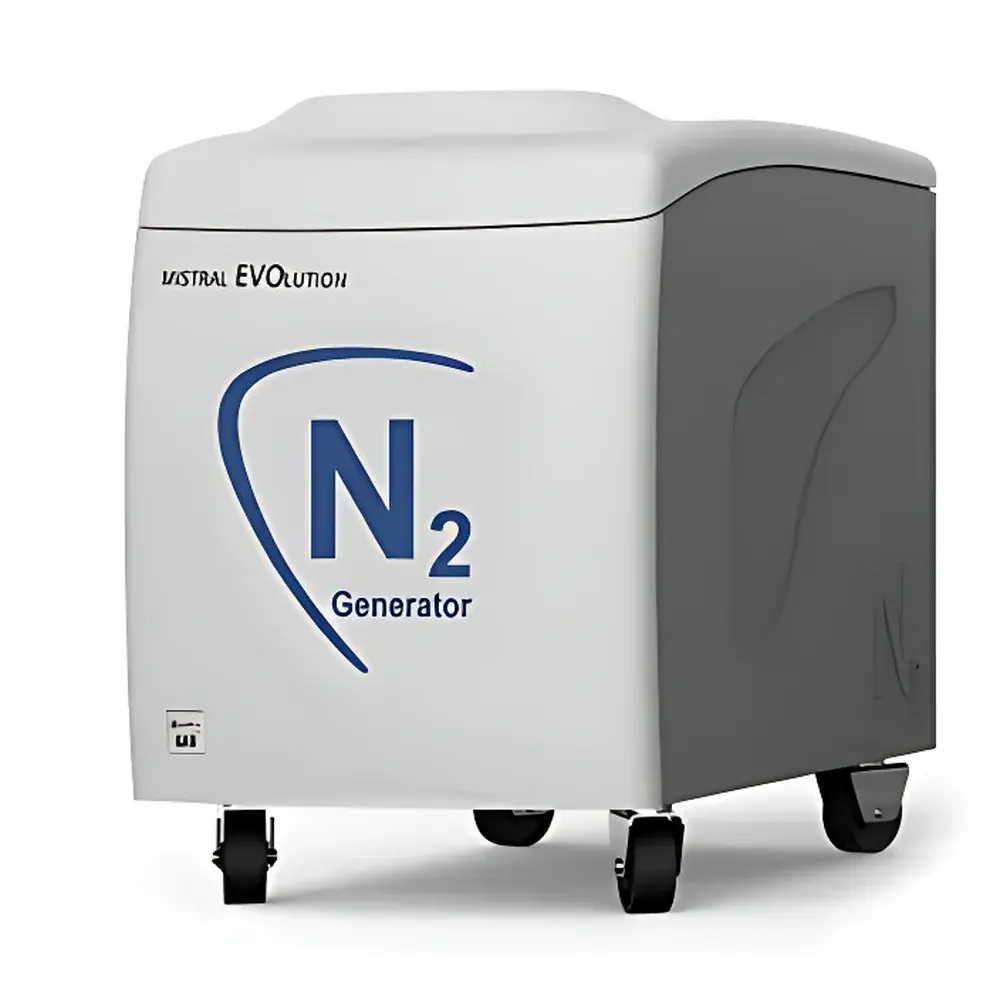

| Model | MISTRAL EVO |
| Output Flow Rate | 10–40 L/min |
| Output Pressure | 8 bar (116 psi) |
| Nitrogen Purity | 97–99.9% |
| Power Supply | 110 V / 60 Hz or 230 V / 50 Hz |
| Weight | 90 kg |
| Power Consumption | 1800 W |
| Pressure Stability | ±0.1 bar (±0.5%) |
| Display | Graphical LCD (128 × 64 px) |
| Protection Class | IP2X |
| Operating Temperature | 15–40 °C |
| Sound Pressure Level | <60 dB(A) |
| Alarm Relay | 250 VAC, max 16 A |
| Gas Outlet | 1/4" compression fitting or 6 mm push-to-connect |
| Dimensions (L × D × H) | 482 × 835 × 641 mm |
| Certifications | CE |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Technology | Hollow-Fiber Membrane |
| Flow Rate | 1–80 L/min |
| Output Pressure | 8 bar (116 psi) |
| Nitrogen Purity | 96–99.9% |
| Dew Point | −45 °C |
| Particle Filtration | <0.01 µm |
| Compressor Protection | Thermal Cut-off, Vibration-Dampened Mounting, Auto-Depressurization at Shutdown |
| Safety | PAE-Free Construction, No High-Pressure or Cryogenic Hazards |
