| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | Vdose4400 |
| Instrument Type | Microfluidic Syringe Pump |
| Flow Rate | 1.25 µL/min – 375 mL/min |
| Accuracy | ≤ 0.5% (±5 ‰) |
| Weight | 9.1 kg |
| Dimensions (H×W×D) | 305 × 178 × 330 mm |
| Syringe Volume Range | 50 µL – 25 mL |
| Valve Material | Viton / PTFE |
| Wetted Materials | Glass, PTFE |
| Resolution | 1/6000 of syringe volume |
| Communication Interface | RS-232 / RS-485 |
| Power Supply | 110–240 VAC, 50/60 Hz |
| Ordering Code | V900702 |

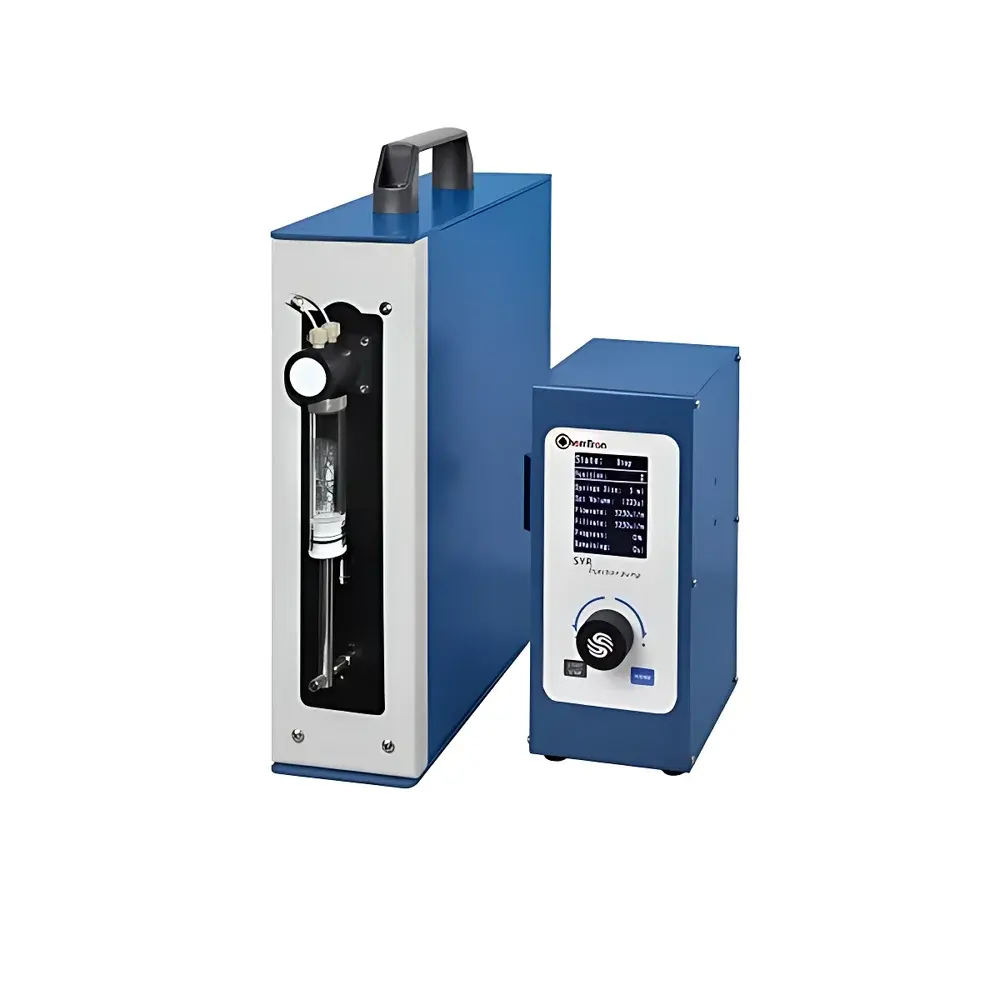

| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | Vdose 4200 |
| Instrument Type | Microfluidic Syringe Pump |
| Flow Rate | 1.25 µL/min to 375 mL/min |
| Accuracy | ≤ 0.5% (±5 ‰) |
| Display | TFT LCD |
| Valve Type | 3-Port Auto-Switching Valve |
| Compatible Syringe Volumes | 50 µL – 25 mL |
| Wetted Materials | Glass, PTFE, Viton |
| Resolution | 1/6000 steps per stroke |
| Communication | RS-232 / RS-485 |
| Power Supply | 110–240 VAC, 50/60 Hz |
| Dimensions (H×W×D) | 305 × 89 × 330 mm |
| Weight | 5.5 kg |

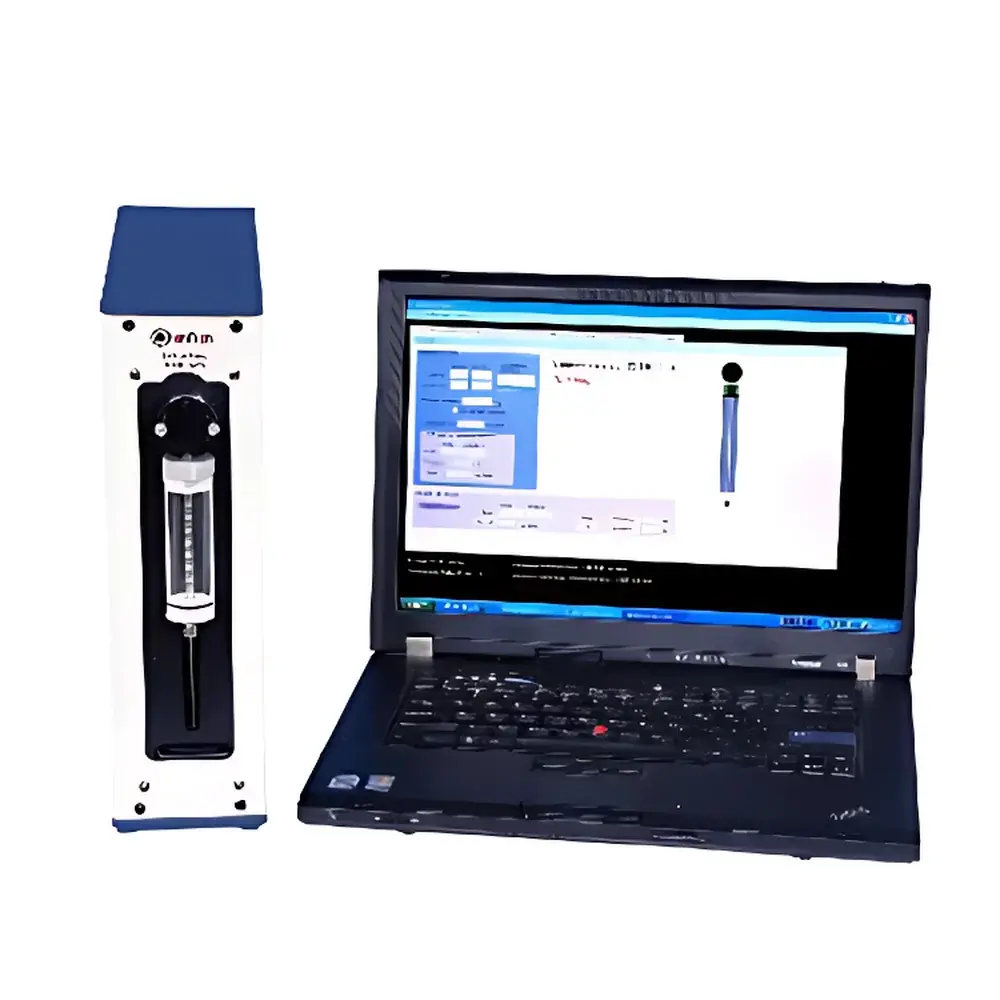

| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | SYR1240 / SYR1240-PC / SYR2240 / SYR2240-PC |
| Pump Type | Microfluidic Syringe Pump |
| Flow Rate | 0.5 µL/min to 200 mL/min |
| Accuracy | ±0.33 % CV |
| Stroke Precision | ±0.007 % × stroke length |
| Syringe Volume Range | 10 µL to 50 mL (13 selectable volumes) |
| Resolution | 1/48,000 per stroke (stepper motor-driven) |
| Valve Configuration | 3–8 port top-mount selection valve |
| Communication Interface | RS-232 / RS-485 |
| Software Included | PC-based control suite (included with -PC variants) |

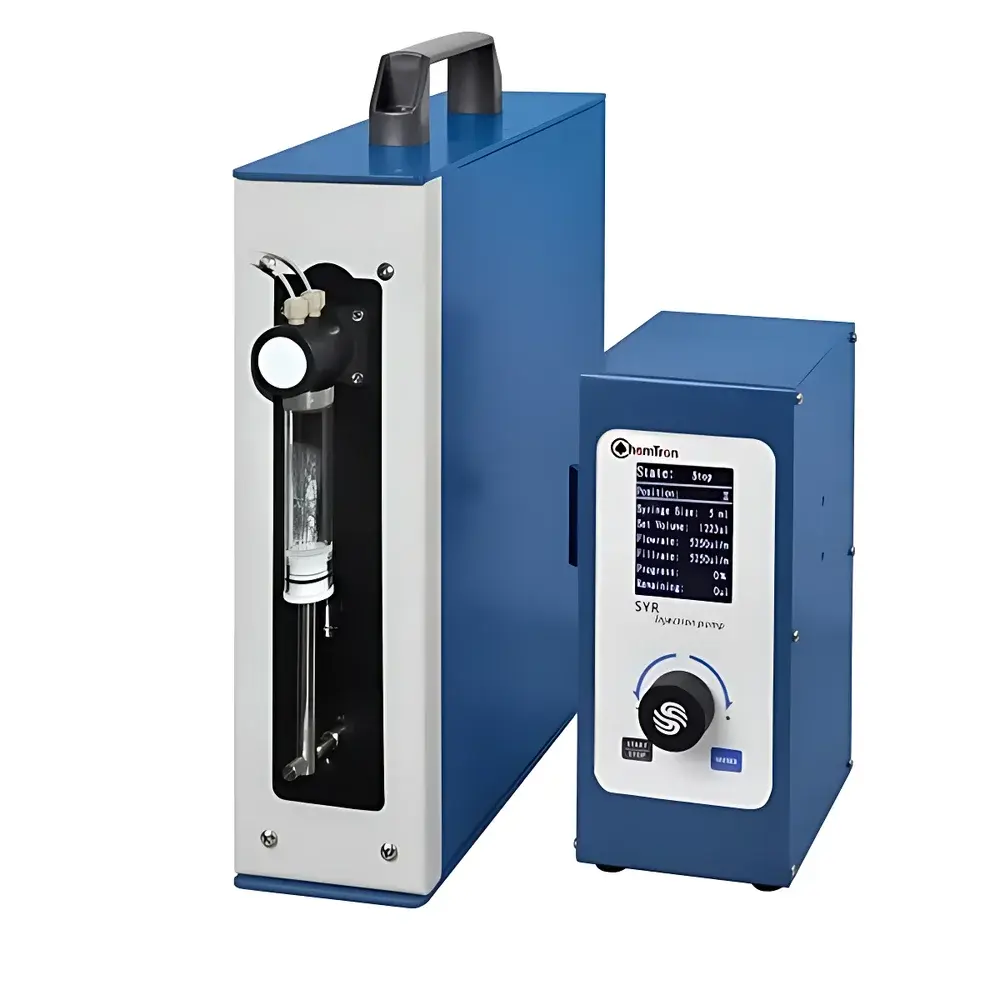

| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | Vdose4200 |
| Instrument Type | Microfluidic Syringe Pump |
| Flow Rate | 1.25 µL/min to 375 mL/min |
| Accuracy | ≤ 0.5% (±5 ‰) |
| Display | TFT LCD |
| Valve Configuration | 3-Port Auto-Switching Valve |
| Communication Interface | RS-232 / RS-485 |
| Power Supply | 110–240 V, 50/60 Hz |
| Weight | 5.5 kg |
| Dimensions (H × W × D) | 305 × 89 × 330 mm |
| Syringe Volume Range | 50 µL – 25 mL |
| Wetted Materials | Borosilicate Glass, PTFE, Viton |
| Plunger Resolution | 1/6000 steps |
| Syringe Mounting | Tool-free Quick-Change Mechanism |
