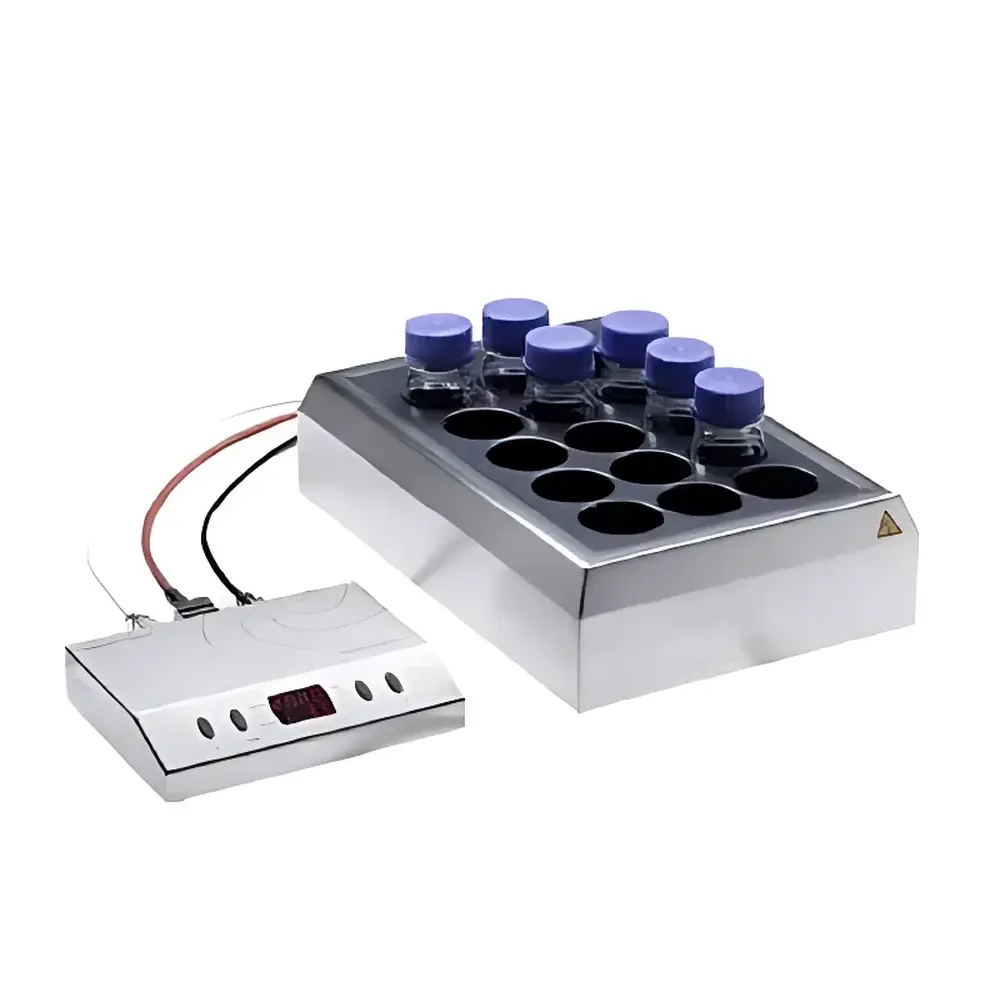

| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | SD15-100 |
| Instrument Type | Magnetic Stirrer |
| Max. Stirring Volume per Position | 1–400 mL |
| Speed Range | 100–2000 rpm |
| Temperature Range | 0–200 °C |
| Heating Power | 1000 W |
| Stirring Power per Position | 40 W |
| Position Count | 15 |
| Inter-Position Spacing | 65 mm |
| Well Diameter/Depth | 57.5 × 48 mm |
| Power Setting Levels | 25 / 50 / 75 / 100 % (4-step) |
| Protection Rating | IP20 |
| Operating Environment | −10 to +40 °C at ≤80% RH |
| Dimensions (W×D×H) | 295 × 445 × 110 mm |
| Weight | ~23 kg |
| Ordering Code (incl. Control Unit) | 63100 |

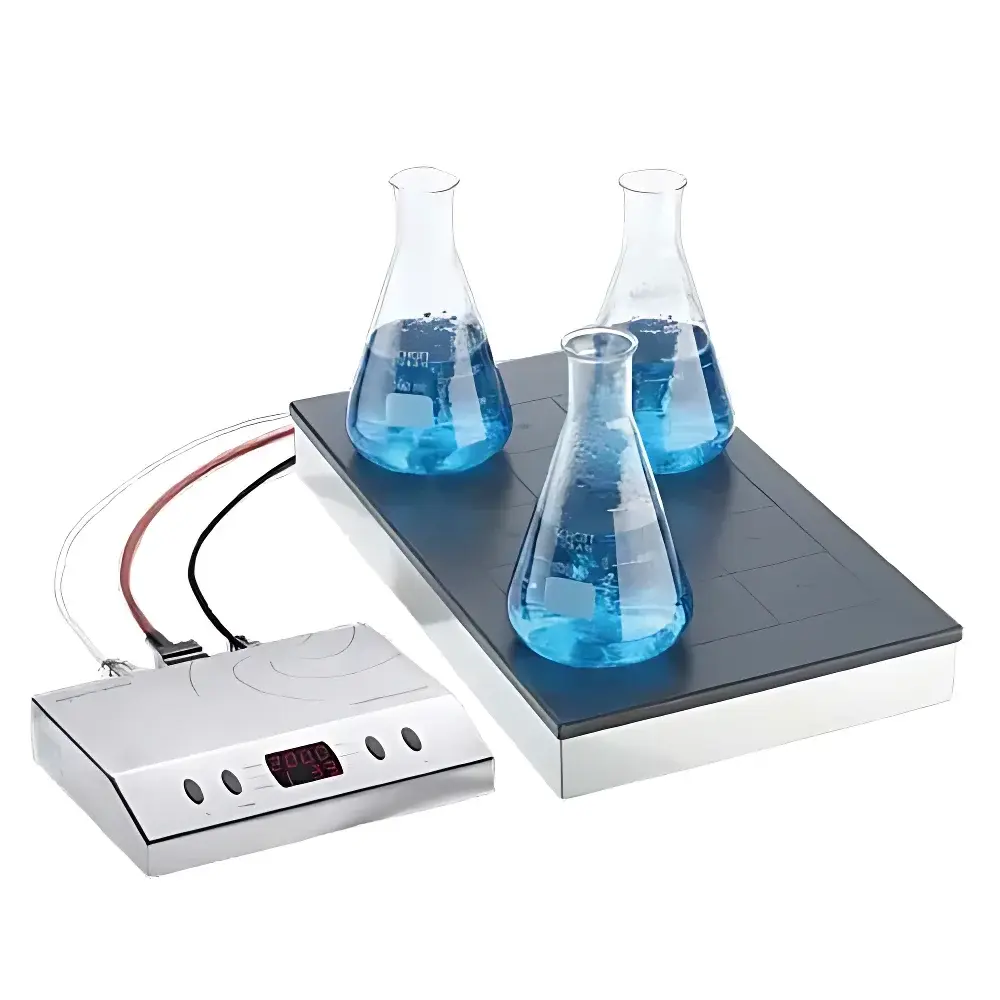

| Brand | ChemTron |
|---|---|
| Origin | USA |
| Model | 66306 |
| Instrument Type | Magnetic Stirrer |
| Max. Stirring Volume per Position | 1–1500 mL |
| Stirring Speed Range | 100–2000 rpm |
| Temperature Control Range | 0–200 °C |
| Number of Stirring Positions | 6 |
| Inter-Position Spacing | 130 mm |
| Stirring Power Output | 40 W per position |
| Power Setting Levels | 25 / 50 / 75 / 100 % (4-step) |
| Heating Power | 1200 W |
| Input Voltage | 230 V AC |
| Dimensions (W × D × H) | 250 × 430 × 75 mm |
| Weight | ~15 kg |

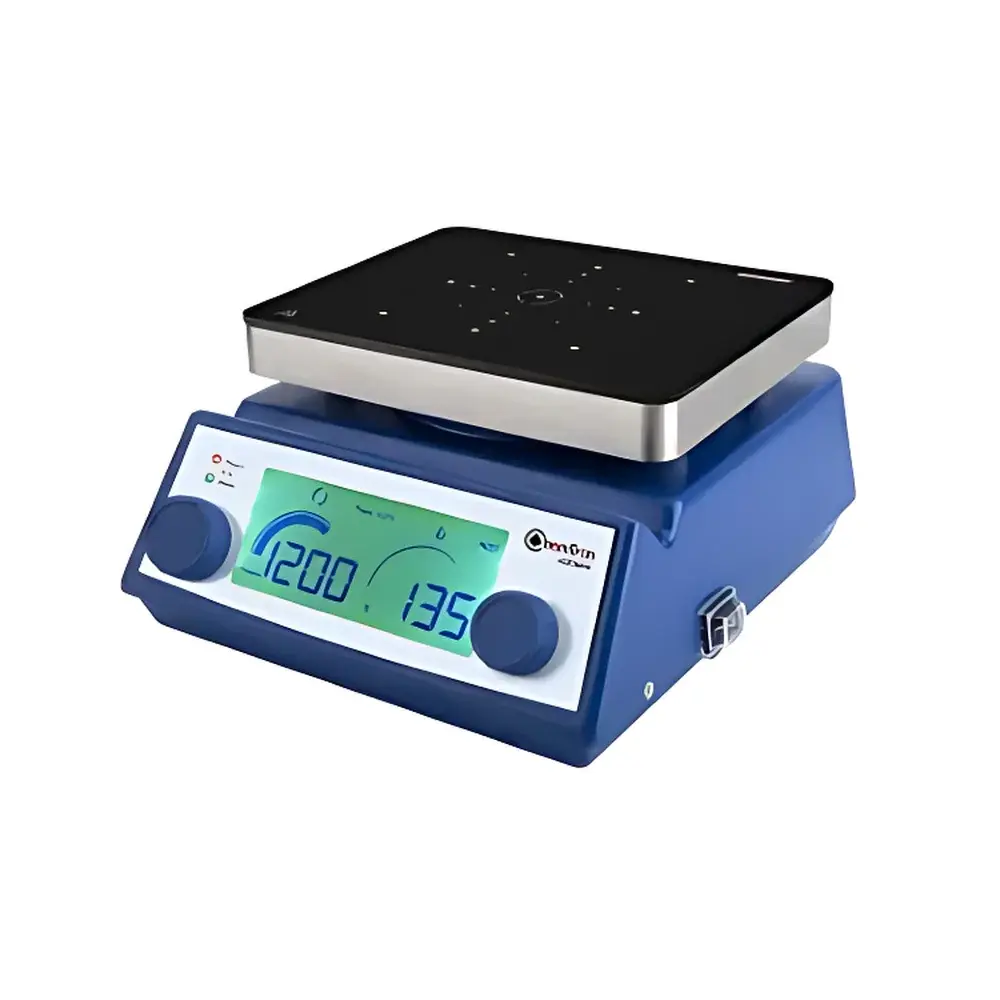

| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | HSP240-AH / HSP240-H / HSP240-AR / HSP240-R |
| Stirrer Type | Magnetic Stirrer |
| Speed Range | 100–1500 rpm |
| Temperature Range | 50–450 °C |
| Max. Set Temperature (ceramic-glass) | 450 °C |
| Max. Set Temperature (aluminum-ceramic enamel) | 320 °C |
| External PT100 Support | Yes |
| Temperature Stability (with PT100) | ±2 °C |
| Safety Temp. Range | 50–500 °C (adjustable) |
| Over-Temp. Protection Range | 10–50 °C (adjustable) |
| Heating Power | 800 W |
| Display | LCD |
| Interface | USB |
| Timer Range | 1–1999 min or continuous |
| Heater Surface | SCHOTT® ceramic glass (H/R models) or aluminum-ceramic enamel (AH/AR models) |
| Heater Dimensions | 180 × 180 mm (AH/H) or Ø135 mm (AR/R) |
| Dimensions (W×H×D) | 225 × 215 × 115 mm |
| Power Supply | 220 V / 50 Hz |

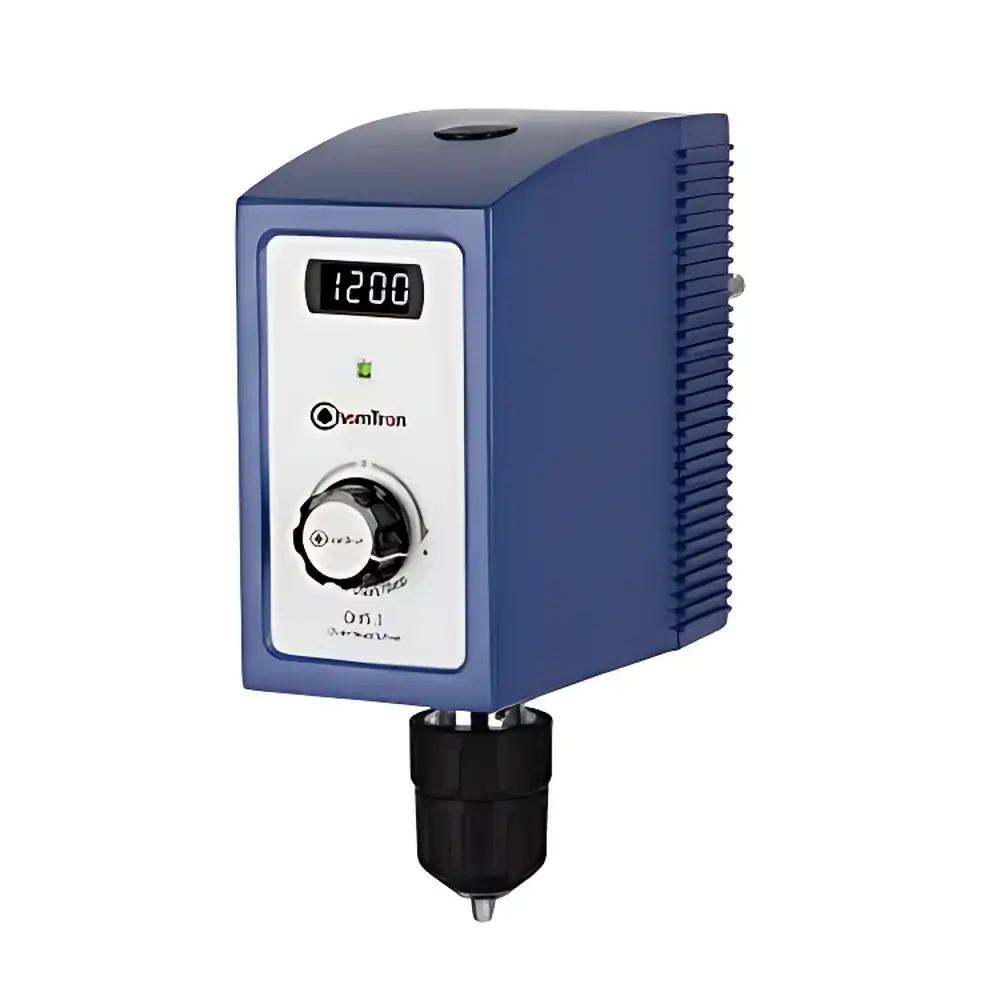

| Brand | ChemTron |
|---|---|
| Origin | USA |
| Model | OHS.1 / OHS.2 |
| Stirrer Type | Electric Overhead Stirrer |
| Max. Stirring Volume | 50 L (OHS.1), 100 L (OHS.2) |
| Speed Range | 20–2000 rpm (OHS.2), 40–2000 rpm (OHS.1) |
| Speed Accuracy | ±1 rpm |
| Max. Torque | 70 N·cm |
| Max. Viscosity | 20,000 cP |
| Motor | Brushless DC |
| Display & Control | LED + Knob (OHS.1) |
| Dimensions (W×D×H) | 105 × 160 × 185 mm |
| Power Input/Output | 70 W / 50 W |
| Shaft Clamping Diameter | 10 mm |
| Reversibility | Not supported (OHS.1), Supported (OHS.2) |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | OHS.4 / OHS.4F |
| Stirrer Type | Electric Drive Stirrer |
| Max. Mixing Volume | 40 L (H₂O) |
| Speed Range | 20–1800 rpm (dual-range: 20–360 rpm / 361–1800 rpm) |
| Max. Torque | 565 N·cm (Low-Speed Range) |
| Torque at High Speed | 113 N·cm |
| Max. Viscosity Handling | 150,000 cP |
| Speed Accuracy | ±3% (n > 300 rpm) |
| Minimum Speed Increment | 1 rpm |
| Temperature Measurement Range | −10 to 350 °C |
| Temp. Resolution | 0.1 °C |
| Power Input | 100–240 VAC, 50/60 Hz |
| Motor Type | Brushless DC Motor |
| Chuck Type | Self-locking, tool-free drill chuck |
| Shaft Clamp Diameter | 0.5–10 mm |
| Hollow Shaft Inner Diameter | 10.2 mm |
| Timer Range | 99 h 59 min 59 sec |
| Display | TFT touchscreen + rotary encoder |
| Rotation Direction | Bidirectional (CW/CCW) |
| Status Indicators | Standby (blue), Operation (green), Alarm (red) |

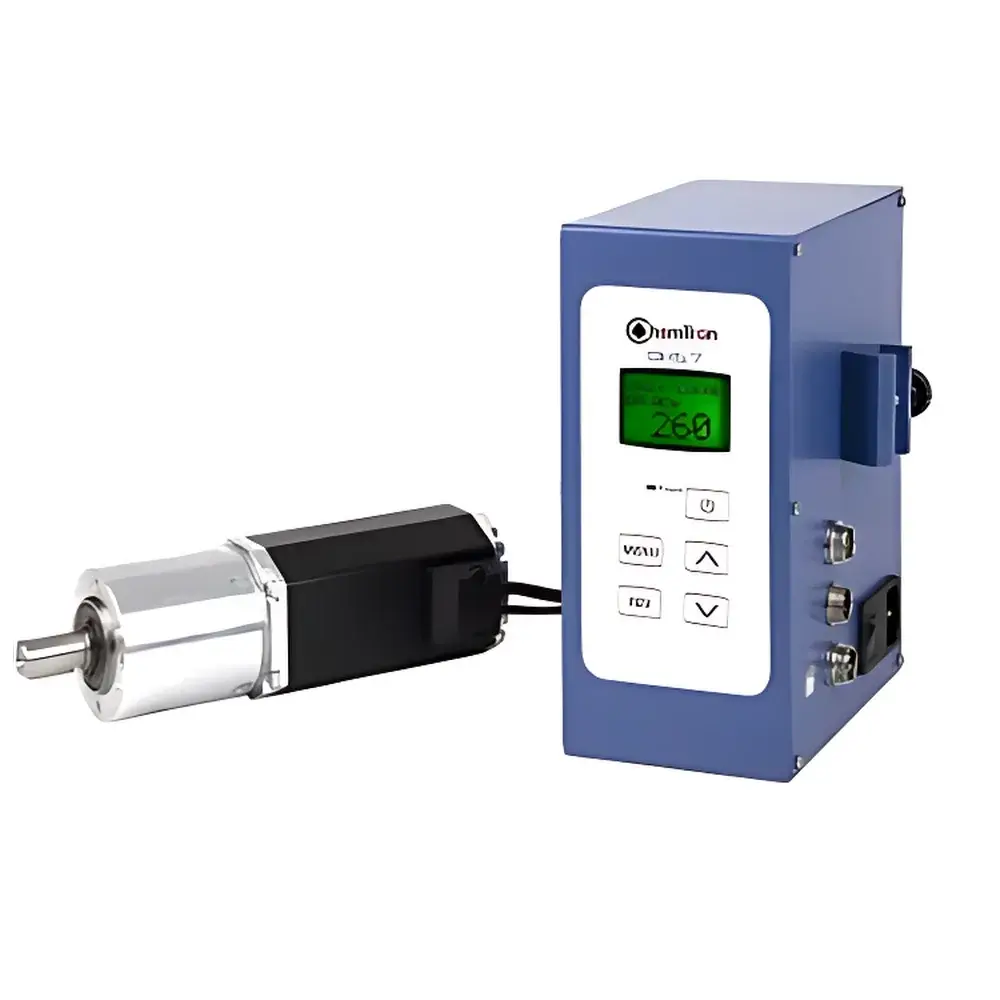

| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | OHS.6 / OHS.9 |
| Maximum Stirring Volume | 100 L |
| Speed Range | 70–3000 rpm (OHS.9), 20–800 rpm (OHS.6) |
| Torque | up to 410 N·cm (OHS.9), 132 N·cm (OHS.6) |
| Continuous Rated Torque | 116 N·cm (OHS.9), 18 N·cm (OHS.6) |
| Max. Viscosity | 200,000 cP (OHS.9), 150,000 cP (OHS.6) |
| Motor Type | Brushless DC |
| Power Input | 450 W (OHS.9), 150 W (OHS.6) |
| Dimensions (Motor) | 165 × 75 × 75 mm (OHS.9), 216 × 65 × 65 mm (OHS.6) |
| Weight (Motor) | 2.8 kg (OHS.9), 2.3 kg (OHS.6) |
| Control Interface | LCD display with real-time torque & speed readout, USB digital interface, 0–10 V analog input/output, 0–20 mA analog input, footswitch port |
| Cable Length | Standard 3 m (optional: 1.5 / 6 / 10 m) |
