| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | BR-100/300 |
| Material | SS316Ti or Hastelloy C |
| Max Operating Pressure | 200 bar |
| Max Temperature (bare) | 300 °C |
| Max Temperature (PTFE-lined) | 230 °C |
| Internal Volume | 75–225 mL |
| Sealing | Quick-release clamp with LC-KEY safety interlock |
| Stirring | Bottom-mounted magnetic stirrer (BR-100) / Top-mounted magnetic coupling stirrer (BR-300) |
| Safety Features | Burst disc, pressure relief valve (optional), nitrogen leak-tested, 1.6× pressure certification |
| Heating | Optional electric heating jacket |
| Cooling | Integrated cooling ring with solenoid valve |
| Compliance | Designed per PED 2014/68/EU, ASME BPVC Section VIII Div. 1 (as-built configuration) |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | PPG |
| Reactor Volume | 10–100 L |
| Material | High-Purity Borosilicate Glass (DIN ISO 3585) |
| Operating Pressure Range | –1 to +0.5 bar (gauge) |
| Vacuum Capability | ≤20 mbar (abs) |
| Max Continuous Stirring Speed | 500 rpm |
| Short-Term Max Speed | 800 rpm |
| Jacket Inlet/Outlet Port | DN25 |
| Condenser Surface Area | 0.6 m² (DN50 P-type) |
| Temperature Range | –60 °C to +200 °C |
| Wetted Materials | Borosilicate Glass, PTFE, PFA |
| Flange Standard | DIN 2817 / ISO 2852 |
| Top Plate Configuration | 7-port DN300 lid (1×DN25 CN, 1×DN80, 3×DN40, 1×DN25, 1×DN50) |
| Bottom Valve Bore | 0–25 mm |
| Optional Accessories | Pneumatic bottom valve, integrated Pt100 temperature sensor (600–900 mm immersion length), AR1.8 Automated Reaction Control System |
| Compliance | Designed for GMP-aligned laboratory synthesis environments |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | Camera |
| Material | SS 316 Ti |
| Max. Working Pressure | 50 bar (725 psi) |
| Max. Temperature | 300 °C (230 °C with FPM seals) |
| Volume Range | 1200–6000 mL |
| Standard Volume | 1800 mL |
| Vacuum/Pressure Rating | –1 to +25 bar (gauge) |
| Viewing Windows | Two opposing quartz windows (Ø21 mm) with integrated LED illumination |
| Explosion Protection | Ex d IIB T4 or higher (Zones 0, 1) |
| Stirring System | Magnetic coupling drive (RV 100, 100 N·cm torque, 300 °C rated, max. viscosity 4000 mPa·s) |
| Pressure Monitoring | Intrinsically safe pressure transducer (25 bar, SS 316 L) |
| Temperature Sensing | ATEX-certified Pt-100 (250 mm × 1.5 mm sheath) |
| Seals | FPM (Viton) or optional FFKM (Perlast) O-rings |
| Safety Components | Monel rupture disc (20 bar, PFA-coated, certified) |
| Jacket Type | Double-wall circulation jacket for external heating/cooling |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | GPR |
| Vessel Capacity | 0.5–5 L (standard) |
| Operating Pressure | 2.4–3.1 bar (GPR-M1–M4: 2.4 bar |
| GPR-M5–M8 | 3.1 bar) |
| Vacuum Range | -0.7 to -0.9 bar (i.e., absolute pressure 0.3–0.1 bar) |
| Construction Material | High-purity borosilicate glass 3.3 (DIN ISO 3585) |
| Sealing System | ACE-Thrend® precision glass-threaded joints with fluorocarbon O-rings |
| Temperature Range (with JULABO integration) | -50 °C to +200 °C |
| Vessel Type | Split-body or monolithic (one-piece) design |
| Safety Package | Integrated pressure gauge, adjustable relief valve, and certified rupture disc |
| Compliance | Designed per PED 2014/68/EU Annex I essential safety requirements for Category I pressure equipment |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | DB-2000 |
| Working Volume | 2 L |
| Construction Material | 316Ti Stainless Steel with Full PTFE Lining |
| Maximum Operating Pressure | 200 bar |
| Temperature Range (with heating jacket) | 50–300 °C |
| Pressure Sensor Accuracy | ±1% FS |
| Sealing Options | PTFE, FPM (Viton), FFKM (Kalrez), FPM/FEP O-rings |
| Safety | Certified Rupture Disc (Monel, 200 bar, PFA-coated) |
| Compliance | Designed for GLP/GMP-aligned laboratory workflows |
| Software Option | Optional automated process control interface compatible with ASTM E2500 and FDA 21 CFR Part 11 audit trail requirements |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | EZChem |
| Reactor Volumes | 10 L, 20 L, 30 L, 50 L (two configurations), 100 L |
| Material | High-quality borosilicate glass (DIN/ISO 3585 compliant) |
| Temperature Range | −60 °C to +200 °C |
| Pressure Rating | Suitable for ambient, vacuum, and mild positive pressure operation (up to 0.5 bar gauge) |
| Stirring Speed | Continuous operation up to 500 rpm |
| Stirrer Shaft | Stainless steel core with PTFE or PFA coating |
| Jacket Inlet/Outlet | DN15 (10–30 L), DN25 (50–100 L) |
| Flange Standards | DN200 (10 L), DN300 (20–50 L), DN400 (100 L) |
| Bottom Valve | Adjustable PTFE-lined valve, 0–25 mm port |
| Condenser Length | 300 mm (10 L), 400 mm (20–100 L) |
| Collection Vessel Capacity | 5 L to 20 L |
| Feed Funnel Volume | 1 L to 2 L |
| Temperature Probe Length | 600 mm to 1200 mm |
| Overall Dimensions (W × D × H) | 720 × 600 × 2080 mm (10 L) to 890 × 716 × 2980 mm (100 L) |
| Compliance | Designed per ISO 15500-2 (glass vessel safety), EN 61000-6-3 (EMC), and DIN 12574 (laboratory glassware) |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | NR-30L |
| Vessel Capacity | 30 L |
| Construction Material | Stainless Steel (AISI 316) |
| Maximum Operating Pressure | 20 bar |
| Maximum Temperature | 200 °C (with FKM) / 250 °C (with FFKM) |
| Internal Dimensions | Ø340 mm × H470 mm |
| Jacket Volume | ≈15.8 L |
| Jacket Max Pressure | 3 bar |
| Bottom Discharge Valve | Standard |
| Sealing Options | FKM (Viton®), PTFE, FFKM (Kalrez®) |
| Magnetic Coupling Bearing | RV-400 |
| Standard Ports | 7 total (1× central for magnetic drive, 1× thermowell, 1× rupture disc, 1× vent valve, 2× 6 mm for heating/cooling coils, 3× 8 mm auxiliary) |
| Brand | ChemTron |
|---|---|
| Origin | Germany |

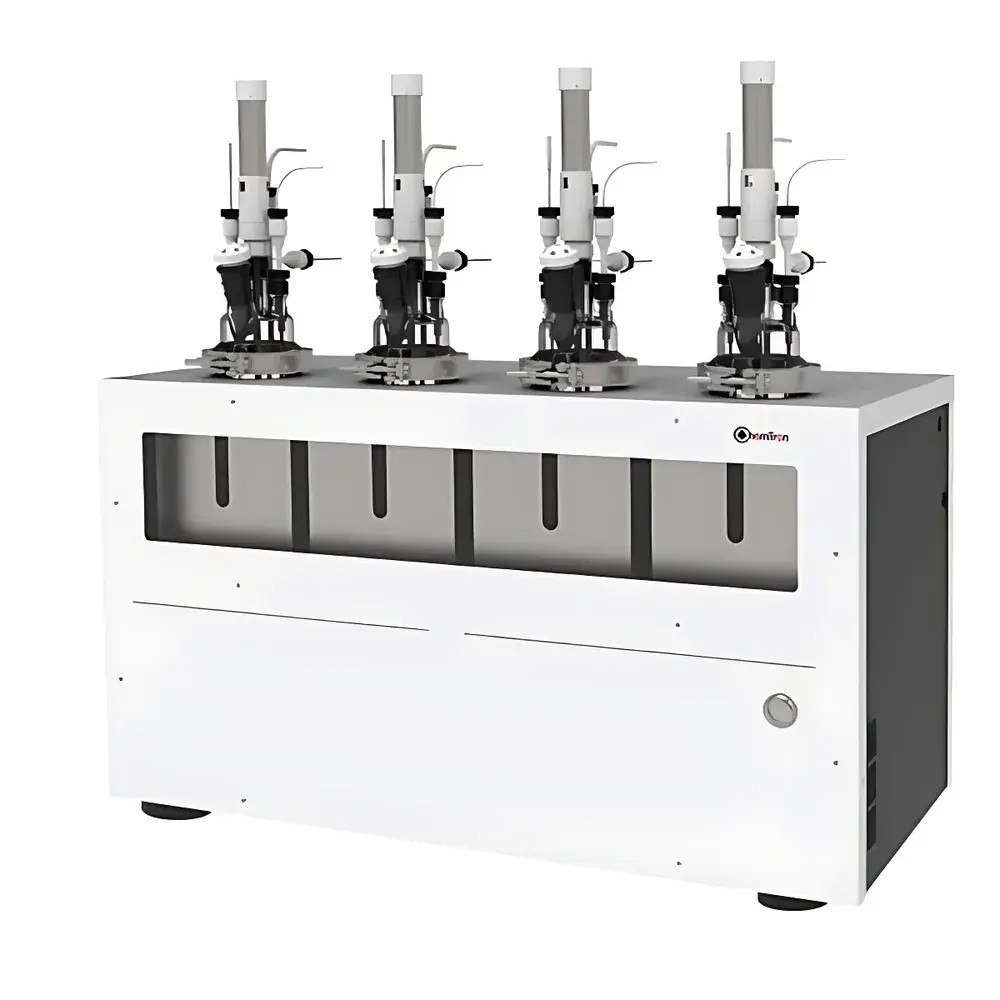

| Model | Chem 4 |
| Temperature Range | −30 °C to 180 °C |
| Reaction Positions | 4 |
| Reaction Volume Capacity | 2 mL–400 mL |
| Vessel Compatibility | Borosilicate 3.3 glass or PTFE contact materials |
| Control Interface | Integrated touchscreen panel with embedded calorimetric modeling and real-time data logging |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | NR-5L / NR-10L |
| Material | Stainless Steel (316L) or Hastelloy C-276 |
| Design Pressure | 25 bar |
| Max. Operating Temperature | 300°C (stainless/Hastelloy), 230°C (with PTFE lining) |
| Vessel Capacity | 5 L / 10 L |
| Internal Diameter | 207 mm / 229 mm |
| Internal Height | 234 mm / 320 mm |
| Weight | 16.4 kg / 20 kg |
| Sealing Options | PTFE, FKM (Viton®), FFKM (Kalrez®) O-rings |
| Stirring System | RV-100WB18D / RV-100-SS (standard) |
| Heating Options | Jacketed oil bath (e.g., JULABO), electric heating mantle, or external heating/cooling coil |
| Safety Features | Rupture disc, pressure gauge (optional pressure transducer), temperature well |
| Optional Accessories | Bottom discharge valve, PTFE liner, motorized lifting stand, 6 mm ports for coil integration, three 8 mm auxiliary ports |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | Glass Filtration Reactor |
| Vessel Capacity | 6 L |
| Construction Material | Borosilicate Glass 3.3 (DIN ISO 3585) |
| Maximum Operating Pressure | 25 bar (gauge) |
| Vacuum Rating | ≤ 0.1 mbar (absolute) |
| Filtration Interface | ACE SAFE™ Threaded or Standard Ground-Glass Joint |
| Temperature Control | Jacketed (Dual-Zone: Reaction + Filtration Zone) |
| Drive System | Top-Mounted Digital Stirrer with Mechanical Seal |
| Compliance | CE, PED 2014/68/EU, ISO 9001 Certified Manufacturing Support |
| Brand | JULABO-Chemtron |
|---|---|
| Origin | Germany |
| Model | T-G |
| Cooling Medium | Gaseous Nitrogen (N₂) |
| Minimum Operating Temperature | –180 °C |
| Liquid Nitrogen Consumption | 1.1–11 L/h |
| Vaporizer Power | 500 W (adjustable range: 100–1000 W) |
| Gas Flow Rate | up to 14,000 L/h at 1000 W |
| Insulated Flexible Transfer Line | V2A stainless steel, 1.8 m, vacuum-jacketed |
| Interface | KF NW 50, Swagelok, threaded, clamp, and nut-type fittings |
| Controller | SL1 Precision Evaporation Rate Regulator with Dual Thermal Protection |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | CR-300 |
| Vessel Capacity | 30 mL – 5 L |
| Maximum Operating Pressure | 100 bar |
| Maximum Temperature | 300 °C (stainless steel) / 230 °C (with PTFE liner) |
| Construction Material | High-grade stainless steel (e.g., 316Ti, 1.4571) |
| Sealing Options | Viton®, PTFE, Kalrez® O-rings |
| Heating Options | Electric heating jacket, JULABO oil-bath jacket, or heating/cooling coil |
| Stirring | Bottom magnetic stirring (BLH800/BLH801) or top-driven mechanical stirring with magnetic coupling shaft seal (e.g., WB20C/18C series) |
| Safety Features | Rupture disc, pressure relief valve, temperature sleeve, dual 8 mm auxiliary ports, chain-type quick-release clamp |
| Compliance | Designed for GLP/GMP-aligned laboratory environments |
| Brand | ChemTron |
|---|---|
| Origin | Germany |

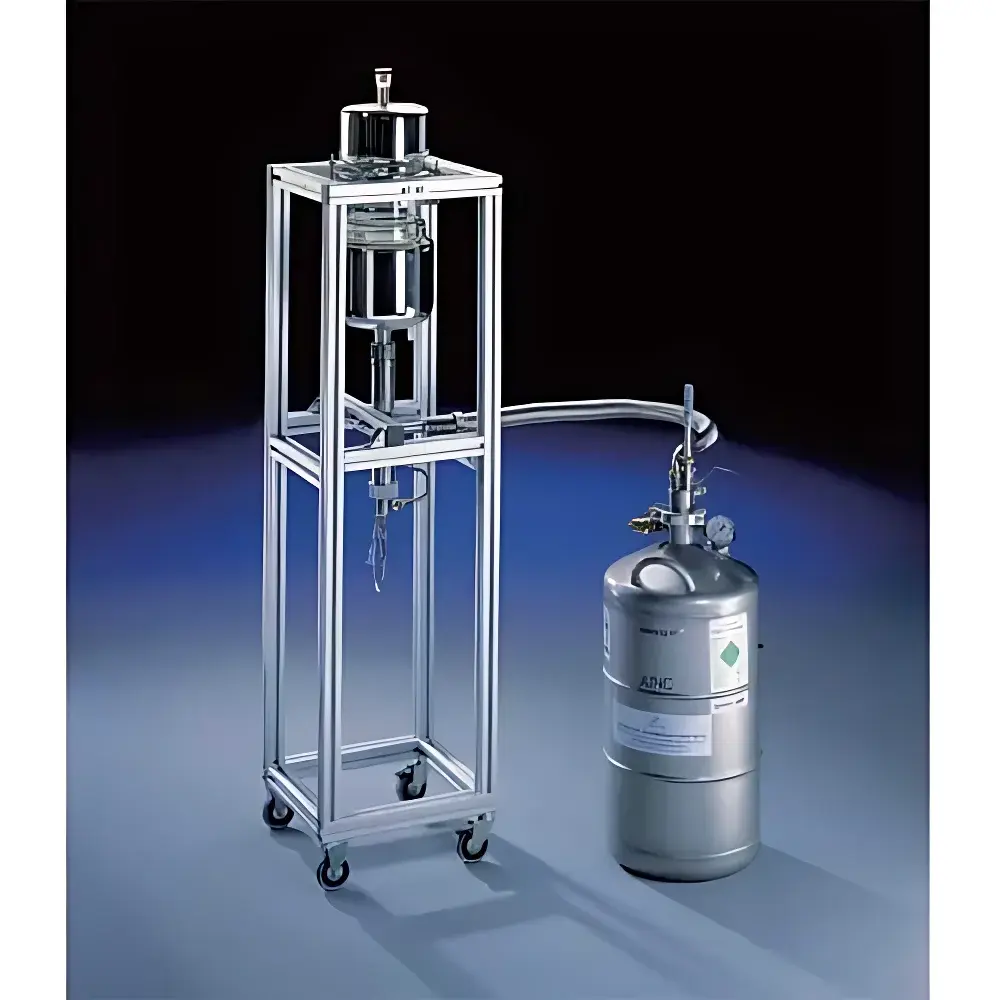

| Model | KALTGAS |
| Temperature Range | −170 °C to +120 °C |
| Temperature Stability | ±0.1 °C (standard configuration) / ±0.2 °C (typical systems I–VI) |
| LN₂ Evaporator Power | 500 W or 1000 W (Jet-type) |
| Heater Power | 400 W to 630 W |
| LN₂ Consumption | 0.8 L/h to 22 L/h |
| Cryogenic N₂ Delivery Line | V2A stainless steel, 1.5–1.8 m, flexible, vacuum-insulated |
| Connection to LN₂ Dewar | KF NW 50 |
| Reactor Vessel | 2 L total / 1.5 L usable volume, vacuum-jacketed with sight strip |
| Reactor Lid | Three NS 29/32 ports (central + two lateral) |
| Frame Material | Anodized aluminum |
| Compliance | Designed for GLP-compliant laboratory environments |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | BR-4000 |
| Vessel Capacity | 4 L |
| Maximum Operating Pressure | 150 bar (2175 psig) |
| Maximum Design Temperature | 300 °C (PTFE-lined: 230 °C) |
| Construction Material | ASTM A240 UNS S31603 Ti-stabilized stainless steel (1.4571) or Hastelloy® C-276 |
| Sealing System | Quick-release clamp with LC-KEY safety interlock |
| Stirring Configuration | Top-driven magnetic coupling seal with optional bottom-mounted magnetic stirrer for smaller volumes |
| Pressure Relief | Certified rupture disk (standard), optional pressure relief valve, pressure transducer, and vent valve |
| Temperature Control | Integrated heating mantle (CHM-4000) or oil-jacketed heating/cooling system (CTM-4000) |
| Compliance | ASME BPVC Section VIII Div. 1 design basis |
| Sealing Materials | PTFE (≤230 °C), FFKM (≤300 °C) |
| Accessories | Constant-pressure addition funnel, high-pressure syringe pump, sampling valve, thermowell, pressure gauge, digital controller interface |
| Brand | ChemTron |
|---|---|
| Origin | Germany |

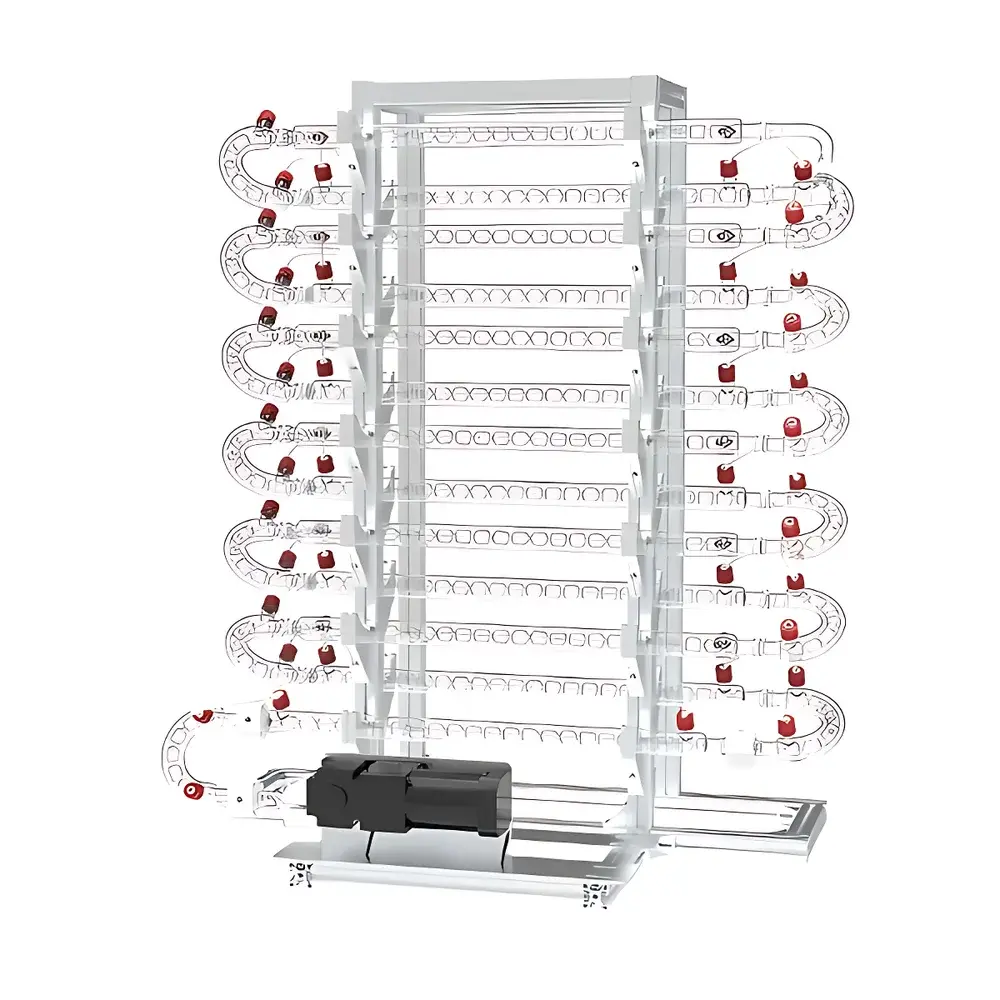

| Model | CC15 Lite |
| Reactor Volume | 1.25 L |
| Total Length | 7 m |
| Nominal Flow Rate | 40 mL/min |
| Typical Residence Time | 30 min |
| Dimensions (W×D×H) | 1110 × 800 × 1010 mm |
| Tube Diameter | DN15 |
| Temperature Control | External Sleeve/Optional Jacketed Bend |
| Compliance | Designed for GLP-compliant lab-scale process development |
| Sample Compatibility | Solid–liquid–gas multiphase systems |
| Interface Options | Integrated ports for PAT tools (e.g., inline Raman, ATR-FTIR, FBRM), multi-point sampling, and auxiliary feed modules |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | KALTGAS TG-RD |
| Vessel Capacity | 2 L (1.5 L usable) |
| Temperature Range | −170 °C to +120 °C |
| Temperature Stability | ±0.1 °C |
| Cooling Medium | Liquid Nitrogen (LN₂) |
| LN₂ Consumption | 2.2–22 L/h |
| Vaporization Heater Power | 500 W |
| Heating Power | 400 W |
| Pressure Rating | High-Pressure Compatible |
| Construction Materials | V2A Stainless Steel Tubing (1.5 m flexible), Aluminum Frame |
| Interface | KF NW 50 LN₂ Tank Connection |
| Compliance | Designed for GLP/GMP-aligned lab environments, compatible with ASTM E2869 and ISO 17025 traceability frameworks |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | SPG |
| Capacity | 12–200 L |
| Vessel Material | Borosilicate Glass 3.3 (DIN ISO 3585) |
| Maximum Operating Pressure | Up to 6 bar (g) |
| Vacuum Rating | Down to -0.9 bar (absolute) |
| Jacket Type | Double-walled glass jacket for heating/cooling media |
| Standard Flange Interface | ISO-KF / DIN 28178 (ground-glass joints: 45/50, 24/40, DN200/DN300/DN400) |
| Stirring Options | Digital-controlled high-torque drive (up to 120 N·cm) or AC motor drive |
| Optional Thermal Management | Multi-channel oil circulation unit with independent temperature control per port |
| Structural Frame | Modular stainless steel support frame with leveling feet and integrated utility routing |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | VR-10L / VR-20L / VR-30L / VR-50L |
| Material | ASTM A240 316L stainless steel |
| Max Operating Temperature | 200 °C |
| Max Working Pressure | 5 bar (g) |
| Vessel Capacity | 10–50 L |
| Jacketed | Yes |
| Stirring Speed Range | 20–1800 rpm |
| Sealing | Dual-face mechanical seal with PTFE/Viton/FFKM O-rings |
| Heating/Cooling | Compatible with JULABO thermostatic circulators |
| Connection Options | 7 standardized flanged ports per vessel |
| Compliance | Designed per PED 2014/68/EU Annex I essential safety requirements for pressure equipment |
| Brand | ChemTron |
|---|---|
| Origin | USA |
| Model | NR-20L, NR-30L, NR-50L |
| Vessel Capacity | 20 L, 30 L, 50 L |
| Design Pressure | up to 20 bar |
| Maximum Operating Temperature | 200 °C or 250 °C (dependent on seal material) |
| Construction Material | 316 stainless steel (standard) |
| Jacketed | Yes |
| Jacket Pressure Rating | 3 bar |
| Jacket Volume | ≈5.3 L / ≈15.8 L / ≈20.0 L |
| Bottom Drain Valve | Standard |
| Sealing Options | Viton® (FKM), PTFE, Kalrez® (FFKM) |
| Magnetic Coupling | RV-400 series |
| Standard Fittings | 7 total ports per lid (including 1× central magnetic drive port, 1× thermowell, 1× rupture disc assembly, 1× vent valve, 2× 6 mm ports for heating/cooling coils, 3× 8 mm auxiliary ports) |
| Handle-equipped lid | Yes |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | VPFR |
| Vessel Material | Borosilicate Glass 3.3 (Duran®/Schott®) |
| Operating Pressure Range | Up to 2.4 bar (35 psig) at 100 °C |
| Vacuum Capability | Down to ≤10 mbar (absolute) |
| Available Volumes | 150–6000 mL |
| Standard Flange Sizes | 60 mm (≤600 mL), 100 mm (1000–2000 mL), 150 mm (3000–6000 mL) |
| Bottom Port Thread | #50 (≤600 mL), #80 (≥1000 mL) |
| Filter Disc | Sintered Glass, Certified Pore Sizes (e.g., 10–100 µm), ASTM E128-compliant testing |
| Safety System | Integrated Pressure Relief Assembly with Burst Disc Rated at 2.4 bar |
| Thermal Integration | Compatible with Julabo heating circulators and PID-controlled temperature management systems |
| Brand | ChemTron |
|---|---|
| Origin | Germany |

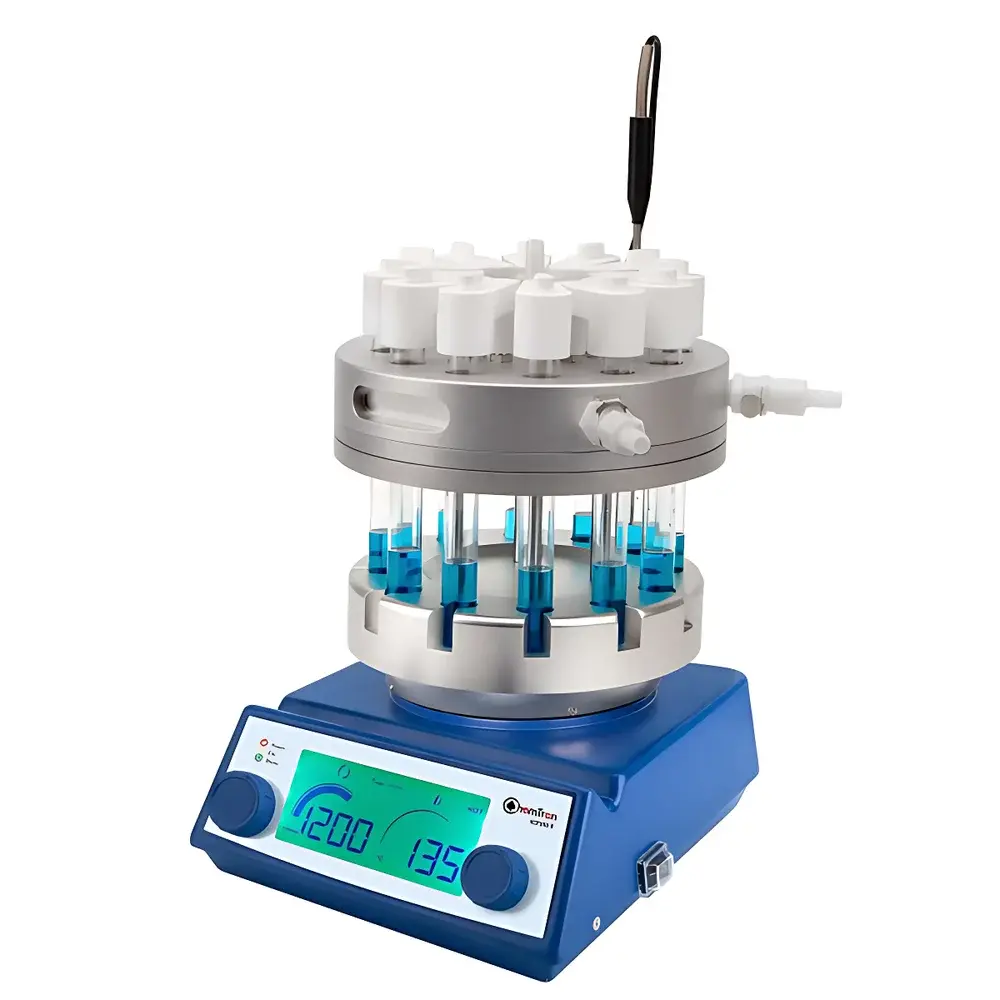

| Model | PRS-12 |
| Temperature Range | RT+5 to 180 °C |
| Temperature Control Accuracy | ±0.5 °C |
| Number of Reaction Positions | 12 |
| Reaction Vessel Capacity | 12 × 20 mL |
| Vacuum Level | ≥20 mbar |
| Stirring Speed | 100–600 rpm |
| Wetted Materials | Borosilicate Glass 3.3 / PTFE |
| Reflux Capability | Yes |
| Inert Atmosphere Compatibility | Yes |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | NR-20L |
| Vessel Capacity | 20 L |
| Construction Material | Stainless Steel (AISI 316) |
| Maximum Operating Pressure | 20 bar |
| Maximum Temperature | 200 °C (with FKM seal) / 250 °C (with FFKM seal) |
| Internal Diameter | 309 mm |
| Internal Height | 425 mm |
| Jacket Volume | ≈5.3 L |
| Jacket Max Pressure | 3 bar |
| Bottom Discharge Valve | Standard |
| Magnetic Coupling | RV-400 |
| Sealing Options | FKM (Viton®), PTFE, FFKM (Kalrez®) |
| Standard Ports | 7 total (1× central for magnetic drive, 1× thermowell, 1× rupture disc, 1× vent valve, 2× 6 mm for heating/cooling coils, 3× 8 mm auxiliary) |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | VR-500 / VR-1000 / VR-2000 / VR-5L |
| Material | ASTM A240 316L stainless steel |
| Max Operating Pressure | ≤ 5 bar (g) |
| Max Operating Temperature | 200 °C |
| Vessel Capacity | 500 mL / 1000 mL / 2000 mL / 5000 mL |
| Jacketed Option | Yes |
| Heating Method | Electric heating mantle or external thermostatic circulator (e.g., JULABO) |
| Stirring | Top-mounted mechanical stirrer, 20–1800 rpm |
| Sealing | Conical flange with PTFE / FKM / FFKM O-rings |
| Stirrer Seal | Single- or double-end face mechanical seal |
| Flange Standards | DN89 / DN102 / DN133 / DN153 |
| Central Port | M38×2 (VR-500/1000/2000), M38×1.5 (VR-5L) |
| Additional Ports | 1/4″ and 1/2″ NPT |
| Mounting | Manual quick-clamp frame (M1/M2) or motorized lift stand (M3) |
| Compliance | Designed per PED 2014/68/EU Annex I essential safety requirements for Group 2 fluid equipment |
| Brand | Julabo-Chemtron |
|---|---|
| Origin | Germany |

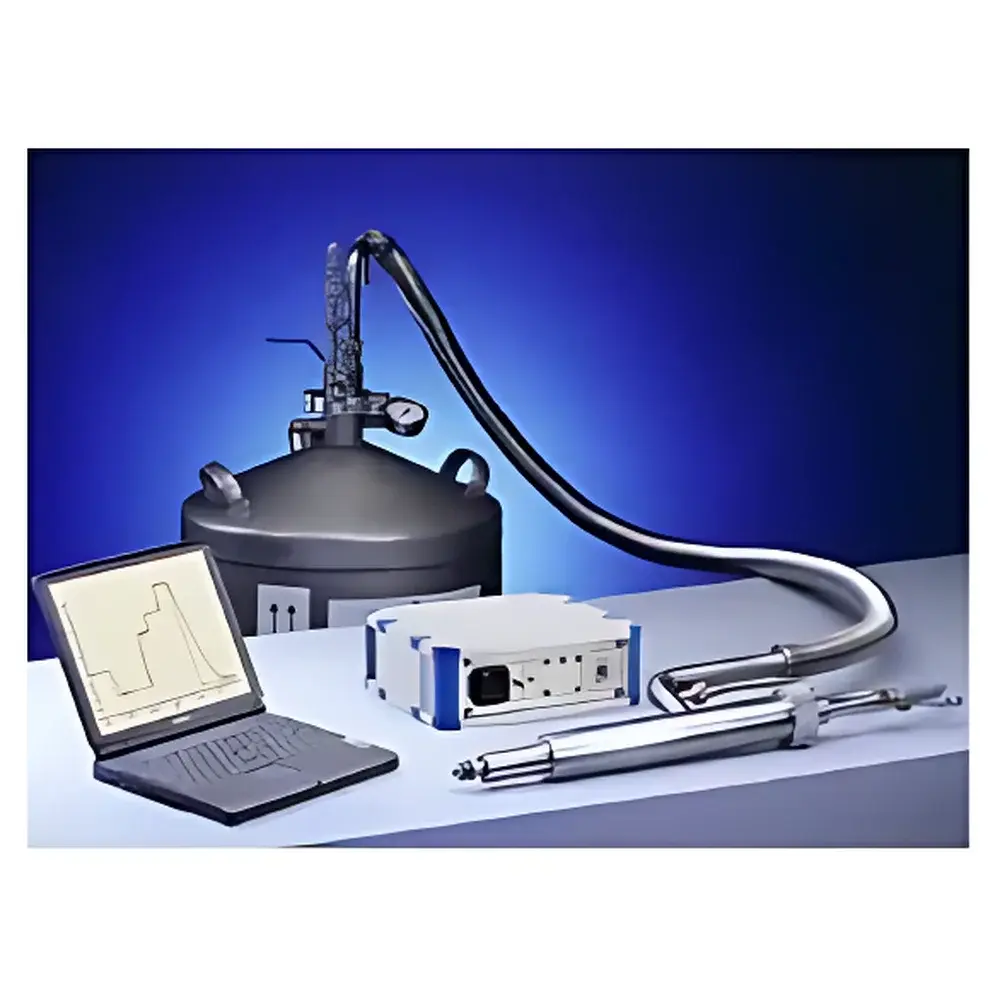

| Model | TG-LKF |
| Cooling Medium | Evaporated Liquid Nitrogen (LN₂) |
| Minimum Temperature | −180 °C |
| Temperature Control Accuracy | ±0.2 °C (SL5 Controller), up to ±0.1 °C with optimized parameters |
| Heating Power | 630 W |
| Vaporizer Power | 500 W or 1000 W (model-dependent) |
| LN₂ Consumption | 1.1–11 L/h (500 W) or 2.2–22 L/h (1000 W) |
| Flexible Cryogenic Gas Line | V2A stainless steel, 1.8 m, vacuum-insulated |
| Connection Interface | KF NW 50 flange + multiple fitting options (male/female thread, clamp, Swagelok® compression, nut-type) |
Show next
