| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | Chem 4 |
| Temperature Range | −30 °C to 180 °C |
| Reaction Positions | 4 |
| Reaction Volume Capacity | 2 mL–400 mL |
| Vessel Compatibility | Borosilicate 3.3 glass or PTFE contact materials |
| Control Interface | Integrated touchscreen panel with embedded calorimetric modeling and real-time data logging |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | CC15 Lite |
| Reactor Volume | 1.25 L |
| Total Length | 7 m |
| Nominal Flow Rate | 40 mL/min |
| Typical Residence Time | 30 min |
| Dimensions (W×D×H) | 1110 × 800 × 1010 mm |
| Tube Diameter | DN15 |
| Temperature Control | External Sleeve/Optional Jacketed Bend |
| Compliance | Designed for GLP-compliant lab-scale process development |
| Sample Compatibility | Solid–liquid–gas multiphase systems |
| Interface Options | Integrated ports for PAT tools (e.g., inline Raman, ATR-FTIR, FBRM), multi-point sampling, and auxiliary feed modules |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | PRS-12 |
| Temperature Range | RT+5 to 180 °C |
| Temperature Control Accuracy | ±0.5 °C |
| Number of Reaction Positions | 12 |
| Reaction Vessel Capacity | 12 × 20 mL |
| Vacuum Level | ≥20 mbar |
| Stirring Speed | 100–600 rpm |
| Wetted Materials | Borosilicate Glass 3.3 / PTFE |
| Reflux Capability | Yes |
| Inert Atmosphere Compatibility | Yes |

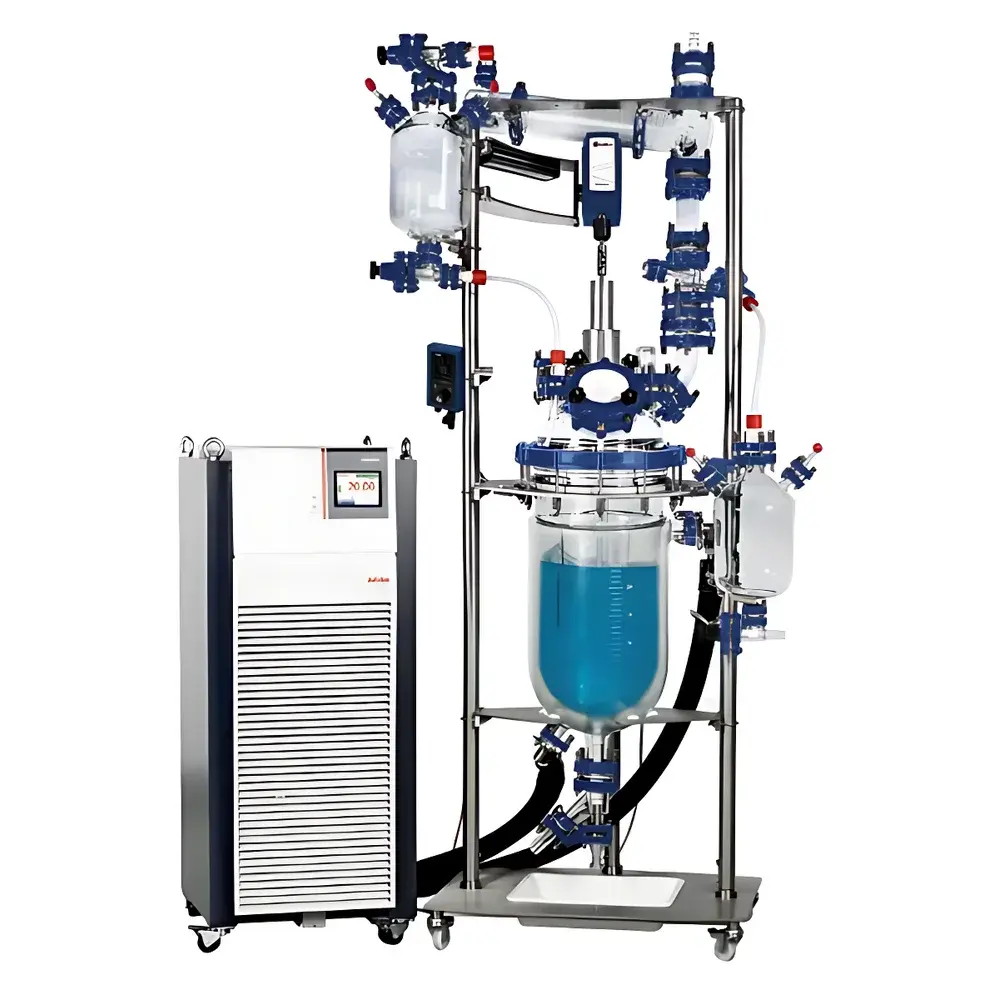

| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | PPG30L |
| Temperature Range | −60 °C to +200 °C |
| Temperature Control Accuracy | ±0.01 °C |
| Reaction Vessel Capacity | 10–100 L |
| Number of Reaction Units | 1 |
| Maximum Continuous Stirring Speed | 500 rpm |
| Short-Term Stirring Speed | 800 rpm |
| Jacket Inlet/Outlet Port Size | DN25 |
| Condenser Surface Area | 0.6 m² (DN50P) |
| Material of Construction | High-Quality Borosilicate Glass (DIN ISO 3585), PTFE, PFA |
| Pressure Rating | −1 to +0.5 bar (gauge) |
| Vessel Opening Diameter (PPG30L) | DN300 |
| Bottom Valve Orifice | 0–25 mm |
| Stirrer Shaft Diameter | 16 mm (Stainless Steel/PTFE-coated) |

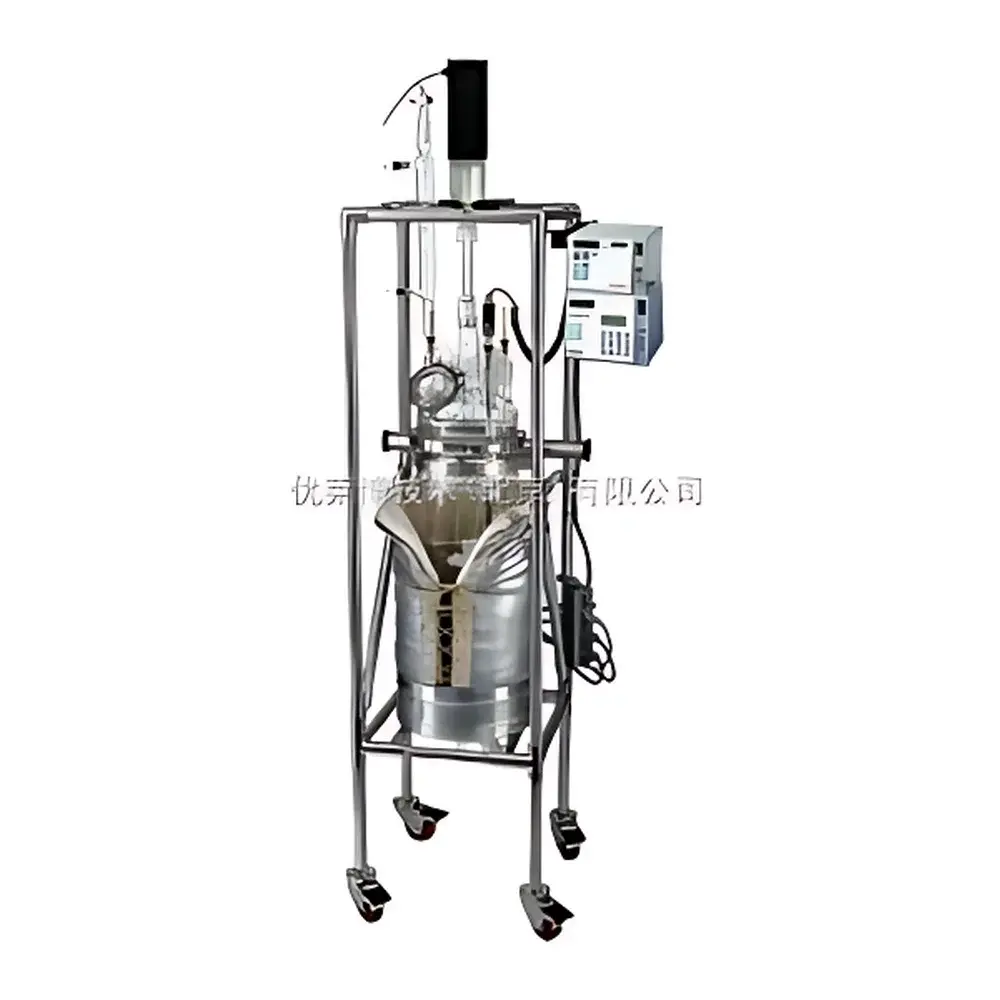

| Brand | ChemTron |
|---|---|
| Origin | USA |
| Model | Pilot-Scale Kit |
| Vessel Capacity | 10–200 L |
| Vessel Materials | Borosilicate Glass, 316L Stainless Steel, Hastelloy®, PTFE-Lined |
| Vessel Configurations | Cylindrical, Spherical, Tubular |
| Jacketing Options | Single-Wall, Single-Jacketed, Double-Jacketed |
| Temperature Control | JULABO Presto Dynamic Temperature Management System |
| Temperature Range | −100 °C to +300 °C (with compatible circulator & bath fluid) |
| Max Operating Temperature (Glass Vessel) | 230 °C |
| Max ΔT (Vessel Wall vs. Contents) | 80 °C |
| Max Pressure (Spherical Lid, Standard Taper) | 5 psi |
| Max Vacuum | 5–200 mmHg (dependent on volume & geometry) |
| Stirring | Top-Mounted High-Torque Mechanical Agitator |
| Software | JULABO EasyTemp Professional & Auto Reactor Central Control Suite |
| User Interface | Integrated LCD Touchscreen + Optional JULABO Wireless Remote (range >100 m) |
| Structural Frame | Modular Stainless Steel with Locking Casters |
| Fluid-Wetted Materials | ASTM E438 Type I, Class A borosilicate glass (e.g., Pyrex®/Duran®) and PTFE |
| Sealing | Precision-Ground ISO KF/ISO-F standard glass joints |
| Drain Options | Bottom discharge valve with chemically resistant elastomeric O-rings (FKM/FFKM/PTFE-composite) |
| Compliance | Designed for GLP/GMP-aligned workflows |
| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | PRS-6 |
| Temperature Range | RT+5 to 180 °C |
| Temperature Control Accuracy | ±0.5 °C |
| Number of Positions | 6 |
| Vessel Capacities | 50 mL / 100 mL / 250 mL (interchangeable) |
| Vacuum Level | ≥20 mbar |
| Stirring Speed | 100–600 rpm |
| Wetted Materials | Borosilicate Glass 3.3 / PTFE |
| Reflux Capability | Yes |
| Inert Gas Compatibility | Yes |

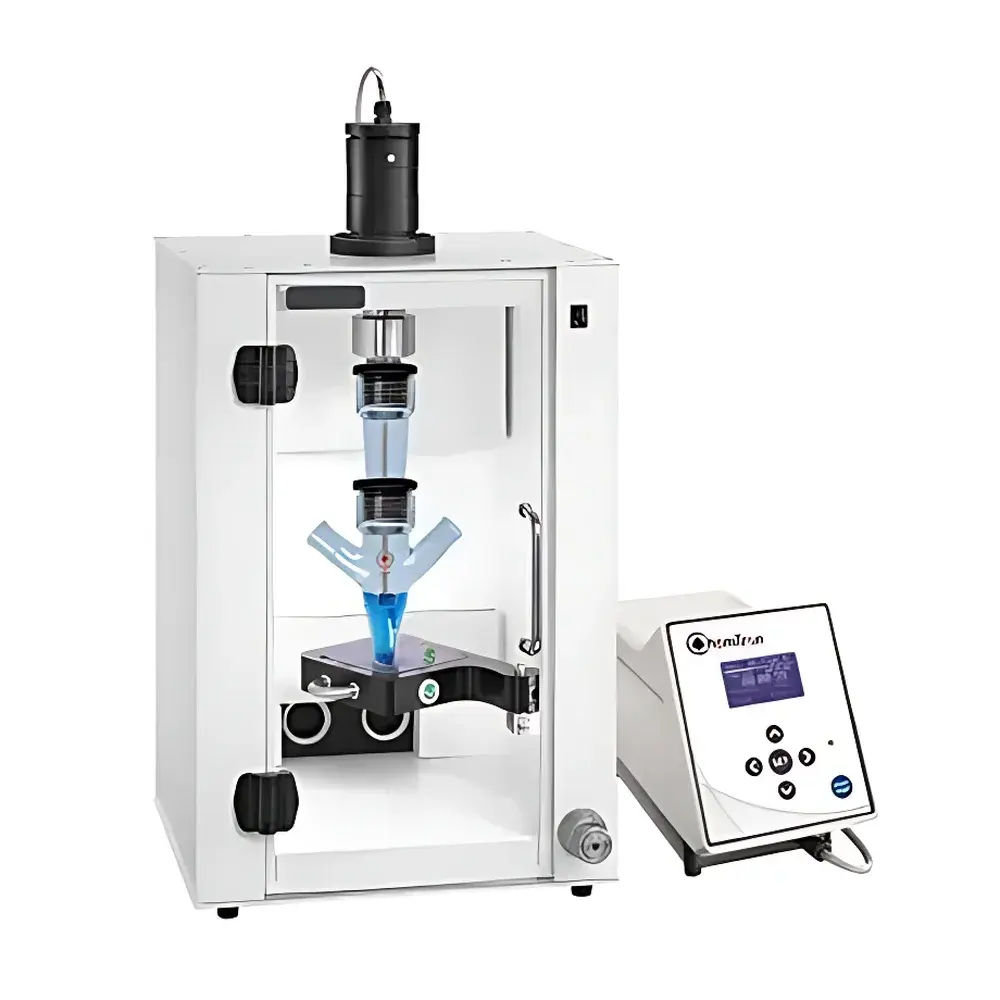

| Brand | ChemTron |
|---|---|
| Origin | Germany |
| Model | UR-1 / UR-2 / UR-3 / UR-4 |
| Reaction Volume | 3–2000 mL |
| Number of Reactor Units | 3 |
| Max. Ultrasonic Output Power | 200 W (UR-1/UR-2) / 400 W (UR-3/UR-4) |
| Transducer Type | UW200 (UR-1/UR-2) / UW400 (UR-3/UR-4) |
| Horn Diameter | 6 mm (UR-1/UR-2) / 19 mm (UR-3/UR-4) |
| Horn Length | 128 mm (UR-1/UR-2) / 132 mm (UR-3/UR-4) |
| Generator Model | GM4200 (UR-1/UR-2) / GM4400 (UR-3/UR-4) |
| Reactor Construction | Single-layer or jacketed borosilicate glass |
| Acoustic Enclosure | Integrated sound-dampening chamber with 20 dB(A) noise reduction |
| Stirring | Top-mounted mechanical stirrer (UR-4 only, 40–2000 rpm) |
| Optional Temperature Control | External recirculating chiller (–25 to +100 °C) |
