| Brand | LINSEIS |
|---|---|
| Origin | Germany |
| Model | TEG-Tester (TEG L34) |
| Temperature Range | Ambient to 300 °C (hot side) / −20 °C to 300 °C (cold side) |
| Sample Diameter | Ø20–60 mm (circular) or 20×20–40×40 mm (rectangular) |
| Thickness Capacity | Up to 25 mm |
| Clamp Force | 2–5 kN (motor-driven) |
| Current Range | 0–3 A DC |
| Voltage Range | 0–12 V DC |
| Voltage Resolution | 1.6 µV |
| Current Resolution | 1 µA |
| Voltage Accuracy | ±0.3 % |
| Current Accuracy | ±0.3 % |
| Temperature Accuracy | ±0.1 °C |
| Thermocouple Type | E-type |
| Reference Block Materials | Aluminum, Brass, Copper (custom options available) |
| Heating Power | 1.0 kW |
| Cooling Capacity | 1.0 kW at 10 °C / 0.5 kW at −20 °C |
| Pump Flow Rate | 27 L/min at 0.7 bar |
| Reservoir Volume | 3.8–7.5 L |
| Refrigerant | R449A |
| Sampling Interval | <10 ms |
| Operating Modes | CC, CV, FOC, MPPT, P&O |
| Heat Dissipation Capacity | 36 W |
| Brand | LINSEIS |
|---|---|
| Origin | Germany |

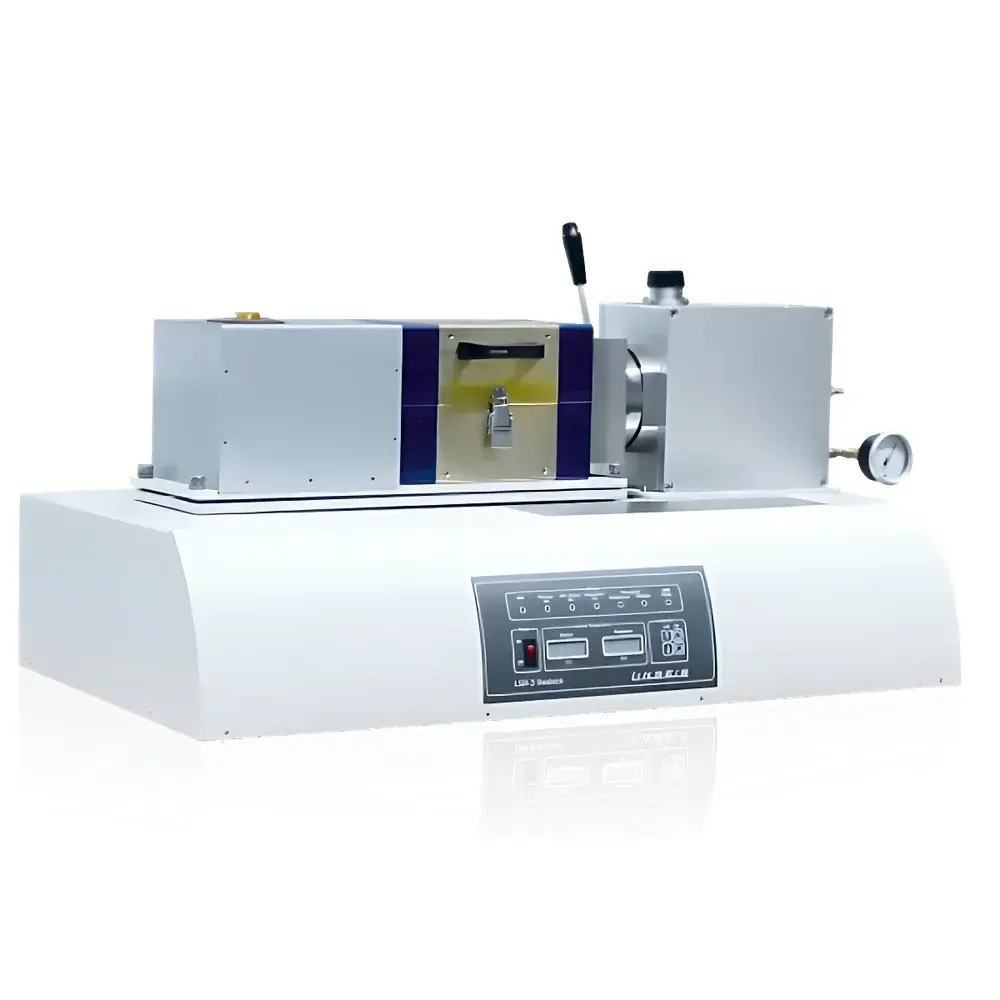

| Model | LZT-Meter (LZT L33) |
| Thermal Conductivity Measurement Method | Laser Flash Analysis (LFA) |
| Thermal Diffusivity Range | 0.01 – 1000 mm²/s |
| Laser Source | Nd:YAG (25 J/pulse) |
| Pulse Width | 0.01 – 5 ms |
| Temperature Range | –100 °C to 1100 °C |
| Atmosphere Options | Inert, Reducing, Oxidizing, Vacuum |
| Seebeck Coefficient Range | 1 µV/K – 250 mV/K (Static DC Method) |
| Electrical Conductivity Range | 0.01 – 2×10⁵ S/cm |
| Sample Geometry | Disc-shaped (10, 12.7, 25.4 mm diameter) or Cylindrical/Rectangular (2–5 mm × 6–23 mm) |
| Detection | InSb / MCT Detectors |
| Furnace Options | IR Furnace (RT–800 °C / 1100 °C), Cryo Furnace (–100 °C to 500 °C), High-Temp Furnace (RT–1100 °C) |
| Measurement Principles | Laser Flash Analysis (ASTM E1461), Static DC Seebeck & Four-Terminal Resistivity, Harman Method (Direct ZT), AC Impedance Spectroscopy (TEG Modules) |
| Brand | LINSEIS |
|---|---|
| Origin | Germany |

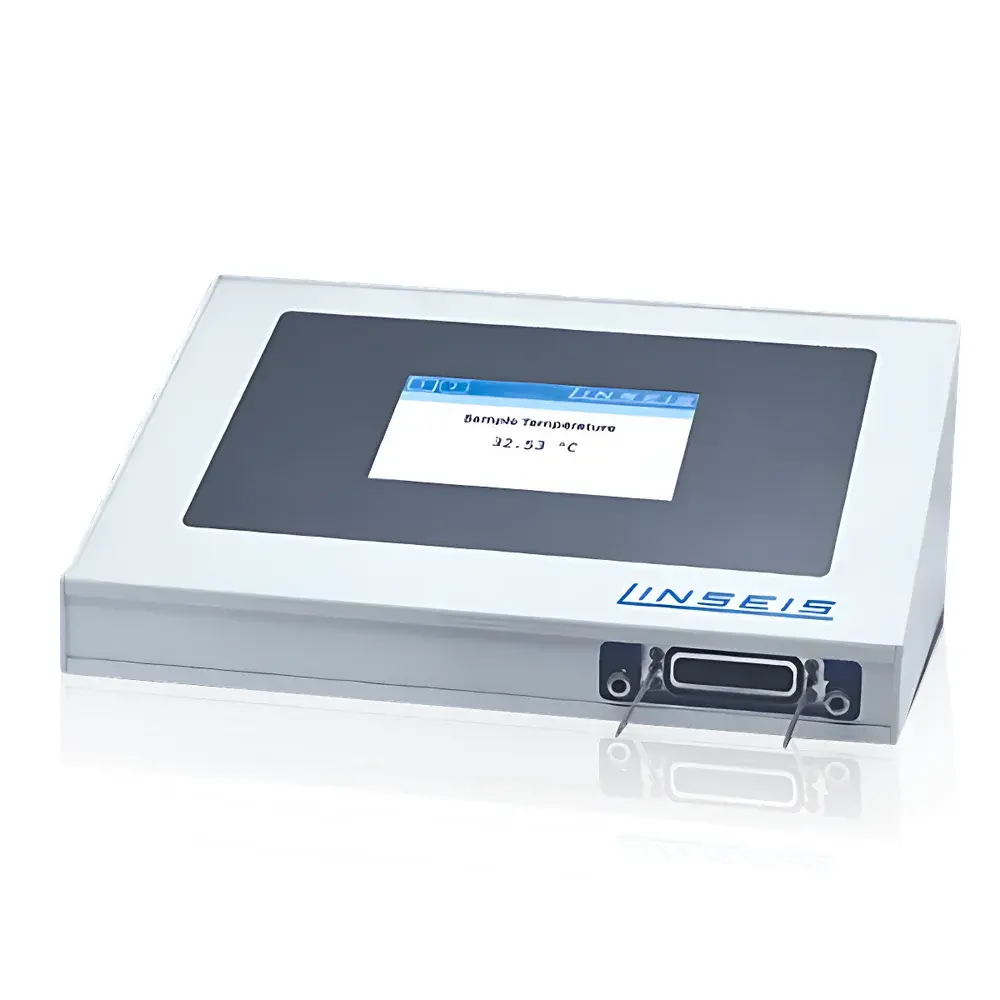

| Model | LSR-1 (LSR L32) |
| Temperature Range (Base Unit) | RT to 200 °C |
| Extended Low-Temp Range (with LN₂ Accessory) | –160 °C to 200 °C |
| Extended High-Temp Resistivity Range (with HT Probe) | up to 600 °C |
| Seebeck Coefficient Range | 0–2.5 mV/K |
| Seebeck Voltage Range | ±8 mV |
| Electrical Resistance Range | 10 nΩ |
| Voltage Sensitivity | 0.5 nV/K |
| Temperature Accuracy | ±1.5 °C or 0.0040· |
| Heating Rate | 0.01–100 K/min |
| Atmosphere Options | Inert, Reducing, Oxidizing, Vacuum |
| Recommended Purge Gas | Low-pressure He |
| Sample Dimensions (Seebeck) | 8–25 mm (L) × 2–25 mm (W) × ≤2 mm (T) |
| Sample Dimensions (Resistivity) | 18–25 mm (L) × 18–25 mm (W) × ≤2 mm (T) |
| Measurement Principles | Van der Pauw method (resistivity), Static DC method & Slope-based Seebeck measurement |
| Brand | LINSEIS |
|---|---|
| Origin | Germany |

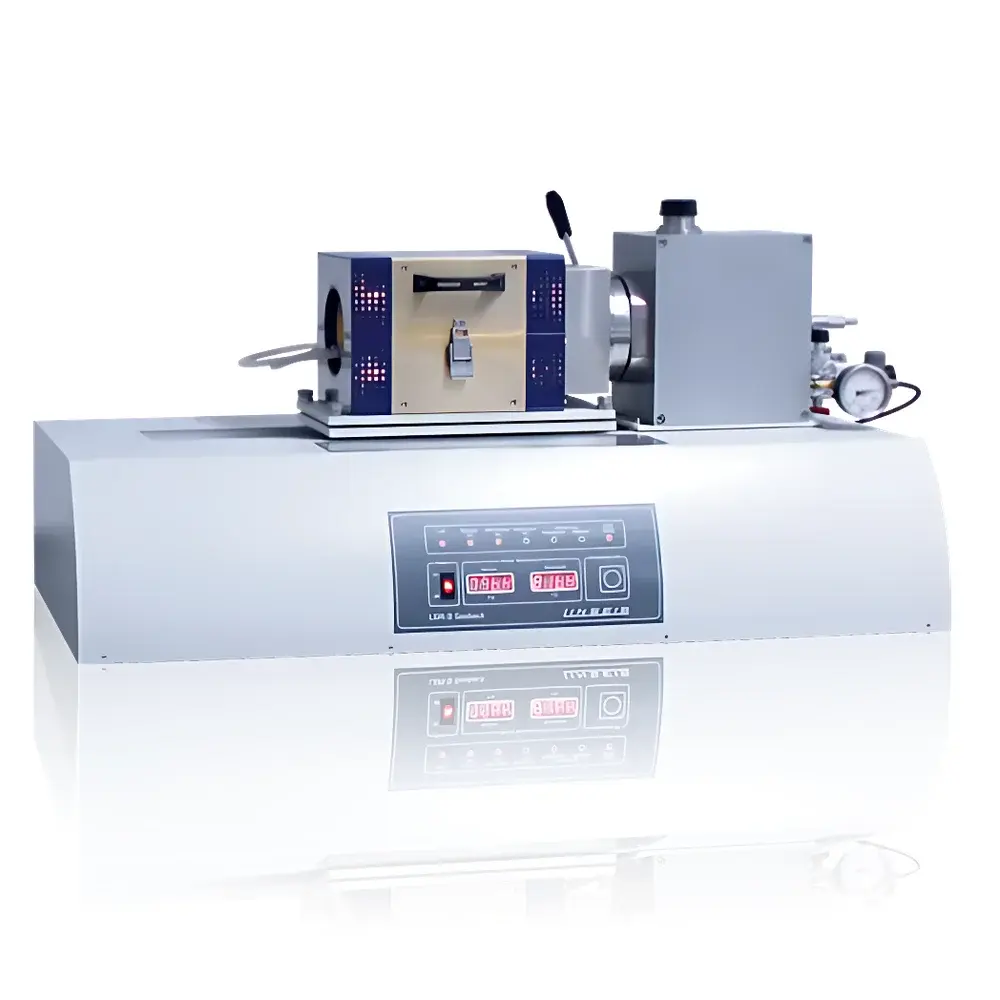

| Model | LSR-3 (LSR L31) |
| Temperature Range | –100 °C to 1500 °C (configurable via interchangeable furnace modules) |
| Measurement Methods | Static DC Seebeck method / Slope method (Seebeck) |
| Seebeck Range | 1 µV/K to 5000 µV/K |
| Electrical Conductivity Range | 0.01 to 2 × 10⁵ S/cm |
| Furnace Options | IR furnace (RT–800 °C / RT–1100 °C), resistance furnace (RT–1500 °C), cryo furnace (–100 °C to 500 °C) |
| Atmosphere Compatibility | Inert, reducing, oxidizing, vacuum (recommended: low-pressure He) |
| Electrode Materials | Ni (–100 °C to 500 °C), Pt (–100 °C to 1500 °C) |
| Sample Geometry Support | Bulk rods (2–5 mm² cross-section, ≤23 mm length, ≤6 mm diameter), discs (10/12.7/25.4 mm Ø), thin films (with optional film adapter) |
| Thermocouple Types | K, S, C |
| Inter-thermocouple Spacing | 4 mm, 6 mm, 8 mm |
| Mandatory Cooling | Integrated water-cooling system |
| Optional Modules | Hammar Method ZT module (LSR-4), Impedance Spectroscopy for TEGs, Low-Temperature Cryo Kit (LN₂-cooled), High-Resolution Camera-Assisted Resistance Imaging, High-Resistance Adapter |
| Brand | LINSEIS |
|---|---|
| Origin | Germany |
| Model | LFA L52 |
| Measurement Principle | Laser Flash Analysis (LFA) |
| Thermal Conductivity Range | 0.1–4000 W/(m·K) |
| Thermal Diffusivity Range | 0.01–2000 mm²/s |
| Temperature Range | −125 °C to 2800 °C |
| Sample Forms | Solid, Powder, Liquid |
| Sample Geometry | Circular (Ø 6, 10, 12.7, 25.4 mm), Square (10×10 mm, 20×20 mm) |
| Sample Thickness | 0.1–6 mm |
| Pulse Source | User-replaceable Nd:YAG laser |
| Detection | Non-contact IR detection (InSb or MCT detector) |
| Data Acquisition Rate | 2 MHz |
| Atmosphere | Inert or reducing |
| Auto-sampler Options | 3-, 6-, or 18-position |
| Furnace Options | Multiple modular furnaces (e.g., cryo, graphite, SiC, high-temp metal) |
| Heating Rate | 0.01–100 °C/min (furnace-dependent) |
| Compliance | ASTM E1461, ISO 22007-4, DIN 30905 |
| Brand | LINSEIS |
|---|---|
| Origin | Germany |
| Model | TIM-Tester (TIM L58) |
| Measurement Principle | Laser Flash Method (ASTM D5470–17 compliant) |
| Sample Capacity | Single sample per test |
| Test Environment | Ambient temperature operation |
| Accuracy | ±0.1% at 50% stroke, ±0.25% at 100% stroke |
| Thermal Conductivity Range | 0.1–50 W/(m·K) (extendable upon configuration) |
| Sample Forms | Solid, powder, paste, liquid, adhesive, foil |
| Sample Dimensions | Circular Ø20/25/40 mm |
| Thermal Resistance Range | 0.01–8 K/W |
| Temperature Range | −30 °C to 300 °C (configurable) |
| Contact Pressure | 0–16 MPa (dependent on sample area) |
| Cooling System | External water-cooling unit |
| Brand | LINSEIS |
|---|---|
| Origin | Germany |
| Model | TF-LFA L54 |
| Sample Size Range | 2 mm × 2 mm to 25 mm × 25 mm (arbitrary shape) |
| Thin-Film Thickness Range | 10 nm – 20 µm (sample-dependent) |
| Temperature Range | RT, RT–200 °C, or RT–500 °C |
| Atmosphere | Inert, oxidative, reductive, or vacuum down to 10⁻⁴ mbar |
| Thermal Diffusivity Range | 0.01 – 1200 mm²/s (sample-dependent) |
| Pump Laser | 405 nm, 300 mW, modulation frequency up to 200 MHz |
| Probe Laser | CW 532 nm, 25 mW |
| Detector | Si-based photodetector, active diameter 0.2 mm, bandwidth DC–400 MHz |
| Software | Integrated multilayer thermal modeling suite for extraction of κ, α, Cᵥ, η, and TBC |
| Brand | LINSEIS |
|---|---|
| Origin | Germany |
| Model | LFA L51 |
| Measurement Principle | Laser Flash Method (LFA) |
| Temperature Range | −100 °C to 1250 °C |
| Thermal Diffusivity Range | 0.01–2000 mm²/s |
| Thermal Conductivity Range | 0.1–4000 W/(m·K) |
| Accuracy | ±2.4% (typical for homogeneous solids) |
| Pulse Source | Adjustable Xenon Flash Lamp (up to 15 J/pulse) |
| Atmosphere Control | Inert, Reducing, Vacuum |
| Sample Capacity | Up to 18 samples (auto-sampler) |
| Sample Geometry | Circular (Ø 3–25.4 mm), Square (10×10 mm or 20×20 mm) |
| Sample Thickness | 0.1–6 mm |
| Heating Rate | 0.01–100 °C/min |
| Detector Types | InSb (RT–1250 °C), CMCT (−100–500 °C) |
| Data Acquisition Rate | 2.5 MHz |
| Sample Compatibility | Solids, Powders, Pastes, Liquids |
| Furnace Options | IR heating, Resistive heating (graphite, SiC, Al₂O₃, metal crucibles) |
| Interface | USB |
| Software Compliance | Supports ASTM E1461, ISO 22007-4, and GLP/GMP audit trails (21 CFR Part 11 optional) |
| Brand | LINSEIS |
|---|---|
| Origin | Germany |

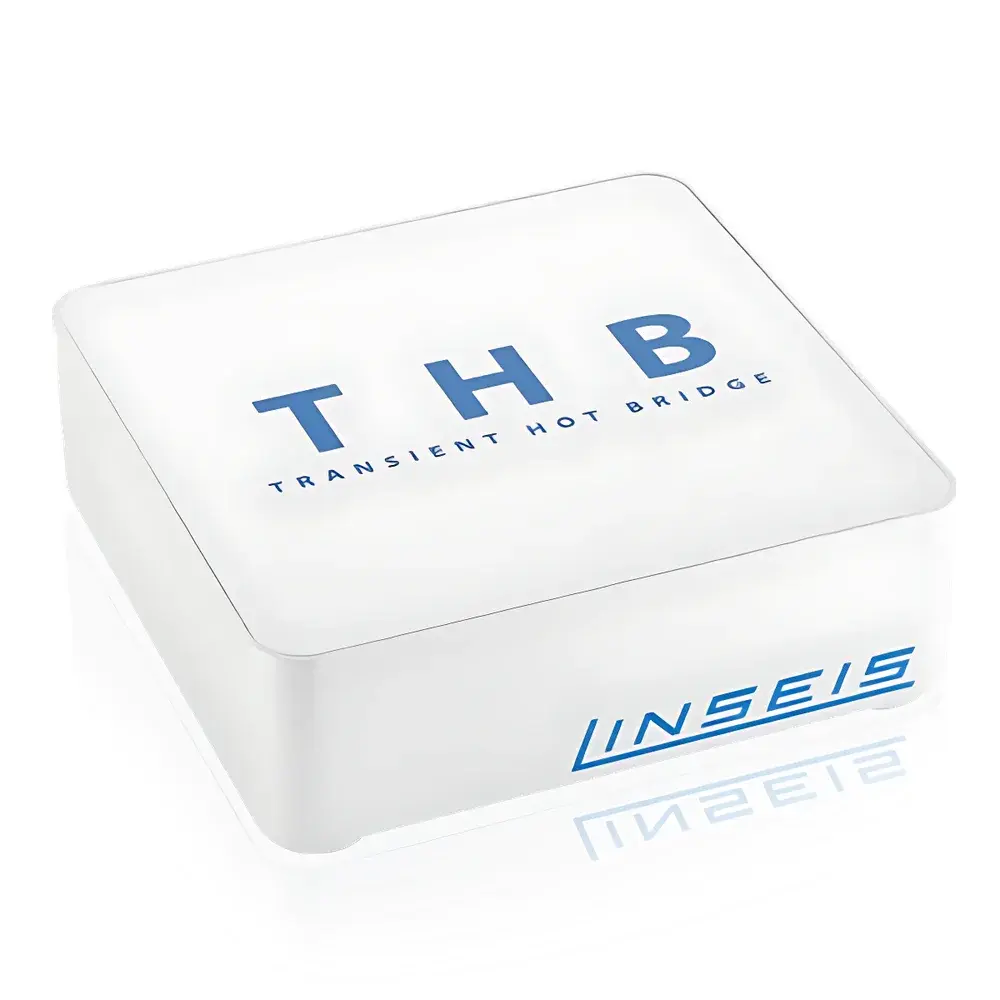

| Model | THB L56 |
| Thermal Conductivity Range | 0.005–1800 W/(m·K) |
| Sample Types | Solids, Powders, Gels, Liquids |
| Standards Compliance | ASTM D5930-01, ISO 22007-2, ASTM D5334 |
| Measurement Principle | Transient Hot Bridge (THB) |
| Temperature Range (Sensor) | −150 to 700 °C |
| Typical Measurement Time | 1–10 min (solids), 1–120 s (liquids) |
| Specific Heat Capacity Range | 0.1–5 J/(g·K) |
| Thermal Diffusivity Range | 0.05–1200 mm²/s |
| Minimum Sample Size | 1.5 × 1.5 × 2 mm |
| Sensor Materials | Polyimide, Ceramic |
| Brand | LINSEIS |
|---|---|
| Origin | Germany |
| Model | TFA L59 |
| Thermal Conductivity Range | 0.05–200 W/(m·K) (3ω method, in-plane configuration) |
| Temperature Range | –160 °C to 280 °C |
| Vacuum Level | 1×10⁻⁴ mbar |
| Sample Thickness Compatibility | 5 nm – 25 µm |
| Electrical Conductivity Range | 0.05–1×10⁶ S/cm (Van der Pauw four-point probe) |
| Seebeck Coefficient Range | 5–2500 µV/K |
| Optional Hall Module | Magnetic Field up to 1 T (electromagnet) or 0.5 T (permanent magnet) |
| Brand | LINSEIS |
|---|---|
| Origin | Germany |
| Model | HFM L57 |
| Measurement Principle | Heat Flow Method (Steady-State) |
| Thermal Conductivity Range | 0.001–0.5 W/(m·K), extendable to 2.5 W/(m·K) |
| Temperature Range | −35 °C to 90 °C |
| Sample Dimensions (max) | 600 mm × 600 mm × 200 mm |
| Thickness Resolution | μm-level via integrated potentiometer |
| Temperature Resolution | 0.0001 °C |
| Contact Pressure | up to 1.3 kPa (optional 25 kPa) |
| Thermal Resistance Range | 0.036–9.0 m²·K/W |
| Compliance | ASTM C518, ISO 8301, JIS A1412, DIN EN 12664, DIN EN 12667 |
| Brand | LINSEIS |
|---|---|
| Origin | Germany |
| Model | LFA L52 Nuclear |
| Measurement Principle | Laser Flash Analysis (LFA) |
| Thermal Conductivity Range | 0.1 – 4000 W/(m·K) |
| Thermal Diffusivity Range | 0.01 – 2000 mm²/s |
| Temperature Range | −125 °C to 2800 °C (configurable furnace options) |
| Laser Source | Nd:YAG, 25 J/pulse |
| Detector Type | Non-contact IR (InSb or MCT) |
| Atmosphere | Inert or reducing (recommended) |
| Sample Geometry | Circular (Ø 6, 10, 12.7, 25.4 mm) or square (10 × 10 mm, 20 × 20 mm) |
| Sample Thickness | 0.1 – 6 mm |
| Auto-sampler Options | 3-, 6-, or 18-position |
| Furnace Liner Materials | Metal / SiC / Graphite |
| Data Acquisition Rate | 2 MHz |
| Interface | USB |
| Heating Rate | 0.01 – 100 °C/min (furnace-dependent) |
