| Brand | Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | OEM Manufacturer |
| Instrument Type | Hydraulic Stoppering Freeze Dryer |
| Application Scope | Pilot-Scale |
| Lyophilization Area | 1.08 m² |
| Ultimate Vacuum (Empty Chamber) | ≤5 Pa |
| Ice Capacity (24 h) | 15 kg/24 h |
| Cold Trap Temperature (Empty) | ≤−70 °C |
| Overall Dimensions (L×W×H) | 1500 × 1100 × 1640 mm |
| Brand | Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Shelf-Type Freeze Dryer |
| Application Scale | Pilot-Scale |
| Lyophilization Area | 0.21 m² |
| Ultimate Vacuum (Empty) | ≤5 Pa |
| Condensate Capacity (24 h) | 4 kg/24 h |
| Cold Trap Temperature (Empty) | ≤−70 °C |
| Dimensions (L×W×H) | 750 × 640 × 1200 mm |
| Brand | Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Manifold Freeze Dryer with Hydraulic Press Cap (Optional) |
| Application | Laboratory-Scale Lyophilization |
| Freeze-Drying Area | 0.12 m² |
| Ultimate Vacuum (Empty Chamber) | ≤5 Pa |
| Condenser Capacity | 3 kg/24 h |
| Cold Trap Temperature (Empty) | ≤−56°C |
| Dimensions (L×W×H) | 590 × 460 × 400 mm + 440 mm (Chamber Height) |
| Compressor | Imported High-Efficiency Refrigeration Compressor |
| Control Interface | 7-inch Full-Color TFT Touchscreen |
| Heating System | 36 V Silicone Rubber Heated Shelf with PID Temperature Control |
| Chamber Material | One-Piece Molded Polycarbonate (Optically Transparent, Corrosion-Resistant, Hermetic Seal) |
| Manifold Ports | 8 Standard Ø24 mm Neck Ports (Compatible with ASTM D3222 / ISO 8536-4 Vials) |
| Brand | Ningbo Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application Scale | Pilot-Scale |
| Lyophilization Area | 0.21 m² |
| Ultimate Vacuum (No Load) | ≤5 Pa |
| Condensate Capacity (24 h) | 4 kg/24 h |
| Cold Trap Temperature (No Load) | ≤−70 °C |
| Dimensions (L×W×H) | 750 × 640 × 1200 mm |
| Brand | Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Manifold Freeze Dryer |
| Application | Laboratory-Scale Lyophilization |
| Shelf Area | 0.08 m² |
| Ultimate Vacuum | ≤5 Pa |
| Condensate Capacity (24 h) | 4 kg/24 h |
| Cold Trap Temperature (No Load) | ≤−56 °C |
| Dimensions (L×W×H) | 600 × 450 × 720 mm + 440 mm (Bell Jar Height) |
| Brand | Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | OEM Manufacturer |
| Instrument Type | Hydraulic Stoppering Freeze Dryer |
| Application Scope | Pilot-Scale |
| Lyophilization Area | 0.32 m² |
| Ultimate Vacuum (Empty Chamber) | ≤5 Pa |
| Ice Capacity (24 h) | 6 kg/24 h |
| Cold Trap Temperature (Empty) | ≤−70 °C |
| Dimensions (L×W×H) | 1100 × 760 × 1300 mm |
| Brand | Ningbo Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Region | Domestic (China) |
| Model | SCIENTZ-12N/A |
| Instrument Type | Standard Shelf-Type (Bell-Jar Configuration) |
| Scale | Pilot-Scale |
| Lyophilization Area | 0.12 m² |
| Ultimate Vacuum | ≤5 Pa |
| Condensate Capacity (24 h) | 4 kg/batch |
| Cold Trap Temperature | ≤−56 °C |
| Dimensions (W×D×H) | 600 mm × 450 mm × 720 mm + 440 mm (cold trap height) |
| Brand | Ningbo Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Equipment Type | Standard Shelf-Type Freeze Dryer |
| Application Scale | Pilot-Scale |
| Lyophilization Area | 0.21 m² |
| Ultimate Vacuum (Empty Chamber) | ≤5 Pa |
| Condensate Capacity (24 h) | 4 kg/24 h |
| Cold Trap Temperature (Empty) | ≤−70 °C |
| Dimensions (L×W×H) | 750 × 640 × 1200 mm |
| Brand | Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Shelf-Type (Press-Seal) Freeze Dryer |
| Application Scope | Laboratory Use |
| Lyophilization Area | 0.12 m² |
| Ultimate Vacuum | ≤5 Pa (at no-load) |
| Condensate Capacity | 3 kg/24 h |
| Cold Trap Temperature | ≤−56 °C (at no-load) |
| Dimensions (L×W×H) | 590 × 460 × 400 mm + 440 mm (chamber height) |
| Brand | Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Stoppering (Hydraulic or Manual Press-on Lid) Bell-Jar Freeze Dryer |
| Application Scope | Laboratory-Scale Lyophilization |
| Shelf Area | 0.08 m² |
| Ultimate Vacuum | ≤5 Pa |
| Condensate Capacity (24 h) | 3 kg/batch |
| Cold Trap Temperature | ≤−56 °C (optional −80 °C with cascade refrigeration) |
| Dimensions (L×W×H) | 590 × 460 × 450 mm + 440 mm (bell jar height) |
| [Brand | Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Stoppering Freeze Dryer |
| Application Scale | Pilot-Scale |
| Shelf Area | 0.3 m² |
| Ultimate Vacuum (Empty) | ≤5 Pa |
| Condensate Capacity | 6 kg/24 h |
| Cold Trap Temperature (Empty) | ≤−56 °C |
| Overall Dimensions | L1100 × W760 × H1460 mm] |
| Brand | Ningbo Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | OEM Manufacturer |
| Instrument Type | Shelf-Type (Non-Contact Heating) |
| Application Scope | Pilot-Scale Processing |
| Lyophilization Area | 0.21 m² |
| Ultimate Vacuum (No Load) | ≤5 Pa |
| Condensate Capacity (24 h) | 4 kg/24 h |
| Cold Trap Temperature (No Load) | ≤−70 °C |
| Dimensions (L×W×H) | 750 × 640 × 1200 mm |
| Brand | Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application Scope | Pilot-Scale Processing |
| Lyophilization Area | 1.08 m² |
| Ultimate Vacuum (No Load) | ≤5 Pa |
| Ice Capacity (24 h) | 15 kg/24 h |
| Cold Trap Temperature (No Load) | ≤−70 °C |
| Dimensions (L×W×H) | 1300 × 1000 × 1480 mm |
| Brand | Ningbo Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Product Category | Domestic |
| Model | SCIENTZ-20F/A |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application Scale | Pilot-Scale |
| Lyophilization Area | 0.21 m² |
| Ultimate Vacuum (No Load) | ≤5 Pa |
| Ice Capacity (24 h) | 4 kg/24 h |
| Cold Trap Temperature (No Load) | ≤−70 °C |
| Dimensions (L×W×H) | 750 × 640 × 1200 mm |
| Brand | Ningbo Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Equipment Type | Standard Shelf-Type Freeze Dryer |
| Scale | Pilot-Scale |
| Lyophilization Area | 0.21 m² |
| Ultimate Vacuum (Empty Chamber) | ≤5 Pa |
| Condensate Capacity (24 h) | 4 kg/24 h |
| Cold Trap Temperature (Empty) | ≤−70 °C |
| Dimensions (L×W×H) | 750 × 640 × 1200 mm |
| Refrigerant | R404a |
| Compressor Type | High-Efficiency Piston or Screw Compressor (International Brand) |
| Chamber Construction | Full 316L Stainless Steel Interior |
| Vacuum System | Dual-Stage Oil-Sealed Rotary Vane Pump + Optional Roots Booster Pump with Oil–Water Separation |
| Cold Trap | High-Efficiency Copper-Coil Condenser with Electric Defrost Function |
| Optional Feature | AGV-Compatible Mobile Loading/Unloading Cart |
| Brand | Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Manifold-Style Stoppering Freeze Dryer |
| Application | Laboratory-Scale Lyophilization |
| Shelf Area | 0.08 m² |
| Ultimate Vacuum (No Load) | ≤5 Pa |
| Condensate Capacity (24 h) | 3 kg/batch |
| Cold Trap Temperature (No Load) | ≤−56 °C |
| Dimensions (L×W×H + Height of Bell Jar) | 590 × 460 × 450 mm + 440 mm |
| Brand | SCIENTZ |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Region Classification | Domestic (China) |
| Model | SCIENTZ-1LS |
| Instrument Type | Standard Shelf-Type |
| Scale | Pilot-Scale |
| Freeze-Drying Area | 0.21 m² |
| Ultimate Vacuum | ≤5 Pa (at no load) |
| Condensate Capacity | 4 kg/24 h |
| Cold Trap Temperature | ≤−70 °C (at no load) |
| Dimensions (L×W×H) | 750 × 640 × 1200 mm |
| Brand | Ningbo Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | OEM Manufacturer |
| Instrument Type | Shelf-Type Freeze Dryer |
| Application Scale | Pilot-Scale |
| Lyophilization Area | 0.21 m² |
| Ultimate Vacuum (No Load) | ≤5 Pa |
| Condensate Capacity (24 h) | 4 kg/24 h |
| Cold Trap Temperature (No Load) | ≤−70 °C |
| Dimensions (L×W×H) | 750 × 640 × 1200 mm |

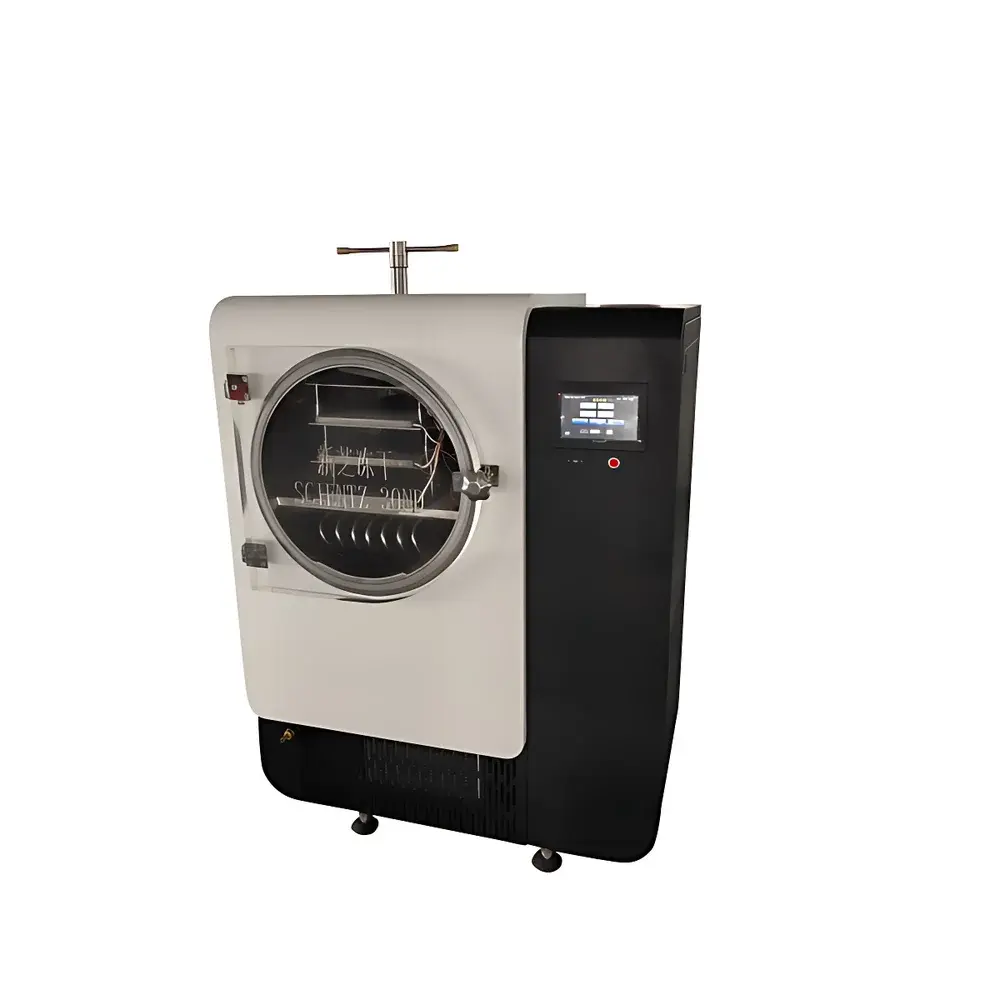

| Brand | Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Stoppering (In-Situ) Freeze Dryer |
| Application Scale | Pilot-Scale |
| Lyophilization Area | 0.1 m² |
| Ultimate Vacuum (Empty) | ≤5 Pa |
| Condensate Capacity (24 h) | 1.5 kg/24 h |
| Cold Trap Temperature (Empty) | ≤−56 °C |
| Main Unit Dimensions (L×W×H) | 750 × 640 × 1200 mm |
| Shelf Temperature Range (Empty) | −50 to +60 °C |
| Shelf Dimensions | 430 × 240 mm |
| Shelf Spacing | 70 mm |
| Number of Shelves | 1 |
| Max. Vial Capacity (Φ12 mm) | 650 pcs |
| Max. Vial Capacity (Φ16 mm) | 388 pcs |
| Max. Vial Capacity (Φ22 mm) | 205 pcs |
| Max. Bulk Load Volume | 1 L |
| Power Consumption | 1.6 kW (220 V) |
| Ambient Operating Temperature | ≤25 °C |
| Net Weight | 164 kg |
| Drainage Function | Automatic |
| Electrical Defrosting | Optional |
| Vacuum Pump | Optional (Multi-brand Compatible) |

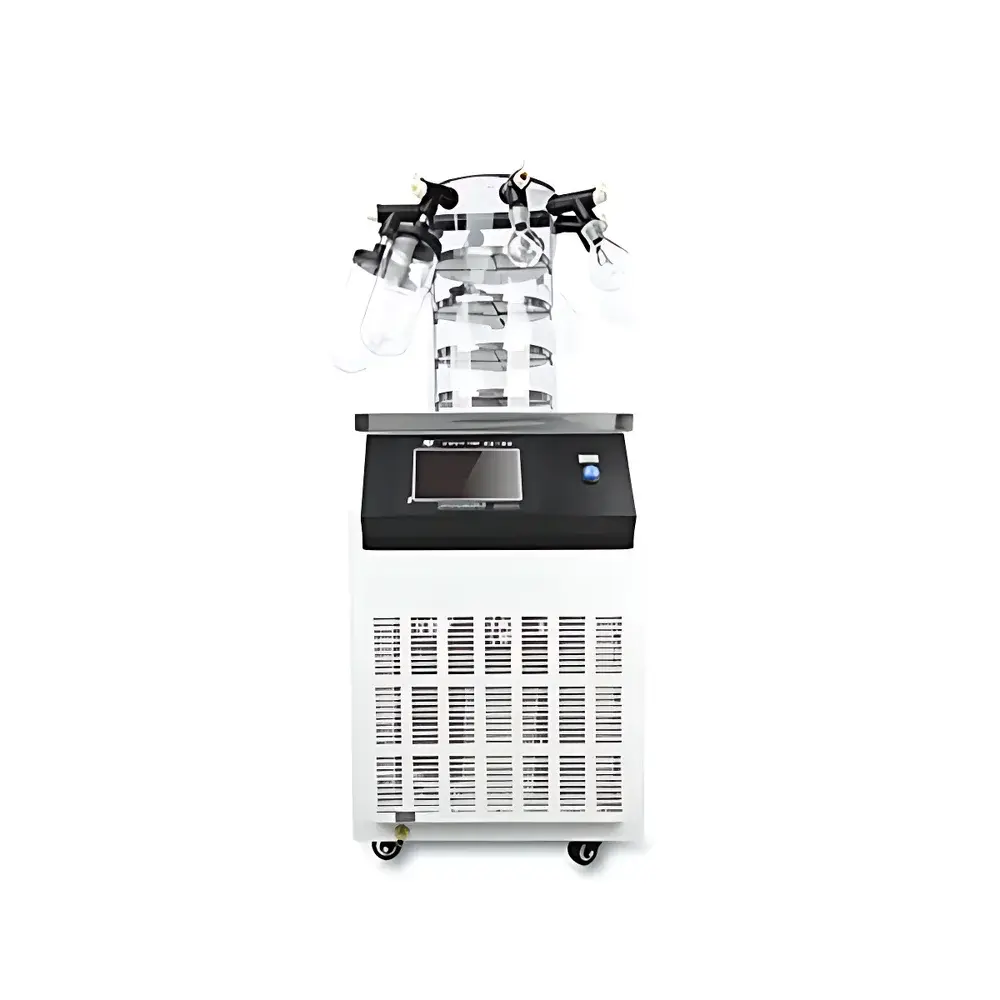

| Brand | Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | OEM Manufacturer |
| Instrument Type | Manifold Freeze Dryer with Heated Shelf |
| Freeze-Drying Area | 0.12 m² |
| Ultimate Vacuum (Empty) | ≤5 Pa |
| Condensate Capacity | 3 kg/24 h |
| Cold Trap Temperature (Empty) | ≤-56°C |
| Dimensions (L×W×H) | 590 × 460 × 400 mm + 440 mm (height with chamber) |
| Power Supply | 220 V / 50 Hz |

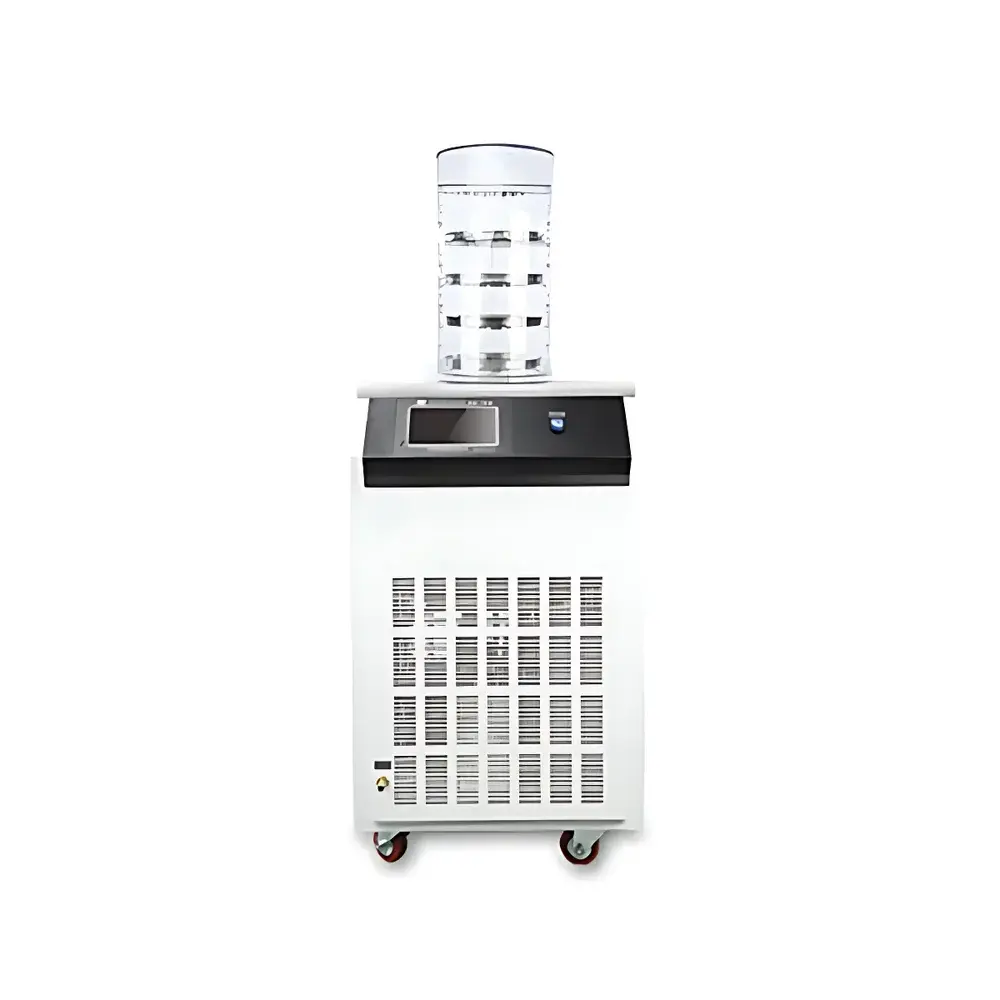

| Brand | Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Shelf-Type (Heated Manifold) Freeze Dryer |
| Application Scope | Laboratory R&D and Process Development |
| Lyophilization Area | 0.09 m² |
| Ultimate Vacuum (No Load) | ≤5 Pa |
| Condensate Capacity (24 h) | 6 kg/24 h |
| Cold Trap Temperature (No Load) | ≤−56 °C |
| Dimensions (L×W×H) | 670 × 525 × 910 mm + 480 mm (Manifold Height) |
| Brand | Ningbo Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | SCIENTZ-S-(C/S) |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application Scope | Pilot-Scale |
| Lyophilization Area | 0.21 m² |
| Ultimate Vacuum (Empty Chamber) | ≤5 Pa |
| Condensate Capacity (24 h) | 4 kg/24 h |
| Cold Trap Temperature (Empty) | ≤−70 °C |
| Dimensions (L×W×H) | 750 × 640 × 1200 mm |

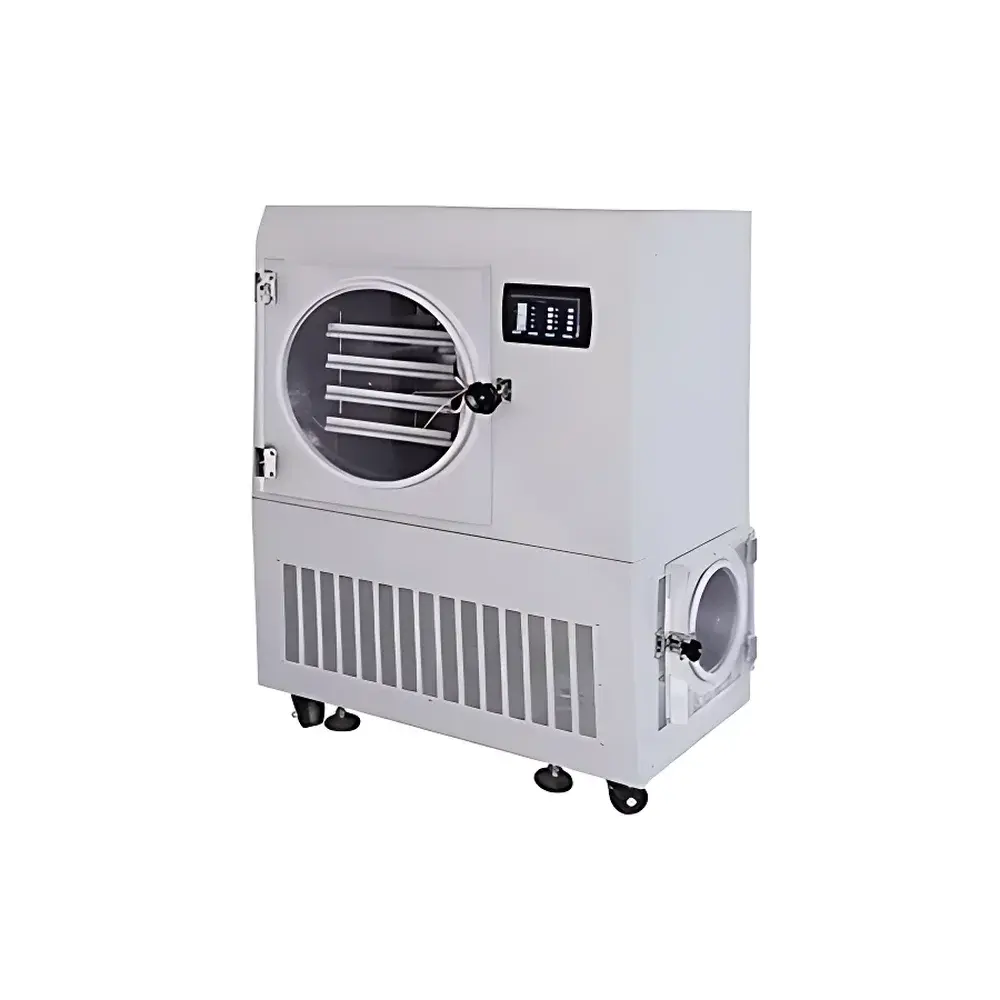

| Brand | Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Product Type | In-Situ Shelf-Type Freeze Dryer |
| Application Scale | Pilot-Scale |
| Lyophilization Area | 0.5 m² |
| Ultimate Vacuum (No Load) | ≤5 Pa |
| Condensate Capacity (24 h) | 10 kg/24 h |
| Cold Trap Temperature (No Load) | ≤−56 °C |
| Overall Dimensions | 1000 × 760 × 1460 mm |
| Shelf Temperature Range (No Load) | −50 to +60 °C |
| Shelf Configuration | 4 shelves, 430 × 300 mm each, 70 mm spacing |
| Power Supply | 3.0 kW (380 V) |
| Weight | 256 kg |
| Electrical Defrost | Standard |
| Auto Drain | Standard |
| [Brand | Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |

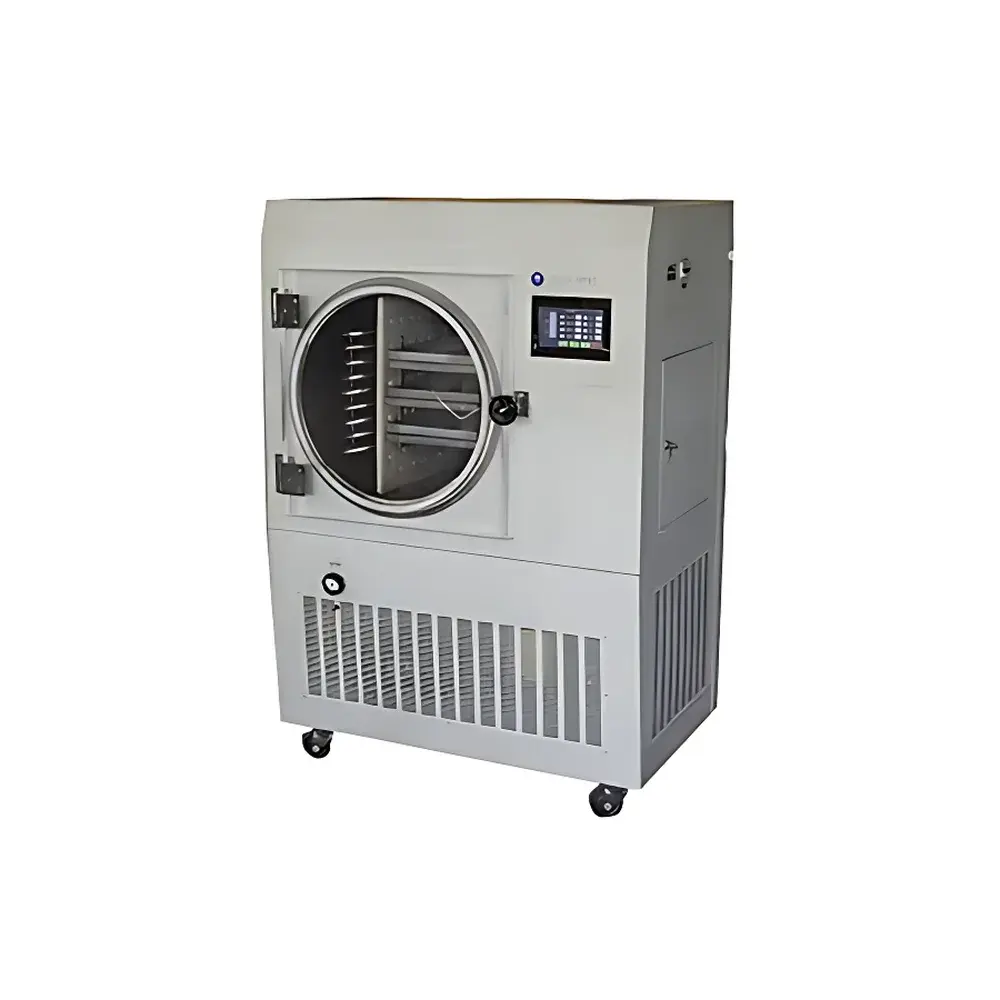

| Instrument Type | Shelf-Type Freeze Dryer |
| Application Scale | Pilot-Scale |
| Lyophilization Area | 0.3 m² |
| Ultimate Vacuum (No Load) | ≤5 Pa |
| Condensate Capacity (24 h) | 6 kg/24 h |
| Cold Trap Temperature (No Load) | ≤−56 °C |
| Overall Dimensions (W×D×H) | 1100 × 760 × 1460 mm |
| Shelf Temperature Range (No Load) | −50 to +60 °C |
| Shelf Dimensions | 430 × 240 mm |
| Number of Shelves | 3 |
| Shelf Spacing | 70 mm |
| Power Consumption | 2.2 kW (220 V) |
| Ambient Operating Temperature | ≤25 °C |
| Net Weight | 224 kg |
| Drainage Function | Automatic |
| Electrical Defrosting | Optional] |
Show next
