| Brand | TQC |
|---|---|
| Origin | Netherlands |
| Model | SP0500 (Host Unit), SP0505 (Konig Pendulum), SP0510 (Persoz Pendulum) |
| Compliance | ISO 1522:2005, NBN T22-105, BS 3900-E5 |
| Power Supply | 230 V / 115 V AC |
| Dimensions (Closed) | 740 × 430 × 430 mm |
| Dimensions (Open) | 960 × 430 × 650 mm |
| Weight | 26 kg |
| Pendulum Support | Tungsten Carbide Pivot Balls (Ø8 mm for Konig, Ø5 mm for Persoz) |
| Konig Oscillation Period | 1.0 s |
| Persoz Oscillation Period | 1.4 s |
| Damping Time on Standard Glass | ≥430 ±15 s (Konig), 250 ±10 s (Persoz) |
| Sample Max Size | 105 × 200 × 11 mm (Konig), 105 × 200 × 8.3 mm (Persoz) |
| Glass Plate Thickness | 6 mm |
| Enclosure Material | PERSPEX® Acrylic |
| Housing Material | Powder-Coated Steel, Stainless Steel Front Panel, Anodized Aluminum Side Panel |

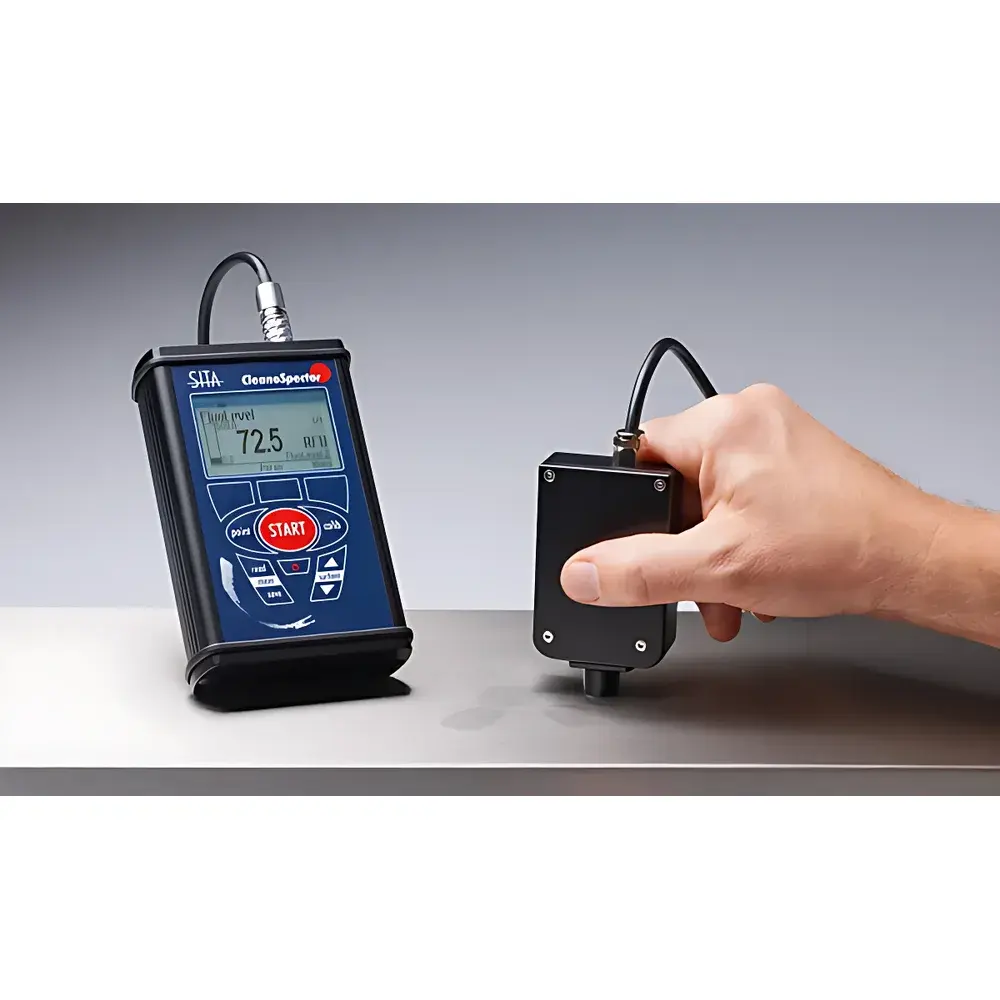

| Brand | SITA |
|---|---|
| Origin | Germany |
| Model | CleanoSpector |
| Measurement Principle | UV-Induced Fluorescence (Confocal Optical Detection) |
| Unit | Relative Fluorescence Units (RFU) |
| Compliance | Designed for ISO 14644-1 cleanroom-adjacent process control, supports GLP/GMP-aligned documentation workflows |
| Software | CleanoSpector PC Software v3.2 with audit trail, user access levels, and CSV/PDF export |
| Sample Interface | Non-contact, real-time, spot measurement (Ø 2 mm) |
