| Brand | HNPM |
|---|---|
| Origin | Germany |

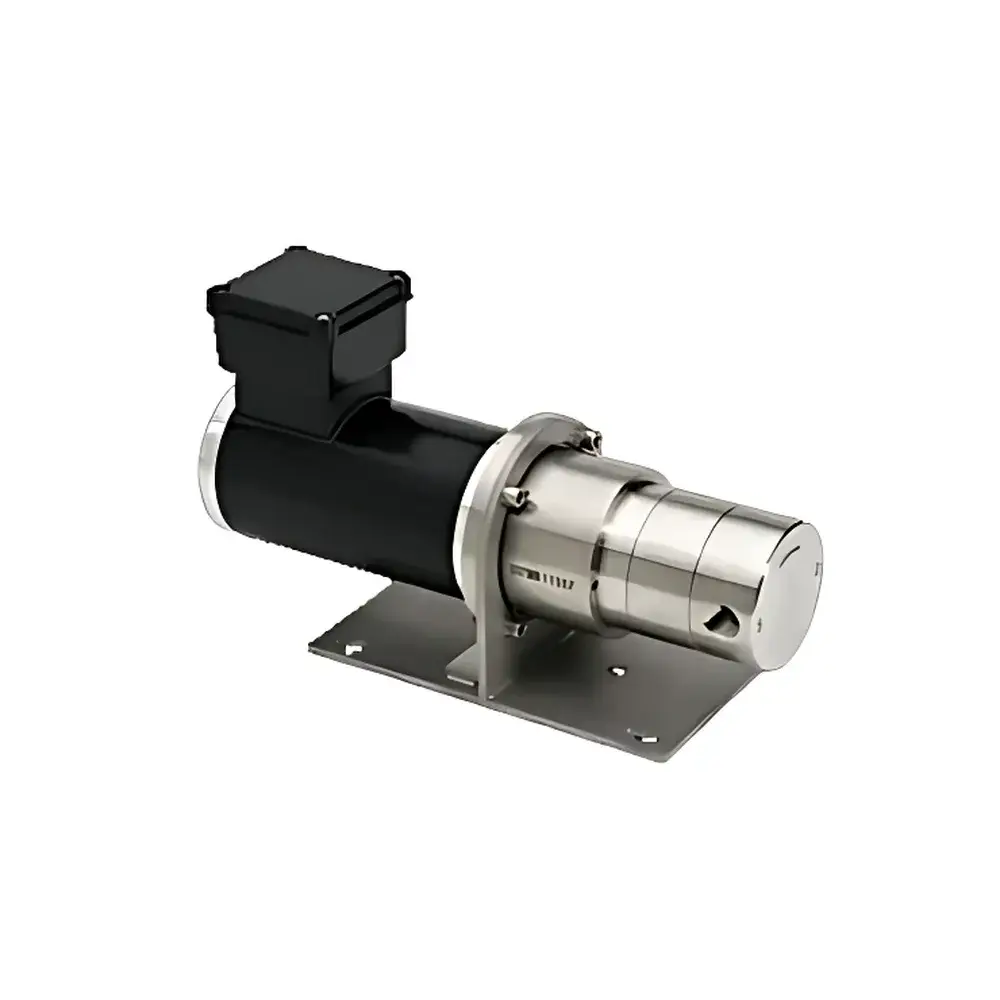

| Model | MZR-11507 |
| Flow Rate | 58–1152 mL/min |
| Speed Range | 300–6000 rpm |
| Precision (CV) | <1% |
| Max Differential Pressure | 40 bar (at 1 mPa·s), 80 bar (≥16 mPa·s) |
| Viscosity Range | 0.3–5,000 mPa·s (up to 10,000 mPa·s with optional configuration) |
| Displacement per Revolution | 192 µL |
| Minimum Dose Volume | 100 µL |
| Motor | 3-phase AC, 250 W, IEC 063, IP55, 240/400 V, 50 Hz |
| Wetted Materials | SS 316L (1.4435), Tungsten Carbide, Alloy C276 (2.4819), Graphite-Reinforced PTFE, FPM (optional EPDM/FFPM) |
| Connection | 3/8" NPT female (lateral option available) |
| Dimensions (L×W×H) | 358 × 120 × 224 mm |
| Weight | ~22 kg |
| Ambient Temp | −20 to +40 °C (−55 to +60 °C with options) |
| Operating Temp | −5 to +40 °C (−20 to +120 °C with options) |
| ATEX Certification | II 2G c T4 X (Zone 1 & 2) |
| Thermal Protection | 6-piece PTC thermistor array |
| Brand | HNPM |
|---|---|
| Origin | Germany |
| Model | MZR-2909 Ex |
| Flow Rate | 0.003–14 mL/min |
| Speed Range | 1–4700 rpm |
| Precision (CV) | < 1 % |
| Viscosity Range | 0.3–5000 mPa·s |
| Displacement | 3 µL |
| Minimum Dose | 0.5 µL |
| Max. Differential Pressure | 4 bar (at 1 mPa·s), 5 bar (≥16 mPa·s) |
| Max. Inlet Pressure | 5 bar (10 bar with optional fluid seal module) |
| Wetted Materials | SS 316L (1.4404/1.4435), tungsten carbide, Ni-based alloys |
| Shaft Seal | graphite-reinforced PTFE + SS 316L |
| Static Seals | FPM (standard), EPDM/FFPM optional |
| Motor | 24 V DC, 2 A, 53 W, encoder 500 ppr (HEDL 5540) |
| Cable Length | 10 m |
| Weight | ~2700 g |
| ATEX Certification | II 2G c T5 X |
| Hazardous Area Classification | Zone 1 & 2 |
| Operating Temperature | −5 to +40 °C |
| Brand | HNPM |
|---|---|
| Origin | Germany |

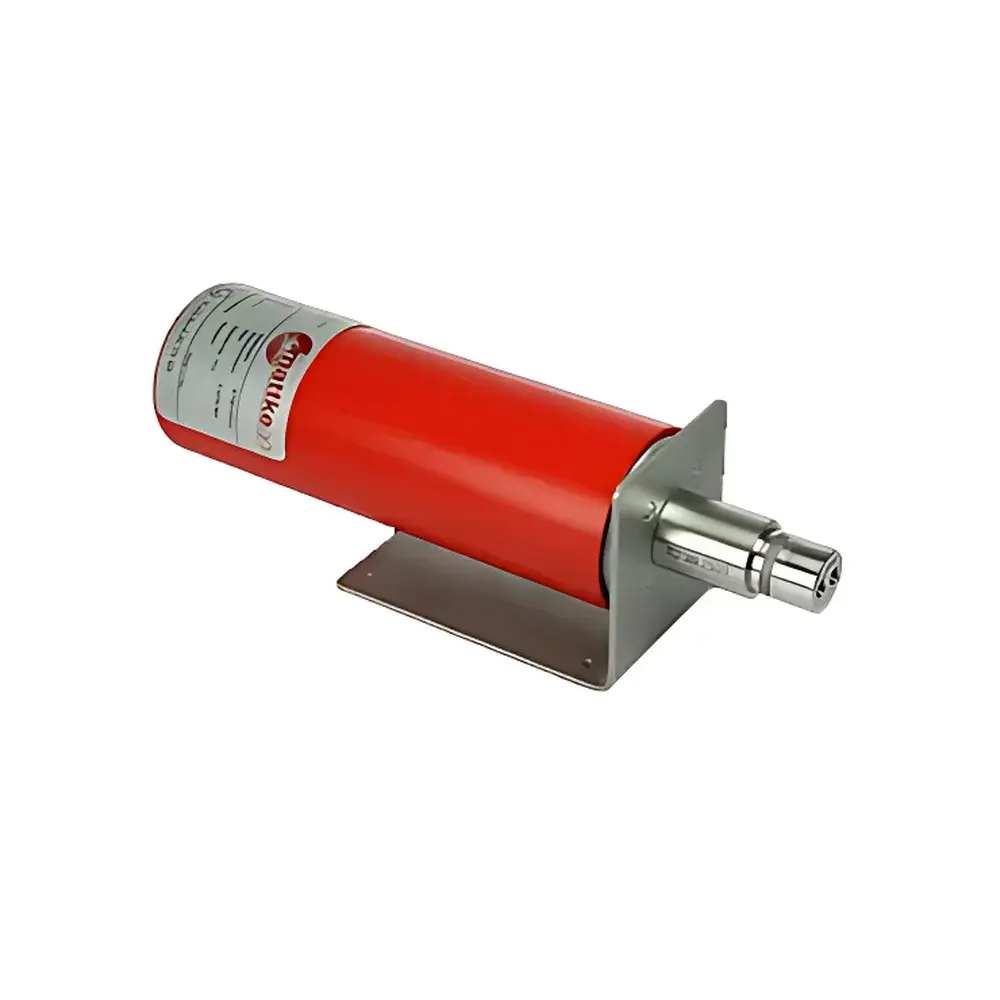

| Model | MZR-2509 Ex |
| Flow Rate | 0.0015–7 mL/min |
| Speed Range | 1–4700 rpm |
| Viscosity Range | 0.3–5000 mPa·s |
| Precision (CV) | <1% |
| Displacement | 1.5 µL |
| Minimum Dose | 0.25 µL |
| Max. Differential Pressure | 0–5 bar (≥16 mPa·s) |
| Max. Inlet Pressure | 5 bar (10 bar with optional fluid seal module) |
| Wetted Materials | SS 316L, tungsten carbide, Ni-based alloy, graphite-reinforced PTFE, FPM (FKM), optional EPDM/FFPM |
| Motor | 24 V DC, 2 A, 53 W, encoder 500 ppr (HEDL 5540) |
| Cable Length | 10 m |
| Weight | ~2700 g |
| ATEX Certification | II 2G c T5 X |
| Installation Zone | Zone 1 & 2 |
| Operating Temperature | −5 to +40 °C |
| Brand | HNPM |
|---|---|
| Origin | Germany |

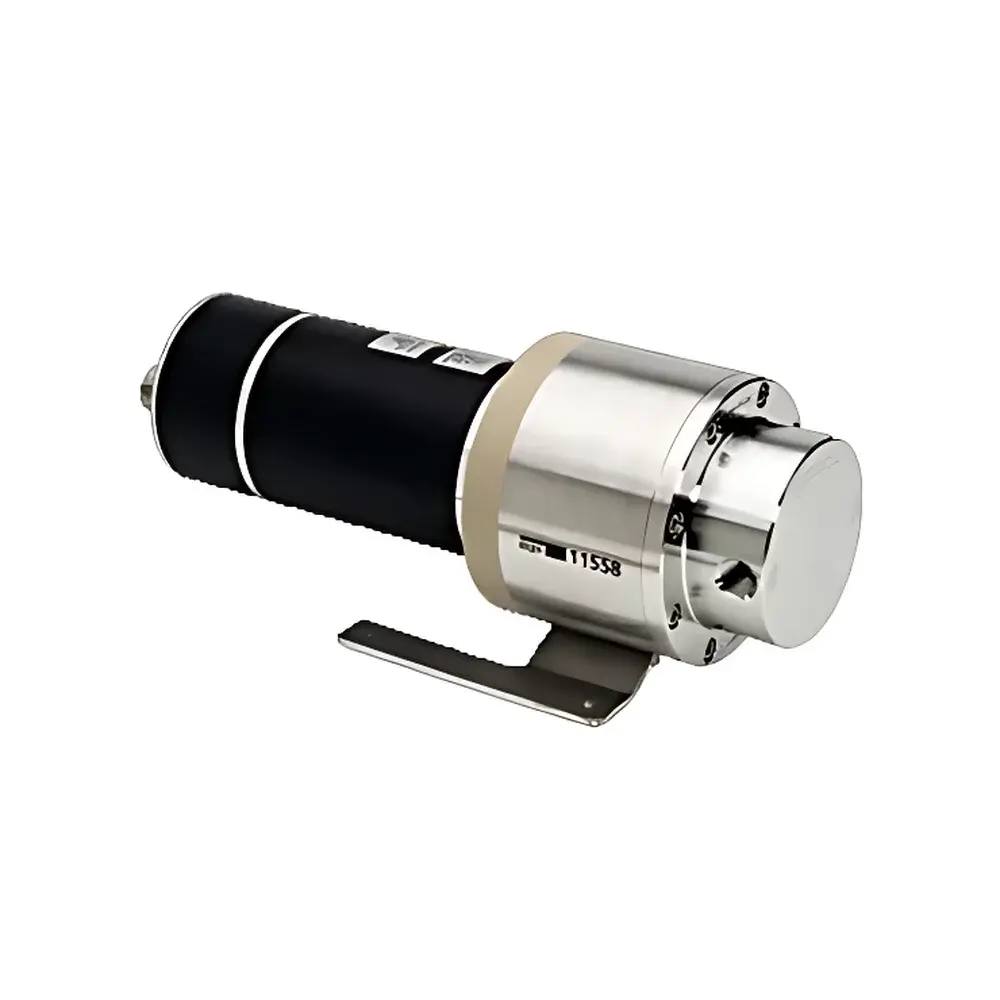

| Model | MZR-11558 |
| Flow Rate | 0.19–1152 mL/min |
| Speed Range | 1–6000 rpm |
| Precision (CV) | <1% |
| Max Differential Pressure | 60 bar |
| Max Operating Temperature | −5 to +40 °C (up to +100 °C with optional components) |
| Displacement per Revolution | 192 µL |
| Minimum Dose | 100 µL |
| Motor | Brushless DC, 42 V DC, IP54, 368 W |
| Encoder Resolution | 500 pulses/rev |
| Wetted Materials | Alloy C22 (DIN 2.4602), SSiC, Al₂O₃, ZrO₂, FFKM (Kalrez® Spectrum™ 6375) |
| Fluid Connections | 3/8" NPT internal thread |
| Dimensions (L×W×H) | 301 × 130 × 129 mm |
| Weight | ~11 kg |
| Brand | HNPM |
|---|---|
| Origin | Germany |
| Model | MZR-2542 |
| Flow Rate | 0.15–9 mL/min |
| Speed Range | 100–6000 rpm |
| Precision (CV) | <1% |
| Displacement | 1.5 µL |
| Minimum Dose | 0.25 µL |
| Max Differential Pressure | 1.5 bar |
| Max Inlet Pressure | 1 bar |
| Operating Temperature | −20 to +60 °C |
| Motor | 24 V DC, 4.5 W, integrated 32-pulse magnetic encoder |
| Dimensions (L × Ø) | 90 mm × 16 mm |
| Weight | 70 g |
| Wetted Materials | Alloy C22 (2.4602), Alloy C276, ZrO₂ ceramic, WC, PEEK™, FFPM, graphite-reinforced PTFE |
| Brand | HNPM |
|---|---|
| Origin | Germany |

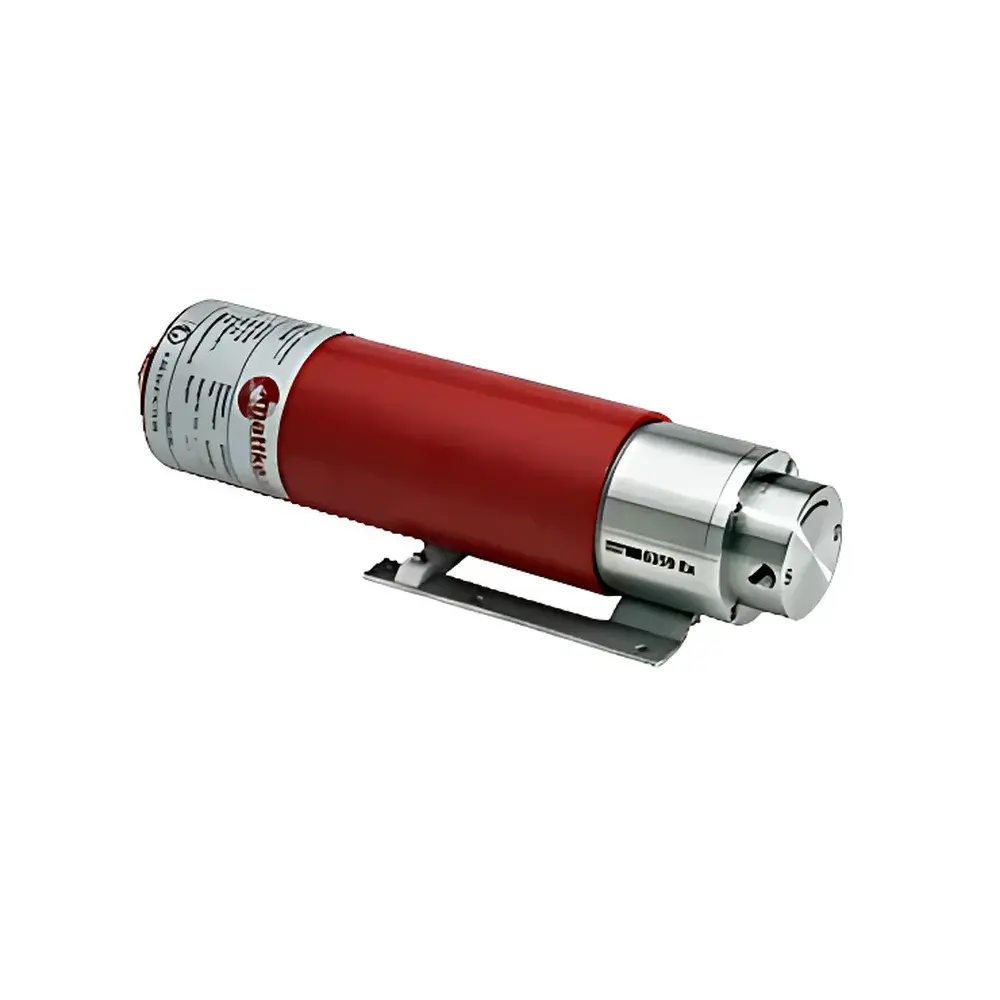

| Model | MZR-6359 Ex |
| Flow Rate | 0.024–112 mL/min |
| Speed Range | 1–4700 rpm |
| Max Differential Pressure | 0–40 bar (at η > 16 mPa·s) |
| Precision | CV < 1% |
| Motor | 24 V DC, 53 W, encoder 500 ppr |
| Explosion Protection | ATEX II 2G IIC c T4 X |
| Wetted Materials | Alloy C22 (DIN 2.4602), SSiC, Al₂O₃, ZrO₂, FFKM (Kalrez® 6375) |
| Connection | 1/8" NPT internal thread |
| Weight | ~4900 g |
| Dimensions | 280 mm (L) |
| Brand | HNPM |
|---|---|
| Origin | UK |

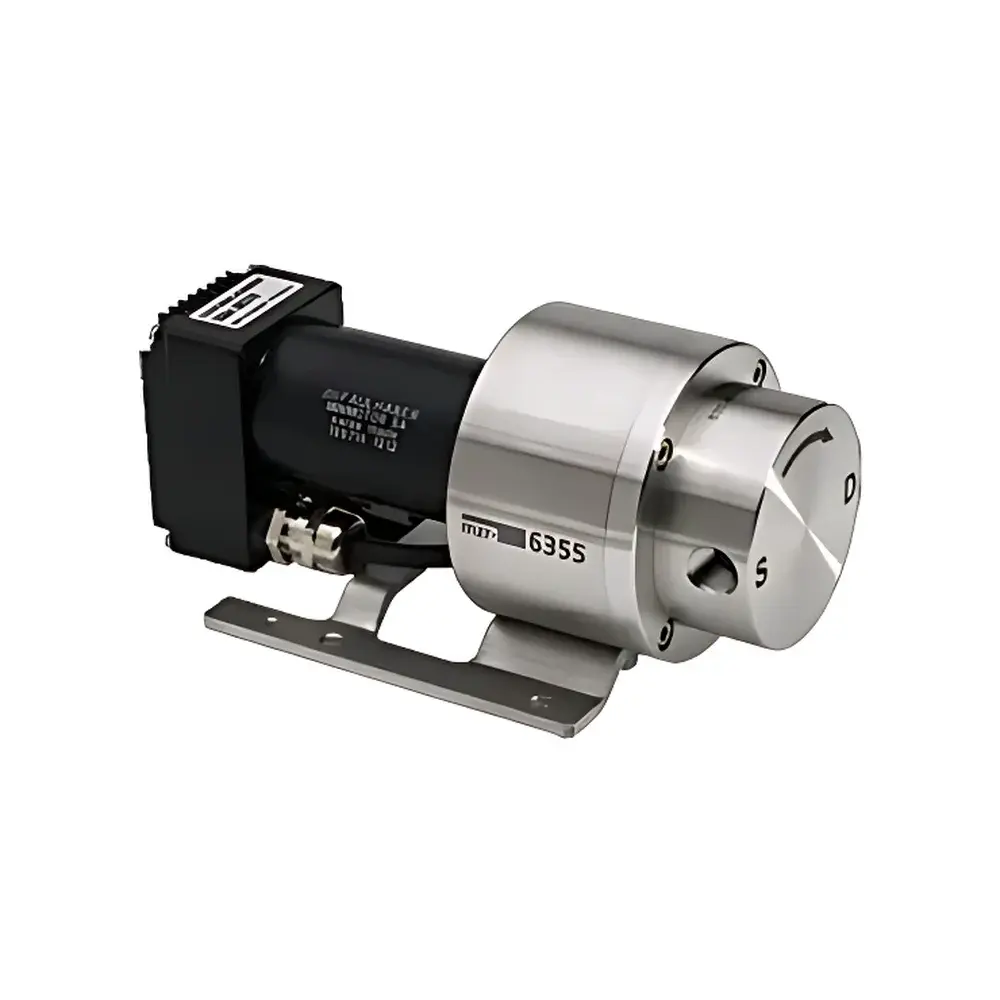

| Model | MZR-6355 |
| Flow Rate | 0.024–144 mL/min |
| Speed Range | 1–6000 rpm |
| Precision | CV < 1% |
| Max Pressure | 80 bar |
| Displacement | 24 µL |
| Min Dose | 15 µL |
| Dimensions | 146 × 70 × 72 mm |
| Weight | ~1650 g |
| Operating Temp | −5 to +60 °C (−20 to +150 °C with optional thermal module) |
| Wetted Materials | Alloy C22 (DIN 2.4602), SSiC, Al₂O₃, ZrO₂, FFKM (Kalrez® 6375) |
| Motor | 24 V DC, 44 W, Brushless DC Servo with Encoder & Microcontroller |
| Interfaces | 0–10 V, 0(4)–20 mA, RS-232, 1x Digital I/O, Optional CAN Bus |
| Drive | 8-pole NdFeB Magnetic Coupling |
| Viscosity Range | 0.3–1000 mPa·s |
| Fluid Connection | 1/8" NPT Female |
| Brand | Warren Rupp |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | CD-Series Sealed Ball-Valve Air-Operated Double-Diaphragm (AODD) Pump |
| Certification | ATEX, CSA, UL, CE, USDA, FDA |
| Construction Materials | Aluminum, Cast Iron, 316 Stainless Steel, Alloy C-276, Polypropylene (PP), Kynar® (PVDF) |
| Diaphragm & Valve Options | Thermoplastic Elastomer (TPE), PTFE |
| Solids Handling | Up to 3/4" (18 mm) |
| Dry Suction Lift | 18 ft (5.5 m) |
| Mounting | Free-Standing Base with Integrated Support |
| Leak-Detection Ready | Visual, Mechanical, and Low-Voltage Sensor Integration Supported |
| Flow Control | Adjustable Air Supply for Variable Flow & Head |
| Explosion-Proof Design | Intrinsically Safe Operation in Class I Div 1 & 2, Zone 1 & 2 Hazardous Areas |
| Brand | HNPM |
|---|---|
| Origin | Germany |
| Model | MZR-2505 |
| Flow Rate Range | 0.0015–9 mL/min |
| Speed Range | 1–6000 rpm |
| Precision (CV) | <1% |
| Viscosity Range | 0.3–25,000 mPa·s |
| Displacement per Revolution | 1.5 µL |
| Minimum Dose | 0.25 µL |
| Pressure Differential | up to 15 bar (oil, 16 mPa·s) |
| Wetted Materials | SS 316L, tungsten carbide, graphite-reinforced PTFE, FPM seals |
| Motor | 24 V DC servo motor, 44 W |
| Controller | Integrated 16-bit microcontroller |
| Dimensions (L×W×H) | 140 × 45 × 65 mm |
| Weight | ~780 g |
| Operating Temperature | −5 to +60 °C (extended range −20 to +150 °C with optional configuration) |
| Brand | HNPM |
|---|---|
| Origin | Germany |

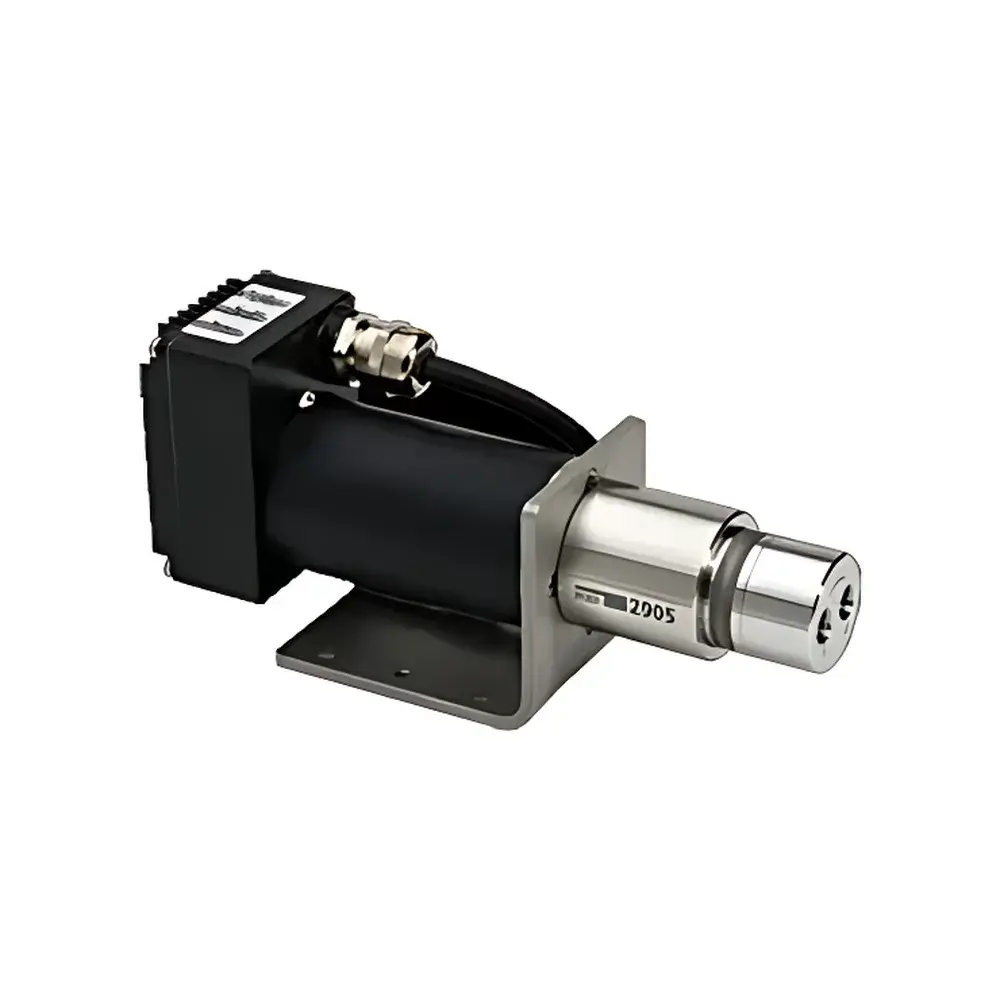

| Model | MZR-2905 |
| Flow Rate Range | 0.003–18 mL/min |
| Speed Range | 1–6000 rpm |
| Precision (CV) | <1% |
| Viscosity Range | 0.3–50,000 mPa·s |
| Pressure Differential | up to 30 bar (oil, 16 mPa·s) |
| Displacement per Revolution | 3 µL |
| Minimum Dose | 0.5 µL |
| Wetted Materials | SS 316L, tungsten carbide, graphite-reinforced PTFE, FPM seals |
| Motor | 24 V DC servo motor, 44 W |
| Controller | Integrated 16-bit microcontroller |
| Interfaces | 0–10 V analog, RS-232, 1 digital I/O |
| Dimensions (L×W×H) | 140 × 45 × 65 mm |
| Weight | ~780 g |
| Operating Temperature | –5 to +60 °C (optional –20 to +150 °C) |
| Fluid Connections | 1/4"–28 UNF front port |
| Brand | HNPM |
|---|---|
| Origin | Germany |

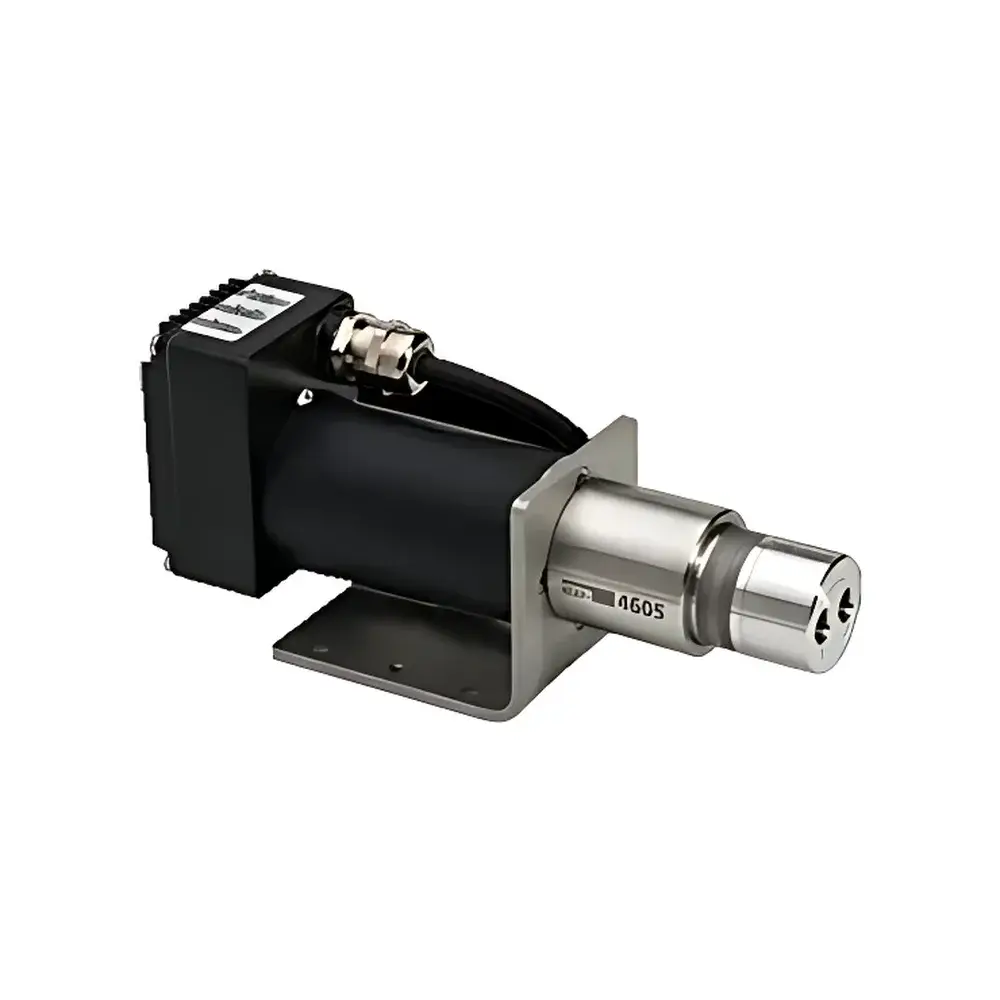

| Model | MZR-4605 |
| Flow Rate Range | 0.012–72 mL/min |
| Viscosity Range | 0.3–50,000 mPa·s |
| Precision (CV) | <1% |
| Speed Range | 1–6000 rpm |
| Displacement per Revolution | 12 µL |
| Minimum Dose Volume | 2 µL |
| Pressure Differential | 0–10 bar (water, 1 mPa·s), up to 50 bar (oil, 16 mPa·s) |
| Max. Inlet Pressure | 5 bar (10–40 bar with optional configuration) |
| Fluid Path Materials | SS 316L (1.4404 / 1.4435), tungsten carbide, Ni-based alloys |
| Seals | Graphite-reinforced PTFE, FPM (standard), EPDM/FFPM (optional) |
| Motor | 24 V DC servo motor, 44 W |
| Controller | Integrated 16-bit microcontroller |
| Interfaces | 0–10 V analog, RS-232, 1 digital I/O |
| Dimensions (L×W×H) | 143 × 45 × 65 mm |
| Weight | ~800 g |
| Operating Temperature | −5 to +60 °C (−20 to +150 °C with optional configuration) |
| Connection | Frontal 1/4″–28 UNF |
| Brand | HNPM |
|---|---|
| Origin | Germany |

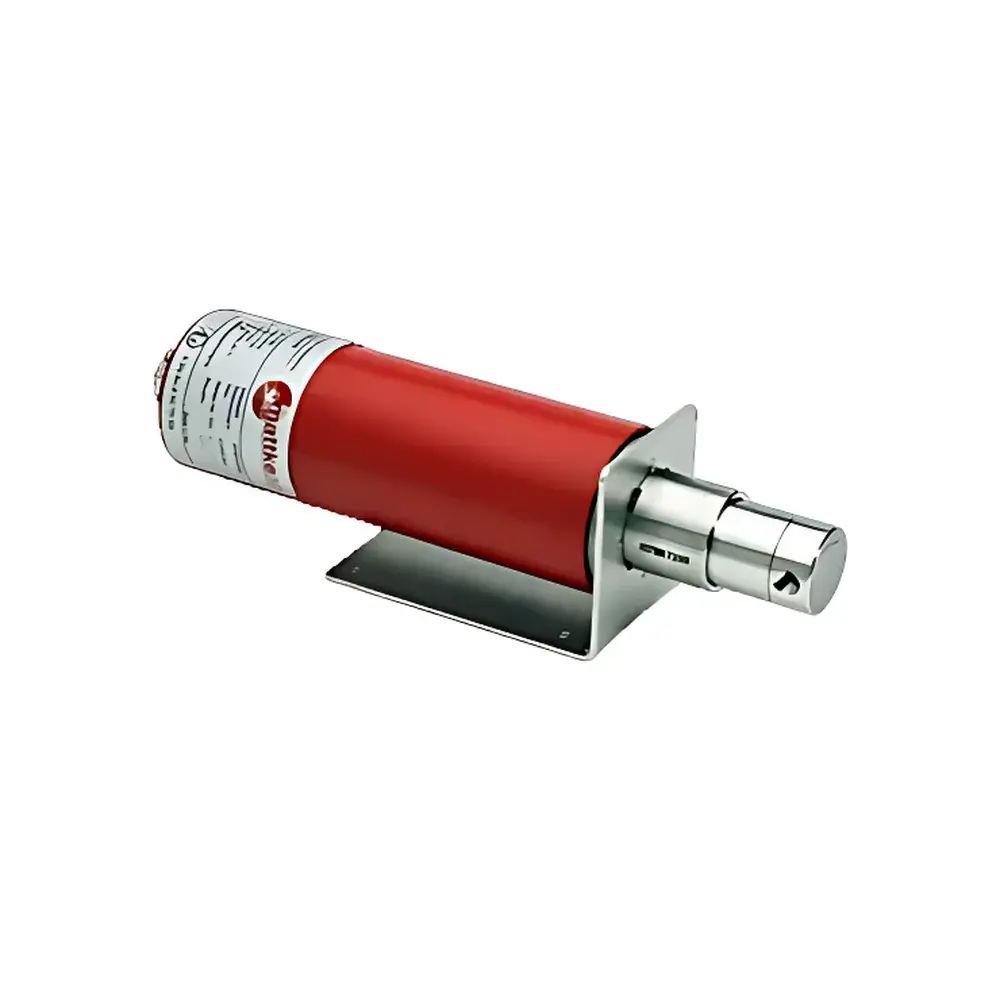

| Model | MZR-7209 Ex |
| Flow Rate | 0.048 – 225 mL/min |
| Speed Range | 1 – 4700 rpm |
| Precision (CV) | < 1 % |
| Viscosity Range | 0.3 – 5,000 mPa·s |
| Max Differential Pressure | 30 bar (at 1 mPa·s), 40 bar (≥16 mPa·s) |
| Max Inlet Pressure | 5 bar (10 bar with optional fluid seal module) |
| Displacement per Revolution | 48 µL |
| Minimum Dose Volume | 30 µL |
| Motor | 24 V DC, 2 A, 53 W, Encoder Resolution: 500 pulses/rev |
| Wetted Materials | SS 316L (1.4404 / 1.4435), Tungsten Carbide, Ni-based alloys |
| Shaft Seal | Graphite-reinforced PTFE + SS 316L |
| Static Seals | FPM (Viton), optional EPDM or FFPM |
| Enclosure Rating | ATEX II 2G c T4 X |
| Ambient Temp | 0 – 40 °C |
| Operating Temp | −5 – +40 °C |
| Weight | ~2700 g |
| Cable Length | 10 m |
| Brand | HNPM |
|---|---|
| Origin | Germany |
| Model | MZR-2921 |
| Flow Rate | 0.3–18 mL/min |
| Speed Range | 100–6000 rpm |
| Precision (CV) | <1% |
| Displacement | 3 µL |
| Minimum Dose | 0.5 µL |
| Max Differential Pressure | 3 bar |
| Inlet Pressure Limit | 1 bar |
| Operating Temperature | −20 to +60 °C |
| Weight | ~56 g |
| Motor | Brushed DC, 18 V, Hall-effect encoder (16 pulses/rev) |
| Communication | RS-232, CANopen (DSP 301/DSP 402) |
| Wetted Materials | SS 316L, ceramic, tungsten carbide, nickel-based alloy, epoxy |
| Shaft Seal | graphite-reinforced PTFE/SS 316L |
| Static Seals | FPM (optional EPDM/FFPM) |
| Tubing Connection | 2 mm OD slip-fit (optional manifold M2.1) |
| Brand | HNPM |
|---|---|
| Origin | Germany |
| Model | MZR-4609 Ex |
| Flow Rate | 0.012–56 mL/min |
| Speed Range | 1–4700 rpm |
| Viscosity Range | 0.3–5,000 mPa·s |
| Precision (CV) | <1% |
| Max Differential Pressure | 0–10 bar (≥16 mPa·s) |
| Inlet Pressure Max | 5 bar (10 bar with optional fluid seal module) |
| Displacement per Revolution | 12 µL |
| Minimum Dose Volume | 2 µL |
| Motor | 24 V DC, 53 W, encoder resolution 500 pulses/rev |
| Wetted Materials | SS 316L (1.4404/1.4435), tungsten carbide, Ni-based alloys |
| Shaft Seal | graphite-reinforced PTFE + SS 316L |
| Static Seals | FPM (standard), EPDM/FFPM optional |
| Enclosure Rating | ATEX II 2G c T5 X |
| Operating Temperature | −5 to +40 °C |
| Ambient Temperature | 0 to +40 °C |
| Weight | ~2700 g |
| Cable Length | 10 m |
| Brand | HNPM |
|---|---|
| Origin | Germany |
| Model | MZR-4622 |
| Flow Rate | 1.2–72 mL/min |
| Speed Range | 100–6000 rpm |
| Precision (CV) | <1% |
| Displacement | 12 µL |
| Minimum Dose | 2 µL |
| Max. Differential Pressure | 5 bar |
| Inlet Pressure Limit | 1 bar |
| Operating Temperature | −20 to +60 °C |
| Wetted Materials | SS316L, Ceramic, Tungsten Carbide, Ni-based Alloy, Epoxy |
| Shaft Seal | Graphite-Reinforced PTFE |
| Static Seals | FPM (optional EPDM/FFPM) |
| Motor | Brushed DC, 24 V, 4.5 W, Hall-effect Encoder (32 ppr) |
| Dimensions | Ø16 mm × 88 mm |
| Weight | ~100 g |
| Fluid Connection | 2 mm OD sliding fitting (optional M2.1 manifold) |
| Brand | HNPM |
|---|---|
| Origin | Germany |
| Model | MZR-11507 |
| Flow Rate | 29–1152 mL/min |
| Speed Range | 150–6000 rpm |
| Viscosity Range | 0.3–150,000 mPa·s |
| Precision (CV) | <1% |
| Displacement | 192 µL |
| Minimum Dose | 100 µL |
| Pressure Differential | 0–40 bar (at 1 mPa·s), up to 140 bar (≥16 mPa·s) |
| Max Inlet Pressure | 10 bar |
| Wetted Materials | SS 316L, Tungsten Carbide, Alloy C276, Graphite-Enhanced PTFE, FPM |
| Motor | 3-phase AC, 240/400 V, 100 Hz, 240 W, IP55, IEC 056, 4-pole |
| Dimensions (L×W×H) | 303×110×171 mm |
| Weight | 9.3 kg |
| Ambient Temp | −5 to +40 °C |
| Fluid Temp | −5 to +60 °C (−20 to +120 °C with optional heating/insulation) |
Show next
