| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | CR-400 / CR-410 |
| Instrument Type | Portable |
| Light Source | Pulsed Xenon Lamp |
| Aperture Options | Φ8 mm (CR-400), Φ50 mm (CR-410) |
| Repeatability | ΔE*ab ≤ 0.07 (after white calibration, 30 measurements at 10-sec intervals) |
| Accuracy | ΔE*ab ≤ 0.6 (CR-400), ≤ 0.8 (CR-410) |
| Memory Capacity | 100 target colors + 1,000 measurement records (standalone) |
| Display | Backlit LCD, 6-language support (English, German, French, Italian, Spanish, Japanese) |
| Power | Rechargeable battery or AC adapter |
| Compliance | Designed for ISO 7724-1, CIE No. 15, ASTM E308, and JIS Z 8722 colorimetric standards |
| Brand | Konika-Minolta |
|---|---|
| Origin | Japan |
| Instrument Type | Portable |
| Optical Geometry | d/8° integrating sphere |
| Light Source | Pulsed Xenon Lamp |
| Spectral Range | 360 nm – 750 nm |
| Repeatability | ΔE*ab ≤ 0.1 (standard deviation) |
| Product Category | Color Difference Meter |
| Compliance | Designed for ISO 7724, CIE No. 15, ASTM E308, and JIS Z 8722 |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | CM-26dG / CM-26d / CM-25d |
| Instrument Type | Portable |
| Optical Geometry | d/8° integrating sphere |
| Light Source | Pulsed Xenon Lamp |
| Spectral Range | 360–740 nm |
| Repeatability | σΔE*ab ≤ 0.02 |
| Inter-instrument Agreement | ΔE*ab ≤ 0.12 (BCRA Series II, avg. of 12 tiles) |
| Gloss Measurement Range (CM-26dG only) | 0–100 GU at 60° |
| Accuracy | ±0.2 GU (0–10 GU), ±0.5 GU (10–100 GU) |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Instrument Type | Benchtop |
| Optical Geometry | d/8° integrating sphere |
| Light Source | Pulsed Xenon Lamp |
| Spectral Range | 360 nm – 740 nm |
| Repeatability | ΔE*ab ≤ 0.005 (std. dev.), Reflectance/Transmittance std. dev. ≤ 0.05% |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | FD-9 |
| Product Type | Spectrodensitometer |
| Instrument Type | Desktop |
| Optical Geometry | d/8° integrating sphere |
| Compliance | ISO 5-4, ISO 13655:2017 (M0/M1/M2/M3), ASTM E308, ISO 2846-1 |
| Connectivity | USB 2.0, TCP/IP Ethernet |
| Display | Built-in high-resolution LCD touchscreen |
| Automation Support | Optional auto-feeder (up to 100 sheets) |
| Measurement Mode | Single-spot stop-and-measure (non-scanning) |
| Data Output | Multi-illumination condition simultaneous reporting (M0, M1, M2) |
| Software Interface | Konica Minolta SpectraMagic NX Pro (FDA 21 CFR Part 11 compliant audit trail optional) |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | CM-36dG / CM-36dGV / CM-36d |
| Instrument Type | Benchtop |
| Optical Geometry | d/8° integrating sphere |
| Light Source | Pulsed xenon lamp |
| Spectral Range | 360–740 nm |
| Repeatability | ΔE*ab ≤ 0.02 (standard deviation) |
| Inter-instrument Agreement | ΔE*ab ≤ 0.12 (LAV, SCI) |
| UV Control | Digital dual-xenon UV calibration (400 nm / 420 nm cutoff simulation) |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | FD-7 |
| Product Type | Spectrodensitometer |
| Instrument Type | Portable |
| Optical Geometry | d/8° integrating sphere |
| Compliance | ISO 13655:2009 M1 condition |
| Key Feature | Virtual Fluorescence Standard (VFS) technology |
| Weight | 350 g (main unit), 430 g (with aperture mask) |
| Spectral Measurement Capability | Supports D50-spectrum-referenced fluorescence evaluation |
| Wavelength Compensation | Automatic, performed during routine white calibration |
| Ambient Light Measurement | Yes, supports illuminance, CCT, and CIE tristimulus values under real-world lighting |
| Software Integration | basICColor catch all for strip scanning (MediaWedge, ECI2002, IT8.7/3) |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | CR-20 |
| Instrument Type | Portable |
| Optical Geometry | d/8° integrating sphere |
| Light Source | Pulsed Xenon Lamp |
| Repeatability | ΔE*ab ≤ 0.1 (standard deviation) |
| Data Storage | Up to 1,000 measurement sets (including reference) |
| Color Spaces | CIE L*a*b*, L*C*h, Yxy, XYZ, Munsell, WI (CIE/ASTM E313-96), Tint (CIE/ASTM E313-96), YI (ASTM E313-96) |
| Compliance | ASTM E313, ISO 7724, JIS Z 8722, CIE No. 15 |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |

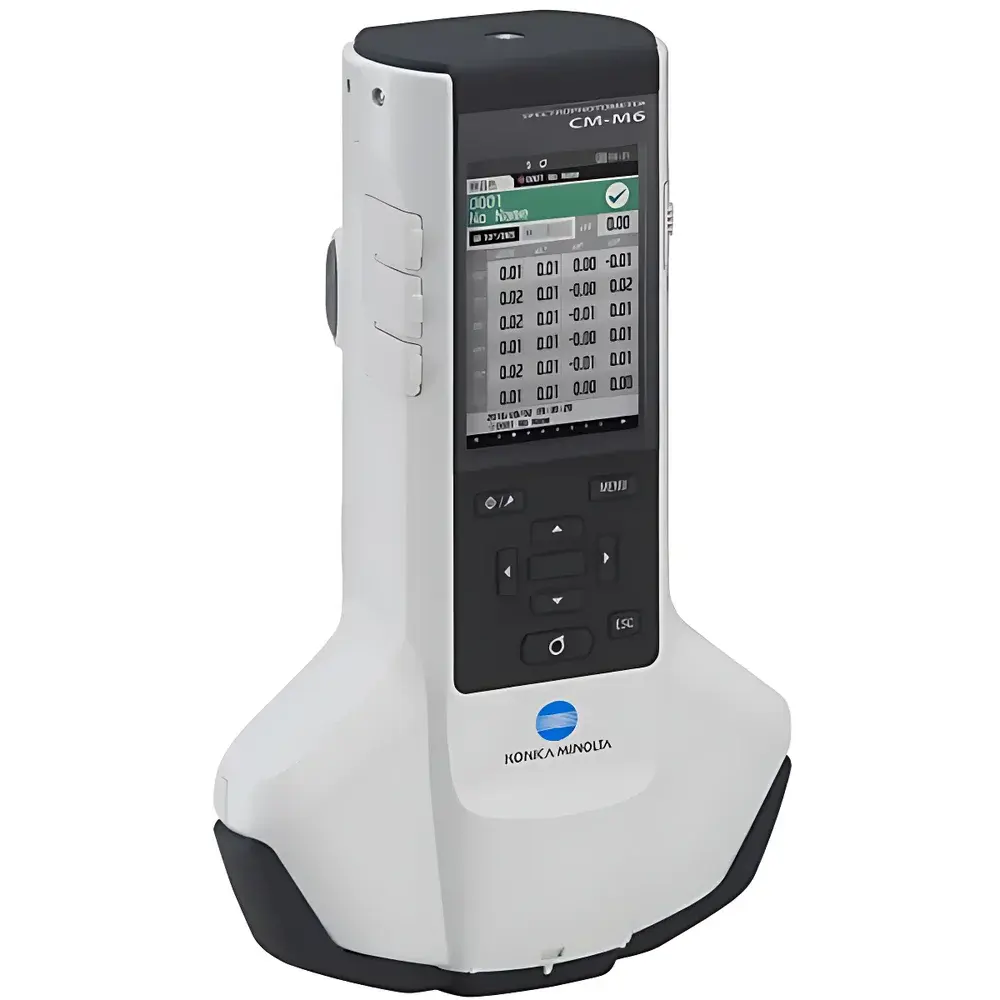

| Model | CM-M6 |
| Instrument Type | Portable |
| Optical Configuration | Multi-Angle Geometry |
| Light Source | High-CRI White LED |
| Spectral Range | 400–700 nm |
| Repeatability | Chromaticity Standard Deviation ≤ ΔE*ab 0.05 |
| Measurement Aperture | Ø6 mm |
| Illumination Angle | 45° |
| Viewing Angles | –15°, 15°, 25°, 45°, 75°, 110° |
| Optical Architecture | Mirror-Symmetric Dual Illumination/Reception System |
| Compliance | Designed for ISO 7724, ASTM E308, CIE No. 15, JIS Z 8722 |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | CM-25cG |
| Instrument Type | Portable |
| Optical Geometry | 45°c:0° (circumferential illumination) |
| Light Source | Pulsed Xenon Lamp |
| Spectral Range | 360 nm – 740 nm |
| Spectral Resolution | 10 nm |
| Repeatability | ΔE*ab ≤ 0.04 (std. dev.) |
| Inter-Instrument Agreement (IIA) | ΔE*ab ≤ 0.15 (BCRA Series II, avg. of 12 tiles) |
| Gloss Measurement | 60° geometry, ISO 2813-compliant embedded sensor |
| Aperture Sizes | MAV (7 mm) and SAV (3 mm) |
| Display | 2.7-inch high-resolution color LCD |
| Weight | < 600 g (incl. batteries) |
| Connectivity | USB + optional Bluetooth® 4.2 |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Instrument Type | Desktop |
| Optical Geometry | d/8° integrating sphere |
| Light Source | Pulsed Xenon Lamp |
| Spectral Range | 360 nm – 740 nm |
| Spectral Reflectance Repeatability | ≤ 0.1% standard deviation (400–740 nm) |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Instrument Type | Portable |
| Optical Geometry | d/8° integrating sphere |
| Light Source | Pulsed Xenon Lamp |
| Spectral Range | 400–700 nm |
| Repeatability | ΔE*ab ≤ 0.04 (average, CIE Lab) |
| Display | Color LCD |
| Connectivity | Bluetooth® v4.0 + USB 2.0 |
| Aperture Options | Ø8 mm (standard), Ø3 mm (not supported on CM-600d) |
| Compliance | ISO 7724-1, ISO 11664-4 (CIE 1976 L*a*b*), ASTM E308, JIS Z 8722 |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | CM-2300d |
| Type | Portable Spectrophotometer |
| Optical Geometry | 0°/45° (d/8° with SCI/SCE simultaneous measurement) |
| Light Source | Dual pulsed xenon lamps |
| Spectral Range | 360–740 nm |
| Wavelength Interval | 10 nm |
| Spectral Bandwidth | ~10 nm |
| Reflectance Range | 0–175% |
| Repeatability | σ ≤ 0.2% (360–740 nm), σ ≤ 0.4% (360–380 nm) |
| Inter-instrument Agreement | ΔE*ab ≤ 0.4 (SCI, based on BCRA Series II) |
| Measurement Time | ~1.5 s (SCI & SCE simultaneously) |
| Minimum Measurement Interval | 3 s (at 23°C) |
| Data Storage | 1,700 sets (each set = paired SCI/SCE data) |
| Observer Angle | 2° and 10° |
| Illuminants | A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12 (dual-illuminant calculation supported) |
| Color Spaces | L*a*b*, L*C*h, Yxy, XYZ, MI, CMC (1:1 & 2:1), CIE94, CIE DE2000, WI (ASTM E313), YI (ASTM D1925) |
| Display | LCD with spectral graph, color difference, pass/fail judgment, and relative gloss value |
| Interface | RS-232C (RJ-45 port), USB 2.0 via included IF-A24 adapter |
| Power | 4 × AA batteries or AC adapter |
| Dimensions | 69 × 96 × 193 mm |
| Weight | ~670 g (excluding batteries, including measurement stage) |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |

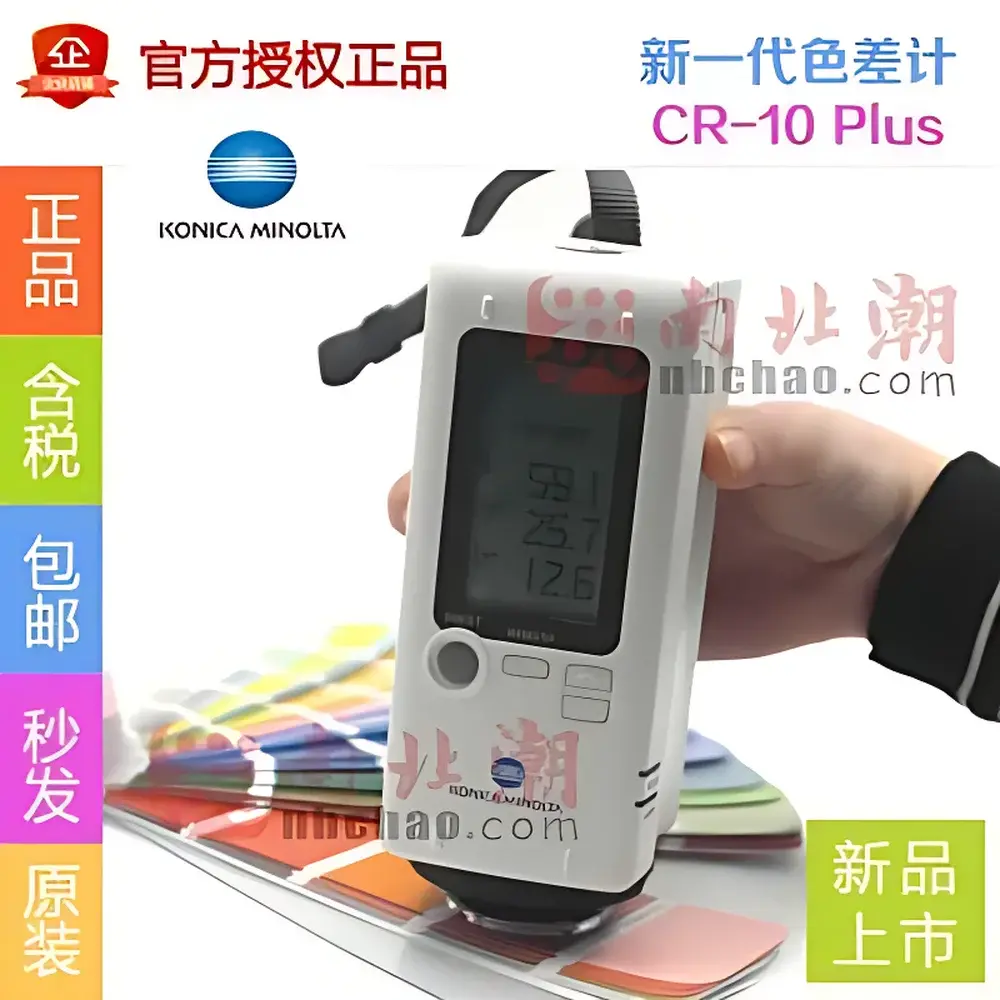

| Model | CR-10 Plus |
| Instrument Type | Portable |
| Optical Geometry | d/8° integrating sphere (including specular component, SCI) |
| Light Source | Pulsed Xenon Lamp |
| Spectral Range | L*: 1–100 |
| Repeatability | Standard deviation of ΔE*ab ≤ 0.1 |
| Measurement Aperture | Ø8 mm |
| Measurement Time | ~1 second |
| Observer Angle | 10° |
| Illuminant | D65 |
| Color Spaces | CIE L*a*b*, L*C*H*, CIE 1976 ΔE*ab |
| Compliance | DIN 5033-7, JIS Z 8722 (Condition d), ISO 7724-1, CIE No. 15, ASTM E1164 |
| Data Storage | Up to 1,000 measurements (reference + sample) |
| Interface | USB 2.0 |
| Power | 4 × AA alkaline or Ni-MH batteries |
| Dimensions | 66 × 158 × 85 mm |
| Weight | 420 g (without batteries) |
| Operating Environment | 0–40°C, ≤85% RH (non-condensing at 35°C) |
| Storage Environment | −20–40°C, ≤85% RH (non-condensing at 35°C) |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | CM-23d |
| Product Type | Spectrophotometric Color Difference Meter |
| Instrument Type | Portable |
| Optical Geometry | d/8° integrating sphere |
| Light Source | Pulsed Xenon Lamp |
| Spectral Range | 400–700 nm |
| Repeatability | Standard Deviation ≤ ΔE*ab 0.08 |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | CM-2500c |
| Type | Portable Spectrophotometer |
| Optical Geometry | 45°/0° (45° annular illumination, perpendicular viewing) |
| Light Source | Dual pulsed xenon lamps |
| Spectral Range | 360 nm – 740 nm |
| Spectral Interval | 10 nm |
| FWHM | ~10 nm |
| Reflectance Range | 0–175% (0.01% resolution) |
| Repeatability | ΔE*ab ≤ 0.05 (after white calibration plate measurement, 30 readings at 10 s intervals) |
| Inter-instrument Agreement | ΔE*ab ≤ 0.25 |
| Measurement Aperture | Ø7 mm / Ø11 mm |
| Measurement Time | ~1.5 s |
| Minimum Measurement Interval | 4 s |
| Detector | Dual-row silicon photodiode array (40 elements) |
| Dispersion | Planar holographic grating |
| Observer Angles | 2° and 10° standard |
| Illuminants | A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12 (dual illuminant display supported) |
| Color Spaces | CIE L*a*b*, L*C*h, CMC (1:1 & 2:1), CIE94, Hunter Lab, Yxy, XYZ, Munsell, DIN 99 Lab, CIEDE2000 |
| Indices | WI (ASTM E313, CIE), YI (ASTM E313/D1925), ISO Brightness (ISO 2470), MI, Density (A/T), Tint |
| Memory Capacity | 1,700 measurements |
| Interface | RS-232C (RJ-45), USB 2.0 via IF-A24 adapter |
| Power | Four AA batteries or AC adapter |
| Operating Temp. | 5–40 °C, ≤80% RH (non-condensing) |
| Dimensions | 193 × 69 × 96 mm |
| Weight | ~670 g (including calibration tile, excluding batteries) |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | CR-10 Plus |
| Instrument Type | Portable |
| Optical Geometry | d/8° integrating sphere (with specular component included) |
| Light Source | Pulsed Xenon Lamp |
| Spectral Range | 360 nm – 750 nm |
| Repeatability | ΔE*ab ≤ 0.1 (standard deviation, measured 30 times on white calibration tile at 10 s intervals) |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |

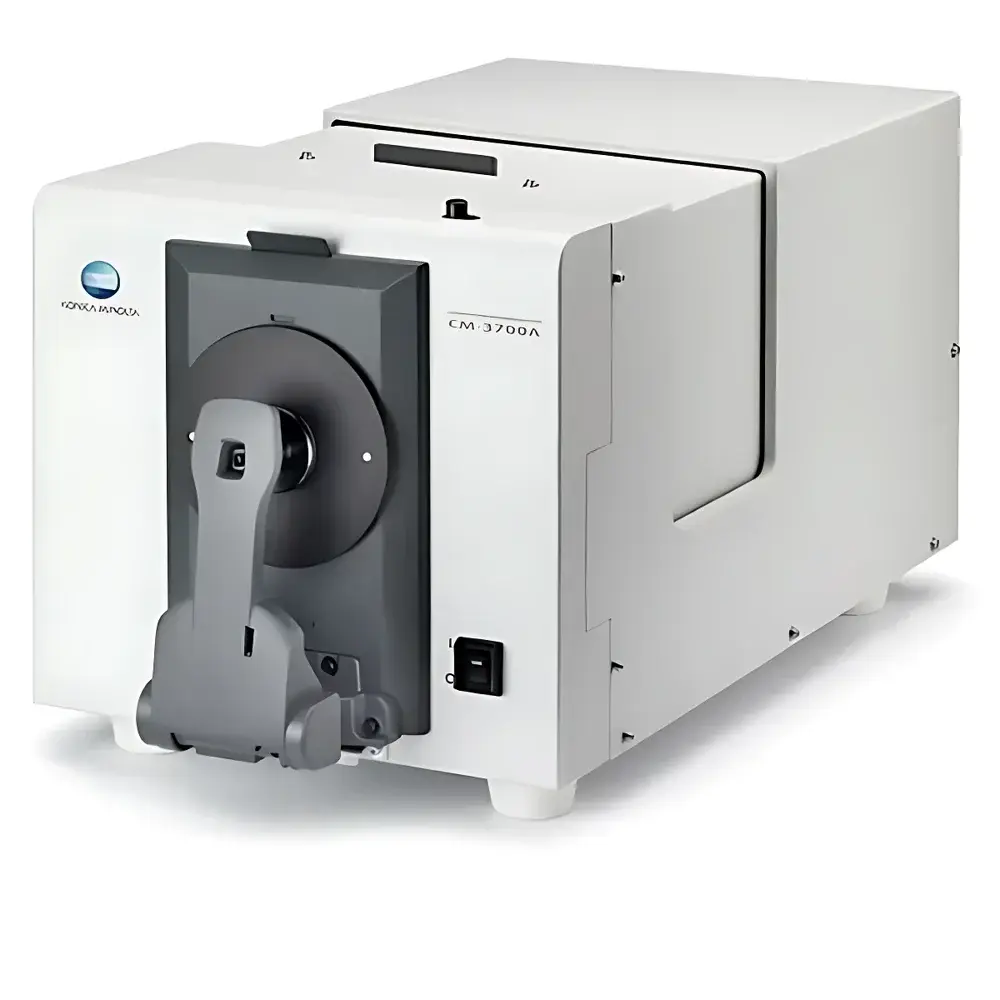

| Model | CM-3700A |
| Instrument Type | Desktop |
| Optical Geometry | d/8° integrating sphere |
| Light Source | Pulsed Xenon Lamp |
| Spectral Range | 360 nm – 740 nm |
| Repeatability | ΔE*ab ≤ 0.005 (std. dev.) |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Instrument Type | Portable |
| Measurement Angles | 20°, 60°, 85° (Multi Gloss 268A) |
| Repeatability | 0.0–99.9 GU: ±0.2 GU |
| 100–2,000 GU | ±0.2% of reading |
| Inter-instrument Agreement (60CT) | 0.0–19.9 GU: ±0.2 GU |
| Spot Size (60S) | 2 mm × 4 mm |
| Spot Size (60A) | 9 mm × 15 mm |
| Display | Full-color LCD |
| Power | Single AA alkaline battery (~4,000 measurements) |
| Compliance | ISO 2813, ASTM D523, DIN 67530, JIS Z8741 (except GM-60S) |
| Software | smart-lab Gloss & smart-chart |
| Languages | 10 selectable UI languages |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | CR-400 / CR-410 |
| Instrument Type | Portable |
| Optical Geometry | d/8° integrating sphere (with specular component included) |
| Light Source | Pulsed xenon lamp |
| Spectral Range | Y Reflectance 0.01–160.00% |
| Repeatability | ΔE*ab ≤ 0.07 (standard deviation, after white calibration tile measurement, 30 times at 10-second intervals) |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | CM-3700d |
| Product Type | Spectrophotometer |
| Instrument Type | Desktop |
| Optical Geometry | d/8° integrating sphere |
| Light Source | Pulsed Xenon Lamp |
| Spectral Range | 360 nm – 740 nm |
| Repeatability | ΔE*ab standard deviation ≤ 0.005 |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | CM-512m3 |
| Type | Portable Spectrophotometer |
| Optical Geometry | d/8° integrating sphere with multi-angle annular illumination (25°, 45°, 75°) / 0° vertical reception |
| Light Source | Triple pulsed xenon lamp |
| Spectral Range | 400–700 nm |
| Spectral Interval | 20 nm |
| Reflectance Range | 25°: 0–300% |
| 45° & 75° | 0–200% |
| Repeatability | ΔE*ab ≤ 0.05 (after white calibration, 30 measurements at 10 s intervals) |
| Measurement Aperture | Φ12 mm / Φ20 mm |
| Minimum Measurement Interval | 3 s (at 23°C on white calibration tile) |
| Display | L*a*b*, L*C*h*, ΔE*ab, ΔE00, CMC (l:c), FF value, line chart |
| Observer | 2° and 10° standard observer |
| Illuminants | A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12 |
| Memory Capacity | 440 data sets (standards + samples) |
| Interface | RS-232C, IrDA |
| Power | 4 × AA alkaline or Ni-MH batteries / AC adapter |
| Operating Temp. | 0–40°C, ≤85% RH (non-condensing) |
| Dimensions | 164 × 115 × 257 mm |
| Weight | ~1.4 kg (without batteries) |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Instrument Type | Benchtop |
| Optical Geometry | d/8° integrating sphere (SCI/SCE switchable) |
| Illuminants | A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12, ID50, ID65 |
| Spectral Range | 360 nm – 740 nm |
| Wavelength Interval | 10 nm |
| FWHM | ~10 nm |
| Reflectance Measurement Range | 0–175% |
| Transmittance Measurement Range | 0–175% |
| Repeatability | ΔE*ab ≤ 0.04 (after white calibration, 30 measurements at 10 s intervals) |
| Inter-instrument Agreement | ΔE*ab ≤ 0.15 (typical, BCRA Series II, 23°C) |
| Aperture Options (Reflectance) | LAV Ø30 mm / Ø36 mm, MAV (optional) Ø8 mm / Ø11 mm, SAV (optional) Ø3 mm / Ø6 mm |
| Transmittance Aperture | Ø20 mm |
| Transmittance Chamber Max Thickness | 60 mm |
| Chamber Width | Unlimited |
| Measurement Time | ~1 s (data output) |
| Minimum Interval | ~3 s |
| Display | 5.7" TFT color LCD |
| Languages | English, Simplified Chinese, Japanese, German, French, Italian, Spanish |
| Compliance | CIE No. 15, ISO 7724-1, ASTM E1164, DIN 5033-7, JIS Z 8722 (Condition c) |
| Interface | USB 1.1, RS-232C |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Dimensions (closed) | 385 × 192 × 261 mm (W × H × D) |
| Weight | ~5.8 kg |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | CM-3600A |
| Product Type | Spectrophotometric Colorimeter |
| Instrument Type | Benchtop |
| Optical Geometry | d/8° integrating sphere (SCI & SCE simultaneous) |
| Light Source | Pulsed Xenon Lamp |
| Spectral Range | 360 nm – 740 nm |
| Wavelength Interval | 10 nm |
| FWHM | ~10 nm |
| Reflectance Measurement Range | 0–200% (0.01% resolution) |
| Repeatability | ΔE*ab ≤ 0.02 (after white calibration, 30 measurements at 10 s intervals) |
| Inter-instrument Agreement | ΔE*ab ≤ 0.15 (LAV/SCI, BCRA Series II avg.) |
| Temperature Drift | ≤ 0.05 ΔE*ab /°C |
| Measurement Apertures | Φ25.4 mm (LAV), Φ8 mm (MAV), Φ4 mm (SAV), all interchangeable |
| Transmission Geometry | d/0° (diffuse illumination, normal detection) |
| Transmission Aperture | ~Φ17 mm |
| Sample Dimensions (Transmission) | ≤133 mm width, ≤50 mm thickness |
| Interface | USB 1.1 |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Operating Environment | 13–33 °C, ≤80% RH (non-condensing) |
| Dimensions (CM-3600A) | 244 × 205 × 378 mm |
| Weight | 11.5 kg |
Show next
