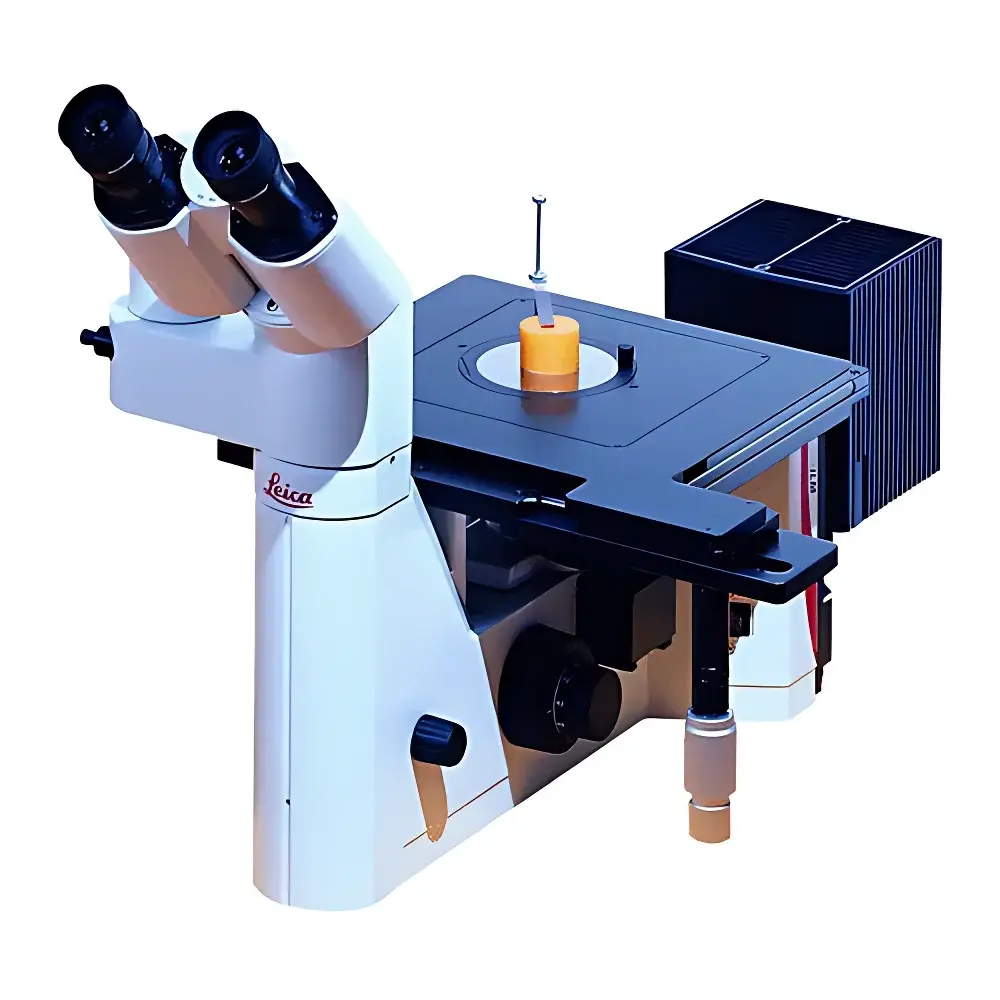

| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM ILM |
| Configuration | Inverted |
| Imaging System | Integrated Digital Image Analysis Ready |
| Total Magnification Range | 50× to 1000× |
| Eyepieces | 10× (standard), optional 12.5×, 16×, 25× (18–20 mm field of view) |
| Objectives | 1.25×, 5×, 10×, 20×, 50×, 100×, 250× |
| Objective Turret | 4-position, M25 thread, brightfield-optimized |
| Stage Dimensions | 247 × 230 mm, XY travel 60 × 40 mm |
| Focus Mechanism | Coaxial coarse/fine adjustment (±7 mm upward / −2 mm downward) |
| Illumination | LED cold-light source (≥20,000 h lifetime), insertable filter sets including polarizing components (polarizer & analyzer) |
| Viewing Head | 30° inclined binocular tube, interpupillary adjustment 48–75 mm, side-port 100% beam split for imaging |
| Optical Design | HC (High Contrast) infinity-corrected optical system with axial and radial chromatic aberration correction |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DMi8 |
| Configuration | Inverted |
| Image Analysis System | Integrated |
| Total Magnification Range | 50×–600× |
| Eyepiece | 10× |
| Objective Lenses | 5×/0.1, 10×/0.25, 50×/0.7 |
| Macro Mode Field of View | 35.7 mm at 0.7× |
| Optional Magnifications | 0.7×, 5×, 10×, 20×, 50×, 100× |
| UC-3D Contrast Illumination | Standard |
| Focus Drive | 3-Position Adjustable Precision Drive |
| Maximum Sample Weight Capacity | 30 kg |
| Software Platform | Leica Application Suite (LAS) with Steel Expert, Phase Expert, Grain Expert modules |
| Compliance | Designed for ISO 9001-aligned QA/QC environments |

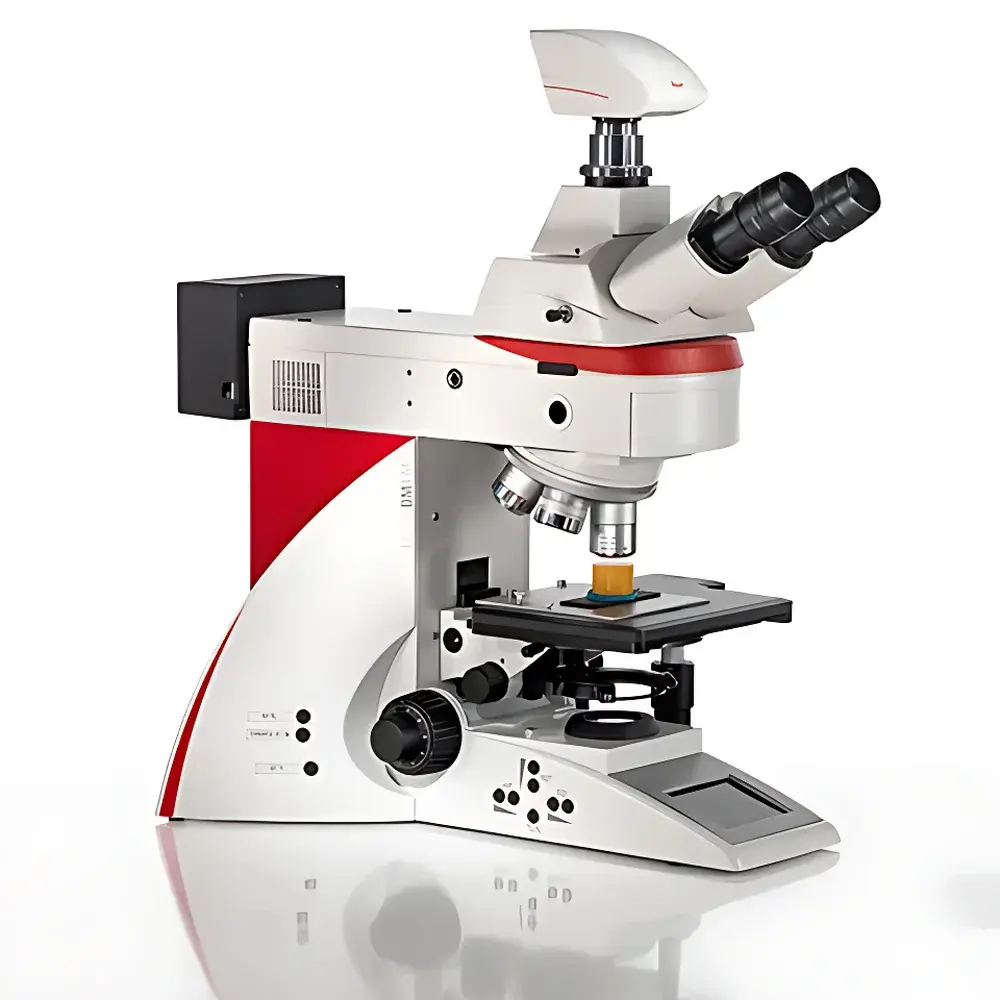

| Brand | Leica |
|---|---|
| Origin | Germany |
| Microscope Type | Upright |
| Automation Level | Manual (DM4 M) / Fully Automated (DM6 M) |
| Illumination | LED with Constant Color Temperature |
| Contrast Methods | Brightfield (BF), High-Dynamic Darkfield (HDF), Differential Interference Contrast (DIC), Polarization (POL), Fluorescence (FL) |
| Software Platform | Leica Application Suite (LAS) with Expert Modules (Steel Expert, Cleanliness Expert, Grain Expert, Phase Expert) |
| Imaging System | Integrated HD Camera with Save-and-Recall Functionality |
| Optical Architecture | Infinity-Corrected, Modular Design |
| Compliance | Designed for GLP/GMP environments |
| Lifetime LED Source | ≥25,000 hours |

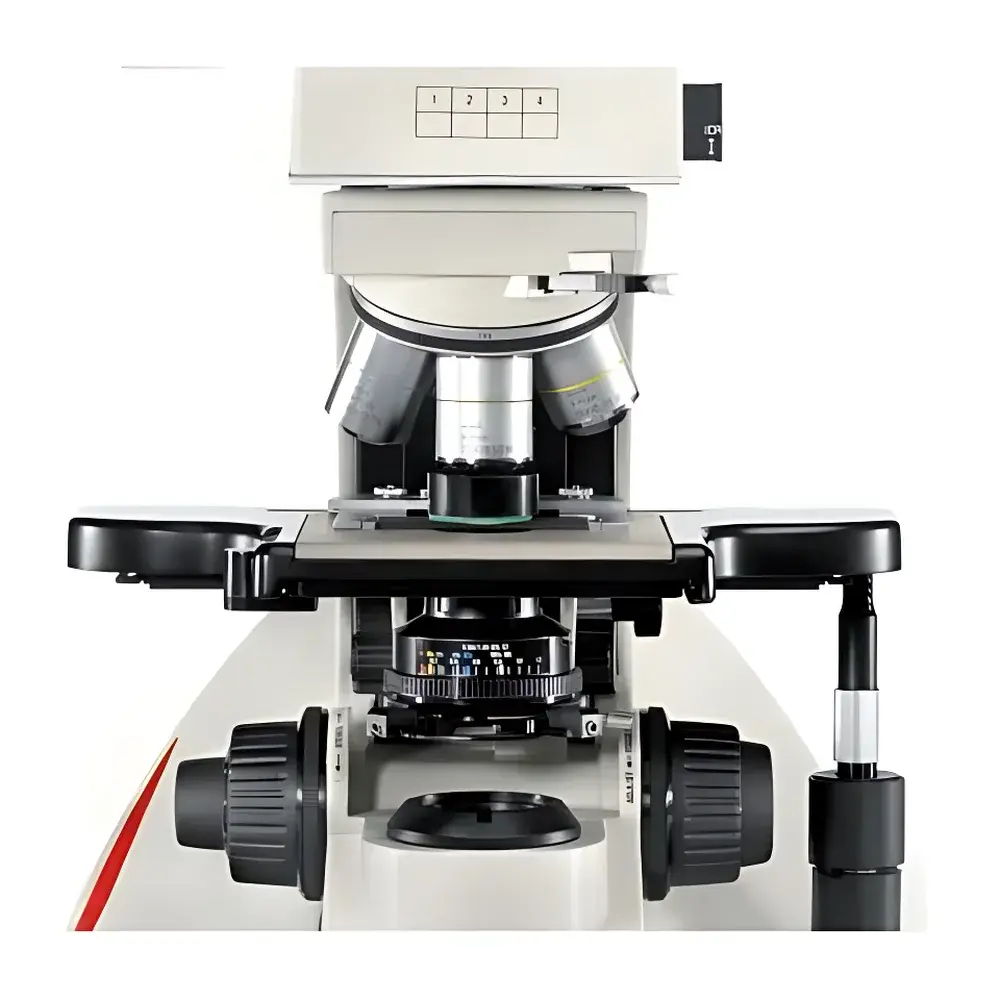

| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM2700 M |
| Configuration | Upright |
| Image Analysis System | Integrated |
| Total Magnification Range | 50×–1000× |
| Eyepiece Field of View | 25 mm |
| Objective Lenses | High-Performance Achromatic N PLAN Series (1.25×–100×) |
| Macro Objective | 0.7× (40 mm field length) |
| Illumination | High-Power White LED (4500 K, constant color temperature) |
| CCDA | Encoded Color-Coded Dial Assistant |
| Ergonomic Design | Fully Adjustable Stage, Low-Positioned Controls, Extended Working Distance |
