| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | UG60 |
| Measurement Angle | 60° |
| Aperture Size | 9 × 15 mm |
| Gloss Range | 0.0–1,000 GU |
| Resolution | 0.1 GU (0–99.9 GU), 1 GU (100–2,000 GU) |
| Repeatability | ±0.2 GU (0–99.9 GU), ±0.2% of reading (100–2,000 GU) |
| Inter-instrument Agreement | ±0.5 GU (0–99.9 GU), ±0.5% of reading (100–2,000 GU) |
| Standards Compliance | ISO 2813, ISO 7668, ASTM D 523, ASTM D 2457, DIN 67530, JIS Z 8741, BS 3900, BS 6161-12 |
| Data Storage | 999 measurements with timestamp |
| Interface | USB 2.0, Bluetooth 2.0 |
| Power | Two 1.5 V AA alkaline batteries (≈10,000 measurements) or USB bus power |
| Operating Temperature | 15–40°C, ≤85% RH (non-condensing at 35°C) |
| Dimensions | 155 × 73 × 48 mm |
| Weight | 400 g |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | Rhopoint IQ-S |
| Instrument Type | Handheld, Automatic |
| Haze Range | 0–90% |
| Transmittance Range | 0–100% |
| Haze Repeatability | ±0.2% |
| Transmittance Repeatability | ±0.2% |
| Measurement Angles | 20°, 60°, 85° (angle-selectable per surface finish) |
| Key Metrics | Gloss, Peak Gloss, Reflectance Haze, Reflectance Image Quality (RIQ), DOI (Distinctness of Image) |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | MG-268 |
| Measurement Angles | 20°, 60°, 85° |
| Gloss Range | 0.0–2,000 GU (20°), 0.0–1,000 GU (60°), 0.0–160 GU (85°) |
| Repeatability | ±0.2 GU (0–99.9 GU), ±0.2% of reading (100–2,000 GU) |
| Inter-instrument Agreement | ±0.5 GU (0–99.9 GU), ±0.5% of reading (100–2,000 GU) |
| Measurement Area | 10×10 mm (20°), 9×15 mm (60°), 5×38 mm (85°) |
| Compliance | ISO 2813, ISO 7668, ASTM D523, ASTM D2457, DIN 67530, JIS Z 8741, BS 3900, BS 6161-12 |
| Data Storage | 999 measurements with timestamp |
| Battery Life | ~10,000 readings (1.5 V AA alkaline) |
| Interface | USB 2.0, Bluetooth 2.0 |
| Operating Temperature | 15–40 °C, ≤85% RH (non-condensing) |
| Dimensions | 155 × 73 × 48 mm |
| Weight | 400 g |

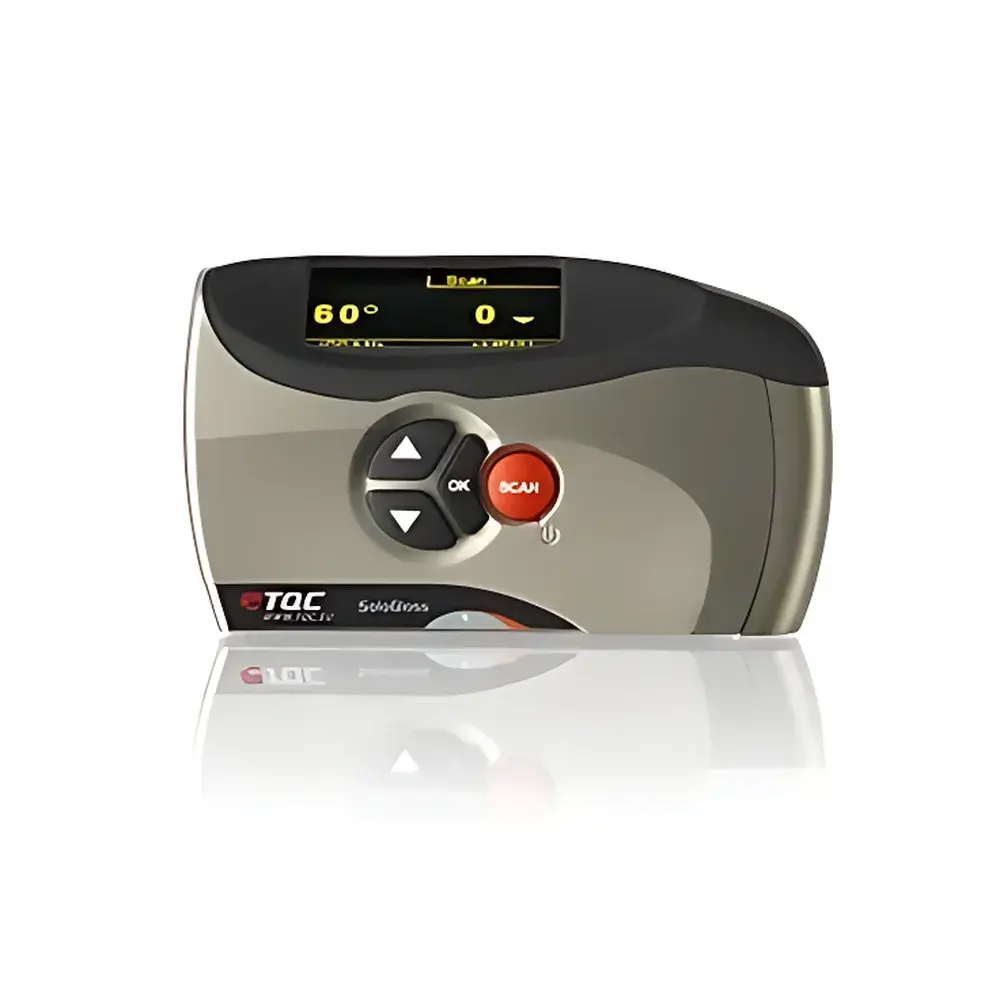

| Brand | TQC |
|---|---|
| Country of Origin | Netherlands |
| Model | GL0010 (60°), GL0020 (20°/60°), GL0030 (20°/60°/85°) |
| Measurement Angles | 20°, 60°, 85° |
| Gloss Range | 0–2000 GU |
| Repeatability | ≤0.2 GU (60° & 85°), ≤0.4 GU (20°) |
| Reproducibility | 1.58–1.88 GU |
| Resolution | 0.1 GU (0–100 GU), 1 GU (>100 GU) |
| Light Source | Stable LED |
| Display | High-contrast OLED |
| Dimensions | 90 × 140 × 45 mm |
| Weight | 398 g |
| Power | 2 × AA batteries |
| Interface | USB |
| Compliance | ISO 2813, ASTM D523, ASTM D2457, ASTM C584, BS 3900 D5, DIN 67530, JIS Z 8741, AS 1580 |
