| Brand | Norman Tool |
|---|---|
| Origin | USA |
| Model | 7-IBB-CC |
| Load Options | 55 g, 175 g, 275 g |
| Counter Type | Digital LCD (0–999,999 cycles) |
| Sample Mounting | Flat & 3D fixtures |
| Compliance | ASTM F2357-04 |
| Power Supply | 220 V, 50/60 Hz, 5 A |
| Weight | ~17 kg |
| Accessories | Calibration plate (certified), surface level gauge, hex key set, LED magnifier, two counterweights, three O-rings, 3D sample holder |
| Brand | Taber |
|---|---|
| Origin | USA |
| Model | 6160 |
| Compliance | ASTM F735, ARCA AR-C STP 5.2.5 |
| Stroke Length Options | 1", 2", 3", or 4" |
| Oscillation Frequency | 100–200 cycles/min |
| Sample Height Exposure | ≤1 mm |
| Compatible Abrasives | Quartz sand, aluminum oxide, silicon carbide, glass beads |

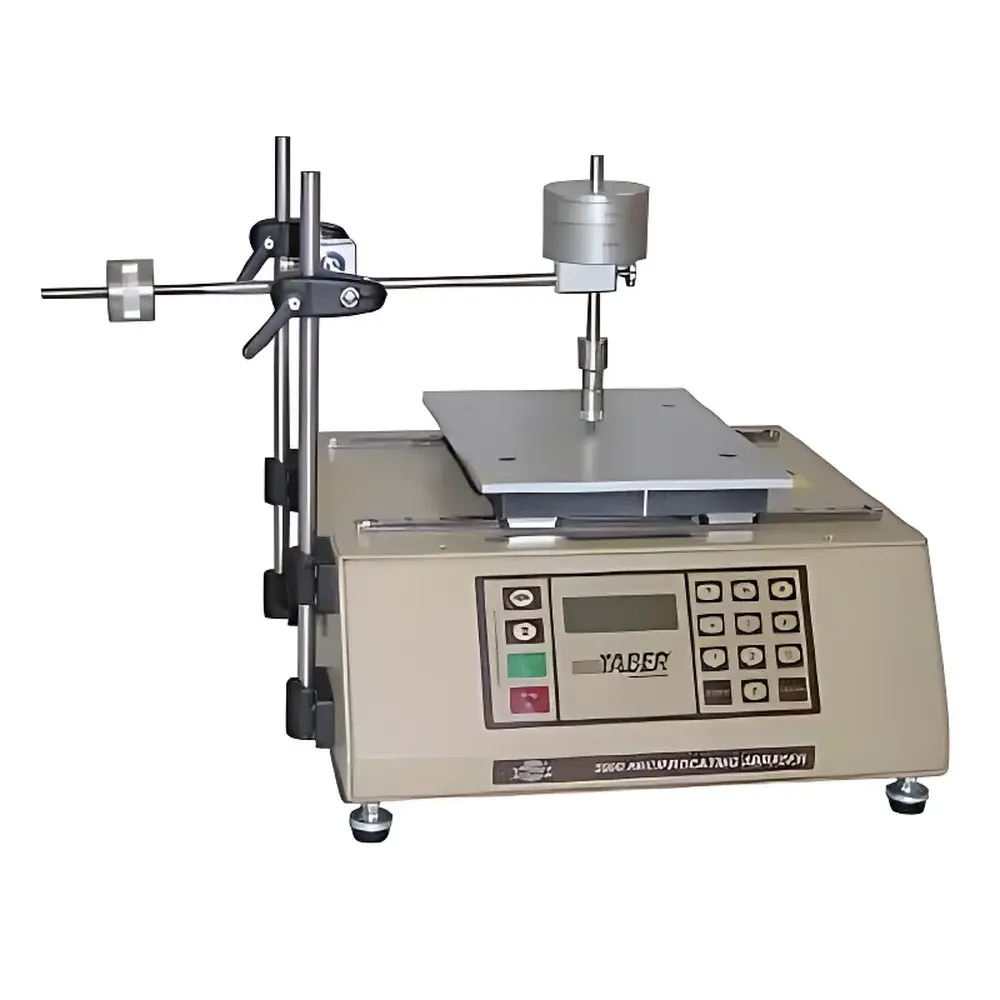

| Brand | Taber |
|---|---|
| Origin | USA |
| Model | Taber 5900 |
| Instrument Type | Reciprocating Wear and Abrasion Tester |
| Maximum Applied Load | 1–24 N |
| Load Resolution | 1 mN |
| Maximum Operating Temperature | 50 °C |
| Reciprocating Stroke Length | 6–155 mm |
| Reciprocating Frequency | 3–75 cycles/min |
| Adjustable Test Arm Height | up to 130 mm |
| Compliance Standards | ASTM F2495, ISO 1518, GME 60248, GME 60368, GMW 14125 |

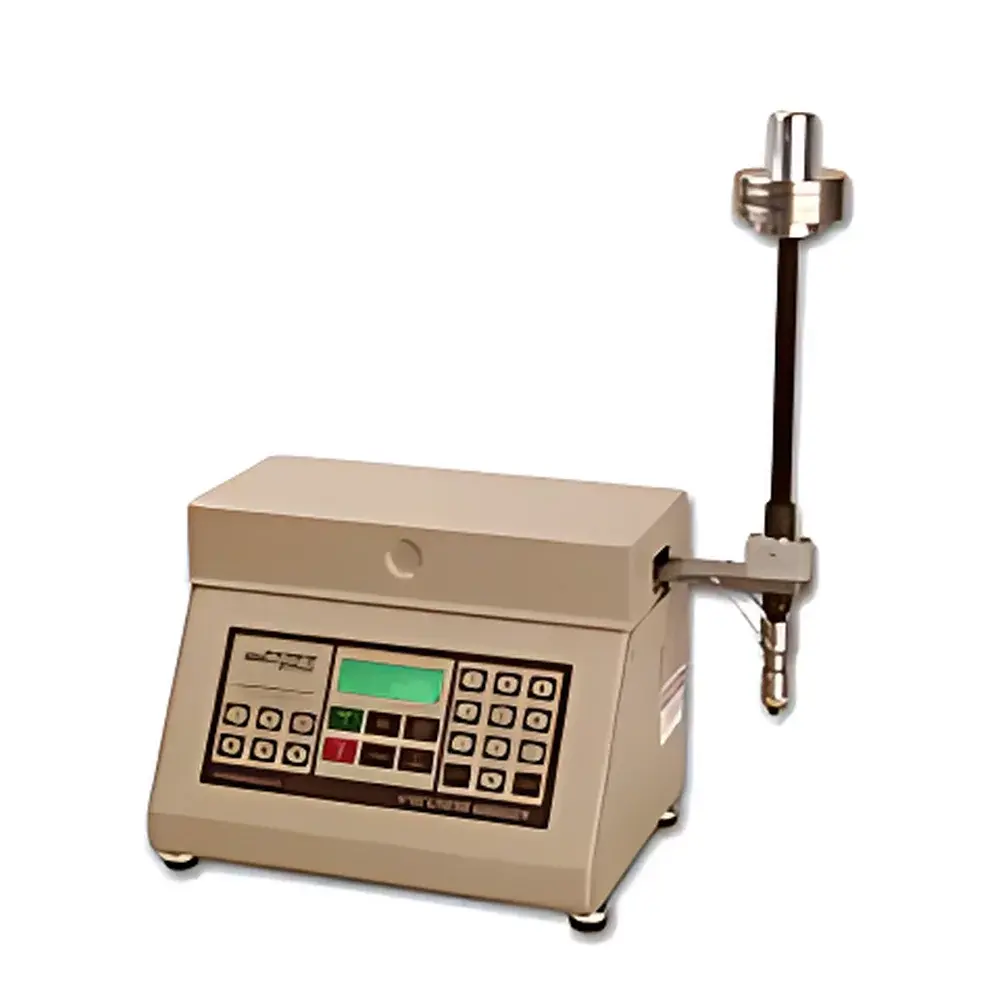

| Brand | Taber |
|---|---|
| Origin | USA |
| Model | 5750 |
| Compliance | ASTM D6279, ASTM D2197, ASTM D5178, ASTM F1319, ISO 105-X12, ISO 9352, ISO 5470-1, EN ISO 2677-010, AATCC Method 8, JIS K7204, DIN 53754 |
| Load Range | 250 g (standard), configurable with optional weights |
| Stroke Length | Adjustable linear travel |
| Speed | Programmable reciprocating motion |
| Sample Mounting | Flat or contoured surfaces via floating stylus mechanism |
| Abrasive Media Compatibility | CS-10F rubber eraser tips, H-18 silicon carbide abrasive points, S-14 polishing papers, and custom media per application requirement |

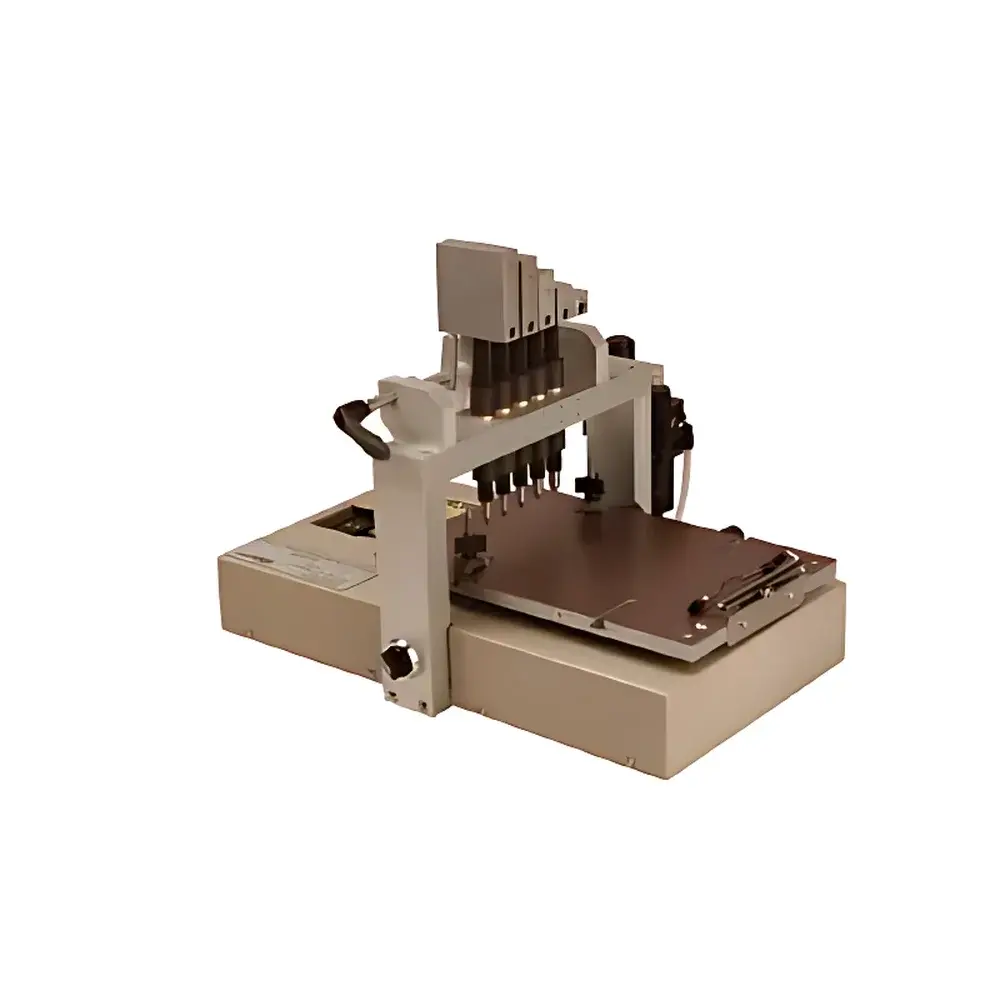

| Brand | Taber |
|---|---|
| Origin | USA |
| Model | 710 |
| Actuation | Pneumatic |
| Number of Test Arms | 5 |
| Normal Force Range | 2 N to 25 N (standard weights: 2, 3, 4, 5, 6, 7, 10, 15, 20 N |
| optional | 8, 13, 18, 25 N) |
| Indenter Options | Spherical tungsten carbide tips, Ø1.0 mm and Ø7.0 mm |
| Sample Thickness Limit | ≤22 mm |
| Sample Dimensions (recommended) | 125 mm × 300 mm |
| Traverse Speed Control | Adjustable via regulated air pressure |
| Timing Resolution | 0.01 s |
| Compliance | ASTM D7027, ISO 20566, SAE J2527, GMW 14698, Ford BN 108-13, Chrysler LP-463DD-18-01, Nissan NES M0159 |

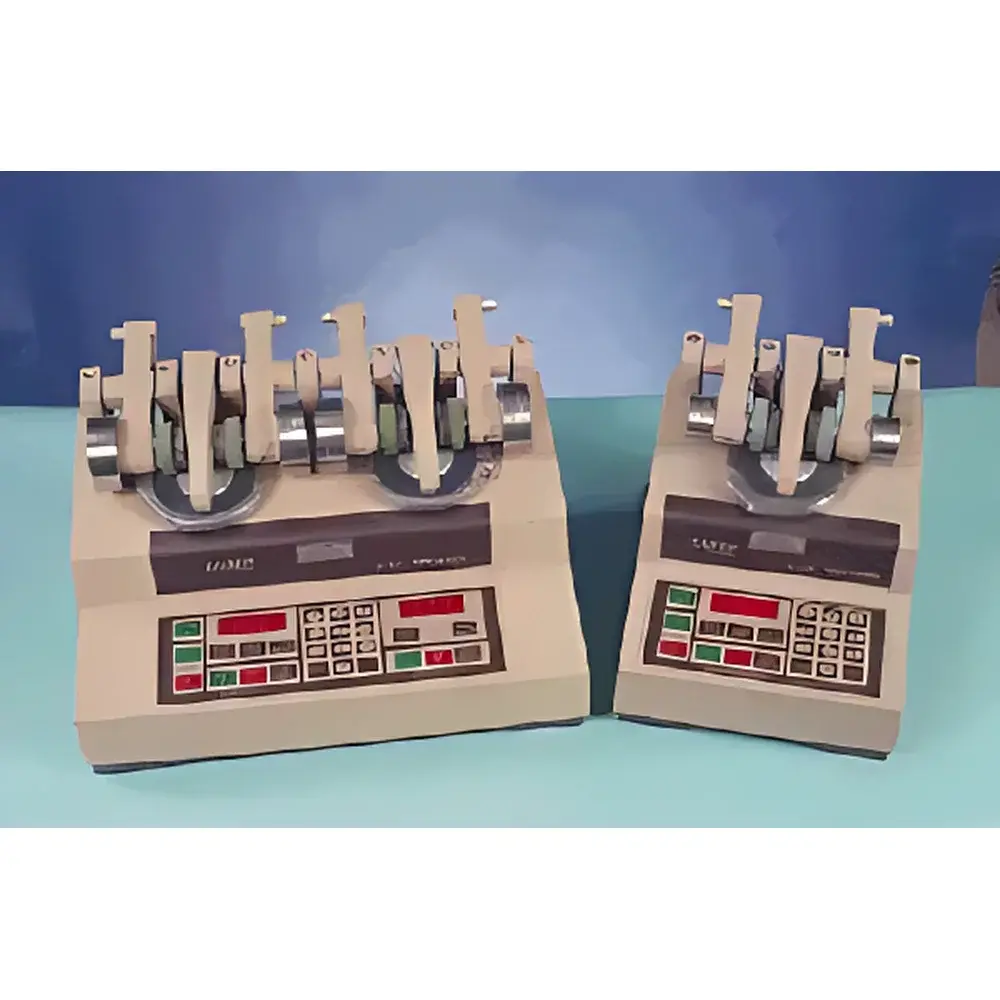

| Brand | Taber |
|---|---|
| Origin | USA |
| Model | 5155 |
| Compliance | ASTM D4060, ASTM F510, ISO 7784-2, BS 3900-E15 |
| Sample Rotation Speed | 60 rpm (standard), adjustable via gear-driven mechanism |
| Load Options | 250 g, 500 g, 1000 g (standard weights) |
| Vacuum Extraction | Integrated high-efficiency particulate capture system (HEPA-filtered) |
| Test Duration Control | Digital timer with 0.1–999.9 min resolution |
| Footprint | 457 mm × 406 mm × 432 mm (W × D × H) |
| Weight | 27 kg |
| Brand | Norman Tool |
|---|---|
| Origin | USA |
| Model | 7-IBB-CC |
| Load Options | 55 g, 175 g, 275 g |
| Rotational Speed | 16 rpm (50 Hz) / 18 rpm (60 Hz) |
| Counter Type | Digital LCD (0–999,999 cycles) |
| Sample Mounting | Flat & 3D fixtures included |
| Power Supply | 220 V, 50/60 Hz, 5 A |
| Weight | ~17 kg |
| Compliance | ASTM F2357-04, DIN-compatible abrasion evaluation |
