| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | FDL |
| Instrument Type | High-Temperature Safety Drying Oven |
| Temperature Range | 10 °C above ambient to 300 °C |
| Temperature Uniformity (at 150 °C) | ±2.5 K |
| Temperature Fluctuation | ±0.8 K |
| External Dimensions | 830 mm × 805 mm × 685 mm |
| Internal Volume | 115 L |
| Internal Chamber Material | Stainless Steel (Si-free, dust-free) |
| Fresh Air Filtration | Replaceable M6-class filter |
| Door Seal | FKM (standard, ≤200 °C) or Silicone (optional, ≤300 °C) |
| Safety Compliance | DIN EN 1539:2010-08, DIN 12880 Class 2 |
| Controller | Programmable with interval & real-time scheduling |
| Interface | RS422 |
| Alarm System | Acoustic & optical fresh-air monitoring + automatic heating cutoff |
| Insulation Thickness | 60 mm |
| Shelf Capacity | 2 standard chrome-plated shelves (max. 30 kg each), up to 5 optional |
| Recovery Time (150 °C, 30 s door open) | 12 min |
| Heating Time to 150 °C | 20 min |
| Rated Power (230 V) | 2.9 kW |
| Net Weight (empty) | 90 kg |
| Max. Load Capacity | 60 kg |

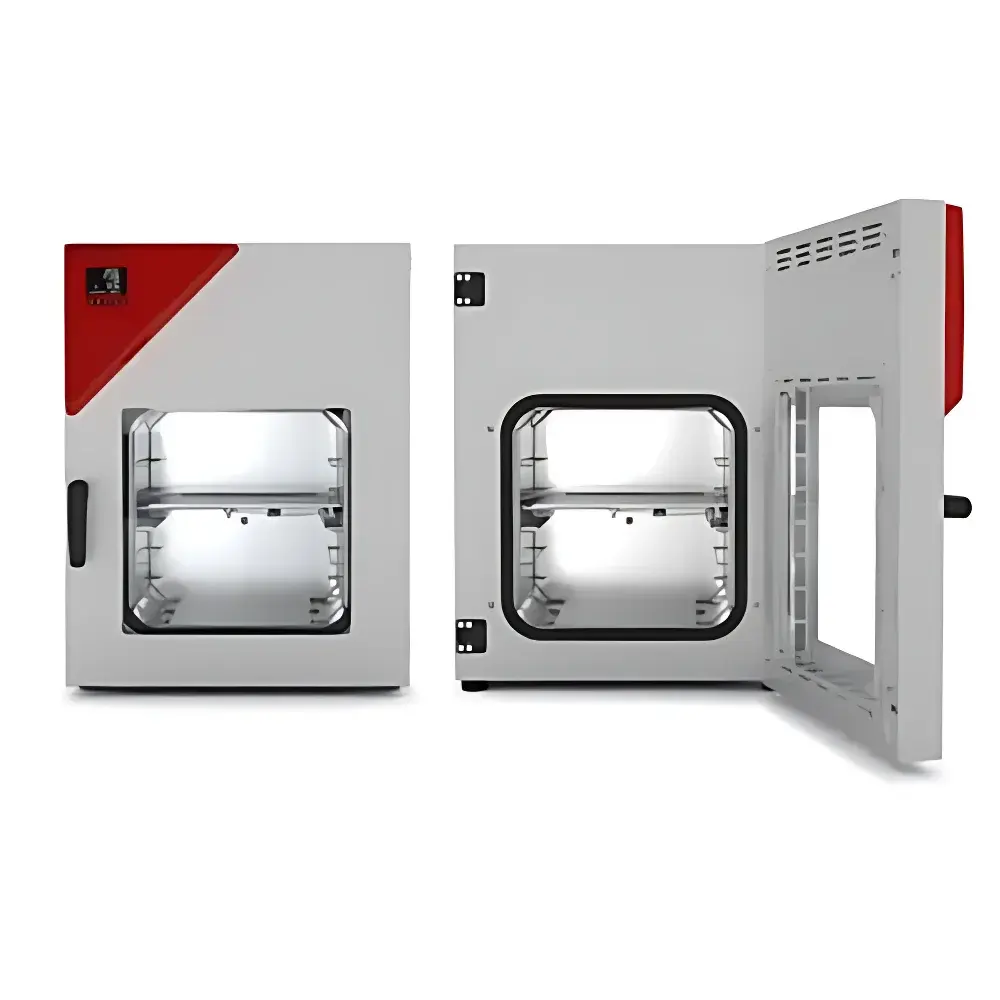

| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model Series | VD, VDL |
| Instrument Type | Vacuum Oven |
| Temperature Range | Ambient +9 °C to +110 °C |
| Chamber Volume | 24 L / 55 L / 119 L |
| Chamber Material | Stainless Steel |
| ATEX Certification | Ex II 2G IIB T3 Gb/Gc X |
| Control Interface | TFT Touchscreen with Graphical Pressure & Temperature Display |
| Data Logging | Internal Recorder (USB Export, Open-Format CSV) |
| Connectivity | Ethernet, Analog Outputs (Temperature & Pressure), DN16 & DN40 Universal Ports |
| Safety Features | Spring-Loaded Impact-Resistant Safety Glass, Inert Gas Purge Interface, Electrically Isolated Electronics |
| Heating System | Air-Jacketed with Adjustable Aluminum/SS Shelves |
| Software | APT-COM (Basic/Professional/GLP Versions) |
| Compliance | Designed for GLP/GMP environments |
