| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-18380 |
| Chamber Internal Dimensions | 1000 × 2000 × 4000 mm (W × D × H) |
| Air Inlet | 800 × 400 mm @ 5 m³/h |
| Exhaust Opening | 300 × 1000 mm |
| Adjustable Burner Height | 600 ± 5 mm |
| Air Flow Regulation | 4.5–10 m³/min ±5% |
| Propane Flow Control | 5–20 L/min ±1% (via pressure regulator & gauge) |
| Compressed Air Flow | 50–100 L/min ±1% (rotameter-controlled) |
| Anemometer Range | 0.05–5 m/s ±2% |
| Timer Range | 0–60 min ±0.5 s (auto gas cutoff) |
| Internal Thermocouple | 0–100 °C ±1% |
| Dual Stainless Steel Ladder Assemblies | 500 ±5 mm & 800 ±5 mm wide × 3500 ±10 mm high, 9-step |
| Brand | JB-Brookfield |
|---|---|
| Model | JB-YZS2 |
| Origin | Shanghai, China |
| Compliance | GB/T 2406.2–2009, GB/T 5454–1997 |
| Flow Control Accuracy | ±5% |
| Gas Flow Range | 60–600 L/h |
| O₂/N₂ Supply Pressure (Inlet) | ≥0.25 MPa |
| Operating Pressure (Regulated) | 0.1 MPa |
| Dimensions (W×D×H) | 330 × 250 × 530 mm |
| Sample Holder | Self-supporting clamp assembly |
| Combustion Tube | Dual borosilicate glass tubes (included) |
| Accessories | Glass beads, stainless steel mesh (2 pcs), 1.5 m nylon tubing, 6 m gas supply hoses |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-UL94 |
| Compliance Standards | UL 94, ASTM D5025, ASTM D5207, GB/T 2408 |
| Flame Calibration | 20 mm (1.76 ± 0.01 g Cu block), 125 mm (19.14 ± 0.02 g Cu block) |
| Gas Supply | High-purity methane (≥98%, 37.1 MJ/m³) |
| Burner Power | 500 W (vertical), 225 W (horizontal) |
| Nozzle Diameter | 0.90 ± 0.03 mm |
| Burner Angle Adjustment | 0°, 20°, 45° |
| Chamber Dimensions | W122 × D52 × H120 cm |
| Observation Window | Tempered glass with sealed glove port |
| Exhaust System | Top-mounted forced-draft fume extraction |
| Temperature Measurement | K-type thermocouple + copper calibration blocks, digital display up to 1000 °C |
| Timing Resolution | 0.1 s electronic stopwatch |
| Brand | Jiubin Instruments |
|---|---|
| Model | FMVSS 302 |
| Origin | Shanghai, China |
| Compliance | FMVSS 302, GB 8410-2006, PV3357 |
| Flame Height | 38 mm (adjustable per standard) |
| Ignition Time | 15 s ± 0.2 s |
| Sample Holder | U-shaped stainless steel fixture |
| Burner Nozzle ID | 9.5 mm |
| Nozzle-to-Sample Distance | 19 mm ± 1 mm |
| Gas Supply | Liquefied petroleum gas (LPG) or natural gas with calorific value 35–38 MJ/m³ |
| Comb Specifications | ≥110 mm length |
| Timer Accuracy | ±0.5 s |
| Temperature Range | ≥150 °C, ±1 °C |
| Ruler Accuracy | ±1 mm, 400 mm min scale |
| Chamber Dimensions (L×W×H) | 1300 × 800 × 1600 mm |
| Net Weight | ~120 kg |
| Sample Dimensions | 102 × 356 × t mm (t ≤ 13 mm) |
| Minimum Specimens | 5 per orientation |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |

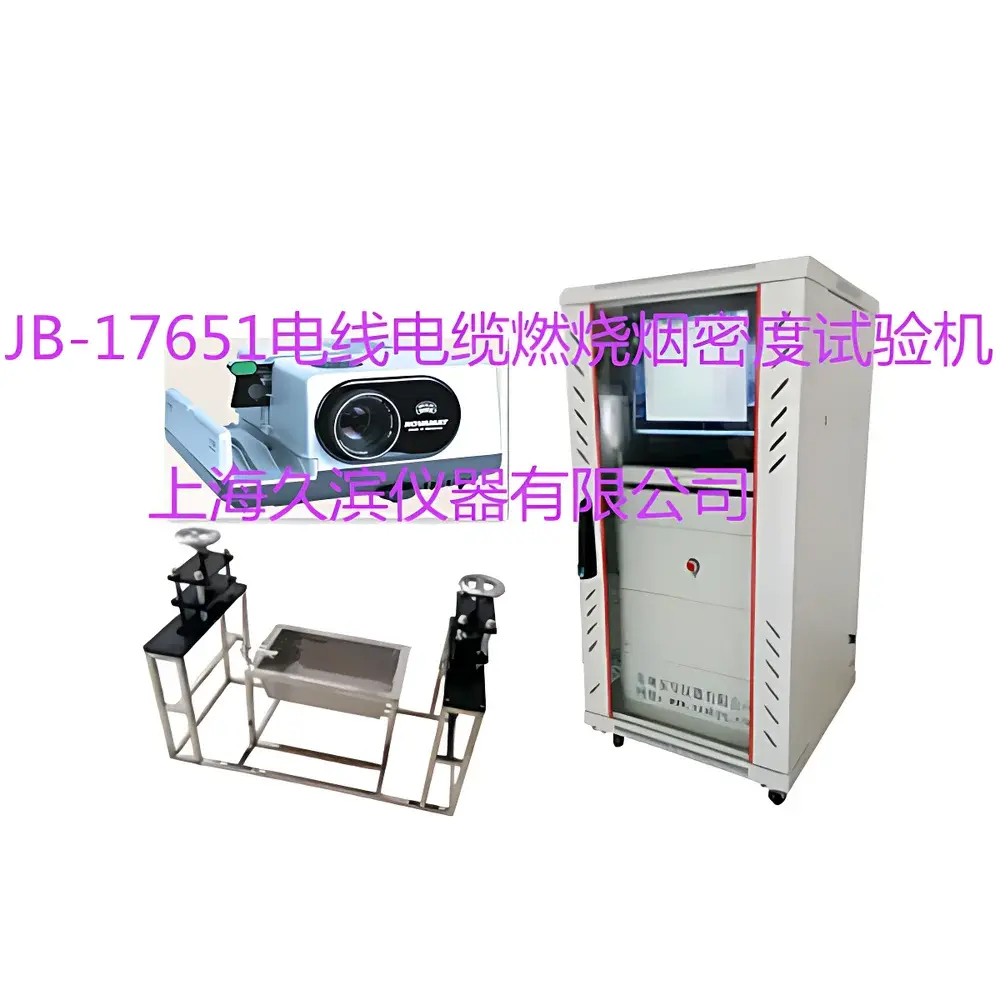

| Model | JB-17651 |
| Application Field | Electrical Wires and Cables |
| Compliance Basis | GB/T 17651–1998, IEC 61034–2:2013, EN 50267–2–2:2000 |
| Measurement Principle | Optical attenuation via light transmittance in vertical chamber during cable combustion |
| Chamber Volume | 27 m³ (standard configuration) |
| Light Source | 625 nm LED array with stabilized intensity |
| Photometric Detection | Dual-channel silicon photodiodes with 0.1% linearity tolerance |
| Data Acquisition Rate | 1 Hz synchronous sampling |
| Sample Mounting | Vertical rack for single or multi-core cable specimens up to 1.5 m length |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

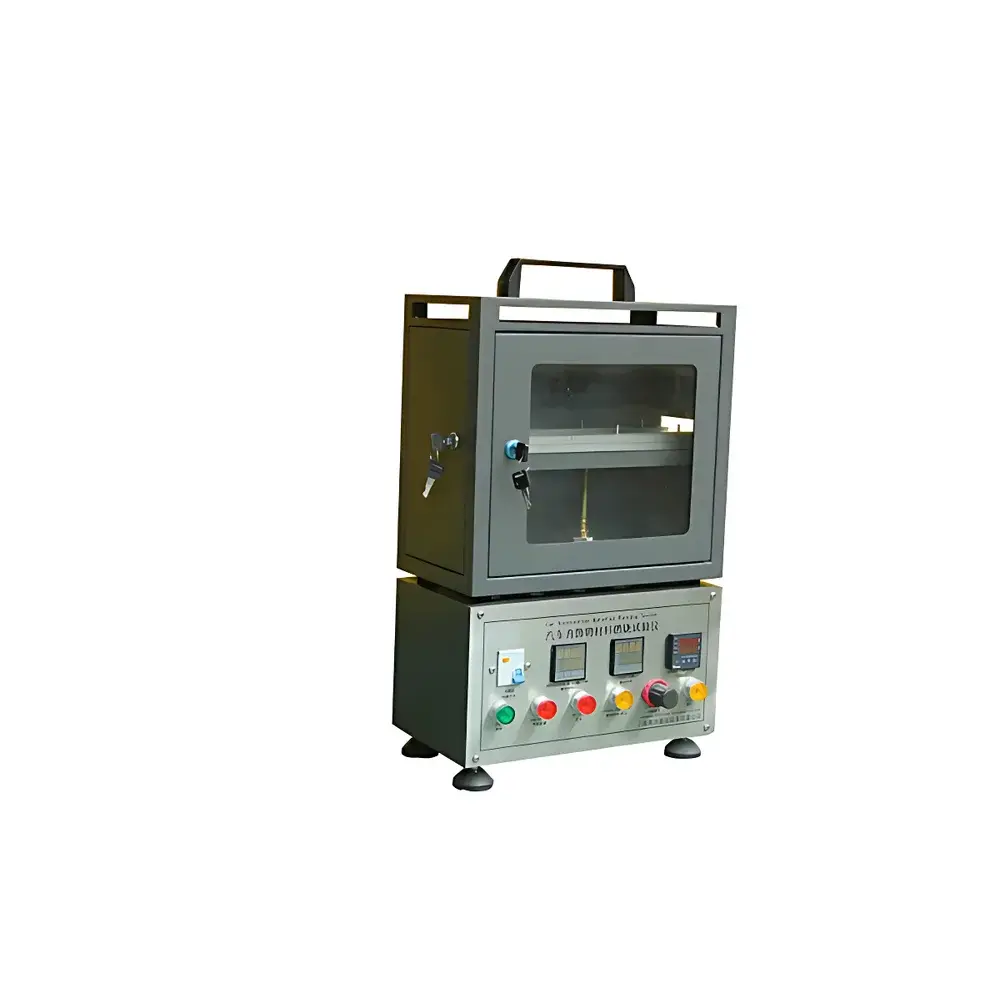

| Model | JB-ZR |
| Price Range | USD 1,400 – 7,000 (FOB Shanghai) |
| Applicable Standards | GB 8410-2006, TL 1010, GM 6090M, DIN 75200, GM 9070P |
| Chamber Dimensions (W×D×H) | 545 × 210 × 370 mm |
| Burner Inner Diameter | 9.5 ± 0.5 mm, Length ≈ 100 mm |
| Flame Height Adjustment Range | 20–100 mm |
| Ignition Timing & Afterflame Duration Control | 00:00–99:99 (mm:ss) |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Construction | Stainless Steel Enclosure & Critical Components |
| Automation | Motorized gas valve, digital timer, auto-ignition, real-time flame duration logging |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JB/DBF-1 |
| Price Range | USD 1,400 – 7,000 |
| Application Field | Intumescent and Decorative Fire-Retardant Coatings |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JB/XSF-1 |
| Price Range | USD 1,400 – 7,000 |
| Application Domain | Intumescent and Flame-Retardant Coating Evaluation |
| Dimensions (L×W×H) | 340 mm × 230 mm × 794 mm |
| Specimen Holder Tilt Angle | 45° ± 2° |
| Copper Combustion Cup | OD 24.0 ± 0.1 mm, Wall Thickness 1.0 ± 0.06 mm, Height 17.0 ± 0.1 mm, Volume 6 mL |
| Fuel | Anhydrous Ethanol (Chemical Pure Grade) |
| Compliant Standard | GB 12441–2005 “Classification and Test Methods for Fire Performance of Surface-Type Fire-Retardant Coatings — Small Chamber Method” |
| Brand | Jiubin |
|---|---|
| Origin | Shanghai, China |
| Model | JB-19216 |
| Compliance | GB/T 19216.11–2003, GB/T 19216.21–2003, GB/T 19216.23–2003, GB/T 19216.25–2003, GB/T 19216.12–2008, GB/T 19216.31–2008, IEC 60331-11:1999, IEC 60331-12:2002, IEC 60331-21:1999, IEC 60331-23:1999, BS 6387:1994 |
| Test Temperature | ≥750 °C (flame zone) |
| Voltage Rating | ≤450/750 V |
| Application Scope | Mineral insulated cables, power cables, control cables, optical fiber cables |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-3 |
| Oxygen Measurement Range | 0–100% O₂ |
| Resolution | 0.1% O₂ |
| Accuracy | ±0.4% O₂ |
| Response Time | <10 s |
| Display Precision | 0.1% |
| Operating Temperature | 10–35 °C |
| Relative Humidity | 45–75% RH |
| Power Supply | 220 V ±15%, 50 Hz, 100 W |
| Gas Supply | Industrial-grade oxygen (GB/T 3863) and nitrogen (GB/T 3864) |
| Input Pressure | 0.25 MPa |
| Working Pressure | 0.1 MPa |
| Sample Types | Self-supporting solid specimens (e.g., plastics, rubber, textiles, films, cables, wood) |
