| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JB-DL1 |
| Price Range | USD 1,400 – 2,800 |
| Drop Height | 400–1500 mm |
| Max. Specimen Weight | 60 kg |
| Specimen Dimensions (L×W×H) | 800 × 600 × 800 mm |
| Impact Platform Size | 1400 × 1200 mm |
| Motor Power | 1/3 HP (adjustable height, manual width adjustment) |
| Overall Dimensions (L×W×H) | 1400 × 1200 × 2300 mm |
| Net Weight | 500 kg |
| Compliance | GB/T 4857.5–1992, ISO 2248:1972(E) |

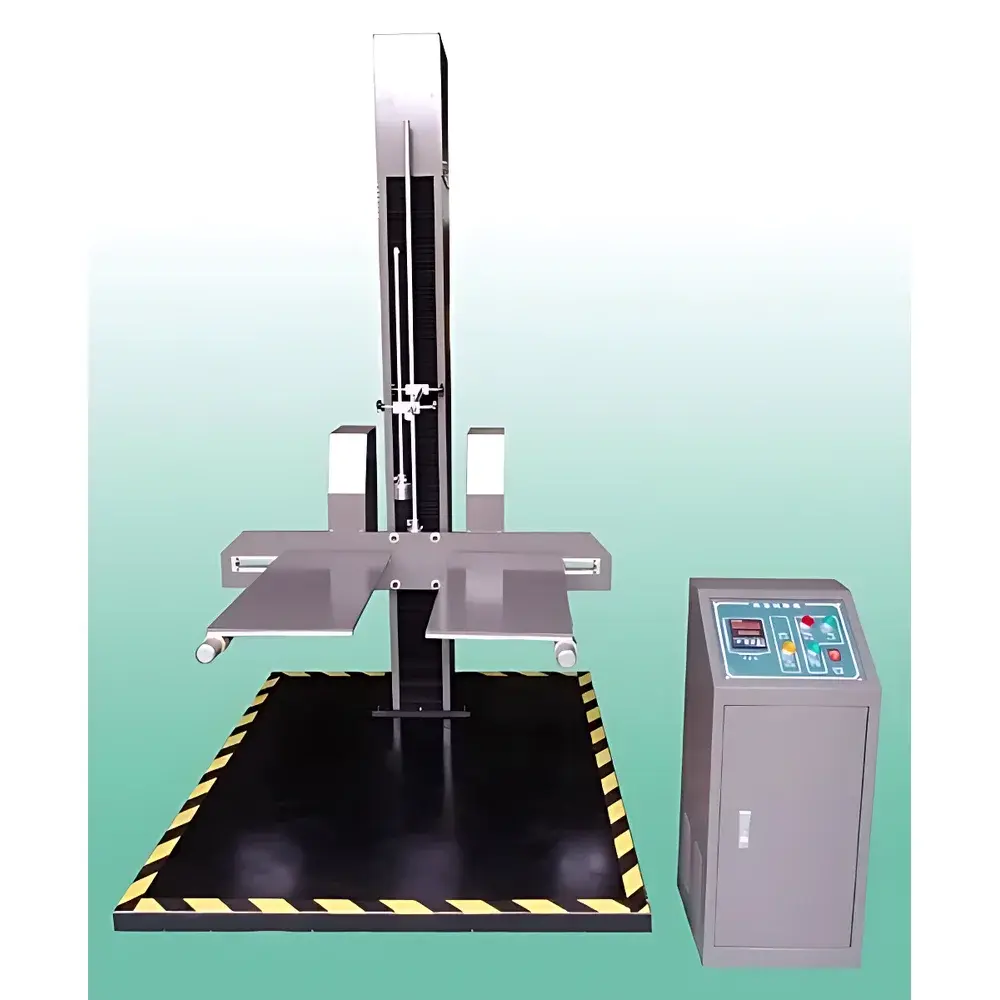

| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-DL2 |
| Drop Height Range | 400–1500 mm |
| Test Orientation | Face, Edge, Corner |
| Load Capacity | 60 kg |
| Height Display | LED Digital Indicator (Accuracy ≤ ±2% of set height or ±10 mm) |
| Test Chamber Dimensions | 800 × 800 × 800 mm |
| Angular Accuracy | ≤5° deviation from horizontal base plate |
| Power Supply | AC 380 V, 50 Hz, 10 A |
| Motor Power | 0.5 HP |
| Machine Dimensions (L×W×H) | ≈1400 × 1200 × 2515 mm |
| Net Weight | 400 kg |
| Compliance | ISO 2248, JIS Z0202-87, GB/T 4857.5-92 |
