| Brand | Jiubin |
|---|---|
| Origin | Shanghai, China |
| Model | JB-117B |
| Type | Electronic Universal Testing Machine |
| Category | Physical Property Testing Instrument |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JB-5202B |
| Pricing | Available Upon Request |
| Control System | PLC with 7-inch Weintek Color TFT Touchscreen |
| Heating Element | Ø4.00 ± 0.04 mm Ni/Cr (77/20) Glow Wire |
| Temperature Range | 100–1150 °C (digital display) |
| Temperature Stability | < ±3 °C |
| Thermocouple | 0.5 mm K-type insulated mineral-insulated armored thermocouple (German-sourced) |
| Current Adjustment | 0–150 A |
| Applied Force | 0.95 ± 0.1 N |
| Penetration Depth | 7.0 ± 0.5 mm (electromagnetically actuated, micro-adjustable) |
| Specimen Holder | 80 × 80 mm |
| Specimen Carriage Drive | DC motor + precision ball screw |
| Specimen Travel Speed | 10–25 mm/s |
| Glow Time | 0–9999 s (0.01 s resolution) |
| Ignition Time | 0–9999 s (0.01 s resolution) |
| Flame Extinguishing Time | 0–9999 s (0.01 s resolution) |
| Support Substrate | 10 mm pine board covered with standard silk paper (12–30 g/m²) |
| Distance from Glow Wire Tip to Substrate | 200 ± 5 mm |
| Chamber Internal Volume | 0.5 m³ (optional 0.75 m³ or 1.0 m³) |
| Background Illuminance | < 20 lx (matte black interior) |
| External Dimensions | 1170 × 630 × 1330 mm (W × D × H) |
| Enclosure Material | Powder-coated steel plate |
| Exhaust Port Diameter | Ø100 mm |
| Power Supply | 220 V AC, 10 A, 50 Hz |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Taiwan, China |
| Manufacturer Type | Authorized Distributor |
| Instrument Type | Electromechanical Universal Testing Machine |
| Model | JB-124A / JB-124B |
| Load Capacity | 0–5 kN (user-selectable) |
| Force Sensor | High-precision load cell (USA-made) |
| Force Accuracy | ±0.5% of full scale |
| Effective Test Width | 380 mm |
| Max. Tensile Travel | 1000 mm |
| Drive System | Servo motor (Japan-made) + AC motor (Taiwan-made) |
| Mechanical Transmission | Precision ball screw (Taiwan-made) + High-strength backlash-free screw (Korea-made) |
| Test Speed Range | 0.001–500 mm/min (infinitely variable) |
| Displacement Resolution | 1/200,000 |
| Displacement Accuracy | ±0.005% of reading |
| Safety Features | Upper/lower mechanical limits, emergency stop button |
| Display Interface | Dual-mode — PC-based software + embedded microcomputer display |
| Units Supported | g, kg, N, kN, lbf |
| Power Supply | 220 V / 380 V, 50 Hz |
| Net Weight | 1080–1180 kg |
| Dimensions (W×D×H) | 1280 × 950 × 1800 mm |
| Brand | Jiubin Instruments |
|---|---|
| Model | JB-117 |
| Origin | Shanghai, China |
| Compliance | GB 24911–2010, GB 15831–2006, GB/T 228.1–2021, GB/T 7314–2017, ASTM E8/E8M, ISO 6892-1, EN 10002-1 |
| Load Capacity | Up to 300 kN (configurable) |
| Control System | Digital closed-loop servo control with 100 kHz data acquisition |
| Test Speed Range | 0.001–500 mm/min (adjustable) |
| Displacement Resolution | ≤ 0.001 mm |
| Force Accuracy | ±0.5% of full scale |
| Software | Windows-based test platform with audit trail, user-level permissions, and 21 CFR Part 11 compliant reporting modules |
| Brand | Jiubin Instruments |
|---|---|
| Model | JB-F |
| Max Test Load | 2000 N |
| Accuracy Class | 0.5 |
| Speed Range | 0.01–500 mm/min |
| Effective Stroke | ~900 mm |
| Load Resolution | 0.001 N |
| Load Accuracy | ±0.1% |
| Displacement Encoder | 1000 P/R |
| Position Accuracy | ±0.005% (Japan-made) |
| Power Supply | 220 V, 50 Hz |
| Weight | 350 kg |
| Compliance | GB/T 6344-1996, GB/T 10808-1989, ISO 1798-1983, ISO 3385-1989, GB 10802, GB 10807-1989 |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB/WE-100B |
| Test Force Capacity | 100 kN |
| Force Measurement Range | 4–100 kN |
| Force Indication Accuracy | ≤ ±1% of reading |
| Force Resolution | 0.01 kN |
| Tensile Test Space | 550 mm |
| Compression Space | 380 mm |
| Piston Stroke | 150 mm |
| Round Specimen Grip Range | Φ6–Φ26 mm |
| Flat Specimen Grip Thickness | 0–15 mm |
| Flat Specimen Max Jaw Width | 70 mm |
| Compression Platen Diameter | φ160 mm |
| Bending Span (Two-Point) | 450 mm |
| Bending Support Roller Width | 120 mm |
| Bending Support Roller Diameter | Φ30 mm |
| Piston Speed | 50 mm/min |
| Clamping Method | Manual |
| Host Dimensions (W×D×H) | 720×580×1950 mm |
| Control Console Dimensions (W×D×H) | 1000×700×1400 mm |
| Load Cell Manufacturer | Zhenhai, Ningbo |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JB-117Y |
| Price | Upon Request |
| Max Test Load | 50 kN |
| Force Accuracy | ±0.5% FS |
| Force Range | 0.25–50 kN (single-range, fully digital) |
| Displacement Resolution | 0.01 mm |
| Crosshead Speed | 0.01–200 mm/min (infinitely variable) |
| Tensile/Compression Test Space | 1000 mm |
| Test Width | 400 mm |
| Power Supply | 1.25 kW, 220 V, 50 Hz |
| Operating Environment | 10–35 °C, 20–80% RH |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-1000KN |
| Max Test Force | 1000 kN (optional: 300 / 600 / 2000 kN) |
| Force Measurement Range | 2–100% FS |
| Force Accuracy | ≤ ±1% of reading |
| Stroke Adjustment Options | 5 / 8 / 10 / 12 m (customizable) |
| Displacement Resolution | ≤ ±0.5% of reading |
| Frame Width | 1200 mm |
| Test Height | 800 mm |
| Crosshead Travel Speed | 0.005–50 mm/min |
| Load Cell Type | Through-hole 1000 kN load cell (AC Sensors, USA) |
| Control System | Full-digital single-channel electro-hydraulic servo controller |
| Compliance | GB/T 228.1–2021, GB/T 2611–2007, JJG 139–2014, GB/T 7314–2017 |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-118 |
| Load Capacity | 0–5 kN (user-selectable) |
| Force Sensing | High-precision load cell (USA-manufactured) |
| Force Accuracy | ±0.5% of full scale |
| Effective Test Width | 380 mm |
| Max. Tensile Stroke | 1000 mm |
| Drive System | Servo motor (Japan-made) + AC motor (Taiwan-made) |
| Mechanical Transmission | Precision ground ball screw (Taiwan-made) + High-strength backlash-free lead screw (Korea-made) |
| Test Speed Range | 0.001–500 mm/min (infinitely variable) |
| Displacement Resolution | 0.005% |
| Position Resolution | 1/200,000 |
| Safety Features | Upper/lower mechanical limits, emergency stop button |
| Display Interface | Dual-mode — PC-based software + embedded microcomputer display |
| Power Supply | 220 V, 50 Hz |
| Net Weight | 1180 kg |
| Dimensions (W×D×H) | 1280 × 950 × 1800 mm |
| Unit Options | g, kg, N, kN, lb, lbf |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JB-DL1 |
| Price Range | USD 1,400 – 2,800 |
| Drop Height | 400–1500 mm |
| Max. Specimen Weight | 60 kg |
| Specimen Dimensions (L×W×H) | 800 × 600 × 800 mm |
| Impact Platform Size | 1400 × 1200 mm |
| Motor Power | 1/3 HP (adjustable height, manual width adjustment) |
| Overall Dimensions (L×W×H) | 1400 × 1200 × 2300 mm |
| Net Weight | 500 kg |
| Compliance | GB/T 4857.5–1992, ISO 2248:1972(E) |
| Brand | Jiubin |
|---|---|
| Origin | Shanghai, China |
| Model | JB-125 |
| Type | Electronic Universal Testing Machine |
| Instrument Category | Domestic |
| Distributor Type | General Distributor |
| Price | ¥32,000 |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Taiwan |
| Manufacturer Type | Authorized Distributor |
| Instrument Type | Electromechanical Universal Testing Machine |
| Model | JB-126A |
| Load Capacity | 0–200 kg (user-selectable) |
| Load Cell | High-precision U.S.-made load cell |
| Load Accuracy | ±0.5% of full scale |
| Effective Test Width | 380 mm |
| Max. Travel Distance | 1000 mm |
| Drive System | Japanese servo motor |
| Mechanical Transmission | Taiwan-made precision ball screw |
| Test Speed Range | 0.001–500 mm/min (infinitely variable, constant-rate mode) |
| Displacement Resolution | 1/200,000 |
| Displacement Accuracy | ±0.005% |
| Units Supported | g, kg, N, kN, lb |
| Safety Features | Upper/lower mechanical limit switches, emergency stop button |
| Display | Dual-mode — embedded microcomputer + PC interface |
| Optional Accessories | PC workstation, thermal/inkjet printer, extensometer (two-point), proprietary testing software |
| Power Supply | 220 V AC, 50 Hz |
| Net Weight | 160 kg |
| Dimensions (W×D×H) | 450 × 450 × 900 mm |
| Brand | Jiubin |
|---|---|
| Origin | Shanghai, China |
| Model | JB-118 |
| Instrument Type | Electronic Universal Testing Machine |
| Max Test Force | Customizable (Standard Options: 10 kN, 20 kN, 50 kN, 100 kN) |
| Force Accuracy | ±0.5% or ±1% FS |
| Force Resolution | 1/200,000 |
| Displacement Accuracy | ±0.5% of reading |
| Displacement Resolution | 0.05 µm |
| Strain Measurement Compliance | ASTM E8, ISO 6892-1, GB/T 228.1-2010 |
| Speed Range | 0.001–500 mm/min |
| Crosshead Travel (excl. fixtures) | 700 mm |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Dimensions (W×D×H) | 600 × 360 × 1850 mm |
| Weight | ~600 kg |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB/WEW-1000B |
| Type | Hydraulic Universal Testing Machine |
| Max. Test Force | 1000 kN |
| Force Range | 50–1000 kN |
| Force Accuracy | ≤ ±1% of reading |
| Force Resolution | 0.01 kN |
| Displacement Resolution | 0.01 mm |
| Deformation Measurement Accuracy | 0.01 mm |
| Tensile Space | 700 mm |
| Compression Space | 380 mm |
| Piston Stroke | 150 mm |
| Round Specimen Clamping Diameter | Φ13–Φ40 mm |
| Flat Specimen Thickness Capacity | 0–15 mm |
| Flat Specimen Jaw Width | 75 mm |
| Compression Plate Diameter | φ160 mm |
| Bend Span (Two-Point) | 450 mm |
| Bend Support Roller Width | 140 mm |
| Bend Support Roller Diameter | Φ40 mm |
| Piston Speed | 50 mm/min |
| Clamping Method | Automatic Hydraulic Clamping |
| Main Frame Dimensions (W×D×H) | 720×580×2100 mm |
| Load Frame Control Cabinet Dimensions (W×D×H) | 1000×700×1400 mm |
| Brand | Jiubin (JByq) |
|---|---|
| Origin | Taiwan |
| Model | JB-118 |
| Load Capacity | 0–5 kN (user-selectable) |
| Force Accuracy | ±0.5% of full scale |
| Effective Test Width | 380 mm |
| Max. Stroke | 1000 mm |
| Test Speed Range | 0.001–500 mm/min (stepless, programmable) |
| Displacement Resolution | 1/200,000 |
| Displacement Accuracy | ±0.005% of reading |
| Drive System | Servo motor (Japan-made) + AC motor (Taiwan-made) |
| Load Cell | High-precision strain-gauge transducer (USA-made) |
| Mechanical Transmission | Precision ball screw (Taiwan-made) + high-rigidity backlash-free lead screw (Korea-made) |
| Safety Features | Upper/lower mechanical limits, emergency stop button |
| Display Interface | Dual-mode — PC-based software + embedded microcomputer display |
| Power Supply | 220 V, 50 Hz |
| Net Weight | 1180 kg |
| Dimensions (W×D×H) | 1280 × 950 × 1800 mm |
| Unit Options | g, kg, N, kN, lbf, ozf |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-WAW-100KN |
| Type | Hydraulic Universal Testing Machine |
| Maximum Load Capacity | 100 kN |
| Compliance | GB/T 228.1–2021, ASTM E8/E21, ISO 6892-1 |
| Control System | Electro-hydraulic Servo |
| Test Space | Adjustable for Tensile/Compression/Bending |
| Data Acquisition | 100 Hz Sampling Rate |
| Software | Windows-based with Real-time Curve Display, Report Generation (PDF/Excel), Audit Trail Support |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB/GWE-1000B |
| Type | Hydraulic Universal Testing Machine |
| Max. Test Force | 1000 kN |
| Force Measurement Range | 50–1000 kN |
| Force Accuracy | ≤ ±1% of reading |
| Force Resolution | 0.01 kN |
| Displacement Resolution | 0.01 mm |
| Deformation Measurement Accuracy | 0.01 mm |
| Tensile Test Space | 1000 mm |
| Compression Space | 600 mm |
| Piston Stroke | 150 mm |
| Clamp Jaw Capacity (Round Specimen) | Φ15.20 mm |
| Piston Speed | 50 mm/min |
| Clamping Method | Automatic Hydraulic Clamping |
| Host Dimensions (W×D×H) | 890×660×2500 mm |
| Control Console Dimensions (W×D×H) | 1000×700×1400 mm |
| Brand | Jiubin |
|---|---|
| Origin | Taiwan |
| Model | JB-126A |
| Load Capacity | 0–200 kg (user-selectable) |
| Load Cell Accuracy | ±0.5% FS |
| Effective Test Width | 380 mm |
| Max. Stroke | 1000 mm |
| Test Speed Range | 0.001–500 mm/min (infinitely variable, servo-controlled) |
| Displacement Accuracy | ±0.005% |
| Resolution | 1/200,000 |
| Power Supply | 220 V, 50 Hz |
| Net Weight | 160 kg |
| Dimensions (W×D×H) | 450 × 450 × 900 mm |
| Safety Features | Upper/lower mechanical limits, emergency stop switch |
| Control System | Dual-mode — PC-based software + embedded microcomputer display |
| Actuation | Japanese servo motor |
| Mechanical Drive | Taiwanese precision ball screw |
| Load Sensing | High-accuracy U.S.-made load cell |
| Unit Options | g, kg, N, kN, lb, lbf |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

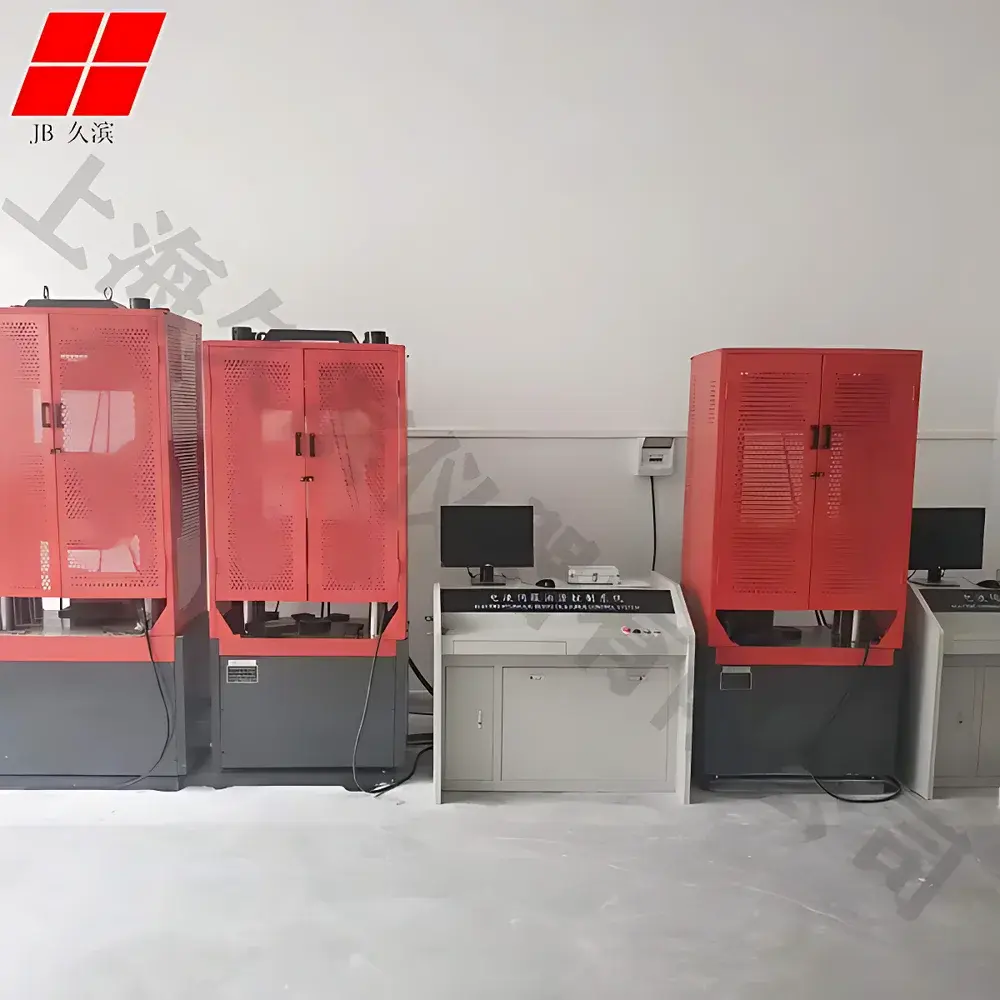

| Model | JB/WAW-600KN |
| Price | USD 27,800 (FOB Shanghai) |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB–120A |
| Type | Electromechanical Universal Testing Machine |
| Load Capacity | 100 kN (10 Ton) |
| Compliance | GB/T 228.1–2021, ISO 6892–1:2019, ASTM E8/E8M |
| Control System | Digital Closed-Loop Servo Control |
| Test Modes | Tensile, Compression, Bending, Yield Strength, Elongation at Break, Modulus of Elasticity |
| Data Acquisition Rate | Up to 1,000 Hz |
| Force Accuracy | ±0.5% of full scale |
| Displacement Resolution | 0.001 mm |
| Crosshead Speed Range | 0.001–500 mm/min |
| Software | JiubinTest v3.2 (GLP-compliant audit trail, user permission levels, FDA 21 CFR Part 11 ready configuration) |
| Brand | JB-Bin |
|---|---|
| Origin | Shanghai, China |
| Model | JB-99 |
| Pressure Range | 0–40 MPa (pulse), 0–500 MPa (burst) |
| Frequency Range | 0–5 Hz |
| Waveform Options | Square, Trapezoidal, Triangular, Sinusoidal |
| Medium Temperature | −60 °C to 200 °C |
| Ambient Temperature Range | −70 °C to 155 °C |
| Cycle Life Capacity | ≥2 million cycles |
| Test Medium | Water, Oil, Ethylene Glycol Mixtures, Compressed Air, Vacuum |
| Compliance | Configurable for ISO 6803, ISO 6772, SAE J1401, GB/T 20462, ASTM D3078 |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-125 |
| Load Capacity | 0–200 kg (user-selectable) |
| Force Accuracy | ±0.5% of full scale |
| Effective Test Width | 380 mm |
| Max. Travel Distance | 900 mm |
| Test Speed Range | 0.001–500 mm/min (infinitely variable) |
| Displacement Resolution | 1/200,000 |
| Displacement Accuracy | ±0.005% of reading |
| Drive System | Servo motor (Japan-made) + AC motor (Taiwan-made) |
| Mechanical Transmission | High-precision preloaded ball screw (Taiwan-made) and high-strength zero-backlash lead screw (Korea-made) |
| Load Cell | High-accuracy strain-gauge load cell (USA-made) |
| Safety Features | Upper/lower mechanical limits, emergency stop button |
| Display Interface | Dual-mode — PC-based software + embedded microcomputer display |
| Power Supply | 220 V, 50 Hz |
| Net Weight | 180 kg |
| Dimensions (W×D×H) | 450 × 450 × 1200 mm |
| Unit Options | g, kg, N, kN, lb, lbf |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JB-5120 |
| Pricing | Available Upon Request |
| Chamber Volume | 0.5 m³ |
| Electrode Dimensions | 5 mm (L) × 2 mm (W) × 12 mm (H) |
| Electrode Material | Platinum |
| Electrode Edge Angle | 30° bevel |
| Electrode Spacing | 4.0 mm |
| Electrode Contact Force | 1.0 N |
| Test Voltage Range | 100–600 V (adjustable) |
| Power Supply Rating | 2100 W |
| Voltage Drop at Short-Circuit | ≤50 V (at 600 V, 1.0 A) |
| Tracking Detection Threshold | ≥0.5 A sustained for 2 s |
| Droplet Height Adjustment | 30–40 mm |
| Droplet Density | 44–55 drops/cm³ |
| Droplet Interval | 30 ± 5 s |
| Brand | Jiubin |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | GJX-300 |
| Price | Upon Request |
| Test Load Capacity | 300 kN |
| Effective Load Range | 6–300 kN |
| Load Indication Relative Error | ±1% |
| Load Resolution | 5 N |
| Displacement Indication Relative Error | ±1% |
| Loading Rate | 100–5000 N/s (adjustable) |
| Screw Travel | 100 mm |
| Test Zone Height | 2050 mm |
| Power Supply | 1.5 kW, AC 200 V ±10% |
| Dimensions (L×W×H) | 2000×1100×600 mm |
| Weight | 1250 kg |
Show next
