| Brand | Jiubin |
|---|---|
| Origin | Shanghai, China |

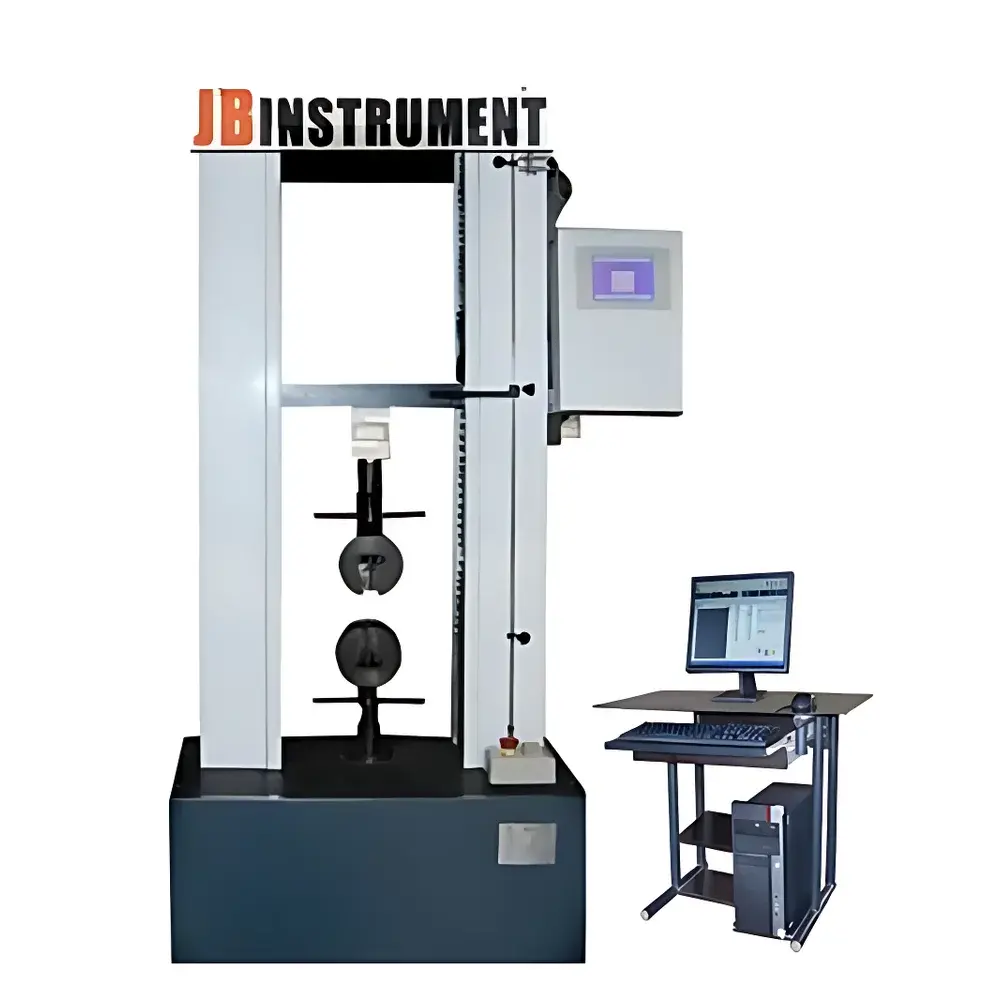

| Model | JB-117B |
| Type | Electronic Universal Testing Machine |
| Category | Physical Property Testing Instrument |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Taiwan, China |
| Manufacturer Type | Authorized Distributor |
| Instrument Type | Electromechanical Universal Testing Machine |
| Model | JB-124A / JB-124B |
| Load Capacity | 0–5 kN (user-selectable) |
| Force Sensor | High-precision load cell (USA-made) |
| Force Accuracy | ±0.5% of full scale |
| Effective Test Width | 380 mm |
| Max. Tensile Travel | 1000 mm |
| Drive System | Servo motor (Japan-made) + AC motor (Taiwan-made) |
| Mechanical Transmission | Precision ball screw (Taiwan-made) + High-strength backlash-free screw (Korea-made) |
| Test Speed Range | 0.001–500 mm/min (infinitely variable) |
| Displacement Resolution | 1/200,000 |
| Displacement Accuracy | ±0.005% of reading |
| Safety Features | Upper/lower mechanical limits, emergency stop button |
| Display Interface | Dual-mode — PC-based software + embedded microcomputer display |
| Units Supported | g, kg, N, kN, lbf |
| Power Supply | 220 V / 380 V, 50 Hz |
| Net Weight | 1080–1180 kg |
| Dimensions (W×D×H) | 1280 × 950 × 1800 mm |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB/WE-100B |
| Test Force Capacity | 100 kN |
| Force Measurement Range | 4–100 kN |
| Force Indication Accuracy | ≤ ±1% of reading |
| Force Resolution | 0.01 kN |
| Tensile Test Space | 550 mm |
| Compression Space | 380 mm |
| Piston Stroke | 150 mm |
| Round Specimen Grip Range | Φ6–Φ26 mm |
| Flat Specimen Grip Thickness | 0–15 mm |
| Flat Specimen Max Jaw Width | 70 mm |
| Compression Platen Diameter | φ160 mm |
| Bending Span (Two-Point) | 450 mm |
| Bending Support Roller Width | 120 mm |
| Bending Support Roller Diameter | Φ30 mm |
| Piston Speed | 50 mm/min |
| Clamping Method | Manual |
| Host Dimensions (W×D×H) | 720×580×1950 mm |
| Control Console Dimensions (W×D×H) | 1000×700×1400 mm |
| Load Cell Manufacturer | Zhenhai, Ningbo |
| Brand | Jiubin |
|---|---|
| Origin | Shanghai, China |
| Model | JB-125 |
| Type | Electronic Universal Testing Machine |
| Instrument Category | Domestic |
| Distributor Type | General Distributor |
| Price | ¥32,000 |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Taiwan |
| Manufacturer Type | Authorized Distributor |
| Instrument Type | Electromechanical Universal Testing Machine |
| Model | JB-126A |
| Load Capacity | 0–200 kg (user-selectable) |
| Load Cell | High-precision U.S.-made load cell |
| Load Accuracy | ±0.5% of full scale |
| Effective Test Width | 380 mm |
| Max. Travel Distance | 1000 mm |
| Drive System | Japanese servo motor |
| Mechanical Transmission | Taiwan-made precision ball screw |
| Test Speed Range | 0.001–500 mm/min (infinitely variable, constant-rate mode) |
| Displacement Resolution | 1/200,000 |
| Displacement Accuracy | ±0.005% |
| Units Supported | g, kg, N, kN, lb |
| Safety Features | Upper/lower mechanical limit switches, emergency stop button |
| Display | Dual-mode — embedded microcomputer + PC interface |
| Optional Accessories | PC workstation, thermal/inkjet printer, extensometer (two-point), proprietary testing software |
| Power Supply | 220 V AC, 50 Hz |
| Net Weight | 160 kg |
| Dimensions (W×D×H) | 450 × 450 × 900 mm |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB/WEW-1000B |
| Type | Hydraulic Universal Testing Machine |
| Max. Test Force | 1000 kN |
| Force Range | 50–1000 kN |
| Force Accuracy | ≤ ±1% of reading |
| Force Resolution | 0.01 kN |
| Displacement Resolution | 0.01 mm |
| Deformation Measurement Accuracy | 0.01 mm |
| Tensile Space | 700 mm |
| Compression Space | 380 mm |
| Piston Stroke | 150 mm |
| Round Specimen Clamping Diameter | Φ13–Φ40 mm |
| Flat Specimen Thickness Capacity | 0–15 mm |
| Flat Specimen Jaw Width | 75 mm |
| Compression Plate Diameter | φ160 mm |
| Bend Span (Two-Point) | 450 mm |
| Bend Support Roller Width | 140 mm |
| Bend Support Roller Diameter | Φ40 mm |
| Piston Speed | 50 mm/min |
| Clamping Method | Automatic Hydraulic Clamping |
| Main Frame Dimensions (W×D×H) | 720×580×2100 mm |
| Load Frame Control Cabinet Dimensions (W×D×H) | 1000×700×1400 mm |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-WAW-100KN |
| Type | Hydraulic Universal Testing Machine |
| Maximum Load Capacity | 100 kN |
| Compliance | GB/T 228.1–2021, ASTM E8/E21, ISO 6892-1 |
| Control System | Electro-hydraulic Servo |
| Test Space | Adjustable for Tensile/Compression/Bending |
| Data Acquisition | 100 Hz Sampling Rate |
| Software | Windows-based with Real-time Curve Display, Report Generation (PDF/Excel), Audit Trail Support |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB/GWE-1000B |
| Type | Hydraulic Universal Testing Machine |
| Max. Test Force | 1000 kN |
| Force Measurement Range | 50–1000 kN |
| Force Accuracy | ≤ ±1% of reading |
| Force Resolution | 0.01 kN |
| Displacement Resolution | 0.01 mm |
| Deformation Measurement Accuracy | 0.01 mm |
| Tensile Test Space | 1000 mm |
| Compression Space | 600 mm |
| Piston Stroke | 150 mm |
| Clamp Jaw Capacity (Round Specimen) | Φ15.20 mm |
| Piston Speed | 50 mm/min |
| Clamping Method | Automatic Hydraulic Clamping |
| Host Dimensions (W×D×H) | 890×660×2500 mm |
| Control Console Dimensions (W×D×H) | 1000×700×1400 mm |
| Brand | Jiubin |
|---|---|
| Origin | Taiwan |
| Model | JB-126A |
| Load Capacity | 0–200 kg (user-selectable) |
| Load Cell Accuracy | ±0.5% FS |
| Effective Test Width | 380 mm |
| Max. Stroke | 1000 mm |
| Test Speed Range | 0.001–500 mm/min (infinitely variable, servo-controlled) |
| Displacement Accuracy | ±0.005% |
| Resolution | 1/200,000 |
| Power Supply | 220 V, 50 Hz |
| Net Weight | 160 kg |
| Dimensions (W×D×H) | 450 × 450 × 900 mm |
| Safety Features | Upper/lower mechanical limits, emergency stop switch |
| Control System | Dual-mode — PC-based software + embedded microcomputer display |
| Actuation | Japanese servo motor |
| Mechanical Drive | Taiwanese precision ball screw |
| Load Sensing | High-accuracy U.S.-made load cell |
| Unit Options | g, kg, N, kN, lb, lbf |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB–120A |
| Type | Electromechanical Universal Testing Machine |
| Load Capacity | 100 kN (10 Ton) |
| Compliance | GB/T 228.1–2021, ISO 6892–1:2019, ASTM E8/E8M |
| Control System | Digital Closed-Loop Servo Control |
| Test Modes | Tensile, Compression, Bending, Yield Strength, Elongation at Break, Modulus of Elasticity |
| Data Acquisition Rate | Up to 1,000 Hz |
| Force Accuracy | ±0.5% of full scale |
| Displacement Resolution | 0.001 mm |
| Crosshead Speed Range | 0.001–500 mm/min |
| Software | JiubinTest v3.2 (GLP-compliant audit trail, user permission levels, FDA 21 CFR Part 11 ready configuration) |
| Brand | JuBin |
|---|---|
| Origin | Taiwan |
| Model | JB-124A / JB-124B |
| Load Capacity | 0–5 ton (user-selectable) |
| Force Sensing | High-precision U.S.-sourced load cell |
| Force Accuracy | ≤0.5% of full scale |
| Effective Test Width | 380 mm |
| Max. Tensile Travel | 1000 mm |
| Drive System | Servo motor (Japan) + AC motor (Taiwan) |
| Mechanical Transmission | Precision ball screw (Taiwan) + High-strength backlash-free screw (Korea) |
| Test Speed Range | 0.001–500 mm/min (infinitely variable, dual-range options) |
| Displacement Accuracy | ±0.005% |
| Resolution | 1/200,000 |
| Safety Features | Upper/lower mechanical limits, emergency stop button |
| Display Interface | Dual-mode — PC-based software + embedded microcomputer display |
| Unit Options | g, kg, N, kN, lb, lbf |
| Power Supply | 220 V / 380 V, 50 Hz |
| Net Weight | 1080–1180 kg |
| Dimensions (W×D×H) | 1280 × 950 × 1800 mm |
| Fixture | One standard set (customizable per sample requirements) |
| Optional Accessories | PC host, desktop printer, extensometer, proprietary test software |
| Brand | Jiubin |
|---|---|
| Origin | Shanghai, China |
| Model | JB-120 |
| Type | Electromechanical Universal Testing Machine |
| Force Capacity Options | 5 kN, 10 kN, 20 kN, 50 kN |
| Force Measurement Range | 0.4–100% FS (full scale), unsegmented |
| Force Accuracy | ±1% of reading (±0.5% optional for precision grade) |
| Displacement Resolution | 0.001 mm |
| Displacement Rate Range | 0.001–500 mm/min (custom higher rates available) |
| Peel Modes | 90° peel, 180° peel, drum peel |
| Maximum Travel | 600 mm / 800 mm (extendable) |
| Vertical Test Space | 900 mm / 1150 mm / 1200 mm (extendable) |
| Deformation Accuracy | ±1% of reading |
| Safety Protections | Mechanical limit switches, overload cutoff, overcurrent/overvoltage protection, emergency stop |
| Brand | Jiubin |
|---|---|
| Origin | Shanghai, China |
| Model | JB-126A |
| Instrument Type | Electronic Universal Testing Machine |
| Category | Physical Property Testing Instruments |
| Brand | JiuBin |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Regional Classification | Domestic (PRC) |
| Model | JB/GWA-600B |
| Instrument Type | Electro-Hydraulic Servo Universal Testing Machine |
| Load Capacity | 600 kN |
| Force Measurement Range | 24–600 kN |
| Force Accuracy | ≤ ±1% of reading |
| Force Resolution | 0.01 kN |
| Displacement Resolution | 0.01 mm |
| Deformation Measurement Accuracy | 0.01 mm |
| Tensile Test Space | 1000 mm |
| Compression Space | 600 mm |
| Piston Stroke | 150 mm |
| Clamp Jaw Diameter (Standard) | Φ15.20 mm |
| Piston Speed | 0–50 mm/min |
| Clamping Method | Automatic Hydraulic Clamping |
| Host Dimensions (W×D×H) | 720 × 580 × 2350 mm |
| Control Cabinet Dimensions (W×D×H) | 1000 × 700 × 1400 mm |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB–117A |
| Type | Electromechanical Universal Testing Machine |
| Price Range | USD 7,000 – 14,000 (FOB Shanghai) |
| Compliance | GB/T 16491, ISO 6892-1, ASTM E4, ASTM D638, ASTM D412, ASTM D3574 |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB/WEW-600B |
| Max. Test Force | 600 kN |
| Force Range | 30–600 kN |
| Force Accuracy | ±1% of reading |
| Force Resolution | 0.01 kN |
| Displacement Resolution | 0.01 mm |
| Deformation Measurement Accuracy | 0.01 mm |
| Tensile Space | 650 mm |
| Compression Space | 380 mm |
| Piston Stroke | 150 mm |
| Round Specimen Grip Range | Φ13–Φ40 mm |
| Flat Specimen Thickness Capacity | 0–15 mm |
| Flat Specimen Width | 75 mm |
| Compression Plate Diameter | φ160 mm |
| Bend Span (Max) | 450 mm |
| Bend Roller Width | 120 mm |
| Bend Roller Diameter | Φ30 mm |
| Piston Speed | 50 mm/min |
| Clamping Method | Automatic Hydraulic Clamping |
| Overall Dimensions (L×W×H) | 720×580×2100 mm |
| Control Console Dimensions | 1000×700×1400 mm |
| System Type | Oil-Actuated, Load Frame with Lower Cylinder |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-300A |
| Capacity | 0–300 kN (selectable within range) |
| Load Cell | High-precision U.S.-manufactured load cell |
| Load Accuracy | ±1% of full scale |
| Effective Test Width | 300 mm |
| Max. Tensile Travel | 550 mm |
| Drive System | Hydraulic actuation with electro-hydraulic servo control |
| Test Speed Range | 5–500 mm/min |
| Display & Control | Dual-mode interface — embedded microcomputer + PC-based software |
| Unit Options | g, kg, N, kN, lbf, lb |
| Fixture Mounting | Standard T-slot crosshead and base |
| Optional Accessories | PC workstation, thermal/inkjet printer, extensometer (contact or non-contact), ISO/ASTM-compliant test software module |
| Net Weight | 1580 kg |
| Compliance | Designed to meet general requirements of ISO 6892-1, ASTM E4, ASTM E8, and GB/T 228.1 |
| Key | Max Test Load: 20 kN |
|---|---|
| Accuracy Class | ISO 7500-1 Class 1 |
| Speed Range | 1–500 mm/min |
| Effective Stroke | ~900 mm |
| Load Resolution | 0.001 N |
| Load Accuracy | ±0.01% FS |
| Displacement Resolution | ±0.005% (JIS-compliant encoder) |
| Control System | Full-digital triple-closed-loop (force, displacement, strain) with adaptive PID algorithm |
| Data Acquisition | 1/300,000 internal resolution, auto-ranging |
| Compliance | ASTM E4, ASTM E8, ISO 6892-1, GB/T 228.1, EN 10002-1 |
| Software | Windows-based, bilingual (EN/CN), CFR Part 11-ready audit trail & user permission management |
| Interface | USB-standard I/O, dual-display mode (touchscreen + PC) |
| Power | 220 V AC |
| Weight | 270 kg |
| Dimensions (W×D×H) | 900 × 400 × 1600 mm |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JB-121C |
| Price Range | USD 1,400 – 7,000 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Brand | JB-Brookfield |
|---|---|
| Origin | Shanghai, China |
| Model | JB-126 |
| Type | Electromechanical Universal Testing Machine |
| Load Capacity Options | 5 kN, 10 kN, 20 kN, 50 kN |
| Force Measurement Accuracy | ±1% FS (±0.5% optional) |
| Displacement Resolution | 0.001 mm |
| Crosshead Speed Range | 0.001–500 mm/min |
| Max Travel | 600–1200 mm (customizable) |
| Safety Protections | Mechanical limit switches, overload cutoff, overcurrent/overvoltage protection, emergency stop |
| Brand | JiuBin |
|---|---|
| Model | JB-126A |
| Type | Electronic Universal Testing Machine |
| Origin | Shanghai, China |
| Instrument Category | Domestic |
| Manufacturer Status | Authorized Distributor |
| Price Range | USD 7,000 – 14,000 (FOB Shanghai) |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-611A |
| Instrument Type | Electromechanical Universal Testing Machine |
| Max Load Capacity | 20 kN / 50 kN / 100 kN (configurable) |
| Force Accuracy | ±0.5% FS |
| Displacement Resolution | 0.001 mm |
| Crosshead Speed Range | 0.001–500 mm/min |
| Effective Test Space | 1000 mm × 1000 mm × 1000 mm (customizable) |
| Force Resolution | 1/500,000 |
| Power Supply | AC 220 V, 50 Hz |
| Compliance Standards | ASTM D642, ISO 12048, GB/T 4857.3–4, GB/T 4857.16, GB/T 8167–8168, TAPPI T804, JIS Z 20212, QB/T 1048, BS EN ISO 12048 |
| Brand | Jiubin |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JB-117 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Maximum Load Capacity | 200 kN |
| Force Measurement Range | 0.4–100% of full scale |
| Force Resolution | 1/500,000 FS |
| Accuracy Class | Class 1 (Force: ±0.5% of reading |
| Displacement | ±0.5% of reading) |
| Crosshead Speed Range | 5–50 mm/min (stepless, programmable) |
| Test Width | ≈370 mm |
| Effective Stroke | ≈800 mm |
| Control Interface | LCD touchscreen + English-language PC software |
| Safety Systems | Overload emergency stop, mechanical travel limits, leakage protection, automatic test termination at break |
| Return Mode | Manual high-speed return or automatic post-test return |
| Power Supply | 220 V, 50 Hz |
| Ambient Operating Conditions | 15–35 °C, 20–80% RH |
| Dimensions (W×D×H) | 800 × 400 × 1800 mm |
| Weight | ≈350 kg |
| Unit Options | g, kg, N, kN, lbf, MPa |
| Fixture Configuration | Customizable per user-specified bone pin geometry and ASTM/ISO test requirements |
| Brand | Jiubin |
|---|---|
| Model | JB-119A |
| Type | Electromechanical Universal Testing Machine |
| Max Test Load | 300 kN |
| Accuracy Class | 0.5 |
| Force Measurement Range | 0.4–100% FS |
| Force Accuracy | ±0.5% of indicated value |
| Crosshead Speed Range | 0.01–200 mm/min |
| Effective Tensile Space | 650 mm (customizable) |
| Test Zone Width | 480 mm |
| Overload Protection | Auto-stop at 5–10% over full scale (configurable) |
| Software | Windows-based MaxTest v7.2 (bilingual: EN/CN) |
| Dimensions (L×W×H) | 670 × 455 × 1750 mm |
| Power Supply | 380 V / 50 Hz |
| Weight | 1500 kg |
Show next
