| Brand | Blue M |
|---|---|
| Origin | USA |
| Type | High-Temperature Inert Atmosphere Drying Oven |
| Temperature Range | Ambient +15°C to 350°C |
| Temperature Uniformity | ±1% |
| Temperature Stability | ±0.5°C |
| Temperature Resolution | ±0.1°C |
| Chamber Construction | Fully Welded 304 Stainless Steel |
| Heating Method | Forced-Air Circulation |
| Insulation | 4-inch Mineral Wool |
| Door Seal | Blue M Fiberglass Gasket |
| Purge Gas Compatibility | N₂, Ar, Forming Gas (N₂/H₂), or Other Inert/Non-Flammable Gases |
| Electrical Options | 208–480 VAC, Single- or Three-Phase, 50/60 Hz |
| Internal Volume | 4.2–24.0 cu.ft |
| External Dimensions (W×D×H) | 40×34×57 to 68×40×82 in |
| Internal Dimensions (W×D×H) | 20×18×20 to 48×24×36 in |
| Brand | Blue M |
|---|---|
| Origin | USA |
| Model | 146 Series Inert Atmosphere Forced-Air Convection Oven |
| Temperature Range | Ambient +15°C to 350°C |
| Control Accuracy | ±1.0°C |
| Max Power | 24.0 kW |
| Heating Method | Forced-air recirculation |
| Internal Dimensions | 508 × 457 × 508 mm to 1219 × 635 × 940 mm |
| Compliance | UL 508A, CE Marked |
| Gas Compatibility | N₂, Ar, He, CO₂ |
| Brand | Blue M |
|---|---|
| Origin | USA |
| Model | CW-6680 |
| Temperature Range | Ambient to 700 °C |
| Temperature Uniformity | ±0.5 °C |
| External Dimensions | 40×34×57 to 68×40×82 cm (W×D×H) |
| Internal Chamber Dimensions | 20×18×20 to 48×24×36 cm (W×D×H) |
| Chamber Material | 304 Stainless Steel |
| Heating Method | Horizontal Forced-Air Circulation |
| Compliance | Designed for ASTM E145 Class I & II, ISO 17025-compliant thermal validation workflows, GLP/GMP-ready architecture |
| Brand | Blue M |
|---|---|
| Origin | USA |
| Model | 146 Series Standard Mechanical Convection Oven |
| Temperature Range | Ambient +15°C to 350°C |
| Control Accuracy | ±1.0°C |
| Max Power | 24.0 kW |
| Heating Method | Forced-air circulation |
| Internal Dimensions | 508 × 457 × 508 mm to 1219 × 635 × 940 mm |
| Uniformity | Configurable per application requirements (ASTM E145-compliant validation support available) |
| Construction | 304 stainless steel interior, heavy-gauge cold-rolled steel exterior with white porcelain enamel finish |
| Airflow System | Adjustable single-pass ducted airflow with motorized dampers and direct-drive high-volume centrifugal blower |
| Safety | Independent overtemperature limit controller, GFCI circuit breaker, thermal cutoff switch |
| Brand | Blue M |
|---|---|
| Origin | USA |
| Model | 146 Series |
| Temperature Range | Ambient +15°C to 350°C |
| Temperature Uniformity | ±1% |
| Control Accuracy | ±0.5°C |
| Resolution | ±0.1°C |
| Chamber Material | Fully welded 304 stainless steel |
| Insulation | 4-inch mineral wool |
| Heating Method | Forced-air mechanical convection |
| External Dimensions | 40×34×57 in to 68×40×82 in |
| Internal Dimensions | 20×18×20 in to 48×24×36 in |
| Internal Volume | 1.6–24 ft³ |
| Electrical Options | 208/240/480 VAC, single- or three-phase, 50/60 Hz |
| Brand | Blue M |
|---|---|
| Origin | USA |
| Model | LinkTenn 32 |
| Temperature Range | Ambient to 700 °C |
| Temperature Uniformity | ±0.5 °C |
| External Dimensions | 35 × 33.2 × 51 in to 63 × 38.6 × 75.2 in |
| Internal Chamber Dimensions | 20 × 18 × 20 in to 48 × 24 × 36 in |
| Interior Material | 304 Stainless Steel |
| Heating Method | Forced-Air Convection |
| Brand | Blue M |
|---|---|
| Origin | USA |
| Model | SPX Blue M 146 |
| Temperature Range | Ambient +15°C to 350°C |
| Temperature Uniformity | ±1% |
| Control Accuracy | ±0.5°C |
| Resolution | ±0.1°C |
| Max Power | 7500 W |
| Heating Method | Forced Air Convection |
| Internal Dimensions | 20×18×20 in to 48×24×36 in (1.6–24 cu.ft) |
| Ramp Time to 300°C | ≤60 min |
| Insulation | 4-inch Mineral Wool |
| Chamber Construction | Full-Welded 304 Stainless Steel |
| Door Seal | Blue M Fiberglass Gasket |
| Safety | Interlocked Purge-Integrity Door Switch |
| Compliance | Designed for ASTM E145, ISO 17025, and GLP-compliant thermal processing environments |
| Brand | Blue M |
|---|---|
| Origin | USA |
| Model | CW-Series |
| Max Temperature | 704°C |
| Temperature Uniformity | ±2% of setpoint |
| Control Accuracy | ±0.5°C |
| Resolution | ±0.1°C |
| Heating Method | Forced-air convection with multi-blade centrifugal fan |
| Internal Dimensions | 356×356×356 mm to 1219×610×914 mm |
| Power Rating | Up to 30.0 kW (480 VAC, 3-Phase) |
| Insulation | 152 mm (6") mineral wool |
| Compliance | NFPA 86 Class B |
| Brand | Blue M |
|---|---|
| Origin | USA |
| Model | Embedded Oven |
| Temperature Range | Ambient +15°C to 300°C |
| Uniformity | ±1% of setpoint |
| Control Accuracy | ±1.0°C |
| Resolution | 0.1°C |
| Power Consumption | 6,600 W (at 125°C, 60 Hz) |
| Heating Method | Forced-air convection |
| Internal Dimensions | 25×25×25 in to 48×25×48 in (63.5×63.5×63.5 cm to 121.9×63.5×121.9 cm) |
| Construction | Reinforced 304 stainless steel interior, welded seam, 4″ fiberglass insulation, porcelain enamel exterior finish |
| Airflow Options | Horizontal or vertical dual-boost configuration |
| Standard Safety | Interlocked door, redundant overtemperature protection, customer power interlock |
| Fan Type | Direct-drive multi-blade centrifugal blower |
| Optional Features | Nitrogen purge, rear service access door, chart recorder (BI-9/BI-9V), floor stand, inlet port |
| Brand | Blue M |
|---|---|
| Origin | USA |
| Model | CW-5580 / CW-6680 / CW-7780 / CW-8880 / CW-9980 |
| Max Temperature | 704°C |
| Temperature Uniformity | ±2% of setpoint |
| Control Accuracy | ±0.5°C |
| Resolution | ±0.1°C |
| Heating Method | Forced-air convection |
| Internal Dimensions | 356×356×356 mm to 1219×610×914 mm |
| Power Rating | Up to 30.0 kW |
| Insulation | 152 mm (6 in) mineral wool |
| Airflow | Adjustable single-pass and recirculating modes |
| Compliance | NFPA 86 Class B |
| Brand | Blue M |
|---|---|
| Origin | USA |
| Type | Inert Atmosphere Box Furnace |
| Max Temperature | 593°C |
| Temperature Uniformity | ±2% of setpoint |
| Control Accuracy | ±0.5°C |
| Resolution | ±0.1°C |
| Heating Method | Forced Air Circulation |
| Internal Dimensions | 51×46×51 cm to 122×61×91 cm |
| Insulation | 152 mm (6″) Mineral Wool |
| Power Input | Up to 30.0 kW (480 VAC, 3-Phase) |
| Compliance | NFPA 86 Class B |
| Brand | Blue M |
|---|---|
| Origin | USA |
| Type | Cleanroom-Grade Mechanical Convection Drying Oven |
| Temperature Range | Ambient +15°C to 250°C (482°F) |
| Temperature Uniformity | ±1% (empty chamber, rated voltage) |
| Temperature Stability | ±0.5°C |
| Resolution | ±0.1°C |
| Chamber Material | Reinforced 304 Stainless Steel |
| Insulation | 4-inch fiberglass |
| Door Seal | Blue M Silicone Gasket |
| Heating Method | Forced-air convection with inert gas recirculation capability |
| External Dimensions (W×D×H) | 35×33.2×51 in to 63×38.6×75.2 in |
| Internal Dimensions (W×D×H) | 16.5×18×19.7 in to 43.8×23.7×35.7 in |
| Internal Volume | 3.4–21.6 cu.ft |
| Electrical Options | 208/240/480 VAC, 1Φ or 3Φ, 50/60 Hz |
| Brand | Blue M |
|---|---|
| Origin | USA |
| Model | Nitrogen Purge Drying Oven |
| Temperature Range | Ambient +15°C to 350°C |
| Temperature Uniformity | ±1% |
| Temperature Stability | ±0.5°C |
| Temperature Resolution | ±0.1°C |
| Chamber Construction | Fully welded 304 stainless steel |
| Insulation | 4-inch mineral wool |
| Door Seal | High-integrity fiberglass-reinforced gasket |
| Gas Compatibility | Inert and non-flammable gases (N₂, Ar, forming gas) |
| Purge Flow Rates | 25–600 SCFH (model-dependent) |
| Power Options | 208/240/480 VAC, single- or three-phase, 50/60 Hz |
| Internal Volume | 4.2–24.0 cu.ft |
| External Dimensions (W×D×H) | 40×34×57 to 68×40×82 in |
| Chamber Dimensions (W×D×H) | 20×18×20 to 48×24×36 in |
| Heating Method | Forced-air convection |
| Brand | Blue M |
|---|---|
| Origin | USA |
| Model Variants | 206, 256, 296 (benchtop) |
| Temperature Range | Ambient +15°C to 350°C |
| Temperature Uniformity | ±1% of setpoint |
| Temperature Stability | ±0.5°C |
| Control Resolution | ±0.1°C |
| Chamber Construction | Full-welded 304 stainless steel |
| Insulation | 4-inch mineral wool |
| Door Seal | Blue M proprietary fiberglass gasket |
| Heating Method | Forced-air convection |
| Compliance | Designed for ISO/IEC 17025-compliant labs |
| Brand | Blue M |
|---|---|
| Origin | USA |
| Model | DCC1406 |
| Temperature Range | Ambient +15°C to 250°C (482°F) |
| Temperature Uniformity | ±1% (empty chamber, rated voltage) |
| Temperature Stability | ±0.5°C |
| Resolution | ±0.1°C |
| Chamber Dimensions (W×D×H) | 43.8 × 23.7 × 35.7 in (1113 × 602 × 907 mm) |
| External Dimensions (W×D×H) | 63 × 38.6 × 75.2 in (1600 × 980 × 1910 mm) |
| Chamber Volume | 21.6 cu.ft |
| Interior Material | Reinforced 304 Stainless Steel |
| Insulation | 4-inch fiberglass |
| Heating Method | Forced-air convection |
| Door Seal | High-integrity silicone gasket |
| Gas Management | Inert gas recirculation system with top-mounted exhaust valve and adjustable flowmeter |
| Electrical Options | 208–480 VAC, 1- or 3-phase, 50/60 Hz |
| Brand | Blue M |
|---|---|
| Origin | USA |
| Type | Inert Gas Cabinet Oven |
| Max Temperature | 316°C |
| Temperature Uniformity | ±2% of setpoint |
| Max Power | 48 kW |
| Ramp Time to Max Temp | 60 min |
| Heating Method | Forced-air convection |
| Internal Dimensions | 60.7 × 60.7 × 121.9 mm (W×D×H) |
| Compliance | NEC-compliant design, UL-listed components |
| Brand | Blue M |
|---|---|
| Origin | USA |

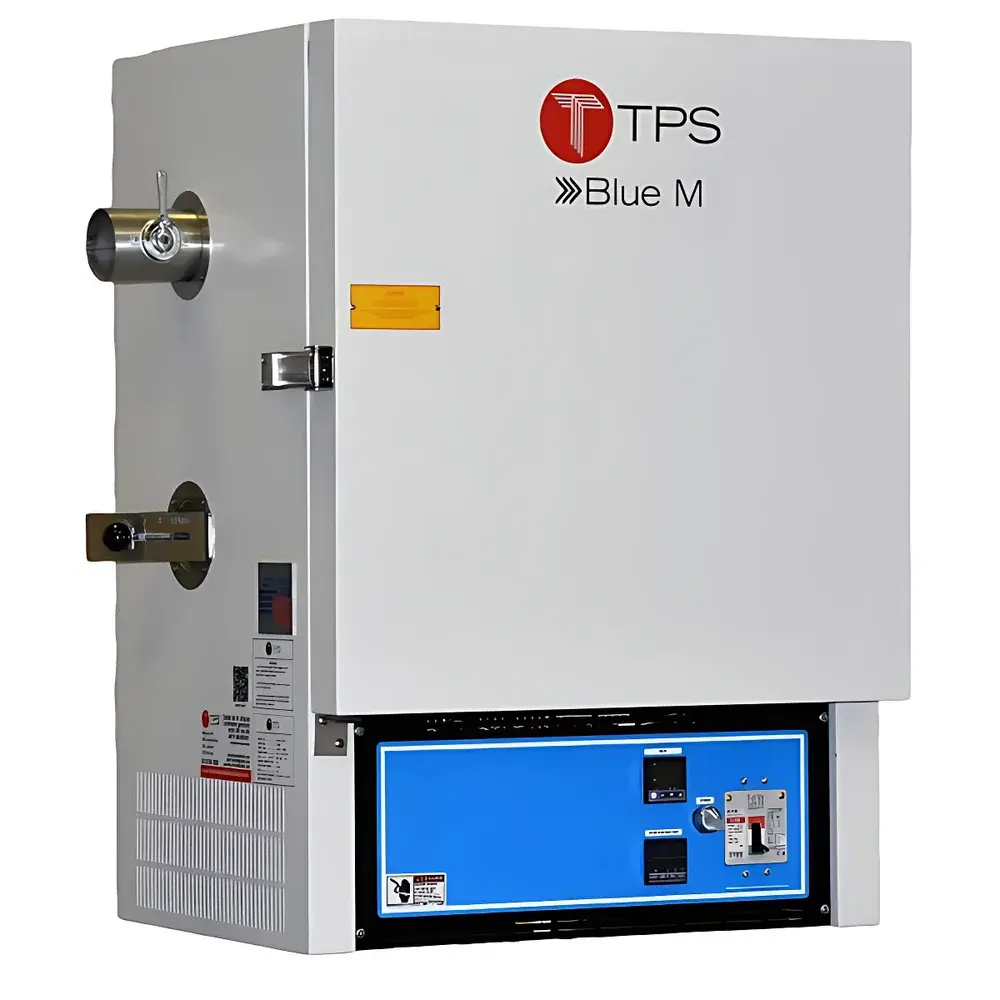

| Model | ESP 400 Series Mechanical Convection Oven |
| Temperature Range | Ambient +15°C to 260°C |
| Temperature Uniformity | ±1% of setpoint |
| Heating Method | Forced-air horizontal convection |
| Internal Dimensions | 480 × 380 × 450 mm |
| Chamber Volume | 2.8 ft³ (0.079 m³) |
| Warm-up Time to 260°C (no load, vents closed) | 20 min @ 240 VAC |
| Controller | RKC RF100 with enhanced PID and auto-tuning algorithm |
| Overtemperature Protection | Dual independent system (CB100L/CB900L FM-approved controller + Partlow 1161 upper-limit controller) |
| Construction | 304 stainless steel interior, fully welded |
| Insulation | Fiberglass, double-wall insulated door |
| Airflow | Unidirectional horizontal airflow via centrifugal blower |
| Adjustable | Inlet/exhaust dampers, 7-position nickel-plated wire shelving |
| Compliance | FM-approved components, meets UL 61010-1 and CSA C22.2 No. 61010-1 safety standards |
| Brand | Blue M |
|---|---|
| Origin | USA |
| Model | IGF 8880 |
| Type | Benchtop/Industrial Box-Type Atmosphere Furnace |
| Max Temperature | 593°C (1099°F) |
| Temperature Uniformity | ±2% of setpoint |
| Control Accuracy | ±0.5°C |
| Resolution | ±0.1°C |
| Heating Method | Forced-Air Convection with Incoloy® Sheathed Heating Elements |
| Internal Dimensions | 122 × 61 × 91 cm (W×D×H) |
| Power Rating | 30.0 kW (at 240 VAC, 3-Phase) |
| Insulation | 6-inch mineral wool |
| Door Seal | Fiberglass-reinforced silicone gasket |
| Cooling | Water-cooled door (IGF 8880 & IGF 9980 models) |
| Gas Compatibility | N₂, Ar, He, CO₂, and forming gas (4% H₂ / 96% N₂) |
| Safety Compliance | NFPA 86 Class B |
| Brand | Watlow |
|---|---|
| Model | F4 |
| Controller Type | PID Temperature Controller with TRU-TUNE®+ Adaptive Control |
| Display | 4-Line High-Contrast LCD (1.75" / 44 mm character height) |
| Input Compatibility | Thermocouple (J, K, T, E, R, S, B, N), RTD (Pt100, Pt1000), Voltage, Current |
| Output Options | Relay (2 A max), SSR, DC Pulse, Analog (0–10 V, 4–20 mA) |
| Control Loops | Up to 2 independent control loops (single- or dual-channel versions) |
| Programming | Ramp/Soak profile capability (up to 99 segments) |
| Environmental Rating | NEMA 4X / IP65 front panel |
| Safety Certifications | UL®/C-UL®, CE, RoHS |
| Operating Ambient | 0–55°C (32–130°F) |
| Warranty | 3-Year Limited Warranty |
| Mounting | 1/4 DIN panel cutout (96 × 96 mm) |
| Brand | Blue M |
|---|---|
| Origin | USA |
| Model Series | 166, 246, 326, 366, 606, 966 |
| Temperature Range | Ambient to 316°C |
| Temperature Uniformity | ±1.5–2.0% of setpoint |
| Temperature Stability | ±0.5°C |
| Interior Material | 304 Stainless Steel |
| Insulation | 102 mm (4 in) Fiberglass |
| Heating Method | Forced-air convection |
| External Casing | 14–16 gauge cold-rolled steel |
| Finish | White porcelain enamel coating |
| Door | Dual-wall insulated with manual adjustable air inlet/outlet valves |
| Interior Volumes | 16.0–96.0 ft³ |
| Compliance | Designed for GLP/GMP environments |
| Brand | Blue M |
|---|---|
| Origin | USA |
| Model Series | 206 / 256 / 296 (Benchtop), 136 / 336 / 1046 (Floor-Standing) |
| Temperature Range | Ambient +15°C to 350°C |
| Temperature Uniformity | ±1% of setpoint |
| Temperature Stability | ±0.5°C |
| Control Resolution | 0.1°C |
| Interior Construction | Full-welded 304 stainless steel chamber |
| Insulation | 4-inch mineral wool |
| Door Seal | Blue M proprietary fiberglass gasket |
| Heating Method | Forced-air convection |
| Gas Purge Compatibility | N₂, Ar, forming gas (N₂/H₂), and other inert/non-flammable gases |
| Typical Purge Flow Rates | 25–600 SCFH (model-dependent) |
| Electrical Options | 208/240/480 VAC, single- or three-phase, 50/60 Hz |
| Brand | Blue M |
|---|---|
| Origin | USA |
| Type | Benchtop/Industrial Forced-Air Oven |
| Model | Frictionaire Series (e.g., HS-1004, HS-1204, HS-3804) |
| Max Temperature | 260°C |
| Temperature Uniformity | ±1.0°C at 200°C |
| Control Accuracy | ±1.0°C |
| Heating Method | High-Velocity Air Friction Heating (No Exposed Heating Elements) |
| Internal Dimensions | 35 × 43 × 31 cm to 93 × 93 × 120 cm |
| Max Power | 6500 W |
| Ramp Time to 260°C | 140 min |
| Airflow Velocity | 100–500 FPM |
| Compliance | UL-Listed (select models), CSA Certified, Designed for Class I, Division 1, Group D Hazardous Locations |
| Brand | Blue M |
|---|---|
| Origin | USA |
| Type | Forced-Air Circulating Oven (Box-Type) |
| Max Temperature | 398°C (750°F) |
| Temperature Uniformity | ±2% of setpoint (in empty, stabilized chamber) |
| Max Power | 48 kW |
| Heating Method | Horizontal, single-pass forced-air circulation with centrifugal blower |
| Internal Dimensions | 60.7 × 60.7 × 121.9 cm to 121.9 × 121.9 × 182.9 cm |
| Construction | 14–16 gauge cold-rolled steel exterior, 304 stainless steel interior, 10.2 cm (4") fiberglass insulation |
| Compliance | NEC-compliant wiring, redundant overtemperature protection, UL-listed components |
| Brand | Blue M |
|---|---|
| Origin | USA |
| Model | Synergy Manager |
| Temperature Range | Ambient to 700 °C |
| Temperature Uniformity | ±0.5 °C |
| Interior Dimensions | 20″ × 18″ × 20″ to 48″ × 24″ × 36″ (W×D×H) |
| Exterior Dimensions | 35″ × 33.2″ × 51″ to 63″ × 38.6″ × 75.2″ (W×D×H) |
| Chamber Material | 304 Stainless Steel |
| Heating Method | Forced-Air Circulation |
| Communication Interfaces | Ethernet (TCP/IP), RS-232, RS-485, GPIB-IEEE 488 |
| Software Licensing | USB Dongle (P/N TE1566-1) or Parallel Port Dongle (P/N TE1566-2) |
Show next
