| Brand | ATLAS |
|---|---|
| Origin | USA |

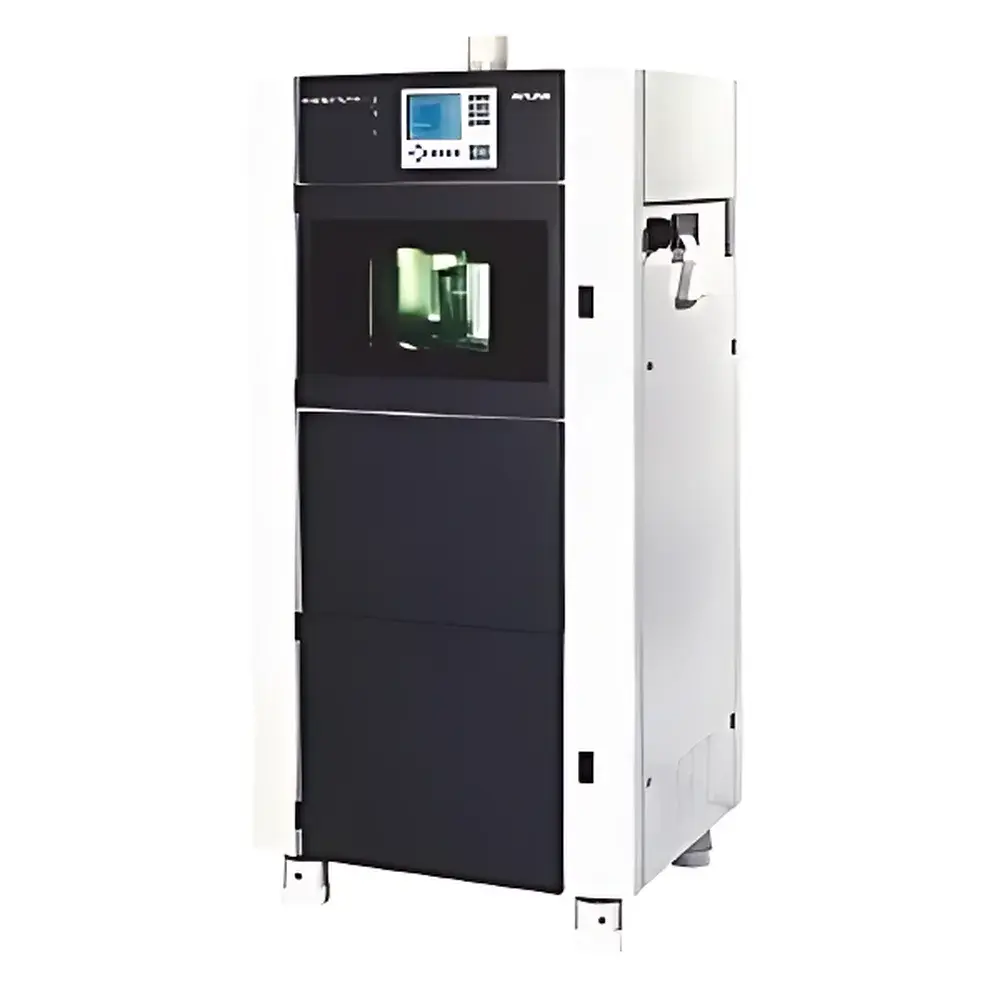

| Model | Xenotest Alpha+ |
| Lamp Configuration | 1 × 2200 W air-cooled xenon arc lamp |
| Exposure Area | 1320 cm² |
| Maximum Irradiance | 180 W/m² (3× solar intensity, 300–400 nm) |
| Temperature Control | Chamber temperature only (up to 70 °C) or dual control (chamber + black standard thermometer, up to 130 °C) |
| Humidity Range | 10–95% RH |
| Humidity System | Ultrasonic humidification |
| Water Spray System | Integrated with 60 L reservoir |
| Sample Rotation | Motorized carousel accommodating 11 sample holders |
| Irradiance & BST Monitoring | XENOSENSIV sensor at sample plane (300–400 nm) |
| User Interface | Color touchscreen with multilingual support |
| Data Output | RS-232, Ethernet, SD card |
| Compliance | ASTM G155, ISO 4892-2, ISO 11341, SAE J2527, AATCC TM16, GB/T 16422.2, and other major weathering standards |
| Brand | ATLAS |
|---|---|
| Origin | USA |
| Model | Xenotest 220 / Xenotest 220+ |
| Lamp | One 2200 W air-cooled xenon arc lamp |
| Exposure Area | 2310 cm² |
| Irradiance Control Range | 300–400 nm |
| Black Standard Temperature Control | Up to 100 °C (dual-control mode) |
| Chamber Temperature Control | Up to 65 °C (single-mode) or synchronized with black standard (dual-mode) |
| Relative Humidity Range (Illuminated Phase) | 20–85 % RH |
| Humidity System | Ultrasonic humidification with 60 L integrated reservoir and auto-refill |
| Sample Capacity | 38 standard textile specimens (19 dual-position sample holders) |
| Compliance | ISO 105-B02, AATCC TM16-2004 Option 3, Marks & Spencer C9/C9A |
| User Interface | Monochrome keypad panel (Xenotest 220) or color touchscreen with multilingual UI (Xenotest 220+) |
| Data Storage | Internal flash memory |
| Brand | ATLAS |
|---|---|
| Origin | USA |

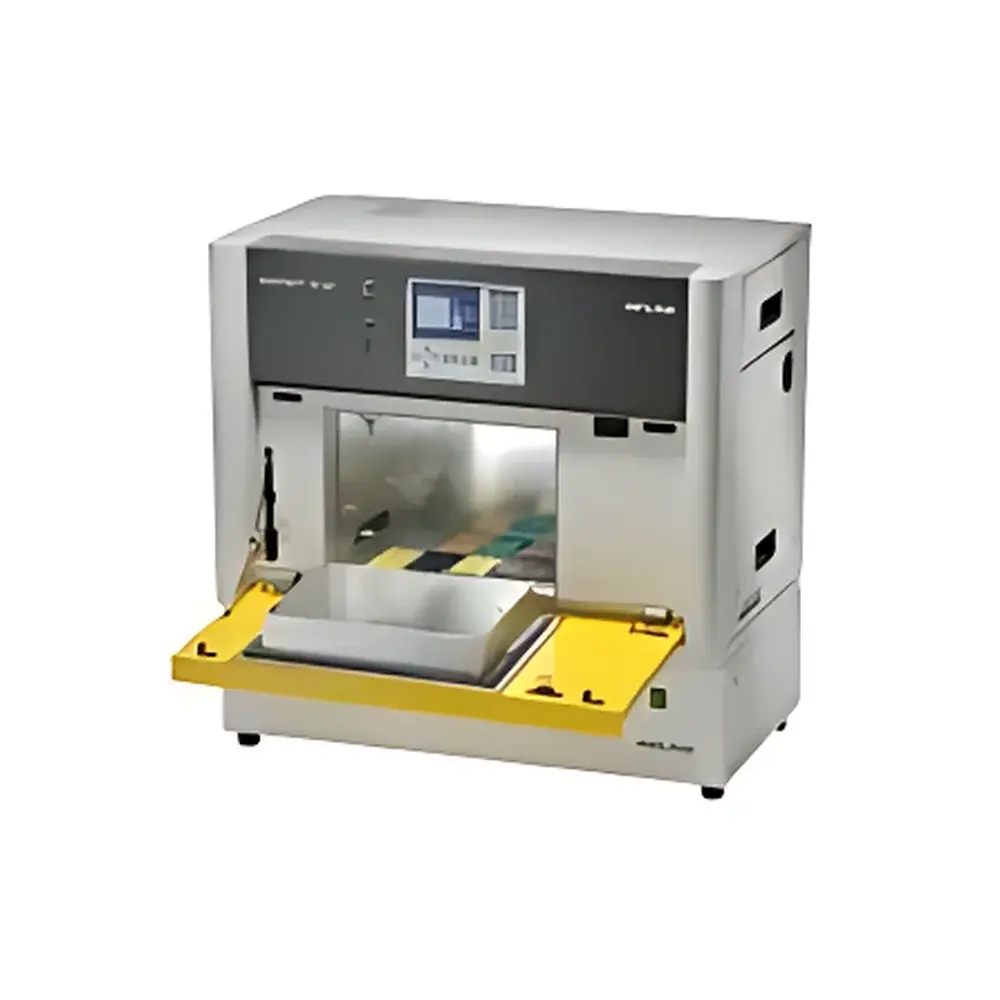

| Model | SUNTEST XLS+ |
| Xenon Lamp Power | 1700 W |
| Irradiance Range | 30–65 W/m² (300–400 nm) |
| Black Standard Temperature (BST) Range | 45–100 °C |
| Exposure Area | 1170 cm² |
| Dimensions (W×D×H) | 90 × 54 × 62 cm |
| Compliance | ISO 4892-1, CIE 85 |
| Brand | ATLAS |
|---|---|
| Origin | USA |

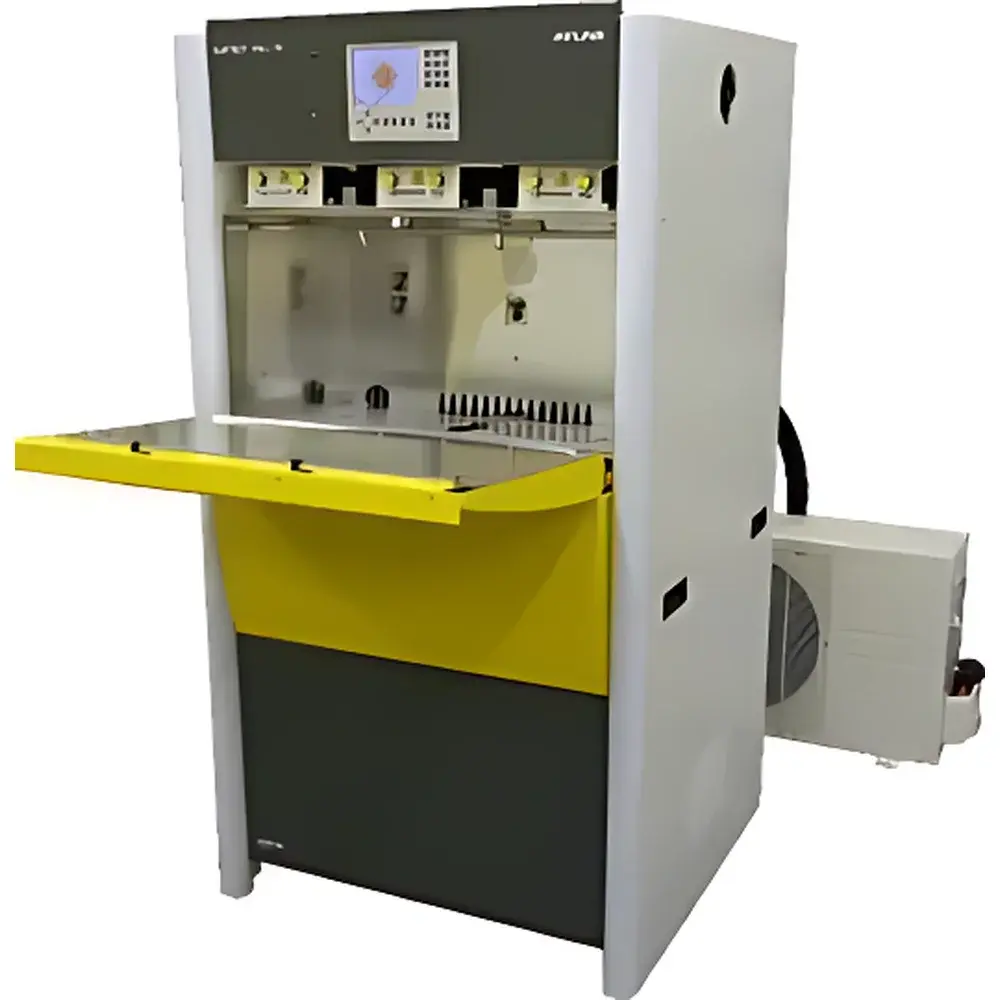

| Model | SUNTEST XXL+ FD |
| Xenon Lamp Power | 1700 W |
| Irradiance Range | 30–65 W/m² (300–400 nm) |
| Exposure Area | 3000 cm² |
| Dimensions (W×D×H) | 90 × 91 × 172 cm |
| Black Standard Temperature (BST) Control Range | 25–100 °C |
| Chamber Temperature (CHT) Range | 15–70 °C (with SunCool cooling system enabled/disabled) |
| Humidity Control | Ultrasonic humidification system (optional with SunCool deactivation) |
| Spray System | Integrated 60 L tank, 25–70 °C operation |
| Sample Plane Tilt | 5° |
| Irradiance & Temperature Tolerance | User-definable setpoint tolerances for all critical parameters |
| Compliance | ISO 4892-1, CIE 85:2015 |
| Brand | ATLAS |
|---|---|
| Origin | USA |
| Model | SUNTEST CPS+ |
| Xenon Lamp Power | 1500 W |
| Irradiance Range | 30–65 W/m² (300–400 nm) |
| Black Standard Temperature (BST) Range | 35–100 °C (without SunCool) |
| Exposure Area | 560 cm² |
| Dimensions (W×D×H) | 90 × 35 × 35 cm |
| Cooling | Air-cooled lamp |
| Control Interface | Microprocessor-based with programmable keypad and monochrome display |
| Compliance | ISO 4892-1, CIE Publication No. 85 |
