| Brand | PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

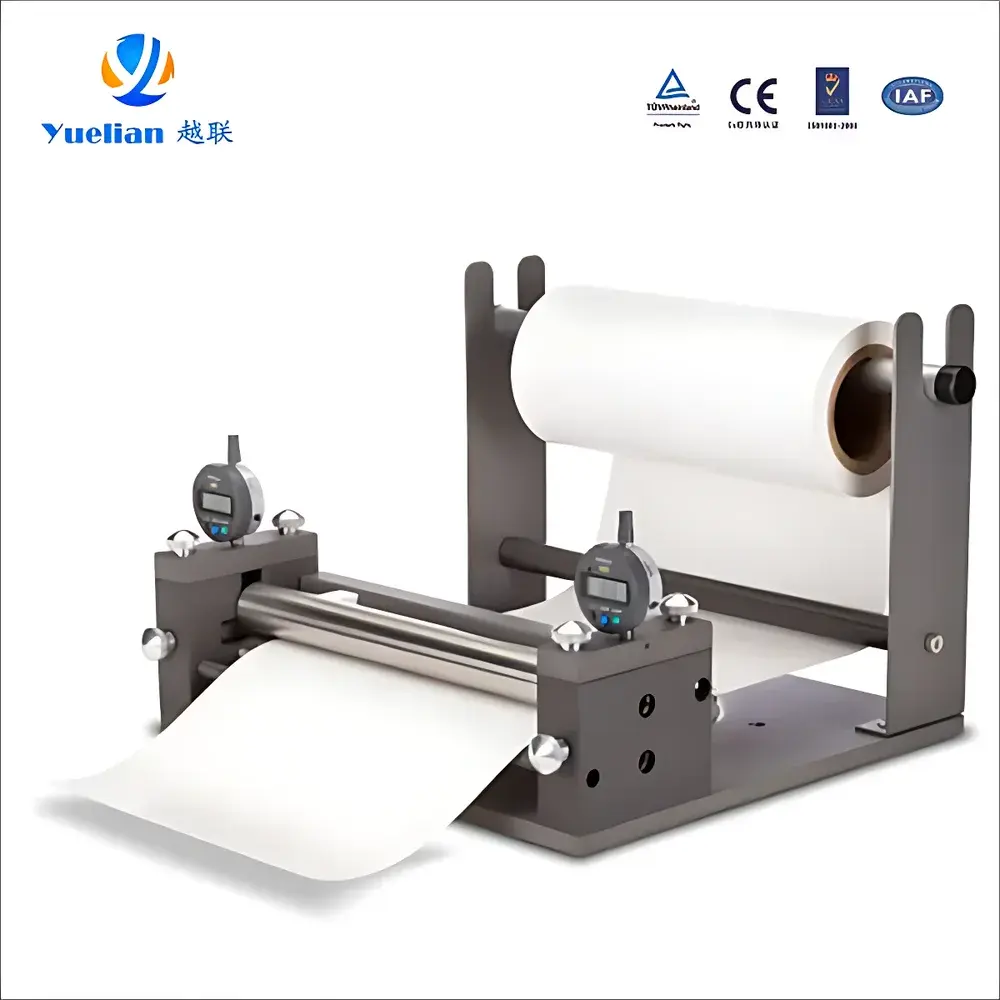

| Model | YL-UC200 |
| Price | Upon Request |
| Coating Head Type | Adjustable Comma Coater |
| Coating Thickness Range (Wet) | 1–60 mil (25–1,500 g/m²) |
| Adhesive Viscosity Range | 1,500–9,000 cP |
| Coating Width Adjustment | 12–300 mm (motorized or manual挡胶板 positioning) |
| Standard Web Width | 300 mm (custom widths available) |
| Coating Length | Unlimited (manual web draw-off) |
| Metering System | Digital Thickness Gauge (metric & imperial units) |
| Reservoir Capacity | 125 g |
| Max. Unwinding Roll OD | 300 mm |
| Dimensions (L×W×H) | 480 × 560 × 460 mm |
| Net Weight | 25 kg |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YL-9980 |
| Price | Upon Request |
| Contact Angle Measurement Range | 0–180° |
| Accuracy | ±0.1° |
| Measurement Methods | Automatic Circle Fitting, Automatic Ellipse Fitting, Manual Tangent, Dynamic Advancing/Receding Angle Analysis, Spherical Cap, Height-Width, Curved Surface, and Inclined Plane Methods |
| Optical System | 2× Fixed-Magnification High-Definition Microscope with Adjustable LED Backlight |
| Imaging | High-Resolution CMOS Digital Camera with Video Capture, Frame-by-Frame Export, and Real-Time Snapshot |
| Sample Stage | 3-Axis Motorized Translation (X/Y/Z), Vertical Extension Rail (±30 mm), Adjustable Base Plate Travel (150 mm depth), Stage Dimensions: 240 × 120 mm |
| Dispenser Positioning | 2-Axis Precision Movement (100 mm vertical, 100 mm horizontal) |
| Microscope Adjustment | 80 mm coarse + 3 mm fine depth travel |
| Max Sample Thickness | ≤80 mm |
| Overall Dimensions | 360 × 480 × 460 mm (W × L × H) |
| Brand | Yuelian / PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Regional Classification | Domestic (China) |
| Model | PW-SS64T |
| Quotation | Available Upon Request |
| Test Stations | 64 |
| Working Layers | 4 |
| Timing Method | Touchscreen-Controlled Reverse Countdown with Color-Coded Status Indication |
| Standard Weight Load | 1 kg (custom weights available) |
| Frame Material | Aluminum Extrusion + Sheet Metal + Stainless Steel |
| Surface Finish | Anodized Aluminum + Metal Polishing |
| Vibration Damping | Polymeric Foam Padding with Stainless Steel Enclosure |
| Weight Sets | 64 pcs |
| Connector Plates | 64 pcs |
| Load Plates | 64 pcs |
| Dimensions (W×D×H) | 95 × 30 × 200 cm |
| Net Weight | 130 kg |
| Power Consumption | 200 W |
