| Brand | Yuelian / PW |
|---|---|
| Origin | Guangdong, China |

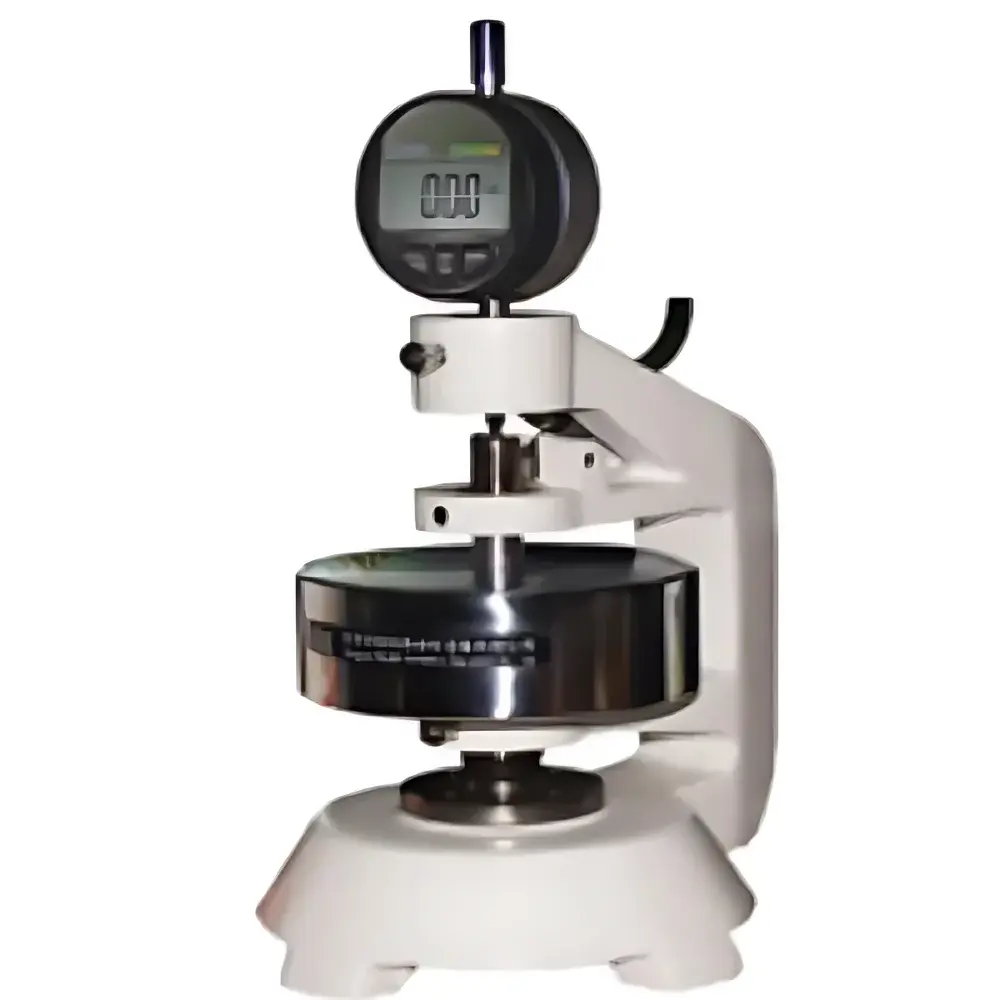

| Model | PW-TCK-01 |
| Measurement Range | 0–4 mm |
| Resolution | 0.001 mm |
| Indication Error | ±0.05% of full scale |
| Contact Area | 200 ± 5 mm² |
| Anvil Diameter | 16 ± 0.15 mm |
| Applied Pressure | 100 ± 10 kPa (per GB/T 451.3) |
| Parallelism | ≤0.002 mm |
| Weight | ~5 kg |
| Compliance | GB/T 451.3–1989, QB/T 1055–2004, ISO 534:2011 |
| Brand | Yuelian / PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

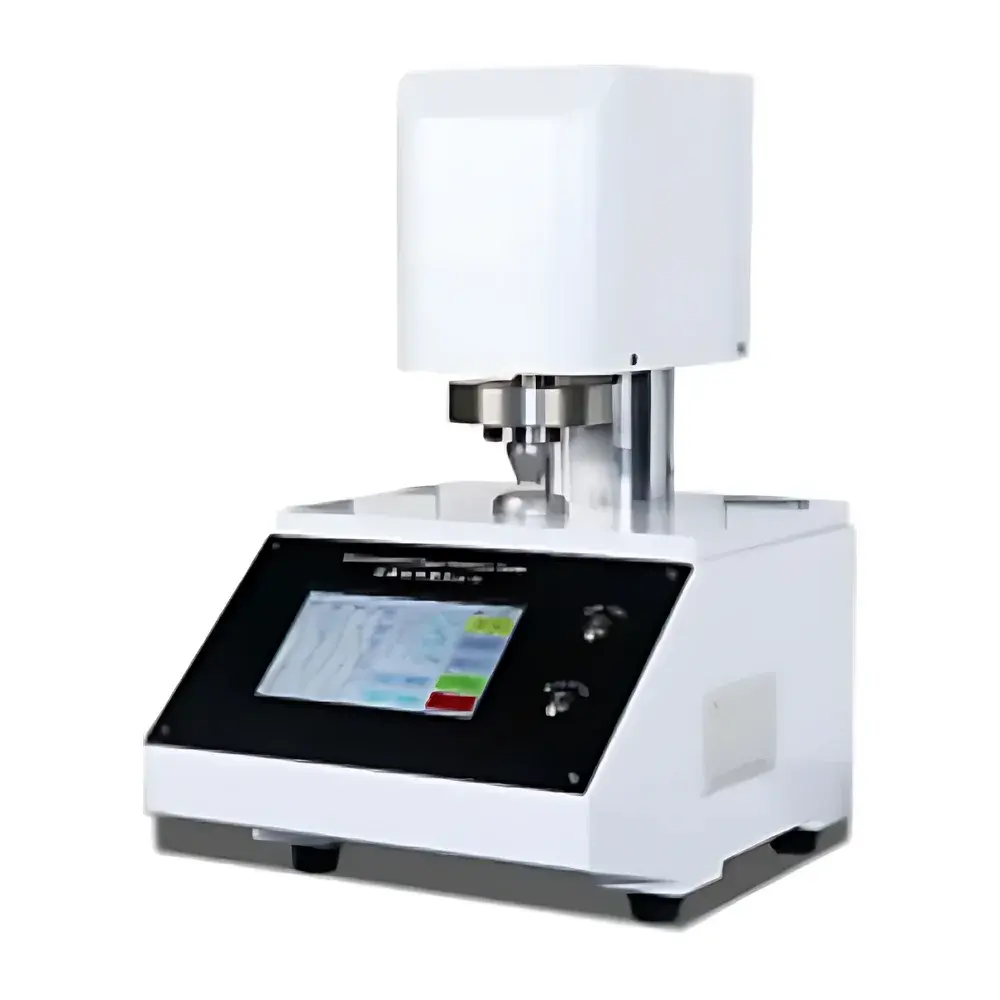

| Model | PW-TCK-T03 |
| Power Supply | AC 220 V ±10%, 2 A, 50 Hz |
| Accuracy | ±0.5% FS |
| Repeatability | ≤0.3% FS |
| Measurement Range | 0–5 mm |
| Resolution | 0.001 mm |
| Parallelism of Measuring Surfaces | ≤0.002 mm |
| Contact Area | 200 ±5 mm² (paper/board) or 50 ±1 mm² (film) |
| Nominal Contact Pressure | 100 ±10 kPa (paper/board) |
| Descent Speed | 0.5–10 mm/s (adjustable) |
| Display | 7-inch capacitive touch HMI |
| Data Output | Integrated thermal printer (modular design) |
| PC Connectivity | Optional software interface via USB/RS232 |
| Weight | ~25 kg |
| Dimensions (W×D×H) | 320 × 310 × 380 mm |
