| Brand | YueLian / PW |
|---|---|
| Origin | Guangdong, China |
| Model | PW-CHL150-40A-FR6 |
| Temperature Range | −40 °C to +150 °C |
| Temp. Uniformity | ≤2 °C |
| Temp. Stability | ≤±0.5 °C |
| Temp. Accuracy | ±0.2 °C |
| Heating Rate | 3–5 °C/min (avg.) |
| Cooling Rate | 0.7–1 °C/min (avg.) |
| Folding Angle | 22.5° |
| Folding Speed | 0–100 ±3 cpm |
| Sample Size | 70 × 45 mm |
| Test Stations | 6 parallel |
| Internal Chamber Dimensions | 500 × 500 × 600 mm |
| Net Weight | 310 kg |
| Power Supply | AC 220 V |
| Brand | Yuelian / PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Manufacture | China |
| Model | PW-6610 |
| Pricing | Upon Request |
| Measurement Range | 0.01–1000 mN |
| Test Speed | 1.2 mm/s |
| Total Stroke | 1–12 mm (adjustable) |
| Test Duration | 2–15 s (adjustable) |
| Resolution | 0.01 mN |
| Accuracy | ±1% of full scale |
| Repeatability | ≤1% RSD |
| Probe Penetration Depth | 8 ±0.5 mm (1–8 mm adjustable) |
| Max Sample Thickness | ≤5 mm |
| Probe Width | 200 ±0.5 mm |
| Slit Width Options | 5, 6.35, 10, 20, or 30 mm (standard: 5 mm |
| Lever Ratio | 32:73 |
| Calibration Weights | 5 g, 10 g |
| Parallelism Error | ≤0.05 mm |
| Display | 7.2-inch capacitive touchscreen with real-time force curve |
| Dimensions (Tester) | 440 × 350 × 320 mm |
| Weight | ~32 kg |
| Optional Sample Cutter | 100 × 100 mm cut size, 0.01–20 mm thickness capacity, 150 × 220 × 350 mm, 5 kg |
| Brand | YueLian / PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | PW-MIT02 |
| Pricing | Available Upon Request |
| Power Supply | AC 220 V ±10%, 50 Hz (AC 110 V ±10%, 60 Hz optional) |
| Operating Temperature | 10–35 °C |
| Relative Humidity | ≤85% RH |
| Display | 5-inch color TFT touchscreen interface |
| Test Area | 7 ± 0.05 cm² |
| Folding Angle Range | 0–180° (user-configurable and real-time displayed) |
| Cycle Count Range | 0–99,999 cycles |
| Folding Speed | 5–65 cycles/min |
| Bend Radius Options | R1 mm, R1.5 mm, R2 mm (three interchangeable mandrels supplied) |
| Dwell Time Adjustment | 0–99 s (programmable) |
| Folding Platform Dimensions | 200 × 150 mm (dual stations: front & rear) |
| Overall Dimensions | 580 × 490 × 360 mm (W × D × H) |
| Net Weight | ~35 kg |
| Data Output | Built-in thermal printer |
| Standard Configuration | Main unit + embedded thermal printer |
| Optional | Continuity monitoring module (open/short detection during folding) |
| Brand | PW (Yuelian) |
|---|---|
| Origin | Guangdong, China |
| Model | YLCK-25 |
| Sample Width | 25 mm (customizable) |
| Sample Length | 210 mm |
| Sample Thickness Capacity | ≤300 µm |
| Cutting Capacity | 10 specimens per stroke (single-layer) |
| Dimensions | 420 × 310 × 250 mm |
| Weight | 14.8 kg |
| Brand | PW |
|---|---|
| Origin | Guangdong, China |
| Model | PW-6607 |
| Compliance | ISO 5627, GB/T 456 |
| Test Area | 10 ± 0.05 cm² |
| Pressure | 100 ± 2 kPa |
| Vacuum Range | 50.66–29.33 kPa (3档) |
| Timing Range | 1–9999 s (Auto mode ≤200 s) |
| Timing Accuracy | ≤1 s @ 1000 s |
| Display | 7-inch color touchscreen (Chinese/English UI) |
| Power | AC 220 V ±10%, 50 Hz (110 V/60 Hz optional) |
| Dimensions | 370 × 330 × 390 mm |
| Weight | ~29 kg |
| Interface | RS232 |
| Printer | Built-in thermal printer |
| Data Storage | Onboard flash memory with statistical calculation and dual-side differential analysis |
| Brand | Yuelian |
|---|---|
| Model | YL-S70 |
| Application | Peel Adhesion Testing of Pressure-Sensitive Adhesives (e.g., 3M VHB™ Tapes) |
| Load Capacity Options | 10 N to 5 kN (dual-range configurable) |
| Force Resolution | 1/500,000 full scale |
| Accuracy | Better than Class 0.5 per ISO 7500-1 |
| Crosshead Speed Range | 0.01–500 mm/min (adjustable in 0.01 mm/min increments) |
| Effective Travel | 450 mm |
| Data Acquisition Rate | 50 Hz |
| Compliance | ASTM D3330, ASTM D903, ISO 8510-2, PSTC-101, FINAT FTM 1 |
| Software | Windows-based control & analysis suite with audit trail, user-level permissions, and 21 CFR Part 11 readiness (optional validation package) |
| Brand | Yuelian/PW |
|---|---|
| Origin | USA |
| Model | HSR-2000 |
| Load Cell Options | 5 lb (standard), 2 lb & 10 lb (optional) |
| Force Accuracy | ±0.1% of full scale |
| Speed Modes | Constant (30–1000 fpm / 10–300 mpm) & Ramp (0–5 m/s in 1 m/s increments) |
| Temperature Range | 0–70 °C (32–150 °F) |
| Touchscreen | 5.7" integrated LCD |
| Dimensions (H×W×D) | 35 × 53 × 28 cm |
| Weight | 11 kg |
| Power Input | 85–265 VAC, 50/60 Hz |
| Data Sampling | Up to 400 points per test, adaptive sampling rate |
| Output Units | g, kg, oz, lb, N |
| Compliance | FINAT FTM 4 |
| Software Integration | EZ Data (USB export) |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | S71CR |
| Price Range | USD 1,400 – 7,200 |
| Load Capacity Options | 10 N to 5 kN (dual-range configurable) |
| Stroke | 450 mm |
| Speed Range | 0.01–500 mm/min |
| Force Resolution | 1/500,000 full scale |
| Force Accuracy | Better than ±0.5% FS |
| Data Acquisition Rate | 50 Hz |
| Compliance | ASTM D3786, ISO 13934-1 (adapted for compressive resistivity), GB/T 2423.17 (salt mist compatibility support) |
| Brand | YueLian / PW |
|---|---|
| Origin | Guangdong, China |
| Model | PW-6623 |
| Power Supply | AC 220 V ±10%, 50 Hz (AC 110 V ±10%, 60 Hz optional) |
| Operating Temperature | 10–35 °C |
| Relative Humidity | ≤85% RH |
| Display | 7-inch color touchscreen |
| Max. Specimen Thickness | <0.25 mm |
| Specimen Dimensions | 100 × 15 mm |
| Folding Length | 90 mm |
| Initial Tension | 7.60 ± 0.1 N |
| Maximum Tension | 9.80 ± 0.2 N |
| Folding Rate | 115 ± 10 cycles/min |
| Dimensions (W×D×H) | 500 × 530 × 340 mm |
| Net Weight | ~35 kg |
| Standard Configuration | Main unit with embedded thermal printer |
| Compliance | QB/T 457–2002 |
| Brand | Yuelian |
|---|---|
| Model | PW-TCK-T03 |
| Measurement Range | 0–10.0 mm |
| Accuracy | ±0.002 mm |
| Resolution | 0.001 mm |
| Parallelism Between Measuring Surfaces | ≤0.002 mm |
| Contact Area | 200 ± 5 mm² |
| Platen Boss Diameter | 16 ± 0.15 mm |
| Probe Descent Speed | 0.1–15.0 mm/s (adjustable) |
| Dwell Time | 0.1–5 s (adjustable) |
| Contact Pressure | 100 ± 2 kPa (GB/T), 50 ± 2 kPa (TAPPI) |
| Display | 5-inch color touchscreen (English/Chinese UI) |
| Output | Thermal printer + USB-B interface |
| Power Supply | 220 VAC, 50 Hz |
| Dimensions | 260 × 350 × 430 mm |
| Weight | ~45 kg |
| Brand | Yuelian / PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | PW-6616 |
| Pricing | Available Upon Request |
| Measurement Range (ΔP = 1 kPa) | A-Type: 0–2500 mL/min, 0.01–42 μm/(Pa·s) |
| Units | μm/(Pa·s), CU, mL/min, s (Gurley) |
| Accuracy | A-Type: ±0.01 μm/(Pa·s), ±0.06 mL/min, ±0.1 s (Gurley) |
| Test Area | 10 cm² |
| Linearity Error | ≤1% |
| Adjustable Test Pressure Differential | 0.05–6 kPa |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Weight | ~30 kg |
| Display | Touchscreen with Bilingual (English/Chinese) UI |
| Compliance | GB/T 458, ISO 5636-2, QB/T 1667, GB/T 22819, GB/T 23227, ISO 2965, YC/T 172, GB/T 12655 |
| Brand | Yuelian / PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Manufacture | China |
| Model | PW-6609A |
| Price | Upon Request |
| Max. Load Capacity | 10 kN |
| Force Resolution | 1 N |
| Force Accuracy | ±2% FS (indicated value error), ≤2% repeatability, ±0.2% FS return-to-zero error |
| Deformation Measurement Accuracy | ±1 mm |
| Preload Stability in Stack Test | ±4% |
| Compression Speed Range | 5–90 mm/min (±3% accuracy within range) |
| Standard Compression Speed | 12 mm/min |
| Stack Tracking Speed | 5 mm/min |
| Upper Platen Travel | 800 mm |
| Test Chamber Dimensions (W×D×H) | 600 × 800 × 800 mm |
| Parallelism Between Platens | ≤1 mm |
| Communication Interface | RS-232 (software optional) |
| Overall Dimensions (L×W×H) | 800 × 1000 × 1350 mm |
| Net Weight | ~250 kg |
| Compliant Standards | GB/T 4857.3, GB/T 4857.4, QB/T 1048, ISO 2872, ISO 2874 |
| Brand | Yuelian / PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Region of Manufacture | Domestic (China) |
| Model | PW-6621 |
| Pricing | Upon Request |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Manufacture | China |
| Model | PW-6618 |
| Measurement Range | 0–10 N |
| Resolution | 0.01 N |
| Accuracy | ±1% FS |
| Repeatability | ≤1% FS |
| Cup Diameter Range | 30–150 mm |
| Cup Height Range | 15–120 mm |
| Test Speed | 50 ± 2.5 mm/min (adjustable from 1–200 mm/min) |
| Force Travel Distance | 9.5 ± 0.5 mm |
| Dimensions (L×W×H) | 380 × 260 × 290 mm |
| Net Weight | 18 kg |
| Origin | Guangdong, China |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic |
| Model | YL-8809A |
| Pricing | Upon Request |
| Sampling Thickness | 0.1–1.5 mm (foam tape), 0.1–0.25 mm (PET protective film), 0.1–0.6 mm (fabric tape) |
| Sampling Width | 15 mm, 24 mm, 25.4 mm (customizable) |
| Sampling Length | 300 mm |
| Sample Quantity per Cycle | 6 strips |
| Sampling Accuracy | ±0.1 mm |
| Dimensions (L×W×H) | 420 × 330 × 145 mm |
| Weight | 8 kg |
| Key | Brand: Yuelian/PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PW-6600 |
| Price | Upon Request |
| Load Range | 0–3000 N |
| Upper Platen Diameter | 124 mm |
| Lower Platen Diameter | 127 mm |
| Test Height Range | 83 mm |
| Accuracy | ±1% of reading |
| Test Speed | 12 mm/min |
| Return Speed | 12 mm/min |
| Display | 7-inch high-contrast TFT LCD with real-time force-displacement curve |
| Data Storage | 50 test records onboard |
| Interface | Ethernet port for PC connectivity |
| Software | Dedicated Windows-based testing software with report generation (A4), statistical analysis (mean, min/max, SD), and automatic unit conversion (ECT, RCT, PAT, FCT, CMT) |
| Weight | 34 kg |
| Dimensions (W×D×H) | 400 × 380 × 620 mm |
| Construction | Full stainless-steel frame with integrated fixture alignment points |
| Compliance | GB/T 2679.8, GB/T 6546, GB/T 6548, GB/T 2679.6 |
| Brand | Yuelian / PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PW-Q63 |
| Quotation | Available Upon Request |
| Sampling Dimensions | 50 × 63 mm |
| Thickness Range | 0.1–1.0 mm |
| Overall Dimensions | 320 × 115 × 110 mm |
| Weight | ~9 kg |
| Blade Material | Chromium steel alloy with molybdenum and vanadium |
| Sampling Accuracy | ≤ ±0.1 mm |
| Compliance | TAPPI T414, QB/T 1050, GB/T 455–2002 (sampling specifications) |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-S70CR |
| Load Capacity Options | 10 N to 5 kN (dual-capacity configuration available) |
| Control System | Full PC-based closed-loop servo control |
| Force Resolution | 1/500,000 of full scale |
| Force Accuracy | Better than ±0.5% FS |
| Displacement Resolution | 1/500,000 mm |
| Sampling Rate | 50 Hz |
| Effective Stroke | 450 mm |
| Speed Range | 0.01–500 mm/min (customizable) |
| Test Space Diameter | Φ140 mm |
| Power Supply | 220 V, 50–60 Hz |
| Net Weight | 45 kg |
| Dimensions (W×D×H) | 520 × 590 × 1061 mm |
| Interface | USB & RS-232 |
| Compliance | Designed for ASTM D3787, ISO 1798, IEC 61340-2-3, and GB/T 2423.17 environmental test alignment |
| Brand | Yuelian / PW |
|---|---|
| Origin | Guangdong, China |
| Model | PW-6603 MIT |
| Fold Rate Range | 20–200 double folds/min |
| Fold Angle | 135° ± 2° |
| Tension Options | 4.9 N, 9.81 N, 14.7 N |
| Folding Radius | R0.38 mm ± 0.02 mm |
| Clamp Width | 15 ± 0.1 mm |
| Sample Width | 15 mm |
| Sample Length | >140 mm |
| Count Range | 1–99999 cycles |
| Display | 5-inch color touchscreen |
| Output | Thermal printer |
| Power Supply | 220 VAC, 50 Hz |
| Dimensions (Single-Station) | 330 × 290 × 510 mm |
| Weight (Single-Station) | 25 kg |
| Dimensions (5-Station) | 806 × 460 × 490 mm |
| Weight (5-Station) | 100 kg |
| Compliant Standards | ISO 5626, GB/T 2679.5, ASTM D2176, TAPPI T 511, BS ISO 5626, QB/T 1049 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YL-8809B |
| Price | USD 700 (FOB Guangdong) |
| Sampling Thickness | 0.1–1.5 mm (foam tape), 0.1–0.25 mm (PET protective film), 0.1–0.6 mm (fabric-backed tape) |
| Sampling Width | 15 mm, 24 mm, 25.4 mm (customizable) |
| Sampling Length | 300 mm |
| Sample Quantity per Cycle | 7 strips |
| Sampling Accuracy | ±0.01 mm |
| Dimensions (L×W×H) | 470 × 285 × 155 mm |
| Weight | 8 kg |
| Brand | Yuelian / PW |
|---|---|
| Origin | Guangdong, China |
| Model | PW-6606 |
| Measurement Range | A-range 0–8000 mN, B-range 8000–16000 mN |
| Tear Distance | 43 ± 0.5 mm |
| Initial Tear Angle | 27.5 ± 0.5° |
| Tear Radius (Tear Arm Length) | 104 ± 1 mm |
| Sample Dimensions | (63 ± 0.5) mm × (50 ± 2) mm |
| Clamp Face Size | 25 × 15 mm |
| Maximum Clamping Area | 6.48 cm² |
| Clamp Spacing | 2.8 ± 0.3 mm |
| Clamp Torque Ratio | 2.2 : 0.7 |
| Knife Lever Ratio | 14 : 5.5 |
| Minimum Free Swing Count | ≥20 (min), ≥25 (mid), ≥35 (standard) |
| HMI | 5-inch Touchscreen with English/Chinese Interface |
| Compliance | GB/T 455, GB/T 16578.2, QB/T 1050, ISO 1974, TAPPI T414 |
| Brand | Yuelian / PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Manufacture | China |

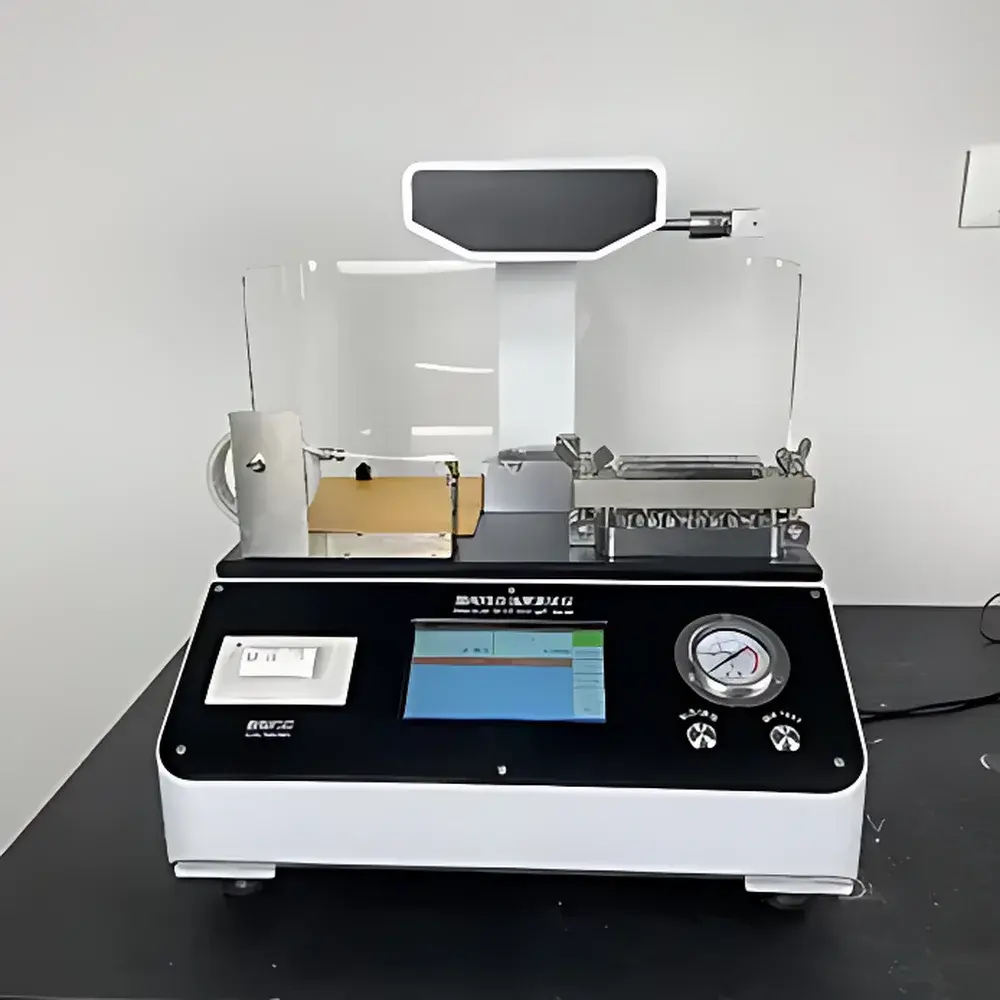

| Model | PW-6617 |
| Price Range | USD 780–2,350 |
| Sample Size | 25.4 mm × 127 mm |
| Thickness Range | 0.1–5 mm |
| Impact Angle | 90° (standard energy release) |
| Release Mechanism | Fully Automatic Pneumatic Release |
| Measurement Range | 0–1000 J/m² (A-range: 0–500 J/m² |
| B-range | 500–1000 J/m²) |
| Accuracy | ±1 J/m² (A), ±2 J/m² (B) |
| Resolution | 0.001 J/m² |
| Units | J/m² and lbf/in² (interchangeable) |
| Encoder Resolution | 5000-pulse high-precision optical encoder |
| HMI | 7.0-inch capacitive touchscreen (bilingual: English/Chinese) |
| Printer | Integrated thermal printer module |
| Dimensions (W×D×H) | 500 × 400 × 650 mm |
| Weight | ~70 kg |
| Pneumatic Clamping | Yes |
| Compliance Standards | GB/T 26203, GB/T 25203, ASTM T569 pm-00, DIN ISO 16260, TAPPI UM403 |
| Brand | PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | HSR-200 |
| Price | Upon Request |
| Force Sensor Standard | 5 lbf (2.2 kN) |
| Optional Sensors | 2 lbf / 10 lbf |
| Force Accuracy | ±0.1% of full scale |
| Speed Modes | Constant & Ramp |
| Constant Speed Range | 30–1000 fpm (10–300 m/min) |
| Ramp Speed Profiles | 0–1, 0–2, 0–3, 0–4, 0–5 m/s |
| Test Compliance | FINAT FTM 4 |
| Operating Temperature | 0–70 °C |
| Power Input | 85–265 VAC, 50/60 Hz |
| Dimensions (H×W×D) | 35 × 53 × 28 cm |
| Weight | 11 kg |
| Display | 5.7" capacitive touchscreen |
| Data Sampling | Up to 400 points per test (adaptive rate) |
| Output Units | g, kg, oz, lb, N |
| Data Export | USB to EZ Data software |
| Standalone Operation | Yes |
| Brand | Yuelian / PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | PW-212 |
| Pricing | Upon Request |
| Test Area | 100 ± 0.2 cm² |
| Specimen Area | 122.718 ± 0.2 cm² |
| Liquid Height | 10 mm (standard) |
| Water Volume | 100 ± 5 mL |
| Roller Length | 200 ± 0.5 mm |
| Roller Mass | 10 ± 0.5 kg |
| Cup Material | Full 304 stainless steel |
| Lid Material | Anodized magnesium-aluminum alloy (fully sealed, acid/alkali resistant) |
| Sealing Ring | Pure silicone |
| Lid Knob Sleeve | High-strength machined copper |
| Rotational Locking Mechanism | Copper alloy, wear-resistant |
| Dimensions (W × D × H) | 396 × 315 × 300 mm |
| Weight | 28 kg |
Show next
