| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-2231 |
| Temperature Range | −70 °C to +150 °C |
| Internal Volume | 80–800 L (5 standard configurations) |
| Heating Rate | ~20 min (0 °C → 100 °C), ~60 min (−70 °C → 100 °C) |
| Cooling Rate | ~20 min (20 °C → 0 °C), ~90 min (20 °C → −70 °C) |
| Control System | Programmable TFT-LCD controller with RS-232 interface, 5 patterns / 50 steps / 999 cycles |
| Construction | Full SUS#304 stainless steel interior and exterior |
| Cooling Configuration | Single-stage air-cooled refrigeration system (≥ −20 °C) |
| Standard Accessories | Two adjustable stainless steel shelves, vacuum-rated observation window, interior LED lighting, anti-fog heater |
| Safety Protections | Over-temperature, compressor overload, over-current, earth leakage |
| Power Supply | 1-phase, 220 V, 50 Hz |
| Brand | Yuelian / PW |
|---|---|
| Origin | Guangdong, China |
| Model | PW-CFT100-40L5 |
| Temperature Range | -40°C to +150°C |
| Temperature Ramp Rate | 5°C/min (linear, unloaded) |
| Temperature Uniformity | ≤2°C (empty) |
| Temperature Stability | ≤±1°C (empty), ≤±2°C (loaded) |
| Temperature Deviation | ≤±2°C (empty) |
| Humidity Range | 20–98% RH |
| Humidity Uniformity | ≤±3% RH |
| Humidity Stability | ≤±2% RH |
| Humidity Deviation | ±3% RH (>75% RH), ±5% RH (≤75% RH) |
| Internal Dimensions (W×H×D) | 500×500×400 mm |
| Nominal Volume | 100 L |
| Refrigeration | Mechanical compression (R404A/R23) |
| Cooling Method | Water-cooled condenser |
| Construction | SUS304 stainless steel inner chamber, powder-coated cold-rolled steel outer shell |
| Insulation | 100 mm rigid polyurethane foam |
| Control System | 7-inch color TFT touchscreen PLC-based controller with multi-segment programmable logic, PID tuning, data logging, USB/CAN/RS-485/Ethernet interfaces |
| Compliance | GB/T 10592-2008, GB/T 2423.1–2423.4, GB/T 2423.22, GJB150.3A–150.9A, GB/T 10586-2006, GB/T 5170.18-2005 |
| Brand | PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PW-CTH100-40 |
| Instrument Type | Upright |
| Cooling Method | Air-Cooled |
| Temperature Range | −40 °C to +150 °C |
| Humidity Range | 20 %RH to 98 %RH |
| Temperature Uniformity | ±1.0 °C |
| Temperature Stability | ±1.0 °C |
| Humidity Uniformity | ±2.0 %RH |
| Humidity Stability | ±1.0 %RH |
| Heating Rate | −40 °C to +100 °C in ≤45 min (unloaded) |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Manufacture | China |
| Model | RX1 Series |
| Chamber Internal Dimensions | 100 × 100 × 100 cm (W × H × D) |
| Ambient Temperature Range | Room Temperature (RT) |
| Spray Arm Radius | 0.35 m |
| Adjustable Spray Arm Length | 900–2700 mm |
| Stainless Steel Spray Pipe Diameter | 600 mm |
| Pipe Outer Diameter | 20 mm |
| Nozzle Diameter | 0.4 mm |
| Nozzle Spacing | Uniformly Distributed |
| Spray Pressure | 60–100 kPa |
| Turntable Speed | 1–10 rpm |
| Turntable Diameter | 30 mm |
| Power Rating | 1.5 kW |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YTS-100-40EC |
| Chamber Type | Vertical |
| Temperature Range | −55 °C to +150 °C |
| Humidity Range | 20 %RH to 98 %RH |
| Temperature Uniformity | ±2.0 °C |
| Humidity Uniformity | ±3.0 %RH |
| Temperature Stability | ±1.0 °C |
| Humidity Stability | ±1.0 %RH |
| Internal Dimensions (W×H×D) | 400 mm × 500 mm × 500 mm |
| Cooling System | Dual-stage cascade refrigeration with two 375 W hermetic compressors (Tecumseh) |
| Refrigerant | R-404A (ozone-friendly) |
| Controller | 7-inch color touchscreen with PID auto-tuning, 12 program groups / 120 segments, data logging, USB export, RS-485 interface |
| Safety Protections | Over-temperature, over-humidity, compressor overheat/overcurrent, high-pressure cut-off, dry-burn prevention, phase-loss protection |
| Construction | Interior – mirror-finish SUS#304 stainless steel |
| Heating | Stainless steel finned tubular heaters (1 kW total) |
| Humidification | Stainless steel immersion heater with carbon-fiber water tank (non-condensing surface, anti-drip design) |
| Air Circulation | Adjustable multi-blade centrifugal fan (60 W), directional louver system |
| Compliance | Designed per IEC 60068-2-1, IEC 60068-2-2, ISO 17025-relevant environmental control requirements for material testing labs |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | TF-150 |
| Internal Dimensions (W×H×D) | 50×60×50 cm |
| External Dimensions (W×H×D) | 103×141×91 cm |
| Chamber Volume | 150 L |
| Temperature Range | −70 °C to +150 °C |
| Humidity Range | 20 %RH to 98 %RH (optional low-humidity configuration down to 5 %RH) |
| Temperature Uniformity | ±0.5 °C |
| Humidity Uniformity | ±3 %RH |
| Temperature Stability | ±0.3 °C |
| Humidity Stability | ±2.5 %RH |
| Heating Rate | −70 °C → +100 °C in approx. 60 min |
| Cooling Rate | +20 °C → −70 °C in approx. 90 min |
| Control System | PID + SSR/SCR bidirectional synchronous output with slope logic |
| Programmability | 150 programs × 1500 segments, segmentable and chainable |
| Cycle Capability | 9999 cycles × 999 repeats, subdivisible into 5 independent partial cycles |
| Safety Monitoring | 15-point real-time system diagnostics with fault logging and remediation guidance |
| Refrigeration | Twin-stage hermetic air-cooled system (R404A/R507) |
| Humidification | Surface evaporation type with auto water recovery and dry-run/overheat protection |
| Construction | SUS#304 stainless steel interior and exterior |
| Insulation | Rock wool + rigid polyurethane foam |
| Compliance | Designed per IEC 60068-2 series, ASTM D4332, ISO 16750-4, and GB/T 2423.1–2423.4 for environmental stress screening |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Manufacture | China |
| Model | HL Series |
| Pricing | Available Upon Request |
| Internal Dimensions (W×H×D, cm) | HL-A: 40×50×40 |
| HL-B | 50×60×50 |
| HL-C | 60×75×60 |
| HL-D | 60×85×80 |
| HL-E | 100×100×80 |
| HL-F | 100×100×100 |
| External Dimensions (W×H×D, cm) | HL-A: 110×136×71 |
| HL-B | 117×146×85 |
| HL-C | 130×166×91 |
| HL-D | 140×176×101 |
| HL-E | 170×186×111 |
| HL-F | 180×196×123 |
| Temperature Range | −70 °C to +150 °C (selectable standard setpoints: 0 °C, −20 °C, −40 °C, −60 °C, −70 °C) |
| Temperature Display Resolution | ±0.1 °C |
| Heating Rate | Approx. 3 °C/min |
| Cooling Rate | Approx. 1 °C/min |
| Construction Material | Full SUS304 stainless steel (matte finish) |
| Insulation | High-density polyisocyanurate foam with high-temperature resistance |
| Refrigeration System | Air-cooled, dual-stage cascade refrigeration with French Tecumseh compressors |
| Refrigerants | R-404A (low-temp stage), R-23 (ultra-low-temp stage) |
| Controller | Imported LCD touchscreen interface with real-time display of setpoint/actual value/time |
| Safety Protections | Fuseless circuit breaker, compressor overload protection, refrigerant high/low pressure switches, over-temperature/over-humidity cut-off, fault diagnostic alarm system |
| Standard Accessories | Double-layer heated observation window with anti-fog heater, internal PL fluorescent lighting, 50 mm diameter test port, adjustable stainless steel shelves, built-in casters with locking mechanism |
| Power Supply | Single-phase 220 VAC ±10%, 50/60 Hz or three-phase 380–415 VAC ±10%, 50/60 Hz |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | TS Series (TS-80 / TS-150 / TS-225 / TS-408 / TS-800 / TS-1000) |
| Internal Dimensions (W×H×D, cm) | 40×50×40 (80 L) to 100×100×100 (1000 L) |
| Temperature Range | −70 °C to +150 °C |
| Humidity Range | 20–98 % RH (optional low-humidity configuration down to 5 % RH) |
| Temp. Uniformity | ±0.5 °C |
| Humidity Uniformity | ±3 % RH |
| Temp. Stability | ±0.3 °C |
| Humidity Stability | ±2.5 % RH |
| Heating Rate | ~20 min (0 °C → 100 °C), ~60 min (−70 °C → 100 °C) |
| Cooling Rate | ~20 min (20 °C → 0 °C), ~90 min (20 °C → −70 °C) |
| Control System | PID + SSR/SCR bidirectional output with slope logic |
| Programming Capacity | 150 programs × 1500 segments |
| Safety Protection | 15-point real-time monitoring with fault logging and diagnostic guidance |
| Refrigeration | Hermetic air-cooled system (single-stage for ≥−20 °C |
| Humidification | Surface evaporation type with auto-water recovery and dry-run/overheat protection |
| Construction | SUS#304 stainless steel interior & exterior |
| Standard Interfaces | RS-232 serial port, 3 timed I/O ports, 10 timing modes |
| Compliance | Designed per IEC 60068-2-1 (cold), IEC 60068-2-2 (dry heat), IEC 60068-2-78 (damp heat), and ASTM D4332 for conditioning of test specimens |
| Brand | Yuelian / PW |
|---|---|
| Origin | Guangdong, China |

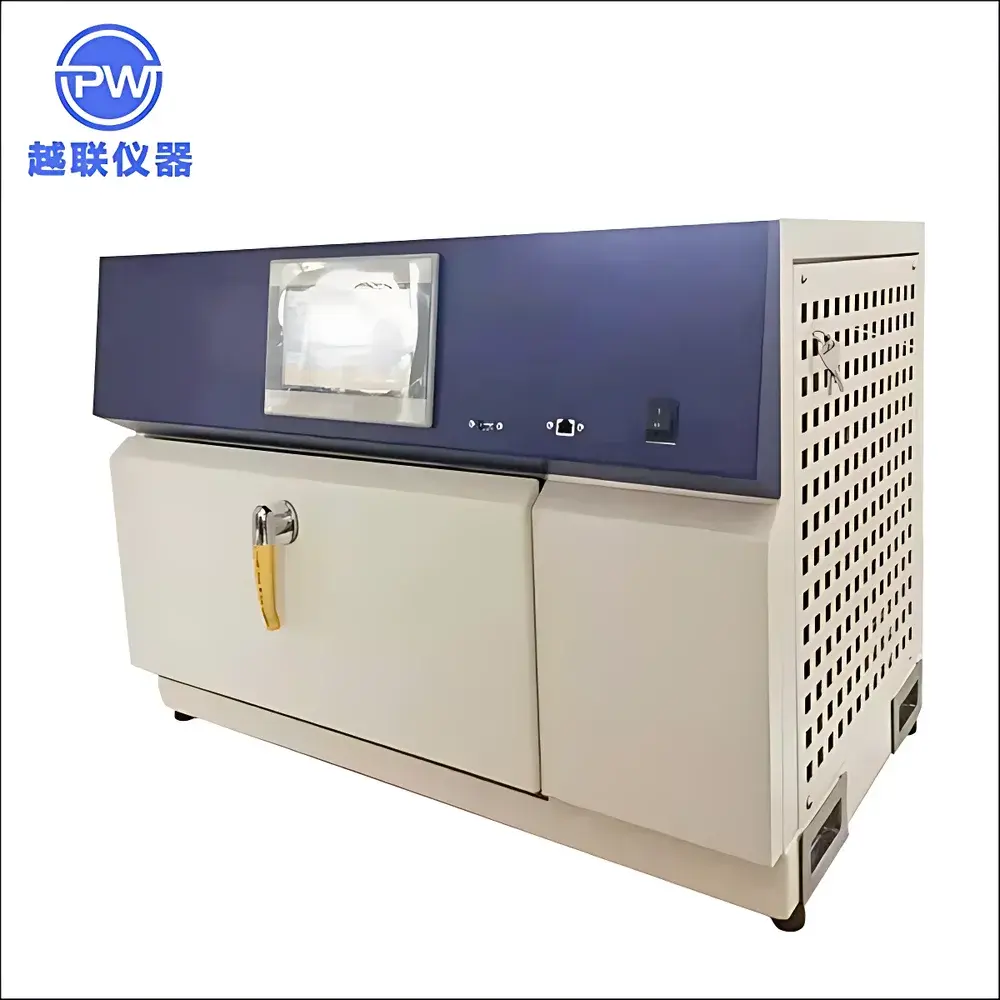

| Model | PW-CX1800B |
| Lamp Power | 1.8 kW (air-cooled long-arc xenon lamp) |
| Lamp Life | 1200 hours |
| Irradiance Control Points | @340 nm, @420 nm, @300–400 nm, or @300–800 nm (user-selectable at order) |
| Irradiance Range | 0.25–0.38 W/m² (@340 nm), 0.45–0.71 W/m² (@420 nm), 20–51 W/m² (@300–400 nm), 500–650 W/m² (@300–800 nm) |
| Black Panel Temperature Range | 38–89 °C |
| Temperature Uniformity | ±3 °C |
| Temperature Fluctuation | ±2 °C |
| Chamber Dimensions (W×D×H) | 350 × 320 × 320 mm |
| External Dimensions (W×D×H) | 600 × 580 × 650 mm |
| Sample Tray | 290 × 315 mm stainless steel flat plate |
| Cycle Timing | 0–9999 h (light/dark programmable) |
| Display | 7-inch Weinview color touchscreen HMI |
| Data Export | USB port with direct Excel-compatible file export |
| Compliance | GB/T 16422.2, ISO 4892-2, AATCC TM16, JIS D 0205, FZ/T 01041 |
| Filter System | Custom optical glass filter assembly for CIE daylight spectral match |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | RX1 |
| Chamber Interior Dimensions (W×D×H) | 1000 × 1000 × 1000 mm |
| Ambient Operating Temperature Range | RT (Room Temperature) |
| Spray Arm Radius | 350 mm |
| Adjustable Spray Arm Length | 900–2700 mm |
| Stainless Steel Spray Ring Diameter | 600 mm |
| Pipe OD | 20 mm |
| Nozzle Diameter | 0.4 mm |
| Nozzle Spacing | Uniformly Distributed |
| Water Pressure | 60–100 kPa |
| Turntable Speed | 1–10 rpm |
| Turntable Diameter | 300 mm |
| Power Supply | 1.5 kW |
| Construction | Interior – AISI 304 Stainless Steel |
| Wetted Components | Stainless Steel or Copper-Alloy Only |
| Compliance | Designed to meet test conditions aligned with IEC 60529 (IPX3 & IPX4), SAE J575, ISO 20653, and GB/T 4208 |
| Brand | Yuelian / PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PW-SUN4000B |
| Price | USD 42,000 (FOB Shenzhen) |
| Internal Chamber Dimensions | 1000 × 1000 × 1000 mm (D × W × H) |
| External Dimensions | 1825 × 1200 × 2190 mm (D × W × H) |
| Xenon Lamp Power | 4 kW |
| Lamp Quantity | 1 (German-sourced metal halide xenon arc lamp) |
| Spectral Range | 280–3000 nm |
| Irradiance Control Range | 450–1200 W/m² |
| Temperature Range (Light Cycle) | 10–80 °C |
| Temperature Range (Dark Cycle) | −10–80 °C |
| Extreme Temp. Capability (Dark) | −20–100 °C |
| Humidity Range (Light Cycle) | 30–55 %RH |
| Humidity Range (Dark Cycle) | 45–95 %RH |
| Temperature Uniformity | ±3 °C |
| Humidity Uniformity | ±5 %RH |
| Lamp Lifetime | ≥2500 h |
| Control Interface | 7-inch Weinview color touchscreen (Chinese UI) |
| Data Export | USB port with Excel-compatible output |
| Remote Monitoring | Web-enabled control via PC and mobile app |
| Compliance | DIN 75220:2019 “Aging of Automotive Components in Solar Simulation Devices” |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YL-2236A–YL-2236F (6 variants) |
| Interior Dimensions (W×H×D) | 40×50×40 cm to 100×100×100 cm |
| Exterior Dimensions (W×H×D) | 110×136×71 cm to 180×196×123 cm |
| Capacity | 80 L to 1000 L |
| Temperature Range | −70 °C to +150 °C |
| Humidity Range | 5 %RH to 98 %RH (custom low-humidity option available) |
| Temperature Uniformity | ±0.5 °C |
| Humidity Uniformity | ±3 %RH |
| Temperature Stability | ±0.3 °C |
| Humidity Stability | ±2.5 %RH |
| Heating Rate | −40 °C → 100 °C in approx. 45 min |
| Cooling Rate | 20 °C → −70 °C in approx. 90 min |
| Control System | 120 programs × 1200 segments, 999 cycles, PID + SSR/SCR bidirectional output, RS-232/RS-485 interface |
| Construction | Full SUS#304 stainless steel interior & exterior |
| Insulation | Rockwool + rigid polyurethane foam |
| Refrigeration | Single-stage air-cooled system (≥ −20 °C) |
| Humidification | Surface evaporation type with dry-run and overheat protection |
| Dehumidification | Refrigerant-based latent heat removal |
| Safety | 15-point fault detection, independent electronic overtemperature protector, compressor overload, power failure, and temperature limit safeguards |
| Brand | YueLian / PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |

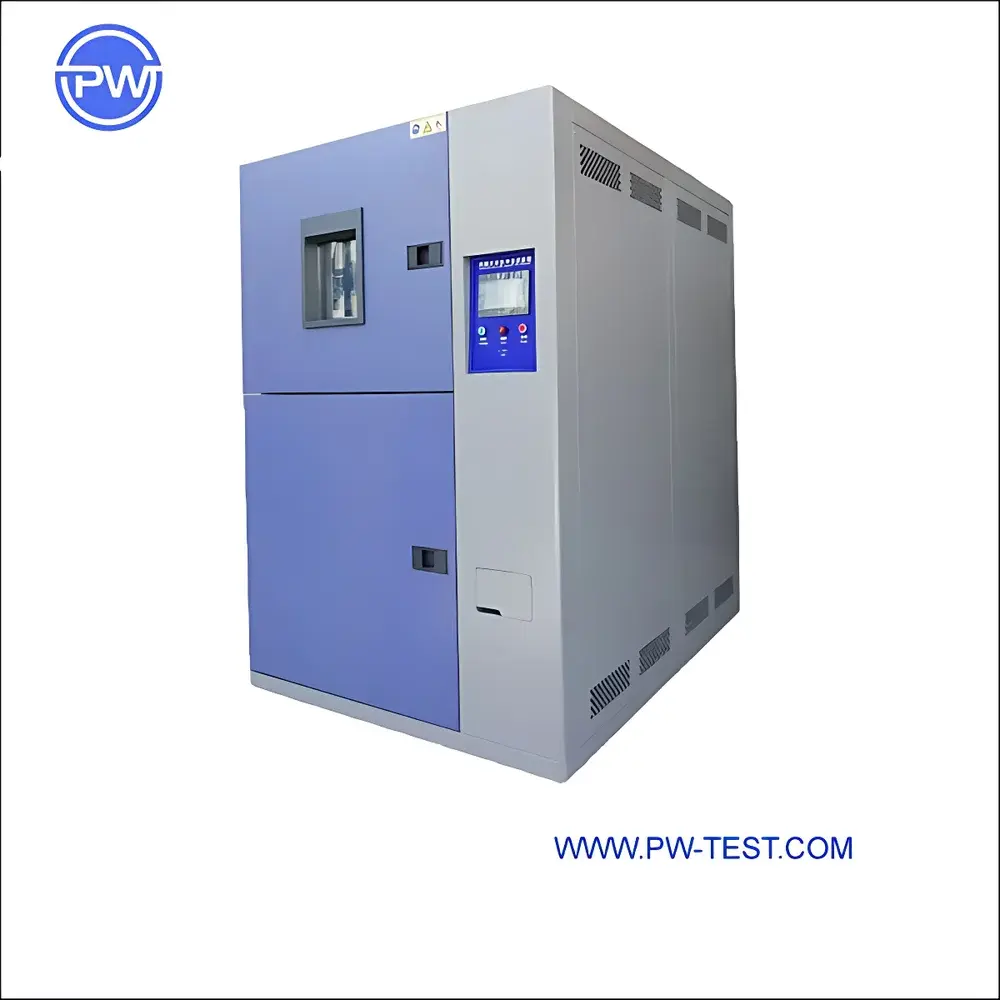

| Model | PW-CTS2-50-40W |
| High-Temperature Range | +150 °C |
| Low-Temperature Range | −40 °C |
| Thermal Shock Range | −40 °C to +150 °C |
| Temperature Stability | ±0.5 °C |
| Heating Rate | 3 °C/min |
| Cooling Rate | 2 °C/min |
| Transfer Time (Basket) | ≤5 s |
| Thermal Transition Time | ≤15 s |
| Temperature Uniformity | ±2 °C |
| Dwell Time per Zone | 5 min |
| Internal Chamber Dimensions (W×H×D) | 400×400×320 mm |
| External Dimensions (W×H×D) | ≈1200×1840×1875 mm |
| Power Requirement | 8 kW, 380 V, 50/60 Hz |
| Refrigerant | R404A / R23 (non-ozone-depleting, low-GWP blend) |
| Cooling Method | Water-cooled |
| Control Resolution | 0.1 °C (temperature), 1 min (time) |
| Compliance | IEC 60068-3 |
| Brand | Yuelian |
|---|---|
| Model | TS-Series |
| Type | Climatic Environmental Test Chamber |
| Internal Volume Options | 80 L, 150 L, 225 L, 408 L, 800 L, 1000 L |
| Temperature Range | −70 °C to +150 °C |
| Humidity Range | 20–98 % RH (optional low-humidity configuration down to 5 % RH) |
| Temp. Uniformity | ±0.5 °C |
| Humidity Uniformity | ±3 % RH |
| Temp. Stability | ±0.3 °C |
| Humidity Stability | ±2.5 % RH |
| Heating Rate | −70 °C → +100 °C in ≤60 min |
| Cooling Rate | +20 °C → −70 °C in ≤90 min |
| Control System | PID + SSR/SCR bidirectional synchronous output with slope logic |
| Programmability | 150 programs × 1500 segments, 9999 cycles × 999 repeats, 5 independent sub-cycles |
| Safety Monitoring | 15-point real-time fault detection with auto-diagnostic display |
| Refrigeration | Twin-stage air-cooled system (R404A/R507) for ≤−40 °C |
| Construction | SUS#304 stainless steel interior and exterior |
| Insulation | Rockwool + rigid polyurethane foam |
| Humidification | Surface evaporation type with auto-refill and dry-run protection |
| Dehumidification | Refrigerant-based latent heat removal |
| Power Supply | AC 220 V / 380 V ±10 %, 50/60 Hz |
| Brand | Yuelian / PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Manufacturer |
| Model | PW-CS600-SO2 |
| Spray Rate | 1–2 mL/h per 80 cm² |
| Nozzle Pressure | 70–170 kPa |
| Fog Removal Method | Compressed-air-assisted exhaust |
| SO₂ Concentration Range | 0.05–1.0 vol% |
| Temperature Range | RT+10°C to 70°C |
| Salt Fog Deposition Rate | 1–2 mL/h/80 cm² (16-h average) |
| Compliance Standards | GB/T 2423.17, ISO 9227, ASTM B117, GB/T 2423.33, GB/T 9789 |
| Brand | Yuelian / PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

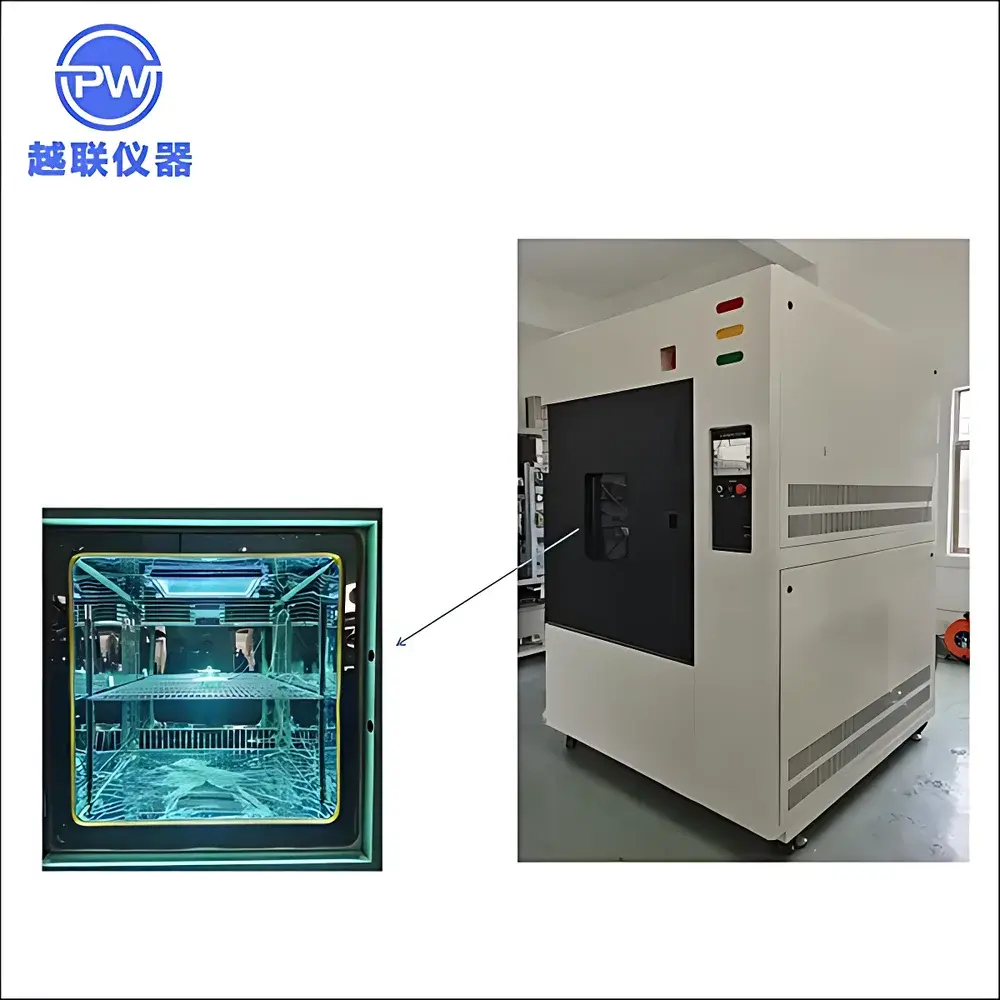

| Model | PW-SUN4000 |
| Irradiance Range | 450–1200 W/m² |
| Spectral Range | 280–3000 nm |
| Lamp Power | 4 kW |
| Lamp Type | Imported Metal Halide Lamp (1 unit) |
| Internal Chamber Dimensions | 1000 × 1000 × 1000 mm (D×W×H) |
| Temperature Range (Light Cycle) | 10–80 °C |
| Temperature Range (Dark Cycle) | −10–80 °C |
| Humidity Range (Light Cycle) | 20–55 %RH |
| Humidity Range (Dark Cycle) | 45–95 %RH |
| Temperature Uniformity | ±3 °C |
| Humidity Uniformity | ±5 %RH |
| Lamp Lifetime | ≥1000 h |
| Control Interface | 7-inch Color Touchscreen (Weinview) |
| Data Export | USB port with Excel-compatible output |
| Remote Monitoring | Web-based & mobile APP support |
| Compliance Standard | DIN 75220 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | SAS-108 / SAS-270 / SAS-480 / SAS-800 |
| Internal Chamber Dimensions (W×D×H, cm) | 60×40×45 |
| Test Chamber Material | Imported HC-PVC板材 (8 mm) & PP |
| Saturation Tank Material | SUS#304 stainless steel (3 mm) |
| Chamber Temperature Range | 35±1°C (Neutral Salt Spray), 50±1°C (Corrosion Resistance Test) |
| Saturation Air Temperature | 47±1°C (NSS), 63±1°C (ASS/CASS) |
| Salt Solution Temperature | 35±1°C |
| pH Range | 6.5–7.2 (NSS), 3.0–3.2 (ASS/CASS) |
| Spray Rate | 1.0–2.0 mL/80 cm²/h |
| Spray Mode | Continuous, nozzle life ≥4000 h |
| Timer Range | 0–999.9 h with power-failure memory and audible alarm |
| Power Supply | AC 220 V, 50/60 Hz |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YL-YG-8000D |
| Internal Volume | 8000 L |
| Chamber Dimensions (W×H×D) | 200 × 200 × 200 cm |
| Temperature Range | 0 to +60 °C |
| Temperature Uniformity | ≤2.0 °C |
| Temperature Fluctuation | ±0.5 °C |
| Temperature Deviation | ±2.0 °C |
| Humidity Range | 30–95 %RH |
| Humidity Uniformity | ±3 %RH (>75 %RH), ±5 %RH (≤75 %RH) |
| Humidity Fluctuation | ±2 %RH |
| Salt Spray Rate | 1.0–2.0 mL/80 cm²/h (16-h average) |
| Salt Solution pH (Neutral) | 6.5–7.2 |
| Salt Solution pH (Acidic) | 3.1–3.3 |
| Cooling Rate | +60 → 0 °C at 1 °C/min (average) |
| Heating Rate | 0 → +60 °C at 1 °C/min (average) |
| Pressure Tank Temp. Ramp | Ambient → +63 °C in ≤45 min |
| Temp. Resolution | 0.1 °C |
| RH Resolution | 0.1 %RH |
| Refrigeration Compressor | GEA Bitzer or Tecumseh (imported, industrial-grade) |
| Construction | Split-type modular design |
| Outer Casing | Reinforced cold-rolled steel with gray epoxy coating |
| Inner Chamber | Thick-gauge SUS#304 stainless steel |
| Door | Reinforced cold-rolled steel with blue epoxy finish |
| Viewing Window | 4-layer electrically heated anti-fog laminated tempered glass |
| Key | Brand: Yuelian |
|---|---|
| Model | YL-GQ-8000E |
| Internal Volume | 8000 L |
| Chamber Dimensions (W×D×H) | 200 × 200 × 200 cm |
| Temperature Range | −50 to +100 °C |
| Pressure Range | 10–101.3 kPa (abs) |
| Pressure Control Accuracy | ±2 kPa (10–40 kPa), ±5% (40–2 kPa), ±0.1 kPa (2–1 kPa) |
| Temp. Uniformity | ≤2.0 °C (at steady state, ambient pressure, unloaded) |
| Temp. Stability | ±0.5 °C |
| Temp. Resolution | 0.1 °C |
| Cooling Rate | 1 °C/min (25 → −50 °C, avg.) |
| Heating Rate | 3 °C/min (25 → +100 °C, avg.) |
| Pressure Ramp Rate | ≥10 kPa/min |
| Depressurization Time | ≤5 min (101.3 → 10 kPa at −50 °C) |
| Construction | Exterior – Reinforced cold-rolled steel with white epoxy coating |
| Safety Systems | Over-temperature, over-pressure, leakage current, overload, acoustic-optic alarm, explosion-proof design, smoke exhaust & filtration (optional) |
| Brand | Yuelian / PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YTS-80-4 |
| Instrument Type | Upright Chamber |
| Cooling Method | Air-Cooled |
| Temperature Range | −40 °C to +150 °C |
| Humidity Range | 20–98 %RH |
| Temperature Uniformity | ±2.0 °C |
| Temperature Stability | ±1.0 °C |
| Humidity Uniformity | ±3.0 %RH |
| Humidity Stability | ±1.0 %RH |
| Heating Rate | 1.0–3.0 °C/min (empty load) |
| Internal Dimensions | 40 × 50 × 40 cm (W × H × D) |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YLB-302C |
| Control Method | Push-button Interface |
| Burner | Bunsen burner with 9.5 mm inner diameter tube, ~100 mm length |
| Flame Application Time | 0–999.9 s ±0.1 s |
| Test Aperture Diameter | 102 mm |
| Test Sieve | Stainless steel wire mesh, 0.43 mm wire diameter, 20 meshes per linear inch |
| Vertical Distance from Flame Tip to Sieve Surface | 38 mm |
| Octagonal Enclosure | Aluminum wire mesh, 0.25 mm wire diameter, 16–18 meshes per linear inch |
| opposing face distance | 610 mm (24″), height: 305 mm (12″) |
| Test Chamber Construction | Stainless steel frame and interior |
| Internal Chamber Dimensions | 730 × 740 × 500 mm (W × D × H) |
| Fuel Supply | Methane or LPG (user-supplied) |
| Electrical Supply | 1-phase, 220 V, 50/60 Hz |
| Net Weight | ~100 kg |
| Brand | YUELIAN / PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PW-CFT150-40L10 |
| Instrument Type | Vertical Chamber |
| Cooling Method | Water-Cooled |
| Temperature Range | -40 °C to +150 °C |
| Humidity Range | 20–98 % RH |
| Temperature Uniformity | ≤2.0 °C |
| Temperature Stability | ≤±1.0 °C |
| Heating Rate | ≥10 °C/min (from -25 °C to +55 °C, with 5 kg aluminum load) |
| Cooling Rate | ≥10 °C/min (from +55 °C to -25 °C, with 5 kg aluminum load) |
| Internal Dimensions (W×H×D) | 500×600×500 mm |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | RX1 Series |
| Price | USD 1,450 (FOB Guangdong) |
| Internal Chamber Dimensions | 100 × 100 × 100 cm |
| Ambient Operating Temperature Range | RT (15–35°C) |
| Spray Arm Radius | 0.35 m |
| Adjustable Spray Arm Length | 900–2700 mm |
| Stainless Steel Spray Pipe Diameter | 600 mm |
| Pipe Wall Thickness | 20 mm |
| Nozzle Orifice Diameter | 0.4 mm |
| Nozzle Spacing | Uniform per IEC 60529 |
| Water Pressure | 60–100 kPa |
| Turntable Speed | 1–10 rpm (adjustable) |
| Turntable Diameter | 300 mm |
| Programmable Cycle Control | On/Off Timing Sequence |
| Power Supply | 220 V / 50 Hz |
| Rated Power | 1.5 kW |
| Construction | AISI 304 Stainless Steel Interior + Powder-Coated A3 Steel Exterior |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YL-GC-01 |
| Pricing | Available Upon Request |
Show next
