| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported |

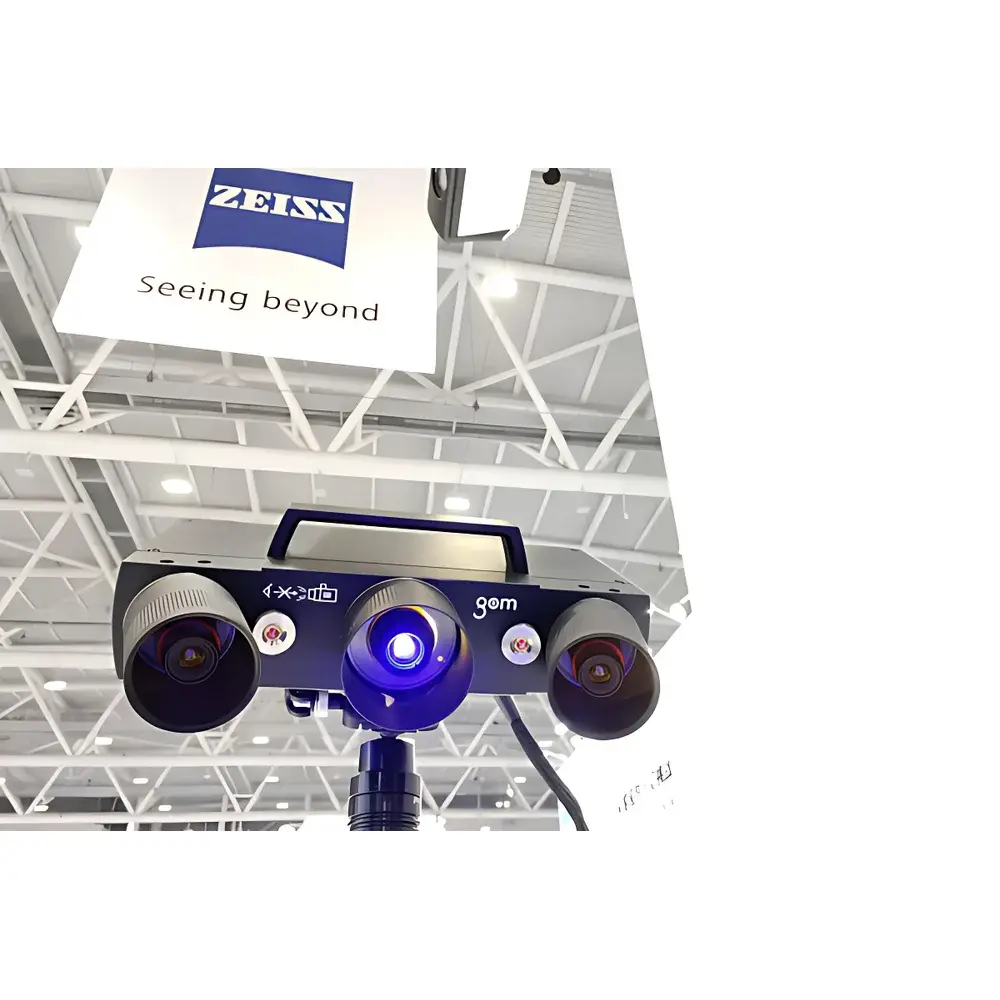

| Model | ATOS Q1 |
| Price Range | USD 95,000 – 136,000 |
| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | ATOS Q |
| Price Range | USD 92,000 – 131,500 |
| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | ATOS Q2 |
| Price Range | USD 95,000 – 136,000 |

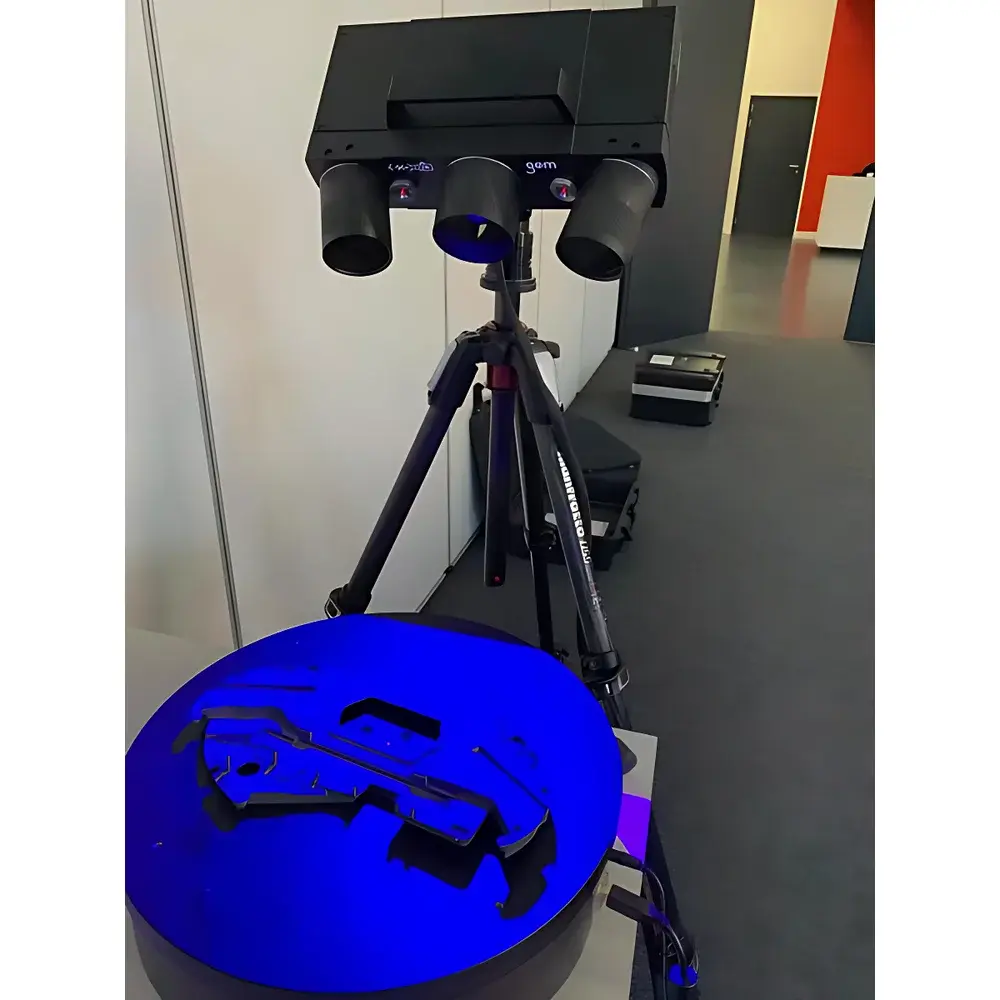

| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Model | GOM ATOS Q |
| Measurement Principle | Fringe Projection Stereophotogrammetry with Dual-Camera Triangulation |
| Typical Point Accuracy | ≤ 2 µm (system-dependent, per ISO 10360-8) |
| Field of View Options | 150 × 120 mm to 1000 × 800 mm |
| Resolution | Up to 2.5 million measured points per scan |
| Software Platform | GOM Inspect Professional (v2023+), compliant with ISO 17025 traceability workflows |
| Compliance | Supports ASTM E2924, ISO 14253-1, VDI/VDE 2634 Part 2, and GLP/GMP-aligned audit trails (21 CFR Part 11 ready via optional GOM Inspect Enterprise) |
| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

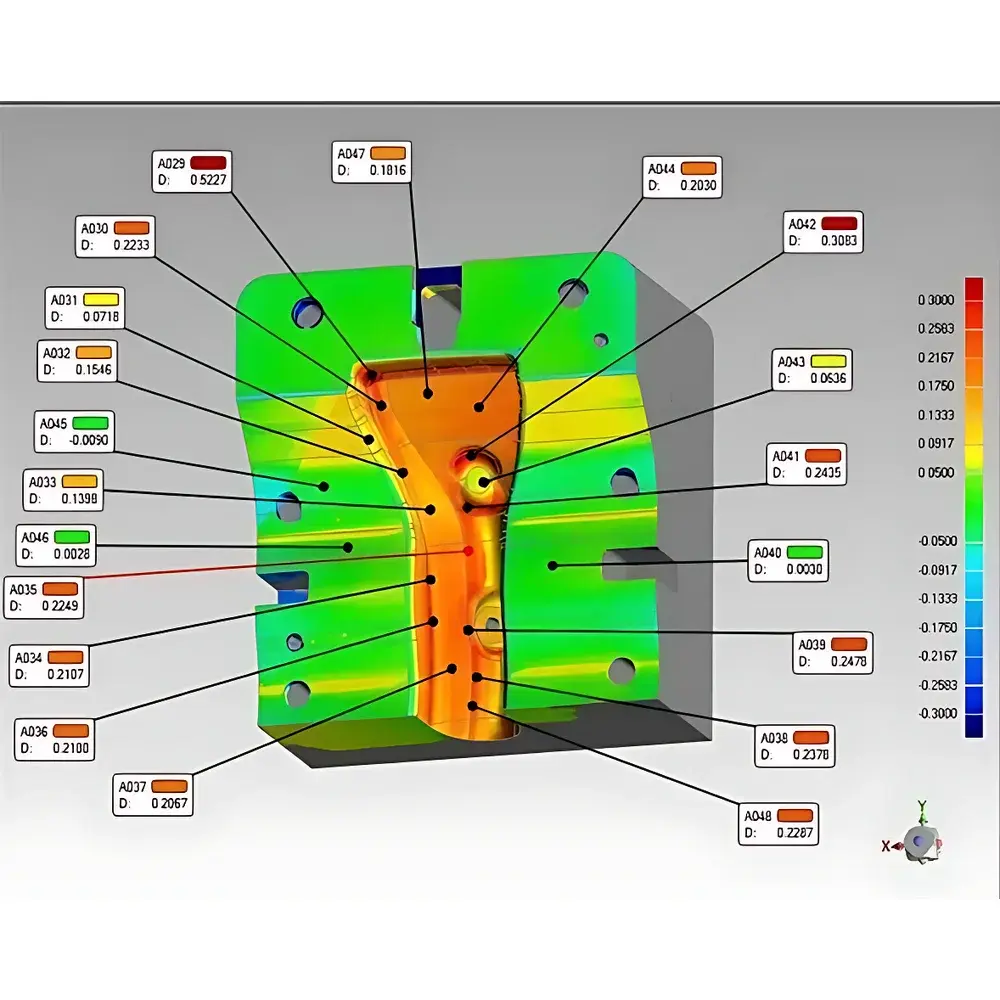

| Model | ATOS Q Series (GOM Integration) |
| Price | USD 2500 per service unit (CAV Inspection Service) |

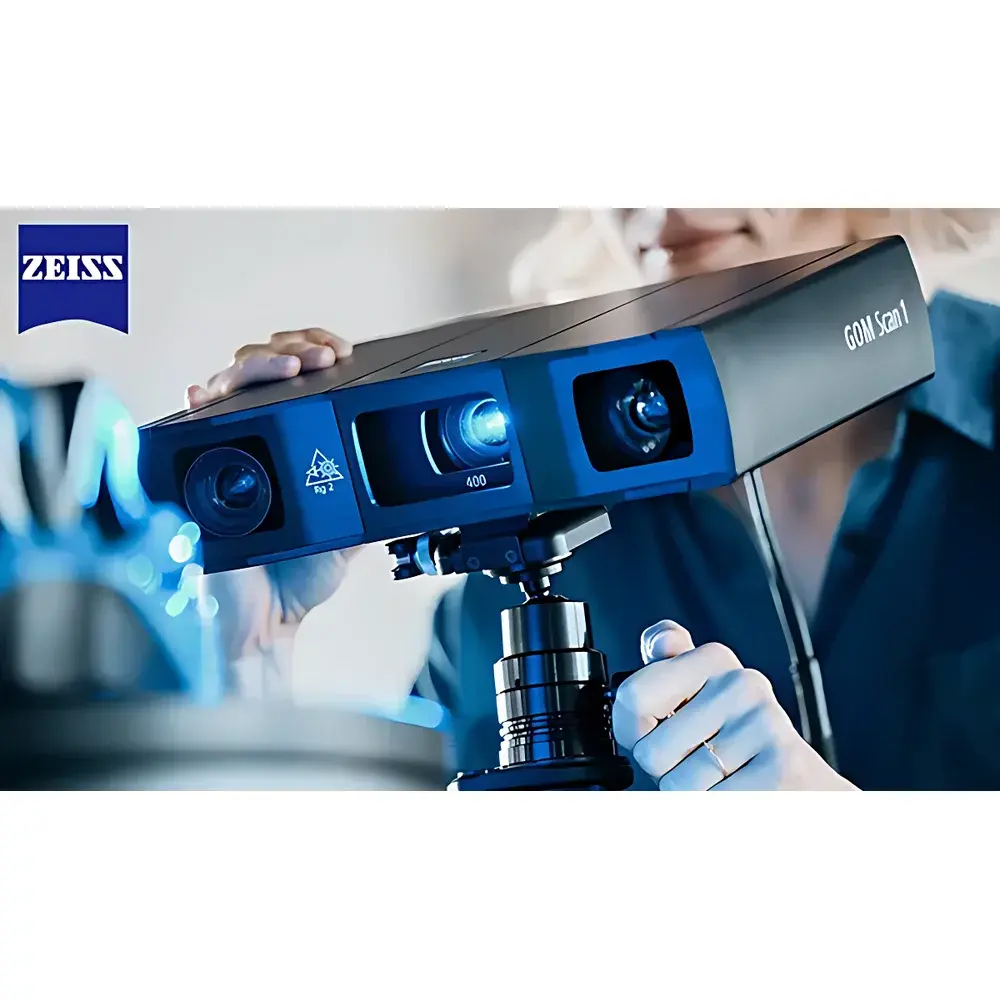

| Brand | ZEISS |
|---|---|
| Model | GOM Scan 1 |
| Measurement Principle | Structured Blue-Light Fringe Projection |
| Sensor Type | Dual-Camera Stereo Vision System |
| Point Resolution (MV100) | 0.037 mm |
| Point Resolution (MV200) | 0.060 mm |
| Point Resolution (MV400) | 0.129 mm |
| Single-Scan Point Count | 6 million points |
| Measurement Volumes | MV100 (100 × 65 mm²), MV200 (200 × 125 mm²), MV400 (400 × 250 mm²) |
| Working Distance | 400–500 mm |
| Light Source | High-Stability Blue LED |
| Weight | ~2.5 kg |
| Dimensions | 290 × 215 × 80 mm³ |
| Interface | USB 3.0 |
| OS Compatibility | Windows 10 |
| Software | GOM Inspect Suite (included) |
| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Model | T-SCAN |
| Measurement Volume | Up to 35 m³ |
| Depth of Field | ±50 mm |
| Laser Line Width | 125 mm |
| Working Distance | 150 mm (nominal) |
| Laser Line Frequency | up to 330 Hz |
| Point Acquisition Rate | 210,000 pts/sec |
| Average Point Spacing | 0.075 mm |
| Resolution per Scan Line | 1312 points |
| Laser Type | Diode |
| Wavelength | 658 nm |
| Laser Class | 2M |
| Scanner Weight | 1100 g |
| Scanner Dimensions | 300 × 170 × 150 mm |
| Standard Cable Length (Scanner–PC) | 10 m |
| Software Platform | ZEISS colin3D |
| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Equipment Type | Industrial Non-Contact 3D Optical Scanner |
| Model Series | ATOS Q |
| Compliance | ISO 10360-8, VDI/VDE 2634 Part 3, ASTM E2924-15 |
| Measurement Principle | Fringe Projection Stereophotogrammetry with Dual-Camera Triangulation |
| Typical Point Accuracy | ≤ 2.5 µm (calibrated volume) |
| Repeatability | < 1.0 µm (under controlled lab conditions) |
| Field of View Options | 100 × 75 mm to 1000 × 750 mm |
| Resolution | Up to 0.5 µm per pixel (at smallest FOV) |
| Software Platform | GOM Inspect Pro (ISO 17025 traceable reporting) |
| Brand | GOM (ZEISS Group) |
|---|---|
| Origin | Germany |
| Model | ATOS Q, ATOS Hawk |
| Type | Structured Light Triangulation 3D Scanner |
| Weight | 4 kg (sensor head) |
| Compliance | ISO 10360-8, VDI/VDE 2634 Part 2, ASTM E2924 |
| Price Range | USD 42,000 – 70,000 (FOB Germany) |
| Brand | PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PW-ORM888 |
| Price Range | USD 2,800 – 9,800 (FOB) |
| Operation Mode | Fully Automatic |
| Encoded Linear Scale Resolution | 0.1 µm |
| Display | 21.5″ Full HD (1920×1080) Industrial Monitor |
| Camera | 20 MP Global Shutter CMOS Sensor |
| Lens | 0.109× Dual Telecentric Objective |
| Illumination | Green Collimated Telecentric Backlight + White 180° Ring Light |
| Stage Glass | 120 mm × 120 mm |
| Field of View (FOV) | 100 mm × 80 mm |
| Measurement Area | 75 mm × 75 mm |
| Z-Axis Clearance | 80 mm |
| Measurement Accuracy | ±3 µm (ISO 10360-2 compliant at 20 °C ±1 °C, 40–60% RH) |
| Units | mm, inch, µm selectable in real time |
| Software | PW Proprietary Rapid Metrology Suite v4.2 (Windows 10 IoT Enterprise) |
| Power Supply | 220 V AC, 3 A, 50/60 Hz |
| Dimensions (W×H×D) | 210 × 680 × 505 mm |
| Weight | 32 kg |
| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | GOM Scan 1 (MV 100 / MV 200 / MV 400) |
| Price Range | USD 42,000 – 70,000 |

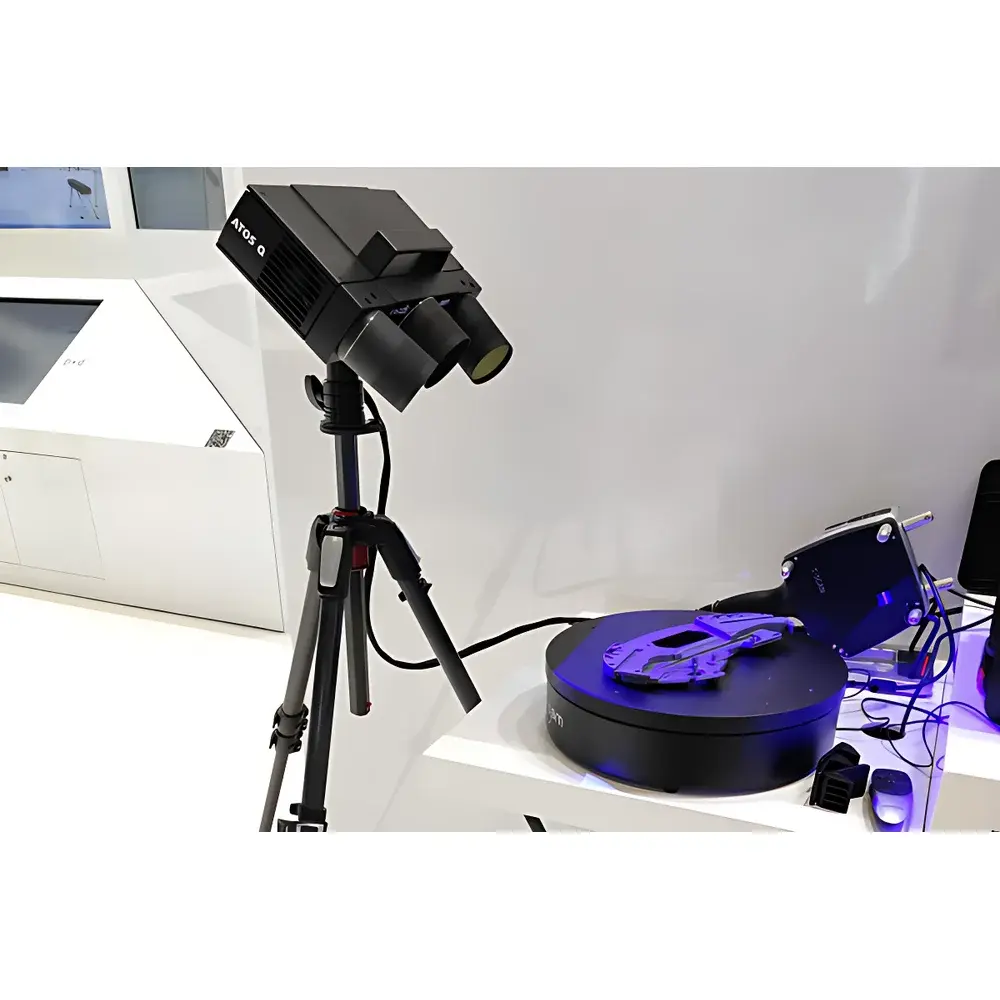

| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Model | ATOS Q |
| Type | Optical 3D Coordinate Measuring System |
| Measurement Principle | Triple-camera triangulation with fringe projection (3-in-1 sensor head) |
| Weight | 4 kg (sensor head only) |
| Compliance | ISO 10360-8, VDI/VDE 2634 Part 2, ASTM E2924 |
| Software Platform | GOM Inspect Pro (with GD&T, mesh comparison, deviation analysis, and automated reporting) |
