| Brand | PW (Yuelian) |
|---|---|
| Origin | Guangdong, China |

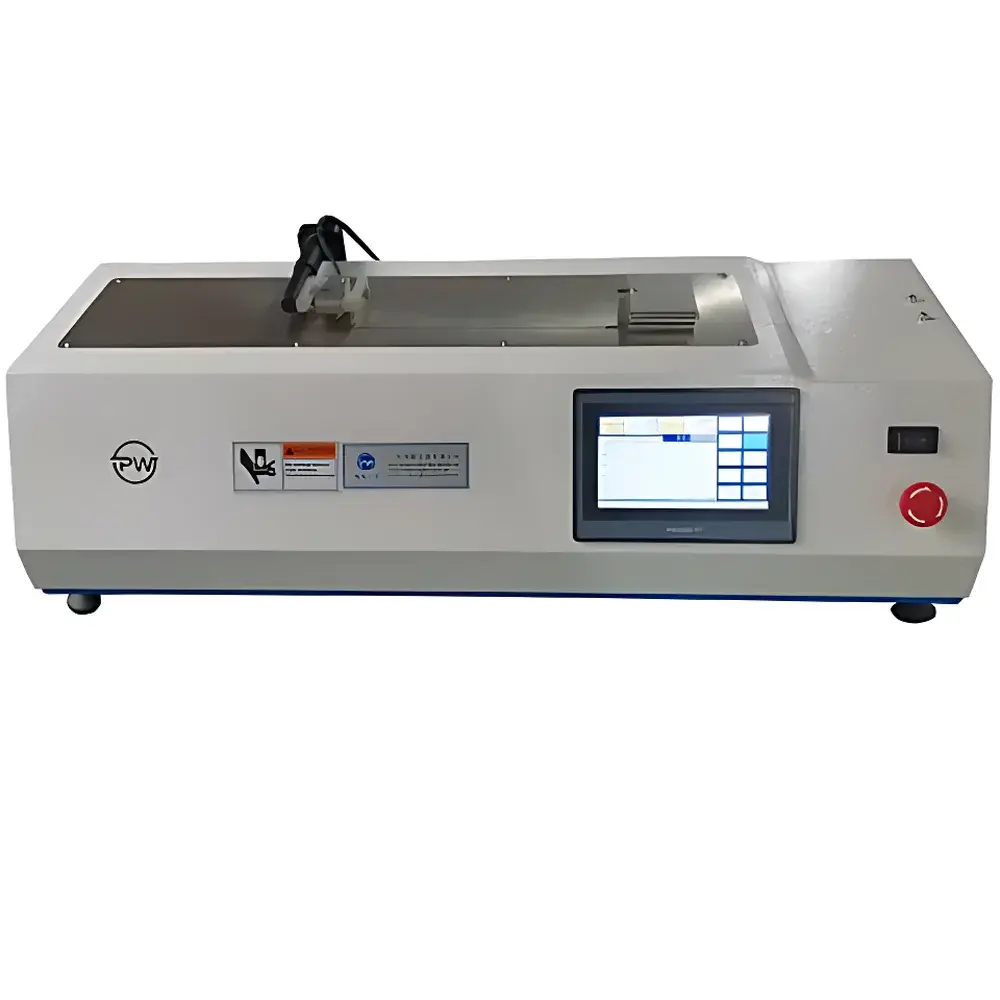

| Model | PW-1103F |
| Instrument Type | Coefficient of Friction (COF) Tester |
| Max Test Stroke | 6 in (150 mm) |
| Test Speed Range | 0–600 mm/min |
| Test Platform Dimensions | 5 in × 11 in (130 mm × 280 mm) |
| Load Cell Options | 10 N, 20 N |
| Power Supply | AC 220 V |
| Unit Weight | 20 kg |
| Footprint | 700 mm × 230 mm × 280 mm (W × H × D) |
| Compliance | ASTM D1894, GB/T 10006, ISO 8295 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-3315T1 |
| Counting Range | 0–999,999 cycles |
| Auto-Stop Function | Yes |
| Center-to-Center Distance Between Abrading Wheels | 63.5 mm |
| Distance from Abrading Wheel Center to Specimen Plate Center | 38 mm |
| Applied Loads | 250 g, 500 g, 1000 g (user-selectable) |
| Abrasive Wheel Specification | User-defined (compliant with ASTM D4060, JIS K7350) |
| Rotational Speed | 1–100 RPM (factory default: 60 RPM) |
| Dimensions (W×D×H) | 550 × 380 × 470 mm |
| Net Weight | ~30 kg |
| Power Supply | 220 V, 50/60 Hz |
| Brand | Yuelian |
|---|---|
| Model | YL-3315M |
| Application | Textile, Synthetic Leather, Membrane Materials Abrasion & Pilling Resistance Testing |
| Standards Compliance | GB/T 21196-2007, GB/T 13775, FZ/T 20020, ASTM D3886, ASTM D4966, ASTM D4970, ISO 12947-1~4, ISO 12945-2, JIS L1096, IWS TM196/TM112, M&S Test Methods, GB/T 4802.1-1997 |
| Specimen Motion Path | Lissajous Curve (60.5 ± 0.5 mm horizontal × 24 ± 0.5 mm vertical) |
| Load Options | 200 g (clamping weight), 395 g (apparel), 594 g (furniture), 260 g (stainless steel disc) |
| Friction Head Types | A-type (28.8 −0.084 mm, 1.96 N / 9 kPa), B-type (90 −0.10 mm, 1.52 N / 12 kPa) |
| Rotational Speed | 50 ± 2 rpm |
| Counting Range | 0–999999 cycles |
| Configurable Stations | 4 or 8 |
| Power Supply | AC 220 V, 50 Hz, 500 W |
| Dimensions (W×D×H) | 885 × 600 × 410 mm |
| Weight | 150 kg |
