| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | S71CR |
| Price Range | USD 1,400 – 7,200 |
| Load Capacity Options | 10 N to 5 kN (dual-range configurable) |
| Stroke | 450 mm |
| Speed Range | 0.01–500 mm/min |
| Force Resolution | 1/500,000 full scale |
| Force Accuracy | Better than ±0.5% FS |
| Data Acquisition Rate | 50 Hz |
| Compliance | ASTM D3786, ISO 13934-1 (adapted for compressive resistivity), GB/T 2423.17 (salt mist compatibility support) |
| Key | Brand: Yuelian/PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

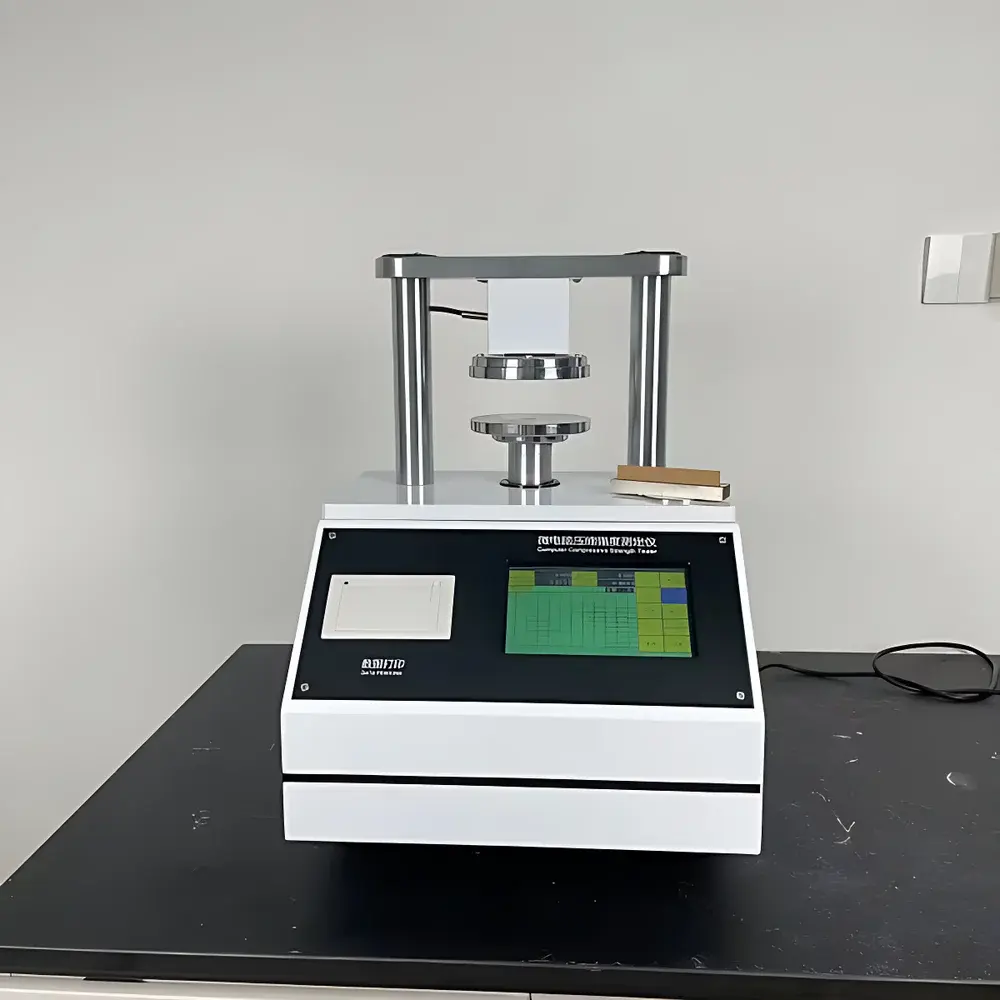

| Model | PW-6600 |
| Price | Upon Request |
| Load Range | 0–3000 N |
| Upper Platen Diameter | 124 mm |
| Lower Platen Diameter | 127 mm |
| Test Height Range | 83 mm |
| Accuracy | ±1% of reading |
| Test Speed | 12 mm/min |
| Return Speed | 12 mm/min |
| Display | 7-inch high-contrast TFT LCD with real-time force-displacement curve |
| Data Storage | 50 test records onboard |
| Interface | Ethernet port for PC connectivity |
| Software | Dedicated Windows-based testing software with report generation (A4), statistical analysis (mean, min/max, SD), and automatic unit conversion (ECT, RCT, PAT, FCT, CMT) |
| Weight | 34 kg |
| Dimensions (W×D×H) | 400 × 380 × 620 mm |
| Construction | Full stainless-steel frame with integrated fixture alignment points |
| Compliance | GB/T 2679.8, GB/T 6546, GB/T 6548, GB/T 2679.6 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-S70CR |
| Load Capacity Options | 10 N to 5 kN (dual-capacity configuration available) |
| Control System | Full PC-based closed-loop servo control |
| Force Resolution | 1/500,000 of full scale |
| Force Accuracy | Better than ±0.5% FS |
| Displacement Resolution | 1/500,000 mm |
| Sampling Rate | 50 Hz |
| Effective Stroke | 450 mm |
| Speed Range | 0.01–500 mm/min (customizable) |
| Test Space Diameter | Φ140 mm |
| Power Supply | 220 V, 50–60 Hz |
| Net Weight | 45 kg |
| Dimensions (W×D×H) | 520 × 590 × 1061 mm |
| Interface | USB & RS-232 |
| Compliance | Designed for ASTM D3787, ISO 1798, IEC 61340-2-3, and GB/T 2423.17 environmental test alignment |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YLB-SA20C |
| Force Range | 1–30 kN (Crush), 1–300 kg (Penetration) |
| Crush Load Accuracy | ±0.1 N |
| Penetration Force Accuracy | ±1% |
| Crush Speed | (5 ± 1) mm/s |
| Penetration Speed | 10–40 mm/s |
| Crush Stroke | 200/300 mm |
| Penetration Stroke | 200/300 mm |
| Test Chamber Dimensions | 250 × 300 × 250 mm (L×W×H) |
| Maximum Crush Load | 20 kN (default test setpoint: 13 ± 0.2 kN, held for 60 s) |
| Standard Crush Platen Area | 150 mm² or 200 mm² |
| Needle Diameters | φ3 / φ5 / φ8 mm stainless steel, 100 mm length |
| Chamber Material | Interior – 304 stainless steel |
| Viewing Window | 300 × 300 × 20 mm tempered blast-resistant glass + removable stainless-steel wire mesh guard |
| Interface | RS-232 and USB 2.0 |
| Power Supply | AC 380 V, 50 Hz |
| Net Weight | ~220 kg |
| Compliance | GB 31241-2014, GB/T 8897.4-2008 (IEC 60086-4:2007), YD/T 2344.1-2011, GB/T 21966-2008, YD 1268-2003, GB/T 19521.11-2005, UL 1642, UL 2054, IEC 62281:2004 |
