| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-D23 |
| Instrument Type | Electronic Tensile Testing Machine |
| Maximum Test Load | 20 kN |
| Load Measurement Range | 2000 %FS |
| Load Accuracy | ±0.05 %FS |
| Test Stroke | 1000 mm |
| Displacement Resolution | 0.001 mm |
| Load Resolution | 1/500,000 |
| Force Unit Options | N, kgf, lbf, g, ton, MPa |
| Speed Range | 0.01–500 mm/min (PC-controlled) |
| Crosshead Travel Width | 420 mm |
| Power Supply | 220 V, 50/60 Hz, 10 A |
| Motor Drive | Servo Motor + Precision Ball Screw |
| Dimensions (W×D×H) | 880 × 600 × 1600 mm |
| Weight | ~115 kg |
| Standard Accessories | One set of fixtures, PC-based control software, USB interface cable |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-1125 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity Options | 10 N to 50 kN (dual-range configuration available) |
| Force Resolution | 1/250,000 full scale |
| Force Accuracy | ≤ ±0.5% of reading |
| Crosshead Travel | 1000 mm |
| Test Width | 420 mm |
| Speed Range | 0.5–500 mm/min (computer-controlled) |
| Position Resolution | 0.005 mm |
| Control Mode | Full PC-based operation |
| Power Supply | 220 V, 50/60 Hz, 10 A |
| Motor Type | Servo motor with precision ball screw and timing belt transmission |
| Rated Power | 750 W |
| Dimensions (W×D×H) | 920 × 620 × 1990 mm |
| Weight | ~422 kg |
| Standard Accessories | One set of universal grips, proprietary test software, USB interface cable |
| Force Units | N, kgf, lbf, g, ton, MPa |
| Safety Features | Overload stop, emergency stop button, specimen rupture auto-stop, upper/lower limit programmable stop, automatic return-to-initial-position function |
| Brand | Yuelian |
|---|---|
| Model | YL-1103 |
| Application | Tape peel strength testing for LED packaging carriers |
| Force Capacity Options | 10 N, 20 N, 50 N, 100 N, 200 N (dual-range configuration available) |
| Force Resolution | 1/250,000 full scale |
| Force Accuracy | ≤ ±0.5% of reading |
| Travel Resolution | 0.005 mm |
| Maximum Test Stroke | 500 mm |
| Test Width | Ø140 mm |
| Speed Range | 5–500 mm/min (PC-programmable) |
| Control Interface | PC-based with USB connectivity |
| Data Output | Real-time force–displacement curves, tabular reports (MS-ACCESS compatible), statistical parameters (peak force, average peel force, yield point, modulus approximation) |
| Safety & Stop Modes | Overload cutoff, emergency stop, automatic halt on specimen failure, programmable upper/lower limit stops, auto-return function |
| Drive System | Stepper motor + precision ball screw + timing pulley transmission |
| Power Supply | 220 V, 50/60 Hz, 5 A |
| Rated Power | 180 W |
| Dimensions (W×D×H) | 1063 × 300 × 200 mm |
| Net Weight | ~45 kg |
| Standard Accessories | One set of peel fixtures, proprietary test software, USB interface cable |
| Brand | Yuelian / PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | PW-UD20 |
| Price Range | USD 1,400 – 12,800 (FOB Guangdong) |
| Max Load Capacity | 5 kN (optional sensor range: 10 N to 5 kN) |
| Control System | Full PC-based closed-loop servo control |
| Force Resolution | 1/500,000 FS |
| Displacement Resolution | 1/500,000 mm |
| Force Accuracy | ±0.3% of reading (sensor), system compliance with ISO 7500-1 Class 0.5 |
| Displacement Accuracy | ±0.5% of reading |
| Effective Stroke | 800 mm (customizable) |
| Speed Range | 0.01–500 mm/min (adjustable in 0.01 mm/min increments) |
| Test Space (W×D) | 420 mm × — mm (depth customizable) |
| Frame Material | Precision-machined 45# structural steel, sandblasted + electrostatic epoxy coating |
| Protection | Molded aluminum alloy dust cover, anodized surface finish |
| Drive System | High-torque AC servo motor + preloaded precision ground ball screw (C5 grade) |
| Position Feedback | High-line-count optical encoder (≥2,000 PPR), real-time digital interpolation |
| Load Cell | Dual-range or single-range S-type or cantilever load cell, temperature-compensated, bridge output (mV/V), IP65 rated |
| Data Acquisition | 24-bit isolated ADC with continuous unsegmented sampling, 500 kHz max sampling rate |
| Communication Interface | Optically isolated USB 2.0 (USB-B), compatible with Windows 10/11 x64 |
| Software Compliance | Supports 21 CFR Part 11 audit trail (optional configuration), GLP/GMP-ready metadata logging |
| Units | SI (N, mm, MPa), metric (kgf, cm), imperial (lbf, inch, kpsi) |
| Test Modes | Tensile, compression, flexure, peel, tear, shear, puncture, cyclic fatigue (displacement-, load-, or time-controlled) |
| Safety | Dual-channel hardware limit switches, overload cutoff, emergency stop, automatic post-fracture return, programmable upper/lower travel limits |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-S70 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity Options | 10 N, 20 N, 50 N, 100 N, 200 N, 500 N, 1 kN, 2 kN, 5 kN (dual-range configuration available) |
| Force Resolution | 1/500,000 full scale |
| Force Accuracy | ±0.1% of reading |
| Displacement Resolution | 1/500,000 mm |
| Displacement Accuracy | ±0.1% of reading |
| Data Acquisition Rate | 2000 Hz |
| Effective Stroke | 450 mm (customizable) |
| Test Speed Range | 0.001–500 mm/min (customizable) |
| Test Space Diameter | Ø140 mm |
| Control Mode | Full PC-based closed-loop control |
| Power Supply | 220 V AC, 50–60 Hz |
| Motor Type | AC Servo Motor |
| Transmission | Precision Ball Screw |
| Protection Features | Overload cutoff, emergency stop, automatic break detection, upper/lower limit stop, over-travel and over-capacity safeguards |
| Software Functions | Multi-curve real-time display (force–displacement, force–time, displacement–time, stress–strain), statistical analysis (max/min/mean/trimmed mean/median/standard deviation/CPK), up to 7 test segments, 40 manual points, 120 auto-points, customizable multi-step control modes (constant speed, constant displacement, constant load, constant load rate, constant stress, constant stress rate, constant strain, constant strain rate), auto-return, auto-zero, bidirectional sensor polarity switching |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-1162 |
| Load Capacity Options | 20 / 50 / 100 / 200 / 500 / 1000 / 2000 kg |
| Temperature Control Range | 50–200 °C |
| Temperature Accuracy | ±1 °C (±1% at 100 °C) |
| Temperature Control Method | PID Auto-Tuning |
| Resolution | 100,000 counts (e.g., 0.005 kg for 500 kg load cell) |
| Force Accuracy | < ±0.5 % FS |
| Test Speed Range | 1–1000 mm/min (keyboard-adjustable) |
| Effective Test Space | 28 × 28 × 60 cm (W×D×H) |
| Machine Dimensions | 120 × 60 × 150 cm (W×D×H) |
| Weight | 230 kg |
| Power Supply | AC 220 V, 50–60 Hz, 4 A |
| Drive System | Dual Ball-Screw Actuation |
| Safety Protection | Upper/Lower Mechanical Limits + Emergency Stop Button |
| Data Storage | Up to 50 test results onboard |
| Output Interface | Standard RS-232 for printer or PC connection (optional software available) |
| Brand | PW (Yuelian) |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |

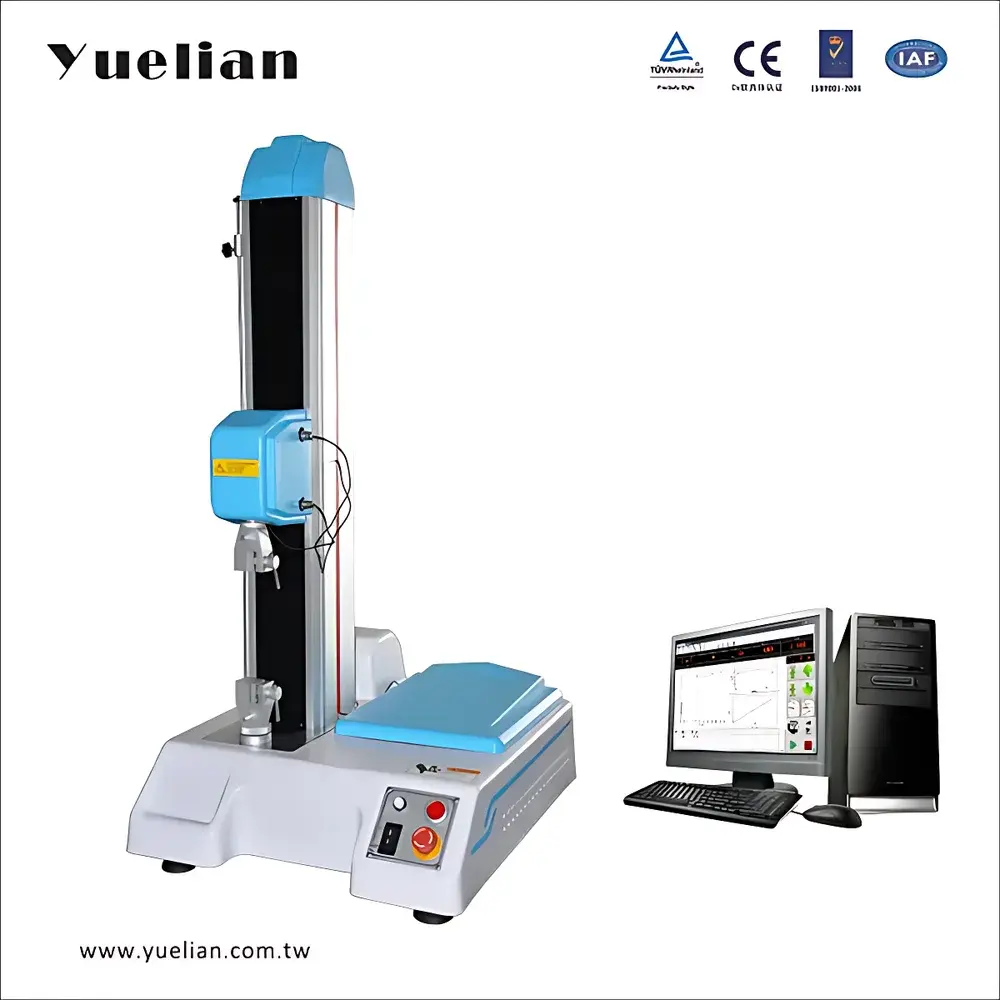

| Model | PW-US70 |
| Price Range | USD 1,400 – 14,000 (FOB) |
| Maximum Test Load | 10 N – 5 kN (dual-capacity configuration available with rapid tool-free transducer exchange) |
| Load Cell Accuracy | ±0.5% of full scale |
| Crosshead Speed Range | 0.01 – 500 mm/min (customizable) |
| Effective Travel | 450 – 1300 mm (configurable per model variant) |
| Force Resolution | 1/500,000 FS |
| Displacement Resolution | 1/500,000 mm |
| Data Acquisition Rate | 50 Hz |
| Control Mode | Full PC-based closed-loop servo control |
| Compliance | Designed to support ASTM E4, ASTM E8, ISO 6892-1, ISO 7500-1, and GB/T 228.1 test methodologies |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YL-S70 |
| Instrument Type | Electromechanical Tensile Testing Machine |
| Maximum Test Load | 5 kN |
| Load Measurement Range | 1000 Full Scale (FS) |
| Load Accuracy | ±0.1% FS |
| Travel Distance | 600 mm |
| Displacement Resolution | 0.01 mm |
| Drive System | AC Servo Motor |
| Transmission | Precision Ball Screw |
| Control Mode | PC-Based Closed-Loop Control |
| Data Acquisition Rate | 50 Hz |
| Load Cell Resolution | 1/500,000 |
| Displacement Resolution | 1/500,000 mm |
| Speed Range | 0.01–500 mm/min (adjustable) |
| Effective Test Space (W×D) | 140 mm |
| Dimensions (W×D×H) | 520 × 590 × 1061 mm |
| Net Weight | 45 kg |
| Power Supply | 220 V, 50–60 Hz, 400 W |
| Standard Interfaces | USB & RS-232 |
| Software Features | Multi-curve real-time plotting (Force-Displacement, Force-Time, Displacement-Time, Stress-Strain), auto-fracture detection, auto-return, zero-reset, bidirectional load cell calibration, statistical analysis (max/min/mean/trimmed mean/median/std dev/CPK), up to 120 auto-points and 40 manual points per test, 7 programmable test segments, GLP-compliant audit trail (optional) |
| Brand | YueLian (PW) |
|---|---|
| Origin | Guangdong, China |

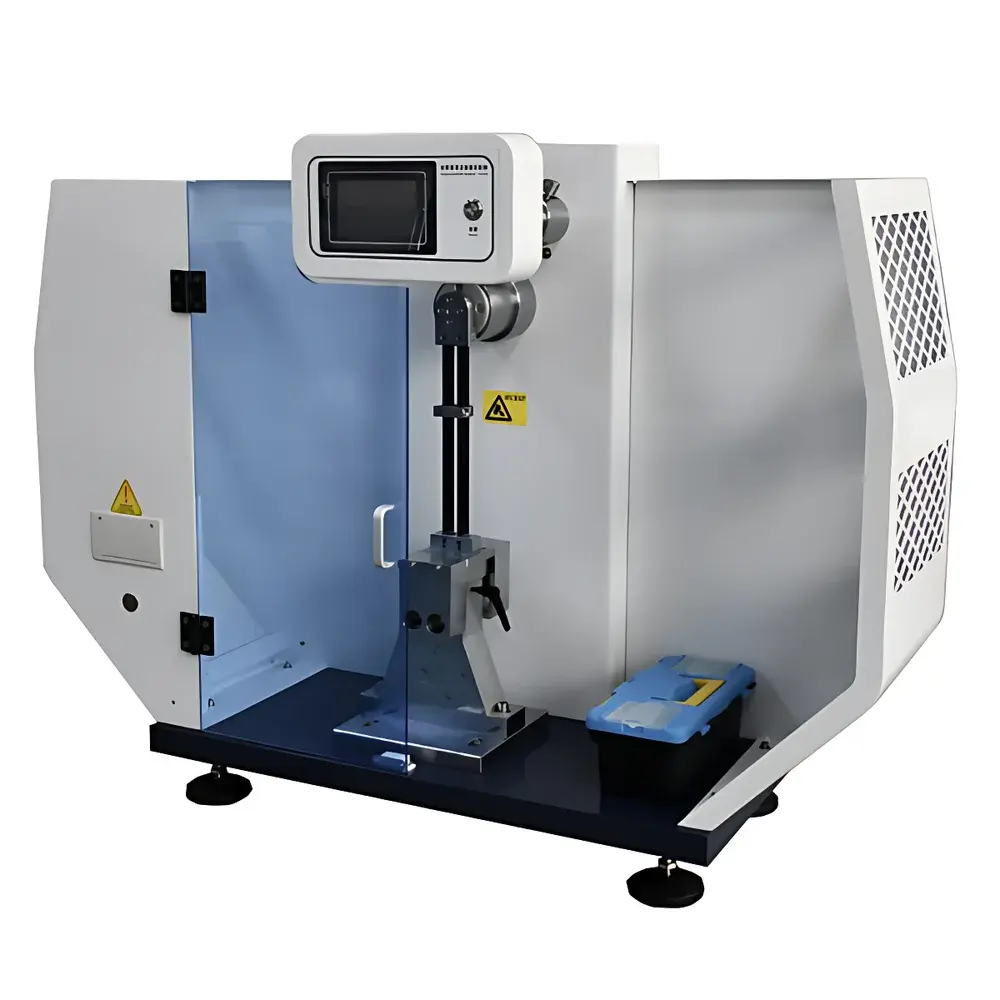

| Model | PW-3319T |
| Instrument Type | Digital Pendulum Impact Tester |
| Max Impact Energy | 22 J |
| Energy Resolution | 0.01 J |
| Angular Accuracy | ±0.01° |
| Impact Velocity | 3.4 m/s |
| Pendulum Lifting Angle | 150° |
| Clamp-to-Impact-Edge Distance | 22 mm |
| Display | Color Touchscreen (English/Chinese UI) |
| Data Storage | 24 test records with auto-averaging |
| Output | Built-in thermal printer |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Weight | 85 kg |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-S70 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity Options | 10 N to 5 kN (dual-range configuration available) |
| Control Mode | Full PC-based closed-loop control |
| Force Resolution | 1/500,000 of full scale |
| Force Accuracy | ±0.1% FS |
| Displacement Resolution | 1/500,000 mm |
| Sampling Rate | 2000 Hz |
| Effective Stroke | 450 mm |
| Speed Range | 0.001–500 mm/min (customizable) |
| Test Space | Ø140 mm |
| Dimensions (W×D×H) | 520 × 590 × 1061 mm |
| Net Weight | 45 kg |
| Power Supply | 220 V, 50–60 Hz |
| Motor Drive | AC Servo Motor |
| Transmission | Precision Ball Screw |
| Safety Features | Over-travel limit switch, overload protection, emergency stop button, automatic fracture detection |
| Software Functions | Multi-curve overlay, real-time force–displacement / force–time / displacement–time / stress–strain plotting, 7 programmable test segments, 40 manual data points, 120 auto-sampling points, statistical analysis (max/min/mean/trimmed mean/median/std dev/CPK), customizable test methods (constant speed, constant load, constant strain, ramped rates, multi-step nested cycles), bidirectional load cell polarity switching, auto-return-to-start, auto-zeroing |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-1152 |
| Instrument Type | Electronic Universal Tensile Testing Machine |
| Load Capacity Options | 1 kN, 2 kN, 5 kN, 10 kN, 20 kN, 50 kN, 100 kN (dual-range configuration available) |
| Force Resolution | 1/250,000 full scale |
| Force Accuracy | ≤ ±0.5% of reading |
| Crosshead Travel Resolution | 0.005 mm |
| Maximum Travel | 1000 mm |
| Test Width | 550 mm |
| Speed Range | 0.5–500 mm/min (programmable via PC) |
| Control Interface | PC-based with USB connectivity |
| Data Acquisition | Real-time sampling via dedicated interface board |
| Compliant Standards | ISO 7500-1, ASTM E4, EN 10002-1, EN 10002-2, DIN 51221, JIS B7721/B7733, GB/T 228.1, JJG 475 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-1123 |
| Instrument Type | Electromechanical Tensile Testing Machine |
| Load Capacity Options | 10 N to 20 kN (dual-range configuration available) |
| Force Resolution | 1/500,000 full scale |
| Force Accuracy | ±0.3% of reading |
| Crosshead Travel | 700 mm |
| Test Width | 420 mm |
| Speed Range | 0.01–1000 mm/min (programmable) |
| Displacement Resolution | 1/500,000 full scale |
| Control Interface | PC-based with USB connectivity |
| Power Supply | 220 V, 50/60 Hz, 10 A |
| Motor Drive | Servo motor with precision ball screw and synchronous belt transmission |
| Dimensions (W×D×H) | 72 × 52 × 130 cm |
| Weight | ~115 kg |
| Compliance Standards | ISO 7500-1, ASTM E4, EN 10002-1, GB/T 228.1, GB/T 2792, ASTM D3330, JIS B7721/B7733, DIN 51221 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-1152 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity Options | 1 kN, 2 kN, 5 kN, 10 kN, 20 kN, 50 kN, 200 kN (dual-range configuration available) |
| Force Resolution | 1/250,000 full scale |
| Force Accuracy | ≤ ±0.5% of reading |
| Displacement Resolution | 0.005 mm |
| Test Speed Range | 0.5–500 mm/min (PC-controlled) |
| Maximum Travel | 1000 mm |
| Test Width | 550 mm |
| Drive System | Servo motor with precision ball screw and timing belt transmission |
| Power Supply | 220 V, 50/60 Hz, 10 A |
| Rated Power | 1800 W |
| Dimensions (W×D×H) | 92 × 75 × 199 cm |
| Weight | ~800 kg |
| Compliant Standards | ISO 7500-1, ASTM E4, EN 10002-1, EN 10002-2, DIN 51221, JIS B7721/B7733, GB/T 228.1, JJG 475 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Region of Manufacture | Domestic (China) |
| Model | YL-S72 |
| Instrument Type | Electromechanical Tensile Testing Machine |
| Maximum Test Load | 5 kN |
| Load Measurement Range | 0.1–100% of Full Scale (FS) |
| Load Accuracy | ±0.5% of reading |
| Crosshead Travel | 600 mm |
| Displacement Resolution | 0.01 mm |
| Load Cell Options | 10 N to 5 kN (selectable) |
| Force Resolution | 1/250,000 full scale |
| Stroke Resolution | 0.005 mm |
| Test Speed Range | 0.01–1000 mm/min (programmable) |
| Test Width | 140 mm |
| Drive System | Servo Motor + Precision Ball Screw + Synchronous Belt |
| Power Supply | 220 V, 50/60 Hz, 10 A |
| Power Consumption | 400 W |
| Dimensions (W×D×H) | 500 × 520 × 1150 mm or 500 × 520 × 1500 mm |
| Net Weight | ~75 kg |
| Standard Accessories | One set of T-peel fixtures, USB cable, dedicated PC software |
| Optional | Customer-supplied Windows-based PC |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Domestic Equipment Manufacturer |
| Country of Origin | China |
| Model | S82 |
| Max Test Force | 5 kN |
| Force Measurement Range | 1000% FS |
| Force Accuracy | ±0.1% FS |
| Test Stroke | 600 mm |
| Displacement Resolution | 0.01 mm |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YL-D231 |
| Instrument Type | Electronic Tensile Testing Machine |
| Maximum Test Force | 20 kN |
| Force Measurement Range | 20 kN (Full Scale) |
| Force Accuracy | ±0.5% FS |
| Test Stroke | 800 mm |
| Displacement Resolution | 1/500,000 mm |
| Force Resolution | 1/500,000 FS |
| Speed Range | 0.01–500 mm/min (PC-controlled) |
| Test Width | 420 mm |
| Drive System | Servo Motor + Precision Ball Screw |
| Power Supply | 220 V, 50/60 Hz, 10 A |
| Dimensions (W×D×H) | 880 × 600 × 1600 mm |
| Weight | ~115 kg |
| Standard Accessories | One set of universal grips, PC-based control software, USB interface cable |
| Brand | Yuelian |
|---|---|
| Model | YL-1152 |
| Type | Electronic Universal Testing Machine |
| Capacity Options | 1–200 kN (dual-range configurable) |
| Force Resolution | 1/500,000 full scale |
| Force Accuracy | ±0.3% of reading |
| Crosshead Travel | 1000 mm |
| Test Width | 420 mm |
| Speed Range | 0.5–500 mm/min (programmable) |
| Displacement Resolution | 1/500,000 full scale |
| Control Interface | PC-based with USB connectivity |
| Compliance Standards | ISO 7500-1, ASTM E4, EN 10002-1, GB/T 228.1–2021, JJG 475–2008, DIN 51221, JIS B 7721/B 7733 |
| Power Supply | 220 V, 50/60 Hz, 10 A |
| Motor Drive | Servo motor + precision ball screw + timing belt transmission |
| Dimensions (W×D×H) | 108 × 85 × 205 cm |
| Weight | ~950 kg |
| Standard Accessories | One set of grips, proprietary test software, USB interface cable |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-1152 |
| Instrument Type | Electronic Tensile Testing Machine |
| Capacity Options | 1 kN, 2 kN, 5 kN, 10 kN, 20 kN, 50 kN, 100 kN, 200 kN (dual-range configuration available) |
| Force Resolution | 1/250,000 full scale |
| Force Accuracy | ≤ ±0.5% of reading |
| Travel Resolution | 0.005 mm |
| Crosshead Speed Range | 0.5–500 mm/min (PC-programmable) |
| Maximum Test Stroke | 1000 mm |
| Test Width | 550 mm |
| Control Interface | PC-based with USB connection |
| Data Acquisition | Real-time sampling via dedicated interface board |
| Compliant Standards | ISO 7500-1, ASTM E4, EN 10002-1, JIS B7721/B7733, DIN 51221, GB/T 228.1, JJG 475 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-S70 |
| Instrument Type | Electromechanical Tensile Tester |
| Load Capacity Options | 10 N, 20 N, 50 N, 100 N, 200 N, 500 N, 1 kN, 2 kN, 5 kN (dual-range configuration available) |
| Force Resolution | 1/500,000 full scale |
| Force Accuracy | ±0.1% FS |
| Displacement Resolution | 1/500,000 mm |
| Displacement Accuracy | ±0.1% FS |
| Data Acquisition Rate | 2000 Hz |
| Effective Stroke | 450 mm (customizable) |
| Speed Range | 0.001–500 mm/min (customizable) |
| Test Space Diameter | Ø140 mm |
| Control Mode | Full PC-based closed-loop control |
| Power Supply | 220 V AC, 50–60 Hz |
| Rated Power | 400 W |
| Net Weight | 66 kg |
| Dimensions (W×D×H) | 650 × 260 × 2625 mm |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YL-1123 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity Options | 10 N to 20 kN (dual-range configuration available) |
| Force Resolution | 1/500,000 full scale |
| Force Accuracy | ±0.3% of reading |
| Crosshead Travel Resolution | 1/500,000 |
| Test Speed Range | 0.01–1000 mm/min (programmable) |
| Maximum Travel | 700 mm |
| Test Width | 420 mm |
| Drive System | Servo motor with precision ball screw and synchronous belt transmission |
| Power Supply | 220 V, 50/60 Hz, 10 A |
| Rated Power | 400 W |
| Dimensions (W×D×H) | 720 × 520 × 1300 mm |
| Weight | ~115 kg |
| Compliance Standards | ISO 7500-1, ASTM E4, EN 10002-1, GB/T 228.1, GB/T 2792, ASTM D3330, JIS B7721/B7733, DIN 51221, JJG 475 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-1103S |
| Instrument Type | Electronic Tensile Testing Machine |
| Load Capacity Options | 10 N, 20 N, 50 N, 100 N, 200 N (dual-range configuration available) |
| Force Resolution | 1/500,000 full scale |
| Force Accuracy | ±0.3% of reading |
| Crosshead Travel | 500 mm |
| Test Width | 140 mm |
| Speed Range | 5–500 mm/min (PC-programmable) |
| Displacement Resolution | 1/500,000 full scale |
| Control Mode | PC-based closed-loop control |
| Stop Modes | Overload shutdown, emergency stop, automatic break-stop, upper/lower limit stop, auto-return |
| Power Supply | 220 V AC, 50/60 Hz, 5 A |
| Motor Type | Stepper motor with timing belt and precision ball screw drive |
| Rated Power | 180 W |
| Dimensions (W×D×H) | 1063 × 300 × 200 mm |
| Weight | ~45 kg |
| Standard Accessories | One set of peel fixtures, proprietary test software, USB interface cable |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-S70 |
| Instrument Type | Electronic Tensile Testing Machine |
| Maximum Test Load | 5 kN |
| Load Measurement Range | 1%–100% FS |
| Load Accuracy | ±0.1% of reading |
| Stroke | 450 mm |
| Displacement Resolution | 0.01 mm |
| Load Resolution | 1/500,000 full scale |
| Sampling Rate | 2000 Hz |
| Speed Range | 0.001–500 mm/min (adjustable) |
| Effective Test Width | 140 mm |
| Power Supply | 220 V, 50–60 Hz |
| Net Weight | 66 kg |
| Dimensions (W×D×H) | 650 × 260 × 1050 mm |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Regional Classification | Domestic (PRC) |
| Model | YL-D2 |
| Instrument Type | Electronic Universal Testing Machine |
| Max Test Load | 20 kN |
| Load Measurement Range | 0.4–20 kN (0.2–100% FS) |
| Load Accuracy | ±0.5% of reading (per ISO 7500-1 Class 0.5) |
| Test Stroke | 1000 mm |
| Displacement Resolution | 0.001 mm |
| Force Resolution | 1/500,000 full scale |
| Control Mode | PC-based closed-loop servo control |
| Speed Range | 0.01–500 mm/min (adjustable in real time) |
| Test Width | 420 mm |
| Power Supply | 220 V, 50/60 Hz, 10 A |
| Motor Type | AC Servo Motor with Precision Ball Screw and Synchronous Belt Drive |
| Dimensions (W×D×H) | 880 × 600 × 1600 mm |
| Weight | ~115 kg |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YL-1152 |
| Instrument Type | Electronic Universal Testing Machine |
| Load Capacity | 20 kN (20,000 N) |
| Force Resolution | 1/250,000 full scale |
| Force Accuracy | ≤ ±0.5% FS |
| Travel Resolution | 0.005 mm |
| Test Speed Range | 0.5–500 mm/min (PC-controlled) |
| Maximum Stroke | 1000 mm |
| Test Width | 550 mm |
| Drive System | Servo Motor + Precision Ball Screw |
| Power Supply | 220 V, 50/60 Hz, 10 A |
| Rated Power | 2500 W |
| Dimensions (W×D×H) | 108 × 85 × 205 cm |
| Weight | ~950 kg |
| Compliant Standards | ISO 7500-1, ASTM E4, EN 10002-1, GB/T 228.1, JJG 475, DIN 51221, JIS B7721/B7733, BS 1610 |
Show next
