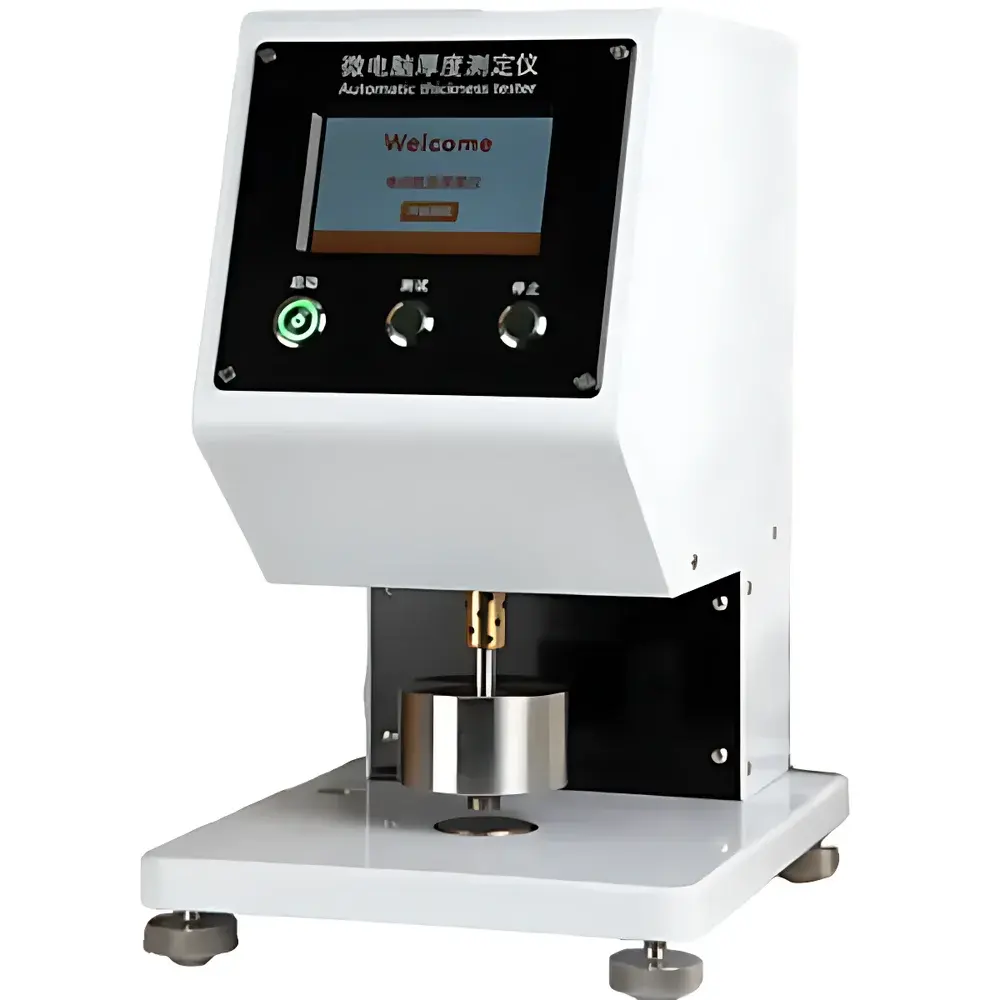

| Brand | Yuelian |
|---|---|
| Model | PW-TCK-T03 |
| Measurement Range | 0–10.0 mm |
| Accuracy | ±0.002 mm |
| Resolution | 0.001 mm |
| Parallelism Between Measuring Surfaces | ≤0.002 mm |
| Contact Area | 200 ± 5 mm² |
| Platen Boss Diameter | 16 ± 0.15 mm |
| Probe Descent Speed | 0.1–15.0 mm/s (adjustable) |
| Dwell Time | 0.1–5 s (adjustable) |
| Contact Pressure | 100 ± 2 kPa (GB/T), 50 ± 2 kPa (TAPPI) |
| Display | 5-inch color touchscreen (English/Chinese UI) |
| Output | Thermal printer + USB-B interface |
| Power Supply | 220 VAC, 50 Hz |
| Dimensions | 260 × 350 × 430 mm |
| Weight | ~45 kg |
