| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YL-S90 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity Options | 10 N, 20 N, 50 N, 100 N, 200 N, 500 N, 1 kN (dual-range configuration available) |
| Force Resolution | 1/500,000 full scale |
| Force Accuracy | ±0.30% of reading |
| Displacement Resolution | 1/500,000 full scale |
| Test Stroke | 500 mm / 800 mm (model-dependent) |
| Test Width | 110 mm |
| Speed Range | 0.1–500 mm/min (software-controlled, step motor-driven) |
| Drive System | Precision preloaded ball screw with timing belt transmission |
| Power Supply | 220 V AC, 50/60 Hz, 10 A |
| Power Consumption | 180 W |
| Dimensions (W×D×H) | 40 × 37 × 92 cm (standard) |
| Net Weight | 28 kg / 35 kg |
| Compliance Standards | GB/T 2792, ASTM D3330, GB/T 12914–1991, GB 13022–91, GB/T 1040–92, GB 2792–81, GB/T 14344–9, GB/T 2191–95, QB/T 2171–95, GB/T 10003–2008 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YL-1151 |
| Price Range | USD 14,000 – 42,000 (FOB Guangdong) |
| Instrument Type | Electromechanical Universal Testing Machine |
| Maximum Load Capacity | 100 kN (10 Ton-force) |
| Drive System | Precision Ball-Screw Actuator with AC Servo Motor |
| Control Mode | Closed-Loop Digital PID Control |
| Test Speed Range | 0.001 – 500 mm/min (adjustable in real time) |
| Displacement Resolution | ≤ 0.001 mm |
| Load Accuracy | ±0.5% of full scale |
| Crosshead Travel | 1,200 mm (standard) |
| Data Acquisition Rate | Up to 1,000 Hz |
| Compliance Standards | ASTM E4, ASTM E8/E8M, ISO 6892-1, GB/T 228.1-2021 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-1103B |
| Load Capacity Options | 10 N, 20 N, 50 N, 100 N |
| Travel Range | 300 mm |
| Test Speed | 1–500 mm/min (software-controlled) |
| Force Resolution | 1/250,000 full scale |
| Displacement Resolution | 0.005 mm |
| Dimensions | 92 × 30 × 38 cm |
| Weight | 36 kg |
| Power Supply | AC 220 V |
| Interface | USB |
| Sample Width Max | 110 mm |
| Sample Length Max | 400 mm |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YL-1161 |
| Pricing | Available Upon Request |
| Compliance | CNS 2276 |
| Operating Temperature Range | Up to 300 °C (configurable with optional furnace chamber) |
| Load Capacity | Standard configurations up to 50 kN |
| Control Mode | Standalone operation or PC-integrated via RS-232/USB |
| Data Acquisition Rate | Up to 100 Hz |
| Test Speed Range | 0.001–500 mm/min (adjustable) |
| Extensometer Compatibility | Dual-point clip-on and non-contact options supported |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-1125 |
| Instrument Type | Electronic Universal Testing Machine |
| Load Capacity Options | 10 N to 50 kN (dual-range configuration available) |
| Force Resolution | 1/500,000 full scale |
| Force Accuracy | ±0.3% of reading |
| Crosshead Travel | 1200 mm |
| Test Width | 420 mm |
| Speed Range | 0.01–1000 mm/min (programmable via PC) |
| Position Resolution | 1/500,000 full stroke |
| Control Interface | PC-based with USB connectivity |
| Compliance Standards | ISO 7500-1, ASTM E4, GB/T 228.1, GB/T 9341, GB/T 1449, ASTM D6109, JJG 475 |
| Power Supply | 220 V, 50/60 Hz, 10 A |
| Motor Drive | Servo motor with precision ball screw and timing belt transmission |
| Dimensions (W×D×H) | 92 × 62 × 199 cm |
| Weight | ~422 kg |
| Software | Windows-based test control & data analysis suite with MS Access database support, real-time curve plotting, multi-sensor input, GLP-compliant audit trail, and automated parameter calculation per ISO, ASTM, GB, JIS, DIN, EN standards |
| Brand | PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

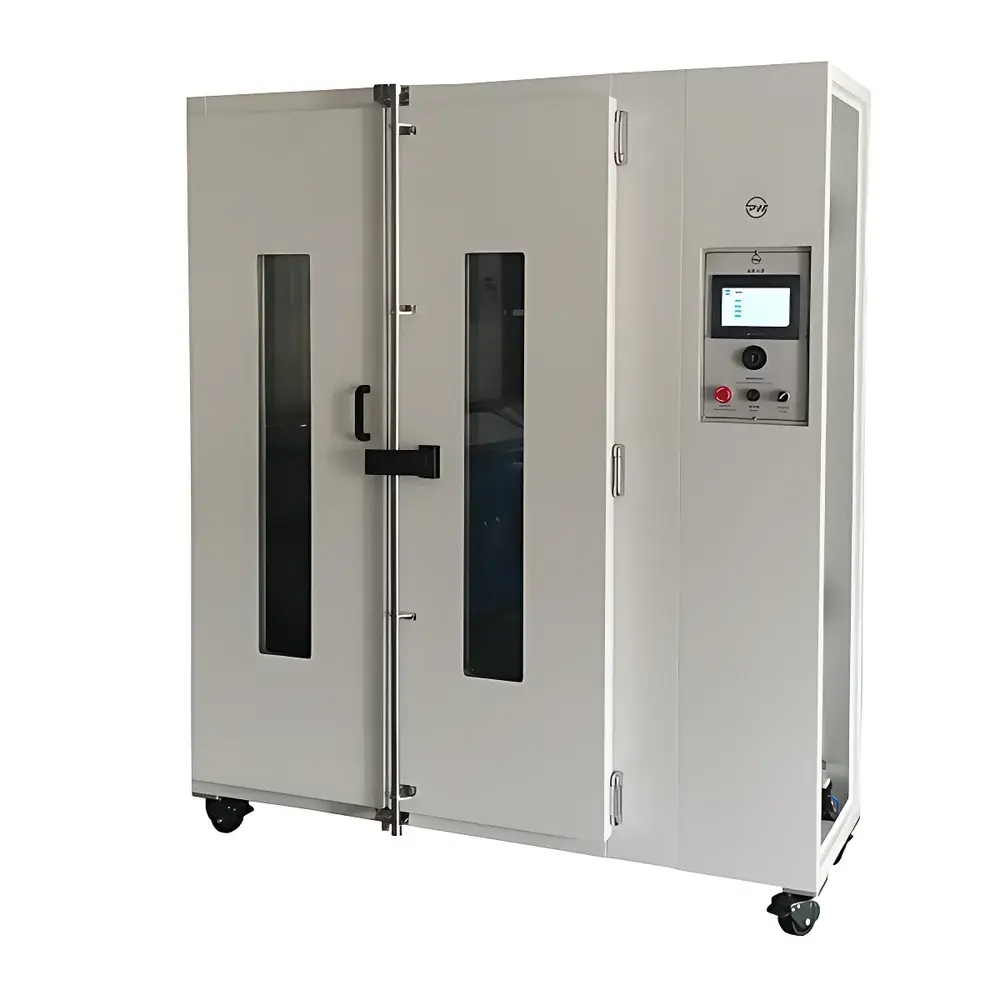

| Model | PW-HP60T2-90S |
| Price Range | USD 4,200 – 14,000 |
| Test Stations | 60 |
| Independent Timer per Station | Yes |
| Timer Range | 0–99999 min |
| Temperature Range | +5°C to 200°C |
| Standard Test Angle | 90° |
| Standard Weight | 1 kg (custom weights available) |
| Test Layers | 4 (15 stations per layer) |
| Max Specimen Size | 150 × 50 × 1.5 mm |
| Frame Material | Powder-coated and anodized steel sheet |
| Structural Damping | Dual-stage spring + polymer shock absorption with anti-drop guardrails |
| Plate Thickness | Support plate 1.5 mm, shelf plate 1.0 mm |
| Dimensions (W×D×H) | 170 × 70 × 199 cm |
| Net Weight | ~200 kg |
| Power Requirement | 5 kW |
| Finish | Pearl-white epoxy coating |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-1103 |
| Load Capacity Options | 10, 20, 50, 100, 200 N |
| Force Resolution | 1/250,000 full scale |
| Test Stroke | 400 mm |
| Stroke Resolution | 0.005 mm |
| Speed Range | 5–500 mm/min (computer-programmable) |
| Maximum Specimen Width | 110 mm |
| Dimensions (W×D×H) | 110 × 30 × 26 cm |
| Weight | 36 kg |
| Power Supply | Single-phase, 100–240 VAC, 3 A |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-1161 |
| Type | Electromechanical Universal Testing System with Environmental Chamber Integration |
| Temperature Range | –70 °C to +300 °C (optional chamber) |
| Load Capacity | Up to 50 kN (configurable per frame class) |
| Control Mode | Closed-loop servo-controlled displacement and load regulation |
| Compliance | ASTM E4, ASTM E8/E21, ISO 6892-1, ISO 7500-1, GB/T 228.1 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PW-YT2-128 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity Options | 10 N, 20 N, 50 N, 100 N, 200 N, 500 N, 1 kN, 2 kN (one selected) |
| Force Resolution | 1/500,000 full scale |
| Force Accuracy | ±0.3% of reading |
| Crosshead Travel | 650 mm |
| Test Width | Ø140 mm |
| Speed Range | 0.001–500 mm/min (computer-controlled) |
| Position Resolution | 1/500,000 full stroke |
| Drive System | Servo motor with precision ball screw and timing belt transmission |
| Power Consumption | 400 W |
| Electrical Supply | 220 V, 50/60 Hz |
| Temperature Range | -40°C to +150°C |
| Temperature Uniformity | ≤2°C |
| Temperature Stability | ±0.5°C |
| Temperature Deviation | ≤±2°C |
| Humidity Control (≤75% RH) | ±3% RH |
| Chamber Internal Volume | 128 L |
| Internal Dimensions (W×H×D) | 400 × 400 × 800 mm |
| External Dimensions (W×H×D) | 1000 × 2800 × 1200 mm |
| Warm-up/Cool-down Time (no load) | ~30 min to setpoint |
| Overshoot (no load) | ≤±3°C |
| Noise Level | ≤68 dB(A), per JB/T 9512–1999 |
| Standard Fixtures | 180° peel clamp, ring tack fixture |
| Software Interface | USB |
| Compliance | ASTM E4, ISO 7500-1, GB/T 16491, JJG 475–2008 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YL-1151 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity Options | 1 kN, 2 kN, 5 kN, 10 kN, 20 kN, 50 kN, 100 kN (dual-range configuration available) |
| Force Resolution | 1/500,000 full scale |
| Force Accuracy | ±0.3% of reading |
| Crosshead Travel Resolution | 1/500,000 |
| Test Speed Range | 0.5–500 mm/min (software-controlled) |
| Maximum Travel | 1000 mm |
| Test Width | 420 mm |
| Drive System | Servo motor with precision ball screw and timing belt transmission |
| Power Supply | 220 V, 50/60 Hz, 10 A |
| Rated Power | 1800 W |
| Dimensions (W×D×H) | 92 × 75 × 199 cm |
| Weight | ~800 kg |
| Standard Accessories | One set of universal grips, PC-based control software, USB interface cable |
| Compliance Standards | ISO 7500-1, ASTM E4, EN 10002-1, EN 10002-2, DIN 51221, JIS B7721/B7733, GB/T 228.1, GB/T 2792, GB/T 15598, GB/T 7753, GB/T 7754, GB/T 7124 (1986 & 2008), HG/T 2-163, JJG 475 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | PW-UCS128-40 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity Options | 10N, 20N, 50N, 100N, 200N, 500N, 1kN, 2kN (one selected) |
| Force Resolution | 1/500,000 |
| Force Accuracy | ±0.3% of full scale |
| Crosshead Travel | 650 mm |
| Test Width | Ø140 mm |
| Speed Range | 0.001–500 mm/min (programmable) |
| Position Resolution | 1/500,000 |
| Control Interface | PC-based software via USB |
| Drive System | Servo motor with precision ball screw and timing belt transmission |
| Power Consumption | 400 W |
| Input Voltage | 220 V, 50/60 Hz |
| Standard Fixtures | 180° peel fixture, ring tack fixture |
| Environmental Chamber Volume | 128 L |
| Internal Chamber Dimensions | 400 × 400 × 800 mm (W×H×D) |
| Temperature Range | −40 °C to +150 °C |
| Temperature Uniformity | ≤2 °C |
| Temperature Stability | ±0.5 °C |
| Temperature Deviation | ≤±2 °C |
| Humidity Control (if equipped) | ≤±3% RH at <75% RH |
| Stabilization Time (empty chamber) | ~30 min from ambient to setpoint |
| Overshoot (heating/cooling) | ≤±3 °C |
| Noise Level | ≤68 dB(A), per JB/T 9512–1999 |
| Construction | SUS#304 stainless steel interior |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | PW-UCS-128 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity Options | 10N, 20N, 50N, 100N, 200N, 500N, 1 kN, 2 kN (dual-range configurable) |
| Temperature Range | −70 °C to +150 °C |
| Force Resolution | 1/250,000 full scale |
| Force Accuracy | ≤ ±0.5% of reading |
| Displacement Resolution | 0.005 mm |
| Temperature Control | PID auto-tuning, stability error < ±1 °C |
| Temperature Display Precision | 0.1 °C |
| Test Speed | 0.5–500 mm/min (PC-programmable) |
| Test Space (Chamber) | 400 × 400 × 800 mm (W×D×H) |
| Crosshead Travel | 650 mm |
| Effective Test Width | Ø140 mm |
| Drive System | Servo motor + precision ball screw + timing belt |
| Power Supply | 220 V, 50/60 Hz, 30 A |
| Rated Power | 400 W |
| Net Weight | ~420 kg |
| Chamber Material | SUS304 stainless steel |
| Cooling System | High-efficiency compressor with eco-friendly refrigerant |
| Heating System | SUS304 finned heating elements |
| Air Circulation | Forced convection via axial fans |
| Safety Protections | Overload cutoff, emergency stop, specimen rupture auto-stop, upper/lower limit trip, thermal over-limit protection, compressor overheat protection, heater dry-run protection |
| Brand | Yuelian |
|---|---|
| Model | YLS90 |
| Type | Electromechanical Universal Testing Machine |
| Origin | Guangdong, China |
| Force Capacity Options | 10 N, 20 N, 50 N, 100 N, 200 N, 500 N, 1 kN (dual-range configuration available) |
| Load Resolution | 1/500,000 full scale |
| Load Accuracy | ±0.3% of reading |
| Displacement Resolution | 1/500,000 full stroke |
| Test Speed Range | 0.5–600 mm/min (programmable via PC) |
| Maximum Stroke | 500 mm |
| Test Width | 140 mm |
| Power Supply | 220 V AC, 50/60 Hz, 10 A |
| Motor | Stepper motor with precision ball screw drive |
| Rated Power | 180 W |
| Dimensions (W×D×H) | 400 × 300 × 230 mm or 400 × 300 × 300 mm |
| Weight | ~28 kg |
| Standard Accessories | One set of quick-change fixtures, PC software, RS-232 interface cable |
| Optional | External PC |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-1152 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity Options | 1 kN, 2 kN, 5 kN, 10 kN, 20 kN, 50 kN, 100 kN, 200 kN (dual-range configuration available) |
| Force Resolution | 1/500,000 full scale |
| Force Accuracy | ±0.3% of reading |
| Crosshead Travel | 1000 mm |
| Test Width | 420 mm |
| Speed Range | 0.5–500 mm/min (programmable via PC) |
| Displacement Resolution | 1/500,000 full scale |
| Control Interface | PC-based with USB connectivity |
| Data Acquisition & Analysis | Real-time force/displacement curve plotting, yield strength, ultimate tensile strength, elongation at break, modulus of elasticity, peel strength, tear strength, and shear strength calculation |
| Compliance Standards | ISO 7500-1, ASTM E4, ASTM D3330, EN 10002-1, GB/T 228.1, GB/T 2792, GB/T 7124, JJG 475 |
| Power Supply | 380 V, 50 Hz, 2 kW |
| Dimensions (W×D×H) | 108 × 85 × 205 cm |
| Weight | ~950 kg |
| Drive System | Servo motor + precision ball screw + synchronous timing belt |
| Standard Accessories | One set of universal grips, proprietary test software, USB interface cable |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YL-S72Q |
| Price Range | USD 7,000 – 14,000 (FOB) |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity Options | 10 N to 5 kN (dual-range configuration available) |
| Force Resolution | 1 part in 500,000 |
| Force Accuracy | Better than Class 0.5 per ISO 7500-1 |
| Stroke Resolution | 1 part in 500,000 mm |
| Data Acquisition Rate | 50 Hz |
| Effective Stroke | 1000 mm |
| Speed Range | 0.001–30,000 mm/min (customizable) |
| Test Space Width | 140 mm |
| Power Supply | 220 V, 50–60 Hz |
| Motor Drive | AC Servo Motor |
| Transmission | Precision Ball Screw |
| Dimensions (W×D×H) | 520 × 590 × 1530 mm |
| Net Weight | 55 kg |
| Power Consumption | 400 W |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YL-1209 |
| Price Range | USD 1,400–7,200 (based on configuration) |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity Options | 10 N, 20 N, 50 N, 100 N, 200 N, 500 N, 1 kN, 2 kN, 5 kN (dual-range configuration available) |
| Force Resolution | 1/500,000 full scale |
| Force Accuracy | ±0.3% of reading |
| Travel Resolution | 0.005 mm |
| Crosshead Speed Range | 0.5–500 mm/min (software-controlled) |
| Maximum Travel | 350 mm |
| Test Width | 420 mm |
| Control Interface | PC-based with USB connectivity |
| Data Acquisition | Real-time force/displacement sampling with curve plotting |
| Compliance Standards | ISO 7500-1, ASTM E4, DIN 51221, JIS B7721/B7733, EN 10002-1, GB/T 228.1, JJG 475 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PW-YT1-80 |
| Price Range | USD 2,800 – 14,000 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity Options | 10 N, 20 N, 50 N, 100 N, 200 N, 500 N, 1 kN (dual-range configuration available) |
| Temperature Range | −70 °C to +150 °C |
| Force Resolution | 1/250,000 full scale |
| Force Accuracy | ≤ ±0.5% FS |
| Displacement Resolution | 0.005 mm |
| Temperature Control | PID auto-tuning, stability deviation < ±1 °C |
| Temperature Display Resolution | 0.1 °C |
| Temperature Uniformity | ±1 °C (at working volume) |
| Test Chamber Dimensions (W×D×H) | 400 × 400 × 800 mm |
| Maximum Test Stroke | 650 mm |
| Test Width | Ø140 mm |
| Crosshead Speed Range | 0.5 – 500 mm/min (computer-programmable) |
| Drive System | Servo motor + precision ball screw + synchronous timing belt |
| Power Supply | 220 V AC, 50/60 Hz, 30 A |
| Rated Power | 400 W |
| Net Weight | ~420 kg |
| Cabinet Material | SUS304 stainless steel |
| Cooling System | High-efficiency compressor with eco-friendly refrigerant (R404A or equivalent) |
| Heating System | SUS304 finned electric heater |
| Air Circulation | Forced convection via axial fan |
| Safety Protections | Overload cutoff, emergency stop, specimen rupture auto-stop, upper/lower limit position stop, thermal over-limit protection, compressor overload protection, heater dry-run protection |
| Brand | Yuelian |
|---|---|
| Model | YL-1103 |
| Load Capacity | 1–50 kgf |
| Max. Specimen Length | 300 mm |
| Max. Specimen Width | 110 mm |
| Test Speed Range | 1–500 mm/min (adjustable) |
| Force Resolution | 1/10,000 of full scale |
| Displacement Resolution | 0.005 mm |
| Dimensions (W×D×H) | 92 × 30 × 32 cm |
| Weight | 36 kg |
| Power Supply | AC 110–220 V, 50/60 Hz |
| Standard Interface | USB |
| Included | Dedicated PC Software |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YL-1162 |
| Quotation | Available Upon Request |
| Load Capacity Options | 10N–10kN (dual-range configurable) |
| Temperature Range | –70 °C to +150 °C |
| Force Resolution | 1/250,000 full scale |
| Force Accuracy | ≤ ±0.5% FS |
| Displacement Resolution | 0.005 mm |
| Temperature Control Method | PID auto-tuning |
| Temperature Uniformity | ±1 °C |
| Temperature Display Resolution | 0.1 °C |
| Test Speed Range | 0.5–500 mm/min (PC-programmable) |
| Effective Test Stroke | 1300 mm |
| Test Width | 720 mm |
| Environmental Chamber Internal Dimensions | 500 × 480 × 650 mm (W×D×H) |
| Drive System | Servo motor + precision ball screw + timing belt |
| Power Consumption | 400 W |
| Input Voltage | 220 V, 50/60 Hz, 30 A |
| Net Weight | ~420 kg |
| Frame Material | SUS#304 stainless steel |
| Safety Protections | Overload cutoff, emergency stop, specimen rupture detection, upper/lower limit auto-stop, thermal overload protection for heater/compressor, temperature limiter |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-H03 |
| Instrument Type | Electronic Universal Testing Machine |
| Load Capacity Options | 10, 20, 50, 100, 200 N |
| Force Resolution | 1/250,000 full scale |
| Test Stroke | 400 mm |
| Stroke Resolution | 0.005 mm |
| Speed Range | 5–500 mm/min (computer-programmable) |
| Maximum Specimen Width | 110 mm |
| Dimensions (W×D×H) | 110 × 30 × 26 cm |
| Weight | 36 kg |
| Power Supply | Single-phase, 100–240 VAC, 3 A |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-S91 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity Options | 10N, 20N, 50N, 100N, 200N, 500N, 1 kN (dual-range configuration available) |
| Force Resolution | 1/500,000 full scale |
| Force Accuracy | ±0.3% of reading |
| Displacement Resolution | 1/500,000 full scale |
| Test Speed Range | 0.1–500 mm/min (computer-controlled, programmable) |
| Maximum Travel | 500 mm / 800 mm (depending on configuration) |
| Test Width | 110 mm |
| Drive System | Stepper motor + precision preloaded ball screw |
| Transmission Efficiency | >85% |
| Power Supply | 220 V, 50/60 Hz, 3 A |
| Power Consumption | 180 W |
| Dimensions (W×D×H) | 40×37×92 cm or 40×37×120 cm |
| Weight | 28 kg / 35 kg |
| Compliance Standards | GB/T 2792, ASTM D3330, GB/T 12914–1991, GB 13022–91, GB/T 1040–92, GB 2792–81, GB/T 14344–9, GB/T 2191–95, QB/T 2171–95, GB/T 10003–2008 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-S90 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity Options | 10 N, 20 N, 50 N, 100 N, 200 N, 500 N, 1 kN (dual-range configuration optional) |
| Force Resolution | 1/500,000 full scale |
| Force Accuracy | ±0.30% of reading |
| Displacement Resolution | 1/500,000 full stroke |
| Test Stroke | 500 mm / 800 mm (standard options) |
| Test Width | 110 mm |
| Speed Range | 0.1–500 mm/min (programmable via PC) |
| Drive System | Stepper motor + precision preloaded ball screw |
| Transmission Efficiency | >85% |
| Power Supply | 220 V, 50/60 Hz, 10 A |
| Power Consumption | 180 W |
| Dimensions (W×D×H) | 40×37×92 cm or 40×37×120 cm |
| Weight | 28 kg / 35 kg |
| Compliance Standards | GB/T 2792, ASTM D3330, GB/T 12914–1991, GB 13022–91, GB/T 1040–92, GB 2792–81, GB/T 14344–9, GB/T 2191–95, QB/T 2171–95, GB/T 10003–2008 |
| Interface | USB & RS-232 |
| Data Output | Real-time force/displacement curves, statistical reporting, CSV export |
| Standard Accessories | One set of quick-release grips, PC software, USB/RS-232 cable |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-1123 |
| Force Capacity Range | Not specified |
| Test Speed Range | Not specified |
| Load Cell Options | Interchangeable |
| Control Mode | Computer-servo controlled or standalone operation |
| Compliance | Designed for ASTM D638, D790, D412, ISO 527, ISO 178, ISO 37, GB/T 1040, GB/T 9341, GB/T 528 |
| Sample Holders | Modular fixture system (tensile grips, compression platens, bending fixtures) |
| Environmental Integration | Compatible with environmental chambers (e.g., temperature-controlled ovens) |
| Data Output | Stress–strain curves, peak load, yield strength, modulus, elongation at break, fracture energy |
| Brand | Yuelian |
|---|---|
| Model | PW-US120 |
| Type | Electromechanical Universal Testing Machine |
| Load Capacity | Up to 1 kN (optional ranges: 50 N, 100 N, 200 N, 500 N) |
| Temperature Range | Ambient to 200 °C |
| Chamber Dimensions | 400 × 400 × 800 mm (W × D × H) |
| Temperature Accuracy | ±1 °C |
| Drive System | Servo Motor with Precision Ball Screw & Timing Belt Transmission |
| Speed Range | 0.01–500 mm/min (software-programmable) |
| Force Measurement | ASTM E4-compliant load cell, 0.5% accuracy within 0.5–100% FS, 24-bit isolated ADC, resolution 1/1,000,000 FS |
| Displacement/Strain Measurement | High-resolution extensometer interface, 24-bit ADC, resolution 1/1,000,000 FS, 0.5% accuracy |
| Software | Multi-language (EN/CN), ISO/ASTM/GB/DIN/JIS standard-compliant test method library, CFR 21 Part 11-ready audit trail, Crystal Reports & .NET-based reporting, VBS-scriptable control and calculation engine |
| Safety Features | Dual mechanical end-limit switches, emergency stop button, thermal over-limit protection, overload and over-travel software safeguards |
| Power Supply | 220 V AC, 50/60 Hz, 30 A |
Show next
